Schematic and parts book for Janome 5000 5000. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOOK COVER PLATE W/O # (035) | 825018013 | Not Available |
| 2 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Bobbin holder sewing machine part or accessory For Janome Models: DC2010 | 627569209 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Genuine Janome/Elna Needle plate (unit) For: EL540S | 756604509 | $24.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Needle plate sewing machine part or accessory For Janome Models: 5000 SRV | 827010000 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Slide plate holder (left) sewing machine part or accessory For Janome Models: 4618LE | 825014008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Pan head small screw 2X2.3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 000169709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Needle Plate (L) Support Unit | 650602001 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | BOBBIN HOLDER STOPPER (LEFT) sewing machine part or accessory For Janome Models: 4618LE, 4623LE, ... | 822011109 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SET SCREW 4X6-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC8000, MC9000 | 000157003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Needle Plate Support Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 614... | 650603002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | FREE ARM COVER UNIT FOR 5000 sewing machine part or accessory For Janome Models: MC5000, MC5700, ... | 834601006 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Free arm cover sewing machine part or accessory For Janome Models: 5000 SRV | 834002001 | $6.60Read more |
| 21 | | Free arm cover set plate sewing machine part or accessory For Janome Models: 5000 SRV | 834003002 | $0.60Read more |
| 22 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | BED COVER FOR 5000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100 | 834501005 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Setscrew 2.6x6 (B) sewing machine part or accessory For Janome Models: 3160QDC, MC5000, MC5700, M... | 000160700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | WASHER POLISHED PLAIN 3-9 8 6 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000070104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Extension Table | 834502006 | Not Available |
| 29 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: COMBI-DX502, MC10000, MC30... | 820390006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Handle base plate (front) sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 834014006 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SET SCREW 4X8-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC80... | 000157106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Bobbin Winder Unit | 832626001 | Not Available |
| 4 |  | Bobbin Winder Unit for Memory Craft 8000 sewing machine part or accessory For Janome Models: MC50... | 830528006 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Spring sewing machine part or accessory For Janome Models: 5000 SRV | 830273003 | $0.60Read more |
| 6 |  | HINGE SCREW 9000 7500 7000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC... | 825220009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | De-clutch arm sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 830145005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | DECLUTCH ARM SPRING 9000 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625215005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | HINGE SCREW 9000 8K 7500 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625214004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | ZIG ZAG MOTOR UNIT sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100 | 834613001 | $147.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Photo-sensor unit sewing machine part or accessory For Janome Models: 5000 SRV | 834525005 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Photo-sensor | 830543007 | Not Available |
| 14 |  | Handle base plate (rear) sewing machine part or accessory For Janome Models: 5000 SRV | 832020009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Belt cover unit sewing machine part or accessory For Janome Models: 5000 SRV | 834619100 | $15.18Read more |
| 16 |  | EJECT STICKER sewing machine part or accessory For Janome Models: MC5000 | 831027003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | IDLER UNIT sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5000, MC5700, ... | 830631014 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Idler set plate sewing machine part or accessory For Janome Models: 5000 SRV | 830148019 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Motor Belt | 830276006 | Not Available |
| 24 |  | MOTOR UNIT 9000/8/5-080270300 sewing machine part or accessory | 080270300 | $133.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

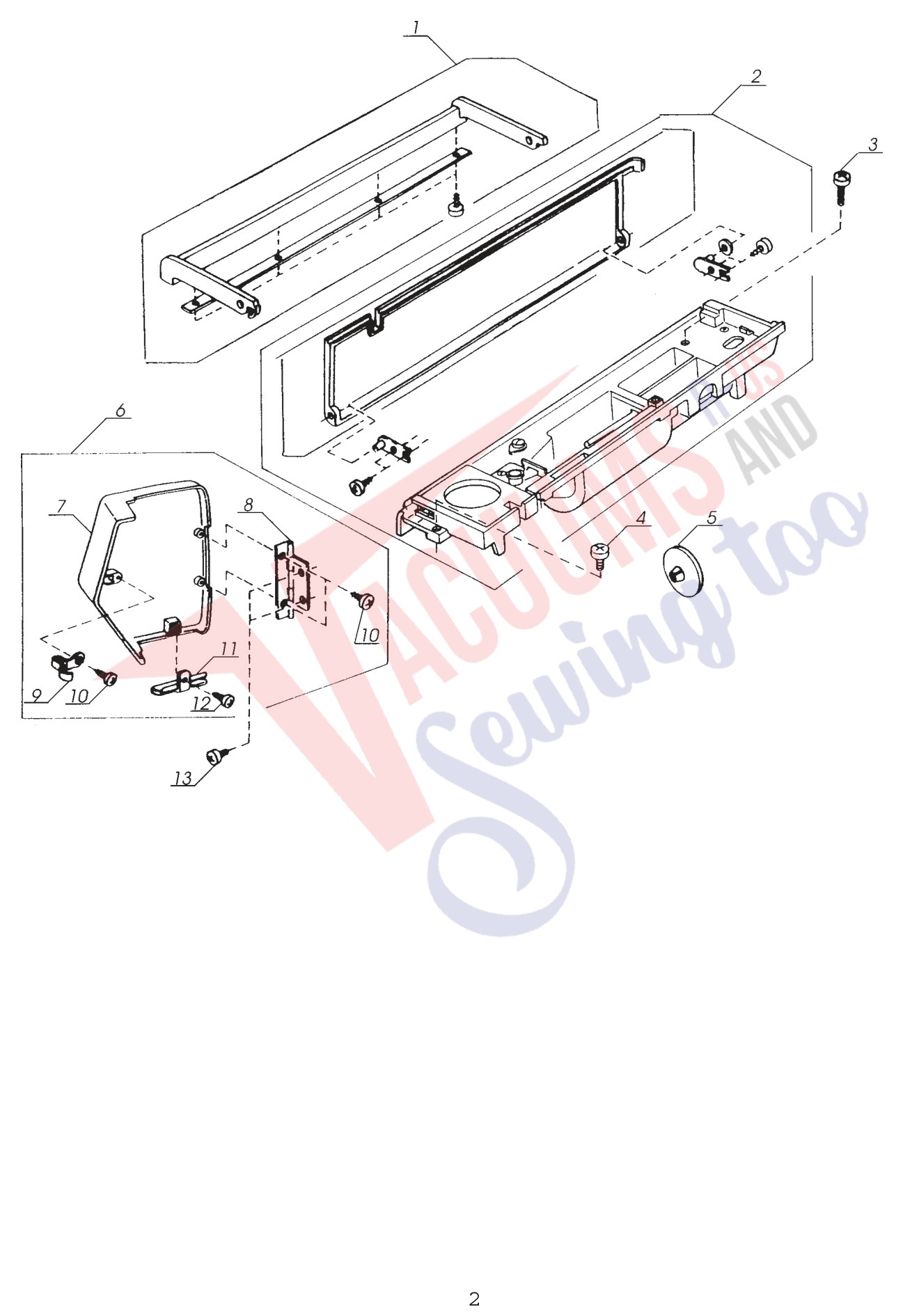

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle unit | 830527100 | Not Available |
| 2 | | TOP COVER FOR 5000 sewing machine part or accessory For Janome Models: MC5000 | 834503007 | $91.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: MC5000, MC8000, MC9000 | 000157405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | FACE PLATE FOR 5000 sewing machine part or accessory For Janome Models: MC5000, MC5700 | 834620001 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Face plate sewing machine part or accessory For Janome Models: 5000 SRV | 834013005 | $6.80Read more |
| 8 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS350... | 650025004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Thread Cutter for Memory Craft 9000 sewing machine part or accessory For Janome Models: MB-4, MC1... | 832508006 | $15.42Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | SET SCREW 4 X 6 DISCONTINUED sewing machine part or accessory For Janome Models: AQS2009, CE2200,... | 000077503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

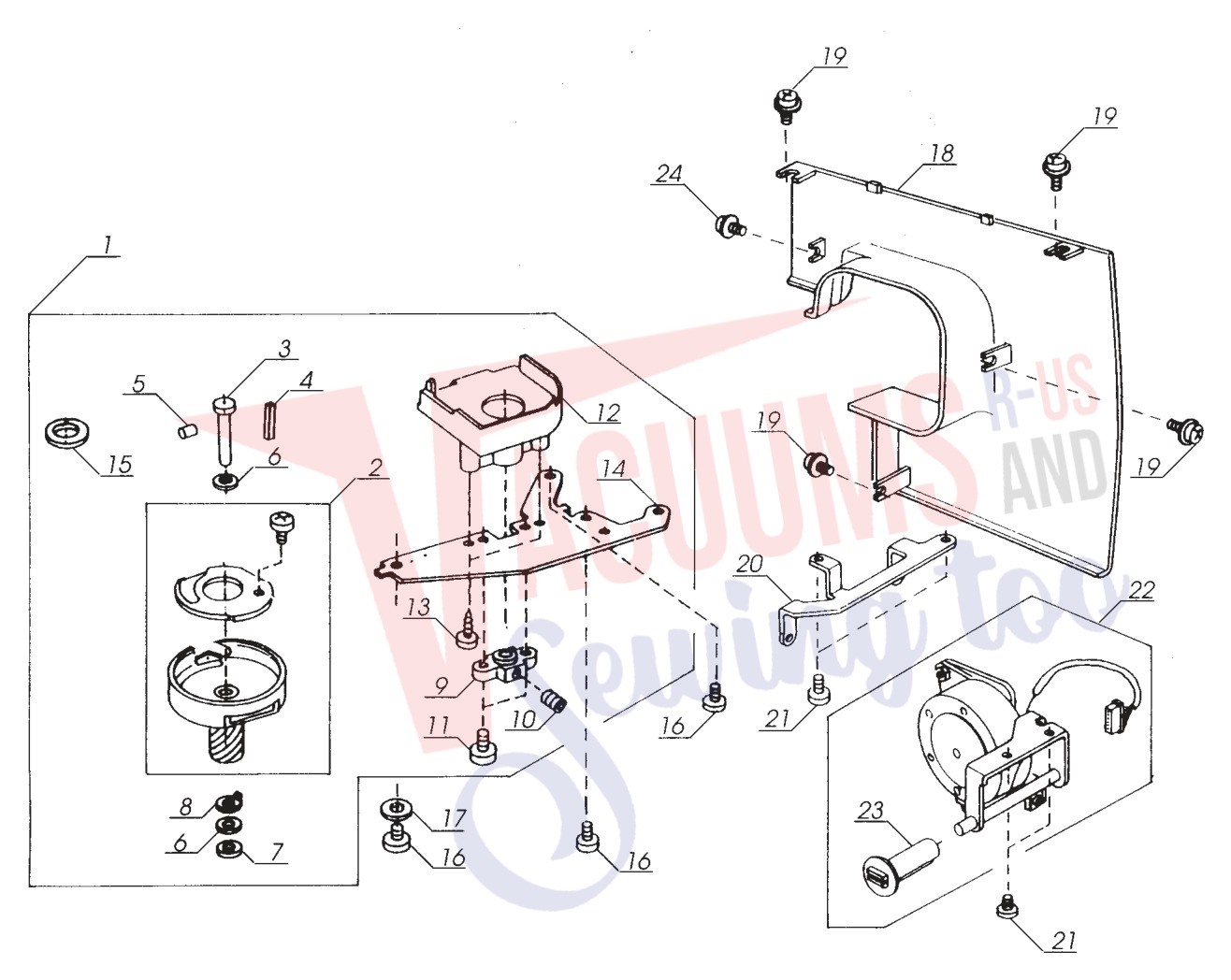

| # | Part image | Description | SKU | Price |
| 1 | | Hook race complete unit sewing machine part or accessory For Janome Models: 5000 SRV | 827614505 | $128.80Read more |
| 2 | | HOOK RACE BODY UNIT sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100 | 650623101 | $85.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Hook bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 50... | 823106002 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | BACK COVER FOR MC5000 sewing machine part or accessory For Janome Models: MC5000 | 834004003 | $25.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Cover fixing plate sewing machine part or accessory For Janome Models: 300E SRV | 834005004 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SET SCREW 4X8-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC80... | 000157106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | FEED MOTOR UNIT sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100 | 834611009 | $119.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Adjusting knob sewing machine part or accessory For Janome Models: 5000 SRV | 834031009 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

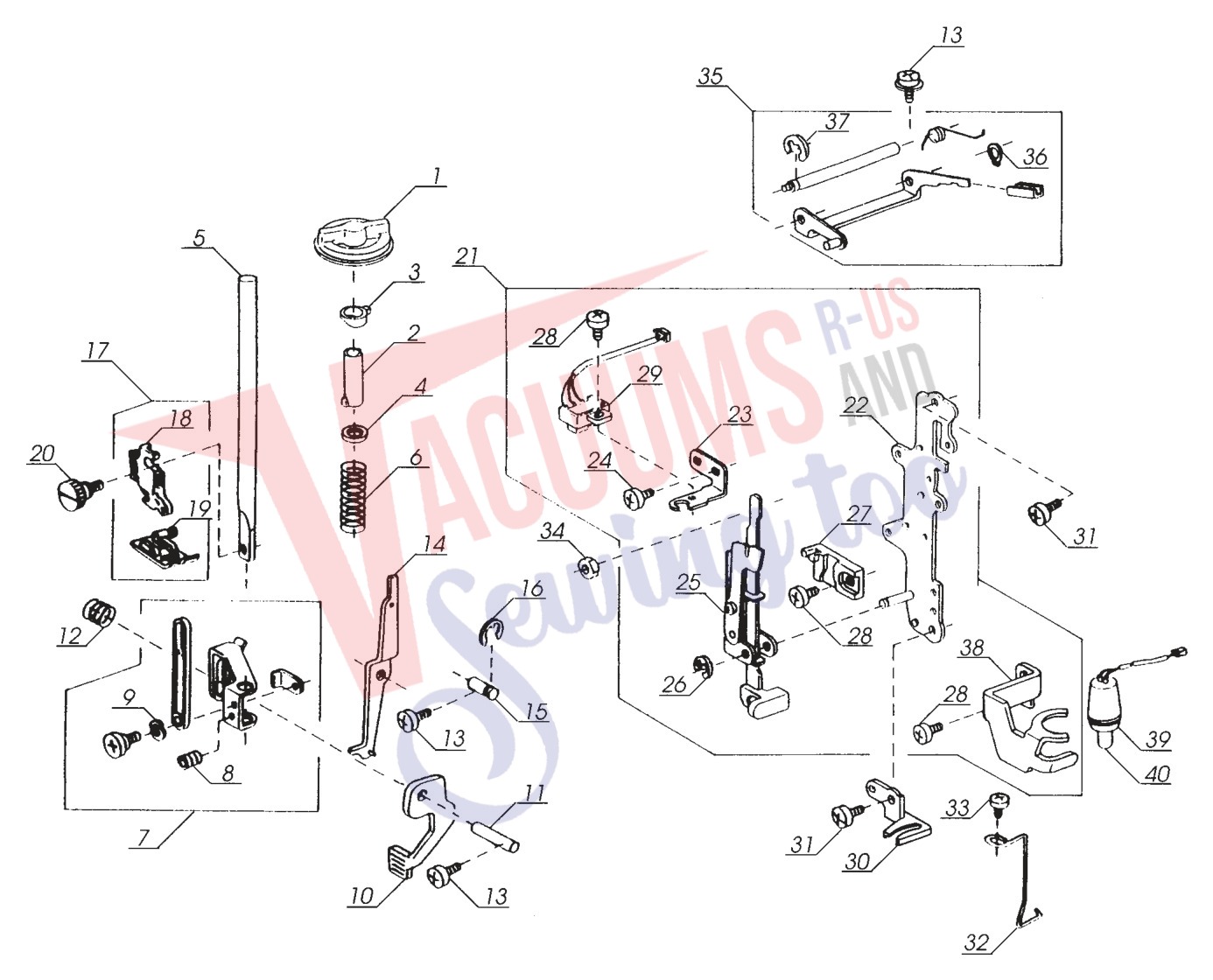

| # | Part image | Description | SKU | Price |
| 1 |  | NEEDLE BAR SUPPORTER UNIT 5000 sewing machine part or accessory For Janome Models: MC5000 | 834602007 | $91.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | NEEDLE BAR SUPPORTER sewing machine part or accessory For Janome Models: 525S, 6147, 625E, DE5018... | 751014006 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Needle bar (unit) sewing machine part or accessory For Janome Models: HD3000 (V2) | 751630004 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Thread position set plate sewing machine part or accessory For Janome Models: 525S, 6147, 625E, D... | 751607002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Threader positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 734101008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Threader positioning holder sewing machine part or accessory For Janome Models: 525S, 6147, 625E,... | 751016008 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | NEEDLE BAR CONN. STUD ME4018 sewing machine part or accessory For Janome Models: 521, 525S, 6147,... | 751047008 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Threader frame sewing machine part or accessory For Janome Models: HD3000 (V2) | 751017009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Threader bar sewing machine part or accessory For Janome Models: 5000 SRV | 751018000 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Threader shaft spring sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, ... | 827091005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Threader guide plate sewing machine part or accessory For Janome Models: 5000 SRV | 831009009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Threader Lever for Memory Craft 5000 sewing machine part or accessory For Janome Models: 2039SN, ... | 834015007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Threader Plate sewing machine part or accessory For Janome Models: HF3000, HF5024, Jem Gold Plus,... | 734515009 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set screw for attaching the threader plate. sewing machine part or accessory For Janome Models: 2... | 000105501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Threader frame spring sewing machine part or accessory For Janome Models: HD3000 (V2) | 751101001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Threader frame (lower) sewing machine part or accessory For Janome Models: HD3000 (V2) | 751019001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | NEEDLE BAR SUPPORTER SHAFT sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 50... | 650033005 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | SUPPORTER SHAFT SET PLATE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509... | 650034006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | SET SCREW 4X8-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC80... | 000157106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Zigzag width rod unit sewing machine part or accessory For Janome Models: 5000 SRV | 834618006 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Zigzag width rod sewing machine part or accessory For Janome Models: 5000 SRV | 834037005 | $2.00Read more |
| 31 | | Zigzag width arm bushing sewing machine part or accessory For Janome Models: 5000 SRV | 834036004 | $1.00Read more |
| 32 | | Zigzag width arm sewing machine part or accessory For Janome Models: 5000 SRV | 834017009 | $1.40Read more |
| 33 | | WASHER CORRUGATING 4/9 8 7 75 sewing machine part or accessory For Janome Models: 2003P, 3160QDC... | 000116103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 35 | Not Available | Thread Tension Unit | 834603008 | Not Available |
| 36 | | Thread tension unit sewing machine part or accessory For Janome Models: 5000 SRV | 834508002 | $44.85Read more |
| 37 | | Solenoid unit sewing machine part or accessory For Janome Models: 5000 SRV | 834604009 | $37.49Read more |
| 38 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | SET SCREW 4X14-9 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC9000 | 000157508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Pressure adjusting dial sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5... | 830026010 | $1.40Read more |
| 2 |  | PRESSER BAR BUSHING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 830027000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | PRESSER ADJUSTING CAM 9000 800 sewing machine part or accessory For Janome Models: MC10000, MC100... | 830028001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER 9000 8000 DISCONTINUED sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 102061008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | PRESSER BAR 9000 8000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 830029002 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | PRESSER BAR SPRING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC10001... | 830030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Presser bar supporter unit sewing machine part or accessory For Janome Models: MC10000, MC300E, M... | 830586024 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Washer sewing machine part or accessory For Janome Models: 405, MC10000, MC10001, MC11000, MC1100... | 000116608 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Presser bar lifter sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC300E... | 830035012 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000172200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Tension releasing lever sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 830037025 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Thread release lever pin sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 830338007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Presser Foot Unit (top load high shank) sewing machine part or accessory For Janome Models: MC110... | 832501009 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Genuine Janome/Elna Presser Foot Holder (top load high shank 7mm) For: MC11000 Special Edition,... | 830504017 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Janome/Elna Thumb Screw For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC10000, MC10001, MC... | 825252000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Front bracket unit sewing machine part or accessory For Janome Models: 5000 SRV | 834605000 | $35.80Read more |
| 22 |  | Front bracket sewing machine part or accessory For Janome Models: 5000 SRV | 834022007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Sensor set plate sewing machine part or accessory For Janome Models: 5000 SRV | 831005005 | $0.80Read more |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | BUTTONHOLE LEVER UNIT MC8000 sewing machine part or accessory For Janome Models: MC5000, MC8000 | 830583009 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 27 |  | BH lever guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 830057010 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Photo interrupter unit sewing machine part or accessory For Janome Models: 4000 SRV | 830510005 | $16.80Read more |
| 30 |  | Lamp set plate sewing machine part or accessory For Janome Models: 5000 SRV | 834047008 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | THREADER GUIDE sewing machine part or accessory THREADER GUIDE | 834016008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Arm thread guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 830039027 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SET SCREW 4X8-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC80... | 000157106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Pressure functioning arm unit sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 830585012 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Lamp socket unit sewing machine part or accessory For Janome Models: 5000 SRV | 830538113 | $20.00Read more |
| 40 | Not Available | LIGHT BLUB | 000009906 | Not Available |
| # | Part image | Description | SKU | Price |

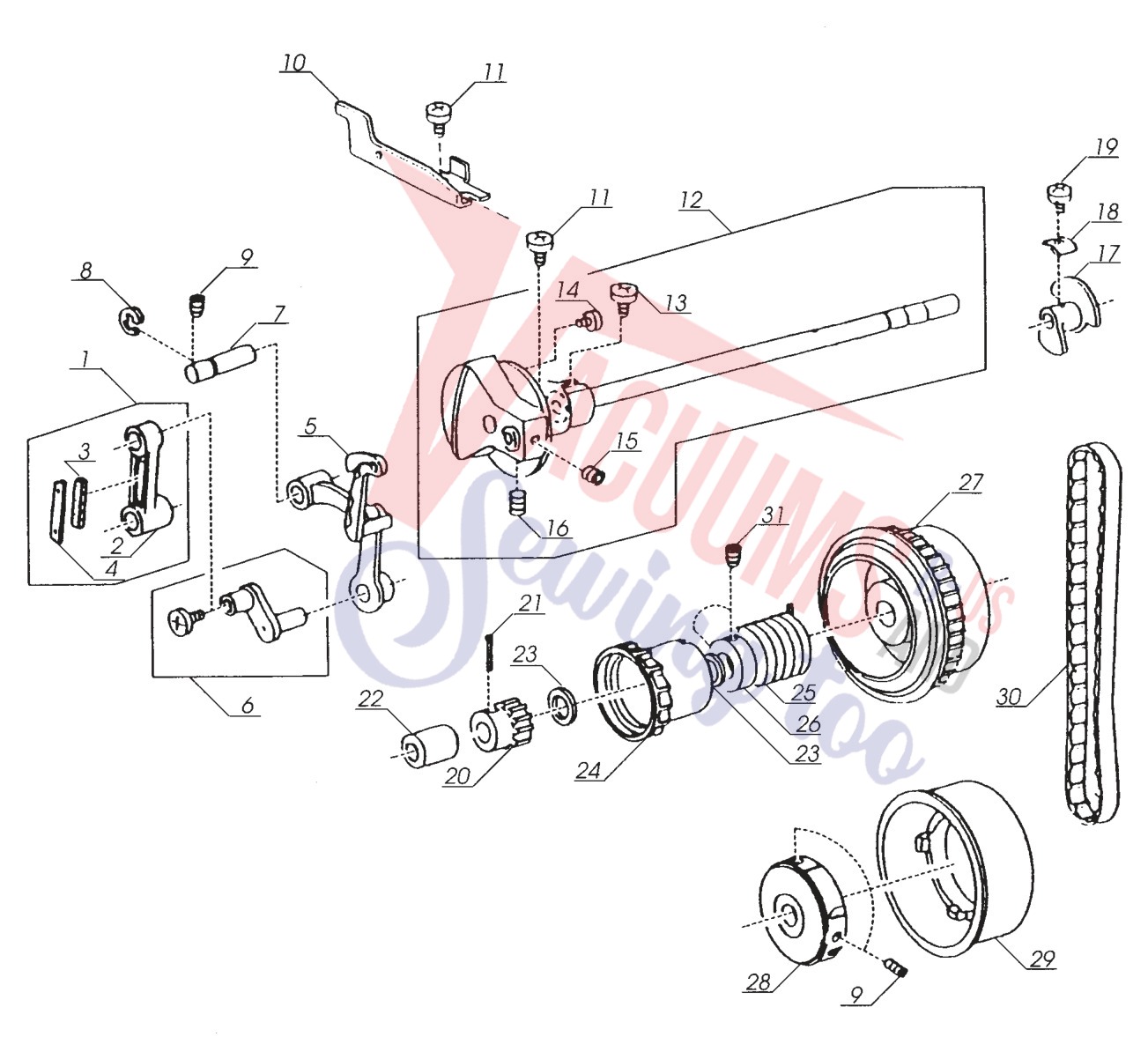

| 1 | Not Available | Needle bar crank rod unit | 660607006 | Not Available |
| 2 | Not Available | Needle bar crank rod | 660039001 | Not Available |
| 3 | Not Available | Felt | 660040006 | Not Available |
| 4 | Not Available | Spring | 660041006 | Not Available |
| 5 | Not Available | Thread take-up lever unit | 820611108 | Not Available |
| 6 | Not Available | Needle bar crank pin unit | 662612009 | Not Available |
| 7 | Not Available | Pin | 660062003 | Not Available |
| 8 |  | SNAP RING E-9 8 7 4(000002806) sewing machine part or accessory For Janome Models: 531, 7330, AQS... | 000001702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Cord guide (1) | 830226011 | Not Available |
| 11 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000167106 | $0.80Read more |
| 12 | Not Available | Upper shaft unit | 832616006 | Not Available |
| 13 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000103609 | $0.80Read more |
| 14 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Upper shaft shielding plate | 830096009 | Not Available |
| 18 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000081006 | $0.80Read more |
| 20 | | UPPER SHAFT TIMING GEAR sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 830341003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 23 | | WASHER FOR MC10000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUIL... | 000038801 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Declutch releasing ring | 663066002 | Not Available |
| 25 | Not Available | Spring | 663067004 | Not Available |
| 26 | Not Available | Clutch ring | 663066003 | Not Available |
| 27 | Not Available | Belt wheel | 663068006 | Not Available |
| 28 |  | Balance Wheel Base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 830286009 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Hand wheel | 663061116 | Not Available |
| 30 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| # | Part image | Description | SKU | Price |

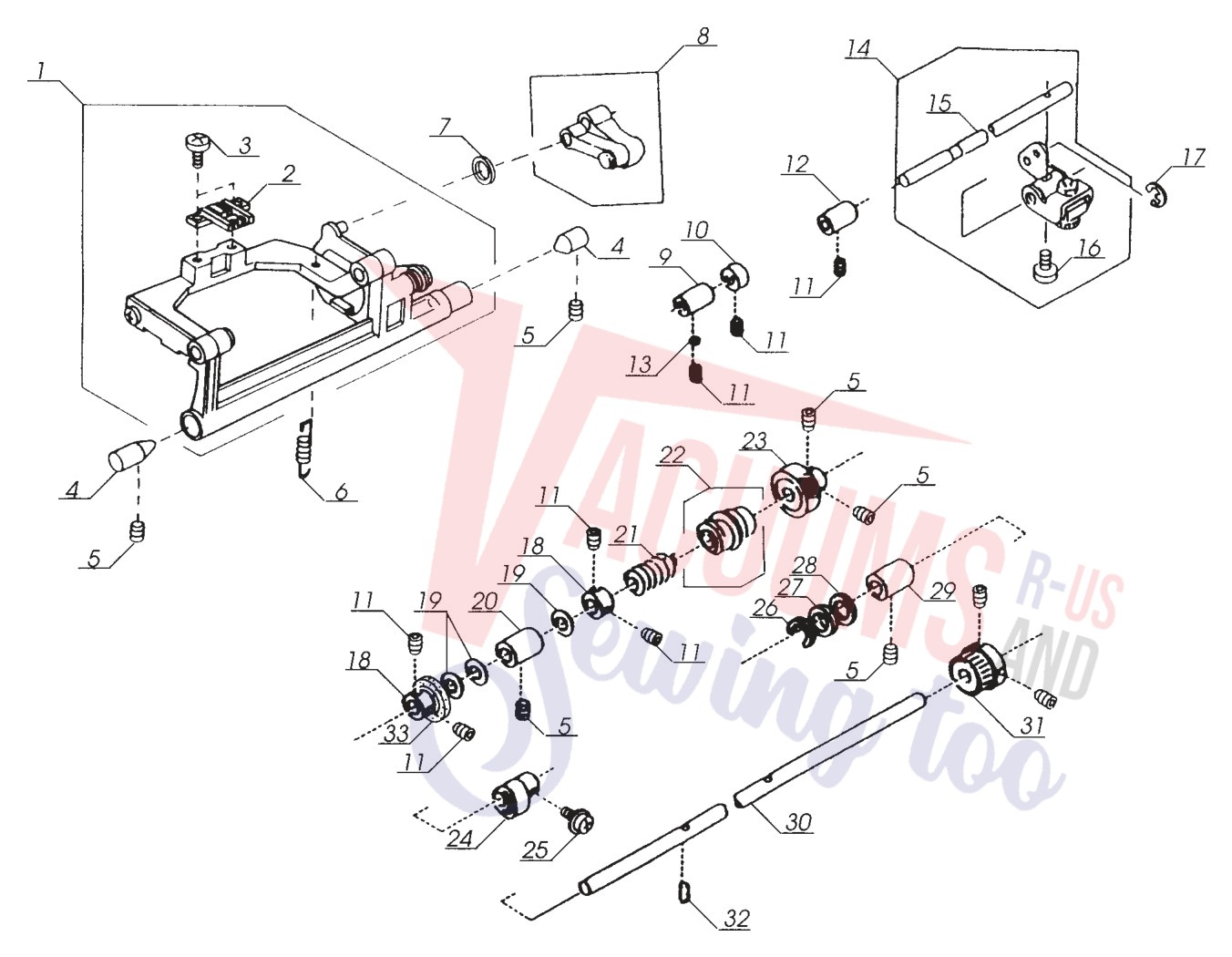

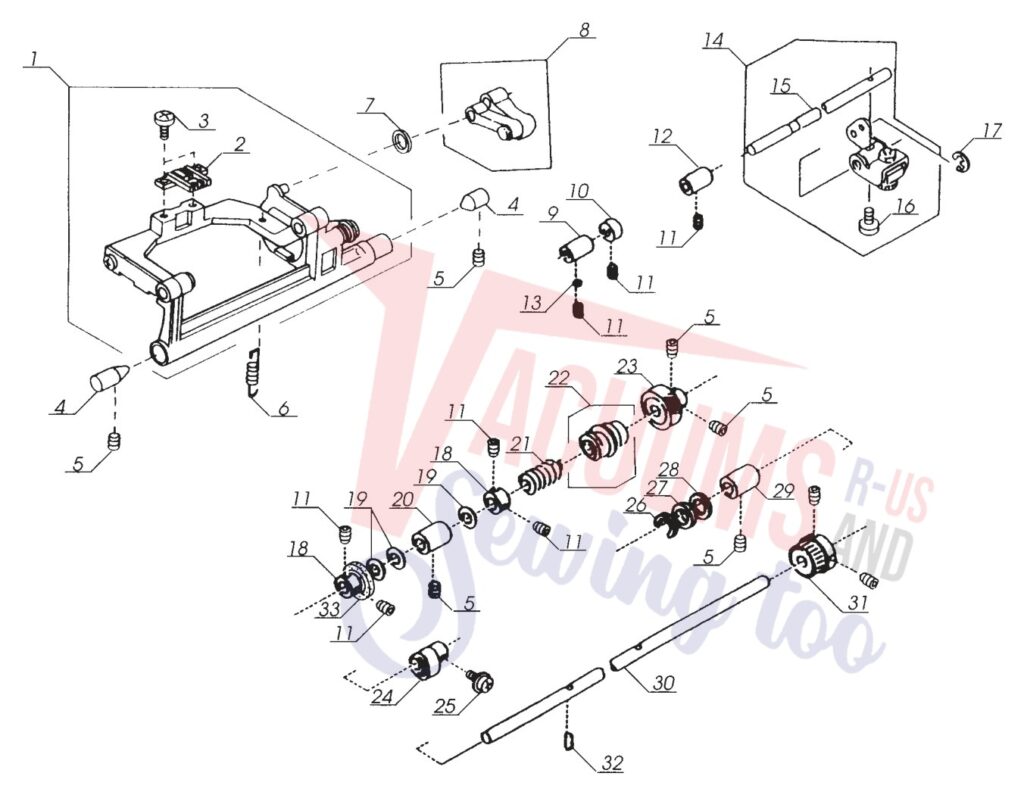

| 1 |  | FLAT FEED SHAFT FOR 5000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100 | 834527007 | $46.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Feed Dog for Memory Craft 4000 and ME 4123 sewing machine part or accessory For Janome Models: MC... | 827041000 | $31.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 6 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | FEED SHAFT FOR 5000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100 | 834608003 | $20.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed shaft sewing machine part or accessory For Janome Models: 5000 SRV | 825106008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Setscrew 3x12 sewing machine part or accessory For Janome Models: 203, 234D, 509, 521, 525S, 625E... | 000081500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 18 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | FEED LIFTING CAM UNIT FOR 5000 sewing machine part or accessory For Janome Models: MC5000, MC5700... | 834615003 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | FEED LIFT CAM 5000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 751148000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Lower shaft sewing machine part or accessory For Janome Models: 5000 SRV | 834027013 | $6.00Read more |
| 31 | | LOWER SHAFT TIMING GEAR 9000/8 sewing machine part or accessory For Janome Models: MC10000, MC100... | 822113009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

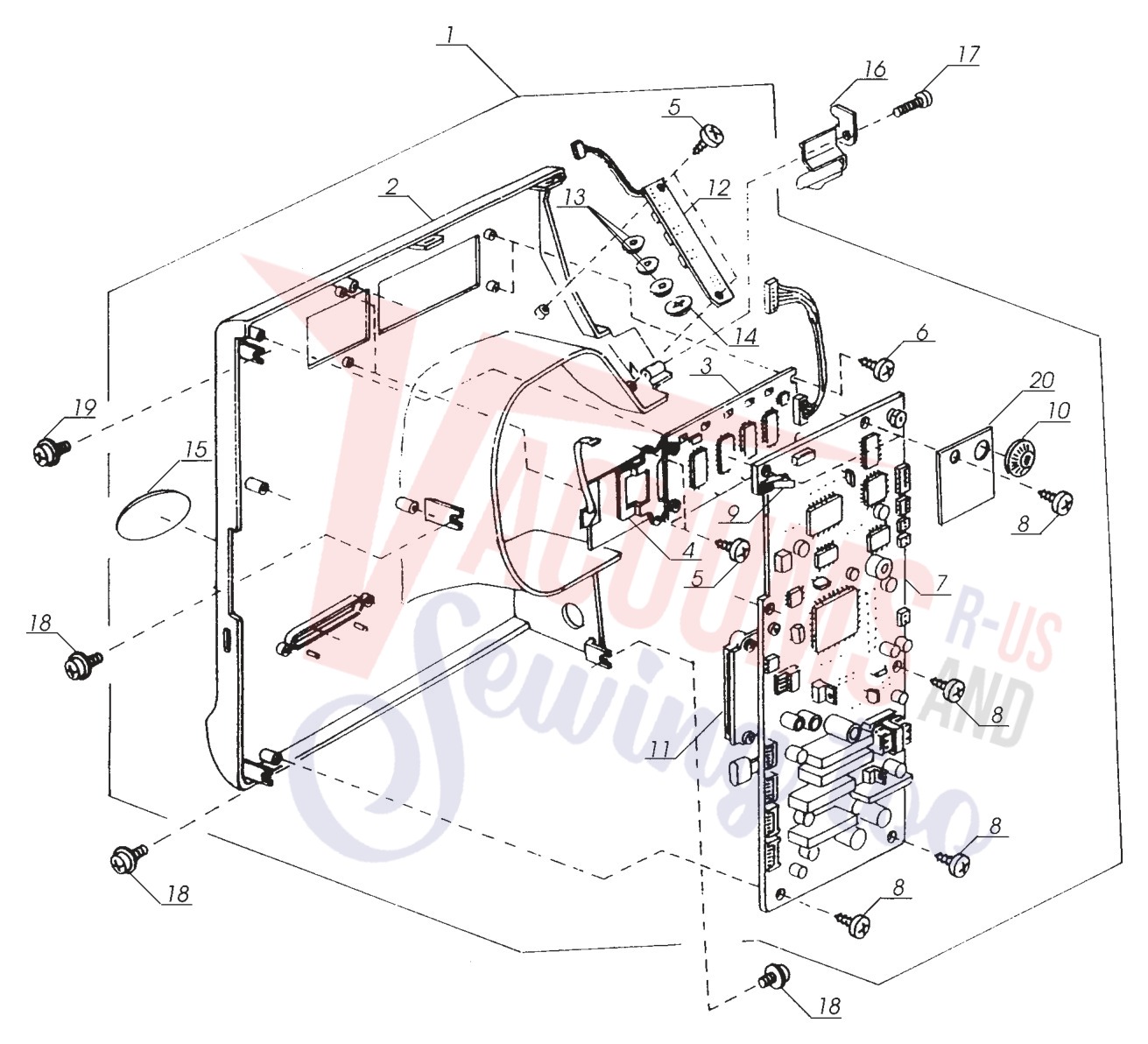

| 1 | Not Available | Front Cover Unit | 834606001 | Not Available |
| 2 | Not Available | Front Panel | 834023019 | Not Available |
| 3 |  | LCD Board for Memory Craft 5000 sewing machine part or accessory For Janome Models: MC5000 | 834607002 | $235.75Read more |
| 4 |  | LCD set plate sewing machine part or accessory For Janome Models: 5000 SRV | 834025000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000150408 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | A BOARD UNIT 5000 834511307 | 834511008 | Not Available |
| 8 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Switch cover unit sewing machine part or accessory For Janome Models: 5000 SRV | 832608018 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | LCD adjusting knob | 832053001 | Not Available |
| 11 |  | Card guide (1) sewing machine part or accessory For Janome Models: 5000 SRV | 832571103 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | “F” board unit sewing machine part or accessory For Janome Models: 5000 SRV | 834512010 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Button (2) sewing machine part or accessory For Janome Models: 5000 SRV | 832062003 | $1.60Read more |
| 14 | | Button sewing machine part or accessory For Janome Models: 5000 SRV | 834026001 | $1.20Read more |
| 15 | | Emblem sewing machine part or accessory For Janome Models: 5000 SRV | 834050004 | $9.40Read more |
| 16 |  | Arm thread guide (lower) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 825183010 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SET SCREW 3.5X25-8 9 7 7500 sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 000096508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SET SCREW 3X4-9 7 7500 5500 41 sewing machine part or accessory For Janome Models: 134D, 203, 234... | 000115401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Insulating paper sewing machine part or accessory For Janome Models: 5000 SRV | 834051005 | $0.00Read more |
| # | Part image | Description | SKU | Price |

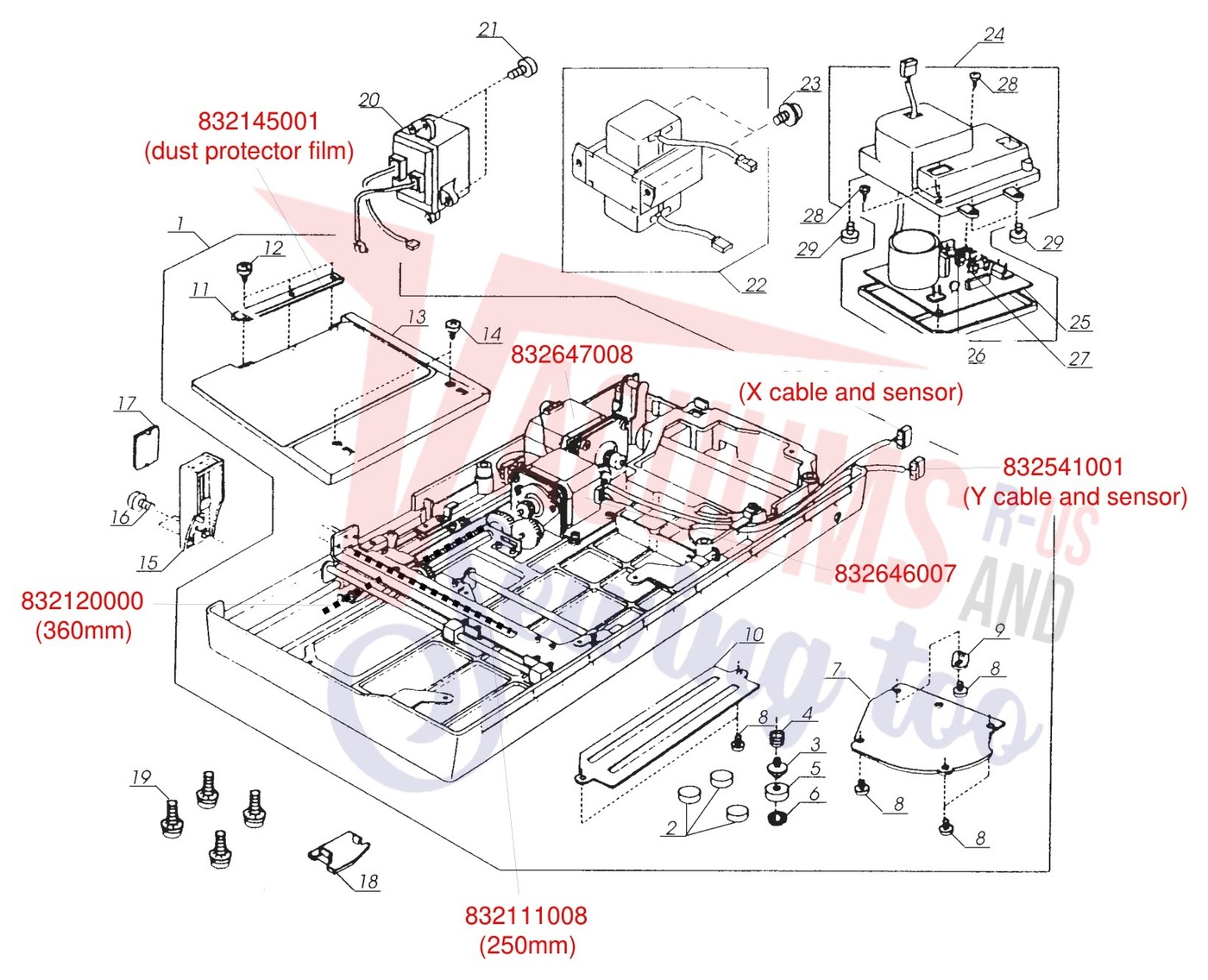

| 1 | Not Available | Base Unit | 834614002 | Not Available |
| 2 |  | Rubber Cushion sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 830150003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Adjusting Screw | 820350004 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring | 820351005 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Cushion sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900CP, DX2015, MC100... | 605074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER CS RING 9/8/7 5500 750 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 813123004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Base lid (2) sewing machine part or accessory For Janome Models: 5000 SRV | 832147014 | $2.20Read more |
| 8 |  | Set Screw for Memory Craft 9000 and 8000 sewing machine part or accessory For Janome Models: MC10... | 830267004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Washer sewing machine part or accessory For Janome Models: 5000 SRV | 832175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Base lid (1) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC300E... | 832146002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Carriage window frame unit sewing machine part or accessory For Janome Models: 5000 SRV | 832562008 | $14.20Read more |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Base cover unit | 832630008 | Not Available |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | CARRIAGE PLATE FOR 5000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100 | 834519006 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | PAN HEAD SMALL SCREW DISCONTIN sewing machine part or accessory For Janome Models: COMBI-10, MC50... | 000077112 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | COVER LID FOR MC 9000 (SMALL) sewing machine part or accessory For Janome Models: MC5000, MC5700,... | 832150009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Base Lid Cap for Memory Craft 9000 and 9500 sewing machine part or accessory For Janome Models: M... | 832168000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Screw with toothed washer6X35 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 000127107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Machine socket unit | 830575112 | Not Available |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | TRANSFORMER UNIT FOR 9000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 832558012 | $99.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000172107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | C BOARD COMPLETE UNIT sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100,... | 832625309 | $104.00Read more |
| 25 | | “C” board unit for 120V for U.S.A. sewing machine part or accessory For Janome Models: 5000 SRV | 832557103 | $71.80Read more |
| 26 |  | Genuine Janome/Elna 3.15 amp Fuse(Slow Blow) For: HF3000, MC2400, MC3000, MC3500, MC4400, MC480... | 000182177 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | FUSE TSC-2.5A 9000 7500 6000 sewing machine part or accessory For Janome Models: MC3500, MC4400, ... | 000117908 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
