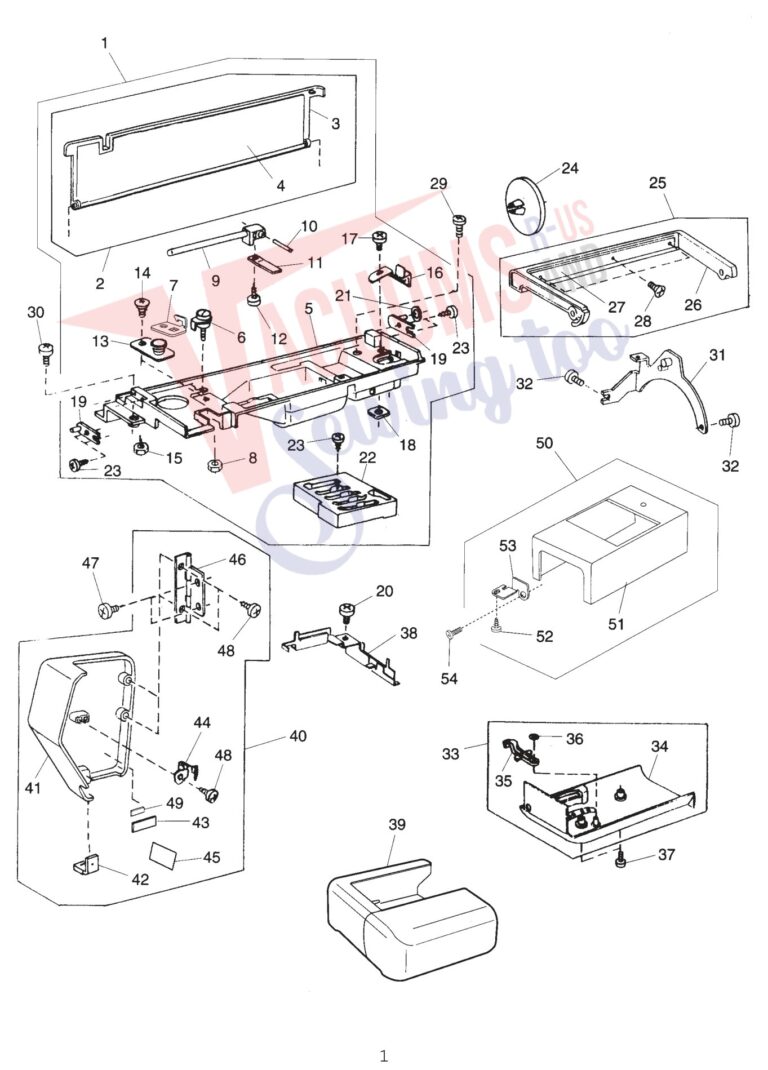

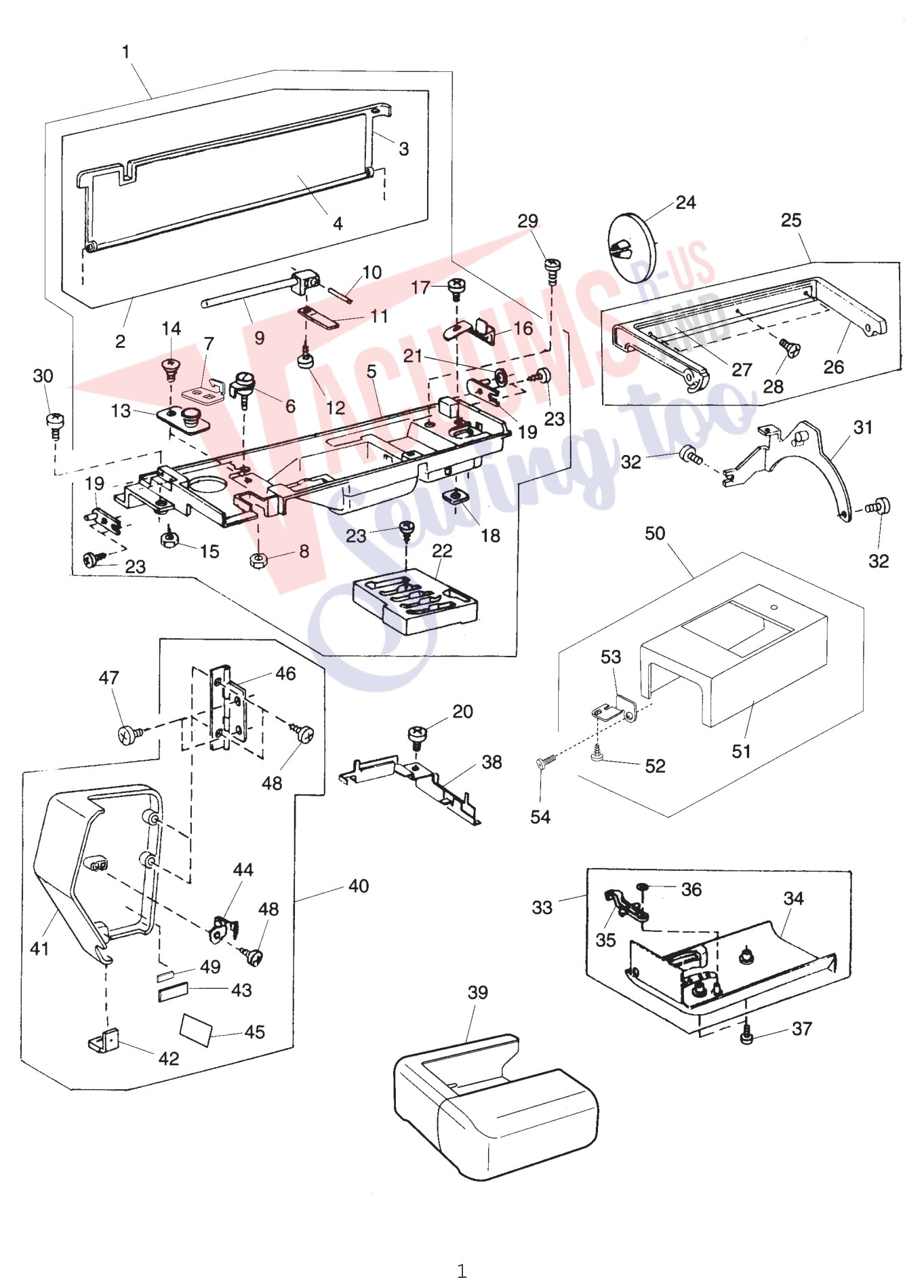

Schematic and parts book for Janome 4800 4800. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Top Cover (Unit) MC 4800 sewing machine part or accessory For Janome Models: MC4800, MC4800QC | 841601008 | $39.00Read more |
| 2 | Not Available | Top cover unit | 841602009 | Not Available |
| 3 | | Top cover sewing machine part or accessory For Janome Models: 0014800 SRV | 841004005 | $10.20Read more |
| 4 | | Chart board sewing machine part or accessory For Janome Models: 0014800 SRV | 841005006 | $8.60Read more |
| 5 | | Top cover body sewing machine part or accessory For Janome Models: 0014800 SRV | 841006007 | $9.20Read more |
| 6 | | THREAD GUIDE (UNIT) sewing machine part or accessory | 730501022 | $3.22Read more |
| 7 | | Top cover thread guide sewing machine part or accessory For Elna Models: EL660 | 840138006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SPOOL PIN sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 614... | 822016609 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PIN 8000/7-7500/6000/4000/4123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822017002 | $1.00Read more |
| 11 |  | SPOOL PIN SPRING 8000 7500 700 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822018003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | + PAN HEAD TAP-8 7 6 4 3123 55 sewing machine part or accessory For Janome Models: 1100D, 1100D, ... | 000107318 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | TOP COVER THREAD GUIDE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC... | 753502002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Flat Head Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5... | 693093006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Nut sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147, 626... | 000062701 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 687022005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | BINDING HEAD SM.SCREW DISCONTI sewing machine part or accessory For Janome Models: 134D, 334, 434... | 000066727 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Square Nut sewing machine part or accessory For Janome Models: 134D, 334, 434D, 434DR, 4618LE, 46... | 630005006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Top cover hinge sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC100... | 830013003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Washer sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC10000, MC100... | 830190005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Foot container sewing machine part or accessory For Janome Models: 0014800 SRV | 754044004 | $2.60Read more |
| 23 |  | SET SCREW sewing machine part or accessory For Janome Models: MC4800, MC4800QC, MC4900, ML3023, M... | 000120214 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Handle Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5018, DE5... | 753620007 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Carrying handle sewing machine part or accessory For Janome Models: | 753121003 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Carrying handle plate sewing machine part or accessory For Janome Models: | 753122004 | $2.60Read more |
| 28 | | Flat screw 3 x 8 (B) sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE... | 000120502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Handle set plate (rear) sewing machine part or accessory For Janome Models: 0014800 SRV | 840119001 | $5.06Read more |
| 32 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | BED COVER (UNIT) sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT200... | 827602108 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Bed cover sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC48... | 827004104 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | DROP LEVER 4123 4000 3123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 753005000 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Cord guide sewing machine part or accessory For Janome Models: 0014800 SRV | 840136004 | $4.37Read more |
| 39 | Not Available | Extension Table for MC 4800 | 841501007 | Not Available |
| 40 |  | Face Plate for MC 4800 sewing machine part or accessory For Janome Models: MC4800 | 841604207 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Face cover sewing machine part or accessory For Janome Models: 0014800 SRV | 841008009 | $10.40Read more |
| 42 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 360, 380 & 381, AQS2009... | 731067002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Reflector sticker sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 827099003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Lamp sticker USA and Australia sewing machine part or accessory For Janome Models: 0014800 SRV | 100411001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | FREE ARM COVER UNIT 659 sewing machine part or accessory For Janome Models: 659, 7330, AQS2009, H... | 659601007 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

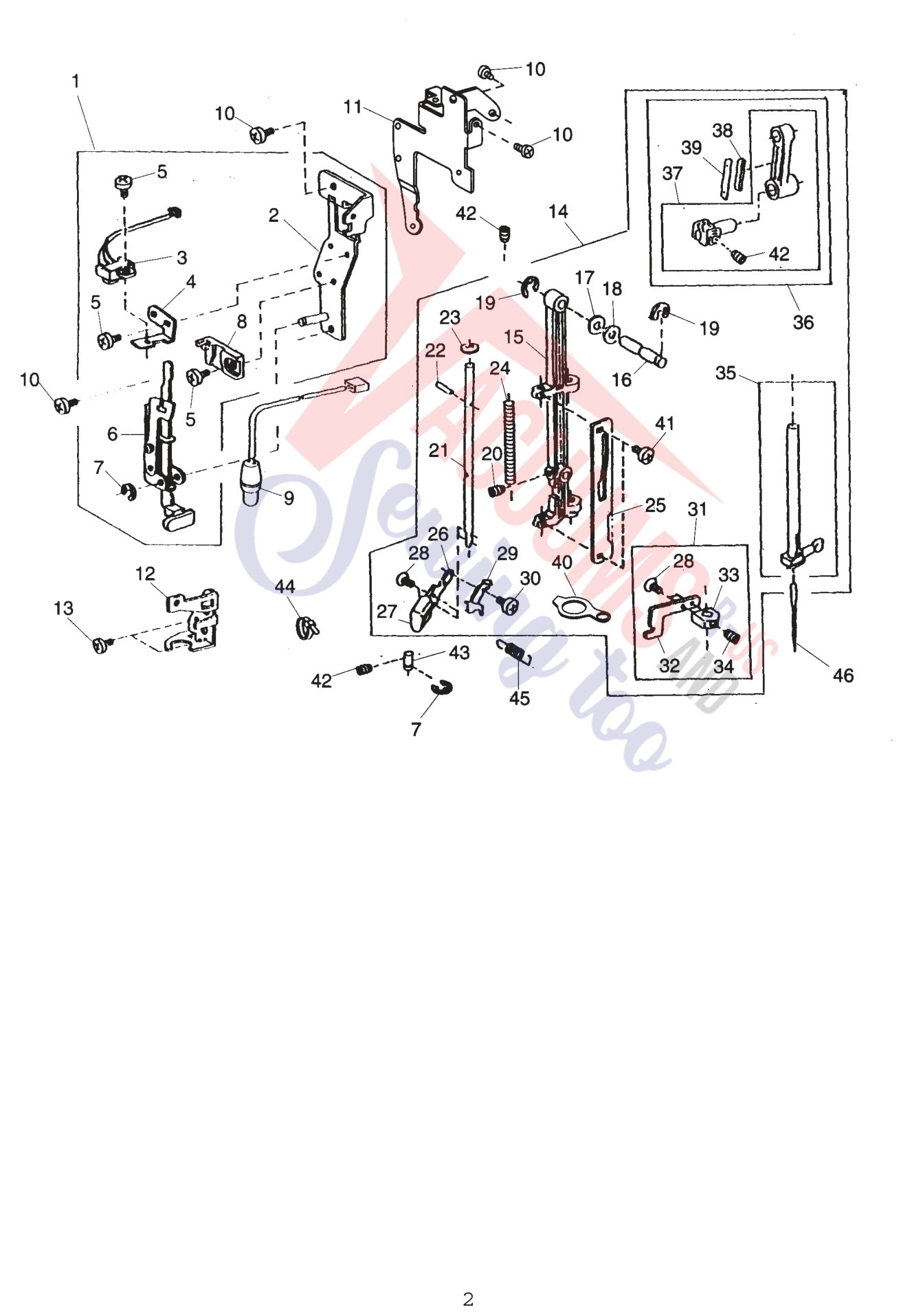

| 1 | | Front set plate unit sewing machine part or accessory For Janome Models: 0014800 SRV | 840620103 | $49.40Read more |
| 2 |  | Front bracket sewing machine part or accessory For Elna Models: EL660 | 840108007 | $5.52Read more |
| 3 |  | Photo interrupter unit sewing machine part or accessory For Janome Models: 0014800 SRV | 830510304 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Sensor set plate sewing machine part or accessory For Janome Models: 0014800 SRV | 827090004 | $1.20Read more |
| 5 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | BH LEVER UNIT sewing machine part or accessory BH LEVER UNIT | 827630013 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 8 |  | BH lever guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 830057010 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Lamp socket unit sewing machine part or accessory For Janome Models: HF3000, MC2400, MC3000, MC35... | 830538124 | $41.40Read more |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Handle Supporter Plate MC 4800 sewing machine part or accessory For Janome Models: MC4800, MC4800QC | 841007008 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Lamp set plate sewing machine part or accessory For Janome Models: 0014800 SRV | 827018019 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | NEEDLE BAR SUPPORT sewing machine part or accessory | 827609013 | $72.60Read more |
| 15 |  | Needle bar supporter sewing machine part or accessory For Janome Models: AQS2009, HF3000, HT2008,... | 827026009 | $13.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Needle Bar Supporter Pin | 840137005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Threader shaft sewing machine part or accessory For Janome Models: | 734093017 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Threader shaft spring sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, ... | 827091005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Threader guide plate sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, D... | 653036029 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Threader Lever sewing machine part or accessory For Janome Models: HF3000, HF5024, JEM GOLD/660, ... | 734096009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Threader Knob sewing machine part or accessory For Janome Models: 6147, 662, AQS2009, CE2200, DE5... | 734097000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Threader Plate sewing machine part or accessory For Janome Models: HF3000, HF5024, Jem Gold Plus,... | 734515009 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Set screw for attaching the threader plate. sewing machine part or accessory For Janome Models: 2... | 000105501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Threader Set Plate Unit | 734625003 | Not Available |
| 32 | | Threader positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 734101008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Threader positioning holder sewing machine part or accessory For Janome Models: HF3000, HF8077, H... | 734102009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Needle bar unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 653503103 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Needle Bar Link for Memory Craft 4000 sewing machine part or accessory For Janome Models: 2040, 3... | 653612003 | $25.98Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Needle bar connecting stud unit sewing machine part or accessory For Janome Models: 2040, 3022, 4... | 653504001 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Supporter guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 829027006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Supporter guide pin sewing machine part or accessory 827083004 Supporter guide pin | 827083004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Supporter spring sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF807... | 756063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

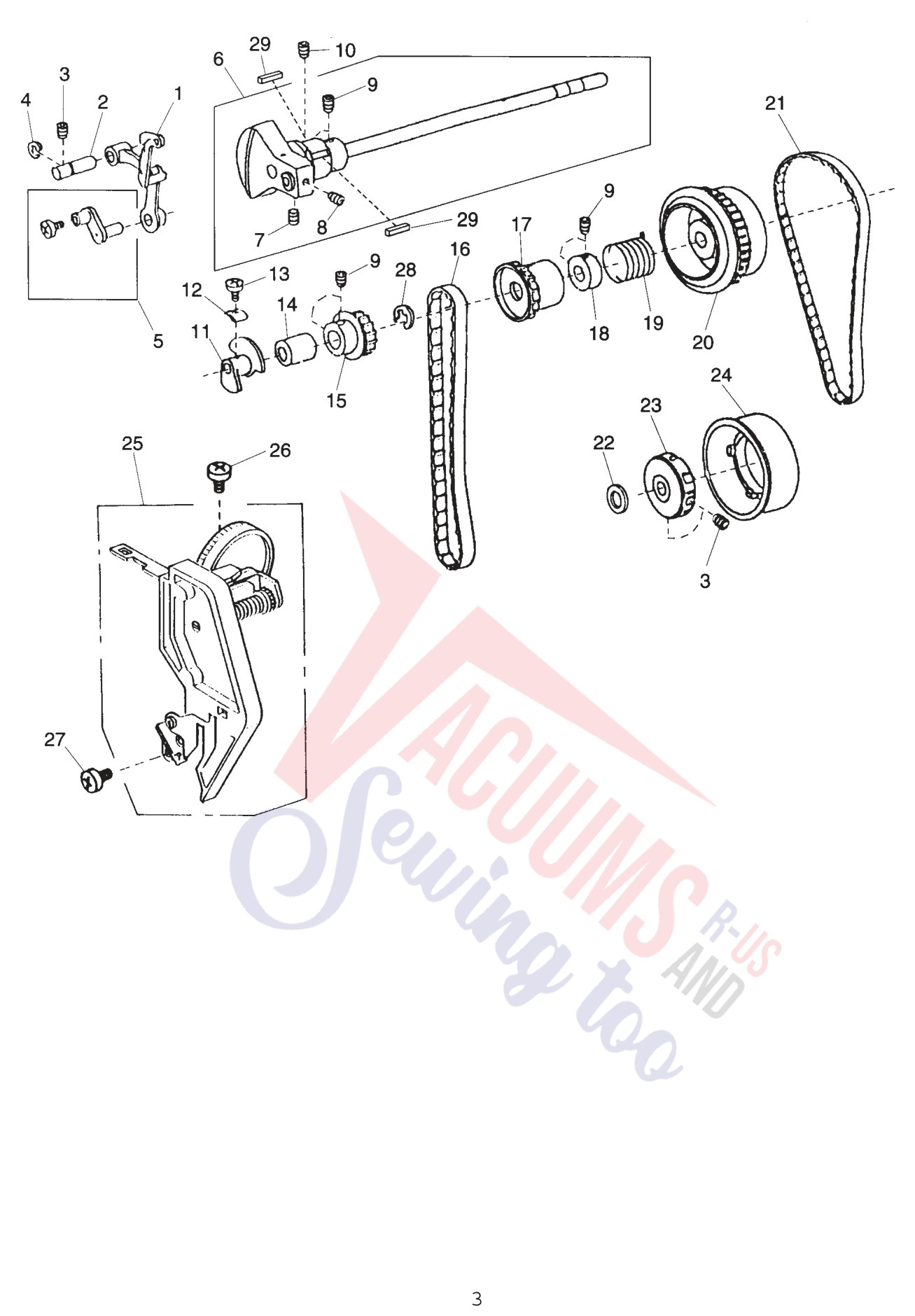

| 1 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Upper shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 827518508 | $35.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041, 20... | 761052007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 10 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 11 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 2040, 3022, 7061NX, ... | 830095010 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 15 |  | Adjusting wheel sewing machine part or accessory For Janome Models: 0014800 SRV | 732026002 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | DECLUTCH RELEASE RING 9000 400 sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 653055002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | CLUTCH RING 9000 4000 4123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 653056003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Clutch Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 653057004 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | BELT WHEEL-9000 8000 4000 4123 sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 653058005 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Motor Belt 20in for Janome Machines #653139012 | 653139012 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Balance Wheel Base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 830286009 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Hand wheel sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061NX, DC3018, ... | 653061115 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread Tension Unit MC 4800 sewing machine part or accessory For Janome Models: MC4800, MC4800QC | 841605002 | $38.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

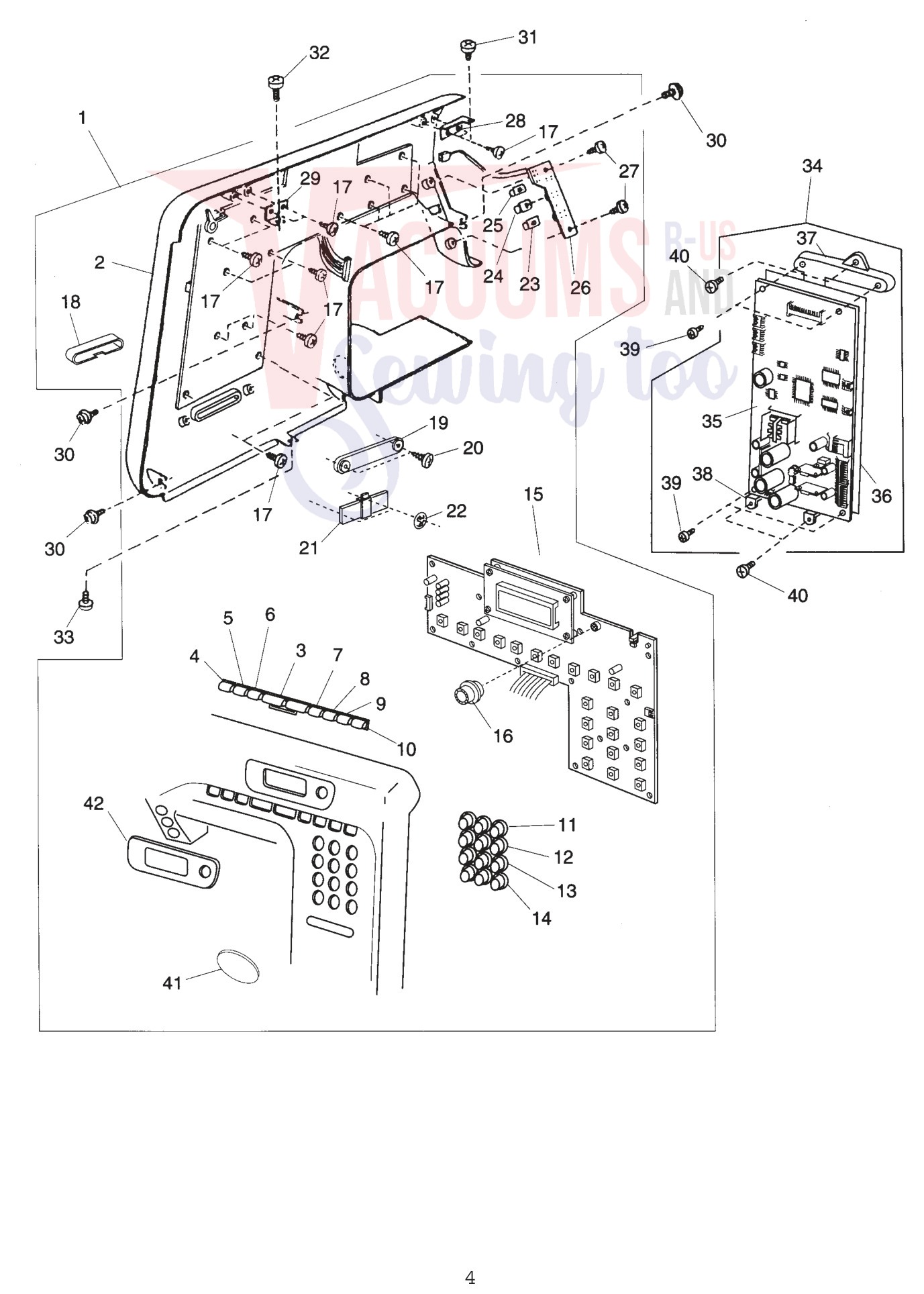

| 1 | | Front Cover Unit for 4800 sewing machine part or accessory For Janome Models: MC4800 | 841606003 | $319.93Read more |
| 2 | | Name sewing machine part or accessory For Janome Models: 0014800 SRV | 841011108 | $25.92Read more |
| 3 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841013100 | $6.80Read more |
| 4 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841036109 | $2.53Read more |
| 5 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841014204 | $6.80Read more |
| 6 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841014307 | $6.80Read more |
| 7 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841014400 | $6.80Read more |
| 8 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841014503 | $6.80Read more |
| 9 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841014606 | $6.80Read more |
| 10 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841014709 | $6.80Read more |
| 11 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841015102 | $2.00Read more |
| 12 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841015205 | $2.00Read more |
| 13 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841015308 | $2.00Read more |
| 14 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841015401 | $2.00Read more |
| 15 |  | Printed Circuit Board(K) 4800 sewing machine part or accessory For Janome Models: MC4400, MC4800,... | 841607004 | $222.20Read more |
| 16 | | LCD adjusting dial sewing machine part or accessory For Janome Models: MC4400, MC4800 | 841054000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Speed control lever sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT... | 841017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Speed control lever cover sewing machine part or accessory For Janome Models: 7330, AQS2009, HF80... | 751273005 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Slide volume unit sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC4400,... | 653507602 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Button | 841018105 | $6.80Read more |
| 24 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841018208 | $7.82Read more |
| 25 | | Button sewing machine part or accessory For Janome Models: 0014800 SRV | 841018301 | $6.80Read more |
| 26 |  | F Board for Memory Craft 4800QC sewing machine part or accessory For Janome Models: MC4400, MC480... | 840518004 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set screw 3x6(B) sewing machine part or accessory For Janome Models: 6147, 662, CE2200, JEM GOLD ... | 000107905 | $0.60Read more |
| 28 | | Front cover bracket (front) sewing machine part or accessory For Janome Models: HF3000, MC2400, M... | 827067002 | $0.80Read more |
| 29 |  | Front Cover FixingPlate MC4800 sewing machine part or accessory For Janome Models: 7330, AQS2009,... | 841019003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Printed Circuit Board A Unit | 841608407 | Not Available |
| 35 | | Circuit board A unit sewing machine part or accessory For Janome Models: MC4800 | 841619009 | $373.20Read more |
| 36 | | Insulating paper sewing machine part or accessory For Janome Models: MC4400, MC4800, MC4800QC | 827070008 | $1.65Read more |
| 37 | | Board bracket (upper) sewing machine part or accessory For Janome Models: MC4400, MC4800, MC4800QC | 827071009 | $15.20Read more |
| 38 | | Board bracket (lower) sewing machine part or accessory For Janome Models: HF3000, MC2400, MC3000,... | 827072000 | $1.00Read more |
| 39 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | Not Available | Emblem | 832209015 | Not Available |
| 42 | | LCD panel frame sewing machine part or accessory For Janome Models: 0014800 SRV | 841012109 | $8.00Read more |
| # | Part image | Description | SKU | Price |

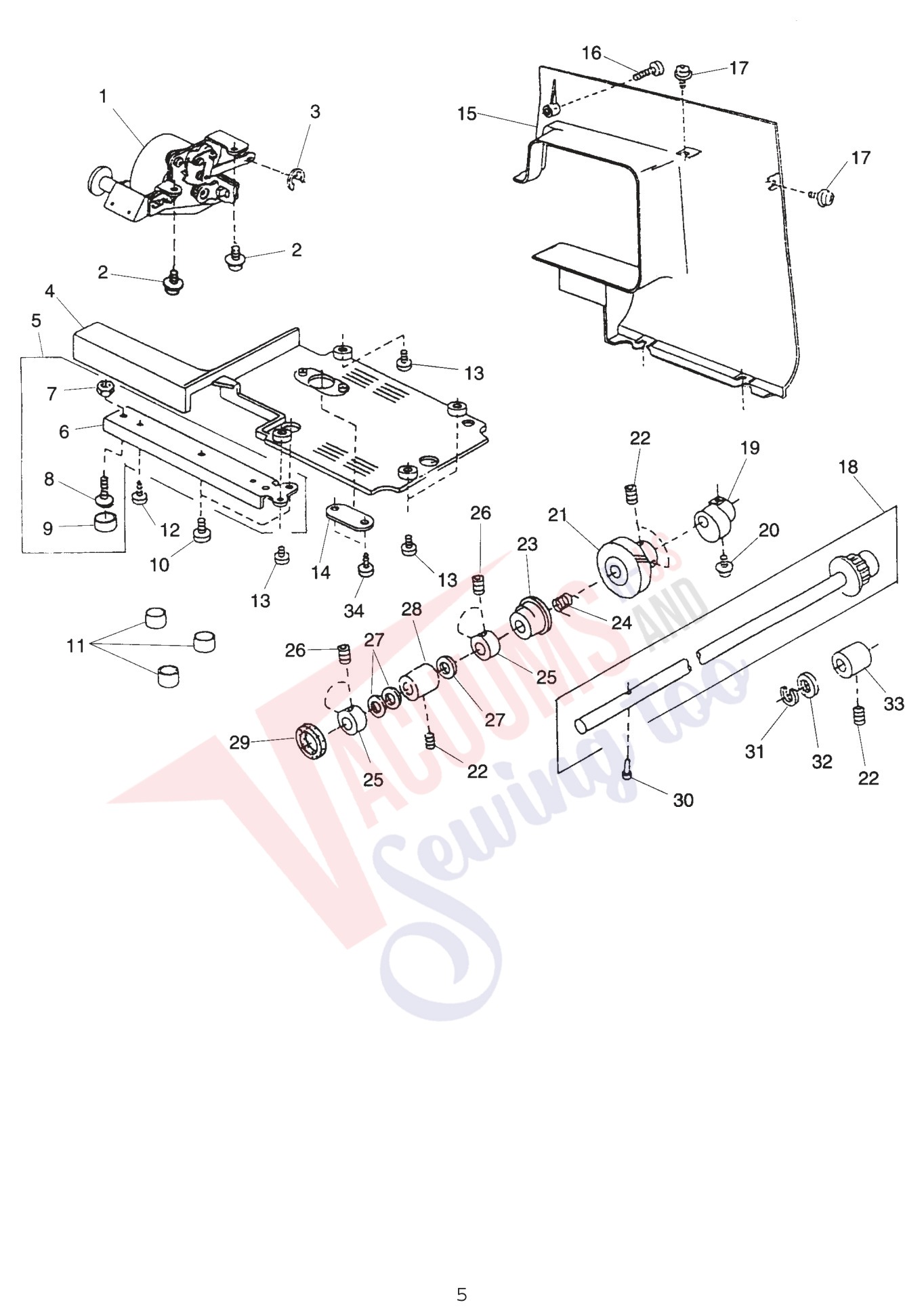

| 1 | | Feed motor unit sewing machine part or accessory For Janome Models: HF3000, MC2400, MC3000, MC350... | 841611001 | $68.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 4 |  | BASE 4000 sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8077, HT20... | 827003000 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Leg unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX... | 827601107 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Leg sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, DC2... | 827002102 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Flat screw 5 x 18 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040,... | 000097901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | BASE COVER PLATE 7500 7000 550 sewing machine part or accessory For Janome Models: 7330, AQS2009,... | 824058001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Rear Cover Unit MC 4800 sewing machine part or accessory For Janome Models: MC4800, MC4800QC | 841001002 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Lower shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 751612206 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | FEED LIFT CAM 5000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 751148000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 23 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | + PAN HEAD TAP-8 7 6 4 3123 55 sewing machine part or accessory For Janome Models: 1100D, 1100D, ... | 000107318 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

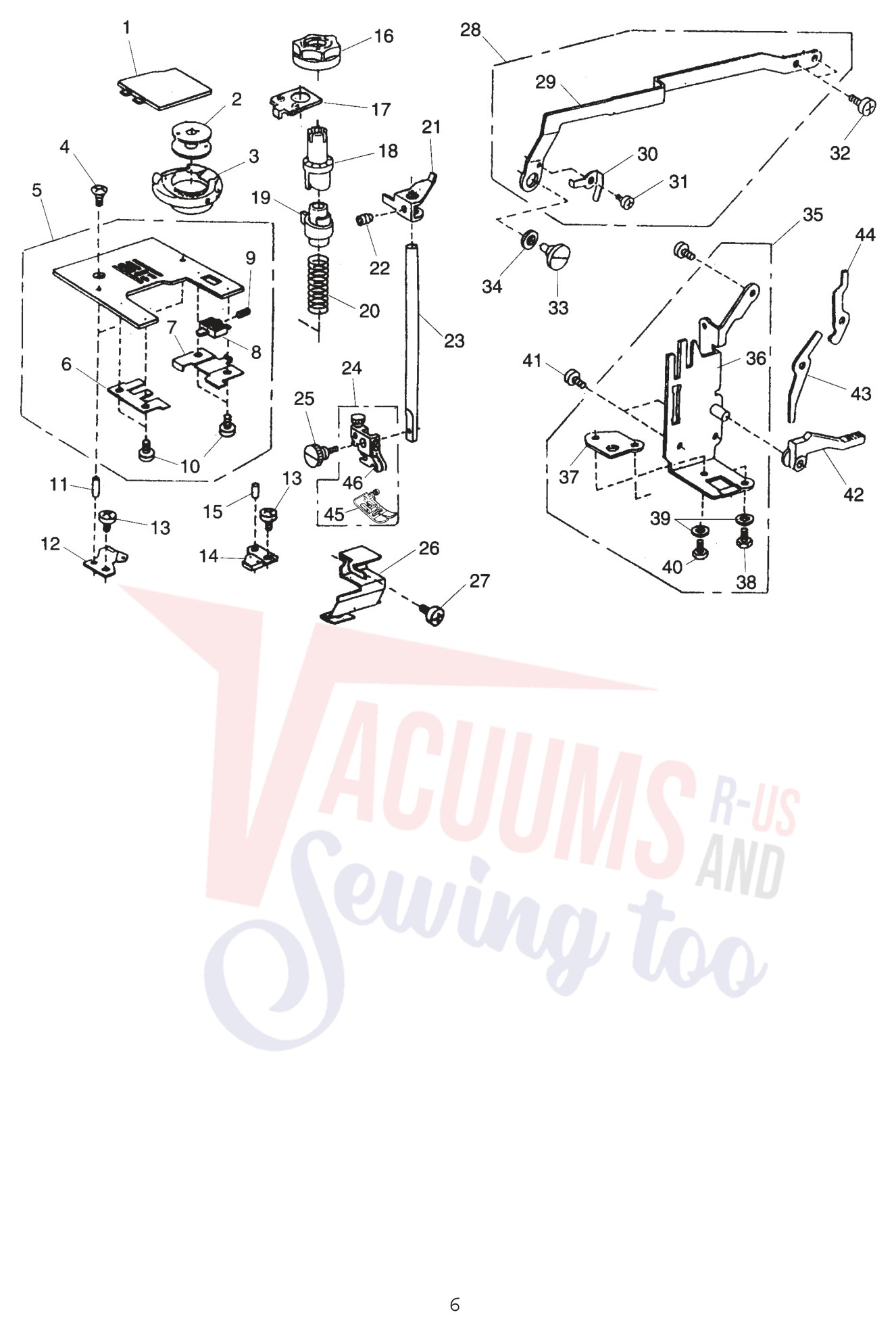

| 1 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 3 | | Bobbin holder sewing machine part or accessory For Janome Models: DC2010 | 627569209 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Needle Plate Unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 756604107 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Slide plate holder (left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 752005007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 662, 7061NX... | 000122504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Bobbin case stopper(left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827011001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 733... | 000122700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Pressure Dial sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, DX2015,... | 822065005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | FT PRESSURE DIAL SETTING PLATE sewing machine part or accessory | 840120005 | $1.15Read more |
| 18 |  | PRESSER ADJUSTING CAM(1)7500 7 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 686027007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | PRESSER ADJUSTING CAM(2)7 7500 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 686028008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | PRESSER FOOT SPRING sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, D... | 840129004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Presser bar sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509... | 827021004 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Zig Zag Foot Unit (7mm top load low shank) sewing machine part or accessory For Janome Models: 20... | 829515006 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Knob Screw sewing machine part or accessory For Janome Models: 659, 808A, MC4400, MC4800, MC4800Q... | 753199002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Arm Thread Guide MC 4800 sewing machine part or accessory For Janome Models: MC4800, MC4800QC, MC... | 841010004 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Zigzag rod unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827622012 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Zigzag rod sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 827055018 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Zigzag Width Rod Spring | 827088009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, ... | 653037008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Presser bar plate unit sewing machine part or accessory For Janome Models: HF3000, MC2400, MC3000... | 828605001 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Presser base plate sewing machine part or accessory For Elna Models: EL540S | 827020014 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Presser bar positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 827082003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Plain washer 4 sewing machine part or accessory For Janome Models: 134D, 2040, 3022, 334, 4048/80... | 000070908 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 43 | | Tension release lever (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827022005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Tension release lever (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827023006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Genuine Janome/Elna Standard Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC... | 804509000 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

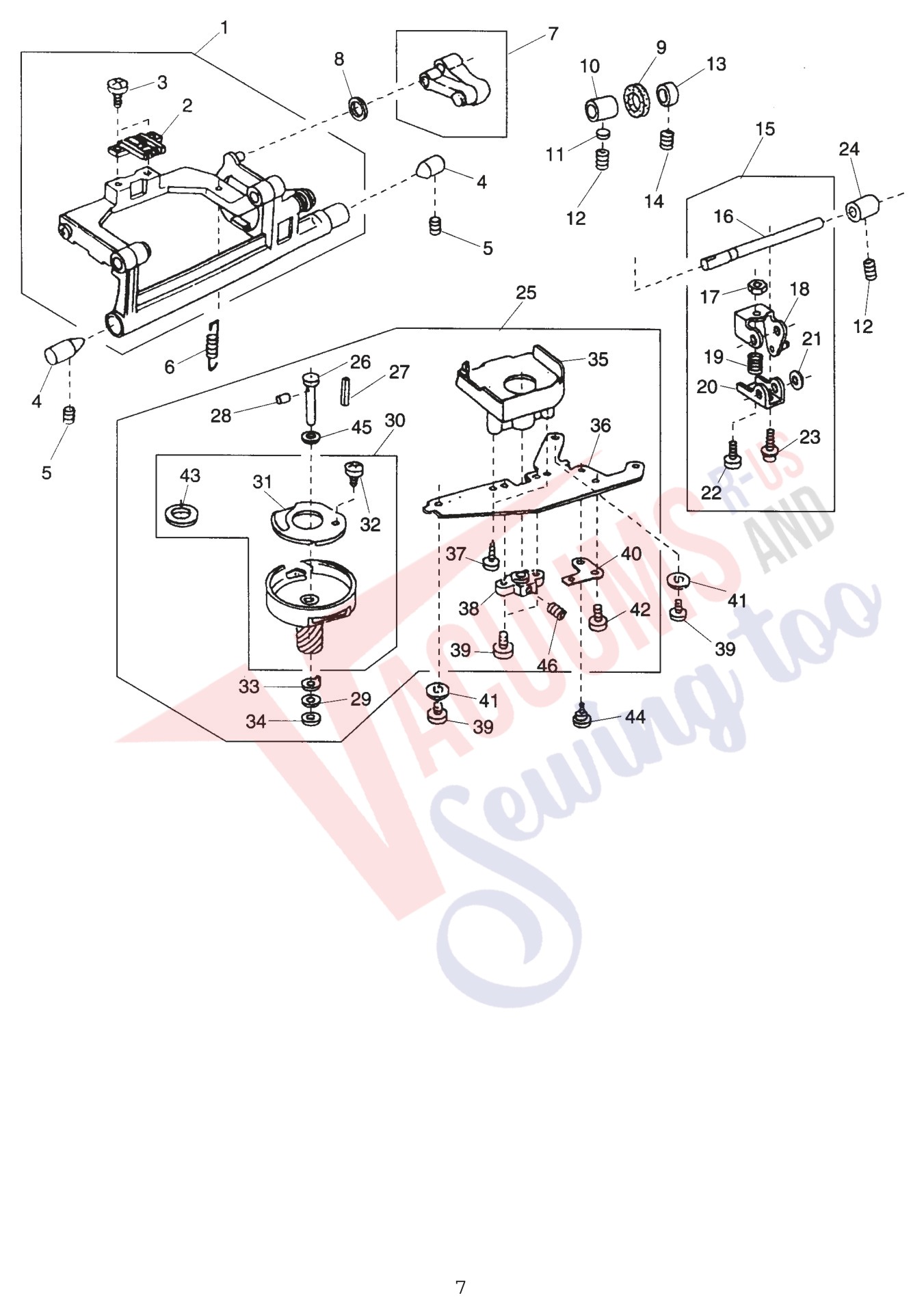

| 1 | | Feed shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 834527100 | $35.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4618LE... | 840005003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 6 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | FEED SHAFT UNIT FOR MC 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/... | 840603007 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Feed shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 840006004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Feed arm (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 70... | 825261002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | BH feed adjusting spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 589040002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Feed arm (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 70... | 827043105 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Spring washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 6... | 810207004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Feed arm screw sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 827086007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SET SCREW 3X12 7000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045N... | 000115906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Hook race unit sewing machine part or accessory For Janome Models: 0014800 SRV | 827614011 | $82.20Read more |
| 26 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Hook Race Unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650623008 | $66.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Hook Race Bottom Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/... | 627191000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Hook bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 50... | 823106002 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Set plate sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 614... | 650171006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Hinge screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 6... | 650172007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| # | Part image | Description | SKU | Price |

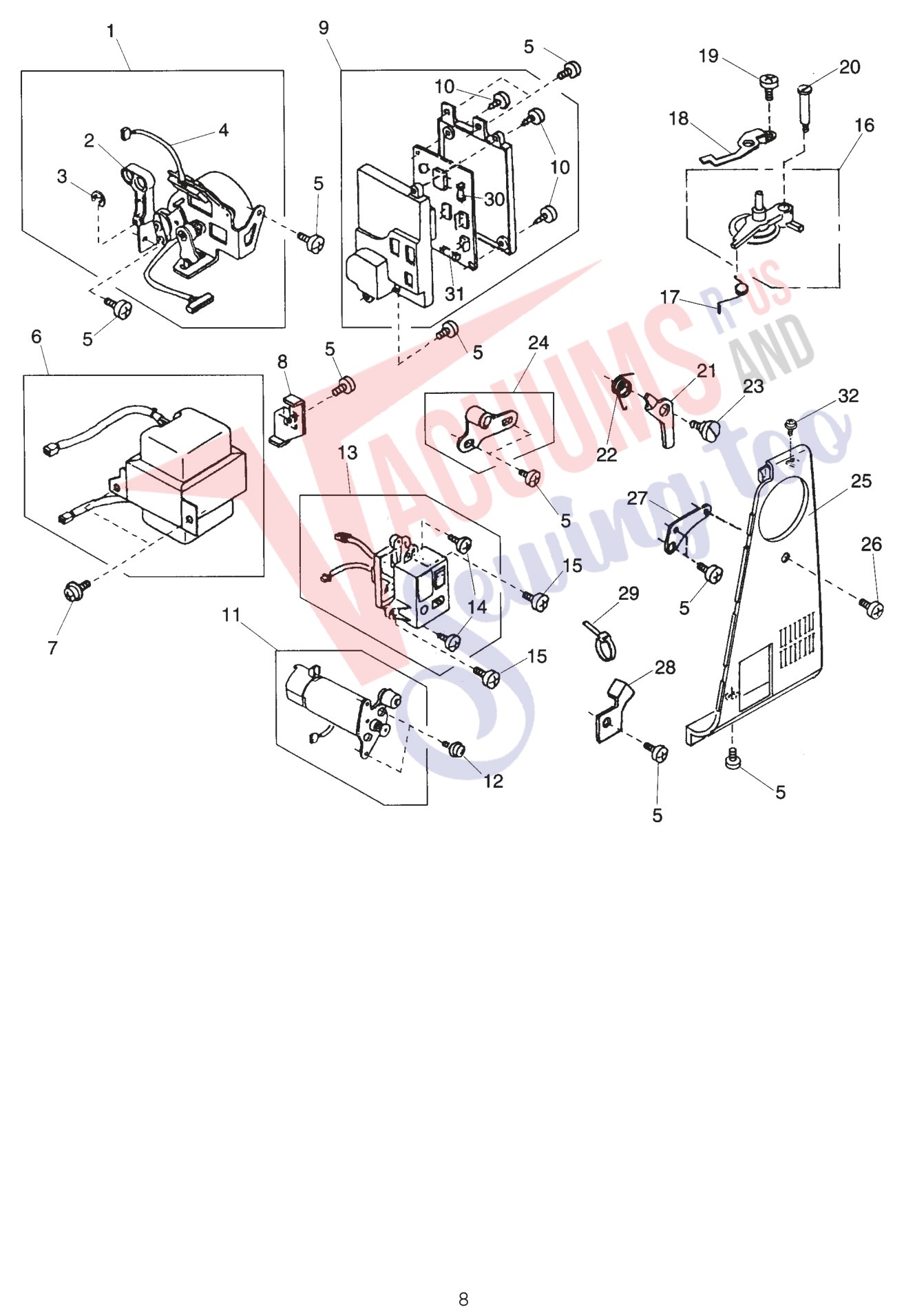

| 1 |  | Zigzag motor unit MC4400 sewing machine part or accessory For Janome Models: HF3000, MC2400, MC30... | 841610000 | $82.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Connecting arm sewing machine part or accessory For Janome Models: DC5100 | 827054006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 4 | | Sensor unit sewing machine part or accessory For Janome Models: HF3000, MC10000, MC10001, MC2400,... | 830543100 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Transformer unit for Memory Craft 3000, 4000, 4800, 5000 and 5700 sewing machine part or accessor... | 829505003 | $77.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Transformer supporter sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061N... | 829020009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Print board “C” unit for USA & Canada sewing machine part or accessory For Janome Models: 001... | 827626304 | $77.20Read more |
| 10 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | DC motor unit for MC 3000 3500 4000 4400 4800 4800QC sewing machine part or accessory For Janome ... | 841618008 | $166.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Machine socket unit for USA & Canada (830575019) sewing machine part or accessory For Janome ... | 841514003 | $33.80Read more |
| 14 |  | Setscrew 4 x 8 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 7330, HF3000, ... | 000121204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Bobbin Winder sewing machine part or accessory For Janome Models: 4618LE, CE2200, DE5018, DE5024,... | 653508005 | $19.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Switch Lever for MC 4800 sewing machine part or accessory For Janome Models: MC4800, MC4800QC | 841020007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | HINGE SCREW 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 686063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Declutch arm sewing machine part or accessory For Janome Models: 0014800 SRV | 653134006 | $1.80Read more |
| 22 |  | DECLUTCH ARM SPRING 9000 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625215005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | HINGE SCREW 9000 8K 7500 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625214004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Idler unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 652611009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Belt Cover for Memory Craft 4800 sewing machine part or accessory For Janome Models: MC4800, MC48... | 841021008 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Belt cover bracket sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8... | 827085017 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cord guide sewing machine part or accessory For Janome Models: 0014800 SRV | 827081002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | FUSE TSC-2.5A 9000 7500 6000 sewing machine part or accessory For Janome Models: MC3500, MC4400, ... | 000117908 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Genuine Janome/Elna 3.15 amp Fuse(Slow Blow) For: HF3000, MC2400, MC3000, MC3500, MC4400, MC480... | 000182177 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Tapping setscrew 3x4 sewing machine part or accessory For Janome Models: 134D, 204D, 4048/8048/HF... | 000114709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

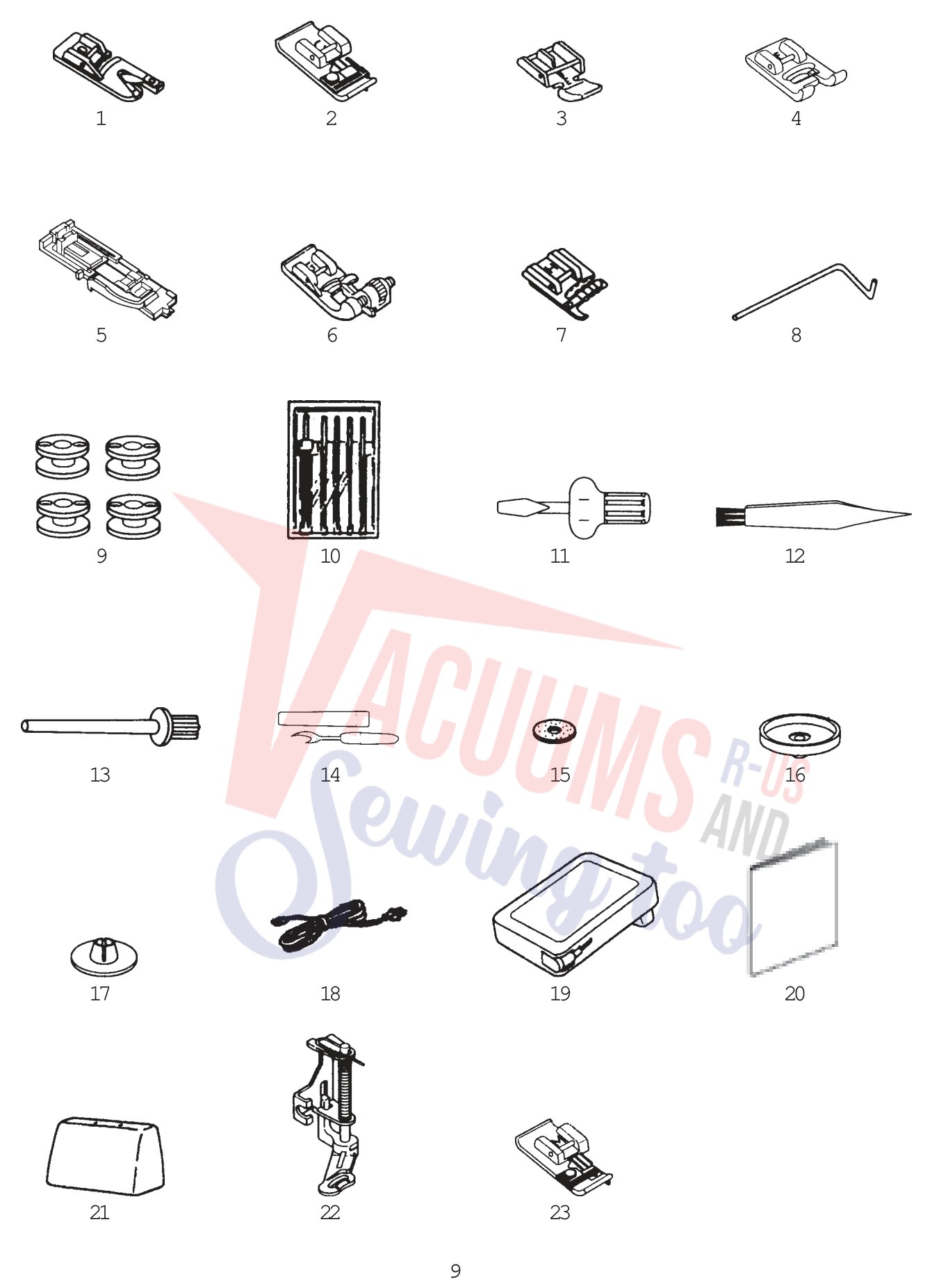

| # | Part image | Description | SKU | Price |
| 1 |  | Rolled Hemmer Foot for Janome | 820809014 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Overlock Foot C (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822801001 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Blind Hem Foot G (7mm) sewing machine part or accessory For Janome Models: MC11000 Special Editio... | 825817009 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Genuine Janome/Elna Multi-cord foot H For: EL740 | 820819006 | $11.60Read more |
| 8 |  | QUILTER BAR-LARGE sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 5... | 802422002 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 10 |  | Needle Set sewing machine part or accessory For Janome Models: All Janome sewing machines (flat b... | 820827007 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 12 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 14 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SPOOL HOLDER RECEIVING BASE sewing machine part or accessory For Janome Models: 2040, 3022, 3160Q... | 829803004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Foot Controller sewing machine part or accessory For Janome Models: DC4030, MC11000SE, MC4000, MC... | 043271133 | $95.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Instruction Book for MC4800 | 841800009 | Not Available |
| 21 | No Image | Resin Cover | 476703502 | $66.40Read more |
| 22 | Not Available | DARNING FOOT FOR EMBROIDERY 60 | 822820006 | Not Available |
| 23 |  | Overedge Foot M (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822808008 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
