Schematic and parts book for Janome 4045NX 4045NX. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

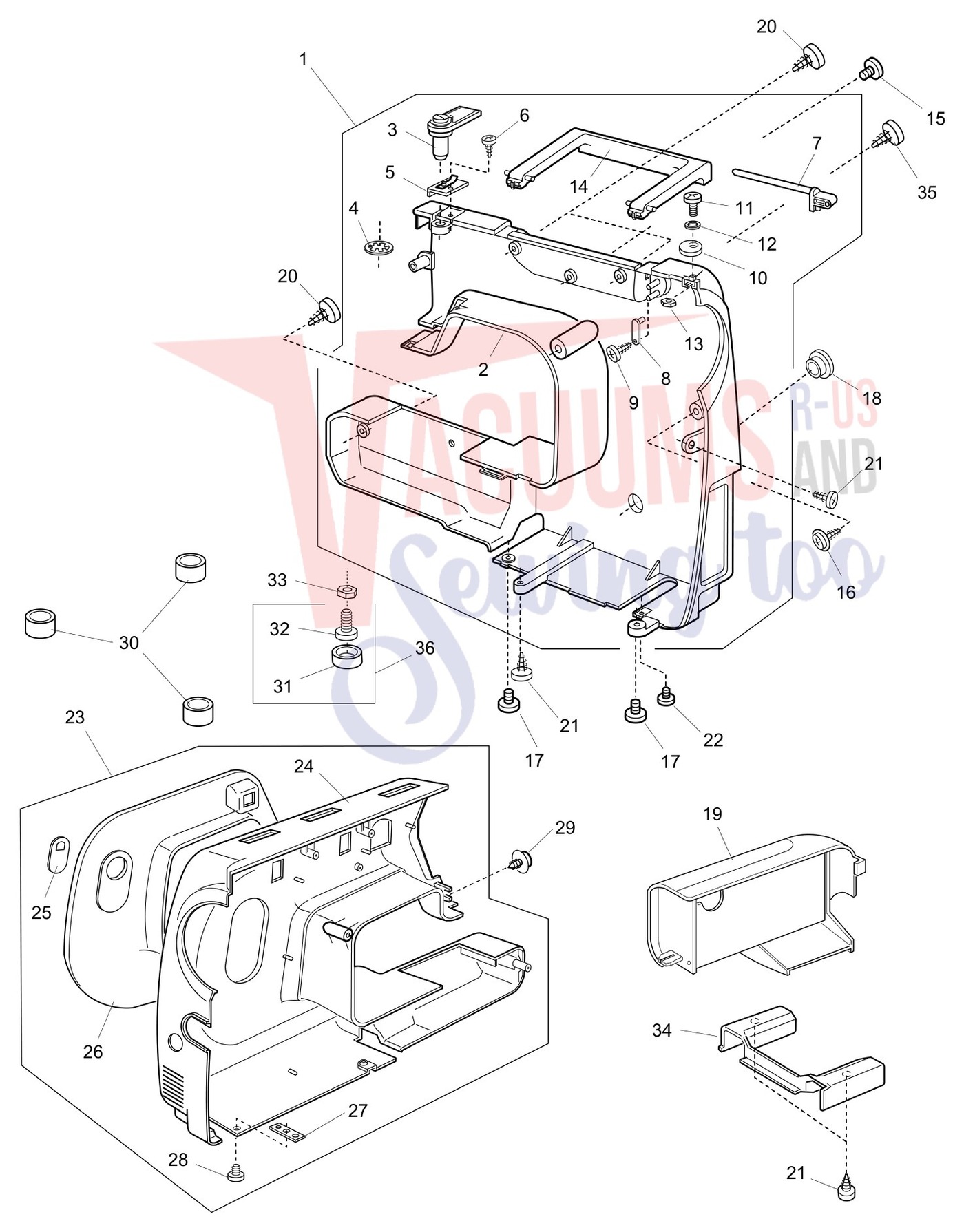

| 1 |  | Rear Cover Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 502601101 | $40.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Rear cover sewing machine part or accessory For Janome Models: 4045LX SRV | 502004201 | $13.40Read more |
| 3 |  | Thread guide unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4048/8048/H... | 650503506 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Top cover thread guide unit sewing machine part or accessory For Janome Models: 2040, 3022, 4045L... | 827503005 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Spin sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUI... | 502007008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spool pin support plate sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045... | 502008009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Carrying Handle sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119... | 502009000 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Janome/Elna BINDING HEAD SMALL SCREW 4X8-6 For: 1110DX, 203, 204D, 4045LX, 4045NX, 4119... | 000103417 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set screw sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DEL... | 000149507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Extension Table Unit | 502501007 | $17.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Tapping screw sewing machine part or accessory For Janome Models: 4045LX SRV | 000160412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Front Cover Unit | 502626102 | $0.00Read more |
| 24 | | Front cover sewing machine part or accessory For Janome Models: 4045LX SRV | 502186105 | $24.80Read more |
| 25 | No Image | Pattern Indicating Window | 502187106 | $2.00Read more |
| 26 | No Image | Front Cover Panel | 502188200 | $0.00Read more |
| 27 | | Front cover panel fixing plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502189005 | $0.60Read more |
| 28 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Free Arm Cover | 502193003 | $3.40Read more |
| 35 |  | SET SCREW W/WASHER 4 X 8 sewing machine part or accessory | 000108308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Rubber base unit sewing machine part or accessory For Janome Models: 4045LX SRV | 502643002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

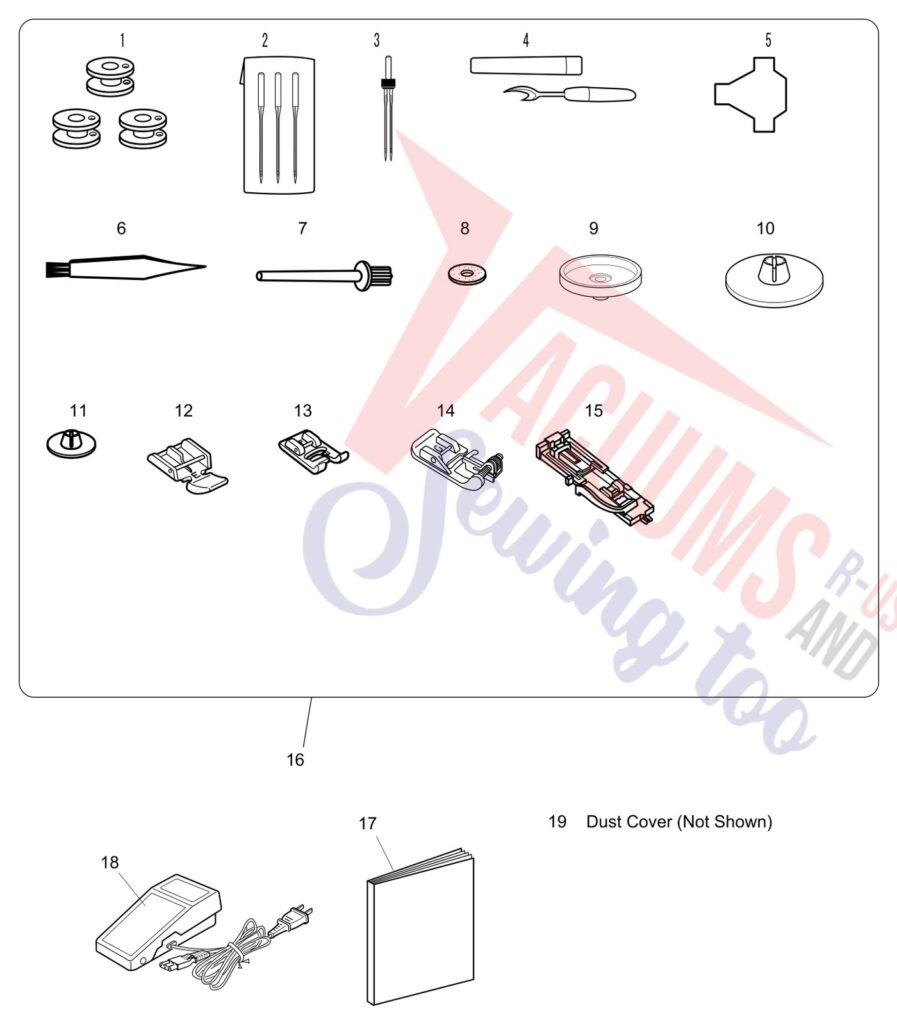

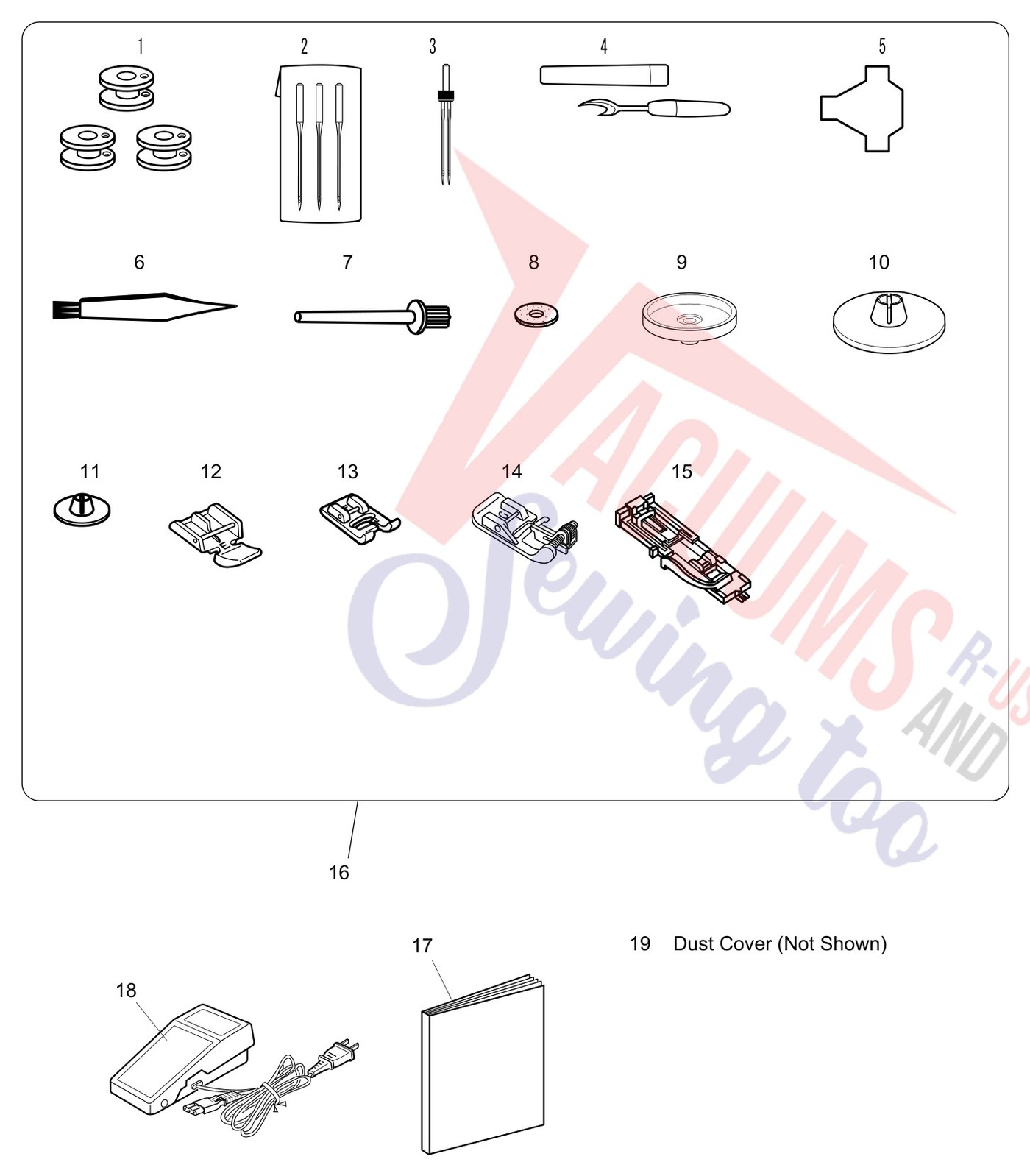

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 2 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | TWIN NEEDLE UNIT | 826815000 | Not Available |
| 4 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 8 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SPOOL HOLDER RECEIVING BASE sewing machine part or accessory For Janome Models: 2040, 3022, 3160Q... | 829803004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Accessory set sewing machine part or accessory For Janome Models: 4045NX SRV | 502871001 | $79.20Read more |
| 17 |  | Instruction Book For 4045 | 502800009 | $8.40Read more |
| 18 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 19 | | Cover sewing machine part or accessory For Elna Models: ELEC30 | 743812100 | $6.00Add to cart Special order: ships in 2 to 4 weeks |

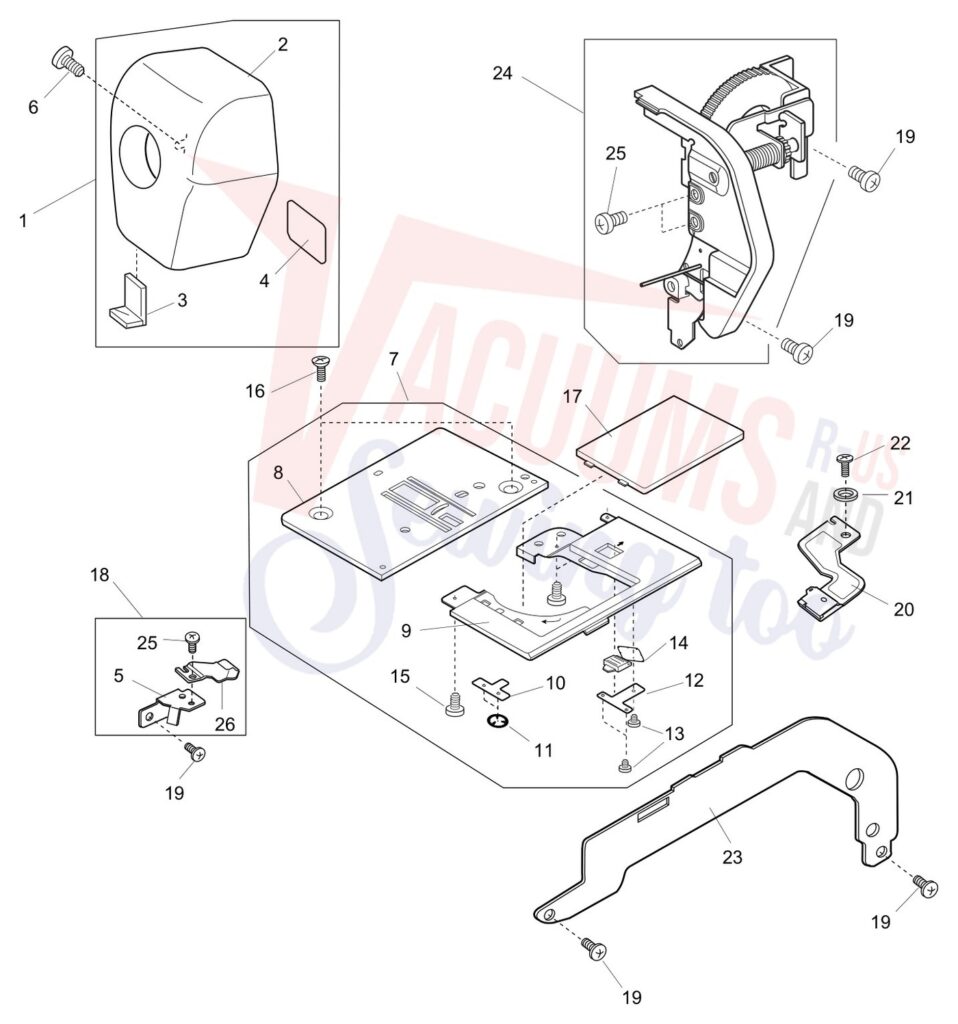

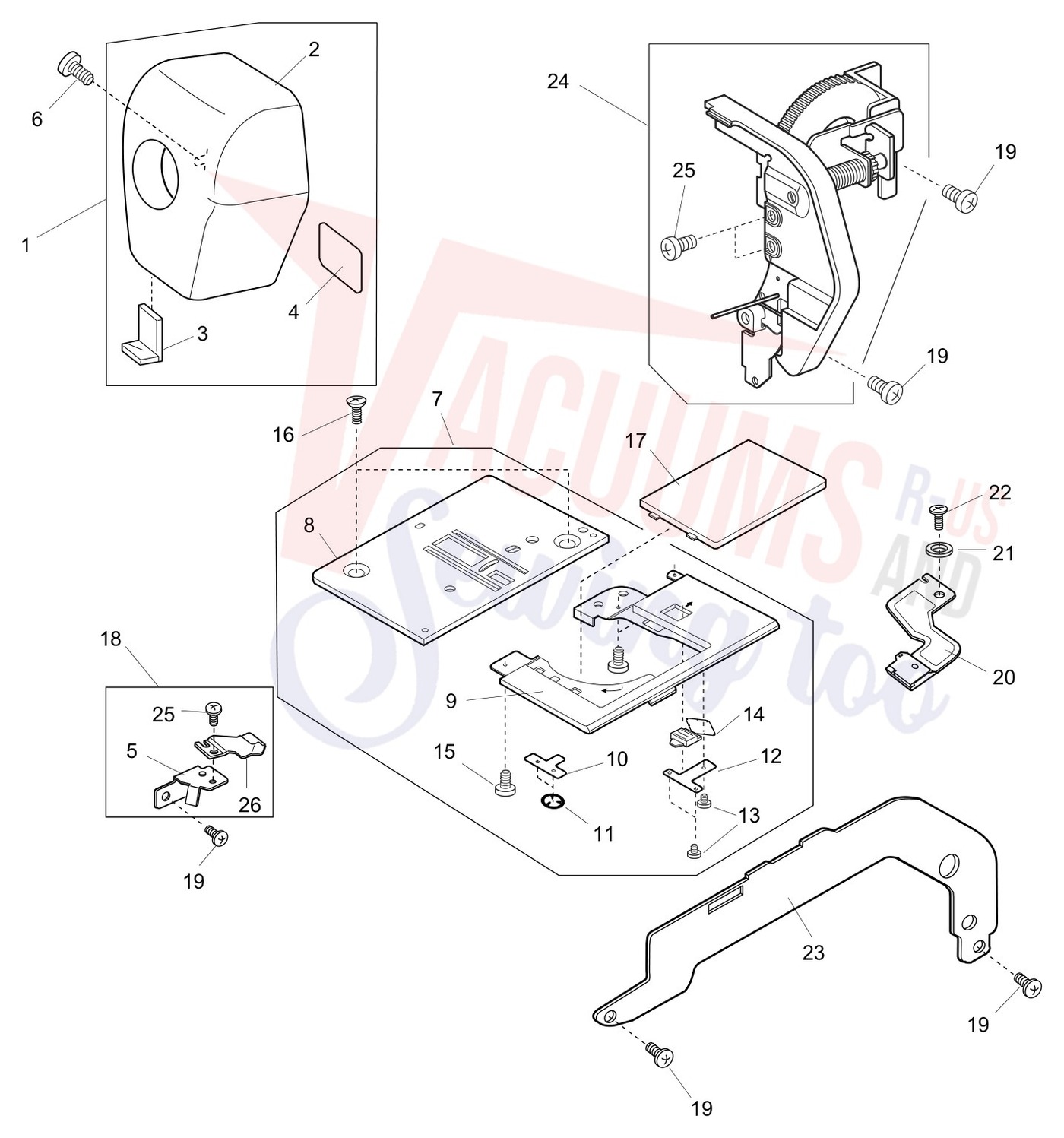

| # | Part image | Description | SKU | Price |
| 1 |  | Face Plate Unit | 502604104 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Face cover sewing machine part or accessory For Janome Models: 4045LX SRV | 502021204 | $16.56Read more |
| 3 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Face plate sticker sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, ... | 366076000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Bobbin holder stopper fixing plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502207000 | $1.20Read more |
| 6 | | Setscrew sewing machine part or accessory For Janome Models: 4045LX SRV | 000108803 | $0.40Read more |
| 7 |  | Needle plate unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILT... | 502602009 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502013007 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Sub Needle Plate sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 502014008 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGH... | 502015009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 000015503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Supporter plate sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 502202005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | TAPPING SCREW 1.7X3 sewing machine part or accessory For Elna Models: ELJ3210 | 000130103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Hook cover plate release buttn sewing machine part or accessory For Janome Models: 4045LX, 4045NX... | 502016000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set screw sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DEL... | 502213009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Janome Hook Cover Plate | 502017104 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Compatible alternateHook cover plate sewing machine part or accessory For Janome Models: MC12000 Horizon, MC11000SE, ... More Product Details | 846271103 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Bobbin Holder Stopper ® sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 ... | 502641000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Bobbin Holder Stopper Unit | 502603000 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Washer 4 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILT... | 000072508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Needle plate fixing plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502020007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Thread Tension Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUI... | 502611001 | $50.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | BOBBIN HOLDER STOPPER sewing machine part or accessory For Elna Models: ELJ3210 | 502018002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

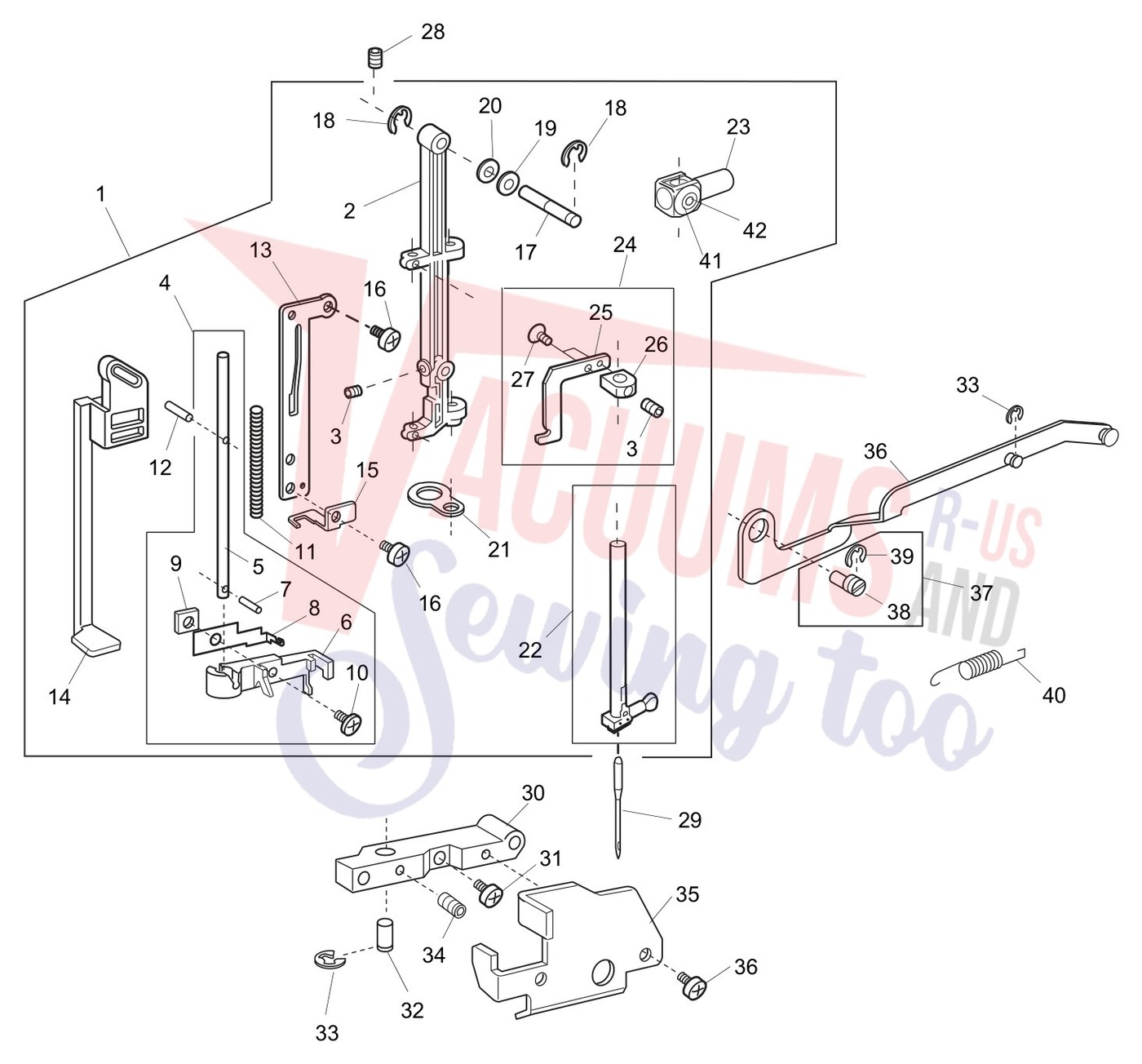

| 1 | | Needle bar supporter unit sewing machine part or accessory For Janome Models: 4045NX SRV | 502609110 | $59.00Read more |
| 2 |  | Needle Bar Supporter sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QU... | 502036006 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Threader shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045N... | 840646002 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Threader shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 40... | 840036003 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Threader Supporter | 755064003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Threader Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 40... | 755065004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Nut sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 755095003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Setscrew sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX,... | 755096004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Needle threader spring sewing machine part or accessory For Janome Models: HD1000BE | 840035002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Threader guide plate sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045... | 840033000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle threader lever sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 404... | 840034001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Needle threader lever support sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 840037004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Needle bar supporter pin sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 735144006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle bar supporter guide plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502037007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Needle bar unit sewing machine part or accessory For Janome Models: 4045NX, 509, 521, 525S, 625E,... | 751630015 | $14.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Needle bar connecting stud complete unit sewing machine part or accessory For Janome Models: 4045... | 670052002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Threader position set plate unit sewing machine part or accessory For Janome Models: 4045LX SRV | 502610000 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Threader position set plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502041004 | $0.80Read more |
| 26 | | Threader position set holder sewing machine part or accessory For Janome Models: 4045LX SRV | 653039000 | $1.38Read more |
| 27 | | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Needle Bar Supporter Adj Holdr sewing machine part or accessory For Janome Models: 4045LX, 4045NX... | 502042005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Set screw 4x14 sewing machine part or accessory For Janome Models: 203, 234D, 4045LX, 4045NX, 405... | 000093309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Supporter guide pin sewing machine part or accessory 827083004 Supporter guide pin | 827083004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 34 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Arm Thread Guide sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 502043006 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Zigzag Width Rod sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 502173006 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Eccentric Pin Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUIL... | 502644003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | ECCENTRIC PIN sewing machine part or accessory | 502174007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Needle Bar Supporter Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4... | 502175008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Needle bar connecting stud sewing machine part or accessory For Janome Models: 4045LX SRV | 670272000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

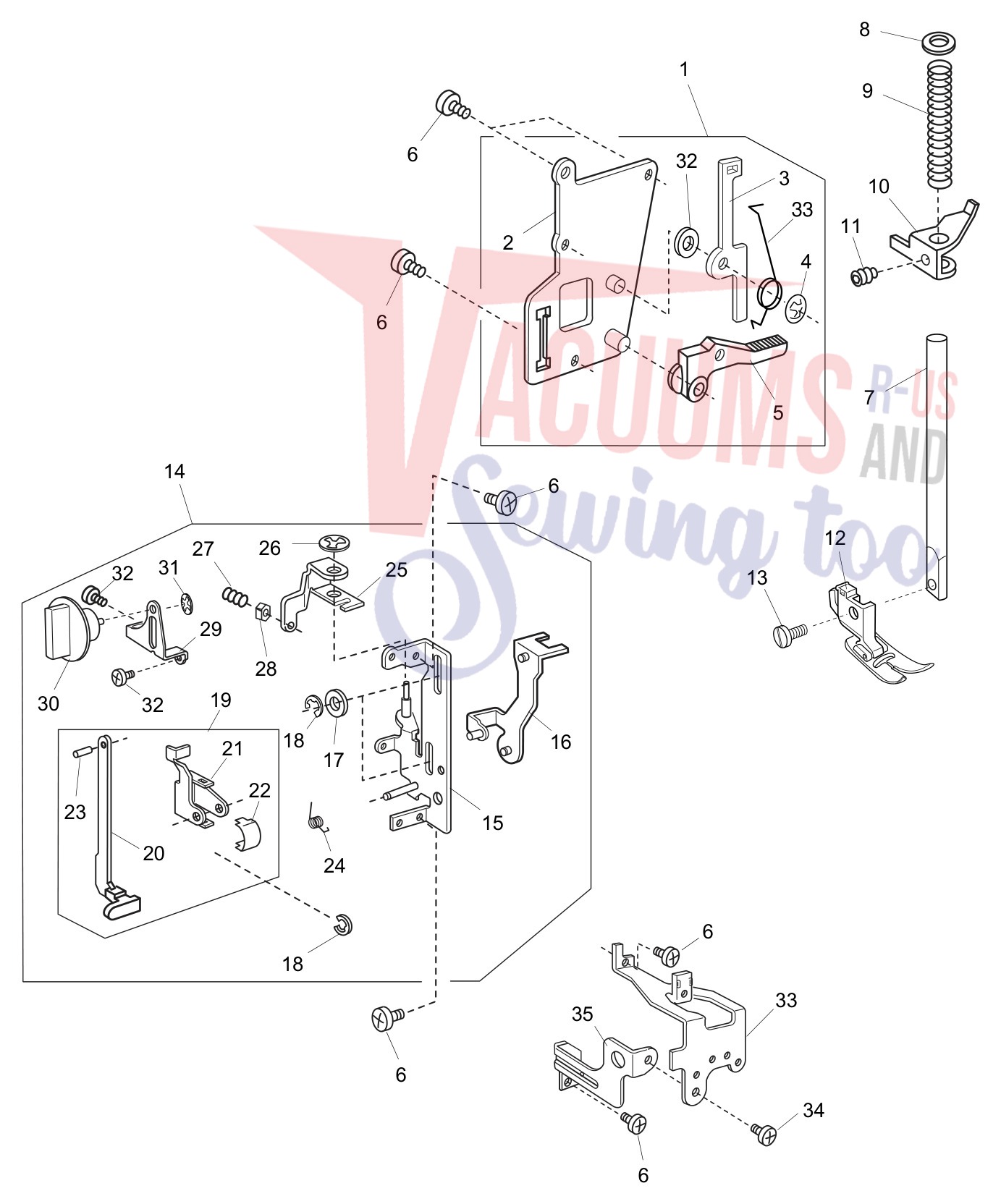

| 1 | | Presser Base Plate Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 ... | 502605002 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Presser base plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502022009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | TENSION RELEASING LEVER sewing machine part or accessory | 502023000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Presser Bar Lifter sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4... | 502024001 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | PRESSER BAR 9000 8000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 830029002 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Washer sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGH... | 652201002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGH... | 502025002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PRESSER BAR SUPPORTER sewing machine part or accessory | 502026003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Presser Foot Unit (low shank top load) sewing machine part or accessory For Janome Models: 2040, ... | 660508007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Thumb Screw sewing machine part or accessory For Janome Models: 134D, 2018S, 203, 2041, 2041LX, 2... | 763048006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Front Base Plate Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 502606003 | $24.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Front base plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502027004 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Pressure adjusting arm sewing machine part or accessory For Janome Models: 4045LX SRV | 502028005 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Washer 4 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILT... | 000072508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 19 | | Buttonhole Lever Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 502607004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | BH LEVER UNIT sewing machine part or accessory | 502608005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Buttonhole lever supporter sewing machine part or accessory For Janome Models: 4045LX SRV | 502032002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Friction spring sewing machine part or accessory For Janome Models: HF2022, HF4045LX, HF5024, JD1... | 753027008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SPRING PIN FOR 4123 3123 sewing machine part or accessory For Janome Models: 2041, 2041LX, 2041NX... | 000023009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | BH LEVER SPRING sewing machine part or accessory | 740049006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Buttonhole adjusting lever sewing machine part or accessory For Janome Models: 4045LX SRV | 502033003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | SET SCREW 4 X 10 sewing machine part or accessory | 000113306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Dial fixing plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502196005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Pressure Adjusting Dial sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 ... | 502030000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Thrust washer sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (... | 000036005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Tension Releasing Spring | 502256004 | $0.60Read more |

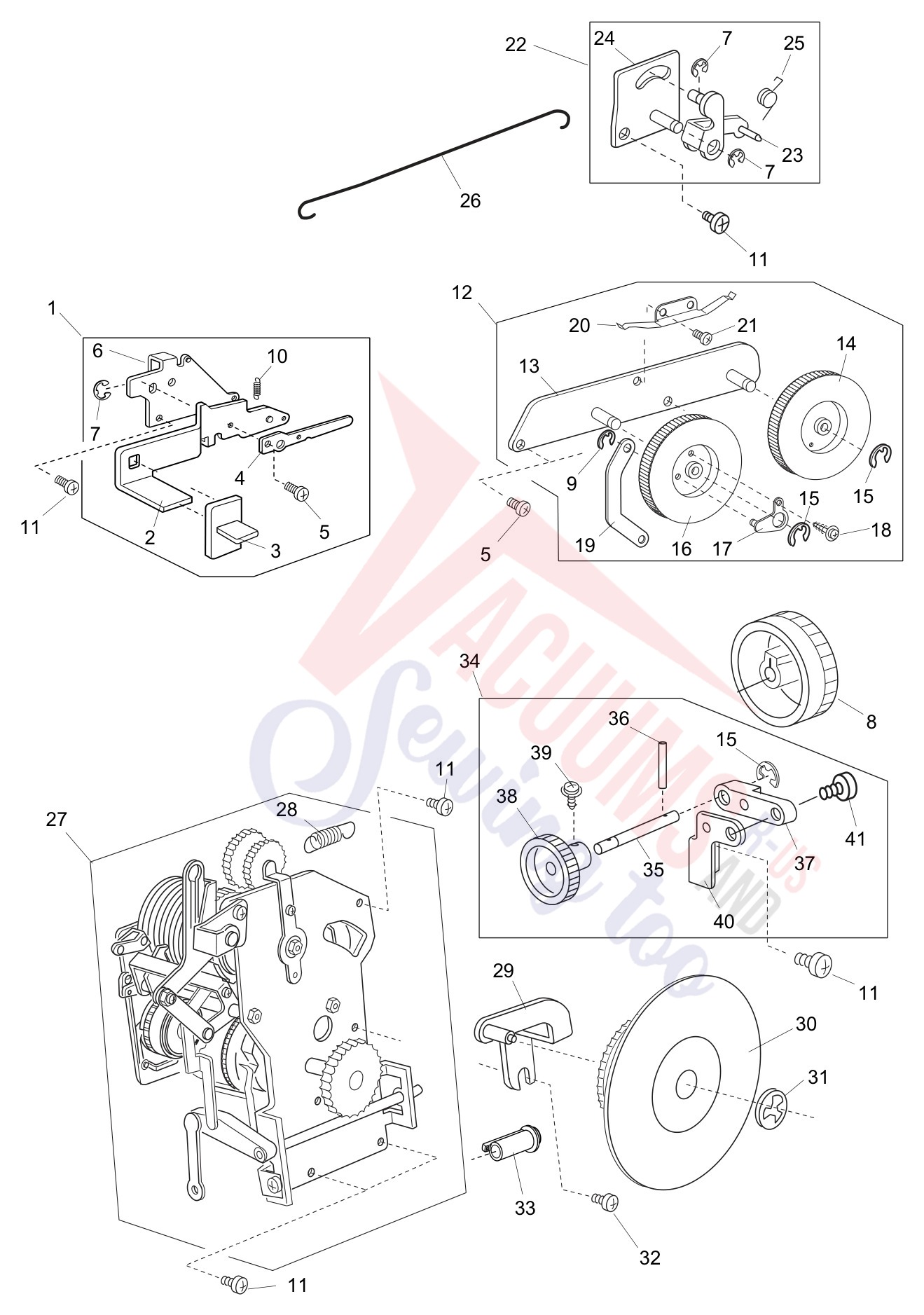

| # | Part image | Description | SKU | Price |
| 1 | No Image | Reverse Lever Unit | 502624007 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Reverse stitch lever (1) sewing machine part or accessory For Janome Models: 4045LX SRV | 502176009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Reverse Lever | 502177000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Reverse Button (2) | 502178001 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Reverse lever holding plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502179002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Pattern Selector Dial sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 502156003 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 10 |  | Reverse lever spring sewing machine part or accessory For Janome Models: 4045LX SRV | 502205008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Dial Unit | 502623202 | $17.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Dial holding plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502168008 | $3.80Read more |
| 14 | No Image | Stitch Length Dial | 502169504 | $1.80Read more |
| 15 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Zigzag width dial sewing machine part or accessory For Janome Models: 4045LX SRV | 502170106 | $1.80Read more |
| 17 | | Zigzag width adjusting plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502194003 | $0.80Read more |
| 18 |  | Setscrew 3x10 sewing machine part or accessory For Janome Models: 1110DX, 334, 4045LX, 4045NX, 41... | 000149002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Zigzag width adjusting rod sewing machine part or accessory For Janome Models: 4045LX SRV | 502171004 | $0.60Read more |
| 20 |  | Pattern selection index spring sewing machine part or accessory For Janome Models: 4045LX SRV | 502172005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Buttonhole Changing Lever Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX... | 502628001 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Buttonhole changing lever sewing machine part or accessory For Janome Models: 4045LX SRV | 502060009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Buttonhole lever shaft plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502197006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Buttonhole changing lever spring sewing machine part or accessory For Janome Models: 4045LX SRV | 502198007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Buttonhole Changing Rod sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 ... | 502059005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Cam Block Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'... | 502647006 | $123.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGH... | 502167007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Pattern indicating dram holding plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502151008 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Pattern indicating dram sewing machine part or accessory For Janome Models: 4045LX SRV | 502152205 | $3.80Read more |
| 31 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | SS Adjusting Knob sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILT... | 502155002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SELECTING DIAL SHAFT UNIT FOR HF4119 sewing machine part or accessory For Janome Models: 4045LX, ... | 502620003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Pattern selector dial shaft sewing machine part or accessory For Janome Models: 4045LX SRV | 502157004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Spring pin 2x16 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 000019806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Dial shaft holder sewing machine part or accessory For Janome Models: 4045LX SRV | 502159006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | DIAL GEAR FOR HF4119 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QU... | 502158005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | SET SCREW 3X12 7000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045N... | 000115906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Dial holding plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502160000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

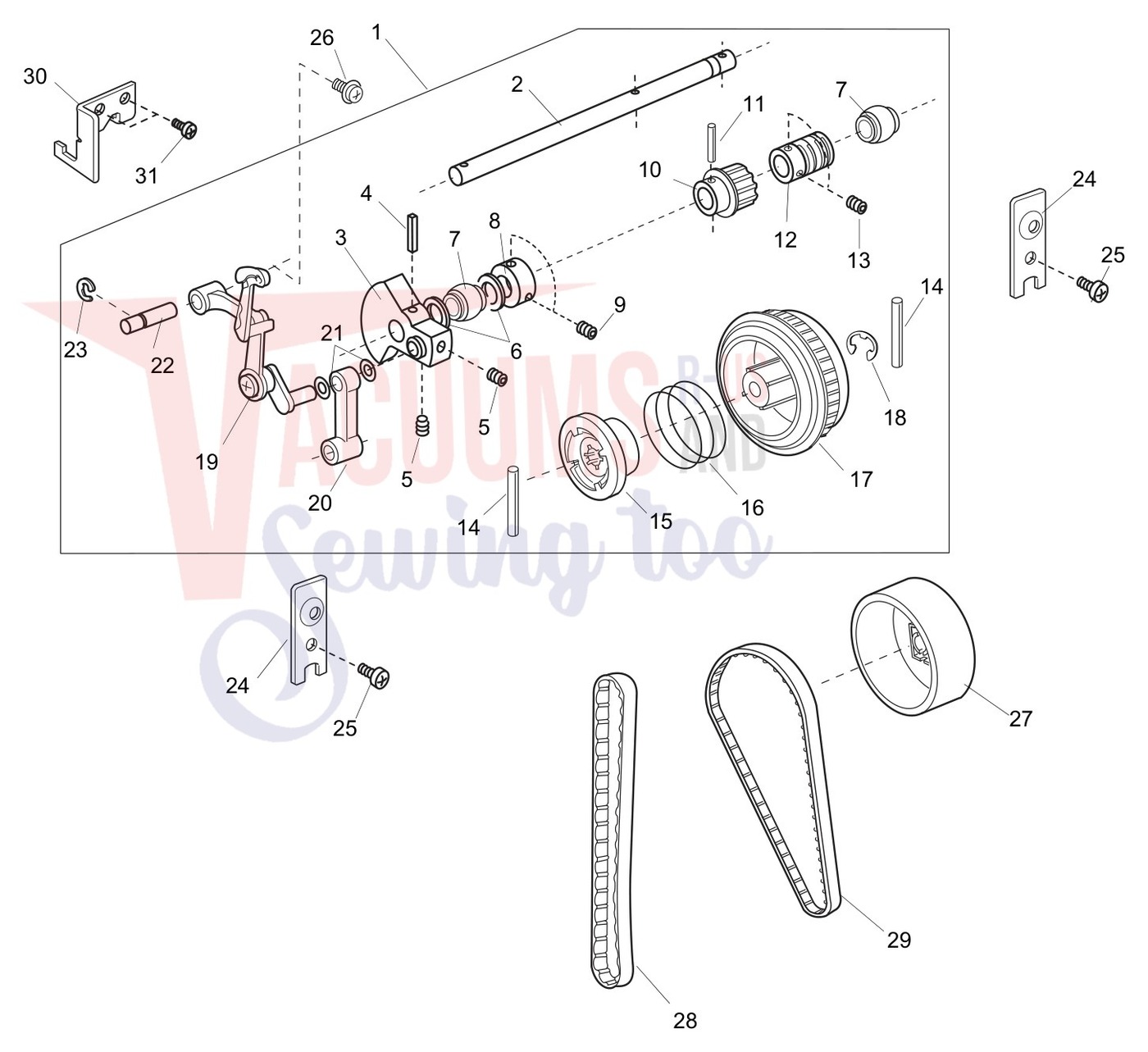

| # | Part image | Description | SKU | Price |
| 1 | | Upper Shaft Complete Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 411... | 502612002 | $68.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Upper Shaft | 502062001 | $0.00Read more |
| 3 | | Thread take-up crank sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QU... | 660016003 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring pin 4x22 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 000021708 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER FOR MC10000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUIL... | 000038801 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Upper Shaft Bushing sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUI... | 502002003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 10 |  | Upper shaft timing gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4... | 756017004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Worm Gear sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DEL... | 502063002 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Belt Wheel sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DE... | 502066005 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4... | 660510013 | $19.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | NEEDLE BAR CRANK ROD FOR 639 sewing machine part or accessory For Janome Models: 1017, 1117S, 312... | 639016007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | WASHER FT-80 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 4045LX, 4045... | 000036902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Pin sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGHT),... | 502044007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | UPPER SHAFT METAL HOLDER sewing machine part or accessory | 502067006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Hand Wheel sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DE... | 502068007 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Synchro-belt sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S ... | 660017015 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Timing belt sewing machine part or accessory For Janome Models: 4045LX SRV | 753234000 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Upper Shaft Supporting Plate | 502206009 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

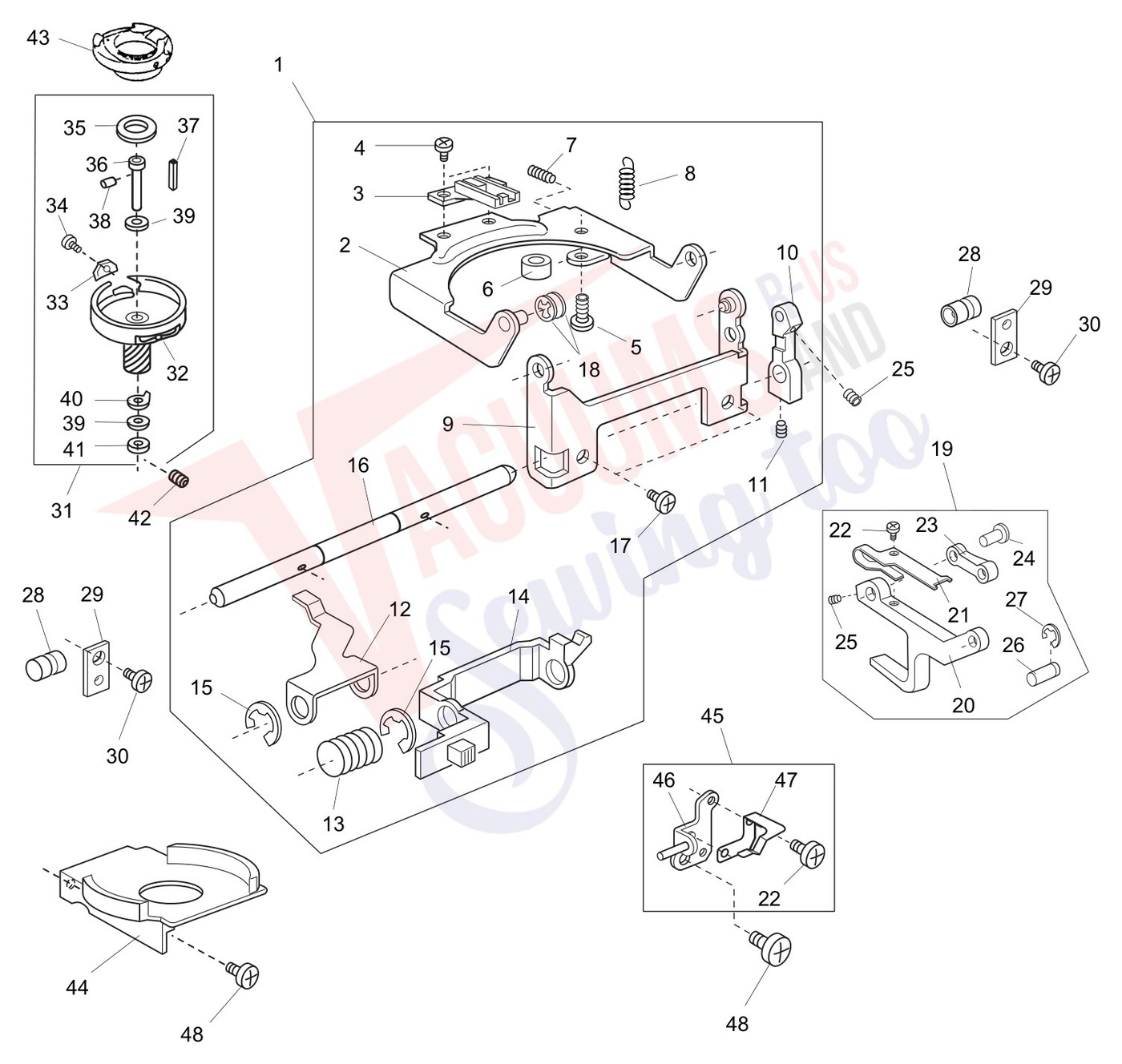

| # | Part image | Description | SKU | Price |
| 1 | No Image | Horizontal Feed Shaft Unit | 502616006 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Horizontal Feed Plate | 502075007 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Feed Dog sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELI... | 502005006 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | FEED ADJUSTING SCREW sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QU... | 502077009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Ring | 502203006 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Socket Screw 4 X 18 | 000176503 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Spring | 502078000 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Horizontal Feed Plate Supporte | 502079001 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Feed Arm | 502080005 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Sliding Plate sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S... | 502083008 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Sliding Plate Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QU... | 502084009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Feed Dog Down Lever sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUI... | 502085000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Feed shaft sewing machine part or accessory For Janome Models: 4045LX SRV | 502086001 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Forked Rod Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 502639005 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Forked rod sewing machine part or accessory For Janome Models: 4045LX SRV | 502087002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Spring sewing machine part or accessory For Janome Models: 4045LX SRV | 502088003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | FEED ADJUSTING LINK sewing machine part or accessory | 650087004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Pin | 820144003 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Connecting pin sewing machine part or accessory For Janome Models: 4045LX SRV | 502200003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Straight Center sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 502089004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | UPPER SHAFT CTR HOLDING PLATE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 735085008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Hook Unit | 502667002 | Not Available |
| 32 | No Image | Shuttle Body Unit | 502502008 | $0.00Read more |
| 33 | | NEEDLE GUARD sewing machine part or accessory For Elna Models: ELJ3210 | 627189005 | $1.61Read more |
| 34 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 43 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | GEAR COVER sewing machine part or accessory | 502071003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Guide Plate Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 502642001 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Guide plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502090008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Lever plate spring sewing machine part or accessory For Janome Models: 4045LX SRV | 502091009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Lower Shaft Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 502613003 | $27.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Lower shaft sewing machine part or accessory For Janome Models: 4045LX SRV | 502069008 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Lower shaft gear sewing machine part or accessory 650073007 Lower shaft gear | 650073007 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Lower Shaft Ring | 502195004 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed Cam Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S... | 502070002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Spring pin 3x12 sewing machine part or accessory For Janome Models: SEWIST780DC | 000005407 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 14 |  | Lower Shaft Metal Holder sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 502204007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Feed Adjusting Shaft Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 411... | 502646005 | $21.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Feed adjusting shaft sewing machine part or accessory For Janome Models: 4045LX SRV | 502214000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | FEED SHAFT BUSHING sewing machine part or accessory | 502003004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | FEED ADJUSTING ARM sewing machine part or accessory | 502093001 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Buttonhole feed adjusting arm sewing machine part or accessory For Janome Models: 4045LX SRV | 502217003 | $1.40Read more |
| 23 | | SET SCREW 4 X 16 sewing machine part or accessory For Janome Models: 1110DX, 204D, 4045LX, 4045NX... | 000104706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Ss feed adjusting arm sewing machine part or accessory For Janome Models: 4045LX SRV | 502216002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Feed adjusting shaft plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502215001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SET SCREW 3X12-4123 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUI... | 000100104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Feed Shaft Metal Holder sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 ... | 502096004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 31 | Not Available | Connecting pin | 502258006 | Not Available |
| 32 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 502097005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Bobbin Winder Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUIL... | 502505001 | $15.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Machine socket unit sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 204... | 739505403 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Socket Lid sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041N... | 739037007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Machine Socket Fixing Plate sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4... | 502190009 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Lamp Socket Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 639618108 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Threaded Light Bulb sewing machine part or accessory For Janome Models: 108, 1117S, 1200D, 203, 2... | 000008606 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Nylon clip acc-2.5 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 000188601 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Motor Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DE... | 502627000 | $59.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Idler holding plate sewing machine part or accessory For Janome Models: 4045LX SRV | 502074006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Idler Unit sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DE... | 502614004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | IDLER BASE PLATE sewing machine part or accessory | 502072004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
