Schematic and parts book for Janome 300E 300E. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate Unit sewing machine part or accessory For Janome Models: MC300E | 852603004 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Needle Plate | 852005000 | Not Available |
| 3 |  | BOBBIN HOLD PLATE SPRING sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 832235010 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Pan head small screw 2X2.3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 000169709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Bobbin holder stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 659, 66... | 654078004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: COMBI-DX502, MC10000, MC30... | 820390006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Hook Cover Plate | 825018035 | Not Available |
| 11 |  | Needle plate position pin sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 832013009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle plate nut holder sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 832014000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Stopper plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC900... | 832165007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Stopper sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 851038009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle plate set plate (right) (unit) sewing machine part or accessory For Elna Models: EL820 | 825605013 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle plate set plate (right sewing machine part or accessory For Janome Models: MC10000, MC1000... | 825021019 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Needle plate pos adjust plate | 825022009 | Not Available |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Free arm cover unit sewing machine part or accessory For Janome Models: MC300E | 852601002 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Free Arm Cover sewing machine part or accessory For Janome Models: MC300E | 852021002 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Cover setting plate sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 832003006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Bed Cover sewing machine part or accessory For Janome Models: MC300E | 851004017 | $5.40Read more |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Extension Table sewing machine part or accessory For Janome Models: MC300E, MC350E | 852003008 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Face Cover Unit for Memory Craft 300e sewing machine part or accessory For Janome Models: MC300E,... | 852604005 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Face Cover sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500 | 852006104 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Reflector sticker sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 827099003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Thread Cutter for Memory Craft 9000 sewing machine part or accessory For Janome Models: MB-4, MC1... | 832508006 | $15.42Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Handle Set Plate sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500 | 834014202 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

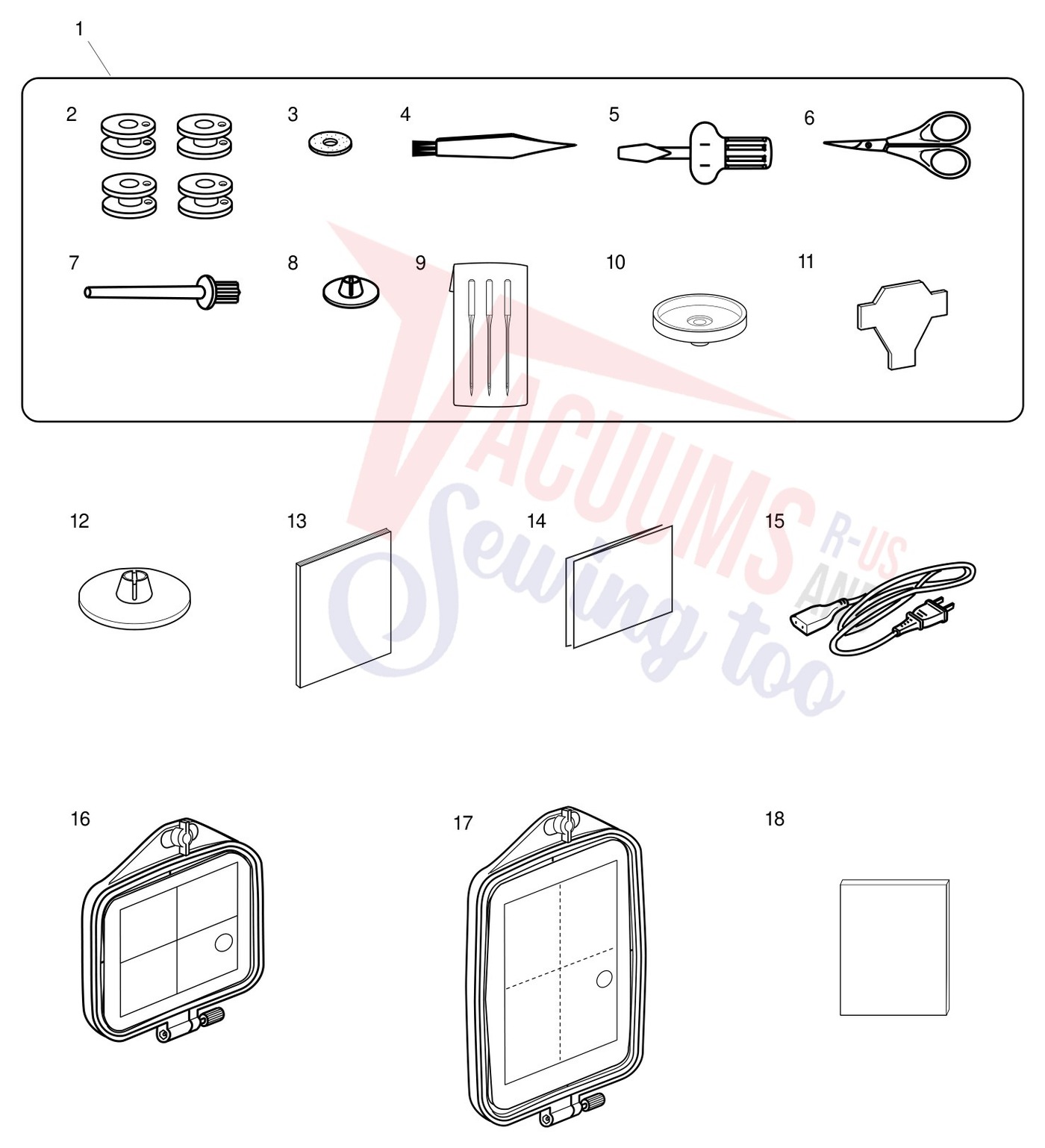

| 1 | | Accessory Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852801004 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 6 |  | Pink Scissors sewing machine part or accessory 3½" pink scissors - comes with most sewing machine... | 803813007 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 8 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Needle Case sewing machine part or accessory For Janome Models: MC300E | 852802005 | $4.99Read more |
| 10 | | SPOOL HOLDER RECEIVING BASE sewing machine part or accessory For Janome Models: 2040, 3022, 3160Q... | 829803004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Spool holder (Large)822020307 sewing machine part or accessory For Janome Models: MC10000, MC300E... | 822020514 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Instruction Book for MC300E | 852804007 | Not Available |
| 14 |  | Template Sheet sewing machine part or accessory For Janome Models: 300E, MC9500 | 852805008 | $12.70Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Embroidery Hoop Unit (A) | 852807000 | Not Available |
| 17 | Not Available | Embroidery hoop unit B | 850802009 | Not Available |
| 18 | Not Available | *** 852816002 *** | 852816006 | Not Available |
| # | Part image | Description | SKU | Price |

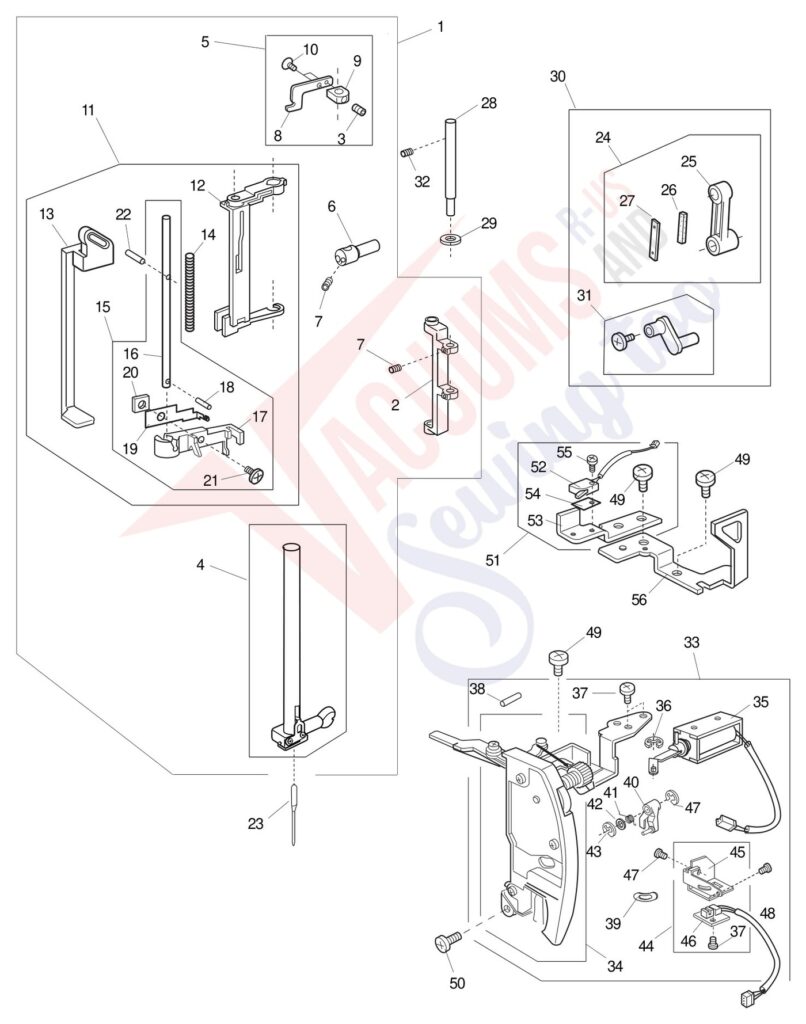

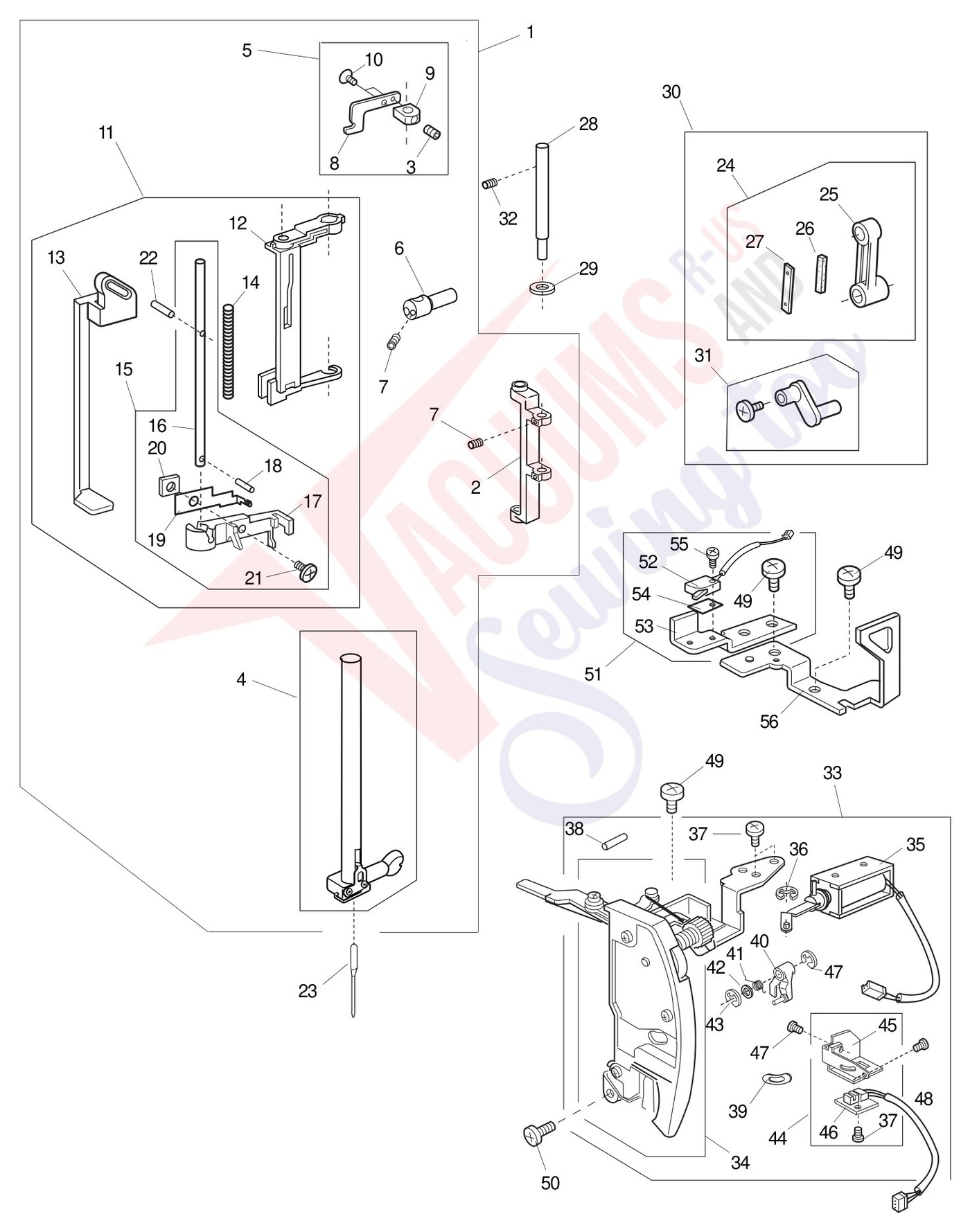

| 1 | | Needle Bar Supporter Unit sewing machine part or accessory For Janome Models: MC300E | 852605109 | $66.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | NEEDLE BAR SUPPORTER sewing machine part or accessory For Janome Models: 525S, 6147, 625E, DE5018... | 751014006 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Needle bar unit sewing machine part or accessory For Janome Models: MC300E, MC5700, MC8100 | 830609105 | $24.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Thread position set plate sewing machine part or accessory For Janome Models: 525S, 6147, 625E, D... | 751607002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | NEEDLE BAR CONN. STUD ME4018 sewing machine part or accessory For Janome Models: 521, 525S, 6147,... | 751047008 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Threader positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 734101008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Threader positioning holder sewing machine part or accessory For Janome Models: 525S, 6147, 625E,... | 751016008 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Needle Threader Unit for Memory Craft 300e sewing machine part or accessory For Janome Models: MC... | 755626010 | $13.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Frame sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC350E, MC9500, MC9... | 755062001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Threader lever sewing machine part or accessory For Janome Models: MC300E, SEW PRECISE | 755063002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle threader spring sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC... | 755067006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle threader shaft unit sewing machine part or accessory For Janome Models: 525S, 625E, MC300E... | 755625008 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Threader Shaft sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC350E, MC... | 755066005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Threader Supporter | 755064003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Threader Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 40... | 755065004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Nut sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 755095003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Setscrew sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX,... | 755096004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Stretch needle (Blue) sewing machine part or accessory For Janome Models: 550E | 813404013 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | NEEDLE BAR CRANK ROD UNIT sewing machine part or accessory For Janome Models: 509, 521, 525S, 614... | 650607006 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Needle bar crank rod sewing machine part or accessory 650039001 Needle bar crank rod | 650039001 | $4.00Read more |
| 26 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Needle Bar Supporter Shaft sewing machine part or accessory For Janome Models: MC300E, MC350E | 852007002 | $1.20Read more |
| 29 | | Washer sewing machine part or accessory For Janome Models: MC300E | 852008003 | $0.60Read more |
| 30 | | Needle Bar Crank Unit sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC3... | 850662005 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Thread tension unit sewing machine part or accessory For Janome Models: MC300E | 852606007 | $77.60Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Thread Tension Unit sewing machine part or accessory For Janome Models: MC300E | 852501001 | $35.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Solenoid unit sewing machine part or accessory For Janome Models: MC300E | 851625102 | $20.40Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 37 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Spring pin 1.6X12 sewing machine part or accessory For Janome Models: MC300E, MC15000 15000 Horizon | 000005809 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Needle Thread Sensor Pin Cushion sewing machine part or accessory For Janome Models: MC300E, MC9500 | 830050002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Thread cutter sensor leverunit sewing machine part or accessory For Janome Models: MC200E, MC300E... | 830660001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Detection Lever Spring sewing machine part or accessory For Janome Models: MC200E, MC300E, MC350E... | 834193000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Sensor base plate (unit) sewing machine part or accessory For Janome Models: 350E | 852607008 | $15.60Read more |
| 45 | | Sensor Fixing Plate sewing machine part or accessory For Janome Models: MC200E, MC300E, MC350E, N... | 852012000 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Printed Circuit Board G1 Unit sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 852502002 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

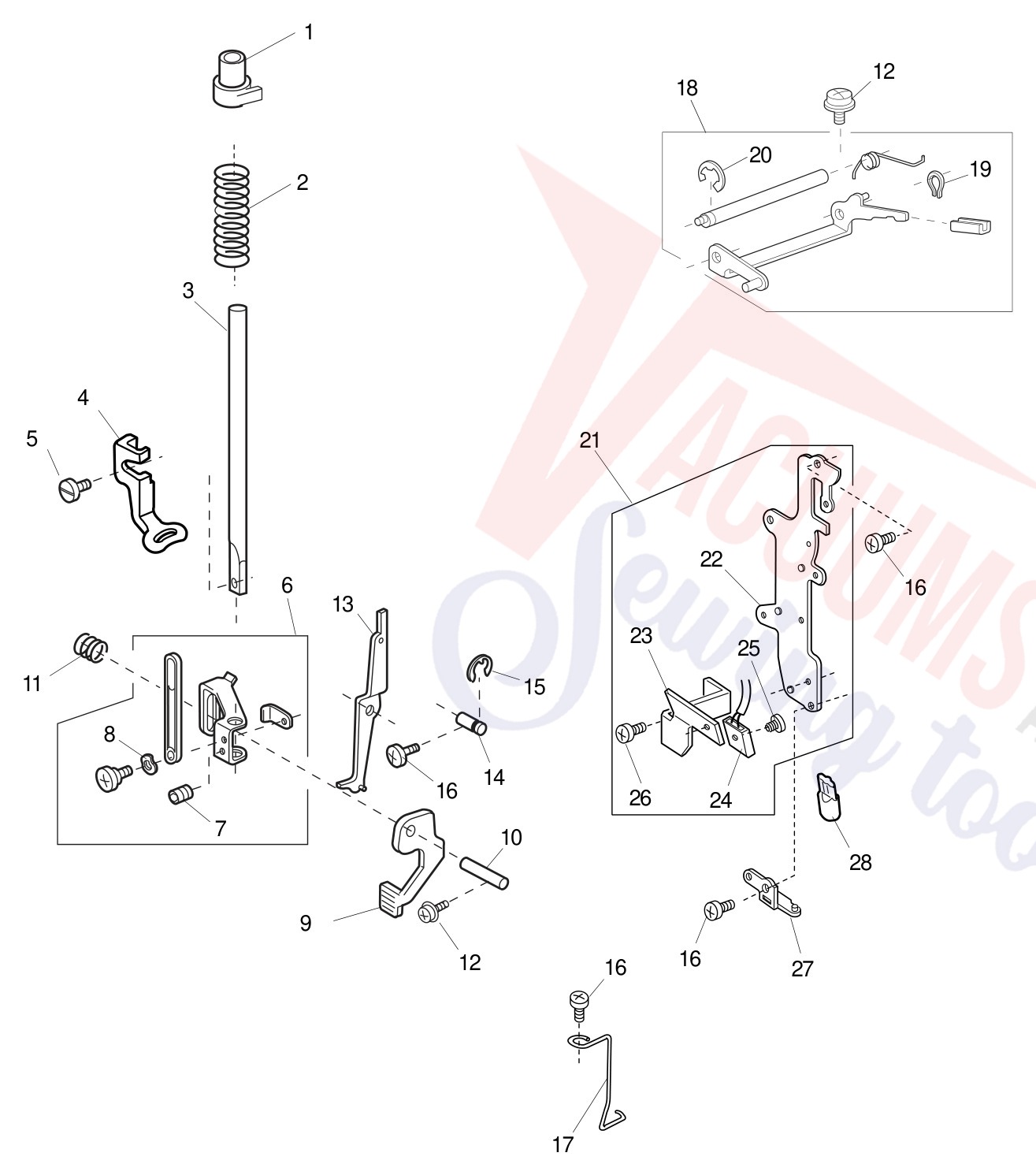

| 1 | | Presser Bar Bushing sewing machine part or accessory For Janome Models: MC300E, MC350E | 852009004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | PRESSER BAR SPRING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC10001... | 830030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PRESSER BAR 9000 8000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 830029002 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Embroidery Foot P (high shank) | 830810053 | Not Available |
| 5 |  | Thumb Screw sewing machine part or accessory For Janome Models: 134D, 2018S, 203, 2041, 2041LX, 2... | 763048006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Presser bar supporter unit sewing machine part or accessory For Janome Models: MC10000, MC300E, M... | 830586024 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Washer sewing machine part or accessory For Janome Models: 405, MC10000, MC10001, MC11000, MC1100... | 000116608 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Presser bar lifter sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC300E... | 830035012 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Tension releasing lever sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 830037025 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Thread release lever pin sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 830338007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000081027 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Arm thread guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 830039027 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Pressure functioning arm unit sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 830585012 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Front set plate unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852608009 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Front Set Plate sewing machine part or accessory For Janome Models: MC300E, MC350E | 852015003 | $2.20Read more |
| 23 | | Lamp Fixing Plate sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 852039003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Lamp socket unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 501509404 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set screw 2x8 sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 6125Q... | 000102900 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Front cover setting plate (2) sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 851045009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Light Bulb-Wedge Base 12V 5W sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 000026002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

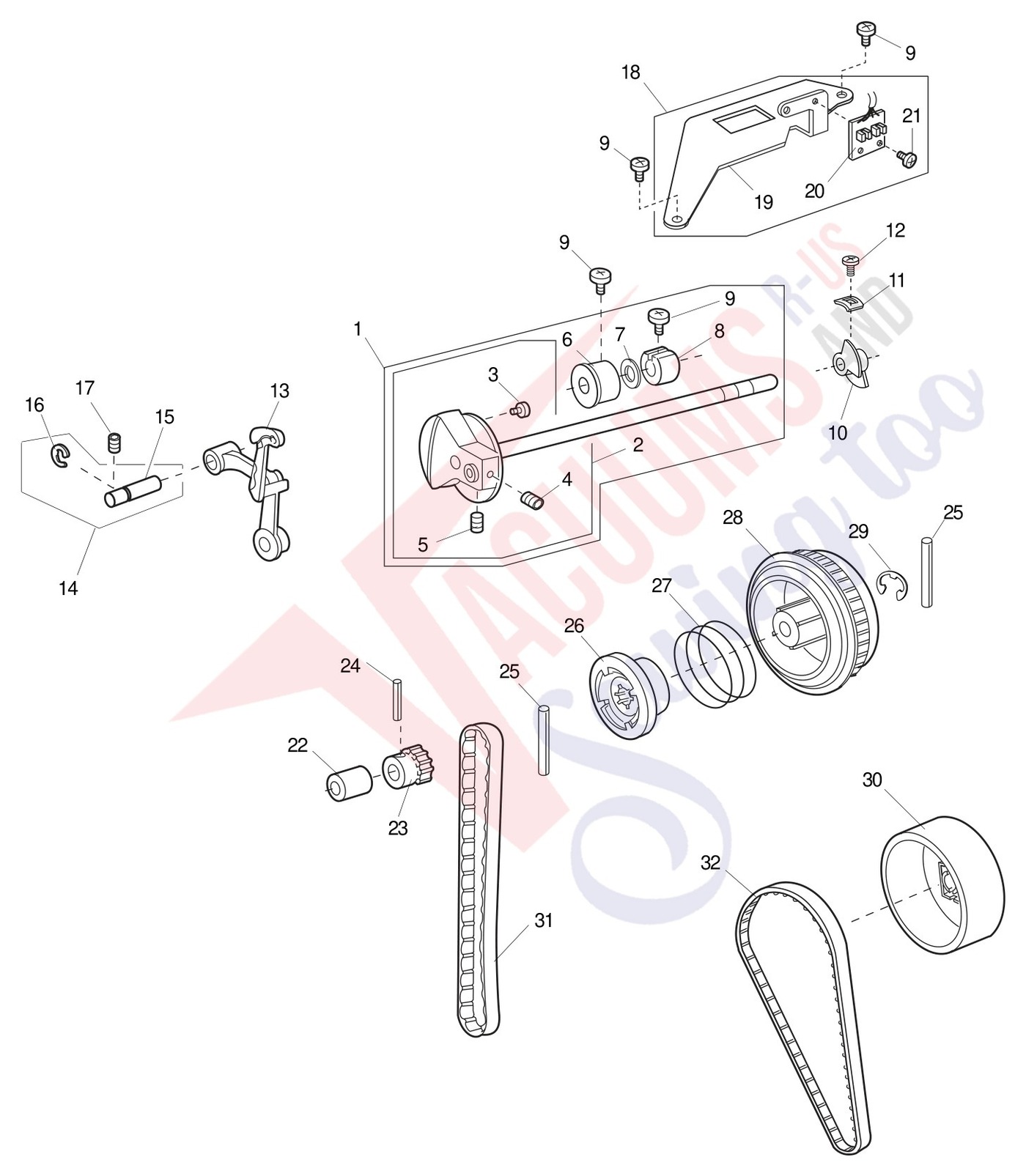

| 1 | | Upper shaft unit sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 852613007 | $28.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Upper shaft unit sewing machine part or accessory For Janome Models: 300E SRV | 852508008 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Upper shaft front bushing sewing machine part or accessory For Janome Models: 300E SRV | 673061003 | $1.56Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | UPPER SHAFT RING 7/7500/5500 sewing machine part or accessory For Janome Models: COMBI-DX502, MC3... | 821025000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 2040, 3022, 7061NX, ... | 830095010 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin Unit sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC300... | 650626001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SNAP RING E-9 8 7 4(000002806) sewing machine part or accessory For Janome Models: 531, 7330, AQS... | 000001702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Upper shaft sensor unit sewing machine part or accessory For Janome Models: MC300E | 852622009 | $22.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Upper Shaft Sensor Fix Plate sewing machine part or accessory For Janome Models: MC300E | 852038002 | $2.20Read more |
| 20 |  | P board unit sewing machine part or accessory For Janome Models: 6260QC, MC300E, EL900 eXpressive | 843505100 | $17.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Upper Shaft Bushing (Brass) sewing machine part or accessory For Janome Models: MC300E, MC350E, M... | 851062002 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | UPPER SHAFT TIMING GEAR sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 830341003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | belt wheel sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, MC200E, MC30... | 303025009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Handwheel sewing machine part or accessory For Janome Models: MC300E | 502068100 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | X Syncro Belt sewing machine part or accessory | 850106006 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

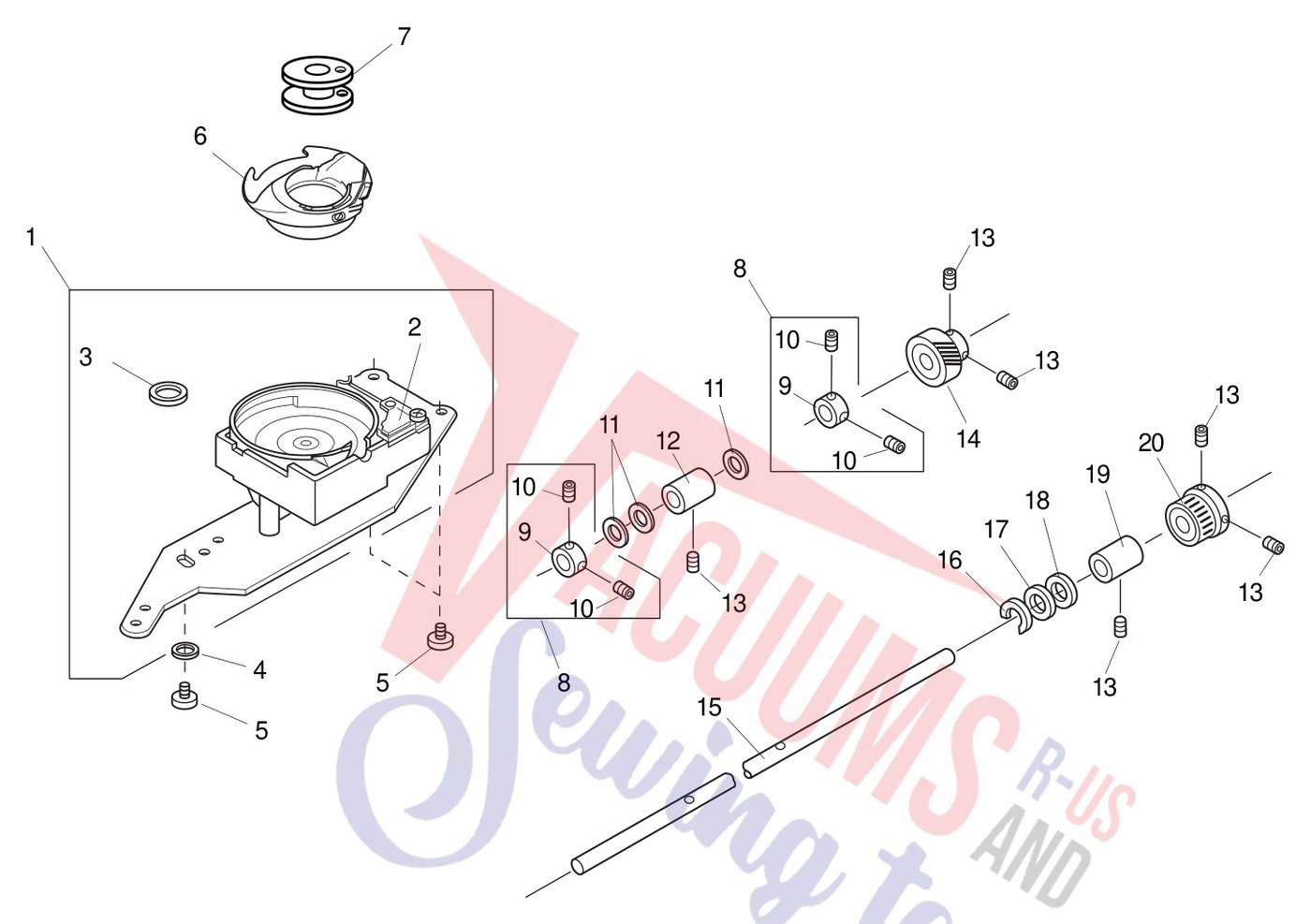

| 1 | Not Available | Hook Race Unit | 832627301 | Not Available |
| 2 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Bobbin Holder sewing machine part or accessory For Janome Models: MC200E, MC300E | 627569405 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Lower shaft ring (unit) sewing machine part or accessory 820672005 Lower shaft ring (unit) | 820672005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 14 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Lower Shaft for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, M... | 850071001 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | LOWER SHAFT TIMING GEAR 9000/8 sewing machine part or accessory For Janome Models: MC10000, MC100... | 822113009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

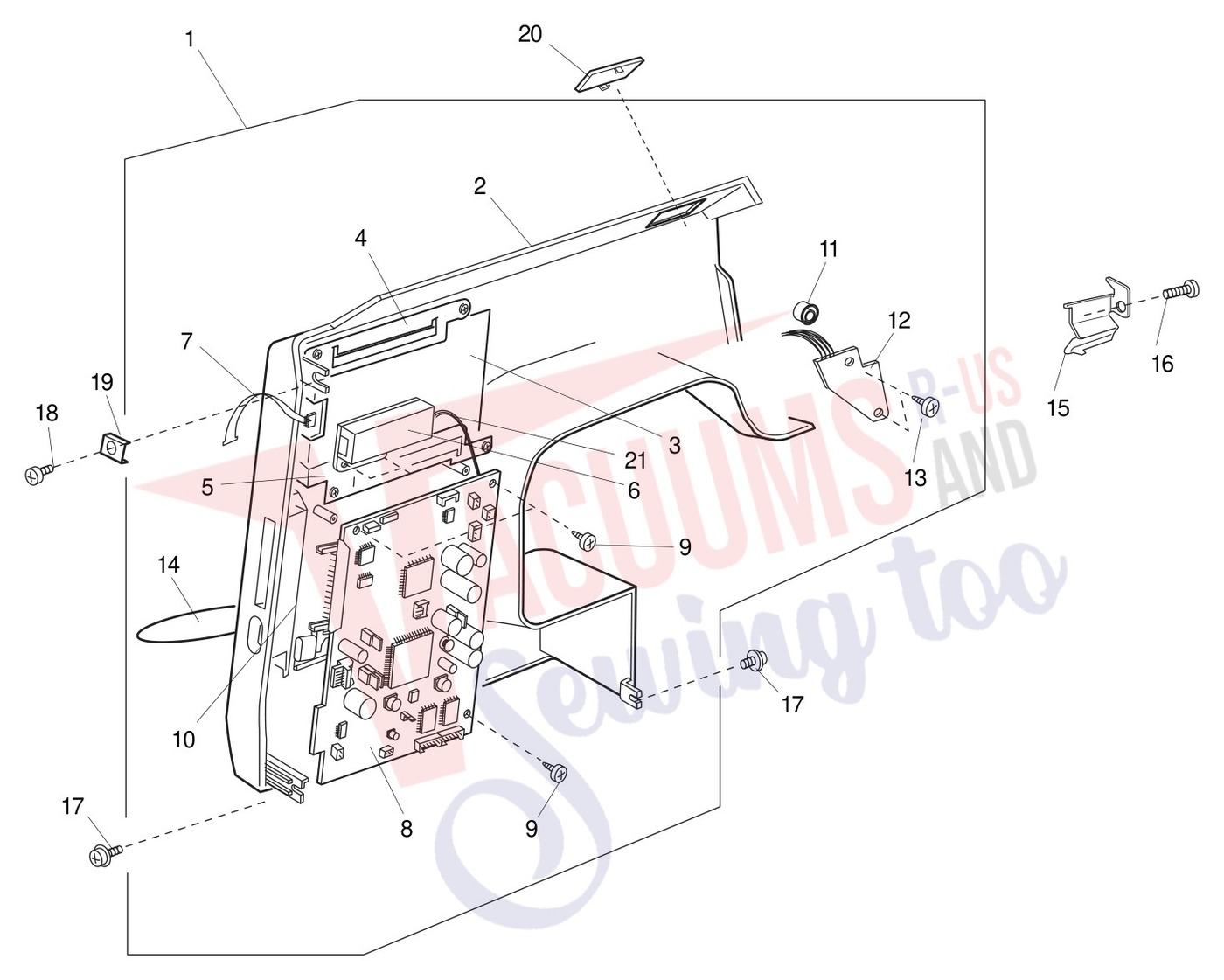

| 1 | | Front cover unit sewing machine part or accessory For Janome Models: MC300E | 852609000 | $476.60Read more |
| 2 | | Front Cover sewing machine part or accessory For Janome Models: MC300E | 852016107 | $33.12Read more |
| 3 | | LCD unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852610004 | $307.80Read more |
| 4 | | LCD Fixing Plate (Upper) sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500 | 852017005 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | LCD setting plate sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500 | 852611005 | $59.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Inverter Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 850612103 | $80.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | LCD Harness Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852505005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Circuit Board A for Memory Craft 300e sewing machine part or accessory For Janome Models: MC300E | 852612006 | $481.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Card guide sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 852019007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Start/Stop Button sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852020104 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Circuit Board F for Memory Craft 300e sewing machine part or accessory For Janome Models: MC300E | 852507007 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Emblem sewing machine part or accessory For Janome Models: MC300E | 852022003 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Arm thread guide (lower) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 825183010 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SET SCREW 3.5X25-8 9 7 7500 sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 000096508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Washer sewing machine part or accessory For Janome Models: 350E | 832177002 | $0.92Read more |
| 20 |  | Tension unit cover lid sewing machine part or accessory For Janome Models: MC300E, MC350E | 852023004 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Inverter harness unit sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300... | 850524004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

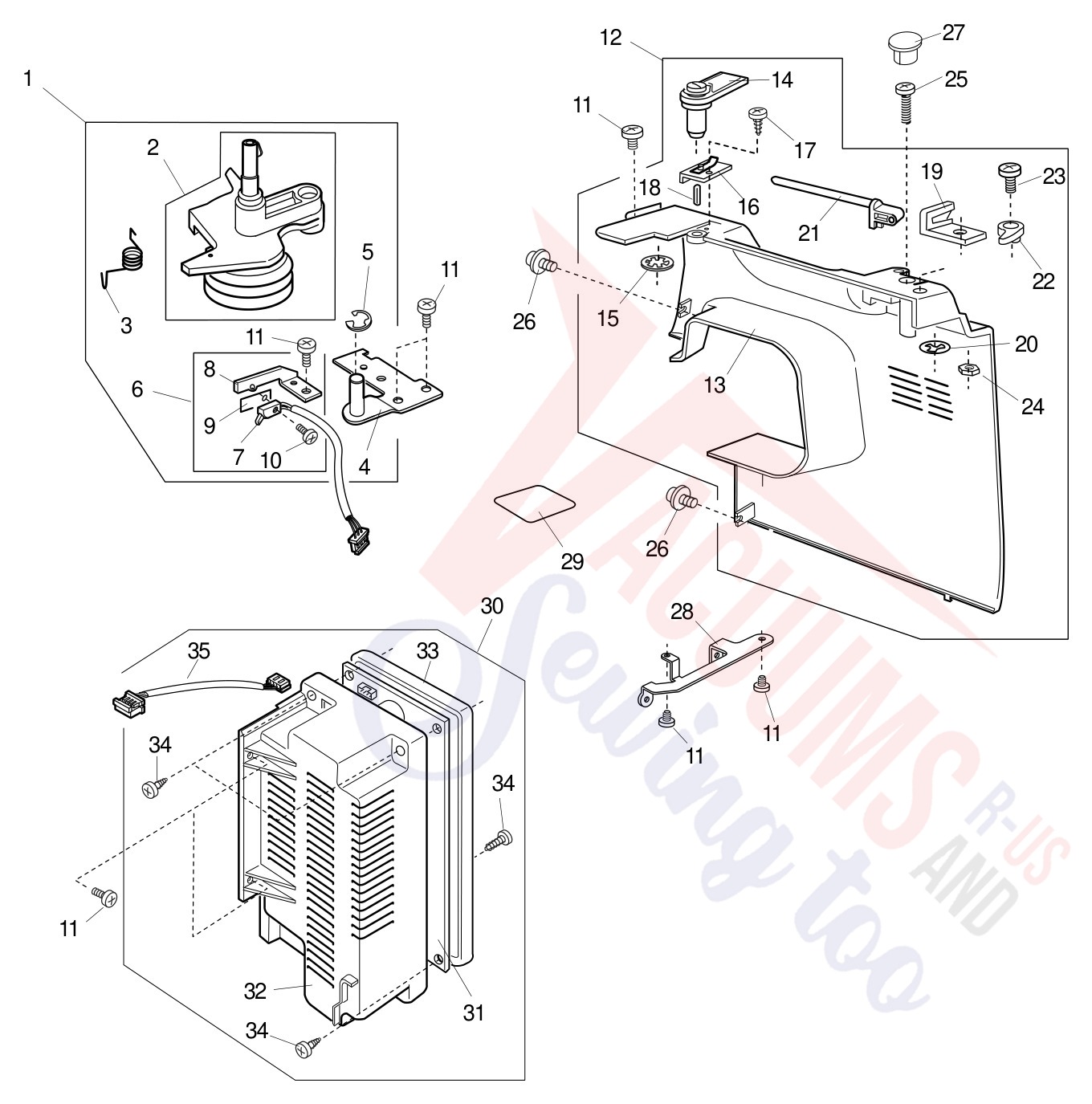

| 1 | | Bobbin winder unit sewing machine part or accessory For Janome Models: MC300E | 852614008 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Bobbin Winder Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852509009 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Bobbin winder base plate sewing machine part or accessory For Janome Models: 300E SRV | 852029000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Switch sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852615009 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Micro Switch Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 852510003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Switch Fixing Plate | 852042009 | Not Available |
| 9 | | Insulating Paper sewing machine part or accessory | 852014002 | $0.48Read more |
| 10 | | Setscrew 1.7 x 6 sewing machine part or accessory For Janome Models: MC300E, MC350E, MC5200, MO200 | 000041209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Rear Cover for Memory Craft 300e sewing machine part or accessory For Janome Models: MC300E | 852602003 | $0.00Read more |
| 13 |  | Rear Cover sewing machine part or accessory For Janome Models: MC300E, MC350E | 852002100 | $29.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Thread guide sewing machine part or accessory For Janome Models: 2040, 3022, 509, 521, 525S, 625E... | 650503702 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Top Cover Thread Guide Unit sewing machine part or accessory For Janome Models: MC300E | 834555015 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Spring pin 2X10 sewing machine part or accessory For Janome Models: MC300E, MC350E, MC6000, MC770... | 000020202 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Thread cutter unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 840602109 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Spool pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, ... | 659067005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: MC300E | 540048308 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | +-Bind small screw 4X30 sewing machine part or accessory For Janome Models: MC11000, MC11000SE, M... | 000103200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cover fixing plate sewing machine part or accessory For Janome Models: 300E SRV | 834005004 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Carriage sticker | 850201002 | Not Available |
| 30 | | Switching Power Supply Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, M... | 850628205 | $135.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Switching Power Supply Unit sewing machine part or accessory For Janome Models: MC300E, MC9500, M... | 850541018 | $110.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Swithcing power supply case sewing machine part or accessory For Janome Models: 350E | 850157024 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Switching power supply cap sewing machine part or accessory For Janome Models: 350E | 850158014 | $11.00Read more |
| 34 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000119704 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Power Supply Harness Unit sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 850523003 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Idler Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 851617008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Idler base | 851039000 | Not Available |
| 3 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Handle Base Plate (Rear) sewing machine part or accessory For Janome Models: MC300E, MC350E, MC95... | 852032006 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Belt cover unit sewing machine part or accessory For Janome Models: MC300E | 852616000 | $17.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Belt Cover sewing machine part or accessory For Janome Models: MC300E | 852031005 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Belt cover setting plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 832099009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Machine Socket Unit for Memory Craft 300e sewing machine part or accessory For Janome Models: MC3... | 852513006 | $26.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Machine Socket Set Plate | 852036000 | $1.60Read more |
| 18 | | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SET SCREW FOR SERGER sewing machine part or accessory For Janome Models: 203, 2040, 204D, 234D, 3... | 000101817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | DC motor unit sewing machine part or accessory For Janome Models: MC350E | 852620030 | $62.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Handle Unit | 850633029 | Not Available |
| # | Part image | Description | SKU | Price |

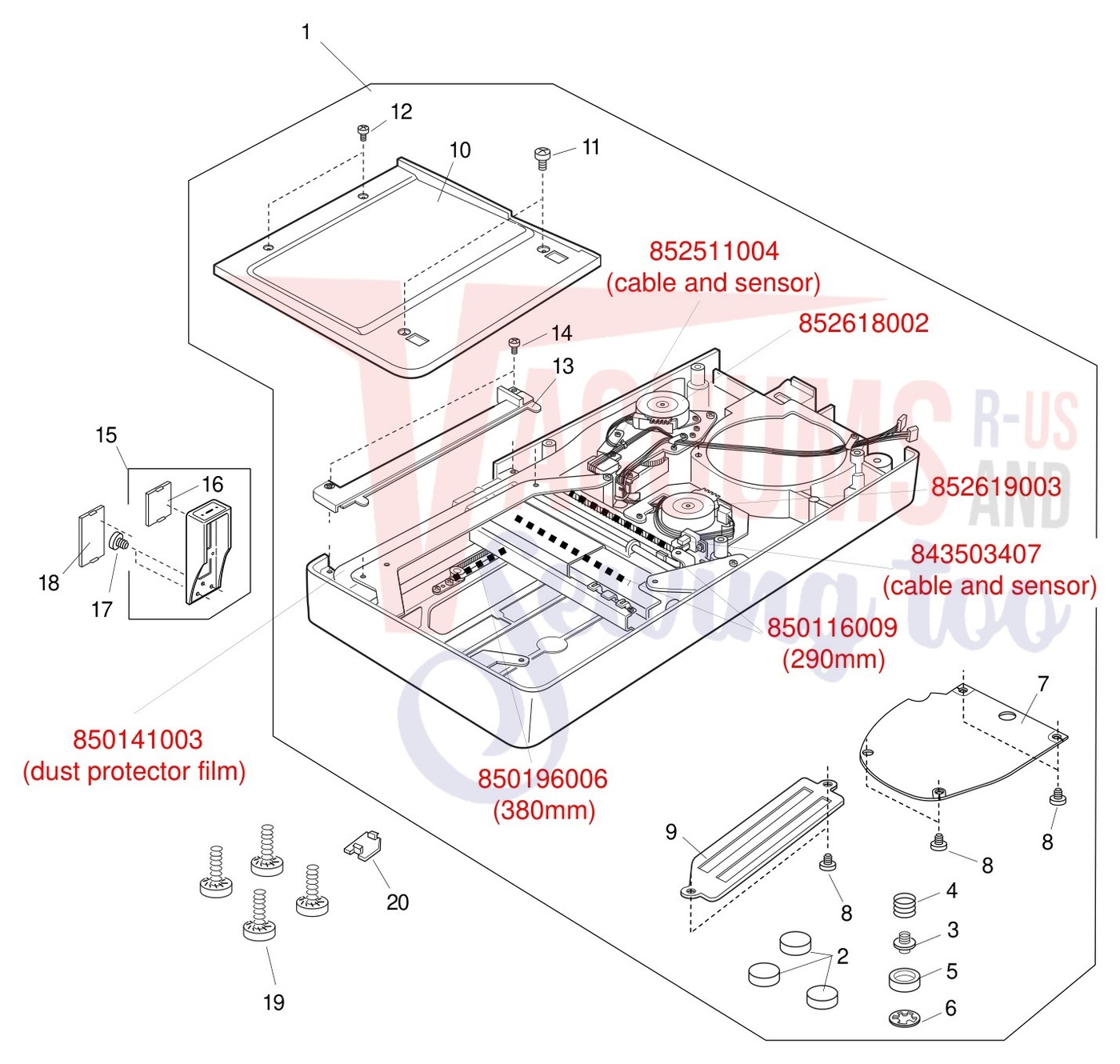

| 1 |  | Base Unit sewing machine part or accessory For Janome Models: MC300E, MC300E & 9500 BASE UNIT... | 852617001 | $539.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Rubber Cushion sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 830150003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Adjusting Screw | 820350004 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring | 820351005 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Cushion sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900CP, DX2015, MC100... | 605074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER CS RING 9/8/7 5500 750 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 813123004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Base Lid sewing machine part or accessory For Janome Models: MC10001, MC300E, MC300E & 9500 B... | 850151017 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Base lid (1) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC300E... | 832146002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Base Cover sewing machine part or accessory For Janome Models: MC300E, MC300E & 9500 BASE UNI... | 851053103 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set screw 3x4 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000101127 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Sheet Cover sewing machine part or accessory For Janome Models: MC10001, MC300E, MC350E | 850147205 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | BINDING HEAD SM.SCREW DISCONTI sewing machine part or accessory For Janome Models: 134D, 334, 434... | 000066727 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Carriage Plate Unit sewing machine part or accessory For Janome Models: MC300E, MC350E | 850627101 | $31.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Carriage Cover Plate (2) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850169007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Carriage cover lid sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, ... | 850156001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Screw with toothed washer6X35 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 000127107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Base lid (3) | 851071004 | Not Available |
Report errors on this page HERE
