Schematic and parts book for Janome 11702 (Hello Kitty), 11702 11702 (Hello Kitty). Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

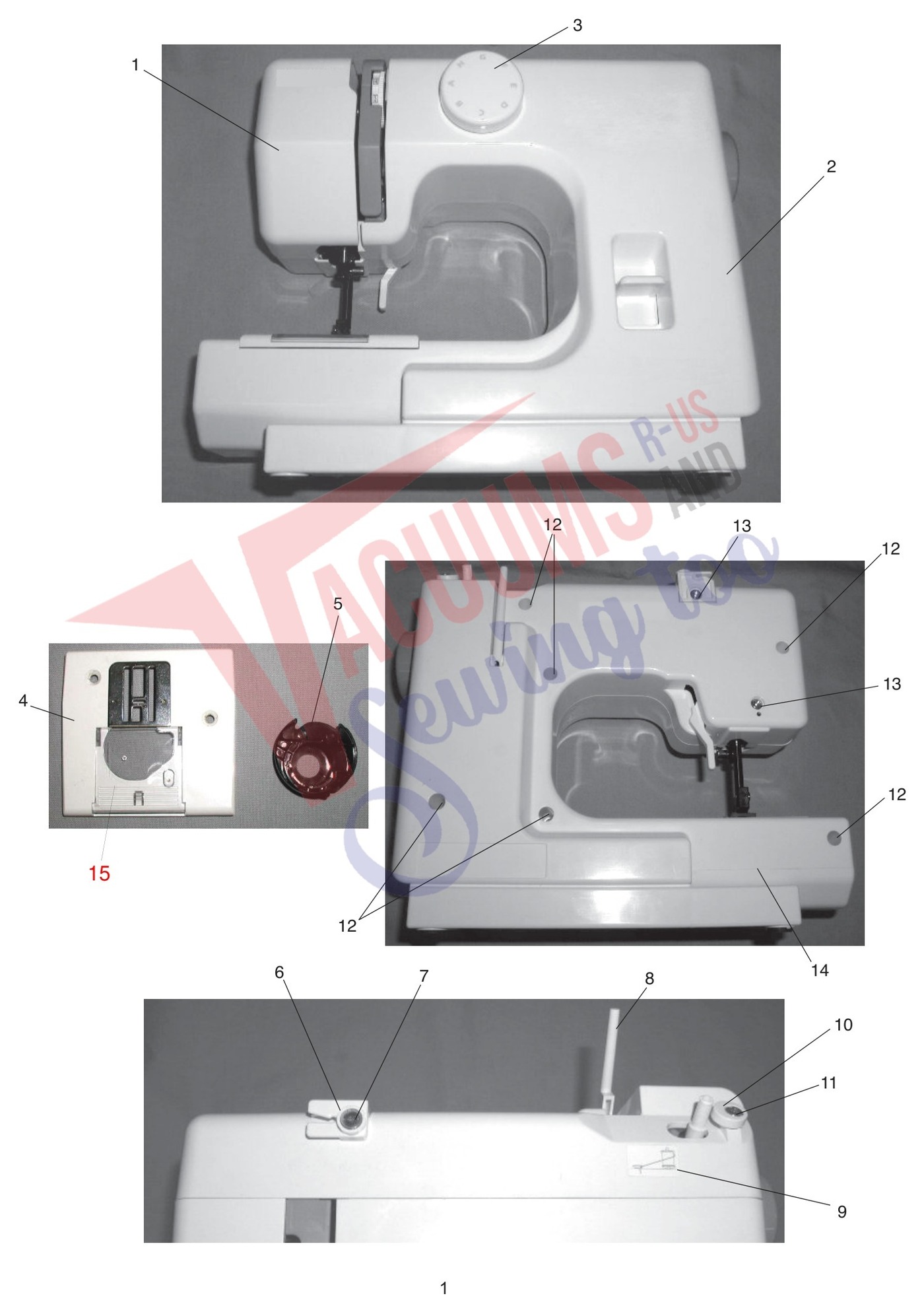

| 1 |  | FACE COVER sewing machine part or accessory For Janome Models: HELLO KITTY 1/2 | 525084206 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | FRONT COVER UNIT sewing machine part or accessory For Janome Models: HELLO KITTY 1/2 | 525623203 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SELECTOR DIAL sewing machine part or accessory For Janome Models: HELLO KITTY 1/2 | 525073305 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Needle Plate Unit sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, S... | 525617008 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | BOBBIN CASE FOR SEWMINI&SEWPETITE sewing machine part or accessory For Janome Models: BLOSSOM... | 525618009 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | THREAD GUIDE UNIT sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, S... | 525603001 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: SEWMINI AND SEWPETITE HF8050, MC... | 000149312 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SPOOL PIN FOR 639 sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 63... | 639003001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | STICKER | 525094003 | Not Available |
| 10 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | SET SCREW 3 x 8 sewing machine part or accessory For Janome Models: 11702 | 000115201 | $0.60Read more |
| 14 | | REAR COVER sewing machine part or accessory For Janome Models: HELLO KITTY 1/2 | 525601102 | $48.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Sliding plate sewing machine part or accessory For Janome Models: SEWMINI AND SEWPETITE | 525060000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

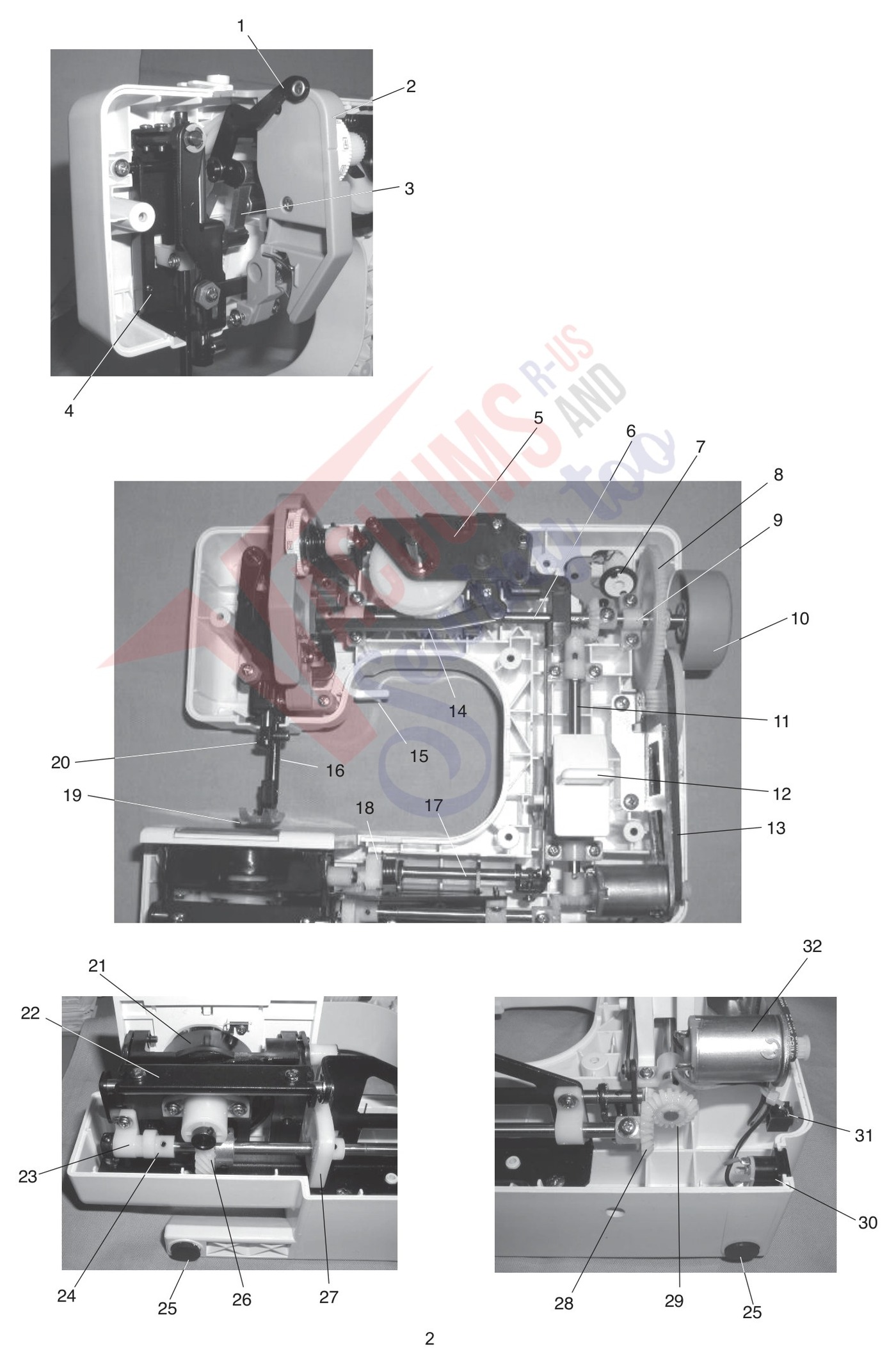

| 1 |  | Take up lever unit sewing machine part or accessory | 525608006 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | THREAD TENSION REGULATOR UNIT sewing machine part or accessory For Janome Models: HELLO KITTY 1/2 | 525502009 | $27.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | NEEDLE BAR CRANK ROD sewing machine part or accessory For Janome Models: 11702 | 525028006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | PRESSER BASE PLATE UNIT sewing machine part or accessory For Janome Models: 11702 | 525604002 | $60.09Read more |
| 5 | | CAM BLOCK UNIT sewing machine part or accessory For Janome Models: 11702 | 525619000 | $55.98Read more |
| 6 | | UPPER SHAFT UNIT sewing machine part or accessory For Janome Models: 11702 | 525609203 | $46.78Read more |
| 7 | | BOBBIN WINDER UNIT sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, ... | 525624008 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | GEAR sewing machine part or accessory For Janome Models: 11702 | 525081007 | $3.65Read more |
| 9 |  | Shaft supporter plate sewing machine part or accessory For Elna Models: ELAIRARTIST | 525031002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | HAND WHEEL sewing machine part or accessory For Janome Models: HELLO KITTY 1/2 | 525035006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | VERTICAL SHAFT UNIT sewing machine part or accessory | 525610001 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | R LEVER sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, SEW MINI, S... | 525074007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | MOTOR BELT sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, SEW MINI... | 525082008 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | ZIGZAG ROD sewing machine part or accessory For Janome Models: 11702 | 525071004 | $5.28Read more |
| 15 | | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 11702 | 525002004 | $2.11Read more |
| 16 | Not Available | PRESSURE BAR | 525013008 | Not Available |
| 17 | | FEED SHAFT UNIT sewing machine part or accessory For Janome Models: 11702 | 525615006 | $7.81Read more |
| 18 |  | FEED REGULATOR sewing machine part or accessory 525054001 FEED REGULATOR 11703 | 525054001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Foot Holder Complete L/S sewing machine part or accessory Foot Holder Complete, low shank.Use wit... | 525501008 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | NEEDLE BAR COMPLETE sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2,... | 525606004 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | HOOK UNIT sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, SEW MINI,... | 525612003 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | FEED BASE UNIT sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, SEW ... | 525614005 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Lower shaft supporter plate sewing machine part or accessory For Elna Models: ELAIRARTIST | 525046000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | FEED LIFTING CAM sewing machine part or accessory For Janome Models: 11702 | 525045009 | $0.85Read more |
| 25 |  | BASE RUBBER sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, Mystyle... | 525010005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | LOWER SHAFT GEAR sewing machine part or accessory For Janome Models: 11702 | 525044008 | $3.16Read more |
| 27 | | FEED FORKED ROD sewing machine part or accessory For Janome Models: 11702 | 525052009 | $2.07Read more |
| 28 |  | Gear A sewing machine part or accessory For Elna Models: ELAIRARTIST | 525033004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Gear B sewing machine part or accessory For Elna Models: ELAIRARTIST | 525037008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | POWER SUPPLY JACK sewing machine part or accessory For Janome Models: 11702 | 525504001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | FOOT SWITCH JACK UNIT sewing machine part or accessory For Janome Models: 11702 | 525505002 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | MOTOR UNIT sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, SEW MINI... | 525621005 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

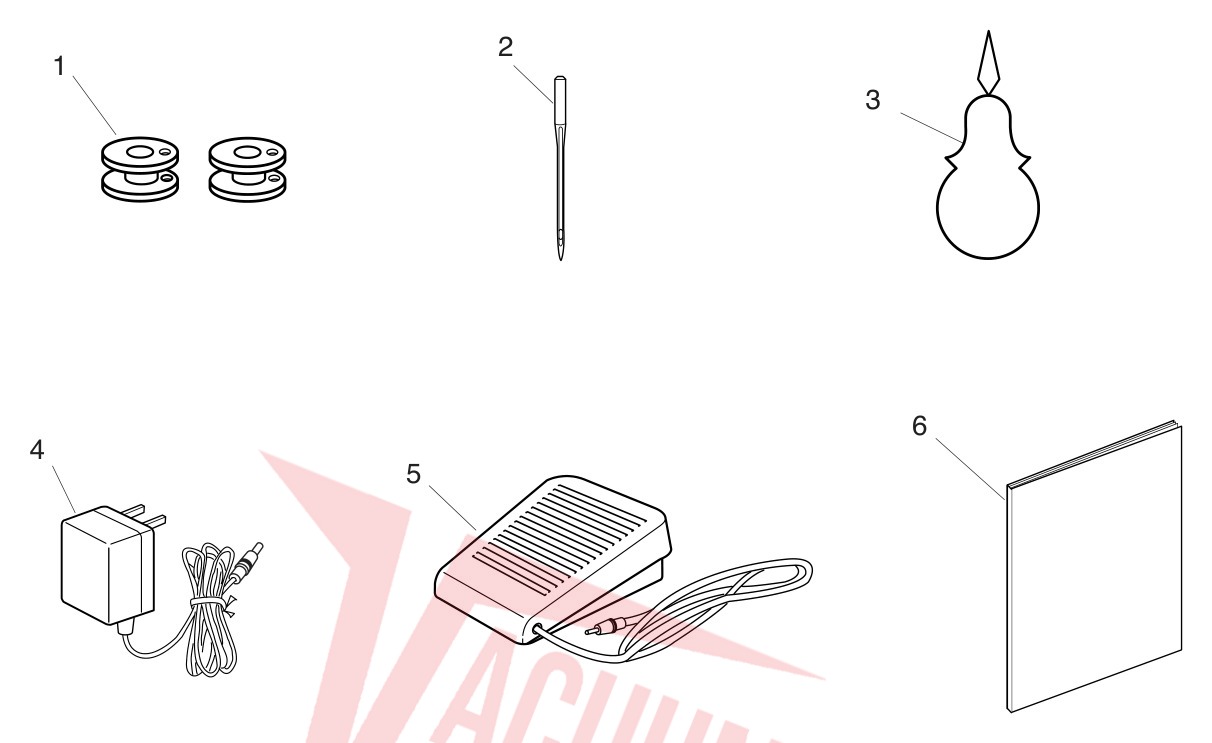

| 1 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 2 | | NEEDLE sewing machine part or accessory For Janome Models: 11702 | 525809009 | $0.00Read more |
| 3 |  | NEEDLE THREADER FOR SEW MINI sewing machine part or accessory For Janome Models: BLOSSOM, HELLO K... | 525810003 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | AC/POWER ADAPTOR sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KITTY 1/2, SE... | 525808008 | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | FOOT CONTROL FOR SEW PETITE sewing machine part or accessory For Janome Models: BLOSSOM, HELLO KI... | 525801001 | $15.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | INSTRUCTION BOOK HELLO KITTY SMALL SIZE sewing machine part or accessory For Janome Models: HELLO... | 525800033 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
