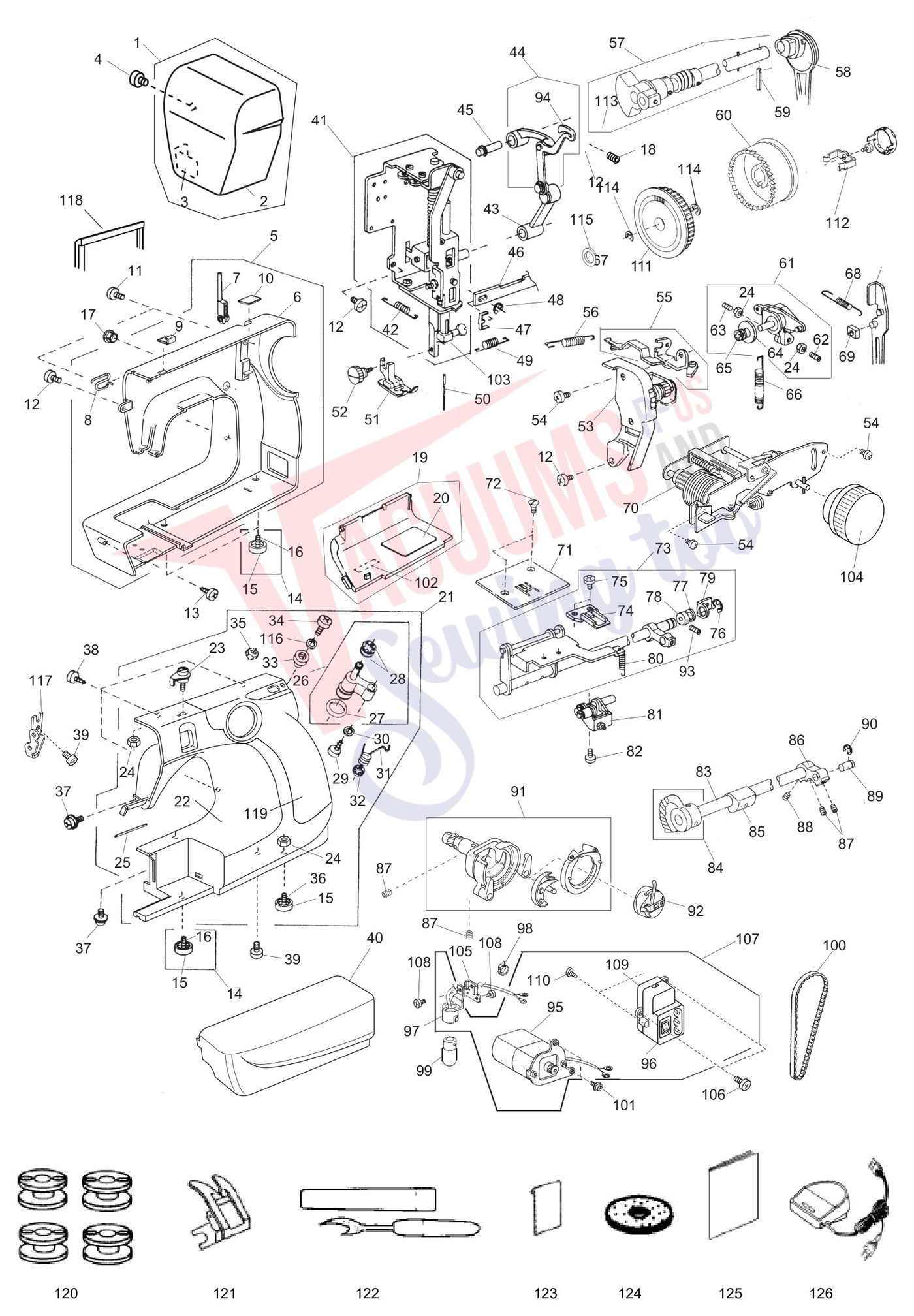

Schematic and parts book for Janome 1117S 1117S. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Face Plate (Unit) | 639674700 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Face plate | 639255505 | Not Available |
| 3 |  | Face plate sticker sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, ... | 366076000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Setscrew 4x14 | 000070012 | Not Available |
| 5 | Not Available | Rear cover (unit) | 639672203 | Not Available |
| 6 | Not Available | Rear cover | 639251202 | Not Available |
| 7 | | SPOOL PIN FOR 639 sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 63... | 639003001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Thread Guide | 639004002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Thread guide sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 63... | 738015006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Spool Pin Sticker | 639111106 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Set Screw 4 X 4 | 000069616 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew 3x16 sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 6... | 000160607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Cushion sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B, 6... | 639613000 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Bed cover (unit) | 639673008 | Not Available |
| 20 | Not Available | Sticker | 639163000 | Not Available |
| 21 | No Image | Front Cover (Unit) | 639675309 | $98.21Read more |
| 22 | Not Available | Front cover | 639258003 | Not Available |
| 23 | | THREAD GUIDE (UNIT) sewing machine part or accessory | 730501022 | $3.22Read more |
| 24 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread guide sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 63... | 639075004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Bobbin winder arm unit sewing machine part or accessory For Janome Models: 1117S, 3125, HELLO KIT... | 661605008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Bobbin Winder Tire sewing machine part or accessory For Janome Models: 639, 662, AQS2009, HARMONY... | 639078007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Setscrew 4 x 12 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, AQS2009, H... | 000109103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | WASHER FT-80 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 4045LX, 4045... | 000036902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Bobbin winding arm spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, ... | 639079008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128... | 652016101 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Setscrew TP 4x20 | 000201003 | Not Available |
| 37 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Extension Table | 639254009 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | Presser Bar Base Plate Unit | 639602006 | $0.00Read more |
| 42 |  | Supporter spring (2) sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128,... | 639110002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | NEEDLE BAR CRANK ROD FOR 639 sewing machine part or accessory For Janome Models: 1017, 1117S, 312... | 639016007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | Needle bar crank pin (unit) | 639622105 | Not Available |
| 45 |  | Take-up lever sup. pin unit sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, ... | 731511006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Zigzag rod sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B... | 639072001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Zigzag rod plate sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639... | 639098003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 49 | | Supporter spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639... | 639017008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
