Schematic and parts book for Janome 10001 10001. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

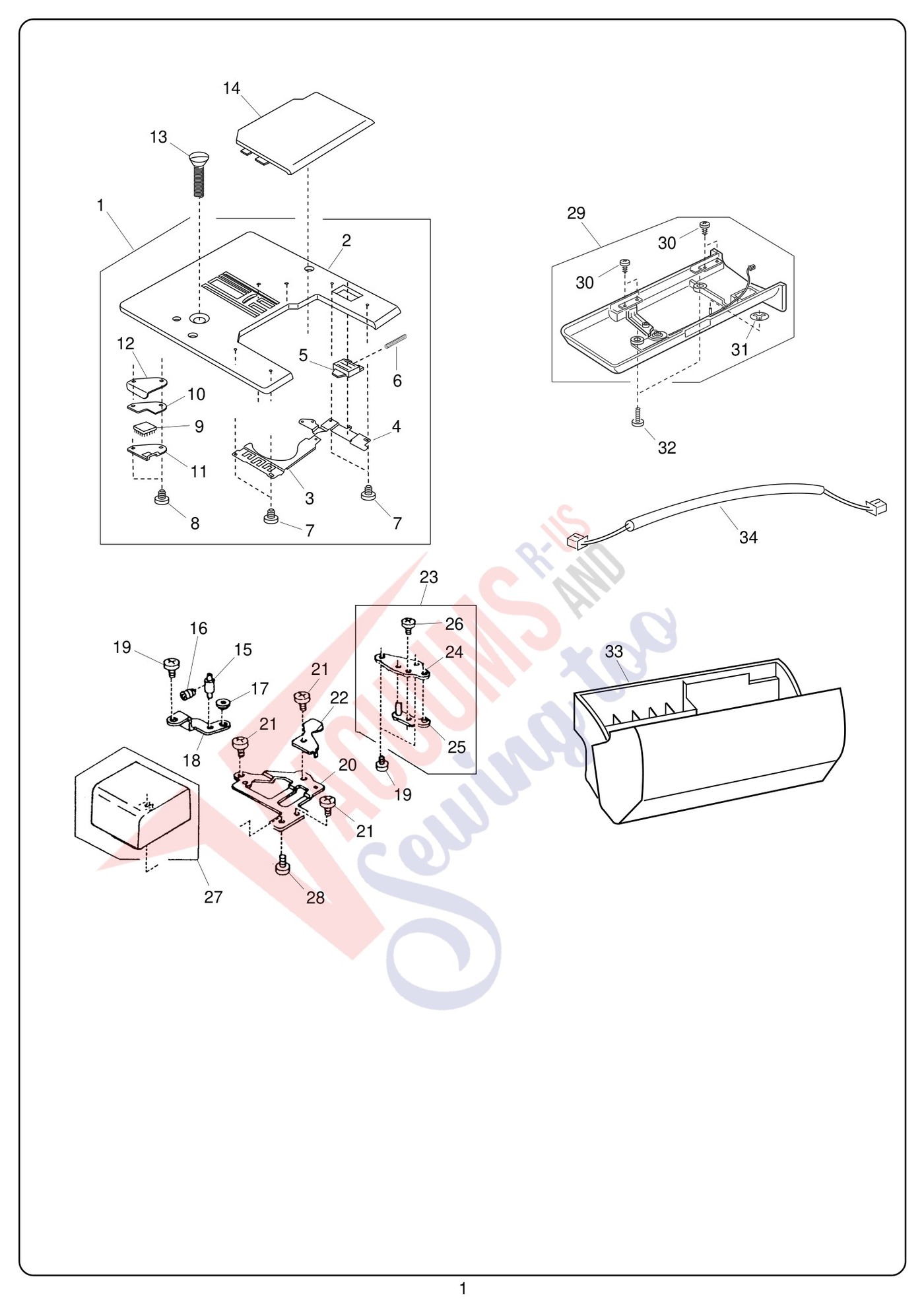

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Needle Plate Unit | 832649011 | Not Available |
| 2 | Not Available | Needle Plate | 832010006 | Not Available |
| 3 |  | BOBBIN HOLD PLATE SPRING sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 832235010 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hook cover plate supporter(R) sewing machine part or accessory For Janome Models: MC10000, MC1000... | 832012019 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Pan head small screw 2X2.3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 000169709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw 2x3.5 sewing machine part or accessory For Janome Models: 10001 SRV | 000096900 | $0.28Read more |
| 9 | Not Available | Tape | 832174009 | Not Available |
| 10 | Not Available | Spacer | 825259100 | Not Available |
| 11 | Not Available | Tape Holder | 825257108 | Not Available |
| 12 | | Bobbin Holder Stopper sewing machine part or accessory For Janome Models: 10001 SRV | 825013007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle plate position pin sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 832013009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Needle plate nut holder sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 832014000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Stopper plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC900... | 832165007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Stopper sewing machine part or accessory For Janome Models: 10001 SRV | 832181009 | $1.39Read more |
| 23 |  | Needle plate set plate (right) (unit) sewing machine part or accessory For Elna Models: EL820 | 825605013 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Needle plate set plate (right sewing machine part or accessory For Janome Models: MC10000, MC1000... | 825021019 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Needle plate pos adjust plate | 825022009 | Not Available |
| 26 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Bed Cover (Front) Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832570010 | $8.11Read more |
| 28 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Bed Cover for Memory Crafy 10000 sewing machine part or accessory For Janome Models: MC10000, MC1... | 850501005 | $26.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Set screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000S... | 000162805 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Extension Table (Attachment Box) for Memory Craft 10000 sewing machine part or accessory For Jano... | 850502006 | $42.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Cable (unit) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC8000, MC9500... | 830545009 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

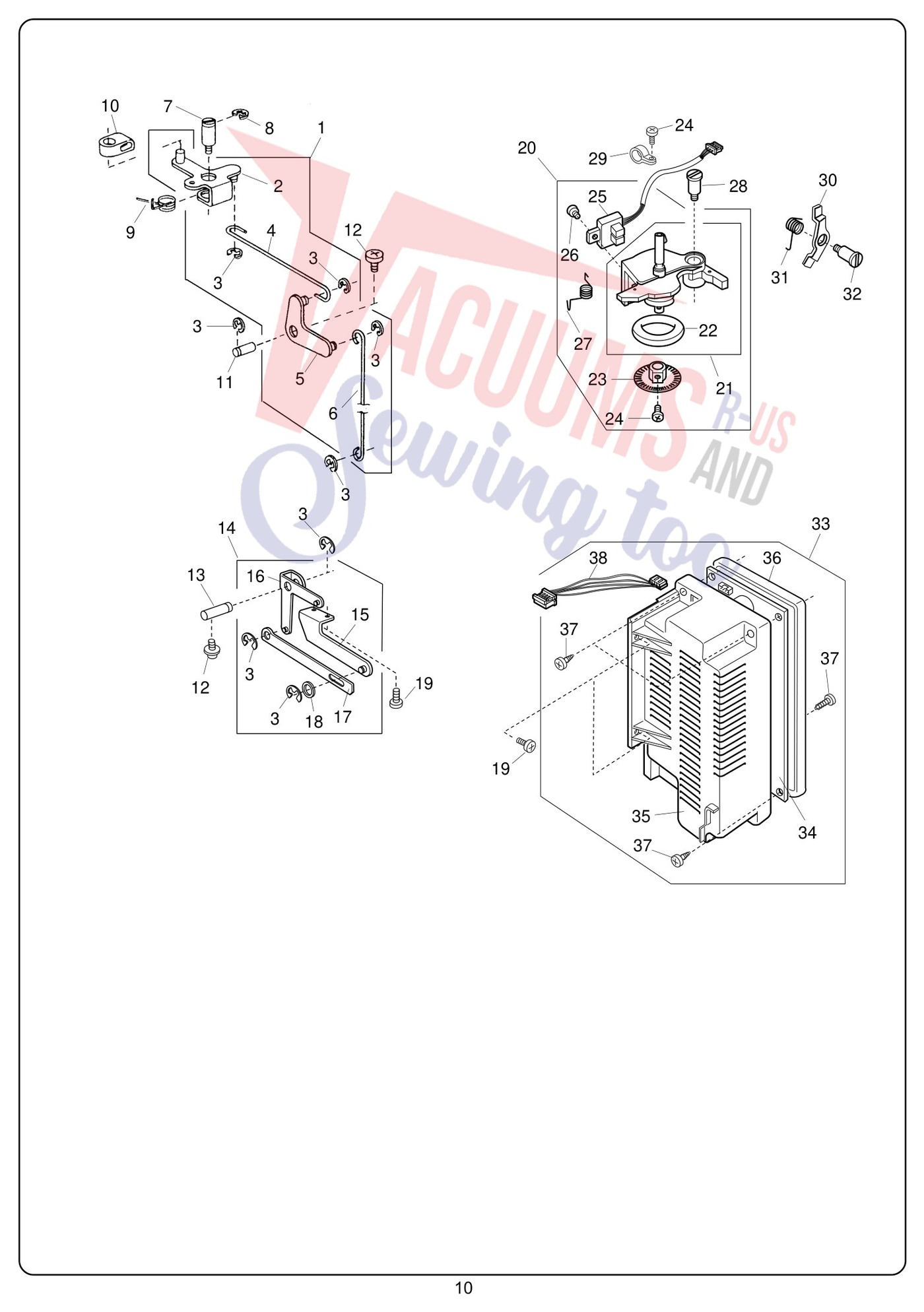

| 1 | | Knee Lifter Link Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832657001 | $17.53Read more |
| 2 | Not Available | Knee Lifter Link (1) | 832210008 | Not Available |
| 3 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Knee Lifter Rod (1) sewing machine part or accessory For Janome Models: 10001 SRV | 832213001 | $0.75Read more |
| 5 | Not Available | Knee Lifter Link (2) | 832214002 | Not Available |
| 6 | | Knee Lifter Rod (2) sewing machine part or accessory For Janome Models: 10001 SRV | 832215003 | $2.05Read more |
| 7 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 832211009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Knee lifter link spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 832212000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Knee Lifter Link (5) | 832218006 | Not Available |
| 11 | | Tension Releasing Lever Pin sewing machine part or accessory For Janome Models: 10001 SRV | 830338100 | $0.84Read more |
| 12 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Knee Lifter Link Pin | 832234019 | Not Available |
| 14 | | Knee Lifter Link Plate Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850621002 | $12.87Read more |
| 15 | | Knee Lifter Link Supporting Plate sewing machine part or accessory For Janome Models: 10001 SRV | 850096002 | $3.08Read more |
| 16 | | Knee Lifter Link (3) sewing machine part or accessory For Janome Models: 10001 SRV | 850095001 | $4.19Read more |
| 17 | | Knee Lifter Link Plate sewing machine part or accessory For Janome Models: 10001 SRV | 850097003 | $2.90Read more |
| 18 |  | Genuine Janome/Elna Polished plain washer 5 For: 3160QDC, MC10000, MC10001, MC6500P, MC6600P HF... | 000072003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bobbin Winder Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC1... | 850619007 | $49.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Bobbin Winder Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850521001 | $19.52Read more |
| 22 |  | Bobbin Winder Tire Ring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 3... | 365076007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Bobbin Winder Shield Plate sewing machine part or accessory For Janome Models: 10001 SRV | 850092008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Photo Interrupter Unit sewing machine part or accessory For Janome Models: 10001 SRV | 830510603 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SPRING sewing machine part or accessory SPRING | 830273014 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | HINGE SCREW 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 686063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Nylon Clip | 000126003 | Not Available |
| 30 | | De-clutch arm sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 830145005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | DECLUTCH ARM SPRING 9000 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625215005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | HINGE SCREW 9000 8K 7500 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625214004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Switching Power Supply Unit sewing machine part or accessory For Janome Models: MC10001 | 850628113 | $153.60Read more |
| 34 | | Switching Regulator sewing machine part or accessory For Janome Models: 10001 SRV | 850522105 | $144.60Read more |
| 35 | | Swithcing power supply case sewing machine part or accessory For Janome Models: 350E | 850157024 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Switching power supply cap sewing machine part or accessory For Janome Models: 350E | 850158014 | $11.00Read more |
| 37 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000119704 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Power Supply Harness Unit sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 850523003 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

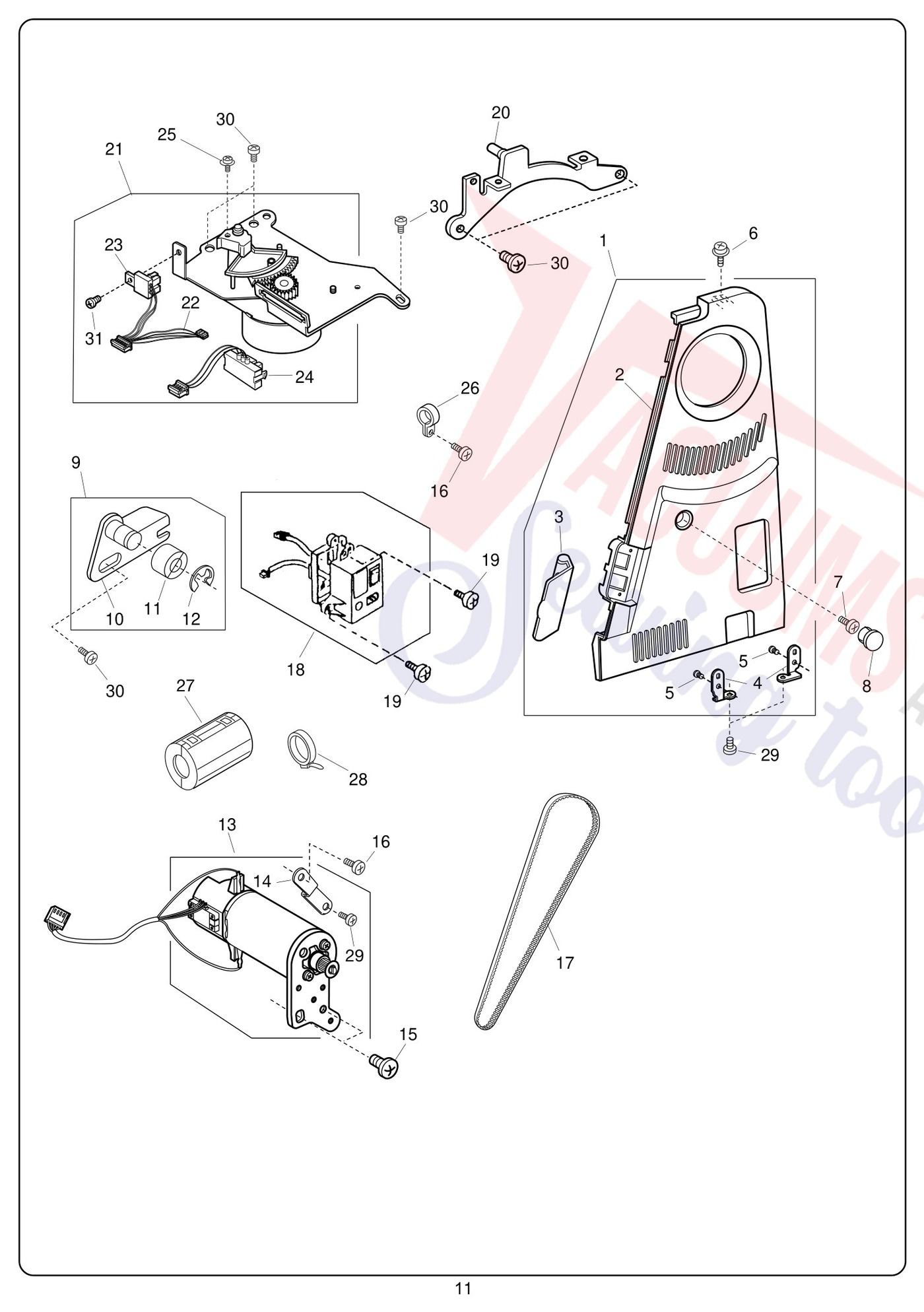

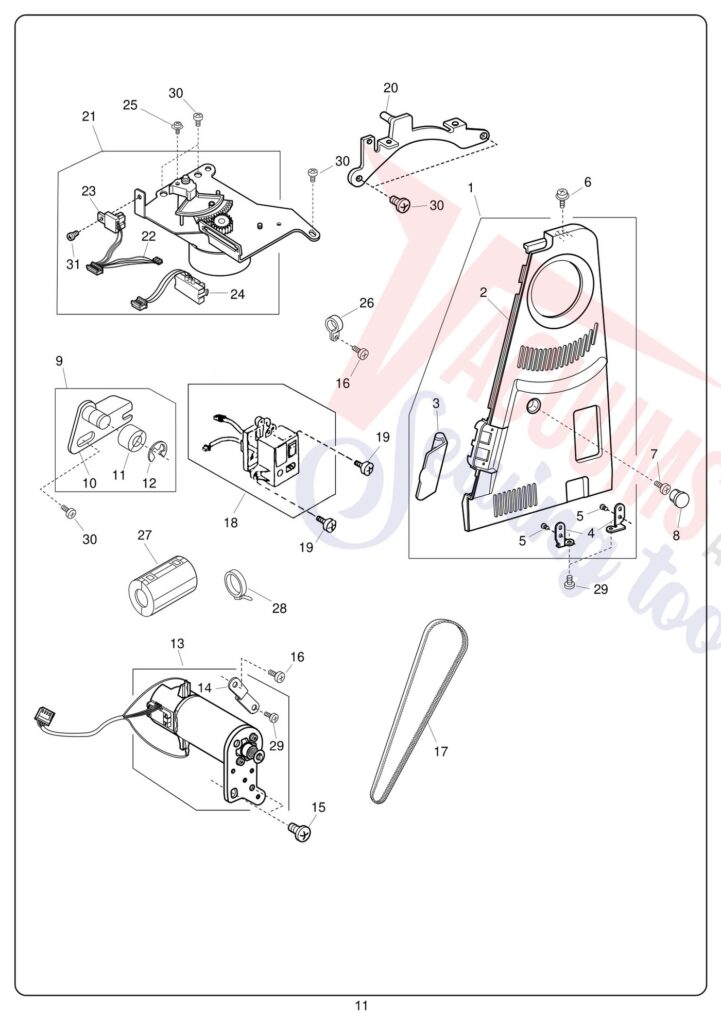

| 1 |  | Belt Cover Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC1000... | 850620001 | $54.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Belt Cover | 850093009 | Not Available |
| 3 |  | Connecting Cover for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC100... | 850094000 | $35.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Belt cover setting plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 832099009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | IDLER UNIT sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5000, MC5700, ... | 830631014 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Idler set plate sewing machine part or accessory For Janome Models: 5000 SRV | 830148019 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Motor Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, MC... | 080270218 | $140.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Set plate sewing machine part or accessory For Janome Models: 9500 SRV | 850205006 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Motor Belt for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, MC... | 850165003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Machine Socket Unit (US,Can) | 830543009 | Not Available |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Handle Base Plate Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850011003 | $27.55Read more |
| 21 |  | Zig Zag Stepping Motor Unit for Memory Craft 10000 sewing machine part or accessory For Janome Mo... | 850616004 | $147.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Motor Harness Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850506309 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Photo Interrupter Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832541207 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Sensor unit sewing machine part or accessory For Janome Models: HF3000, MC10000, MC10001, MC2400,... | 830543100 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | NYLON CORD GUARD sewing machine part or accessory | 000126106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Ferrite core E1630MRF sewing machine part or accessory For Janome Models: MC15000 Horizon | 000559700 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Cord binder sewing machine part or accessory 000053204 Cord binder | 000053204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

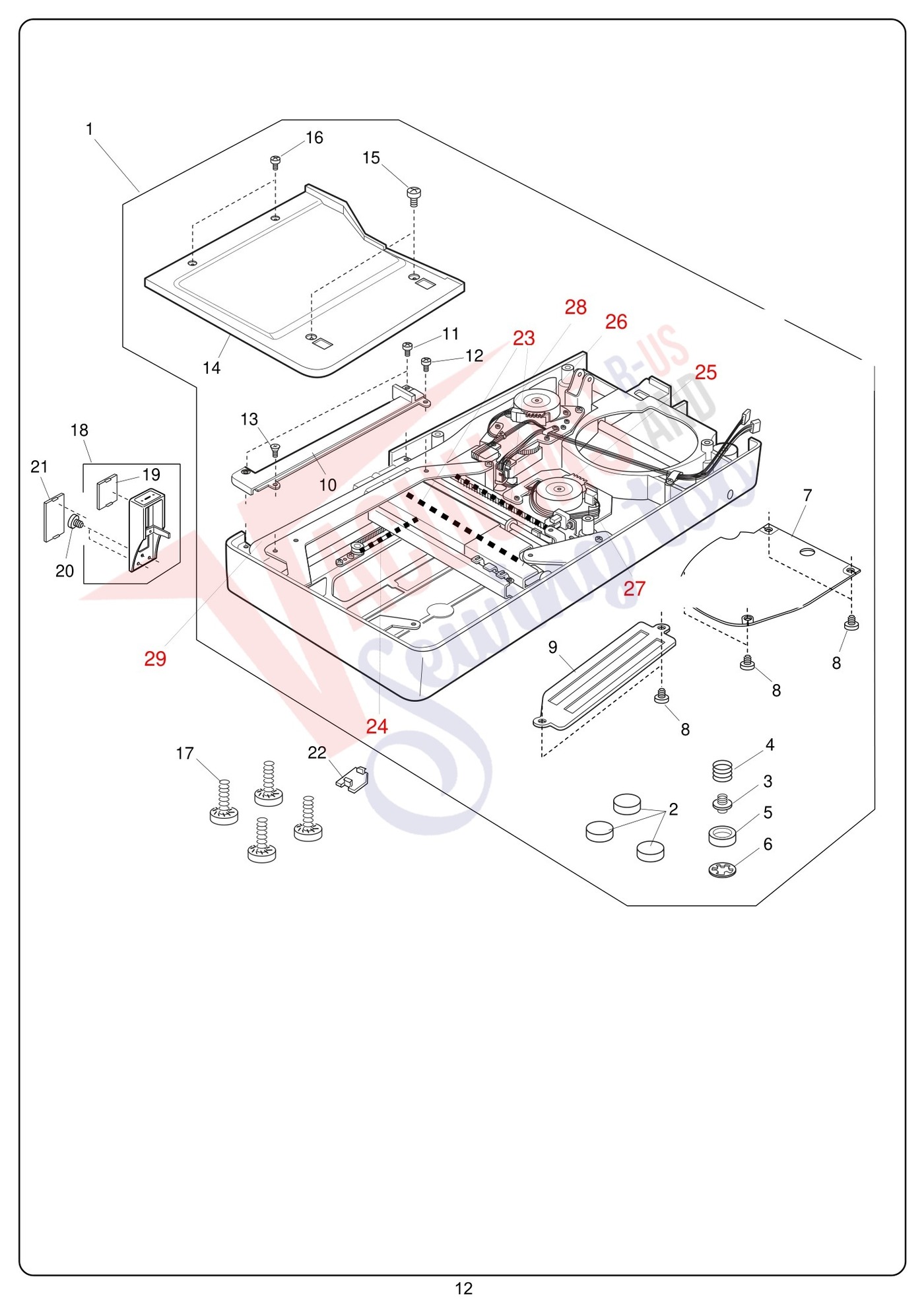

| # | Part image | Description | SKU | Price |
| 1 | | BASE UNIT FOR MC10001 sewing machine part or accessory For Janome Models: MC10001 | 850622302 | $402.60Read more |
| 2 |  | Rubber Cushion sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 830150003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Adjusting Screw | 820350004 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring | 820351005 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Cushion sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900CP, DX2015, MC100... | 605074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER CS RING 9/8/7 5500 750 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 813123004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Base Lid sewing machine part or accessory For Janome Models: MC10001, MC300E, MC300E & 9500 B... | 850151017 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Base lid (1) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC300E... | 832146002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Sheet Cover sewing machine part or accessory For Janome Models: MC10001, MC300E, MC350E | 850147205 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | BINDING HEAD SM.SCREW DISCONTI sewing machine part or accessory For Janome Models: 134D, 334, 434... | 000066727 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Base Cover for Memory Craft 10001 sewing machine part or accessory For Janome Models: MC10001 | 850152203 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set screw 3x4 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000101127 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Screw with toothed washer6X35 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 000127107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | CARRIAGE PLATE UNIT FOR 10000 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 850627008 | $39.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Carriage Cover Plate (2) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850169007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Carriage cover lid sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, ... | 850156001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Base lid (3) | 851071004 | Not Available |
| 23 | | Synchro belt 290 sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC300E, ... | 850116009 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | X Syncro Belt sewing machine part or accessory | 850106006 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Y Stepping Motor | 850625006 | Not Available |
| 26 | | X Stepping Motor sewing machine part or accessory For Janome Models: 10001 SRV | 850623004 | $72.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Y Stepping Motor Cable /Sensor sewing machine part or accessory For Janome Models: MC10000, MC10001 | 832541300 | $23.60Read more |
| 28 | | X Stepping Motor Cable /Sensor sewing machine part or accessory For Janome Models: MC10000, MC10001 | 832541104 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Dust Protector Film sewing machine part or accessory For Janome Models: 10001 SRV | 850141003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |

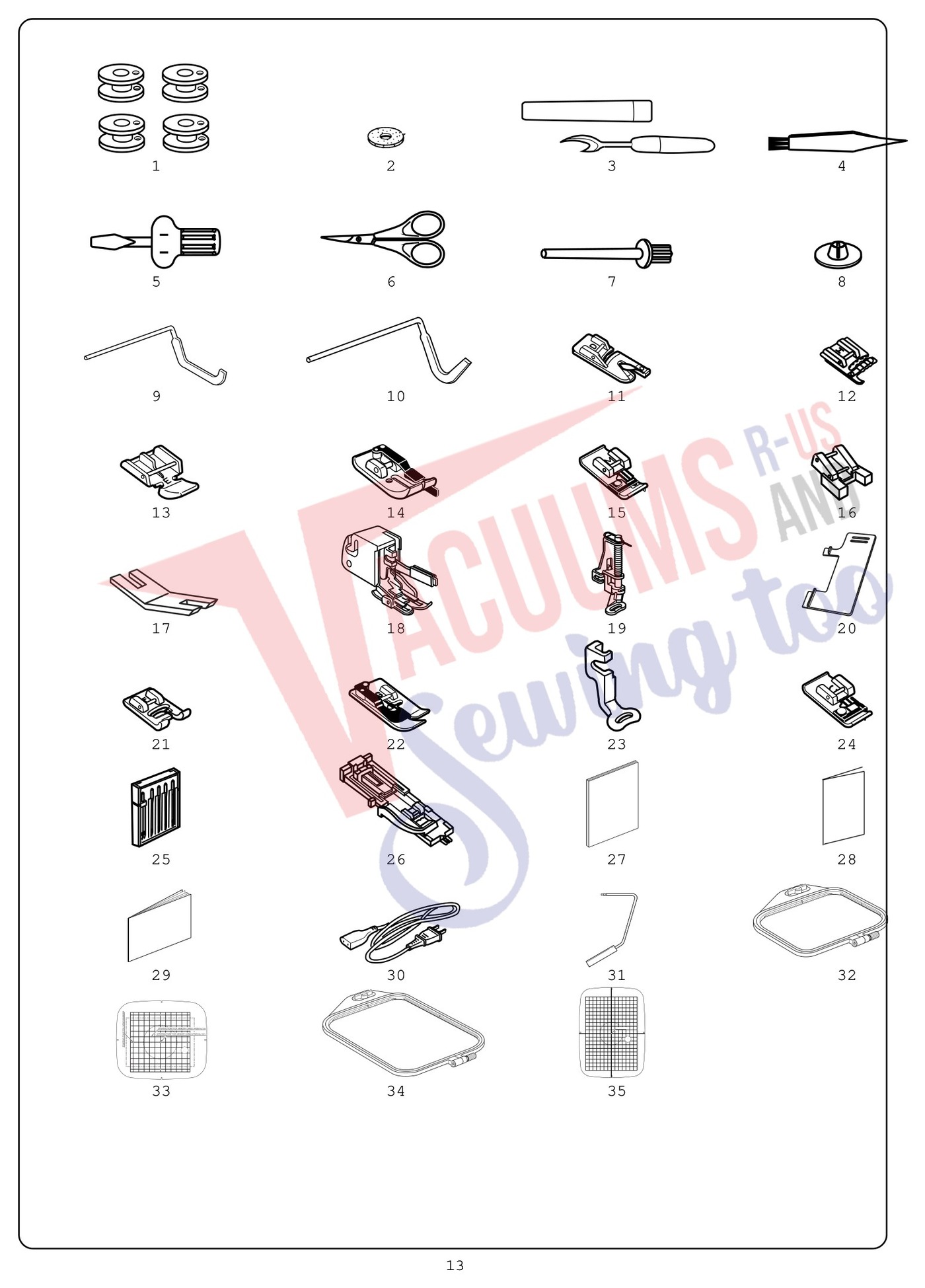

| # | Part image | Description | SKU | Price |

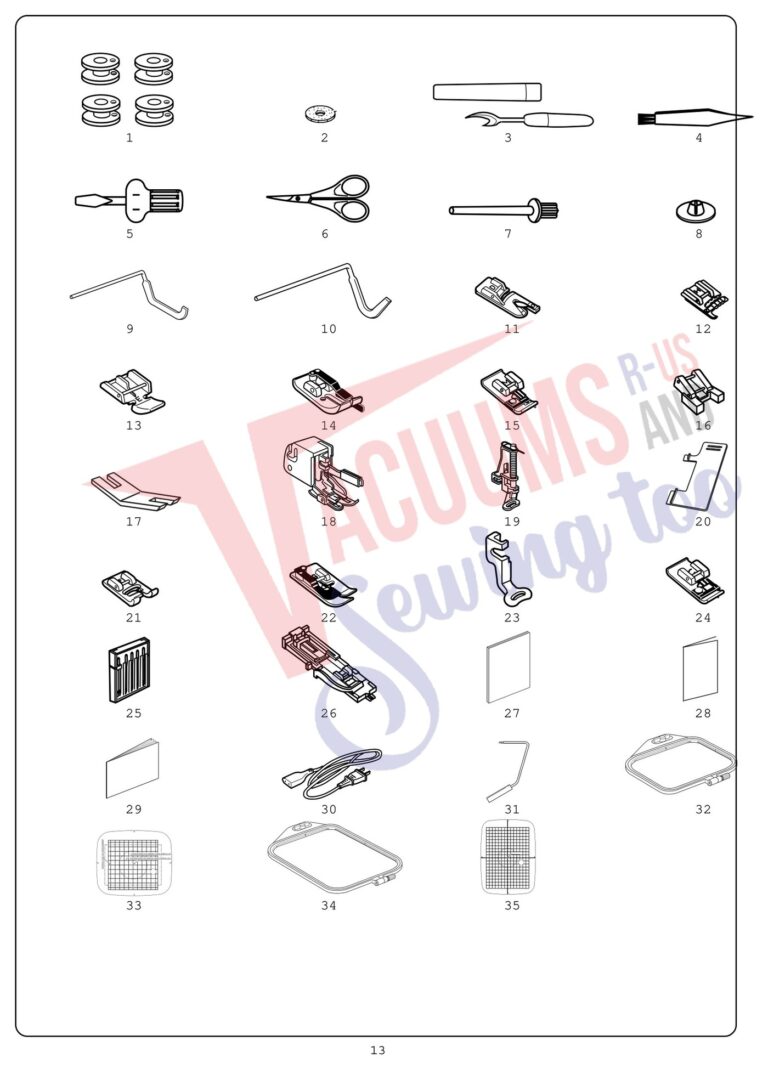

| 1 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Genuine Janome/Elna SEAM RIPPER UNIT For: MC10000, MC10001, MC11000, MC11000SE, MC5200, MC5700,... | 560406104 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 6 |  | Pink Scissors sewing machine part or accessory 3½" pink scissors - comes with most sewing machine... | 803813007 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 8 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Quilting Guide for Even Feedft sewing machine part or accessory For Janome Models: 2041LX, 4048/8... | 214015007 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | QUILTER BAR-LARGE sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 5... | 802422002 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Rolled Hemmer Foot for Janome | 820809014 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna Multi-cord foot H For: EL740 | 820819006 | $11.60Read more |
| 13 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Seam Foot 1/4" sewing machine part or accessory For Janome Models: 2040, MC10000, MC10001, MC1100... | 200008004 | $18.08Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Overedge Foot M (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822808008 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Button Sewing Foot sewing machine part or accessory For Janome Models: MC11000 Special Edition, M... | 802406011 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | BUTTON SEWING SHANK PLATE sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 832820007 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Even Feed Walking Foot (H/S) sewing machine part or accessory For Janome Models: MC11000 Special ... | 214507001 | $32.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Darning foot | 830856006 | Not Available |
| 20 |  | Cloth Guide Unit sewing machine part or accessory Cloth Guide UnitUse with: MC9000, MC10000, MC... | 832810107 | $12.70Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Blind Hem Foot G (7mm) sewing machine part or accessory For Janome Models: MC11000 Special Editio... | 825817009 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Embroidery Foot P (high shank) | 830810053 | Not Available |
| 24 |  | Overlock Foot C (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822801001 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Needle case unit 820827007 sewing machine part or accessory For Janome Models: MC10000, MC10001, ... | 832832002 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | BUTTONHOLE FOOT FOR HIGH SHANK | 830823118 | Not Available |
| 27 |  | INSTRUCTION BOOK 10001(English) sewing machine part or accessory For Janome Models: MC10001 | 850818008 | $97.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Emb designs template sheets | 850827000 | Not Available |
| 29 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | KNEE LIFTER FOR 9000 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9000 | 832827004 | $65.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Embroidery Hoop A | 850801123 | $67.59Read more |
| 32 |  | Genuine Janome/Elna Template (125mm x 110mm) For: A hoop, part# 850801019 (MC10001, MC9700, MC95... | 852807103 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Embroidery Hoop B | 850802124 | $80.36Read more |
| 34 |  | Genuine Janome/Elna Template Unit (200mm X 140mm) For: B hoop, part# 850802010 (MC10001, MC10000... | 850802401 | $15.00Add to cart Special order: ships in 2 to 4 weeks |

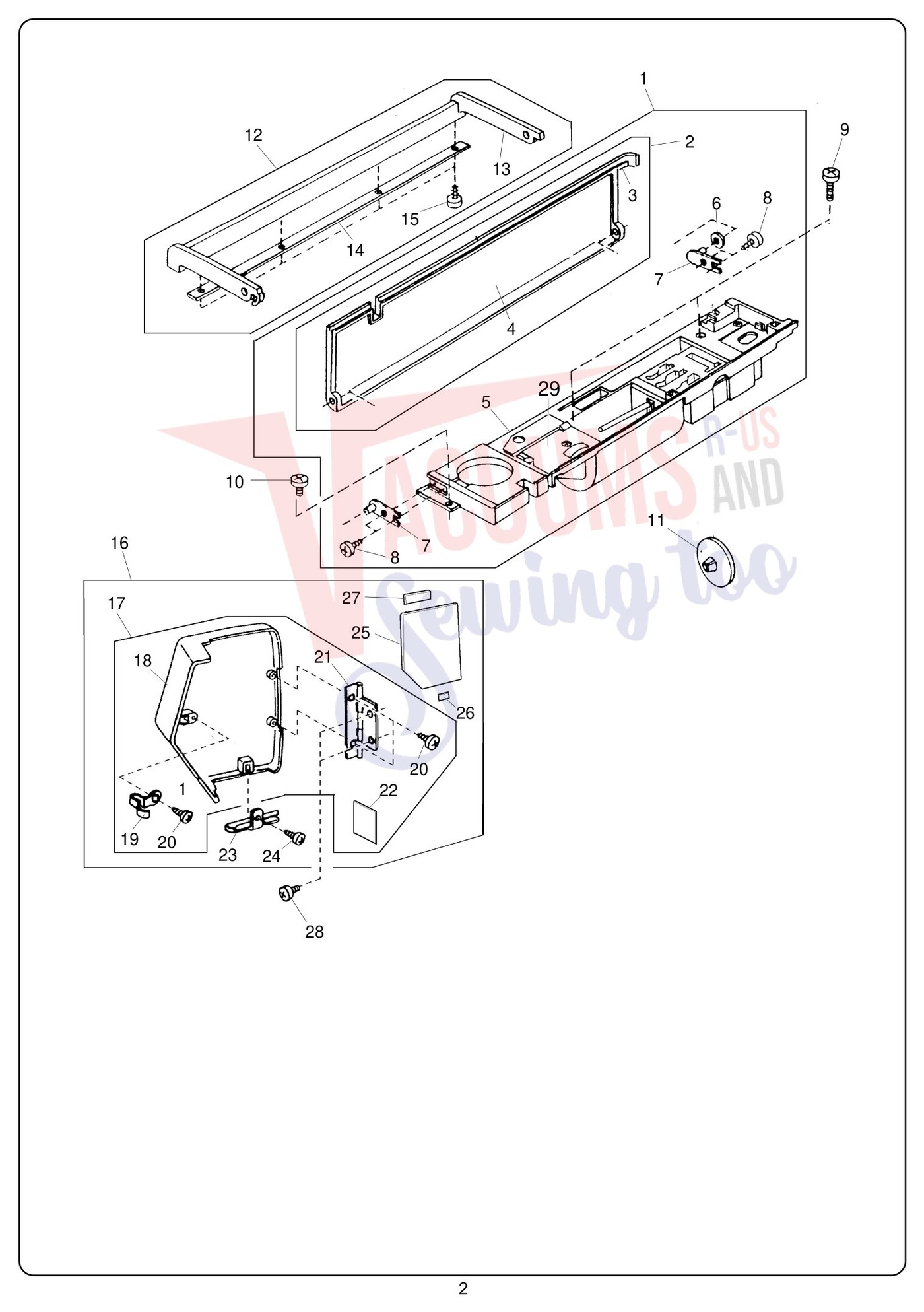

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Top Cover Unit | 850601305 | Not Available |
| 2 |  | Top Cover Lid for Memory Craft 10001 sewing machine part or accessory For Janome Models: MC10001 | 850602203 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Top Cover sewing machine part or accessory For Janome Models: 10001 SRV | 850006005 | $9.32Read more |
| 4 | Not Available | Quick Refer Chart (English) | 850235005 | Not Available |
| 5 | Not Available | Foot Compartment | 850603008 | Not Available |
| 6 |  | Washer sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC10000, MC100... | 830190005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Top cover hinge sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC100... | 830013003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Handle Unit | 850633029 | Not Available |
| 13 | | Handle sewing machine part or accessory For Janome Models: MC10001, MC9700 | 850009020 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Metal bar sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9500 | 850010105 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9500, MC9700 | 000197809 | $0.40Read more |
| 16 | | Face Cover (U.S.A.) sewing machine part or accessory For Janome Models: 10001 SRV | 850634503 | $43.31Read more |
| 17 | | Face Cover Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850504101 | $1,022.98Read more |
| 18 | Not Available | Face Cover | 850012200 | Not Available |
| 19 |  | Face Plate Spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC7700QCP... | 850013005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Sticker sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 2003P, 2041, 2041LX,... | 724025006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Thread Cutter for Memory Craft 9000 sewing machine part or accessory For Janome Models: MB-4, MC1... | 832508006 | $15.42Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Sticker | 850206007 | Not Available |
| 26 | | Lamp sticker USA and Australia sewing machine part or accessory For Janome Models: 0014800 SRV | 100411001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | SET SCREW 4 X 6 DISCONTINUED sewing machine part or accessory For Janome Models: AQS2009, CE2200,... | 000077503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | THREAD GUIDE COVER 10000 sewing machine part or accessory | 832018004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |

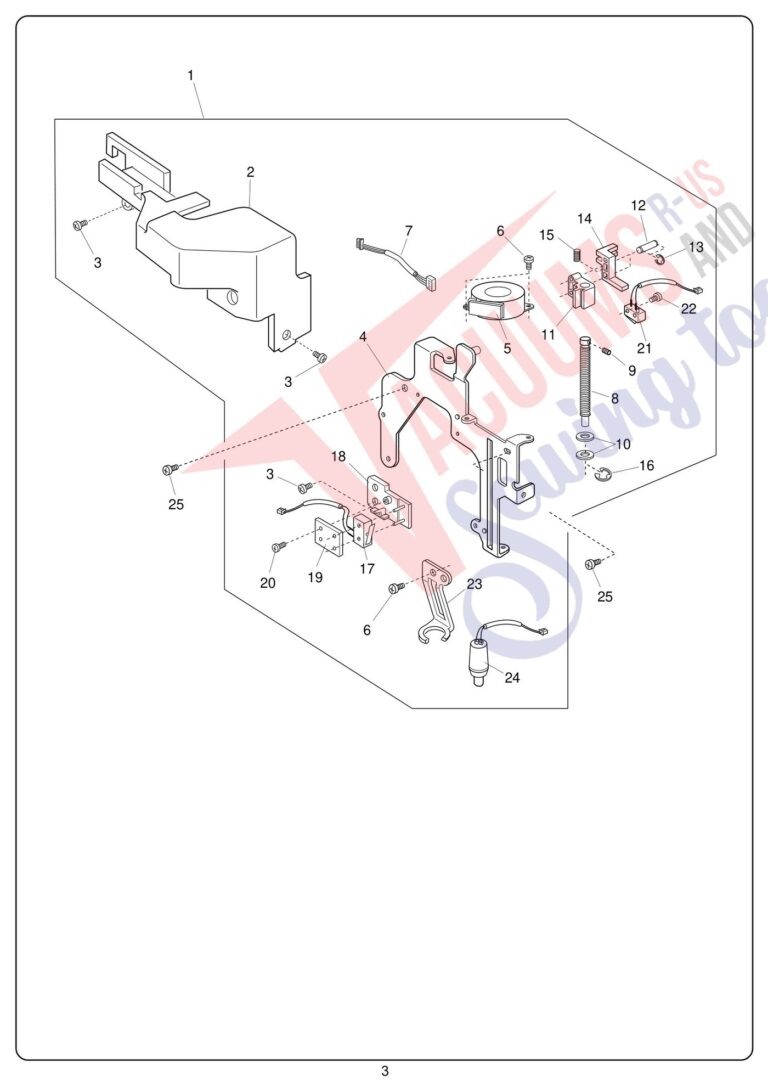

| # | Part image | Description | SKU | Price |

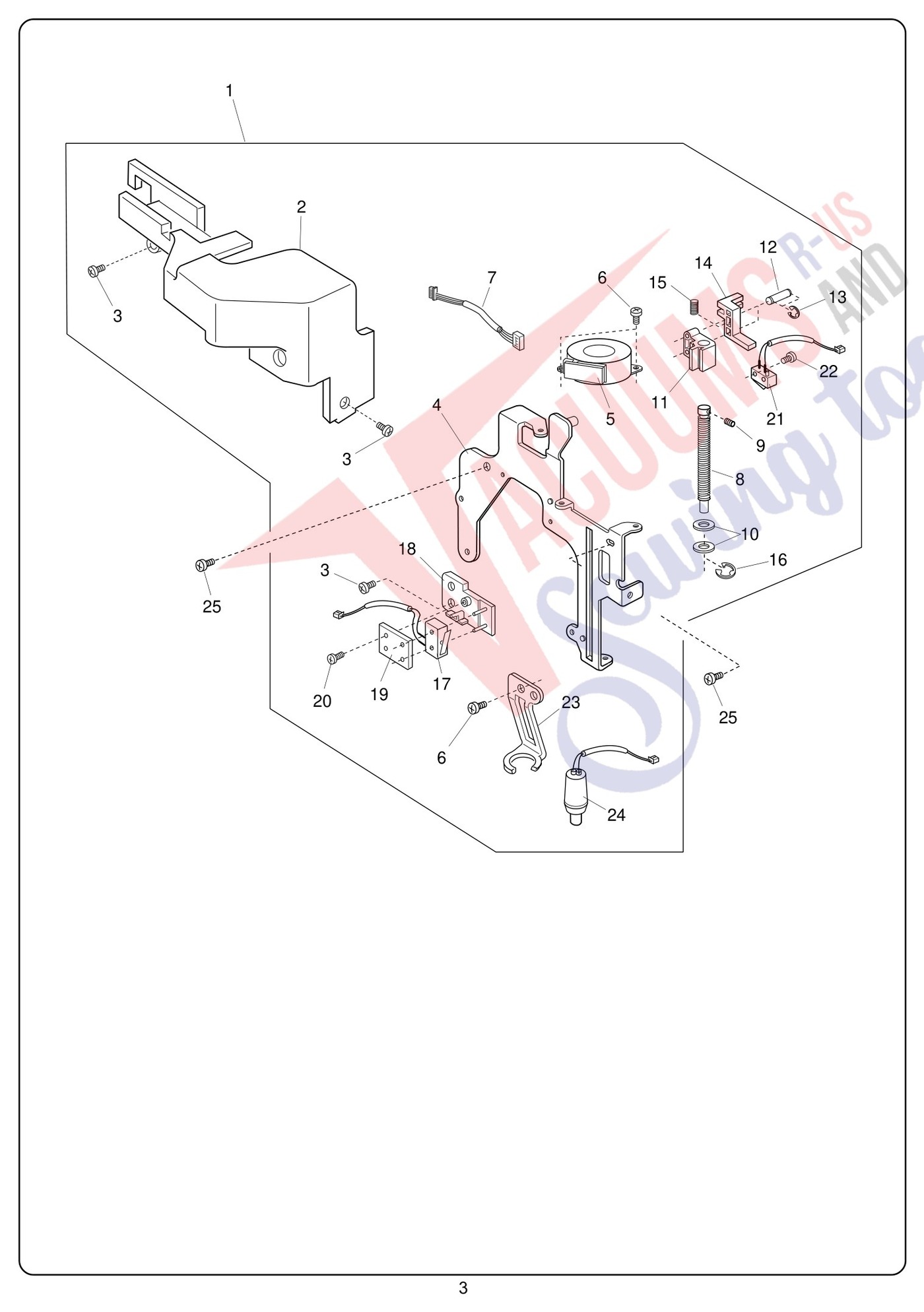

| 1 | Not Available | Needle Threader Motor Unit | 850604010 | Not Available |
| 2 | | Motor cover sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE | 850019012 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Setscrew 3x5 sewing machine part or accessory For Janome Models: 1100D, 1200D, MB-4, MC10000, MC1... | 000103819 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Front Set Plate | 850014017 | Not Available |
| 5 | No Image | Stepping Motor 35 Unit | 850505010 | $44.10Read more |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Motor Harness Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850506505 | $6.97Read more |
| 8 | | Threader feed screw sewing machine part or accessory For Janome Models: 11000 SRV | 850015007 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hexagonal socket screw 3x3 sewing machine part or accessory For Janome Models: MC10000, MC10001, ... | 000110509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Threader carriage1 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000,... | 850016019 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Threader carriage pin sewing machine part or accessory For Janome Models: 11000 SRV | 850098004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SNAP Snap Ring sewing machine part or accessory For Janome Models: 1200D, 888 COMPULOCK, MB-4, MC... | 000002301 | $1.00Read more |
| 14 | | Threader carriage 2 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000... | 850017009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Threader carriage spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850018000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Micro Switch Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10... | 850507001 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Switch Set Plate | 850170001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Switch Cover | 850171002 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000S... | 000162805 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Micro Switch Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10... | 850507001 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Setscrew 2x10 (B) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, ... | 000134004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Lamp Fixing Plate | 850050004 | Not Available |
| 24 |  | Lamp Socket Unit for Memory Craft 10000, 5000 and 5700 sewing machine part or accessory For Janom... | 850525005 | $16.60Read more |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

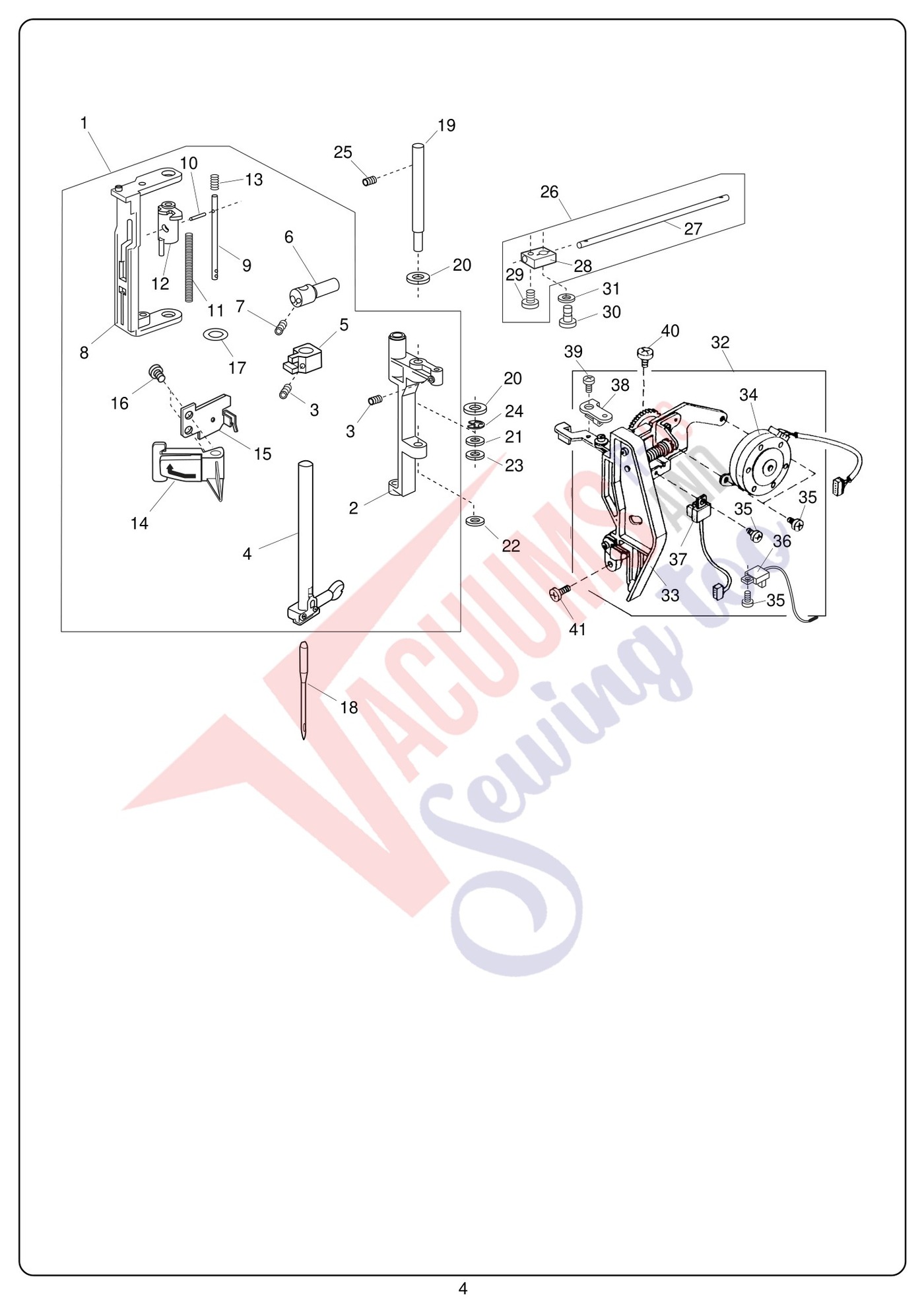

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Bar Supporter Unit for Memory Craft 10000 sewing machine part or accessory For Janome Mode... | 850605000 | $99.59Read more |
| 2 | | Needle bar supporter sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1100... | 850020005 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Needle Bar Unit | 830609208 | Not Available |
| 5 | | Threader positioning set base sewing machine part or accessory | 850021006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | NEEDLE BAR CONN. STUD ME4018 sewing machine part or accessory For Janome Models: 521, 525S, 6147,... | 751047008 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Threader flame sewing machine part or accessory For Janome Models: 11000 SRV | 850022007 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna Threader shaft For: 11000 SRV | 850023020 | $5.60Read more |
| 10 | | Pin sewing machine part or accessory For Janome Models: 11000 SRV | 850173004 | $0.60Read more |
| 11 | | Threader shaft spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC110... | 850024009 | $1.00Read more |
| 12 | | Threader guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 850025000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Threader guide spring sewing machine part or accessory <Use with: MC10000, MC10001, MC11000, ... | 850026001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | NEEDLE THREAD HOLDER UNIT 10001 sewing machine part or accessory For Janome Models: MC10000, MC10... | 850631005 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle Threader Plate sewing machine part or accessory For Janome Models: MC10001, MC11000, MC110... | 850508013 | $32.18Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE, M... | 000102807 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | O Ring | 000174110 | Not Available |
| 18 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | PIN 9000 7500 5500 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000,... | 823018006 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | FELT (2)-9/8/7-7500/6/5500/412 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 822063003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | WASHER THRUST FT70 9 8 7 7500 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1... | 000036108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | WASHER CORRUGATING 7/9 8 7 75 sewing machine part or accessory For Janome Models: MC10000, MC100... | 000116000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Zig Zag Rod Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC100... | 850617005 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Zigzag rod sewing machine part or accessory For Janome Models: 9500 SRV | 850082005 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | NEEDLE BAR SUPPORTER CONNECTIN sewing machine part or accessory For Janome Models: MC10000, MC100... | 823065008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | HINGE PIN CONN. ROD SHAFT 9000 sewing machine part or accessory For Janome Models: MC10000, MC100... | 823066009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | WASHER CORRUGATING 4/9 8 7 75 sewing machine part or accessory For Janome Models: 2003P, 3160QDC... | 000116103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Thread Tension Unit | 850648407 | Not Available |
| 33 | No Image | Thread Tension Unit | 850510214 | $98.76Read more |
| 34 | No Image | Stepping Motor Unit | 850511019 | $48.94Read more |
| 35 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Photo Interrupter Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832541001 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Photo Interrupter Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832537004 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Thread Tens Rel Plt Knee Lift | 832205011 | Not Available |
| 39 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

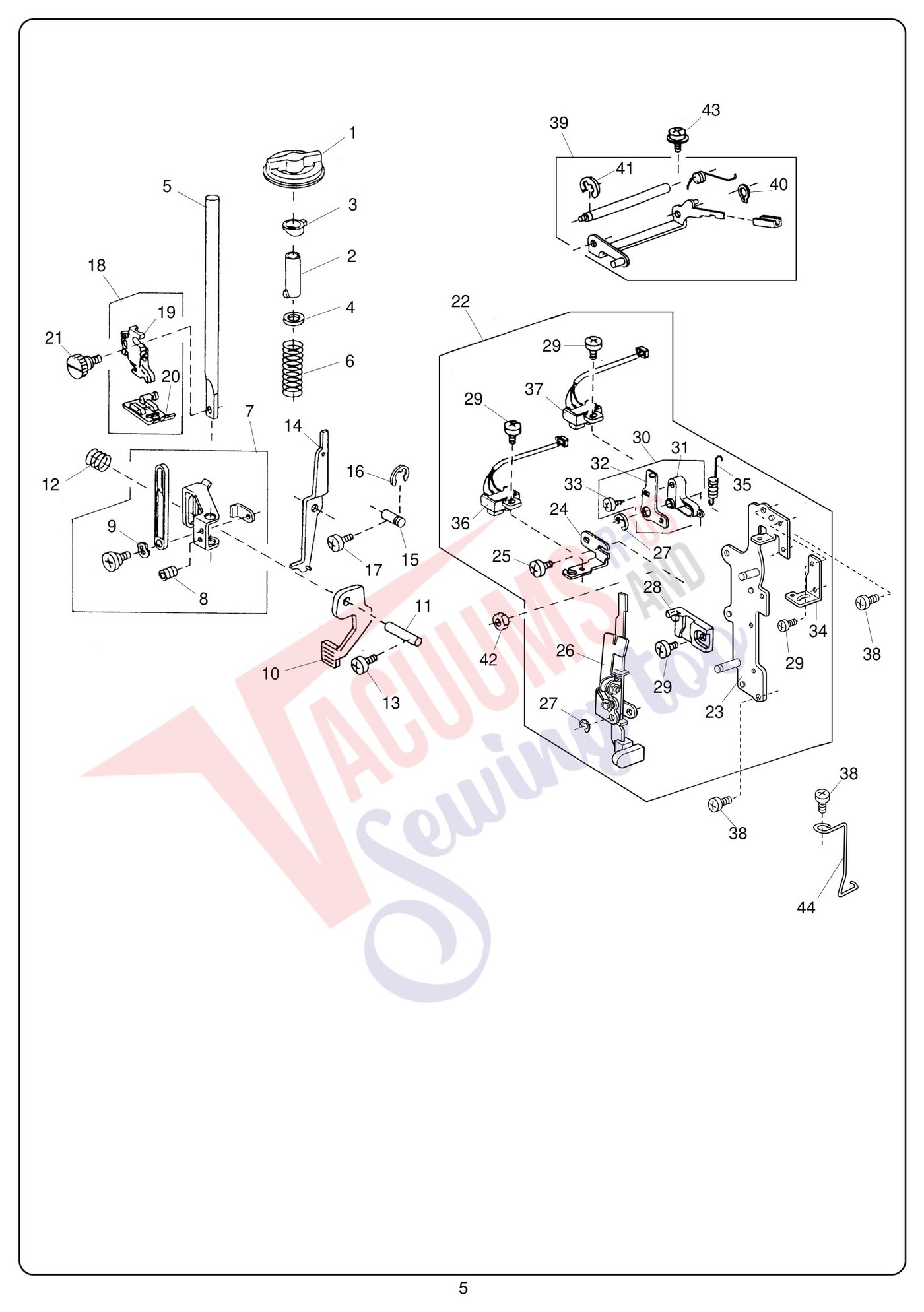

| # | Part image | Description | SKU | Price |
| 1 | | Pressure adjusting dial sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5... | 830026010 | $1.40Read more |
| 2 |  | PRESSER BAR BUSHING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 830027000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | PRESSER ADJUSTING CAM 9000 800 sewing machine part or accessory For Janome Models: MC10000, MC100... | 830028001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER 9000 8000 DISCONTINUED sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 102061008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | PRESSER BAR 9000 8000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 830029002 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | PRESSER BAR SPRING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC10001... | 830030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Presser bar supporter (unit) sewing machine part or accessory For Janome Models: MC10001, MC11000... | 830586035 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Washer sewing machine part or accessory For Janome Models: 405, MC10000, MC10001, MC11000, MC1100... | 000116608 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Presser bar lifter sewing machine part or accessory For Elna Models: EL820 | 830035115 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Tension releasing lever sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 830037025 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Thread release lever pin sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 830338007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000081027 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Presser Foot Unit (top load high shank) sewing machine part or accessory For Janome Models: MC110... | 832501009 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Presser Foot Holder (top load high shank 7mm) For: MC11000 Special Edition,... | 830504017 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Genuine Janome/Elna Thumb Screw For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC10000, MC10001, MC... | 825252000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Front Bracket Unit | 850608209 | Not Available |
| 23 | Not Available | Front Bracket | 850045006 | Not Available |
| 24 | Not Available | Sensor Set Plate | 850046007 | Not Available |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | BH Lever Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850630004 | $13.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 28 |  | BH lever guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 830057010 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Presser Foot Sensor Rink Unit | 832664001 | Not Available |
| 31 | | Presser foot sensor link sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 832206001 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Presser Ft Sensor Shield Plate | 832207002 | Not Available |
| 33 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Threader guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 850034002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Presser shield plate spring sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 830277007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Photo Interrupter Unit | 830510500 | Not Available |
| 37 | Not Available | Photo Interrupter Unit | 830510407 | Not Available |
| 38 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Presser foot actuator arm unt sewing machine part or accessory For Janome Models: MC10001, MC1100... | 832566024 | $9.80Read more |
| 40 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Arm thread guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 830039027 | $2.00Add to cart Special order: ships in 2 to 4 weeks |

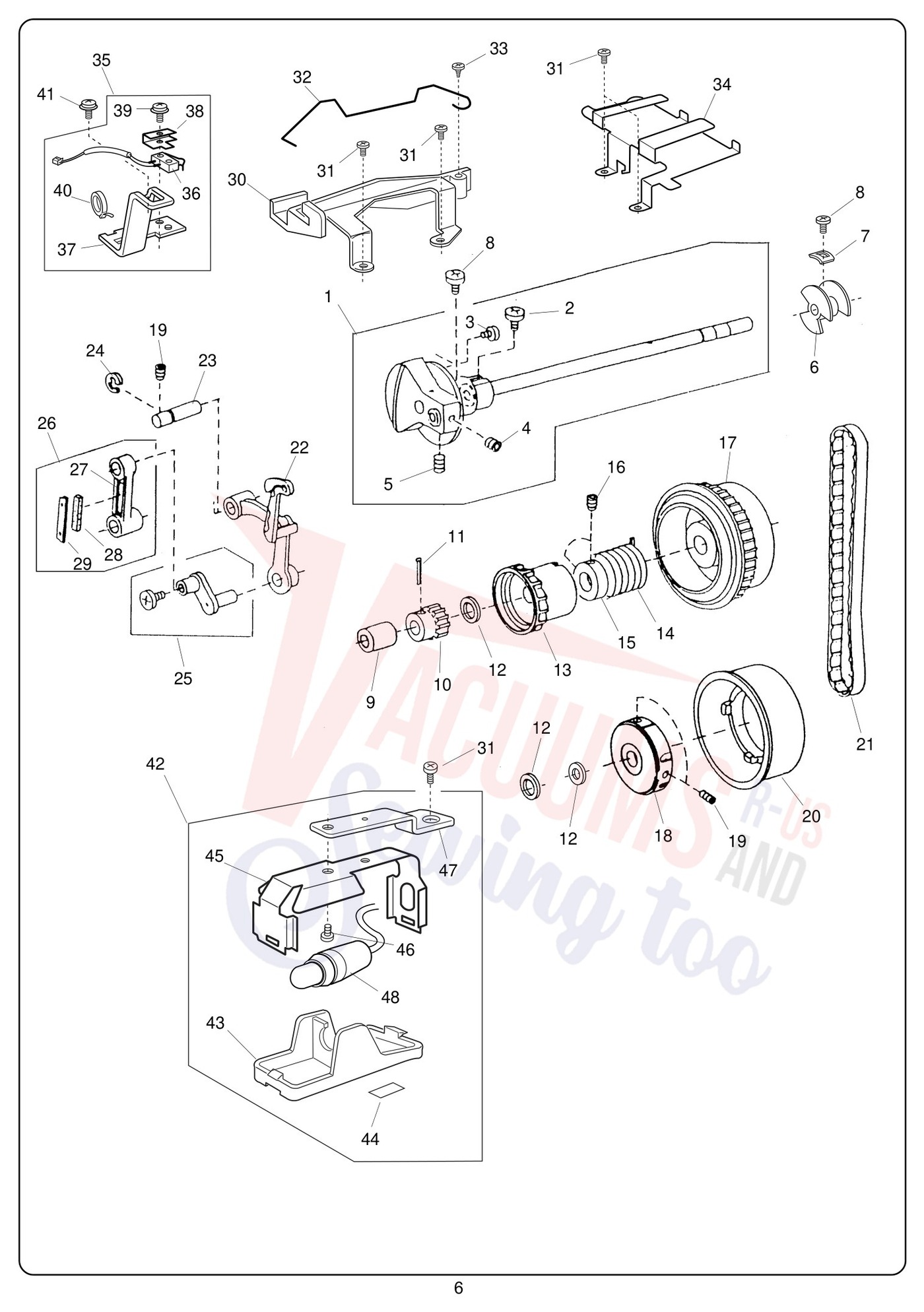

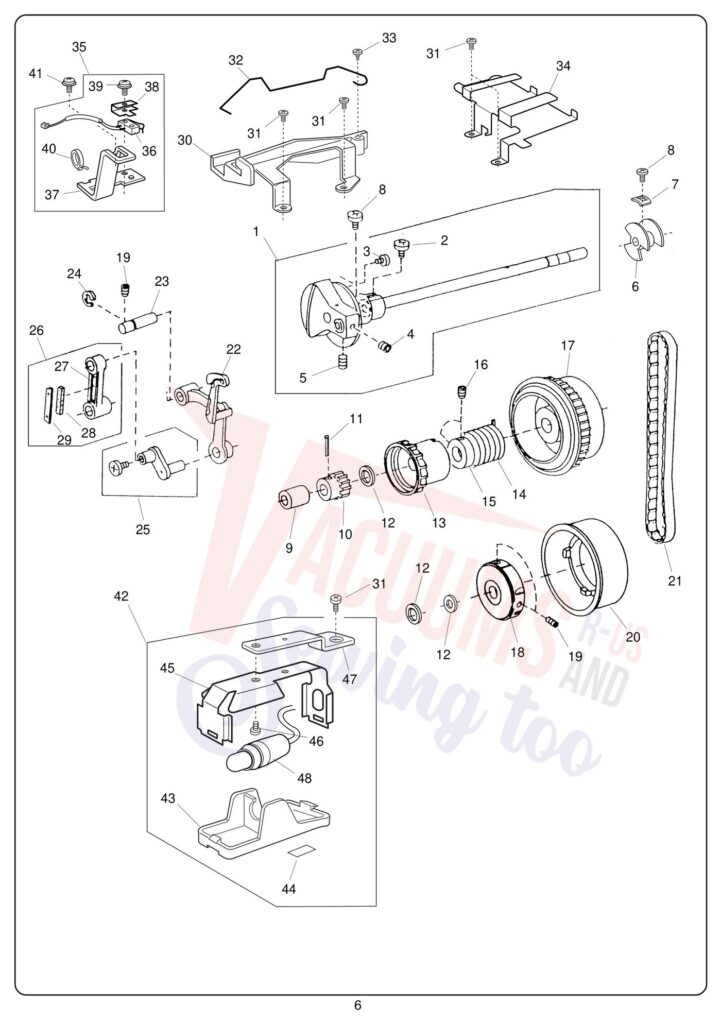

| # | Part image | Description | SKU | Price |
| 1 | Not Available | UPPER SHAFT UNIT MC10000 | 850613104 | Not Available |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Upper Shaft Shield Plate for Memory Craft 10000 sewing machine part or accessory For Janome Model... | 850069017 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Upper Shaft Rear Metal sewing machine part or accessory For Janome Models: 10001 SRV | 673062015 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | UPPER SHAFT TIMING GEAR sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 830341003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | WASHER FOR MC10000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUIL... | 000038801 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | DECLUTCH RELEASE RING 9000 400 sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 653055002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Clutch Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 653057004 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | CLUTCH RING 9000 4000 4123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 653056003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 17 |  | Belt Wheel for Memory Craft 10001 sewing machine part or accessory For Janome Models: MC10001 | 850230000 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Balance Wheel Base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 830286009 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Handwheel sewing machine part or accessory For Janome Models: 10001 SRV | 653061300 | $3.26Read more |
| 21 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SNAP RING E-9 8 7 4(000002806) sewing machine part or accessory For Janome Models: 531, 7330, AQS... | 000001702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | NEEDLE BAR CRANK ROD UNIT sewing machine part or accessory For Janome Models: 509, 521, 525S, 614... | 650607006 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Needle bar crank rod sewing machine part or accessory 650039001 Needle bar crank rod | 650039001 | $4.00Read more |
| 28 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Cord Guide 1 sewing machine part or accessory For Janome Models: 10001 SRV | 850160008 | $3.22Read more |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Cord Holder | 850175006 | Not Available |
| 33 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Cord Guide 2 | 850161009 | Not Available |
| 35 |  | Janome Presser Foot Lifter Sensor | 850607013 | $17.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Micro Switch Unit sewing machine part or accessory For Janome Models: 10001 SRV | 652520907 | $8.58Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | Switch Fixing Plate | 850044005 | Not Available |
| 38 | Not Available | Insulating Paper | 850172003 | Not Available |
| 39 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | Not Available | Lamp Cover Unit | 850629000 | Not Available |
| 43 | | Lamp Cover sewing machine part or accessory For Janome Models: 10001 SRV | 850162000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Lamp sticker USA and Australia sewing machine part or accessory For Janome Models: 0014800 SRV | 100411001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | Not Available | Lamp Cover Fixing Plate | 850163001 | Not Available |
| 46 | | Set screw 3x4 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000101127 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Arm Lamp Fixing Plate sewing machine part or accessory For Janome Models: 10001 SRV | 850164002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Lamp Socket Unit sewing machine part or accessory For Janome Models: 10001 SRV | 830538445 | $20.80Read more |
| # | Part image | Description | SKU | Price |

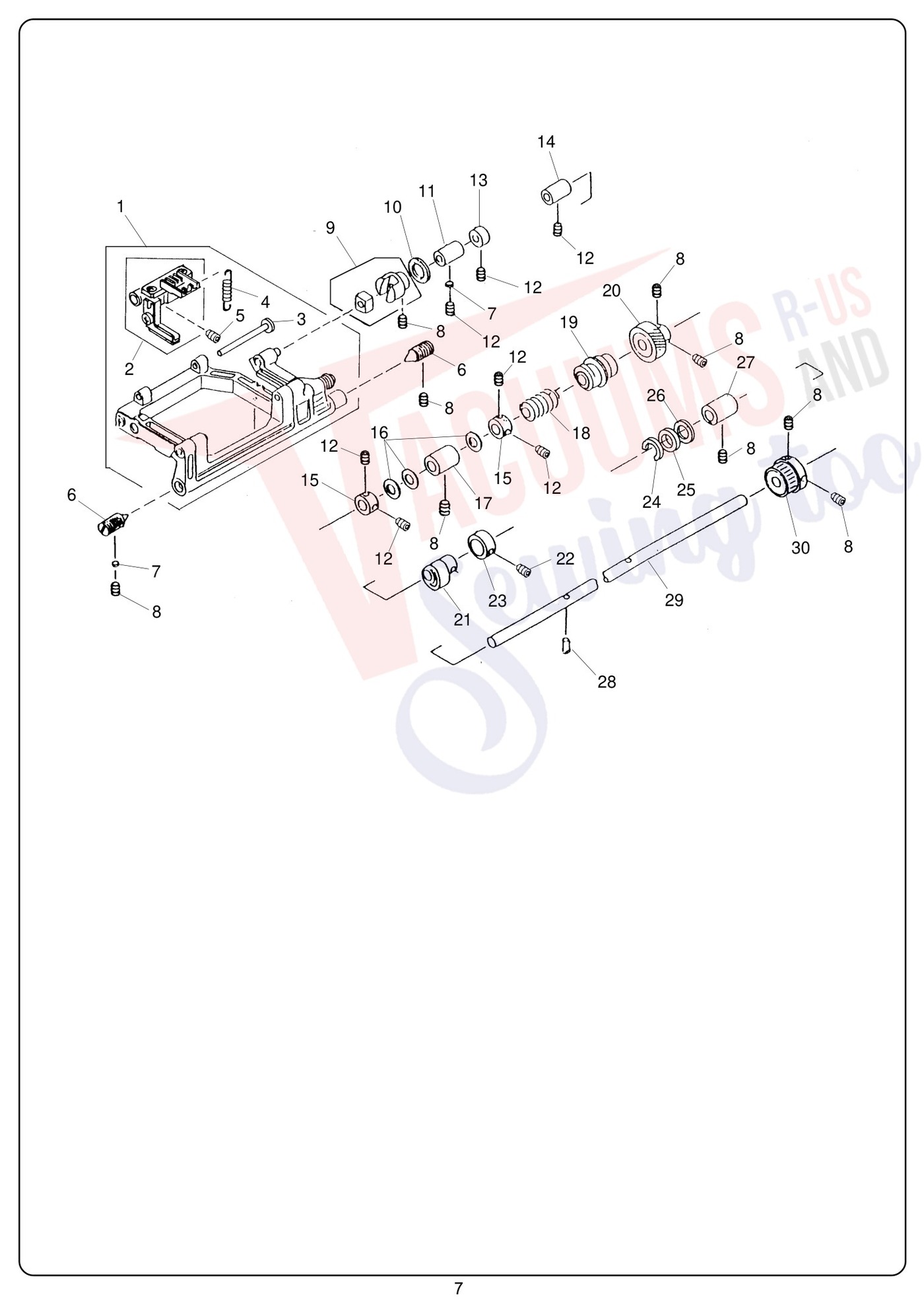

| 1 | | Feed Rock Shaft Unit sewing machine part or accessory For Janome Models: MC10001 | 832633023 | $104.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Feed Dog Set Plate Unit | 832533002 | Not Available |
| 3 |  | Feed base shaft sewing machine part or accessory 825099007 Feed base shaft | 825099007 | $2.99Read more |
| 4 |  | Feed Base Spring | 825103005 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SOCKET SCREW 4X6 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 000111407 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | CENTER SCREW sewing machine part or accessory | 532030003 | $1.00Read more |
| 7 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 9 |  | Feed regulator (unit) sewing machine part or accessory 625508008 Feed regulator (unit) | 625508008 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Feed lifting cam spring sewing machine part or accessory 825093001 Feed lifting cam spring | 825093001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Feed Lift Cam For: MC10000, MC10001, MC8000, MC9000, MC9500, MC9700 | 825092000 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Feed Cam sewing machine part or accessory For Janome Models: MC10000, MC10001, MC8000, MC9000, MC... | 825091102 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Ring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5500, MC8000, MC9000... | 810092004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Lower Shaft for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, M... | 850071001 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | LOWER SHAFT TIMING GEAR 9000/8 sewing machine part or accessory For Janome Models: MC10000, MC100... | 822113009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

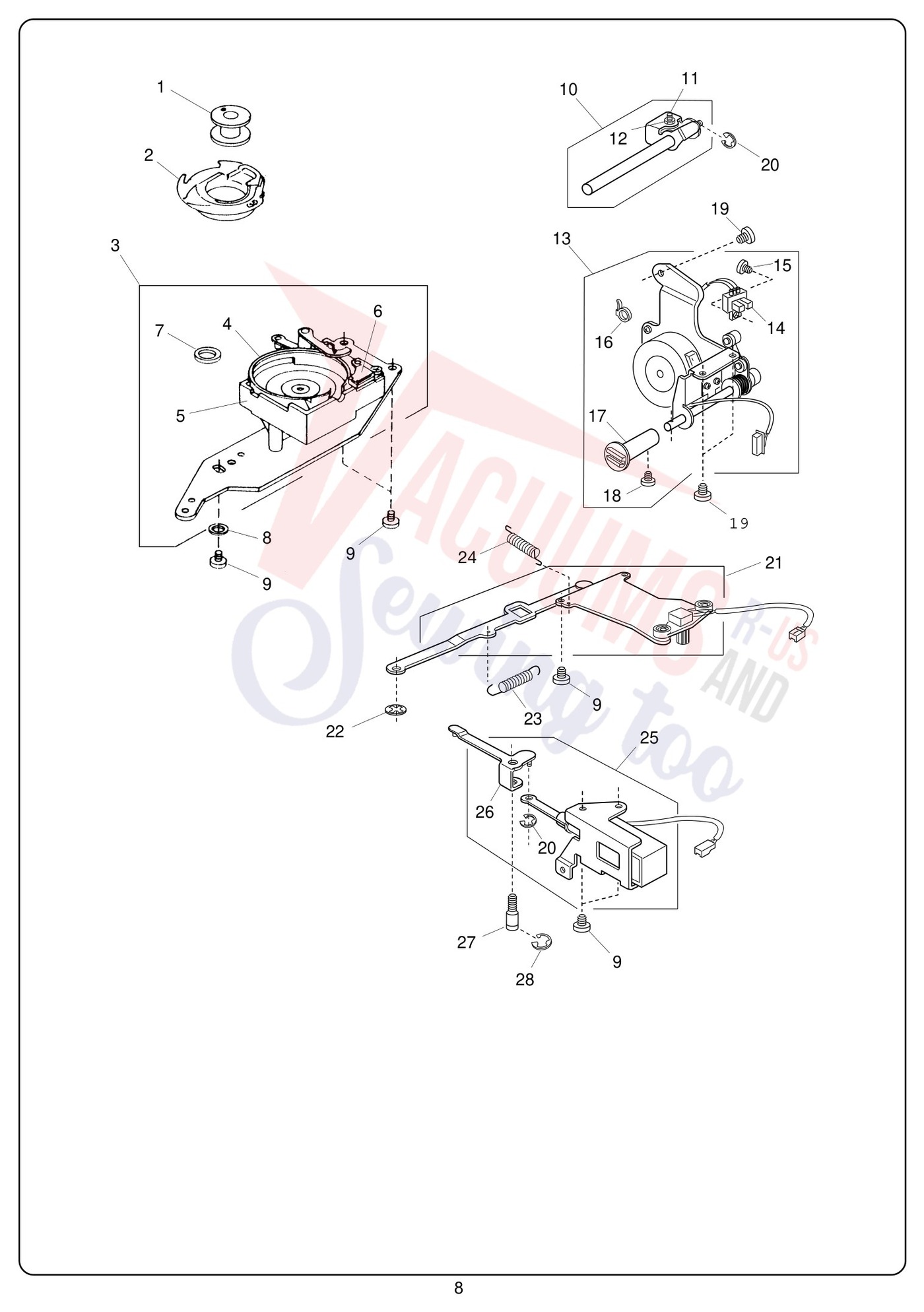

| 1 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Bobbin Case (Bobbin Holder) for Memory Craft 9000 and 10000 and 10001 For: ... | 832517112 | $43.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hook race unit sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9500, MC9700 | 832627105 | $79.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Hook Race Unit | 834950014 | Not Available |
| 5 | | Hook Race Cover Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832611106 | $26.29Read more |
| 6 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Feed Arm Unit | 850614002 | Not Available |
| 11 | Not Available | Feed Arm Screw | 830266003 | Not Available |
| 12 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Feed Step Motor Unit | 850615014 | Not Available |
| 14 | | Photo Interrupter Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832541001 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Feed balance dial sewing machine part or accessory For Janome Models: 9500 SRV | 832087004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 21 |  | Sensor set plate sewing machine part or accessory For Janome Models: MC10000, MC10001 | 850618006 | $38.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 888 COMPULOCK, MC10000, MC10... | 000013707 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC350E, MC9500, MC9700 | 850089002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Spring sewing machine part or accessory For Janome Models: MC10001, MC350E, MC9500, MC9700 , MC99... | 850212017 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Solenoid unit sewing machine part or accessory For Janome Models: MC10001, MC350E, MC9500, MC9700 | 850645013 | $41.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Bobbin thread sensor arm sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850083006 | $3.00Read more |
| 27 | | Hinge screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9500, MC9700 | 832097018 | $1.15Read more |
| 28 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Front Cover Unit | 850609200 | Not Available |
| 2 | | LCD Unit sewing machine part or accessory For Janome Models: 10001 SRV | 850610400 | $932.72Read more |
| 3 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Card Guide | 850055009 | Not Available |
| 5 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Printed Circuit Board A Unit | 850632110 | Not Available |
| 7 | Not Available | Eject Button | 850064001 | Not Available |
| 8 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Ornamental Plate | 850057001 | Not Available |
| 10 | | Button sewing machine part or accessory For Janome Models: MC10000, MC10001 | 850058105 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Button sewing machine part or accessory For Janome Models: MC10001, MC9500 | 850059128 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Button sewing machine part or accessory For Janome Models: MC10001, MC9500 | 850059221 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Button sewing machine part or accessory For Janome Models: MC10001, MC9500 | 850059324 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Button sewing machine part or accessory For Janome Models: MC10001 | 850060306 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Printed Circuit Board F Unit | 850517004 | Not Available |
| 16 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Slide Knob | 850061008 | Not Available |
| 18 | | Slide Volume Unit sewing machine part or accessory For Janome Models: 10001 SRV | 653507509 | $11.47Read more |
| 19 |  | Inverter Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MB-4, MC... | 850612000 | $64.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Inverter harness unit sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300... | 850524004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | EMBLEM FOR MC10001 sewing machine part or accessory For Janome Models: MC10001 | 850238008 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Arm thread guide (lower) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 825183010 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SET SCREW 3.5X25-8 9 7 7500 sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 000096508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Washer sewing machine part or accessory For Janome Models: 350E | 832177002 | $0.92Read more |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | LCD Harness Unit MC10000 & MC10001 sewing machine part or accessory | 850527007 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | FRONT PANEL WITHOUT BOARD 10K sewing machine part or accessory | 850051407 | $22.80Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
