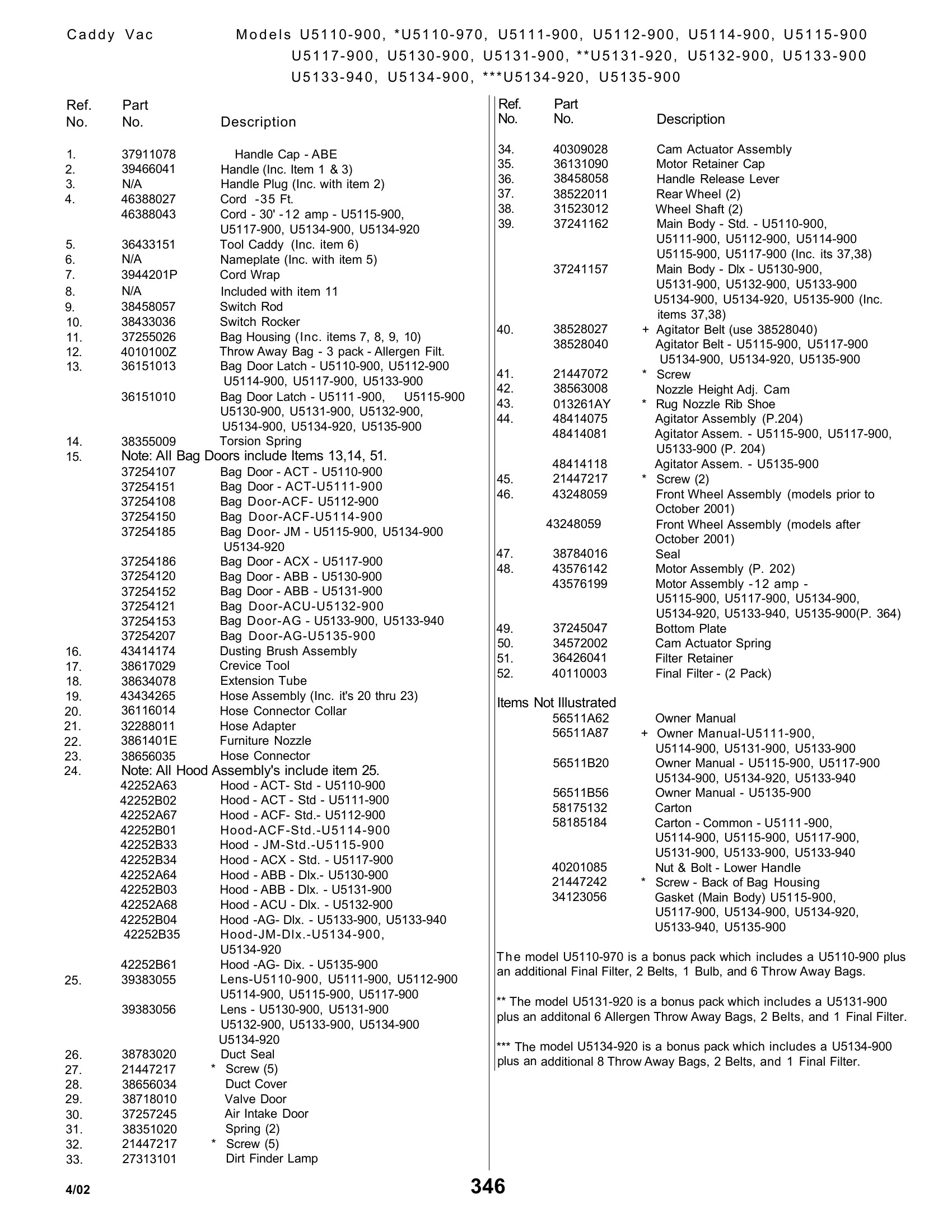

Schematic and parts book for hoover US110-900, US110-970, US111-900, US112-900, US114-900, US115-900, US117-900, US130-900, US131-900, US131-920, US132-900, US133-900, US134-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Thread Guard - RH | 36423016 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 3 | Not Available | Conical Washer (2) | 21347003 | Not Available |
| 4 | Not Available | Agitator End (2) | 36422022 | Not Available |
| 5 | Not Available | Agitator Body | N/A | Not Available |
| 6 | Not Available | Agitator Shaft | 32724013 | Not Available |
| 7 | Not Available | Thread Guard - LH - AG | 36423017 | Not Available |

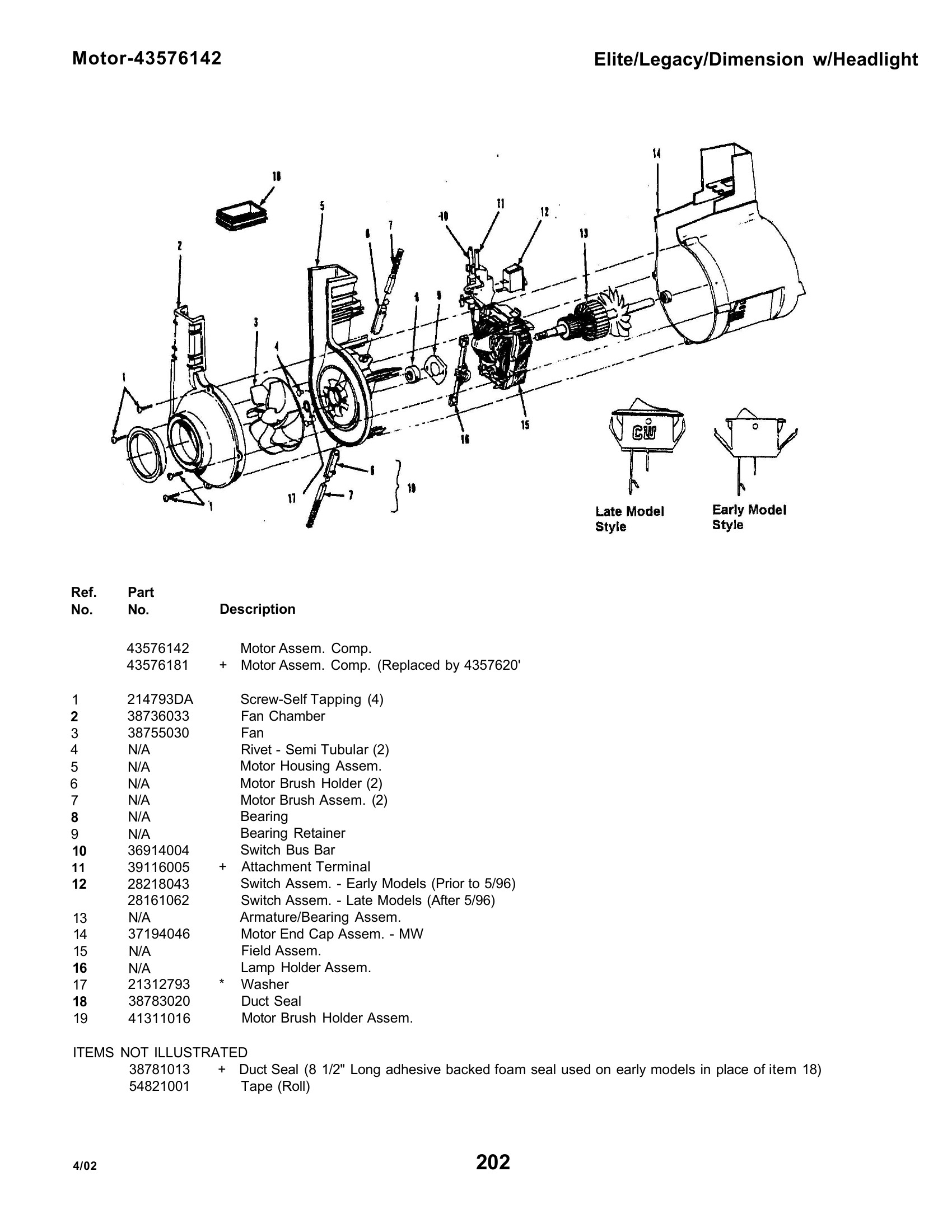

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan | 38755030 | Not Available |
| 4 | Not Available | Rivet - Semi Tubular (2) | N/A | Not Available |
| 5 | Not Available | Motor Housing Assem. | N/A | Not Available |
| 6 | Not Available | Motor Brush Holder (2) | N/A | Not Available |
| 7 | Not Available | Motor Brush Assem. (2) | N/A | Not Available |
| 8 | Not Available | Bearing | N/A | Not Available |
| 9 | Not Available | Bearing Retainer | N/A | Not Available |
| 10 | Not Available | Switch Bus Bar | 36914004 | Not Available |
| 11 | Not Available | Attachment Terminal | 39116005 | Not Available |
| 12 | Not Available | Switch Assem. - Early Models (Prior to 5/96) | 28218043 | Not Available |
| 13 | Not Available | Switch Assem. - Late Models (After 5/96) | 28161062 | Not Available |
| 14 | Not Available | Motor End Cap Assem. - MW | 37194046 | Not Available |
| 15 | Not Available | Field Assem. | N/A | Not Available |
| 16 | Not Available | Lamp Holder Assem. | N/A | Not Available |
| 17 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Duct Seal | 38783020 | Not Available |
| 19 | Not Available | Motor Brush Holder Assem. | 41311016 | Not Available |
| 19 | Not Available | Duct Seal (8 1/2" Long adhesive backed foam seal used on early models in place of item 18) | 38781013 | Not Available |
| 19 | Not Available | Tape (Roll) | 54821001 | Not Available |

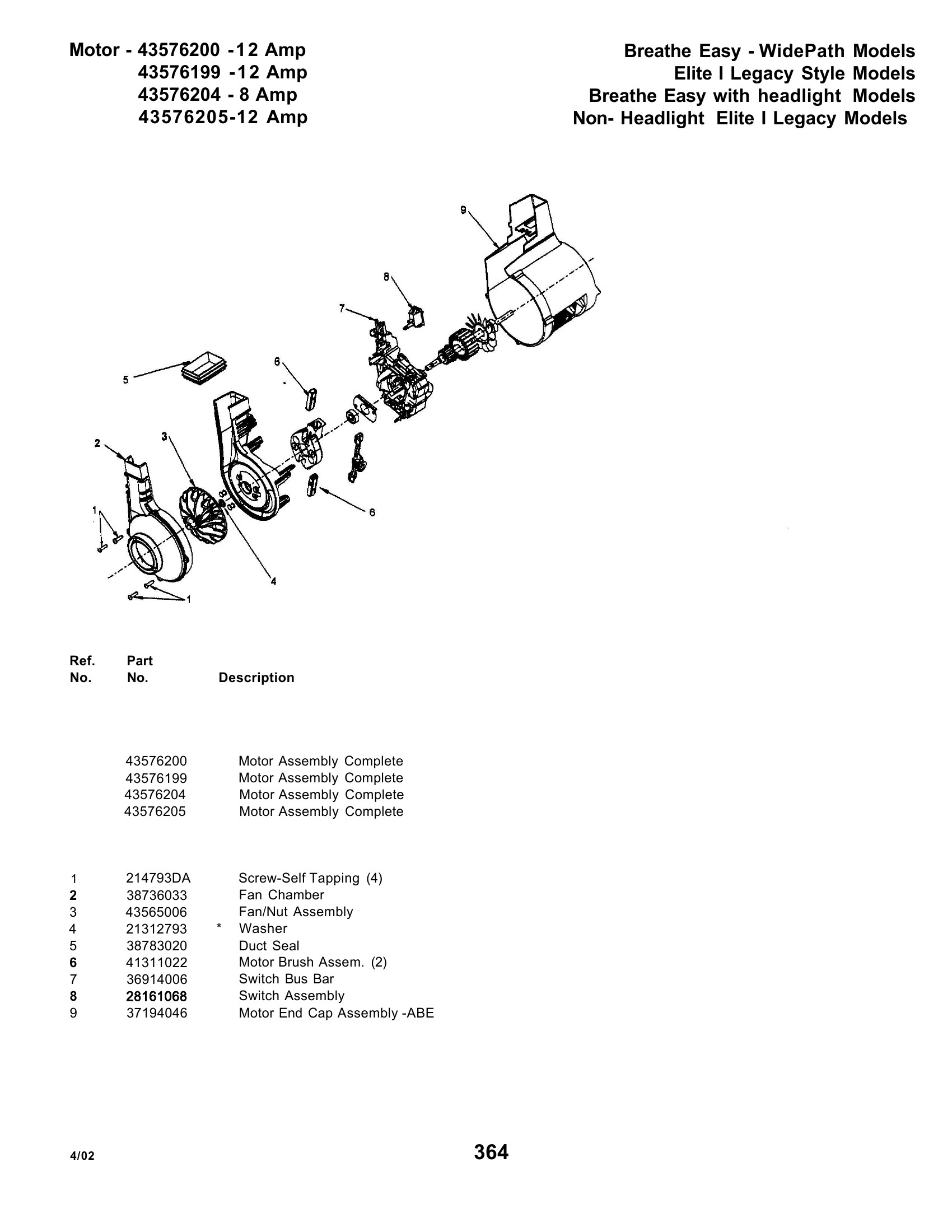

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan/Nut Assembly | 43565006 | Not Available |
| 4 | | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Duct Seal | 38783020 | Not Available |
| 6 | Not Available | Motor Brush Assem. (2) | 41311022 | Not Available |
| 7 | Not Available | Switch Bus Bar | 36914006 | Not Available |
| 8 | No Image | Switch Assem Hoover U5254 Caddy Vac For: hoover | 28161068 | $7.41Read more |
| 9 | Not Available | Motor End Cap Assembly -ABE | 37194046 | Not Available |
