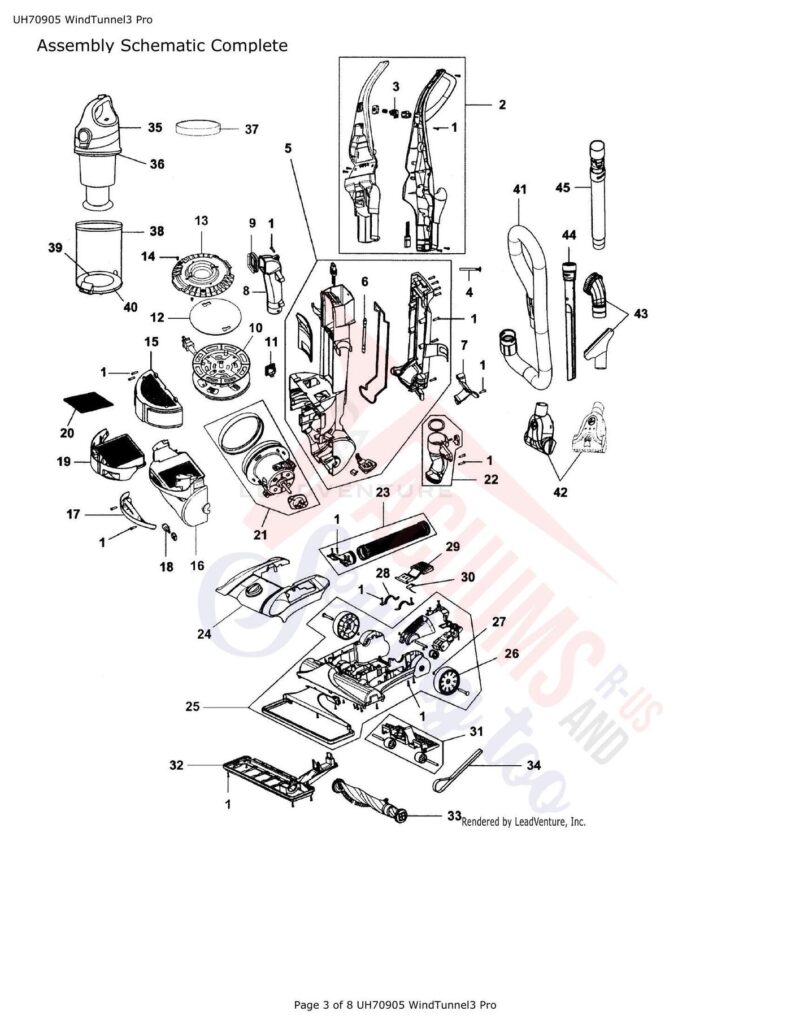

Schematic and parts book for Hoover UH70905, UH70909, UH70935 WindTunnel3 Pro. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | R/A 440013102 SCREW-SELF-TAPPING | 21447228 | Not Available |
| 2 | Not Available | HANDLE ASSY \ REACTION RED METALLIC | 440004121 | Not Available |
| 2 | Not Available | HANDLE ASSEMBLY - STRAIGHT / D-STYLE SHADOWS METALLIC | 440004156 | Not Available |
| 2 | Not Available | HANDLE ASSY \ COBALT BLUE METALLIC | 440004153 | Not Available |
| 3 | Not Available | POWER SWITCH - ROCKER | 440004095 | Not Available |
| 4 | Not Available | Nla Repl 430001077 Handle Screw | 620893001 | Not Available |
| 5 | Not Available | MAIN BACK PANEL ASSEMBLY - SHADOW GRAY | 440004122 | Not Available |
| 6 | Not Available | WIRE FUSE ASSEMBLY | 440004098 | Not Available |
| 7 | Not Available | HOSE WRAP LOWER | 521088001 | Not Available |
| 8 | Not Available | INLET TUBE ASSEMBLY - DIRT CUP | 304083001 | Not Available |
| 9 | Not Available | NLA R/A 440013198 SEAL, INLET TUBE | 562269001 | Not Available |
| 10 |  | Cord reel for hoover UH70930 UH70905, UH70935 Pet Bagless, UH70901PC Bagless UH70900 UH70909 UH70... | 440004123 | $73.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | INLET - CORD REWIND | 521090001 | Not Available |
| 12 | Not Available | FOAM - CORD REWIND | 440004125 | Not Available |
| 13 | Not Available | EXHAUST FILTER COVER | 440004124 | Not Available |
| 14 | Not Available | STEEL SCREW | 660021002 | Not Available |
| 15 | Not Available | CORD REWIND COVER - CLEAR | 440004126 | Not Available |
| 16 | Not Available | MOTOR COVER - FRONT | 440004103 | Not Available |
| 17 | Not Available | LIGHT LENS / STAIR HANDLE - CLEAR | 521064002 | Not Available |
| 18 | Not Available | WBD BULB 440013113 | 27313107 | Not Available |
| 19 |  | Aftermarket Hoover Exhaust Filter for UH70800 Models | H-305687001 | $16.84Add to cart |
| 19 | No Image | Compatible alternateFilter,Hepa Exhaust-Hoover Uh70130 Windtunnel T Orig Is 39-2371-02 More Product Details | F290 | $21.97Add to cart Special order — allow 2-4 weeks. |
| 19 | Not Available | EXHAUST FILTER ASSY-PET | 305687002 | Not Available |
| 20 |  | Hoover Exhaust Filter for UH70210 | H902404001 | $9.89Read more |
| 21 |  | Hoover blower motor for models UH72600, UH70905, UH70935, UH70930 and UH70900. | 440004104 | Original price was: $82.50.$27.50Current price is: $27.50.Read more |
| 22 | Not Available | LOWER HOSE ADAPTOR ASSEMBLY | 440001655 | Not Available |
| 23 | Not Available | LOWER HOSE ASSEMBLY | 440004127 | Not Available |
| 24 | Not Available | NOZZLE COVER ASSEMBLY - RED METALLIC | 440004128 | Not Available |
| 24 | Not Available | NOZZLE COVER ASSEMBLY - SHADOWS METALLIC | 440004157 | Not Available |
| 24 |  | COVER, NOZZLE COBALT BLUE METALLIC UH70900 Part Number: 440004154 for Hoover | 440004154 | $46.86Read more |
| 25 |  | Nozzle Base Assy-Hoover For: hoover | 440004129 | $70.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | REAR WHEEL ASSEMBLY | 440004107 | Not Available |
| 27 | Not Available | NLA SN E-CLIP | 691040002 | Not Available |
| 28 | Not Available | PIVOT CLAMP | 440004120 | Not Available |
| 29 | Not Available | HANDLE RELEASE PEDAL - SILVER METALLIC | 440004108 | Not Available |
| 30 | Not Available | Wbd 440014313 Handle Release Spring V | 633197001 | Not Available |
| 31 |  | Roller Lifter Assy - Hoover Upright
Fits Uh70900 Series For: hoover | 440004130 | $9.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | NOZZLE GUARD ASSY | 440004131 | Not Available |
| 33 |  | Brushroll, Wt3 Uh70900/Uh70905/Uh70930/Uh70935 | H-305691002 | $65.99Read more |
| 34 |  | Belt, Hoover T Series Singles pn: 440005535 | H-562289001 | $8.10Add to cart |
| 35 | Not Available | DIRT CUP LID ASSY \ REACTION RED METALLIC | 440004132 | Not Available |
| 35 | Not Available | DIRT CUP ASSY \ SHADOWS METALLIC | 440004158 | Not Available |
| 35 | Not Available | DIRT CUP LID ASSY \ COBALT BLUE METALLIC | 440004155 | Not Available |
| 36 | Not Available | SEAL - DIRT CUP SHROUD | 440004133 | Not Available |
| 37 |  | Filter, Primary Washable Windtunnel Air DVC 1Pk Part Number: 470889 for Hoover Replacement | 470889 | $24.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | DIRT CUP ASSY | 440004134 | Not Available |
| 39 | Not Available | SEAL-BOTTOM DOOR | 440004135 | Not Available |
| 40 | Not Available | GASKET - DIRT CUP DOOR | 440004136 | Not Available |
| 41 | Not Available | UPPER HOSE ASSY- 10FT \ CLEAR | 303239005 | Not Available |
| 42 | Not Available | TURBO TOOL ASSEMBLY | 521025000 | Not Available |
| 42 |  | Hoover pet turbo tool, UH30300, UH30302, UH30308, UH30310 T-Series WindTunnel Pet, UH70086 WindTu... | 440004118 | Original price was: $22.00.$12.00Current price is: $12.00.Read more |
| 43 | Not Available | DUSTING BRUSH | 303205001 | Not Available |
| 43 |  | Upholstery Tool, Pet WindTunnel 2 Part Number: 440004119 for Hoover | 440004119 | $27.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Nla 440013856 Crevice Tool | 522736001 | Not Available |
| 45 | Not Available | TELESCOPING WAND ASSEMBLY | 304315001 | Not Available |
