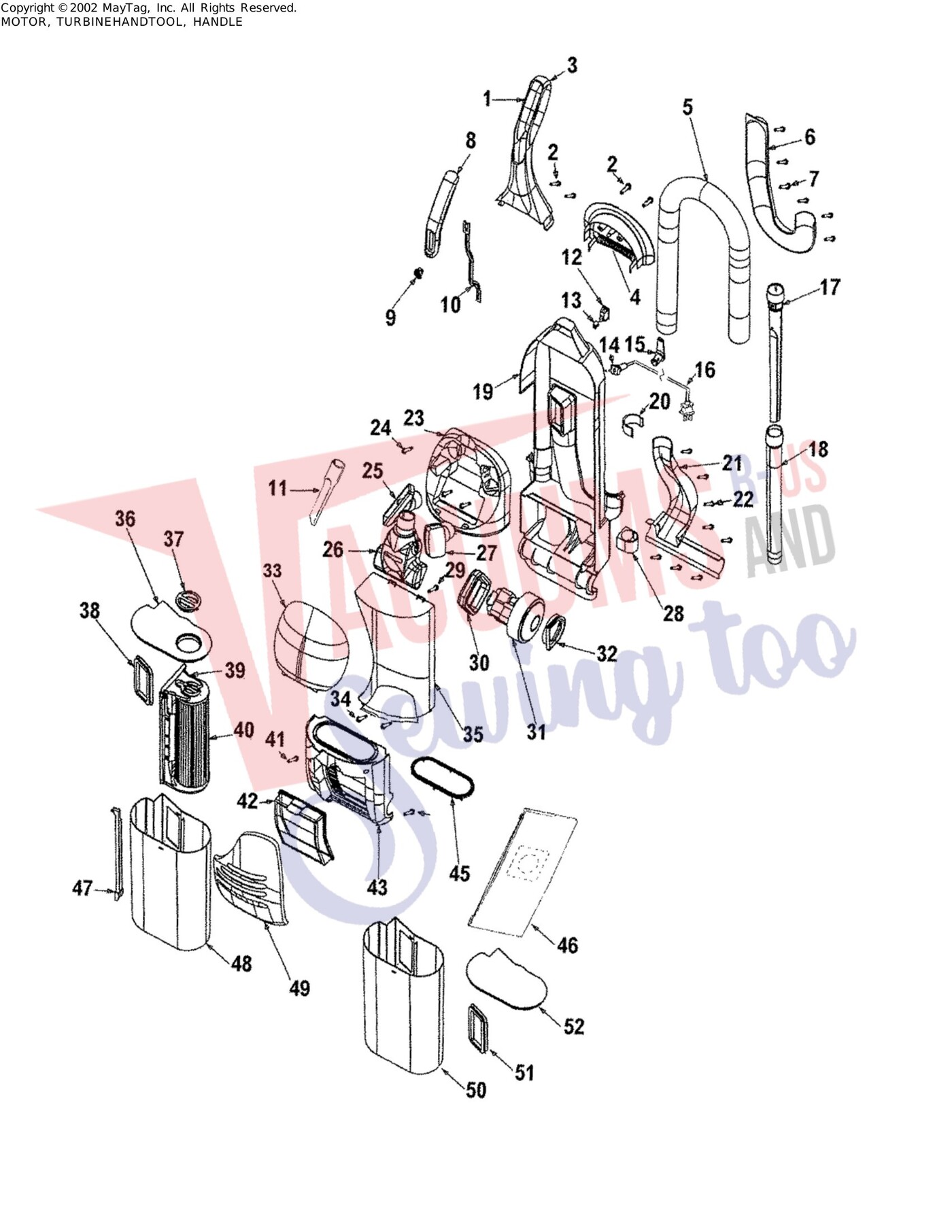

Schematic and parts book for hoover U8144-900, U8144 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | UPPER HANDLE-ABE | 39466056 | Not Available |
| 2 | Not Available | SCREW-SELF TAPPING-C | 214472ED | Not Available |
| 3 | Not Available | SCREW | 21447236 | Not Available |
| 4 | Not Available | HOSE HOLDER-UPPER-ABE | 36433164 | Not Available |
| 5 | Not Available | HOSE ASSEM COMP/LABEL | 43431223 | Not Available |
| 6 | Not Available | DIRT DUCT COVER-ABE | 38646084 | Not Available |
| 7 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 8 | Not Available | HANDLE GRIP-AEF | 39454078 | Not Available |
| 9 | Not Available | SWITCH BUTTON-ABE | 38421103 | Not Available |
| 9 | Not Available | SWITCH BUTTON-ABR | 38421098 | Not Available |
| 10 | Not Available | SWITCH ROD-AG | 38458064 | Not Available |
| 11 | Not Available | CREVICE TOOL-ABR | 38617027 | Not Available |
| 12 | Not Available | SWITCH-WT-.025 TERM | 28161067 | Not Available |
| 14 | Not Available | CORD PROTECTOR-WTBGL | 36215028 | Not Available |
| 15 | Not Available | CORD WRAP | 3944201P | Not Available |
| 16 | Not Available | ATTACHMENT CORD ASSEM-31 FT | 46383342 | Not Available |
| 17 | Not Available | CREVICE TOOL-ABR | 38617029 | Not Available |
| 18 | Not Available | EXTENSION TUBE-AG | 38634078 | Not Available |
| 19 | No Image | HOUSING, UPPER U8120 U8122 U8126 U8132 U8141 GRAY Part Number: 37259011 for Hoover | 37259011 | $36.10Read more |
| 20 | Not Available | WAND HOLDER-UPPER-ABE | 36433165 | Not Available |
| 21 | Not Available | GASKET-35IN | 38781060 | Not Available |
| 21 | Not Available | TRUNNION DUCT-ABE | 38683016 | Not Available |
| 22 | Not Available | SCREW-SELF TAPPING | 21447242 | Not Available |
| 23 | Not Available | TOOL HOLDER-AG U8122 | 36433180 | Not Available |
| 23 | Not Available | TOOL HLDER-AEF-U8141 | 36433183 | Not Available |
| 23 | Not Available | TOOL HOLDER-ACF-U813 | 36433177 | Not Available |
| 23 | Not Available | Tool Holder-ABR-U814 | 36433175 | Not Available |
| 23 | Not Available | TOOL HOLDER-ADM-U812 | 36433179 | Not Available |
| 23 | Not Available | TOOL HOLDER-AG-U8146 | 36433178 | Not Available |
| 23 | Not Available | TOOL HOLDER-ACL-U814 | 36433189 | Not Available |
| 23 | Not Available | Tool Holder-AFS-U813 | 36433170 | Not Available |
| 23 | Not Available | Tool Holder-AFJ-U812 | 36433163 | Not Available |
| 23 | Not Available | TOOL HOLDER W/THT-AFM | 36433162 | Not Available |
| 23 | Not Available | Tool Holder-WW-U8148 | 36433174 | Not Available |
| 43 | Not Available | Key Part Number | 37196170 | Not Available |
| # | Part image | Description | SKU | Price |
| 19 | Not Available | Key Part Number | 32434008 | Not Available |
