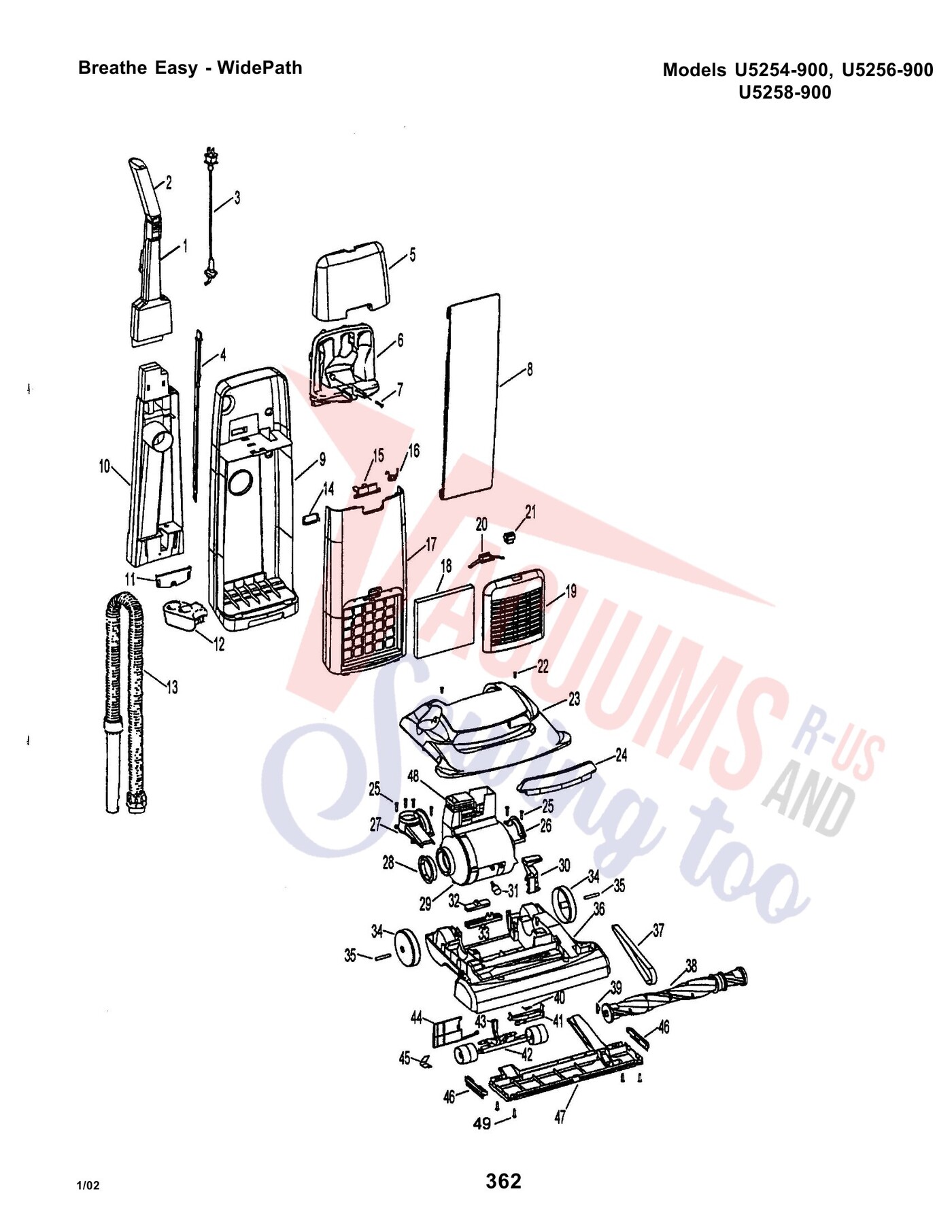

Schematic and parts book for hoover U5254-900, U5258-900, u5256-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Handle Assembly | 48663204 | Not Available |
| 14 | Not Available | Latch Plug | 37258051 | Not Available |
| 14 | Not Available | Bag Door Assembly - ADK - | 37254179 | Not Available |
| 14 | Not Available | Bag Door Assembly - ADS | 37254178 | Not Available |
| 18 | Not Available | Finai Filter (Inc. 2 filters) | 40110003 | Not Available |
| 18 | Not Available | Filter Retainer - ADS - U5254-900 | 37257273 | Not Available |
| 18 | Not Available | Hood Assembly - ADJ - U5258-900 | 42252628 | Not Available |
| 18 | Not Available | Hood Assembly - ADR -U5254-900 | 42252B27 | Not Available |
| 18 | Not Available | Nut and Bolt Assem. (Handle) | 40201085 | Not Available |
| 18 | Not Available | Cord Wrap | 3944201P | Not Available |
| 18 | Not Available | Gasket - Main Body | 34123056 | Not Available |
| 18 | Not Available | Extension Tube | 38634078 | Not Available |
| 18 | Not Available | Furniture Nozzle | 38614036 | Not Available |
| 18 | Not Available | Crevice Tool | 38617026 | Not Available |
| 18 | Not Available | Dusting Brush | 43414146 | Not Available |

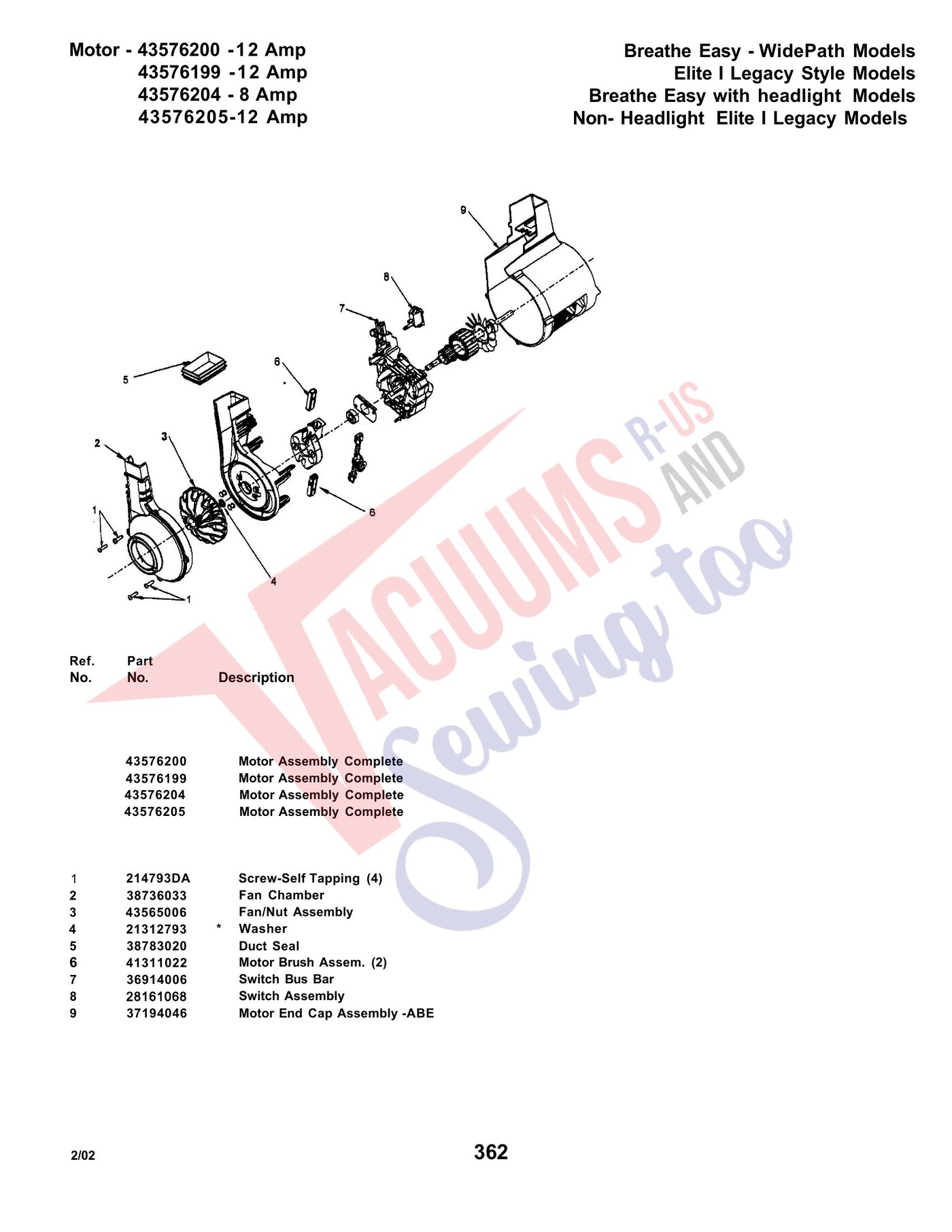

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan/Nut Assembly | 43565006 | Not Available |
| 4 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Duct Seal | 38783020 | Not Available |
| 6 | Not Available | Motor Brush Assem. (2) | 41311022 | Not Available |
| 7 | Not Available | Switch Bus Bar | 36914006 | Not Available |
| 8 | No Image | Switch Assem Hoover U5254 Caddy Vac For: hoover | 28161068 | $7.41Read more |
| 9 | Not Available | Motor End Cap Assembly -ABE | 37194046 | Not Available |
