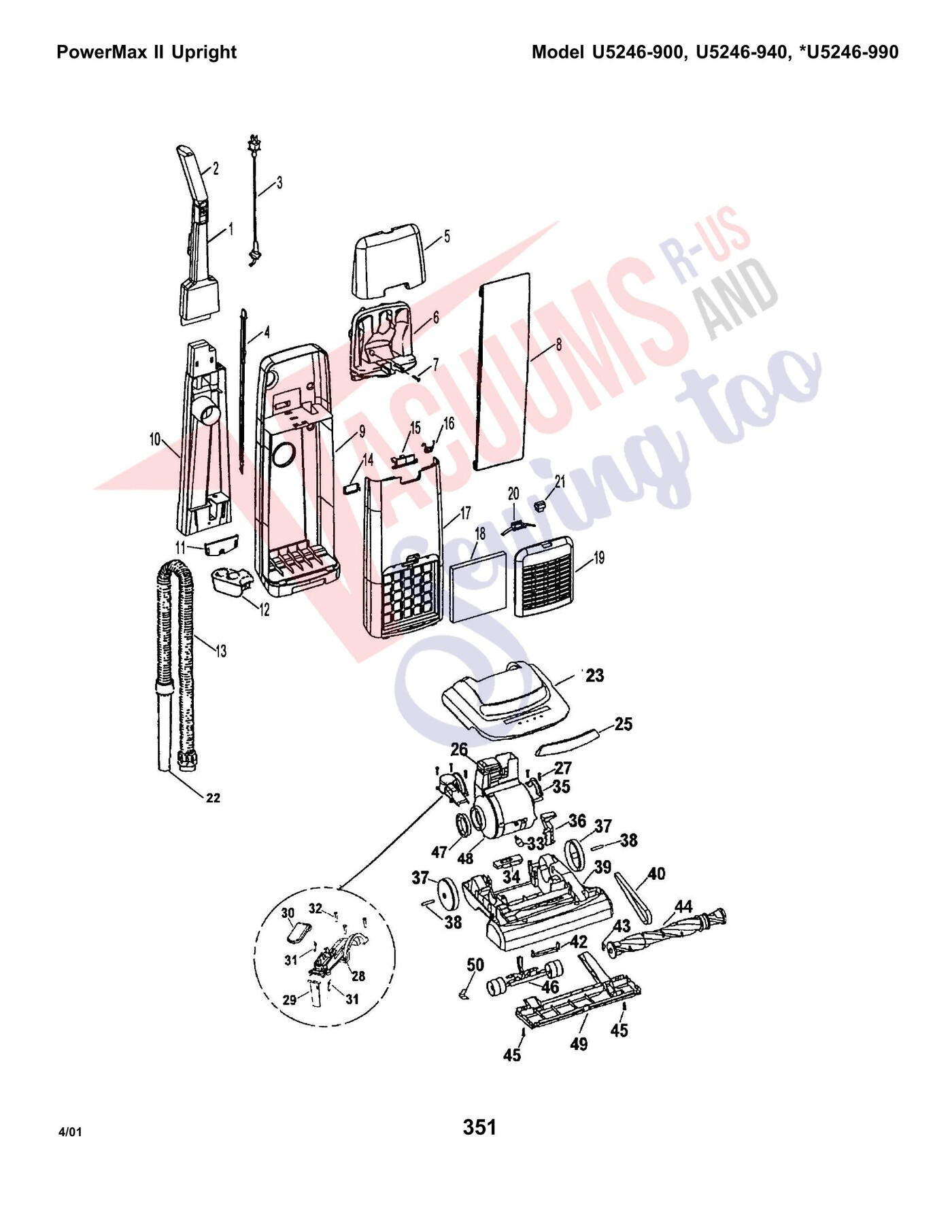

Schematic and parts book for hoover U5246-900, U5246-940, U5246-990 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

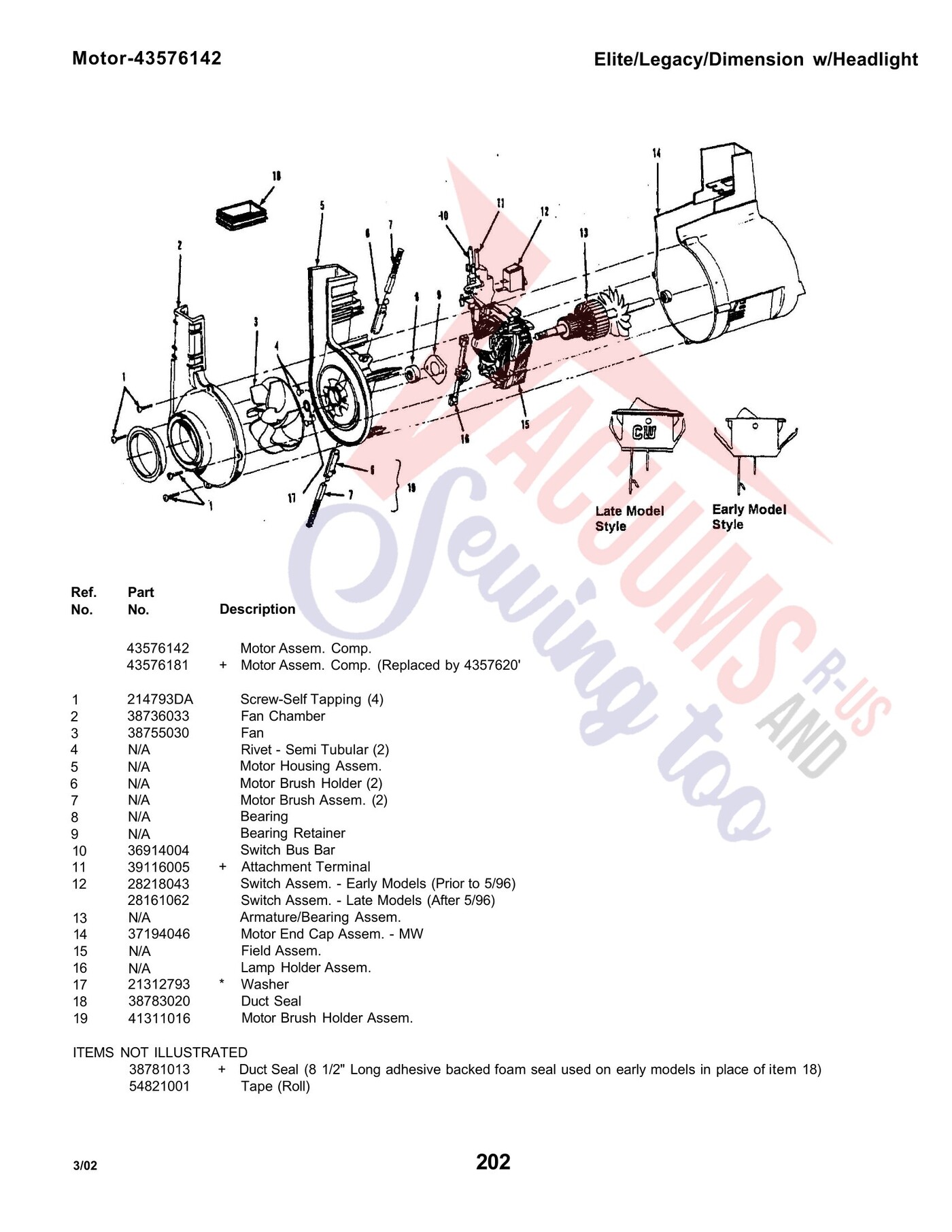

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Handle Assem. | 48663204 | Not Available |
| 2 | Not Available | Handle Cap - ABE | 37911078 | Not Available |
| 3 | Not Available | Attachment Cord - 35' | 46388027 | Not Available |
| 3 | Not Available | Cord - 30' 12 Amp -U5246-900 | 46388043 | Not Available |
| 4 | Not Available | Switch Rod - Lower - ABE | 38458046 | Not Available |
| 5 | Not Available | Tool Door - AAN | 37257147 | Not Available |
| 6 | Not Available | Tool Holder | 36433125 | Not Available |
| 7 | Not Available | Screw Self Tapping | 21447220 | Not Available |
| 8 |  | Paper Bag, Type Z allergen Dimension Upright 3 Pk Part Number: 4010100Z for Hoover | 4010100Z | $12.30Read more |
| 9 | Not Available | Hard Bag Assem. | 37255021 | Not Available |
| 10 | Not Available | Lower Handle - ABE | 39464025 | Not Available |
| 11 | Not Available | Bag Housing Bracket - ABE | 36425081 | Not Available |
| 12 | Not Available | Lower Hose Support - ABE | 36433150 | Not Available |
| 13 | Not Available | Cleaning Tool HoseABX/AG | 43434033 | Not Available |
| 14 | Not Available | Latch Plug | 37258051 | Not Available |
| 15 | Not Available | Latch - Bag Door-ABE | 36151013 | Not Available |
| 16 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.56Read more |
| 17 | Not Available | Bag Housing Door - ADF (Inc. | 37254136 | Not Available |
| 18 | Not Available | Final Filter (includes 2 Filters) | 40110003 | Not Available |
| 19 | Not Available | Filter Retainer - ADH | 37257255 | Not Available |
| 20 | Not Available | Latch | 36151030 | Not Available |
| 21 | Not Available | Latch Button - AG | 38426090 | Not Available |
| 22 | Not Available | Hose Adaptor | 32288011 | Not Available |
| 23 | Not Available | Hood - ADF (Incl. It. 25) | 42252A85 | Not Available |
| 23 | Not Available | Hood - ADF (Incl. It. 25) | 42252B22 | Not Available |
| 25 | Not Available | Lens | 39383056 | Not Available |
| 26 | Not Available | Duct Seal | 38783020 | Not Available |
| 27 | Not Available | Self Tapping Screw | 21447217 | Not Available |
| 28 | Not Available | Duct Cover - ABE | 38656034 | Not Available |
| 29 | Not Available | Valve Door | 38718010 | Not Available |
| 30 | Not Available | Air Intake Door - ABE | 37257245 | Not Available |
| 31 | Not Available | Spring | 38351020 | Not Available |
| 32 | Not Available | Screw Self Tapping | 21447217 | Not Available |
| 33 | Not Available | Light Bulb | 27313101 | Not Available |
| 34 | Not Available | Cam Actuator - ABE | 40309028 | Not Available |
| 35 | Not Available | Motor Retainer Cap | 36131090 | Not Available |
| 36 | Not Available | Handle Release Lever - AG | 38458058 | Not Available |
| 37 | Not Available | Rear Wheel - AG | 38522011 | Not Available |
| 38 | Not Available | Wheel Shaft | 31523012 | Not Available |
| 39 | Not Available | Main Body (Incl. It. 37 38) | 37241157 | Not Available |
| 40 | Not Available | Belt | 38528027 | Not Available |
| 40 | Not Available | Belt - U5246-940 | 38527040 | Not Available |
| 42 | Not Available | Nozzle Height Adj. Cam | 38563008 | Not Available |
| 43 | Not Available | AY * Rib Shoe | 13261 | Not Available |
| 44 | Not Available | Agitator Assembly (P. 204) | 48414075 | Not Available |
| 45 | Not Available | Screw self Tapping | 21447217 | Not Available |
| 46 | Not Available | Front Wheel Assem. - AG/ABE | 43248059 | Not Available |
| 47 | Not Available | Seal - AG | 38784016 | Not Available |
| 48 | Not Available | Motor (P. 202) | 43576142 | Not Available |
| 48 | Not Available | Motor -U5246-940 (P. 364) | 43576199 | Not Available |
| 49 | No Image | BOTTOM PLATE, CADDY VAC U5110 Part Number: 37245047 for Hoover | 37245047 | $29.49Read more |
| 50 | Not Available | Cam Actuator Spring | 34572002 | Not Available |
| 50 | Not Available | Cord Wrap - ABE | 3944201P | Not Available |
| 50 | Not Available | Handle Hardware Assem. | 40201085 | Not Available |
| 50 | Not Available | Hose Connector Collar | 36116014 | Not Available |
| 50 | Not Available | Furniture Nozzle - ABR | 38614036 | Not Available |
| 50 | Not Available | Crevice Tool - ABR | 38617026 | Not Available |
| 50 | Not Available | Extension Tube - AG | 38634077 | Not Available |
| 50 | Not Available | Dusting Brush Assem. - ABR | 43414146 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan | 38755030 | Not Available |
| 4 | Not Available | Rivet - Semi Tubular (2) | N/A | Not Available |
| 5 | Not Available | Motor Housing Assem. | N/A | Not Available |
| 6 | Not Available | Motor Brush Holder (2) | N/A | Not Available |
| 7 | Not Available | Motor Brush Assem. (2) | N/A | Not Available |
| 8 | Not Available | Bearing | N/A | Not Available |
| 9 | Not Available | Bearing Retainer | N/A | Not Available |
| 10 | Not Available | Switch Bus Bar | 36914004 | Not Available |
| 11 | Not Available | Attachment Terminal | 39116005 | Not Available |
| 12 | Not Available | Switch Assem. - Early Models (Prior to 5/96) | 28218043 | Not Available |
| 13 | Not Available | Switch Assem. - Late Models (After 5/96) | 28161062 | Not Available |
| 14 | Not Available | Motor End Cap Assem. - MW | 37194046 | Not Available |
| 15 | Not Available | Field Assem. | N/A | Not Available |
| 16 | Not Available | Lamp Holder Assem. | N/A | Not Available |
| 17 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Duct Seal | 38783020 | Not Available |
| 19 | Not Available | Motor Brush Holder Assem. | 41311016 | Not Available |
| 19 | Not Available | Duct Seal (8 1/2" Long adhesive backed foam seal used on early models in place of item 18) | 38781013 | Not Available |
| 19 | Not Available | Tape (Roll) | 54821001 | Not Available |
