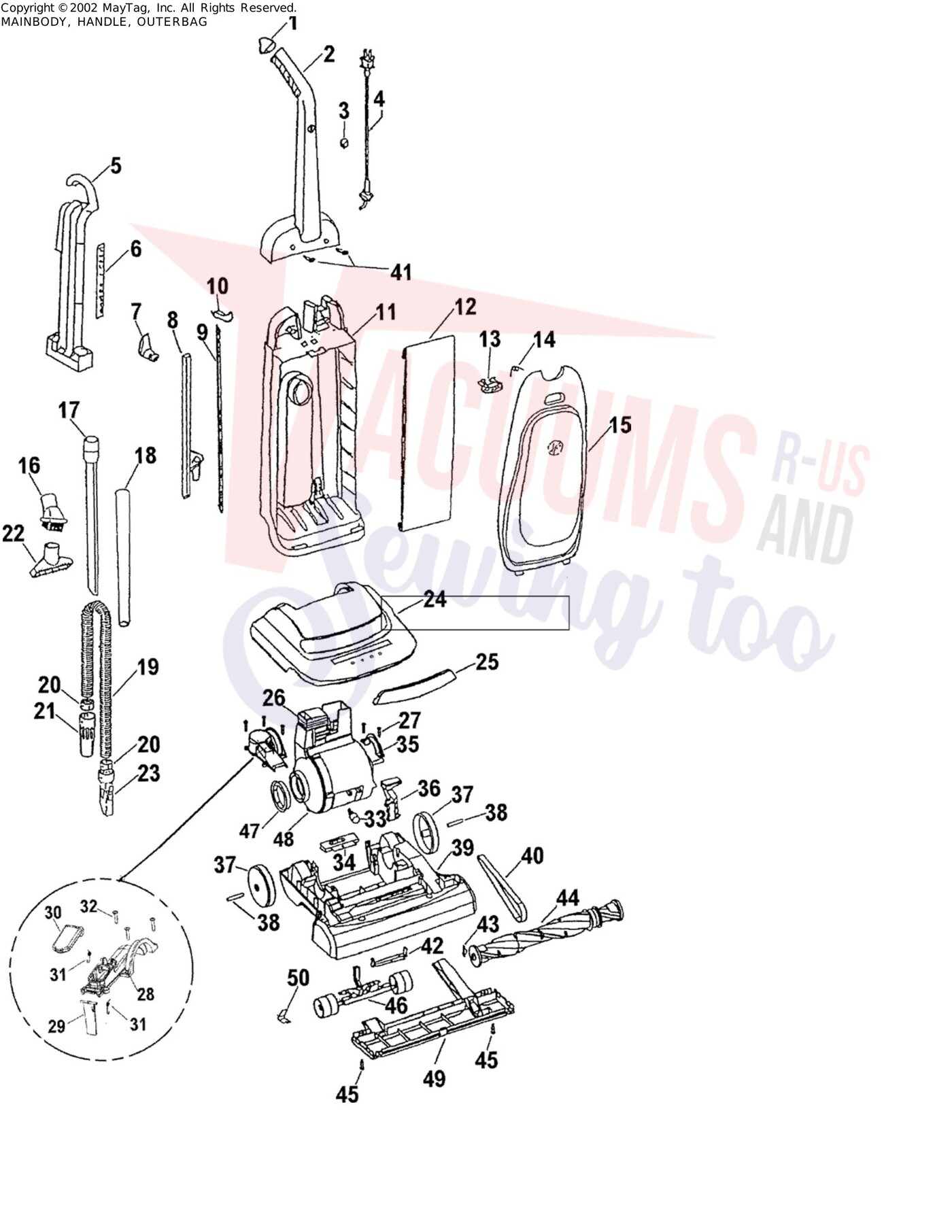

Schematic and parts book for Hoover U5168900, U5168-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE CAP-ABE-U5209 | 37911078 | Not Available |
| 2 | Not Available | UPPER HANDLE-CADDY V | 39466041 | Not Available |
| 4 | Not Available | ATTACH. CORD | 46388027 | Not Available |
| 5 | Not Available | TOOL CADDY | 36433151 | Not Available |
| 7 | Not Available | CORD WRAP | 3944201P | Not Available |
| 9 | Not Available | SWITCH ROD-CADDY VAC | 38458057 | Not Available |
| 10 | Not Available | SWITCH ROCKER-CADDY | 38433036 | Not Available |
| 11 | Not Available | BAG HOUSING-CADDY VA | 37255026 | Not Available |
| 12 |  | Paper Bag, Type Z allergen Dimension Upright 3 Pk Part Number: 4010100Z for Hoover | 4010100Z | $12.30Read more |
| 13 | Not Available | LATCH-BAG DOOR | 36151010 | Not Available |
| 14 | Not Available | TORSION SPRING | 38355009 | Not Available |
| 15 | Not Available | Bag Housing Door-AG | 42255028 | Not Available |
| 15 | Not Available | BAG DOOR ASSEMBLY-U5 | 42255027 | Not Available |
| 16 | Not Available | DUSTING BRUSH ASSEM- | 43414174 | Not Available |
| 17 | Not Available | CREVICE TOOL-AF R | 38617029 | Not Available |
| 18 | Not Available | EXTENSION TUBE-AG | 38634078 | Not Available |
| 19 | Not Available | CL TOOL HOSE ASSEM-ABX/AG | 43434265 | Not Available |
| 20 | Not Available | HOSE CONNECTOR COLLAR | 36116014 | Not Available |
| 21 | Not Available | HOSE ADAPTER-AG | 32288011 | Not Available |
| 22 | Not Available | FURNITURE NOZZLE | 3861401E | Not Available |
| 23 | Not Available | HOSE CONNECTOR-AG | 38656035 | Not Available |
| 24 | Not Available | HOOD ASSEMBLY=CADDY | 42252A65 | Not Available |
| 24 | Not Available | HOOD-AG-CADDY VAC | 42252B04 | Not Available |
| 25 | Not Available | LENS-DELUXE-BZ | 39383056 | Not Available |
| 26 | Not Available | DUCT SEAL-MOLDED | 38783020 | Not Available |
| 27 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 28 | Not Available | DUCT COVER-CADDY VAC | 38656034 | Not Available |
| 29 | Not Available | VALVE DOOR-CADDY VAC | 38718010 | Not Available |
| 30 | Not Available | AIR INTAKE DOOR-CADD | 37257245 | Not Available |
| 31 | Not Available | SPRING-CADDY VAC | 38351020 | Not Available |
| 32 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 33 | Not Available | LAMP | 27313101 | Not Available |
| 34 | Not Available | Key Part Number | 40309028 | Not Available |
| 43 | Not Available | AY | 013261 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Key Part Number | 43576204 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | 48414081 | 1 | Not Available |
| 1 | Not Available | 48414075 | 1 | Not Available |
| 1 | Not Available | 36423016 | 1 | Not Available |
| 1 | Not Available | 43267002 | 2 | Not Available |
| 1 | Not Available | 21347003 | 3 | Not Available |
| 1 | Not Available | 36422022 | 4 | Not Available |
| 1 | Not Available | 32724013 | 6 | Not Available |
| 1 | Not Available | 36423017 | 7 | Not Available |
