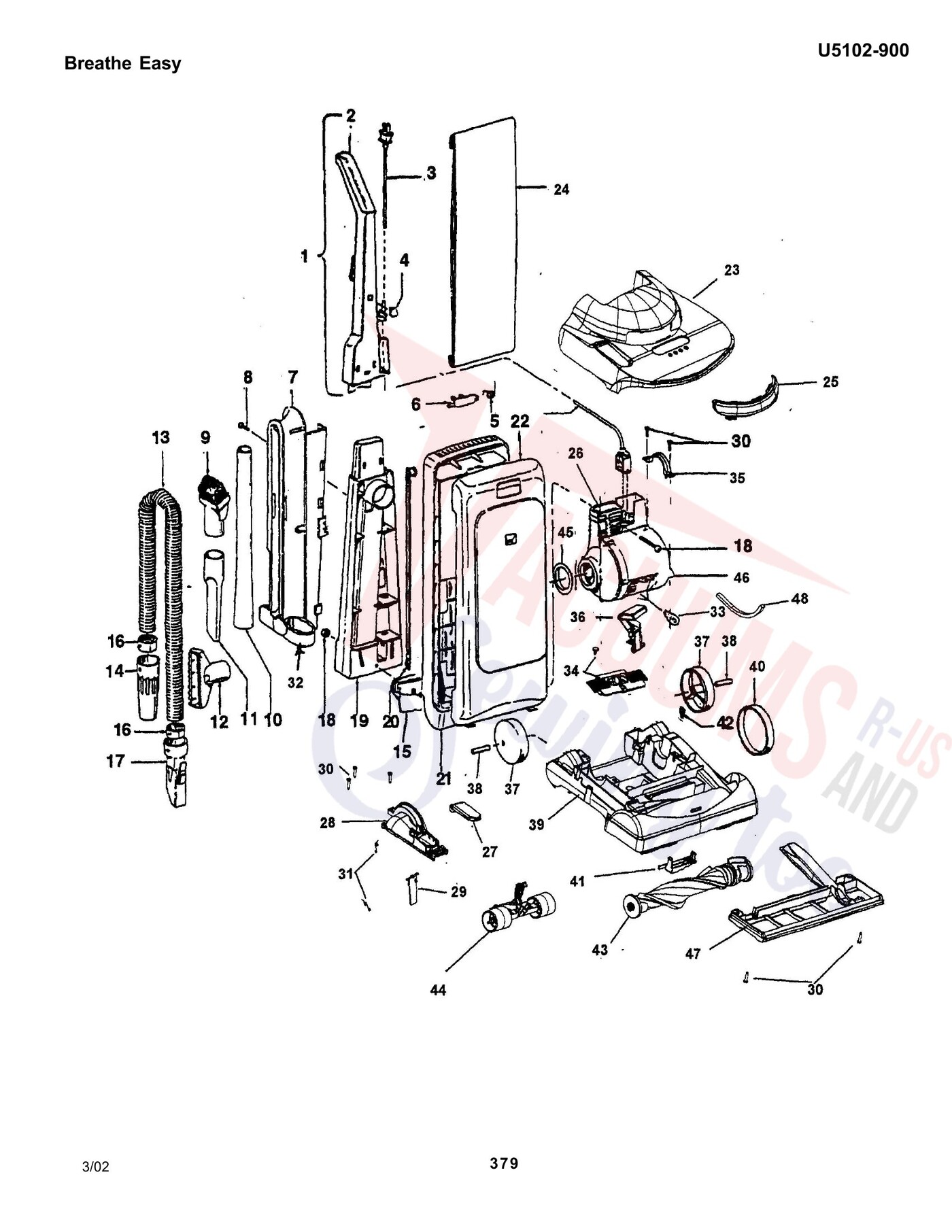

Schematic and parts book for hoover U5102-900 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Handle Assem. - ABE | 48663160 | Not Available |
| 2 | Not Available | Handle Grip - ABE | 39458057 | Not Available |
| 3 | Not Available | Attachment Cord - AG - 30 Ft. | 46388043 | Not Available |
| 4 | Not Available | Plug | 37911038 | Not Available |
| 5 | Not Available | Spring | 38355009 | Not Available |
| 6 | Not Available | Latch | 36151013 | Not Available |
| 6 | Not Available | Screw - Self Tapping | 21447220 | Not Available |
| 7 | Not Available | Tool Holder - ABE | 41426019 | Not Available |
| 9 | Not Available | Dusting Brush - ABR | 43414146 | Not Available |
| 10 | Not Available | Ext. Tube - AG | 38634078 | Not Available |
| 11 | Not Available | Crevice Tool - ABR | 38617026 | Not Available |
| 12 | Not Available | Furniture Nozzle - ABR | 38614036 | Not Available |
| 13 | Not Available | Cleaning Tool Hose Assembly | 43434265 | Not Available |
| 14 | Not Available | Hose Connector - AG | 32288011 | Not Available |
| 15 | Not Available | Bag Housing Bracket | 36425081 | Not Available |
| 17 | Not Available | Hose Adapter - AG | 38656035 | Not Available |
| 18 | Not Available | Nut & Bolt | 40201085 | Not Available |
| 19 | Not Available | Lower Handle - ABE | 39464005 | Not Available |
| 20 | Not Available | Switch Control Rod - AG | 38456036 | Not Available |
| 21 | Not Available | Bag Housing | 37254069 | Not Available |
| 22 | Not Available | Bag Housing Door - AEB | 37257294 | Not Available |
| 23 | Not Available | Hood - ABY - Deluxe (Includes | 42252B58 | Not Available |
| 24 |  | Paper Bags-Hoover - A - 3Pk - Micro Filter
3 Pack For: hoover | 4010100A | $15.58Add to cart Product is special order please allow 2-4 weeks for delivery. |

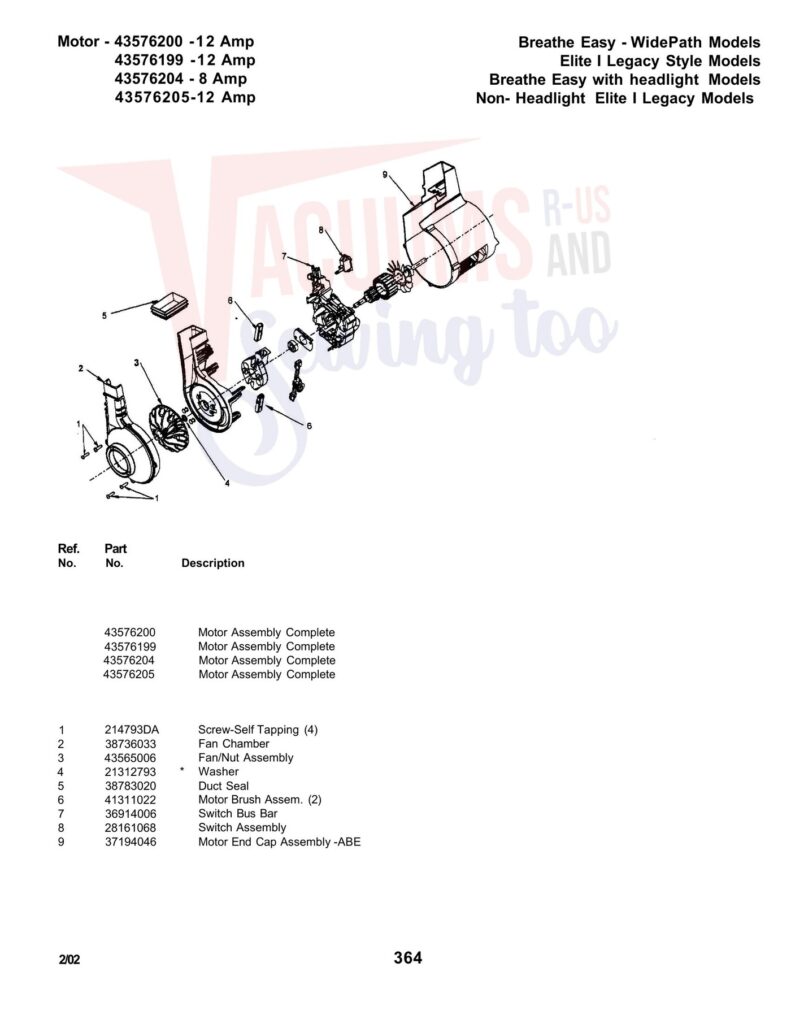

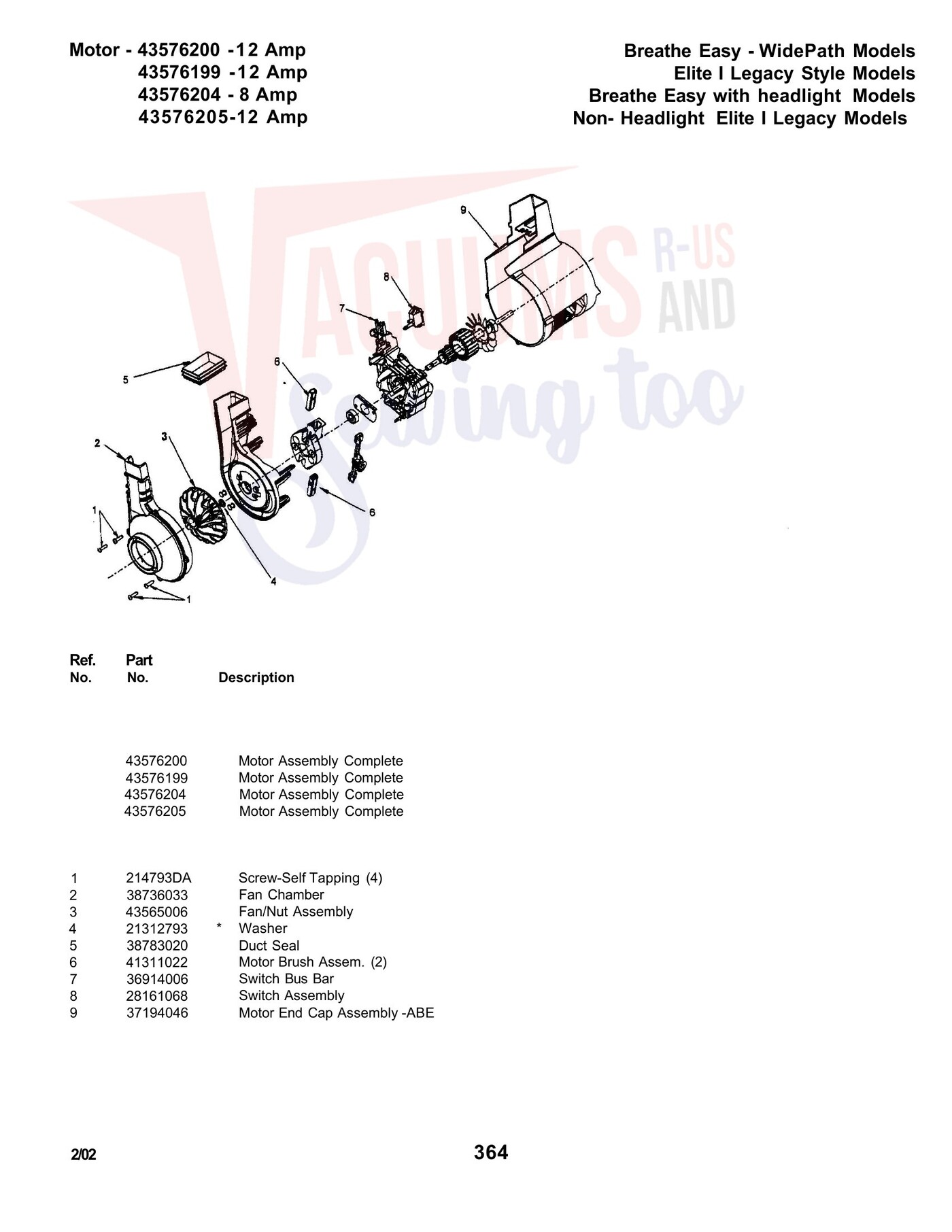

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan/Nut Assembly | 43565006 | Not Available |
| 4 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Duct Seal | 38783020 | Not Available |
| 6 | Not Available | Motor Brush Assem. (2) | 41311022 | Not Available |
| 7 | Not Available | Switch Bus Bar | 36914006 | Not Available |
| 8 | No Image | Switch Assem Hoover U5254 Caddy Vac For: hoover | 28161068 | $7.41Read more |
| 9 | Not Available | Motor End Cap Assembly -ABE | 37194046 | Not Available |
