Schematic and parts book for Hoover U5092940, U5092-940 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

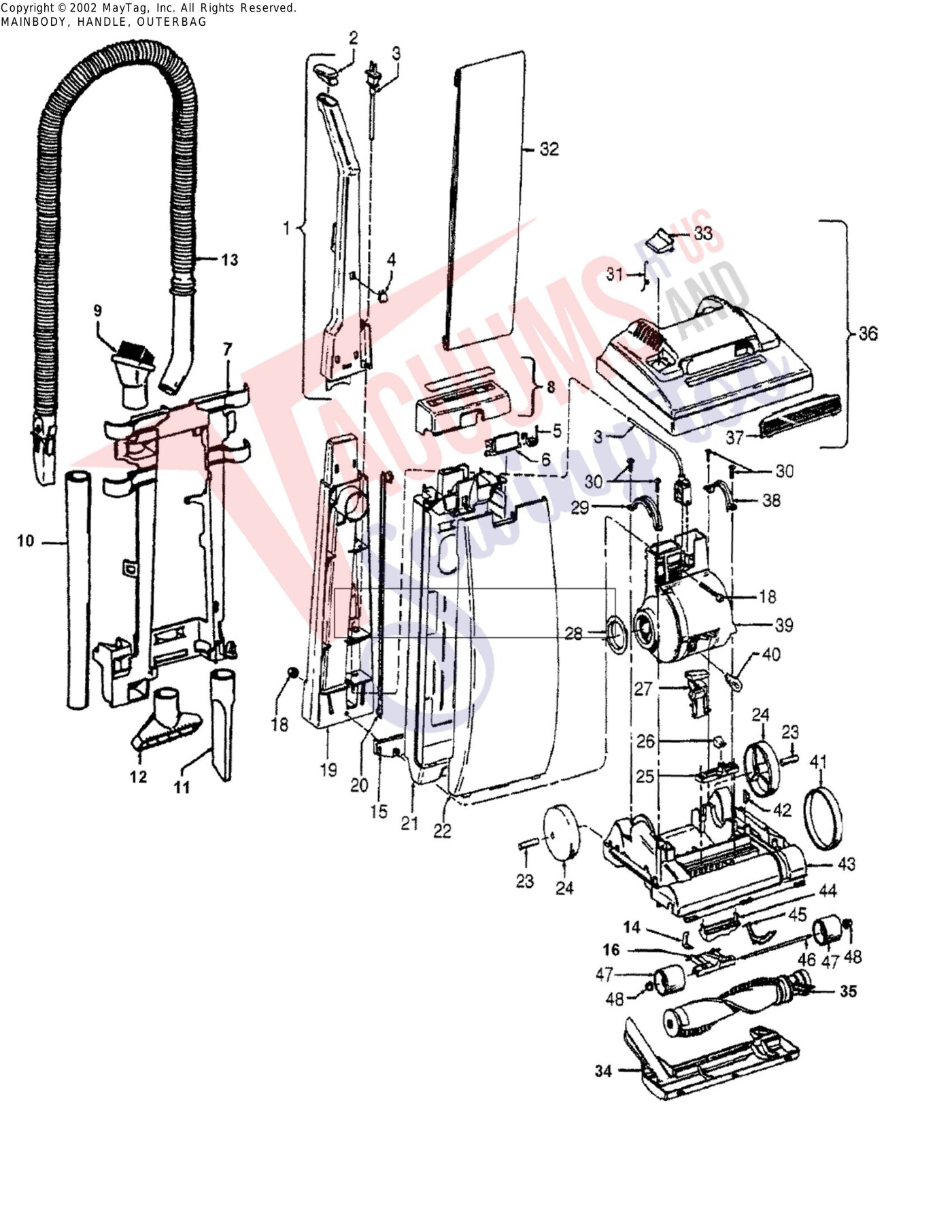

| # | Part image | Description | SKU | Price |
| 1 | Not Available | UPPER HANDLE ASSM-U5 | 48663160 | Not Available |
| 1 | Not Available | RIB SHOE | 4213261AY | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 47 | Not Available |
| 2 | Not Available | HANDLE CAP - ABE | 37911079 | Not Available |
| 2 | Not Available | HANDLE GRIP | 39458057 | Not Available |
| 3 | Not Available | CORD-30 FT-U5254/56 | 46388043 | Not Available |
| 3 | Not Available | ATTACH. CORD | 46388027 | Not Available |
| 4 | Not Available | PLUG | 37911061 | Not Available |
| 5 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.56Read more |
| 6 | Not Available | LATCH - U5069/U5079 | 36151006 | Not Available |
| 7 | Not Available | TOOL RACK-ABE-U4293- | 36433110 | Not Available |
| 8 | Not Available | BAG HOUSING CAP-U507 | 37959105 | Not Available |
| 9 | Not Available | DUSTING BRUSH | 43414145 | Not Available |
| 10 | Not Available | EXTENSION TUBE-AG | 38634078 | Not Available |
| 11 | Not Available | CREVICE TOOL - AG | 38617024 | Not Available |
| 12 | Not Available | FURNITURE NOZZLE-AG | 38614029 | Not Available |
| 13 | Not Available | Hose Comp-ABX/AG | 43434268 | Not Available |
| 14 | Not Available | CAM ACTUATOR SPRING- | 34572002 | Not Available |
| 15 | Not Available | BAG HOUS ING BRACKET | 36425081 | Not Available |
| 16 | Not Available | FRONT WH EEL ASSY-AG/ABE | 43248059 | Not Available |
| 18 | Not Available | NUT & BOLT ASSEMBLY- | 40201085 | Not Available |
| 19 | Not Available | LOWER HANDLE - ABE | 39464005 | Not Available |
| 20 | Not Available | SWITCH CONTROL ROD | 38456036 | Not Available |
| 21 | Not Available | BAG HOUSING-U5095-93 | 37254069 | Not Available |
| 21 | Not Available | BAG HOUSING - U5069/ | 37254068 | Not Available |
| 22 | Not Available | BAG HOUSING DOOR - U | 37257222 | Not Available |
| 22 | Not Available | Bag Hsg Door-U509390 | 37257270 | Not Available |
| 22 | Not Available | BAG HOUSING DOOR-MB- | 37257251 | Not Available |
| 22 | Not Available | BAG HSG. DOOR-U5095- | 37257186 | Not Available |
| 22 | Not Available | BAG HOUSING DOOR-AAY | 37257252 | Not Available |
| 23 | Not Available | REAR WHEEL SHAFT | 31523012 | Not Available |
| 24 | Not Available | WHEEL REAR - AG | 38522011 | Not Available |
| 25 | Not Available | CAM ACTUATOR-KE-U445 | 38567008 | Not Available |
| 26 | Not Available | INDICATOR KNOB-ABE-U | 38421070 | Not Available |
| 27 | Not Available | HANDLE RELEASE LEVER | 38458022 | Not Available |
| 28 | Not Available | SEAL - U4455 | 38784016 | Not Available |
| 29 | Not Available | MOTOR RETAINER CAP - | 36131057 | Not Available |
| 30 | Not Available | SCREW-SELF TAPPING | 21447217 | Not Available |
| 31 | Not Available | SPRING - ELITE II | 38351013 | Not Available |
| 32 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Paper Bags-Hoover - A - 3Pk - Micro Filter
3 Pack For: hoover | 4010100A | $15.58Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | DOOR ASSEM-MB-U5094- | 37257155 | Not Available |
| 33 | Not Available | DOOR ASSEMBLY-AAY-U4 | 37257027 | Not Available |
| 33 | Not Available | DOOR ASSEM-ABY-U5095 | 37257057 | Not Available |
| 33 | Not Available | Door Asm-ACF-U509390 | 37257271 | Not Available |
| 33 | Not Available | Door-AFS-U5068-900 | 37257285 | Not Available |
| 34 | Not Available | BOTTOM PLATE -AG | 37245106 | Not Available |
| 34 | Not Available | BOTTOM PLATE - AG | 37245017 | Not Available |
| 35 | Not Available | AGITATOR-AG | 48414079 | Not Available |
| 35 | Not Available | AGITATOR ASSEMBLY COMP-AG | 48414118 | Not Available |
| 35 | Not Available | AGITATOR-COMPLETE-AG | 48414081 | Not Available |
| 36 | Not Available | HOOD ASSEM-MB-U5077- | 42252399 | Not Available |
| 36 | Not Available | HOOD ASSEM-AAY-U5097 | 42252031 | Not Available |
| 36 | Not Available | HOOD ASSEMBLY-AAY-U5 | 42252A76 | Not Available |
| 36 | Not Available | Hood-AFS-U5068-900 | 42252B56 | Not Available |
| 36 | Not Available | HOOD-ACF-U5093-940 | 42252B19 | Not Available |
| 36 | Not Available | HOOD-ABY -U5095-920 | 42252A77 | Not Available |
| 36 | Not Available | Hood Asm-ACF-U509390 | 42252B15 | Not Available |
| 37 | Not Available | DIRT FINDER LENS-KC- | 39383098 | Not Available |
| 38 | Not Available | MOTOR RETAINER | 36131090 | Not Available |
| 39 | Not Available | MOTOR COMPLETE W/HL | 43576142 | Not Available |
| 39 | Not Available | MOTOR ASSEM. COMP. 12 AMP | 43576199 | Not Available |
| 40 | Not Available | LAMP | 27313101 | Not Available |
| 41 | Not Available | BELT-ELITE | 38528027 | Not Available |
| 43 | Not Available | MAIN BODY ASSEM-ELIT | 42243001 | Not Available |
| 44 |  | Cam, :( Nozzle Height Adjustment Elite/Eli Part Number: 38563011 for Hoover | 38563011 | $3.69Read more |
| 45 | Not Available | LEVER | 38452089 | Not Available |
| 46 | Not Available | WHEEL SHAFT - AY -U | 32563012 | Not Available |
| 48 | Not Available | WHEEL RETAINER - BZ | 36131056 | Not Available |
| 49 | Not Available | CORD WRAP | 3944201P | Not Available |
| 50 | Not Available | HARD BAG SUPPORT-U50 | 58385020 | Not Available |
| 50 | Not Available | OWNER MANUAL-U5063/6 | 56511A21 | Not Available |
| 50 | Not Available | OWNER MANUAL-U5093-9 | 56511B16 | Not Available |
| 50 | Not Available | 1 | 43576211 | Not Available |
| 50 | Not Available | 1 | 38528040 | Not Available |
| 50 | Not Available | 1 | 013261AY | Not Available |
| 50 | Not Available | 1 | 43248059 | Not Available |
| 50 | Not Available | 1 | 56511B16 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 4 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 5 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 6 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 7 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 8 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 9 | Not Available |
| 1 | Not Available | NOT REQU IRED PART OR SEE NOTE | 13 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 15 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 16 | Not Available |
| 1 | Not Available | NOT REQUIRED PART OR SEE NOTE | 5 | Not Available |
| 3 | Not Available | FAN | 38755030 | Not Available |
| 3 | Not Available | CONICAL WASHER | 21347003 | Not Available |
| 4 | Not Available | AGITATOR END - U4455 | 36422022 | Not Available |
| 6 | Not Available | AGITATOR SHAFT - U44 | 32724013 | Not Available |
| 7 | Not Available | THREAD GUARD - LH - | 36423017 | Not Available |
| 10 | Not Available | SWITCH BUS BAR - U44 | 36914004 | Not Available |
| 11 | Not Available | MOTOR-BREASY W/HL | 43576204 | Not Available |
| 11 | Not Available | MOTOR COMPLETE W/HL | 43576142 | Not Available |
| 11 | Not Available | SCREW-SELF TAPPING-5/8" | 214793DA | Not Available |
| 11 | Not Available | ATTACHMENT TERMINAL | 39116005 | Not Available |
| 11 |  | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $21.18Read more |
| 11 | Not Available | AGITATOR-COMPLETE-AG | 48414081 | Not Available |
| 11 | Not Available | AGITATOR-AG | 48414075 | Not Available |
| 11 | Not Available | THREAD GUARD - RH - | 36423016 | Not Available |
| 12 | Not Available | FAN CHAMBER | 38736033 | Not Available |
| 12 | Not Available | SWITCH ASSEMBLY - U4 | 28218043 | Not Available |
| 12 | Not Available | SWITCH ASSEMBLY-ELIT | 28161062 | Not Available |
| 12 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 14 | Not Available | MOTOR EN D CAP W/HL | 37194049 | Not Available |
| 17 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | DUCT SEAL-MOLDED | 38783020 | Not Available |
| 19 | Not Available | BRUSH HOLDER ASSEMBL | 41311016 | Not Available |
| 20 | Not Available | TAPE - CONCEPT MOTOR | 54821001 | Not Available |
| 20 | Not Available | DUCT SEAL - ELITE | 38781013 | Not Available |
| 20 | Not Available | 1 | 43576211 | Not Available |
