Schematic and parts book for hoover U5089-910, U5089-920, U5089-930, U5099-910, U5099-920, U5099-930, U5109-910, U5109-920, U5109-930, U5220-930, U5222-930 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

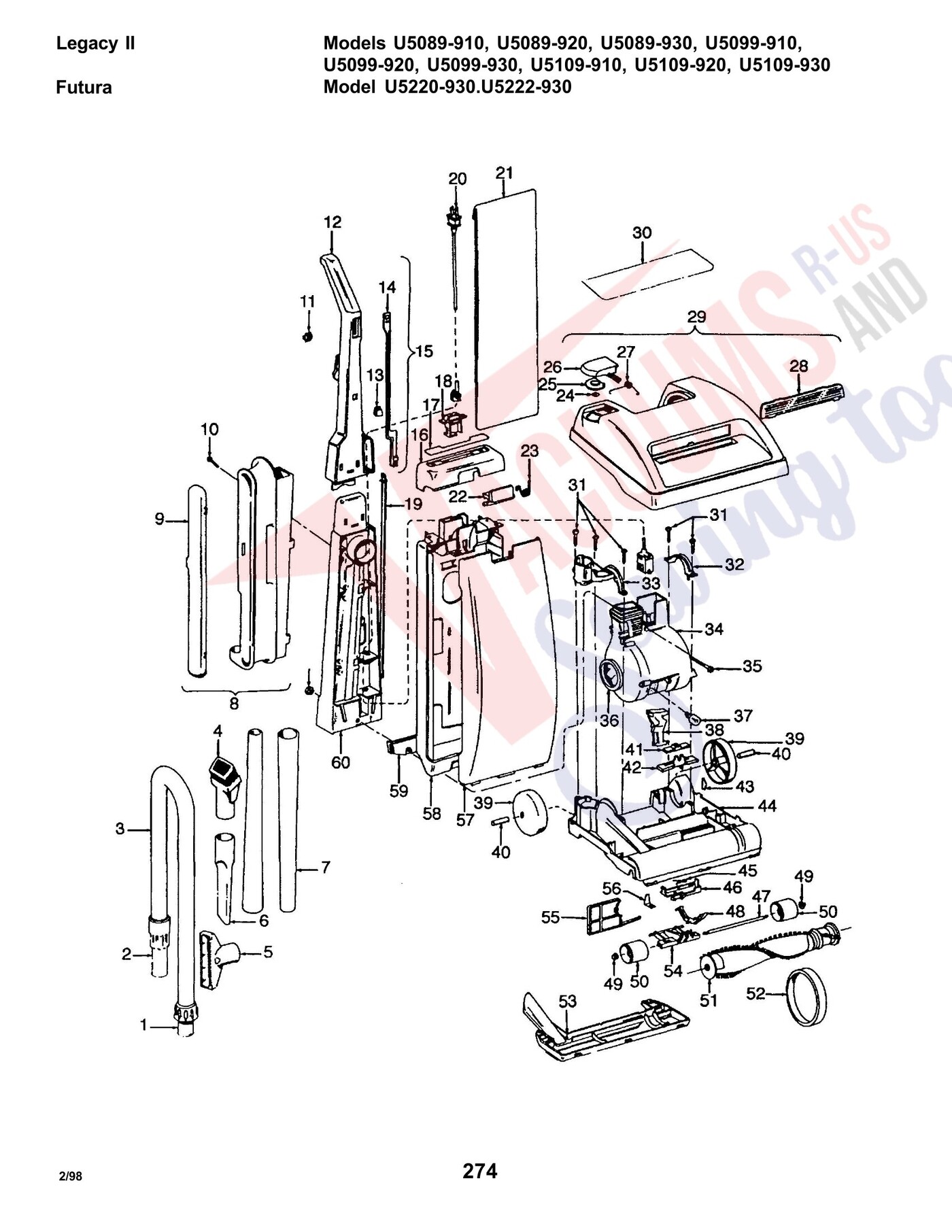

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hose Connector | 32377004 | Not Available |
| 2 | Not Available | Hose Adapter - AG | 32288011 | Not Available |
| 3 | Not Available | Cleaning Tool Hose Assem. | 43434088 | Not Available |
| 4 | Not Available | Dusting Brush - Friction | 43414145 | Not Available |
| 5 | Not Available | Furniture Nozzle | 38614029 | Not Available |
| 6 | Not Available | Crevice Tool | 38617024 | Not Available |
| 7 | Not Available | Extension Tube (2) | 38634078 | Not Available |
| 8 | Not Available | Tool Holder/Door Assem. | 41426089 | Not Available |
| 9 | Not Available | Tool Holder Door | 37257170 | Not Available |
| 9 | Not Available | Tool Holder- ABE- U5220-930 | 41426019 | Not Available |
| 10 | Not Available | Screw - Self Tapping | 21447220 | Not Available |
| 11 | Not Available | Switch Button | 38421003 | Not Available |
| 12 | Not Available | Handle Grip | 39458056 | Not Available |
| 12 | Not Available | Handle Grip -U5220-930 U5222-930 | 39458057 | Not Available |
| 13 | Not Available | Plug | 37911038 | Not Available |
| 14 | Not Available | Switch Rod Upper | 38458006 | Not Available |
| 15 | Not Available | Upper Handle Assem. | 48663166 | Not Available |
| 16 | Not Available | Bag Housing Cap (Incl. Item 17) | 37959100 | Not Available |
| 16 | Not Available | Bag Housing Cap - U5220-930 | 37959105 | Not Available |
| 17 | Not Available | Cap Nameplate (all models except | 51639092 | Not Available |
| 18 | Not Available | Drawer (all models except U5220-930 | 35111002 | Not Available |
| 19 | Not Available | Switch Rod Lower | 38458046 | Not Available |
| 20 | Not Available | Attachment Cord - 35' | 46388027 | Not Available |
| 21 |  | Paper Bags-Hoover - A - 3Pk - Micro Filter
3 Pack For: hoover | 4010100A | $15.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Latch | 36151006 | Not Available |
| 23 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.56Read more |
| 24 | Not Available | Speed Nut | 21362006 | Not Available |
| 25 | Not Available | Seal | 38784056 | Not Available |
| 26 | Not Available | Air Intake Door Assem. - ABC U5089- | 42247007 | Not Available |
| 26 | Not Available | Air Intake Door Assem.-ABM U5099- | 42247009 | Not Available |
| 26 | Not Available | Air Intake Door Assem. - AG - U5109- | 42247003 | Not Available |
| 26 | Not Available | Air Intake Door Assem. U5220-930 | 37257175 | Not Available |
| 26 | Not Available | (Incl. Items 2425) | U5222-930 | Not Available |
| 27 | Not Available | Spring | 38351011 | Not Available |
| 28 | Not Available | Dirt Finder Lens | 39383097 | Not Available |
| 29 | Not Available | Hood Assem. w/o Nameplate - ABC - | 42252293 | Not Available |
| 29 | Not Available | Hood Assem. w/o Nameplate - ABM - | 42252298 | Not Available |
| 29 | Not Available | Hood Assem. w/o Nameplate - AG - | 42252227 | Not Available |
| 29 | Not Available | Hood Assembly- MB -w/o Nameplate - | 42252AA15 | Not Available |
| 29 | Not Available | Hood Assembly - AAY - U5222-930 | 42252229 | Not Available |
| 30 | Not Available | Hood Nameplate - U5089-910 | 52115186 | Not Available |
| 30 | Not Available | Hood Nameplate | 51669066 | Not Available |
| 30 | Not Available | Hood Nameplate - U5099-910 | 52115187 | Not Available |
| 30 | Not Available | Hood Nameplate - U5109-910 | 52115189 | Not Available |
| 31 | Not Available | Screw (5) | 21447217 | Not Available |
| 32 | Not Available | Mtr. Retainer Cap - L.H. | 36131090 | Not Available |
| 33 | Not Available | Air Intake | 38613029 | Not Available |
| 34 | Not Available | Motor - (P - 202) | 43576142 | Not Available |
| 35 | Not Available | Nut & Bolt | 40201085 | Not Available |
| 36 | Not Available | Sea[ | 38784016 | Not Available |
| 37 | Not Available | Dirt Finder Lamp | 27313101 | Not Available |
| 38 | Not Available | Handle Release Lever | 38458022 | Not Available |
| 39 | Not Available | Rear Wheel | 38522011 | Not Available |
| 40 | Not Available | Wheel Shaft | 31523012 | Not Available |
| 41 | Not Available | Indicator Knob- AG | 38567014 | Not Available |
| 42 | Not Available | Cam Actuator | 38567009 | Not Available |
| 43 | Not Available | AY * Rug Nozzle Rib Shoe | 13261 | Not Available |
| 44 | Not Available | Main Body | 42242266 | Not Available |
| 45 | Not Available | Spring | 38351012 | Not Available |
| 46 | Not Available | Nozzle Height Adj. Cam | 38563013 | Not Available |
| 47 | Not Available | Wheel Shaft (Use 43248059) | 32563012 | Not Available |
| 48 | Not Available | Lever (Use wheel assem. 43248059) | 38452089 | Not Available |
| 49 | Not Available | Wheel Retainer | 36131056 | Not Available |
| 50 | Not Available | Front Wheel | 43248059 | Not Available |
| 51 | Not Available | Agitator - (P - 204) | 48414081 | Not Available |
| 52 | Not Available | Belt | 38528027 | Not Available |
| 53 | Not Available | Bottom Plate | 37245108 | Not Available |
| 54 | Not Available | Front Wheel Assem. (Incl. It. 474850) | 43248059 | Not Available |
| 55 | Not Available | Valve Gate | 38718005 | Not Available |
| 56 | Not Available | Cam Actuator Spring | 34572002 | Not Available |
| 57 | Not Available | Bag Housing Door - AG | 37257038 | Not Available |
| 57 | Not Available | Bag Housing Door - MB - U5220-930 | 37257236 | Not Available |
| 57 | Not Available | Bag Housing Door - ABE - U5222-930 | 37257237 | Not Available |
| 58 | Not Available | Bag Housing | 37254068 | Not Available |
| 59 | Not Available | Bag Housing Bracket | 36425081 | Not Available |
| 60 | Not Available | Lower Handle/Muffler Assem. | 48669001 | Not Available |
| 60 | Not Available | Lower Handle -U5220-930 U5222-930 | 48669017 | Not Available |
| 60 | Not Available | Cord Wrap | 3944201P | Not Available |
| 60 | Not Available | Air Freshener Tablet - 4 Pk. | 57363003 | Not Available |
| 60 | Not Available | Owner Manual - U5109-910 | 56511377 | Not Available |
| 60 | Not Available | Owner Manual | 56511398 | Not Available |
| 60 | Not Available | Owner Manual - U5220-930 | 56511234 | Not Available |
| 60 | Not Available | Carton - Common | 58185184 | Not Available |
| 60 | Not Available | Cleaner Support | 58274014 | Not Available |
| 60 | Not Available | Hard Bag Support | 58385016 | Not Available |
| 60 | Not Available | Cleaning Tool Carton | 58347024 | Not Available |
| # | Part image | Description | SKU | Price |

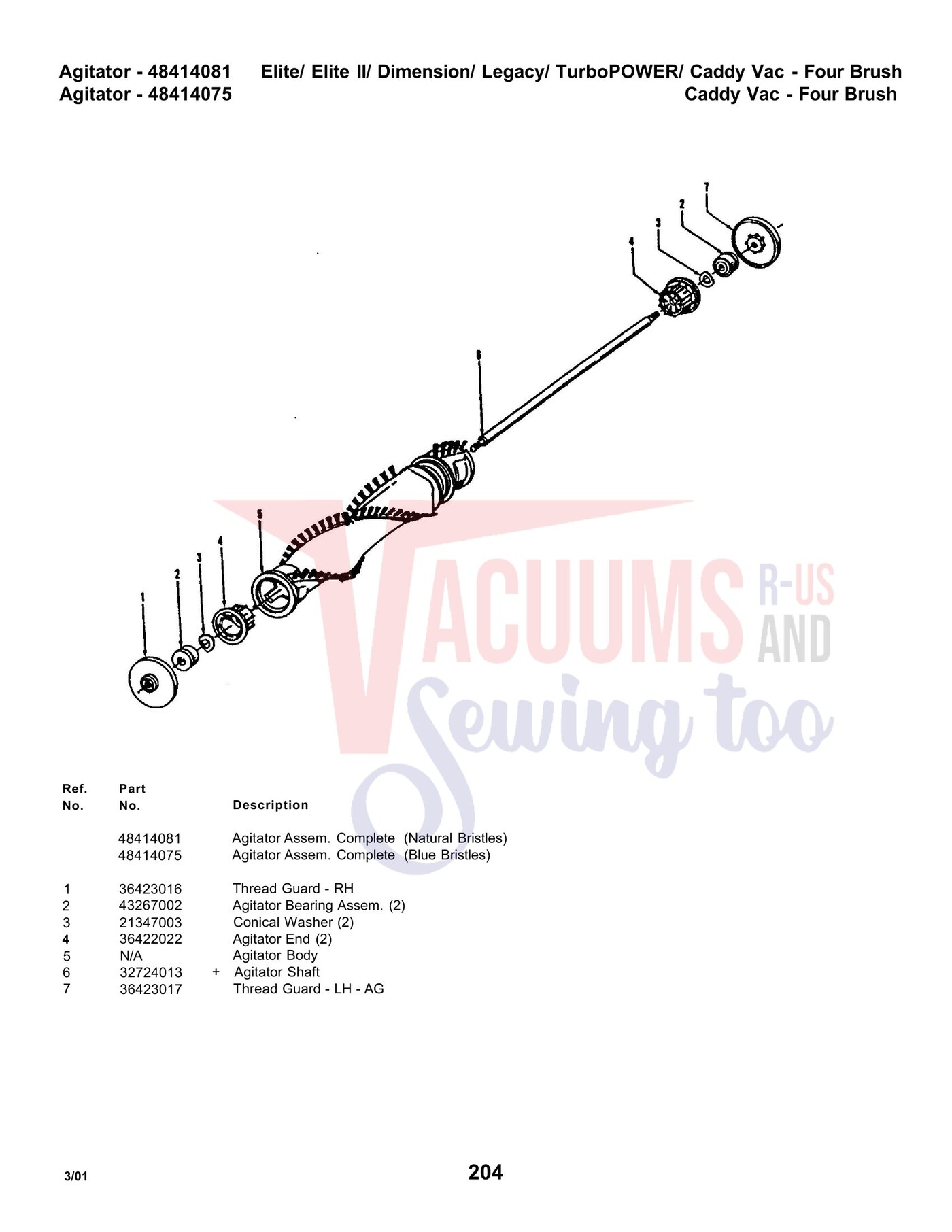

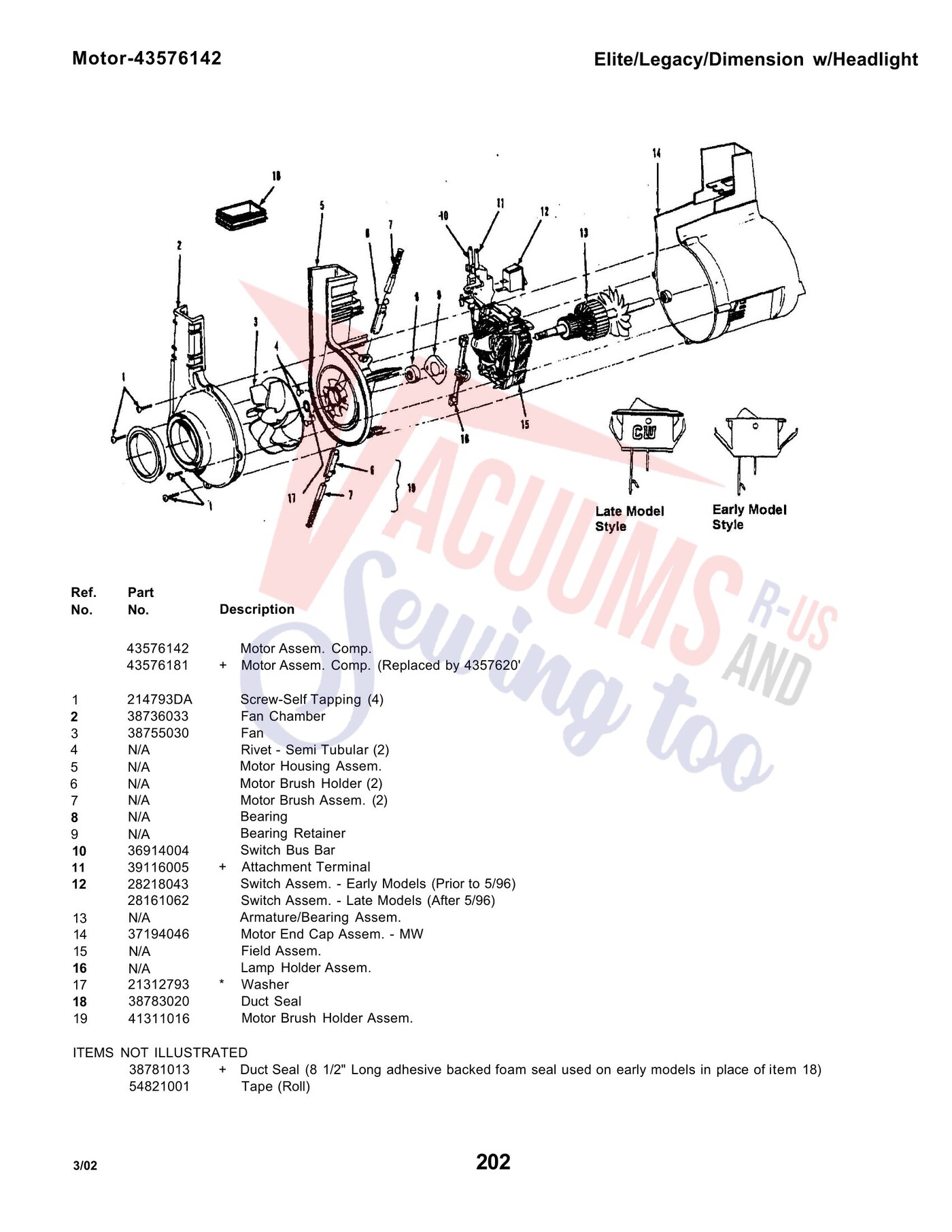

| 1 | Not Available | Thread Guard - RH | 36423016 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 3 | Not Available | Conical Washer (2) | 21347003 | Not Available |
| 4 | Not Available | Agitator End (2) | 36422022 | Not Available |
| 5 | Not Available | Agitator Body | N/A | Not Available |
| 6 | Not Available | Agitator Shaft | 32724013 | Not Available |
| 7 | Not Available | Thread Guard - LH - AG | 36423017 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan | 38755030 | Not Available |
| 4 | Not Available | Rivet - Semi Tubular (2) | N/A | Not Available |
| 5 | Not Available | Motor Housing Assem. | N/A | Not Available |
| 6 | Not Available | Motor Brush Holder (2) | N/A | Not Available |
| 7 | Not Available | Motor Brush Assem. (2) | N/A | Not Available |
| 8 | Not Available | Bearing | N/A | Not Available |
| 9 | Not Available | Bearing Retainer | N/A | Not Available |
| 10 | Not Available | Switch Bus Bar | 36914004 | Not Available |
| 11 | Not Available | Attachment Terminal | 39116005 | Not Available |
| 12 | Not Available | Switch Assem. - Early Models (Prior to 5/96) | 28218043 | Not Available |
| 12 | Not Available | Switch Assem. - Late Models (After 5/96) | 28161062 | Not Available |
| 13 | Not Available | Armature/Bearing Assem. | N/A | Not Available |
| 14 | Not Available | Motor End Cap Assem. - MW | 37194046 | Not Available |
| 15 | Not Available | Field Assem. | N/A | Not Available |
| 16 | Not Available | Lamp Holder Assem. | N/A | Not Available |
| 17 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Duct Seal | 38783020 | Not Available |
| 19 | Not Available | Motor Brush Holder Assem. | 41311016 | Not Available |
| 19 | Not Available | Duct Seal (8 1/2" Long adhesive backed foam seal used on early models in place of item 18) | 38781013 | Not Available |
| 19 | Not Available | Tape (Roll) | 54821001 | Not Available |
