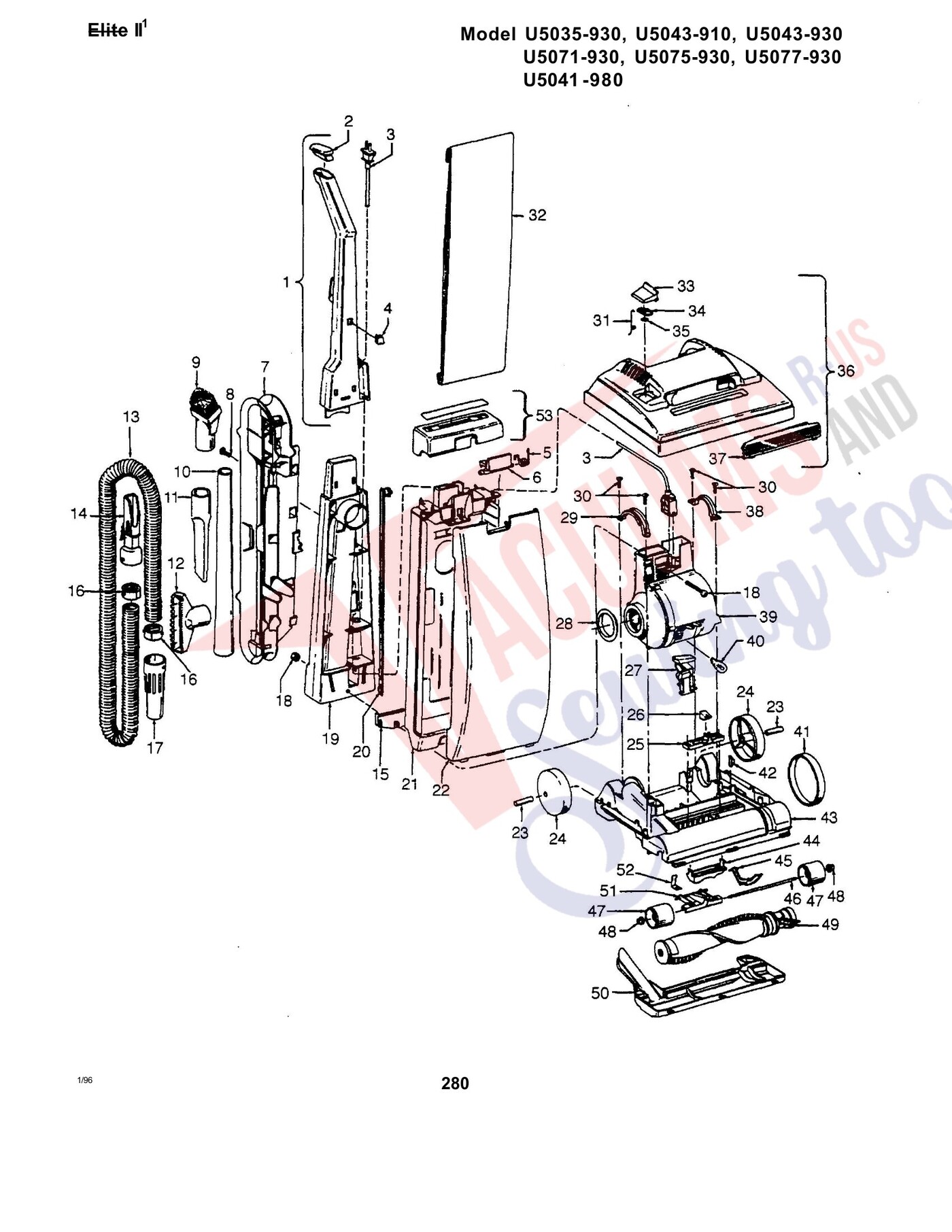

Schematic and parts book for hoover U5035-930, U5043-910, U5043-930, U5077-930, U5067-930, U5067-930, U5077-930, U5041-980 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Handle Assem. | 48663160 | Not Available |
| 2 | Not Available | Handle Cap - MW | 37911018 | Not Available |
| 2 | Not Available | Handle Cap - ABE - U5075-930 | 37911079 | Not Available |
| 2 | Not Available | Handle Grip - U5071-930 U5077-930 | 39458057 | Not Available |
| 3 | Not Available | Attach. Cord - AG - 35 Ft. | 46388027 | Not Available |
| 4 | Not Available | Plug | 37911038 | Not Available |
| 5 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.56Read more |
| 6 | Not Available | Latch | 36151006 | Not Available |
| 7 | Not Available | Tool Holder - ABE U5071-930 | 41426086 | Not Available |
| 7 | Not Available | Tool Holder - Stretch Hose - | 41426019 | Not Available |
| 8 | Not Available | Screw- Self Tapping | 21447220 | Not Available |
| 9 | Not Available | Dusting Brush - Friction | 43414145 | Not Available |
| 10 | Not Available | Ext. Tube - AG | 38634078 | Not Available |
| 11 | Not Available | Crevice Tool - AG | 38617024 | Not Available |
| 12 | Not Available | Furniture Nozzle - AG | 38614029 | Not Available |
| 13 | Not Available | Hose Assem. - Molded | 43434232 | Not Available |
| 13 | Not Available | Hose Assem. - Stretch - U5071-930 | 43434033 | Not Available |
| 14 | Not Available | Hose Connector - AG | 38656035 | Not Available |
| 15 | Not Available | Bag Hsg. Bracket | 36425081 | Not Available |
| 16 | Not Available | Hose Connector Collar - Stretch Hose | 36116014 | Not Available |
| 17 | Not Available | Hose Adapter - AG | 32288011 | Not Available |
| 18 | Not Available | Nut & Bolt | 40201085 | Not Available |
| 19 | Not Available | Lower Handle - ABE | 39464005 | Not Available |
| 20 | Not Available | Switch Control Rod - ABB | 38456036 | Not Available |
| 21 | Not Available | Bag Hsg. | 37254068 | Not Available |
| 22 | Not Available | Bag Hsg. Door - AG | 37257038 | Not Available |
| 22 | Not Available | Bag Hsg. Door- ABM - U5071-930 | 37257089 | Not Available |
| 22 | Not Available | Bag Hsg. Door- AAY - U5041-980 | 37257093 | Not Available |
| 22 | Not Available | Bag Hsg. Door - MB - U5077-930 | 37257188 | Not Available |
| 23 | Not Available | Wheel Shaft | 31523012 | Not Available |
| 24 | Not Available | Rear Wheel - AG | 38522011 | Not Available |
| 25 | Not Available | Cam Actuator - KE | 38567008 | Not Available |
| 26 | Not Available | Indicator Knob - ABE | 38421070 | Not Available |
| 27 | Not Available | Handle Release Lever - AG | 38458022 | Not Available |
| 28 | Not Available | Seal | 38784016 | Not Available |
| 29 | Not Available | Motor Retainer Cap - RH | 36131057 | Not Available |
| 30 | Not Available | Screw-Self Tapping | 21447217 | Not Available |
| 31 | Not Available | Spring | 38351013 | Not Available |
| 32 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Door Assem. - ABC (Incl. It. 3435) | 37257016 | Not Available |
| 33 | Not Available | Door Assem. ABM (incl. It. 3435) | 37257022 | Not Available |
| 33 | Not Available | Door Assem - AAY (incl. It 3435) | 37257027 | Not Available |
| 33 | Not Available | Door Assem. - AG - U5077-930 (Incl. | 37257143 | Not Available |
| 33 | Not Available | Seal | 38785013 | Not Available |
| 35 | Not Available | Speed Nut | 21362006 | Not Available |
| 36 | Not Available | Hood Assem - ABC (Incl. It. 3337) | 42252319 | Not Available |
| 36 | Not Available | Hood Assem - ABM (incl. It 3337) | 42252330 | Not Available |
| 36 | Not Available | Hood Assem- ABC (incl.[ It 3337) | 42252340 | Not Available |
| 36 | Not Available | Hood Assem-ABM (Incl. It 3337) | 42252380 | Not Available |
| 36 | Not Available | Hood Assem -AAY (incl. It 3337) | 42252031 | Not Available |
| 36 | Not Available | Hood Assem. - MB - U5077-930 (Incl. | 42252399 | Not Available |
| 36 | Not Available | Hood Assem. - ABM - U5077-930 | 42252A78 | Not Available |
| 37 | Not Available | Dirt Finder Lens - KC | 39383098 | Not Available |
| 38 | Not Available | Motor Retainer Cap LH | 36131090 | Not Available |
| 38 | Not Available | Motor Retainer - ABE - LH | 36131090 | Not Available |
| 39 | Not Available | Motor (P-202) | 43576142 | Not Available |
| 40 | Not Available | Dirt Finder Lamp | 27313101 | Not Available |
| 41 | Not Available | Belt | 38528027 | Not Available |
| 42 | Not Available | AY * Rug Nozzle Rib Shoe | 13261 | Not Available |
| 43 | Not Available | Main Body Assem. (Incl. It. | 42243001 | Not Available |
| 44 |  | Cam, :( Nozzle Height Adjustment Elite/Eli Part Number: 38563011 for Hoover | 38563011 | $3.69Read more |
| 45 | Not Available | Lever (Use wheel assem. 43248059) | 38452089 | Not Available |
| 46 | Not Available | Wheel Shaft - AY (Use 43248059) | 32563012 | Not Available |
| 47 | Not Available | Wheel - AG | 43248059 | Not Available |
| 48 | Not Available | Wheel Retainer- BZ | 36131056 | Not Available |
| 49 | Not Available | Agitator (P-204) | 48414081 | Not Available |
| 50 | Not Available | Bottom Plate - AG | 37245108 | Not Available |
| 51 | Not Available | Front Wheel Assem. (Incl. It. 454647) | 43248059 | Not Available |
| 52 | Not Available | Cam Actuator Spring - FW | 34572002 | Not Available |
| 53 | Not Available | Bag Hsg. Cap Assem. | 37959100 | Not Available |
| 53 | Not Available | Bag Hsg. Cap U5071-930 U5075-93 | 37959105 | Not Available |
| 53 | Not Available | Cord Wrap | 3944201P | Not Available |
| # | Part image | Description | SKU | Price |

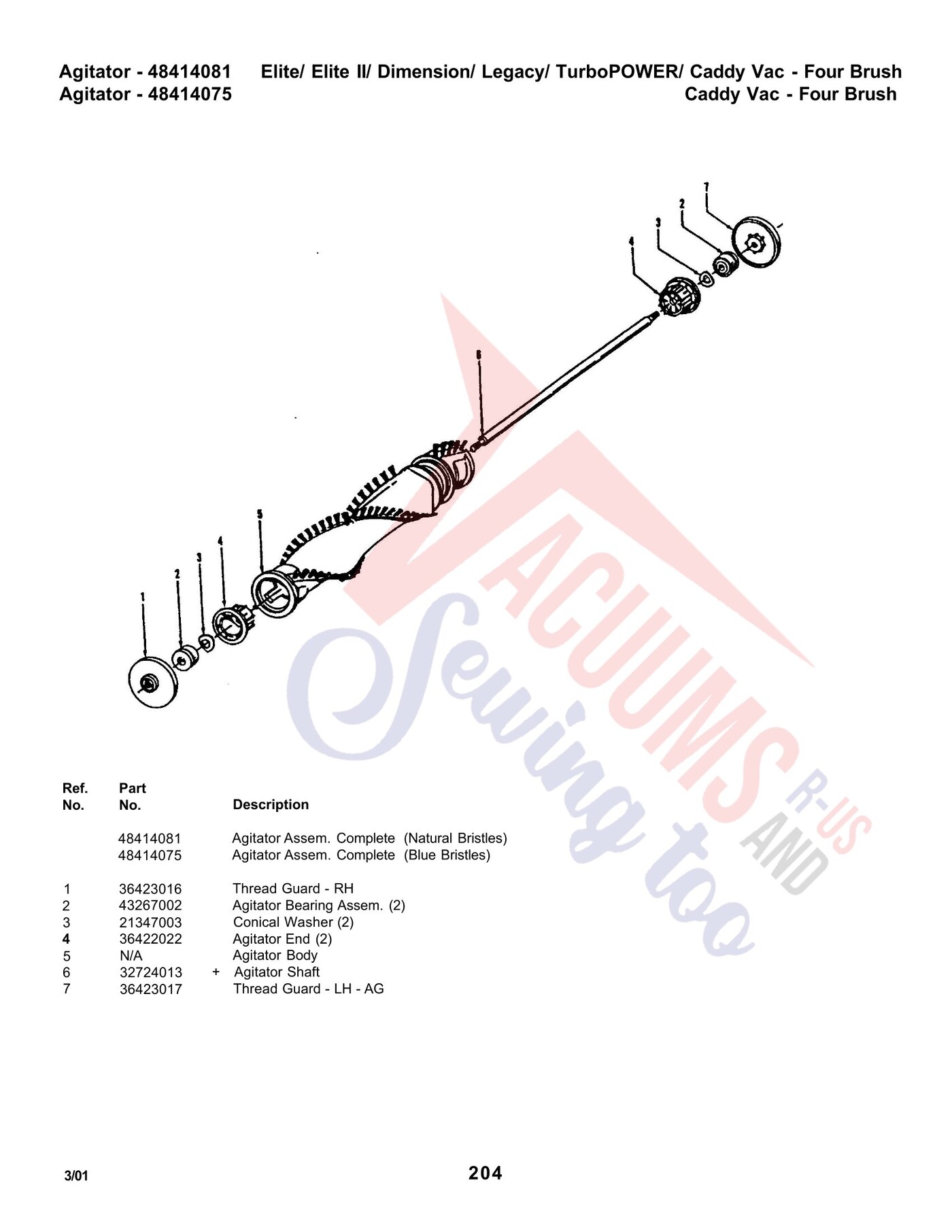

| 1 | Not Available | Thread Guard - RH | 36423016 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 3 | Not Available | Conical Washer (2) | 21347003 | Not Available |
| 4 | Not Available | Agitator End (2) | 36422022 | Not Available |
| 5 | Not Available | Agitator Body | N/A | Not Available |
| 6 | Not Available | Agitator Shaft | 32724013 | Not Available |
| 7 | Not Available | Thread Guard - LH - AG | 36423017 | Not Available |
| # | Part image | Description | SKU | Price |

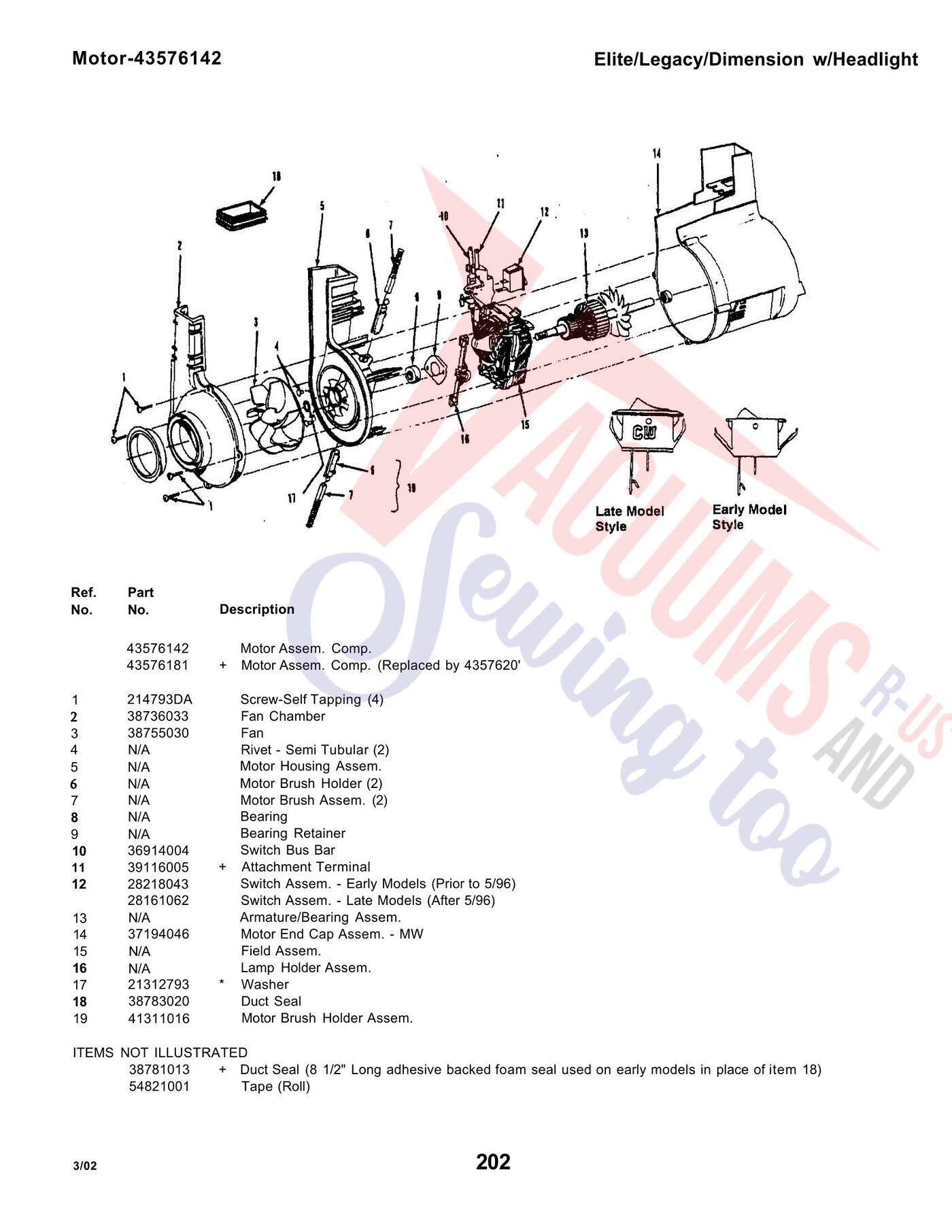

| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan | 38755030 | Not Available |
| 4 | Not Available | Rivet - Semi Tubular (2) | N/A | Not Available |
| 5 | Not Available | Motor Housing Assem. | N/A | Not Available |
| 6 | Not Available | Motor Brush Holder (2) | N/A | Not Available |
| 7 | Not Available | Motor Brush Assem. (2) | N/A | Not Available |
| 8 | Not Available | Bearing | N/A | Not Available |
| 9 | Not Available | Bearing Retainer | N/A | Not Available |
| 10 | Not Available | Switch Bus Bar | 36914004 | Not Available |
| 11 | Not Available | Attachment Terminal | 39116005 | Not Available |
| 12 | Not Available | Switch Assem. - Early Models (Prior to 5/96) | 28218043 | Not Available |
| 12 | Not Available | Switch Assem. - Late Models (After 5/96) | 28161062 | Not Available |
| 13 | Not Available | Armature/Bearing Assem. | N/A | Not Available |
| 14 | Not Available | Motor End Cap Assem. - MW | 37194046 | Not Available |
| 15 | Not Available | Field Assem. | N/A | Not Available |
| 16 | Not Available | Lamp Holder Assem. | N/A | Not Available |
| 17 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Duct Seal | 38783020 | Not Available |
| 19 | Not Available | Motor Brush Holder Assem. | 41311016 | Not Available |
| 19 | Not Available | Duct Seal (8 1/2" Long adhesive backed foam seal used on early models in place of item 18) | 38781013 | Not Available |
| 19 | Not Available | Tape (Roll) | 54821001 | Not Available |
