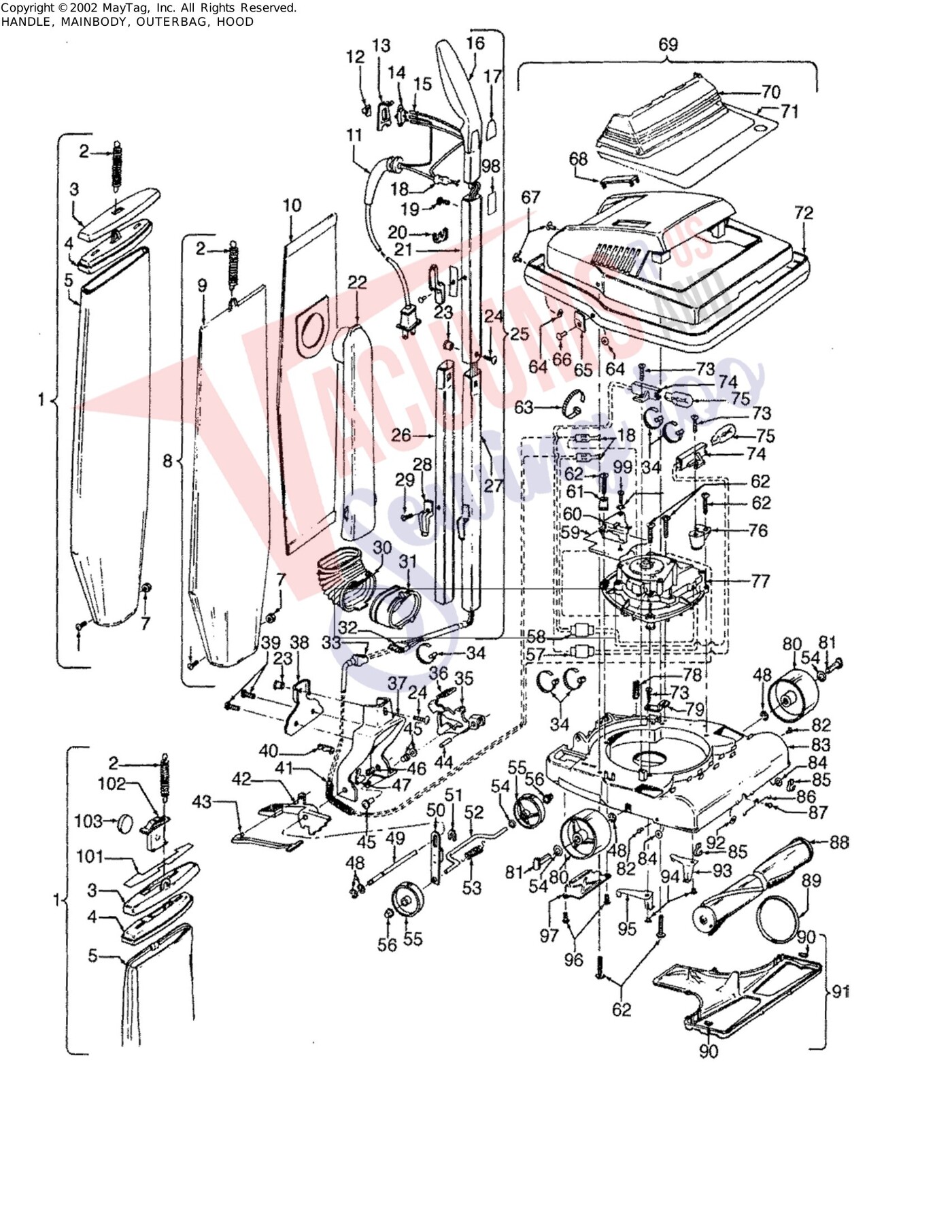

Schematic and parts book for Hoover U4381930, U4381_930 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | OUTER BAG COMP-COM-T | 43678330 | Not Available |
| 2 | Not Available | SUPPORT SPRING | 38336014 | Not Available |
| 3 | Not Available | BAG COVER-LS-U4381-9 | 37959032 | Not Available |
| 3 | Not Available | BAG COVER-MU-U4407 | 37959052 | Not Available |
| 3 | Not Available | BAG COVER-LS-U4161 | 37959007 | Not Available |
| 4 | Not Available | HANGER-U3737/45-910 | 37959090 | Not Available |
| 4 | Not Available | HANGER-U3721/29 | 37959095 | Not Available |
| 5 | Not Available | OUTER BAG COMP-COM-T | 43678330 | Not Available |
| 6 | Not Available | SCREW | 21765159 | Not Available |
| 7 | Not Available | NUT | 015854EF | Not Available |
| 8 | Not Available | OUTER BAG COMP-DECAD | 43678333 | Not Available |
| 9 | Not Available | OUTER BAG-COM-TOP FI | 43677322 | Not Available |
| 10 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | ATTACHMENT CORD | 46383304 | Not Available |
| 12 | Not Available | SWITCH BUTTON | 38421012 | Not Available |
| 13 | Not Available | SWITCH COVER-KT-U415 | 37258015 | Not Available |
| 13 | Not Available | SWITCH COVER-MU-U440 | 37258097 | Not Available |
| 14 | Not Available | SWITCH - U4219 | 28179013 | Not Available |
| 15 | Not Available | TERMINAL | 27666702 | Not Available |
| 16 | Not Available | HANDLE GRIP ASSEM-CO | 39454060 | Not Available |
| 17 | Not Available | HANDLE GRIP NAMEPLAT | 51663003 | Not Available |
| 18 | Not Available | TERMINALS-0513 | 012227 | Not Available |
| 19 | Not Available | SCREW - S3005 | 166735EF | Not Available |
| 20 | Not Available | BAG SUPPORT-JM | 39442001 | Not Available |
| 21 | Not Available | HANDLE-UPPER HALF-U4 | 48631168 | Not Available |
| 21 | Not Available | HANDLE-UPPER HALF-KS | 48631077 | Not Available |
| 22 | Not Available | TOP FILL TUBE | 38657004 | Not Available |
| 23 | Not Available | HANDLE CLAMP NUT | 32277008 | Not Available |
| 24 |  | Handle Bolt-Short-N/S 4100 Hoover For: hoover | 21631301 | $2.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | HANDLE ASSM COMPLETE | 48655118 | Not Available |
| 25 | Not Available | HANDLE ASSM COMPLETE | 48655106 | Not Available |
| 25 | Not Available | HANDLE ASSM COMP-MU- | 48655107 | Not Available |
| 26 | Not Available | HANDLE-LOWER HALF-AX | 48631035 | Not Available |
| 27 | Not Available | HANDLE-LOWER HALF-KS | 48631021 | Not Available |
| 28 | Not Available | CORD RELEASE-U4729-9 | 36153030 | Not Available |
| 29 | No Image | SCREW, CORD HOOK SELF TAPPING DECADE 80/U4329 Part Number: 21434824 for Hoover | 21434824 | $1.81Read more |
| 30 | Not Available | BELLOWS-JM | 38673009 | Not Available |
| 31 | Not Available | BAG FLANGE W/SEALANT | 41424011 | Not Available |
| 32 | Not Available | HANDLE SOCKET ASSMC | 46526012 | Not Available |
| 33 | Not Available | CAP HOUSING/TUBING A | 46522008 | Not Available |
| 34 | Not Available | CABLE TIE | 27479307 | Not Available |
| 35 |  | Lever-Hoover Handle Control For: hoover | 38456050 | $5.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | FOOT PAD-AG -C1E03 | 38426080 | Not Available |
| 37 | Not Available | BAIL ASSEM-JM | 41416026 | Not Available |
| 38 |  | Hdl Fk Bail/Conver Plate-4100 Sr For: hoover | 34777012 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | SCREW-SELF TAPPING | 21465312 | Not Available |
| 40 | Not Available | CORD CLIP-AAP-U4519 | 39442030 | Not Available |
| 41 | Not Available | MOTOR LEAD SPRING | 38313023 | Not Available |
| 42 | Not Available | NOZ ADJ LEVER-AG | 38456044 | Not Available |
| 43 | Not Available | INDICATOR-AG-PRINTED | 51151034 | Not Available |
| 44 |  | Pivot Pin-Trip Lever-Hoover Upright For: hoover | 047450AY | $0.30Read more |
| 45 | Not Available | HANDLE CONT ROL PIN | 011735 | Not Available |
| 46 | Not Available | SPRING | 048409FW | Not Available |
| 47 | Not Available | BAG FLANGE CLAMP LEVER | 019907 | Not Available |
| 48 | Not Available | LOCK RING | 013730 | Not Available |
| 49 |  | Bail Shaft #1070 For: hoover | 161509AY | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Cam Follower-Hoover Convertible Upright - 2 Position For: hoover | 43263005 | $4.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | Not Available | YOKE | 34252005 | Not Available |
| 52 | Not Available | REAR WHEEL SHAFT | 33152003 | Not Available |
| 53 |  | Height Adjustment Lever Spring #1070 For: hoover | 161513 | $1.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 |  | Rear Wheel Washer All Convertibles For: hoover | 21312772 | $0.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | REAR WHEEL-AG | 38521016 | Not Available |
| 56 | Not Available | WHEEL RETAINER | 32182001 | Not Available |
| 57 | Not Available | CONNECTOR-U4383 | 27617104 | Not Available |
| 58 | Not Available | CONNECTOR | 27617103 | Not Available |
| 59 | Not Available | MOTOR BAFFLE-U4383 | 34287022 | Not Available |
| 60 | Not Available | INDICATOR GUIDE ASSE | 41961009 | Not Available |
| 61 | Not Available | RETAINER | 34312011 | Not Available |
| 62 | Not Available | SCREW | 21447020 | Not Available |
| 63 | Not Available | CABLE TIE | 27479307 | Not Available |
| 64 | Not Available | WASHER | 168278AY | Not Available |
| 65 | Not Available | RETAINER-BU-U4153 | 36951004 | Not Available |
| 66 | Not Available | RIVET | 12997AW | Not Available |
| 67 | Not Available | RIVET | 21256134 | Not Available |
| 68 |  | Hght Ad Indicator Lens-4000&41000 Mdl For: hoover | 48111008 | $4.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | HOOD JM/LU-U4321 | 42251107 | Not Available |
| 69 | Not Available | HOOD ASSEMBLY-MT-U44 | 42251267 | Not Available |
| 70 | Not Available | LENS/SHIELD - KE - U | 39383053 | Not Available |
| 71 | Not Available | NAMEPLATE-U4407 | 52115083 | Not Available |
| 72 | Not Available | FURNITURE GUARD-LT-U | 36231028 | Not Available |
| 72 | Not Available | FURNITURE GUARD-MZ-U | 36231033 | Not Available |
| 72 | Not Available | FURNITURE GUARD-AAP- | 36231133 | Not Available |
| 73 | Not Available | SCREW | 21447003 | Not Available |
| 74 | Not Available | LAMP SOCKET-L.V. | 36912004 | Not Available |
| 75 | Not Available | LAMP | 27313101 | Not Available |
| 76 | Not Available | LAMP SOCKET HOLDER-A | 36912005 | Not Available |
| 77 | Not Available | MOTOR COMPLETE-U4383 | 43574053 | Not Available |
| 78 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.74Read more |
| 79 | Not Available | PIVOT PIN RETAINER | 34665007 | Not Available |
| 80 | Not Available | CARRIER WHEEL-AG | 38522013 | Not Available |
| 81 | Not Available | FRONTWHEEL SHAFT | 047457AY | Not Available |
| 82 |  | Support Rivet-Hoover Upright For: hoover | 048422 | $0.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | Not Available | MAIN BODY -KE-U4153 | 42242189 | Not Available |
| 83 | Not Available | MAIN BOD ASSEM-MW | 42242267 | Not Available |
| 84 | Not Available | SUPPORT WASHER-UPRIG | 21312781 | Not Available |
| 85 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $1.74Read more |
| 86 |  | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.52Read more |
| 87 | No Image | Rivet-Hoover Conquest Motor For: hoover | 012503EF | $0.03Read more |
| 88 | Not Available | AGITATOR ASSEM COMP- | 41435005 | Not Available |
| 89 | Not Available | BELT 044783AG | 44783AG | Not Available |
| 90 |  | Support Pad-Hoover For: hoover | 34111001 | $1.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 91 | Not Available | BOTTOM PLATE - PLAST | 37245081 | Not Available |
| 91 | Not Available | BOTTOM PLATE COMPLET | 42246008 | Not Available |
| 92 | Not Available | WASHER | 21312703 | Not Available |
| 93 | No Image | Bottom Plate Latch Lh - All Conv For: hoover | 35446005 | $1.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 94 | Not Available | RIVET | 012456 | Not Available |
| 95 | No Image | Bottom Plate Latch Rh - All Conv For: hoover | 35446003 | $1.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 96 | Not Available | SCREW | 21447009 | Not Available |
| 97 | No Image | Axle Bag Flange Retainer New Models For: hoover | 35434040 | $2.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 98 | Not Available | HANDLE TUBE NAMEPLAT | 51638029 | Not Available |
| 99 | Not Available | SCREW | 45533AY | Not Available |
| 100 | Not Available | LOCK WASHER | 014062 | Not Available |
| 101 | Not Available | BAG COVER NAMEPLATE- | 51639073 | Not Available |
| 102 | Not Available | DRAWER-AG-U4381 -930 | 35111002 | Not Available |
| 103 | Not Available | AIR FRESH TABLET(24) | 57363003 | Not Available |
| 104 | Not Available | INDICATOR GUIDE SPRI | 35276006 | Not Available |
| 104 | Not Available | FRONT SUPPORT-C1067 | 58343025 | Not Available |
| 104 | Not Available | REAR SUPPORT - U4391 | 58366012 | Not Available |
| 104 | Not Available | OWNER MANUAL - U4303 | 56511132 | Not Available |
