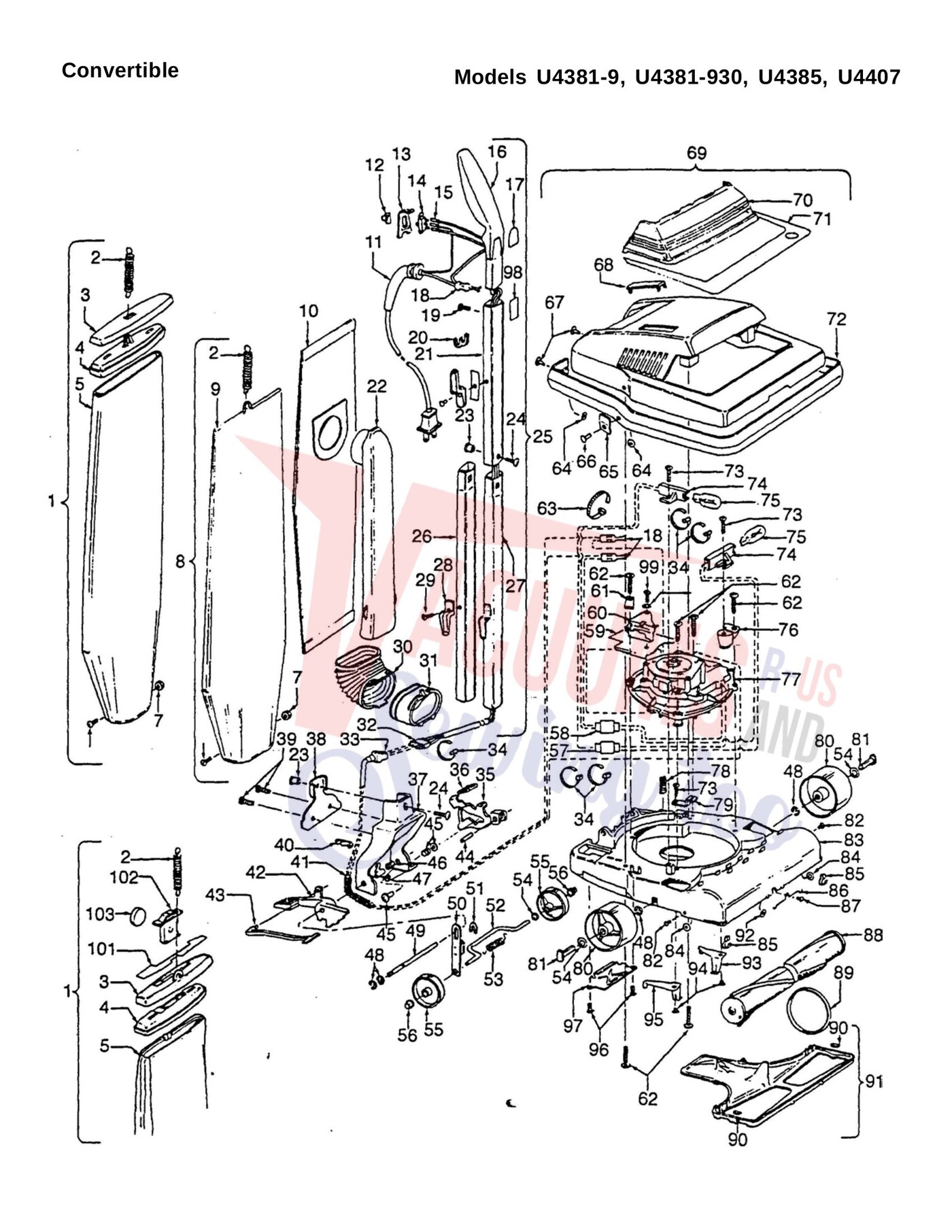

Schematic and parts book for Hoover U4381-9, U4381-930, U4385, U4407 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Outer Bag Comp. | 43678330 | Not Available |
| 2 | Not Available | Jacket Support Spring - AW | 38336014 | Not Available |
| 3 | Not Available | Bag Cover - LS - U4381-9 | 37959007 | Not Available |
| 3 | Not Available | Bag Cover - LS - U4381-930 | 37959032 | Not Available |
| 3 | Not Available | Bag Cover - MU - U4407 | 37959052 | Not Available |
| 4 | Not Available | Hanger-U4381-9 | 37959095 | Not Available |
| 4 | Not Available | Hanger - U4381-930 U4407 | 37959090 | Not Available |
| 5 | Not Available | Outer Bag Complete | 43678330 | Not Available |
| 6 | Not Available | Screw - Machine | 21765159 | Not Available |
| 7 | Not Available | Nut | 15854EF | Not Available |
| 8 | Not Available | Outer Bag Comp. - U4385 | 43678182 | Not Available |
| 9 | Not Available | Outer Bag - U4385 | 43677322 | Not Available |
| 10 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Cord - AAP | 46383304 | Not Available |
| 12 | Not Available | Switch Button - AG | 38421012 | Not Available |
| 13 | Not Available | Switch Cover - KT | 37258015 | Not Available |
| 13 | Not Available | Switch Cover - MU - U4407 | 37258097 | Not Available |
| 14 | Not Available | Switch | 28179013 | Not Available |
| 15 | Not Available | Terminal (3) | 27666702 | Not Available |
| 16 | Not Available | Handle Grip Assem. - KE | 39454060 | Not Available |
| 17 | Not Available | Namepiate | 51663003 | Not Available |
| 18 | Not Available | Insulated Terminal (3) | 12227 | Not Available |
| 19 | Not Available | Self Tapping Screw | 166735EF | Not Available |
| 20 | Not Available | Bag Support - JM | 39442001 | Not Available |
| 21 | Not Available | Handle-Upper Half-AX | 48631168 | Not Available |
| 21 | Not Available | Handle - Upper Half - KS - U4385 | 48631077 | Not Available |
| 22 | Not Available | Top Fill Tube | 38657004 | Not Available |
| 23 | Not Available | Handle Clamp Nut (2) | 32277008 | Not Available |
| 24 |  | Handle Bolt-Short-N/S 4100 Hoover For: hoover | 21631301 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Handle Assem. Comp. - LT | 48655118 | Not Available |
| 25 | Not Available | Handle Assem. Comp. - KT - U4385 | 48655106 | Not Available |
| 25 | Not Available | Handle Assem. Comp. - MU - U4407 | 48655107 | Not Available |
| 26 | Not Available | Handle - Lower Half Assem. - AX | 48631035 | Not Available |
| 27 | Not Available | Handle - Lower Half Assem. - KS - | 48631021 | Not Available |
| 28 | Not Available | Cord Release Arm - ABE - U4381-9 | 36153030 | Not Available |
| 29 | No Image | SCREW, CORD HOOK SELF TAPPING DECADE 80/U4329 Part Number: 21434824 for Hoover | 21434824 | $1.81Read more |
| 30 | Not Available | Bellows - JM | 38673009 | Not Available |
| 31 | Not Available | Bag Flange Assem. | 41424011 | Not Available |
| 32 | Not Available | Handle Socket Assem. Comp. | 46526012 | Not Available |
| 33 | Not Available | Cap Housing/Tubing Assem. | 46522008 | Not Available |
| 34 | Not Available | Lead Wire Tie (5) | 27479307 | Not Available |
| 35 |  | Lever-Hoover Handle Control For: hoover | 38456050 | $5.66Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Foot Pad | 38426080 | Not Available |
| 37 | Not Available | Bail Assem. - LS | 41416026 | Not Available |
| 38 |  | Hdl Fk Bail/Conver Plate-4100 Sr For: hoover | 34777012 | $2.01Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | Screw - Self Tapping (2) | 21465312 | Not Available |
| 40 | Not Available | Cord Clip | 39442030 | Not Available |
| 41 | Not Available | Motor Lead Spring | 38313023 | Not Available |
| 42 | Not Available | Nozzle Adjustment Lever - AG | 38456044 | Not Available |
| 43 | Not Available | Indicator - AG | 51151034 | Not Available |
| 44 | Not Available | Pivot Pin | 47450AY | Not Available |
| 45 | Not Available | Roller Detent Assem. | 11735 | Not Available |
| 46 | Not Available | Bag Flange Clamp Lever Spring | 48409FW | Not Available |
| 47 | Not Available | Bag Flange Clamp Lever | 19907 | Not Available |
| 48 | Not Available | Lock Ring (4) | 13730 | Not Available |
| 49 |  | Bail Shaft #1070 For: hoover | 161509AY | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Cam Follower-Hoover Convertible Upright - 2 Position For: hoover | 43263005 | $4.95Add to cart Special order: ships in 2 to 4 weeks |
| 51 | Not Available | Yoke | 34252005 | Not Available |
| 52 | Not Available | Rear Wheel Shaft - AY | 33152003 | Not Available |
| 53 |  | Height Adjustment Lever Spring #1070 For: hoover | 161513 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 54 |  | Rear Wheel Washer All Convertibles For: hoover | 21312772 | $0.78Add to cart Special order: ships in 2 to 4 weeks |
| 55 | Not Available | Rear Wheel (2) | 38521016 | Not Available |
| 56 | Not Available | Wheel Retainer - BZ (2) | 32182001 | Not Available |
| 57 | Not Available | Connector | 27617104 | Not Available |
| 58 | Not Available | Connector | 27617103 | Not Available |
| 59 | Not Available | Motor Baffle | 34287022 | Not Available |
| 60 | Not Available | Indicator Guide Assem. | 41961009 | Not Available |
| 61 | Not Available | Cord Retainer | 34312011 | Not Available |
| 62 | Not Available | Screw - Self Tapping (6) | 21447020 | Not Available |
| 63 | Not Available | Cable Tie | 27479307 | Not Available |
| 64 | Not Available | Washer (4) | 168278AY | Not Available |
| 65 | Not Available | Retainer - BU | 36951004 | Not Available |
| 66 | Not Available | Rivet - Tubular (2) | 12997AW | Not Available |
| 67 | Not Available | Rivet - AW (2) | 21256134 | Not Available |
| 68 |  | Hght Ad Indicator Lens-4000&41000 Mdl For: hoover | 48111008 | $4.89Add to cart Special order: ships in 2 to 4 weeks |
| 69 | Not Available | Hood Assem. - KS | 42251107 | Not Available |
| 69 | Not Available | Hood Assem. - MT - U4407 | 42251267 | Not Available |
| 70 | Not Available | Lens/Shield - KT | 39383053 | Not Available |
| 71 | Not Available | Namepiate | 52115083 | Not Available |
| 72 | Not Available | Furniture Guard - LT | 36231028 | Not Available |
| 72 | Not Available | Furniture Guard - KT - U4385 | 36231133 | Not Available |
| 72 | Not Available | Furniture Guard - MZ - U4407 | 36231033 | Not Available |
| 73 | Not Available | Screw - Self Tapping (3) | 21447003 | Not Available |
| 74 | Not Available | Lamp Socket - AG (2) | 36912004 | Not Available |
| 75 | Not Available | Dirt Finder Lamp (2) | 27313101 | Not Available |
| 76 | Not Available | Lamp Socket Holder - AG | 36912005 | Not Available |
| 77 | Not Available | Motor Assem. Comp. | 43574053 | Not Available |
| 78 | Not Available | Handle Control Spring | 12559FW | Not Available |
| 79 | Not Available | Pivot Pin Retainer - FW | 34665007 | Not Available |
| 80 | Not Available | Carrier Wheel - AG (2) | 38522013 | Not Available |
| 81 | Not Available | Carrier Wheel Shaft (2) | 47457AY | Not Available |
| 82 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 83 | Not Available | Main Body - KE | 42242189 | Not Available |
| 83 | Not Available | Main Body Assem. - MW (Use w / | 42242267 | Not Available |
| 84 | Not Available | Washer - AY (2) | 21312781 | Not Available |
| 85 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $1.74Read more |
| 86 | Not Available | Bottom Plate Spring (Use w/Metal | 12138FW | Not Available |
| 87 | Not Available | Rivet - Semi Tubular (Use w/Metal | 12503EF | Not Available |
| 88 | Not Available | Agitator Assem. Comp. - MF | 41435005 | Not Available |
| 89 | Not Available | Belt | 44783AG | Not Available |
| 90 |  | Support Pad-Hoover For: hoover | 34111001 | $1.63Add to cart Special order: ships in 2 to 4 weeks |
| 91 | Not Available | Bottom Plate (Metal) | 42246062 | Not Available |
| 91 | Not Available | Bottom Plate - AG | 37245081 | Not Available |
| 92 | Not Available | Washer (Use w/Metal Bottom Plate) | 21312703 | Not Available |
| 93 | No Image | Bottom Plate Latch Lh - All Conv For: hoover | 35446005 | $1.29Add to cart Special order: ships in 2 to 4 weeks |
| 94 | Not Available | Rivet - Tubular (2) | 12456 | Not Available |
| 95 | No Image | Bottom Plate Latch Rh - All Conv For: hoover | 35446003 | $1.29Add to cart Special order: ships in 2 to 4 weeks |
| 96 | Not Available | Screw - Self Tapping (2) | 21447009 | Not Available |
| 97 | No Image | Axle Bag Flange Retainer New Models For: hoover | 35434040 | $2.10Add to cart Special order: ships in 2 to 4 weeks |
| 98 | Not Available | Handle Tube Namepiate | 51638029 | Not Available |
| 99 | Not Available | Screw - Machine | 45533AY | Not Available |
| 100 |  | Field Bolt Washer For: hoover | 14062 | $36.93Read more |
| 101 | Not Available | Bag Cover Namepiate - U4381-930 | 51639073 | Not Available |
| 102 | Not Available | Drawer - AG - U4381-930 U4407 | 35111002 | Not Available |
| 103 | Not Available | Air Freshener Table (4-Pack) Spring | 57363003 | Not Available |
| 103 | Not Available | Carton - U4381-9 | 58173208 | Not Available |
| 103 | Not Available | Front Support | 58343025 | Not Available |
| 103 | Not Available | Rear Support | 58366012 | Not Available |
| 103 | Not Available | Owner Manual | 56511132 | Not Available |
| 103 | Not Available | IInnddiiccaattoorr GGuuiiddee SSpprriinngg | 35276006 | Not Available |

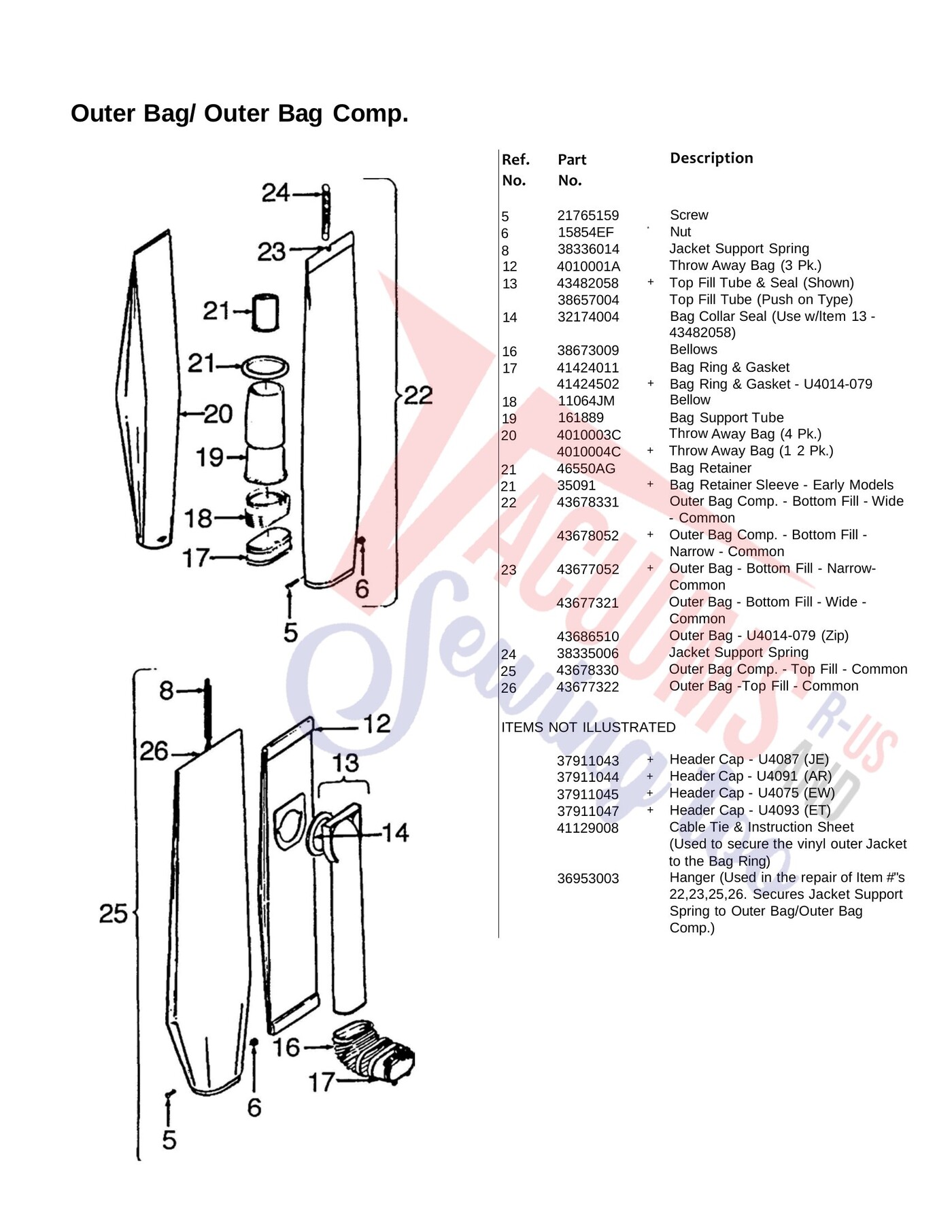

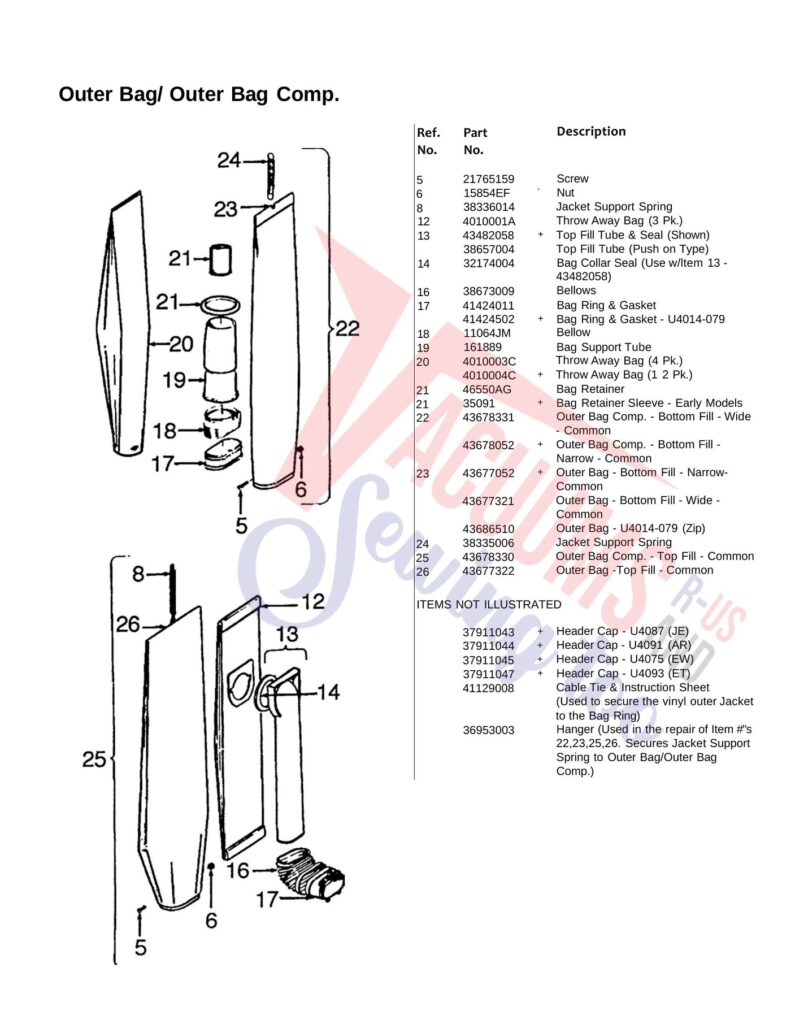

| # | Part image | Description | SKU | Price |
| 5 | Not Available | Screw | 21765159 | Not Available |
| 6 | Not Available | Nut | 15854EF | Not Available |
| 8 | Not Available | Jacket Support Spring | 38336014 | Not Available |
| 12 | | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Top Fill Tube & Seal (Shown) | 43482058 | Not Available |
| 13 | Not Available | Top Fill Tube (Push on Type) | 38657004 | Not Available |
| 14 | Not Available | Bag Collar Seal (Use w/ltem 13 - | 32174004 | Not Available |
| 16 | Not Available | Bellows | 38673009 | Not Available |
| 17 | Not Available | Bag Ring & Gasket | 41424011 | Not Available |
| 17 | Not Available | Bag Ring & Gasket - U4014-079 | 41424502 | Not Available |
| 18 | Not Available | Bellow | 11064JM | Not Available |
| 19 | Not Available | Bag Support Tube | 161889 | Not Available |
| 20 | Not Available | Throw Away Bag (4 Pk.) | 4010003C | Not Available |
| 21 | Not Available | Bag Retainer | 46550AG | Not Available |
| 21 | Not Available | Bag Retainer Sleeve - Early Models | 35091 | Not Available |
| 22 | Not Available | Outer Bag Comp. - Bottom Fill - Wide | 43678331 | Not Available |
| 22 | Not Available | Outer Bag Comp. - Bottom Fill - | 43678052 | Not Available |
| 23 | Not Available | Outer Bag - Bottom Fill - Narrow- | 43677052 | Not Available |
| 23 | Not Available | Outer Bag - Bottom Fill - Wide - | 43677321 | Not Available |
| 23 | Not Available | Outer Bag - U4014-079 (Zip) | 43686510 | Not Available |
| 24 | Not Available | Jacket Support Spring | 38335006 | Not Available |
| 25 | Not Available | Outer Bag Comp. - Top Fill - Common | 43678330 | Not Available |
| 26 | Not Available | Outer Bag -Top Fill - Common | 43677322 | Not Available |
| 26 | Not Available | Header Cap - U4087 (JE) | 37911043 | Not Available |
| 26 | Not Available | Header Cap - U4091 (AR) | 37911044 | Not Available |
| 26 | Not Available | Header Cap - U4093 (ET) | 37911047 | Not Available |
| 26 | Not Available | Cable Tie & Instruction Sheet | 41129008 | Not Available |
| 26 | Not Available | Hanger (Used in the repair of Item #"s | 36953003 | Not Available |

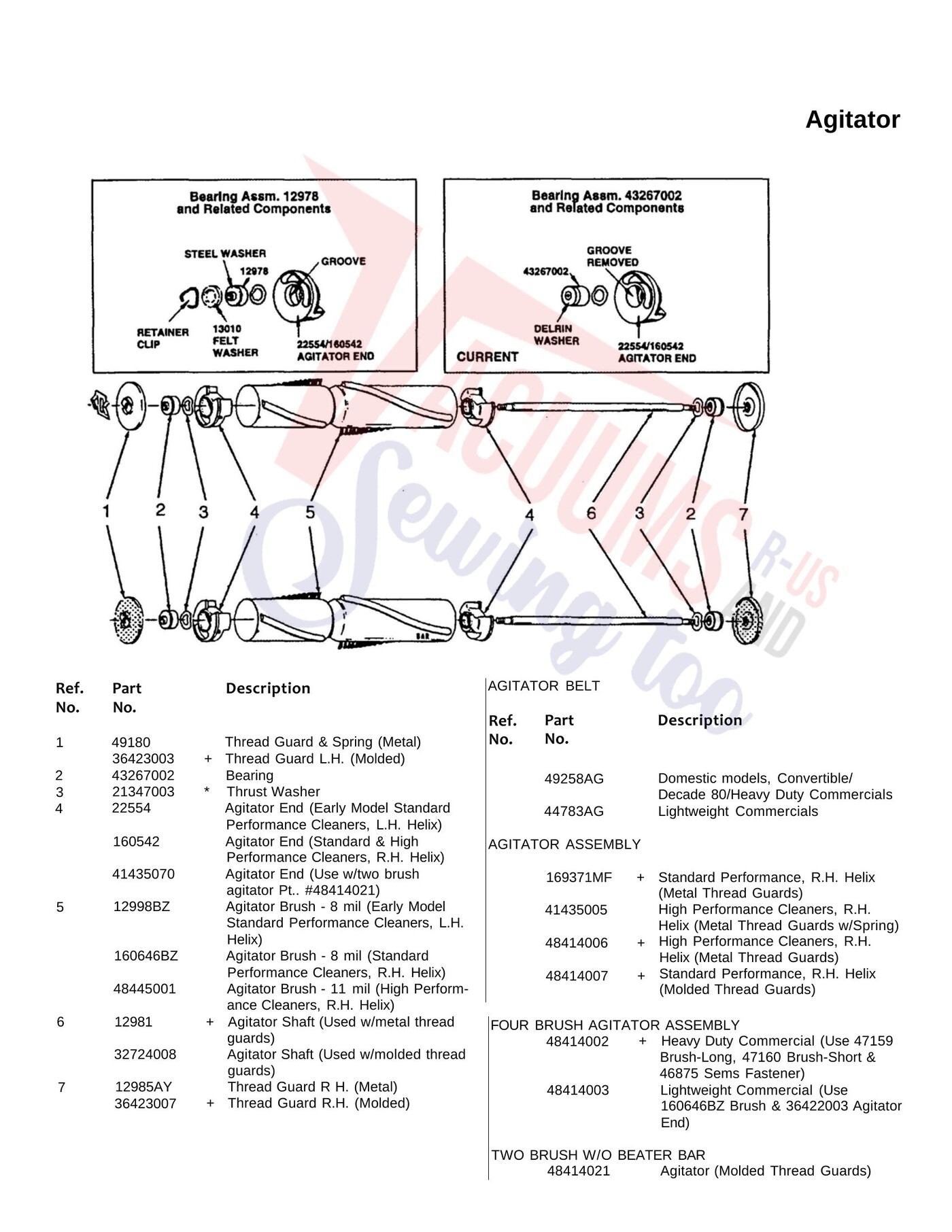

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Thread Guard & Spring (Metal) | 49180 | Not Available |
| 1 | Not Available | Thread Guard L.H. (Molded) | 36423003 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 3 | Not Available | Thrust Washer | 21347003 | Not Available |
| 4 | Not Available | Agitator End (Early Model Standard | 22554 | Not Available |
| 4 | Not Available | Agitator End (Standard & High | 160542 | Not Available |
| 4 |  | End-Hoover C1429 For: hoover | 41435070 | $12.49Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Agitator Brush - 8 mil (Early Model | 12998BZ | Not Available |
| 5 |  | Brush Strip, Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover product is discontinued ... | 160646BZ | $14.29Add to cart |
| 5 | Not Available | Agitator Brush - 11 mil (High Perform- | 48445001 | Not Available |
| 6 | Not Available | Agitator Shaft (Used w/metal thread | 12981 | Not Available |
| 6 | Not Available | Agitator Shaft (Used w/molded thread | 32724008 | Not Available |
| 7 | Not Available | Thread Guard R H. (Metal) | 12985AY | Not Available |
| 7 | Not Available | Thread Guard R.H. (Molded) | 36423007 | Not Available |
| 7 | Not Available | Domestic models Convertible/ | 49258AG | Not Available |
| 7 | Not Available | Lightweight Commercials | 44783AG | Not Available |
| 7 | Not Available | Standard Performance R.H. Helix | 169371MF | Not Available |
| 7 | Not Available | High Performance Cleaners R.H. | 41435005 | Not Available |
| 7 | Not Available | Heavy Duty Commercial (Use 47159 | 48414002 | Not Available |
| 7 | Not Available | Sems Fastener) | 46875 | Not Available |
| 7 | Not Available | Lightweight Commercial (Use | 48414003 | Not Available |
| 7 | | Brush Strip, Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover product is discontinued ... | 160646BZ | $14.29Add to cart |
| 7 | Not Available | Agitator (Molded Thread Guards) | 48414021 | Not Available |
| # | Part image | Description | SKU | Price |

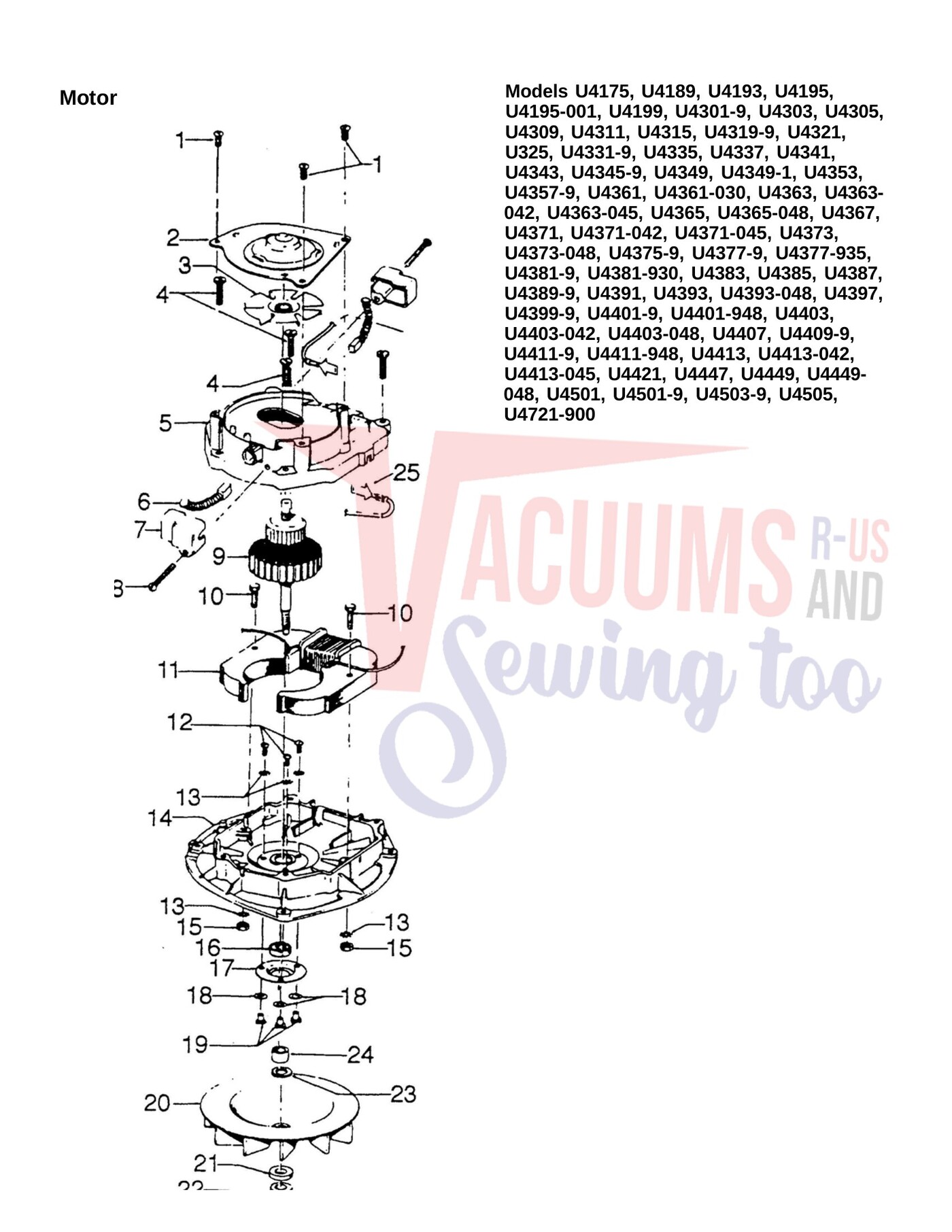

| 1 | Not Available | Screw (3) | 45533AY | Not Available |
| 2 | Not Available | Upper Motor Bearing | 42934002 | Not Available |
| 3 |  | Armature Cooling Fan #29 & 65 - 38755004 For: hoover | 38755004 | $19.99Read more |
| 3 | Not Available | Fan (Polycarbonate) - Black | 38755005 | Not Available |
| 4 | Not Available | Screw (4) | 161535 | Not Available |
| 5 | Not Available | Upper Motor Casing | 19857 | Not Available |
| 5 | Not Available | Upper Motor Casing - U4361 U4361-030 | 42195003 | Not Available |
| 6 | Not Available | Carbon Brush | 47318012 | Not Available |
| 7 | Not Available | Brush Insulator | 14322 | Not Available |
| 7 | No Image | Wbd Brush Cap - U4313 For: hoover | 36315003 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Screw (2) | 46930AZ | Not Available |
| 8 | Not Available | Armature | 44765085 | Not Available |
| 10 | Not Available | » Bolt (2) | 45118 | Not Available |
| 11 | Not Available | Field | 45412015 | Not Available |
| 11 | Not Available | Field - U4175 U4195 U4195-001 U4309 | 45412017 | Not Available |
| 11 | Not Available | 1 U4345-9 U4377-9 U4377-935 | U431 | Not Available |
| 11 | Not Available | Field - U4301-9 U4305 U4303 U4315 | 45412018 | Not Available |
| 11 | Not Available | Field - U4321 | 45412014 | Not Available |
| 11 | Not Available | Field - U4361 U4361-030 U4397 | 45421015 | Not Available |
| 11 |  | Field Coil-Hvr 4515 For: hoover | 45421020 | $38.26Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Screw (3) | 21772501 | Not Available |
| 13 | | Field Bolt Washer For: hoover | 14062 | $36.93Read more |
| 14 | Not Available | Lower Motor Case - 8MM | 42193006 | Not Available |
| 15 | Not Available | N ut (2) | 15673 | Not Available |
| 16 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $17.99Read more |
| 16 | Not Available | Bearing Replacement Kit - 8MM | 43267006 | Not Available |
| 17 | Not Available | Retainer - 8MM | 32184003 | Not Available |
| 18 | Not Available | Lock Washer (3) | 19772 | Not Available |
| 19 | Not Available | Nut (3) | 45251 | Not Available |
| 20 | Not Available | Fan - Polycarbonate (Black) | 38755011 | Not Available |
| 21 | Not Available | Washer - Heat Insulating | 31162004 | Not Available |
| 22 | Not Available | Motor Pulley | 38532009 | Not Available |
| 22 | Not Available | Motor Pulley - U4501 U4501-9 U4503-9. | 38532015 | Not Available |
| 23 |  | Washer-For Fan-Concept&8Mm Convertible Hoover For: hoover | 166563 | $0.17Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Fan Spacer - 8MM | 31731002 | Not Available |
| 24 | Not Available | Fan Spacer - U4363-042 U4363-045 | 31731006 | Not Available |
| 25 | Not Available | Terminal | 14320 | Not Available |
| 25 | Not Available | Motor - U4381-9 U4381-930 U4383 | 43574053 | Not Available |
| 25 | Not Available | Motor - U4189 U4193 U4199 U4325 | 43574133 | Not Available |
| 25 | No Image | MOTOR, U4403 Part Number: 43574161 for Hoover | 43574161 | $118.20Read more |
| 25 | Not Available | Motor - U4175 U4195 U4195-001 U4309 | 43574140 | Not Available |
| 25 | Not Available | Motor-U4321 | 43574141 | Not Available |
| 25 | No Image | MOTOR, U4403 Part Number: 43574161 for Hoover | 43574161 | $118.20Read more |
| 25 | Not Available | Motor -U4377-935 | 43574190 | Not Available |
| 25 | Not Available | Motor - U4501. U4501-9. U4503-9. U4505 | 43574174 | Not Available |
| 25 |  | Spacer/Split Sleeve For 9Mm Armature/Bearing Appl. For: hoover | 40300014 | $8.40Read more |
| # | Part image | Description | SKU | Price |

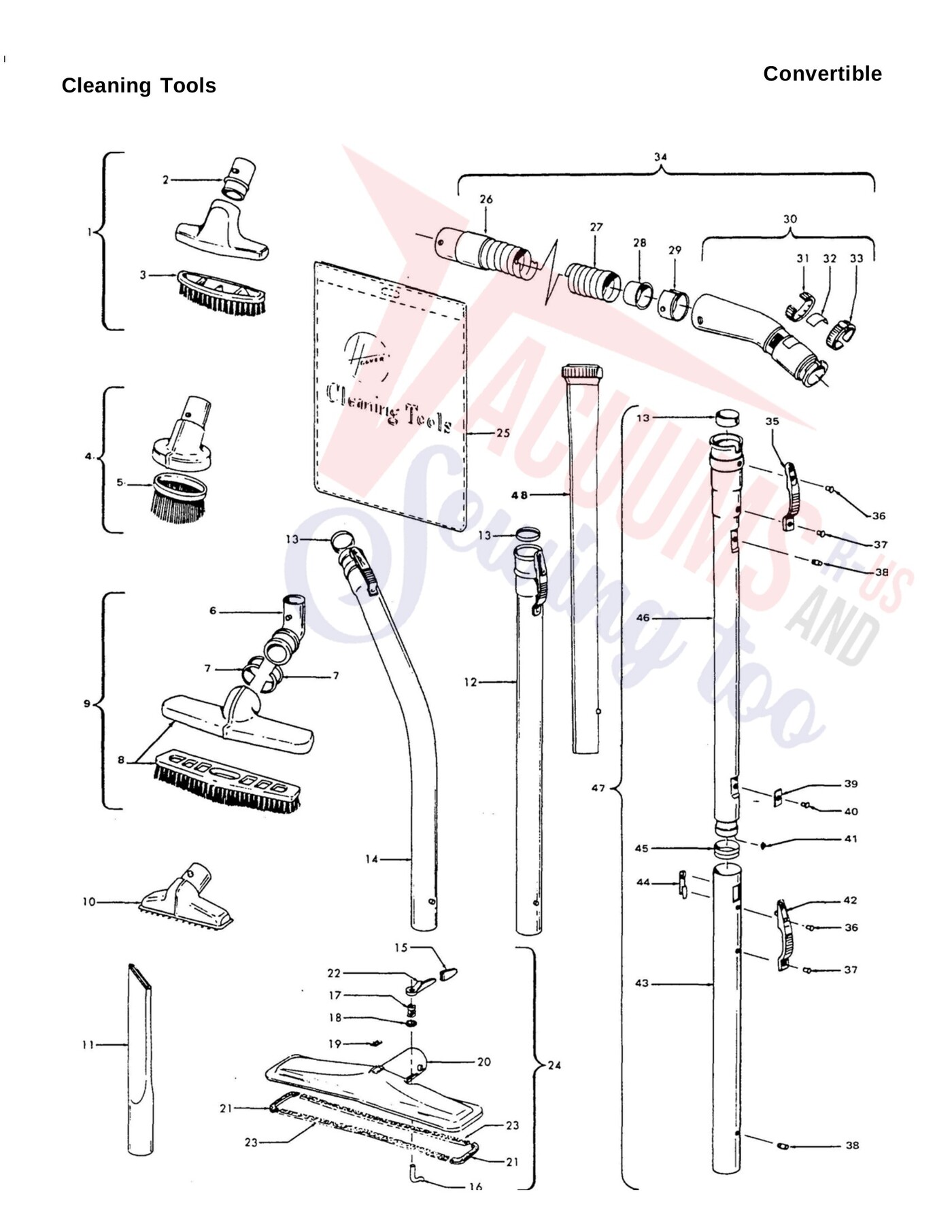

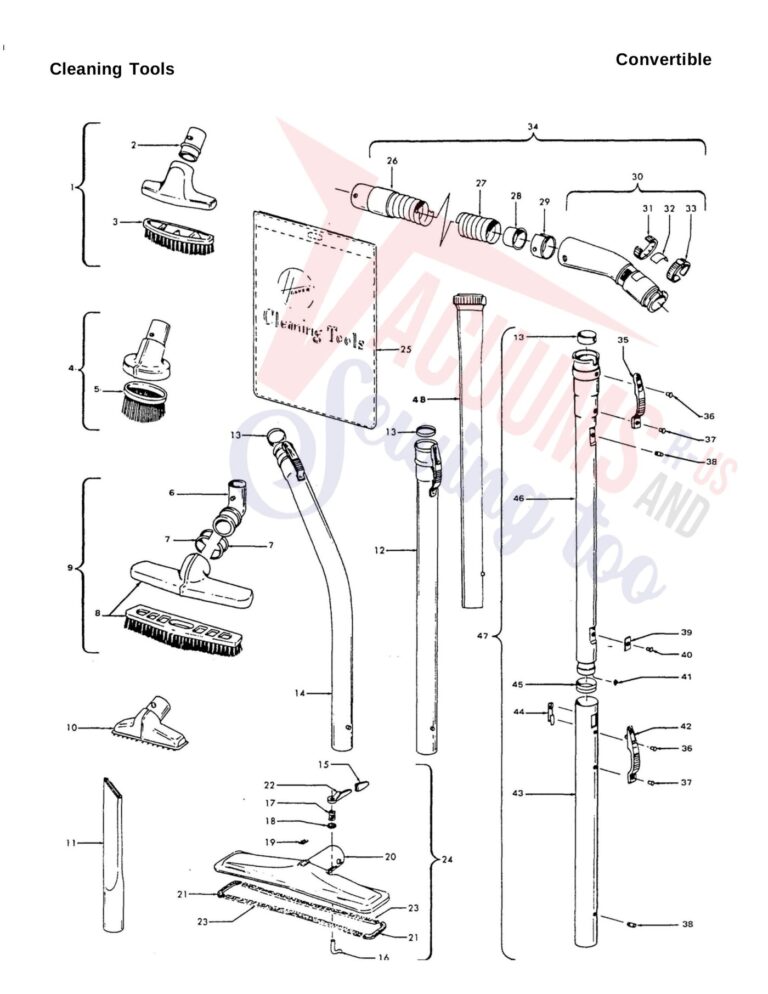

| 1 | Not Available | Furniture Brush | 161852JM | Not Available |
| 1 | Not Available | Furniture Brush - AG | 43414016 | Not Available |
| 2 | Not Available | Nozzle Connector Tube (Use w/ | 13149JM | Not Available |
| 3 | Not Available | Furniture Brush Back (Use | 13254BZ | Not Available |
| 3 | Not Available | Dusting Brush Comp. | 161851JM | Not Available |
| 3 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Dusting Brush - Friction | 43414145 | Not Available |
| 3 | Not Available | Brush (Use w/l 61851 JM) | 13263BZ | Not Available |
| 6 | Not Available | Floor Brush Swivel & Collar (Use | 13154JM | Not Available |
| 6 | Not Available | Swivel Connector (Use w/43414073) | 38644040 | Not Available |
| 7 | Not Available | Floor Brush Swivel Bushing (Use | 13276 | Not Available |
| 7 | Not Available | Split Ring (Use w/38644040) | 33712007 | Not Available |
| 8 | Not Available | Floor Brush Nozzle & Brush (Use w/ | 13155JM | Not Available |
| 8 | Not Available | Floor Brush | 13077JM | Not Available |
| 8 | Not Available | Floor Brush - (Standard Fit) | 43414073 | Not Available |
| 8 | Not Available | Floor Brush - AAP (Friction Fit) | 43414135 | Not Available |
| 10 |  | Upholstery Tool, With plastic bump for hoover porta power | 43414057 | $9.58Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Furniture Nozzle - AG - (Friction Fit) | 38614029 | Not Available |
| 11 |  | Crevice Tool-Hoover - W/Pin - Canister - Grey
Nla 10-2023 - Please Use Alt Part Number For: hoover | 38617017 | $2.53Read more |
| 11 | Not Available | Crevice Tool | 38617024 | Not Available |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.32Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Gasket | 12845JM | Not Available |
| 14 | Not Available | Ext. Tube - Curved (Short) (Std. Fit) | 43466040 | Not Available |
| 15 | Not Available | Handle Control Foot Pad | 34207AG | Not Available |
| 16 | Not Available | Latch - AW | 33126001 | Not Available |
| 17 | Not Available | Spring | 38311006 | Not Available |
| 18 | Not Available | Washer | 161549 | Not Available |
| 19 | Not Available | Pad - Felt | 34121001 | Not Available |
| 20 | Not Available | Converter Body Assem. | 43482097 | Not Available |
| 21 | Not Available | Seal - End | 34253003 | Not Available |
| 22 | Not Available | Latch Lever | 38452026 | Not Available |
| 23 | Not Available | Seal - Side | 34113005 | Not Available |
| 24 | Not Available | Converter Body Assem. | 43482097 | Not Available |
| 25 | Not Available | Cleaning Tool Bag | 58544004 | Not Available |
| 25 | Not Available | Hose Connector - JM (Use w/Circular | 32288003 | Not Available |
| 25 | Not Available | Hose Connector - AAP (Use /Circular | 32288004 | Not Available |
| 27 | Not Available | Hose Complete - AAP | 43434203 | Not Available |
| 27 | Not Available | Hose Less Ends - JM (Circular | 38671001 | Not Available |
| 27 | Not Available | Hose Less Ends - AAP (Circular | 38671028 | Not Available |
| 27 | Not Available | Hose Less Ends (Circular Ribbed) - | 38671030 | Not Available |
| 28 | Not Available | Hose Sleeve - (Standard Fit Hose) | 32156010 | Not Available |
| 29 | Not Available | Hose Connector Collar (Use w/ | 36116006 | Not Available |
| 29 | Not Available | Hose Connector Collar (Use | 36171025 | Not Available |
| 30 | Not Available | Hose Connector Curved w/Rings-AAP | 43466044 | Not Available |
| 30 | Not Available | Hose Connector Curved w/Latch | 43466055 | Not Available |
| 30 | Not Available | Hose Connector Curved w/Latch Ring | 43466058 | Not Available |
| 30 | Not Available | Hose Connector - AAP - | 39454059 | Not Available |
| 31 | Not Available | Suction Control Ring - (Standard) | 38711006 | Not Available |
| 32 | Not Available | Hose Connector Label - (Standard) | 51869006 | Not Available |
| 33 | Not Available | Latch Ring - MV - (Standard) | 36153009 | Not Available |
| 34 | Not Available | Hose Comp. - Front Conversion | 43434203 | Not Available |
| 34 | Not Available | Hose Comp. - Front Conversion - JM | 43434209 | Not Available |
| 34 | Not Available | Hose Comp. - Front Conversion - AAP | 43434210 | Not Available |
| 34 | Not Available | Hose Comp. - AAP - (Friction Fit) | 43434225 | Not Available |
| 35 | Not Available | Tube Latch | 12846AG | Not Available |
| 36 | Not Available | Rivet | 12772 | Not Available |
| 37 | Not Available | Rivet | 12783 | Not Available |
| 38 | Not Available | Rivet | 12763AW | Not Available |
| 39 | Not Available | Reinforcement Plate | 12824 | Not Available |
| 40 | Not Available | Rivet | 12600 | Not Available |
| 41 | Not Available | Washer | 21312704 | Not Available |
| 42 | Not Available | Tube Latch - Outer | 36152018 | Not Available |
| 43 | Not Available | Extension Tube - Outer | 12597 | Not Available |
| 44 | Not Available | Extension Tube Guide | 12589 | Not Available |
| 45 | Not Available | Gasket - Inner | 12844JM | Not Available |
| 46 | Not Available | Extension Tube - Inner | 12598 | Not Available |
| 47 | Not Available | Extension Tube - (Standard Fit) | 43458001 | Not Available |
| 48 | Not Available | Extension Tube - Poly - AG | 3863801P | Not Available |
| 48 | Not Available | Extension Tube (Polystyrene) - AAP - | 38634078 | Not Available |
| # | Part image | Description | SKU | Price |

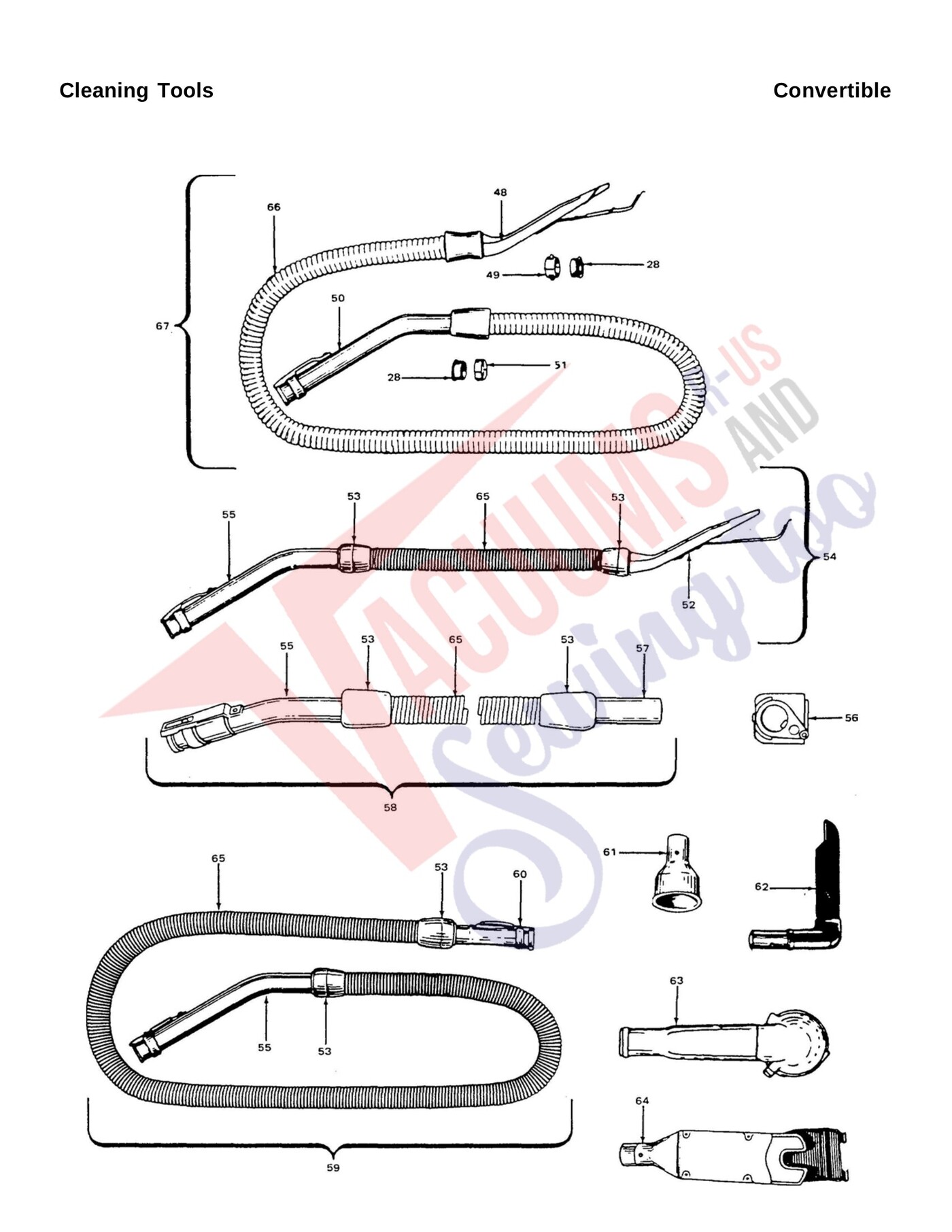

| 48 | Not Available | Converter (Std. - Rear Conversion) | 13147JM | Not Available |
| 50 | Not Available | Hose Grip - AAP - SC | 43466044 | Not Available |
| 51 | Not Available | Hose Grip Collar | 12704BZ | Not Available |
| 52 | Not Available | Converter (Except 63 64) (Use w/ | 23473JM | Not Available |
| 53 | Not Available | Hose Grip | 23393JM | Not Available |
| 54 | Not Available | Hose Comp. - Ultraflex | 12864JM | Not Available |
| 55 | Not Available | Hose Tube Curved | 13143 | Not Available |
| 56 | Not Available | Converter- 13301348 1348-002 | 43452503 | Not Available |
| 57 | Not Available | Hose Connector Tube - 1330 (Metal) | 17959A | Not Available |
| 57 | Not Available | Hose Connector Tube - 1348 1348- | 641398LL | Not Available |
| 58 | Not Available | Hose Comp. - Ultraflex - 1330 1340 | 19633JM | Not Available |
| 59 | Not Available | Hose Comp. - Ultraflex (Commercial) | 22671JM | Not Available |
| 59 | Not Available | Hose Comp. - Ultraflex | 23007A | Not Available |
| 60 | Not Available | Hose End-14 63 | 34083 | Not Available |
| 60 | Not Available | Hose End Short (Commercial) | 34355 | Not Available |
| 61 | Not Available | Blower (Use w/Hose 22671) | 34984A | Not Available |
| 62 | Not Available | Converter - Special - 63 | 35447 | Not Available |
| 63 | Not Available | Converter (Use w/Hose 22671) | 35190 | Not Available |
| 64 | Not Available | Converter (Use w/Hose 22671) | 34202JM | Not Available |
| 65 | Not Available | Hose Less Ends | 48617JM | Not Available |
| 66 | Not Available | Hose Less Ends | 43434213 | Not Available |
| 67 | Not Available | Hose Assem. Comp. - Tufflex | 12864JM | Not Available |
| 67 | Not Available | Turbine Roto - Power Brush | 161728 | Not Available |
| 67 | Not Available | Ultraflex Hose - 50' length | 169460JM | Not Available |
| 67 | Not Available | Tufflex Hose - 50' length | 43431011 | Not Available |
Report errors on this page HERE
