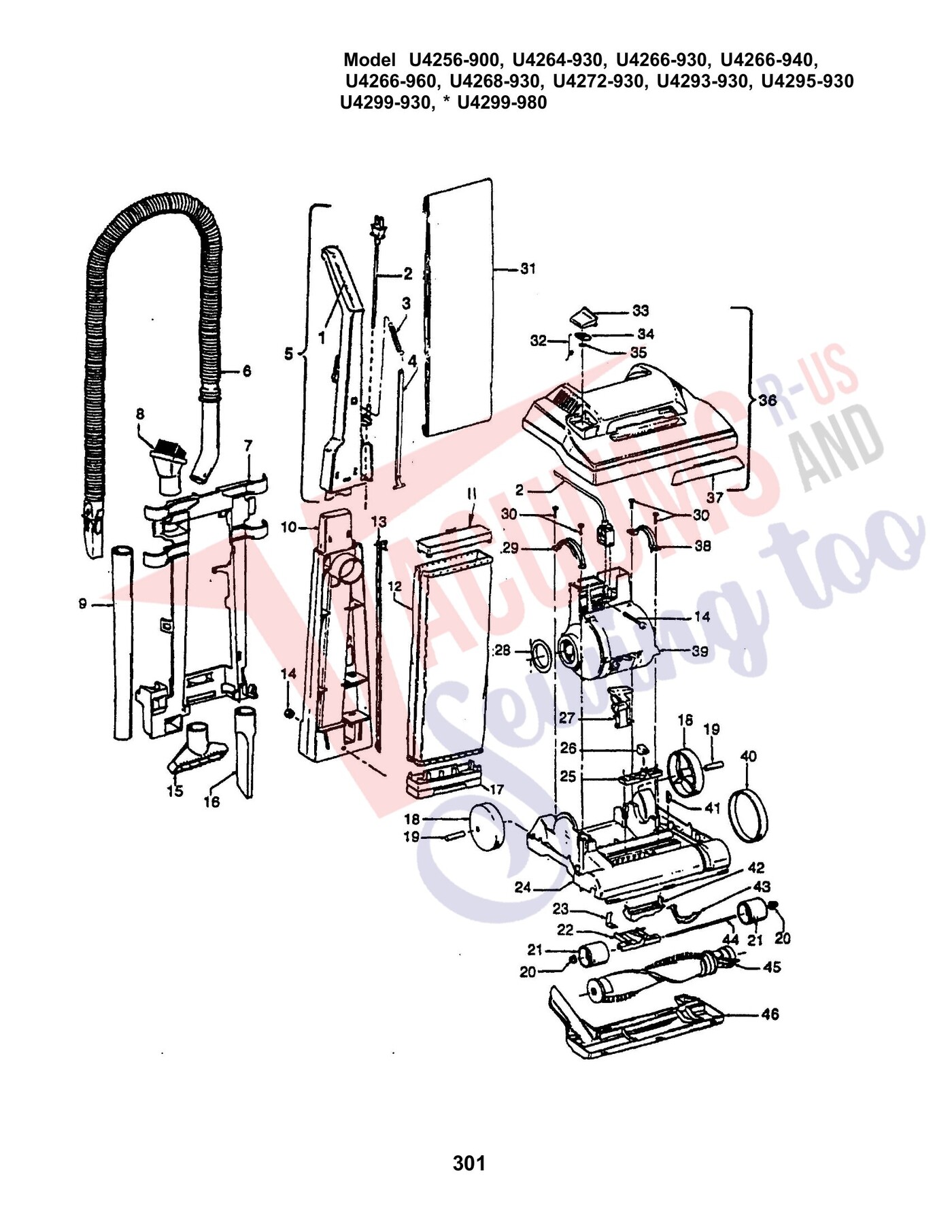

Schematic and parts book for Hoover U4256-900, U4264-930, U4266-930, U4266-940, U4266-960, U4268-930, U4272-930, U4293-930, U4295-930, U4299-930, U4299-980 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Grip - ABE | 39458057 | Not Available |
| 1 | Not Available | Handle Cap - U4264-930 U4266-930 | 37911079 | Not Available |
| 2 | Not Available | Attach Cord - AG - 35 Ft. | 46388027 | Not Available |
| 2 | Not Available | Attach Cord - AG - 30 Ft -12 Amp | 46388043 | Not Available |
| 3 | Not Available | Bag Strap Spring | 38335020 | Not Available |
| 4 | Not Available | Bag Strap - ABE | 36425072 | Not Available |
| 5 | Not Available | Upper Handle Assem. - ABE - | 48663152 | Not Available |
| 5 | Not Available | Upper Handle Assem. - U4264-930 | 48663141 | Not Available |
| 6 | Not Available | Hose Assem. - ABX/AG | 43434237 | Not Available |
| 7 | Not Available | Tool Rack - ABE | 36433110 | Not Available |
| 7 | Not Available | Tool Rack - U4264-930 U4266-930 | 36433098 | Not Available |
| 8 | Not Available | Dusting Brush Assem. - AG | 43414145 | Not Available |
| 9 | Not Available | Extension Tube - AG | 38634078 | Not Available |
| 10 | Not Available | Lower Handle - ABE | 39464005 | Not Available |
| 11 | Not Available | Jacket Support Upper - ABE | 36425064 | Not Available |
| 12 | Not Available | Outer Jacket - ABM | 43686192 | Not Available |
| 12 | Not Available | Outer Jacket - U4299-930 U4299-980 | 43686202 | Not Available |
| 12 | Not Available | Outer Jacket - U4295-930 | 43686207 | Not Available |
| 12 | Not Available | Outer Jacket - U4272-930 | 43686213 | Not Available |
| 12 | Not Available | Outer Jacket - U4266-930 U4268-930 | 43686223 | Not Available |
| 12 | Not Available | Outer Jacket - U4264-930 | 43686229 | Not Available |
| 12 | Not Available | Outer Jacket - U4256-900 | 43686239 | Not Available |
| 12 | Not Available | Outer Jacket - U4266-940.U4266-960 | 43686240 | Not Available |
| 13 | Not Available | Switch Control Rod - ABB | 38456036 | Not Available |
| 14 | Not Available | Nut & Bolt | 40201085 | Not Available |
| 15 | Not Available | Furniture Nozzle - AG | 38614029 | Not Available |
| 16 | Not Available | Crevice Tool - AG | 38617024 | Not Available |
| 17 |  | Lower Jacket Support-Hoover 4557/4731 For: hoover | 36425063 | $7.84Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Rear Wheel - AG | 38522011 | Not Available |
| 19 | Not Available | Rear Wheel Shaft | 31523012 | Not Available |
| 20 | Not Available | Wheel Retainer | 36131056 | Not Available |
| 21 | Not Available | Wheel - AG (Use 43248059) | N/A | Not Available |
| 22 | Not Available | Front Wheel Assem. (Incl. It. 2143 | 43248059 | Not Available |
| 23 | Not Available | Cam Actuator Spring | 34572002 | Not Available |
| 24 | Not Available | Main Body Assembly - | 42243001 | Not Available |
| 24 | Not Available | Main Body Assembly - U4264-930 | 42243002 | Not Available |
| 25 | Not Available | Cam Actuator | 38567008 | Not Available |
| 26 | Not Available | Indicator Knob - ABE | 38421070 | Not Available |
| 27 | Not Available | Handle Release Lever - ABE | 38458022 | Not Available |
| 28 | Not Available | Seal | 38784016 | Not Available |
| 29 | Not Available | Motor Retainer Cap - R.H. - | 36131057 | Not Available |
| 30 | Not Available | Screw | 21447217 | Not Available |
| 31 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Spring | 38351013 | Not Available |
| 33 | Not Available | Door Assem. - ABM - U4293-930 | 37257022 | Not Available |
| 33 | Not Available | Door Assem. - AAY - U4299-930 | 37257027 | Not Available |
| 33 | Not Available | Door Assem. - AG - U4266-930 | 37257143 | Not Available |
| 33 | Not Available | Door Assem. - ABM - U4264-930 | 37257253 | Not Available |
| 33 | Not Available | Door - ADA - U4256-900 | 37257259 | Not Available |
| 34 | Not Available | Seal | 38785013 | Not Available |
| 35 | Not Available | Speed Nut | 21362006 | Not Available |
| 36 | Not Available | Hood Assem. - ABM - U4293-930 | 42252381 | Not Available |
| 36 | Not Available | Hood Assem. - AG - U4272-900 | 42252A38 | Not Available |
| 36 | Not Available | Hood Assem. - AAY - U4266-930 | 42252A74 | Not Available |
| 36 | Not Available | Hood Assem. - ABM - U4264-930 | 42252A84 | Not Available |
| 36 | Not Available | Hood Assem. - AAY - U4268-930 | 42252A86 | Not Available |
| 36 | Not Available | Hood Assem. - ADA - U4256-900 | 42252B17 | Not Available |
| 36 | Not Available | Hood Assem. - AAY - U4266-940 | 42252B37 | Not Available |
| 37 | Not Available | Lens | 39383098 | Not Available |
| 37 | Not Available | Lens - U4266-930 U4264-930 | 39383099 | Not Available |
| 38 | Not Available | Motor Retainer Cap - L.H. - ABE | 36131090 | Not Available |
| 38 | Not Available | Motor Retainer Cap- Metal U4256-900 | 36131095 | Not Available |
| 39 | Not Available | Motor (P-202) | 43576142 | Not Available |
| 39 | Not Available | Motor (P-201) U4268-930 | 43576141 | Not Available |
| 39 | Not Available | Motor 12 Amp (P-364) U4256-900 | 43576199 | Not Available |
| 40 | Not Available | Belt | 38528027 | Not Available |
| 40 | Not Available | Belt -12 Amp | 38528040 | Not Available |
| 41 | Not Available | Rug Nozzle Rib Shoe | 13261AY | Not Available |
| 42 |  | Cam, :( Nozzle Height Adjustment Elite/Eli Part Number: 38563011 for Hoover | 38563011 | $3.69Read more |
| 43 | Not Available | Lever (Use wheel assem. 43248059) | 38452089 | Not Available |
| 44 | Not Available | Wheel Shaft (Use 43248059) | 32563012 | Not Available |
| 45 | Not Available | Agitator Comp. - (P-203) | 48414079 | Not Available |
| 46 | Not Available | Bottom Plate - U4256-900 | 37245017 | Not Available |
| 46 | Not Available | Bottom Plate U4268-930 U4295-930 | 37245108 | Not Available |
| 46 | Not Available | Cord Wrap (on upper handle) | 3944201P | Not Available |
| 46 | Not Available | Dirt Finder Lamp - All models except | 27313101 | Not Available |
| 46 | Not Available | Gasket (Main Body- !2 Amp models) | 34123056 | Not Available |

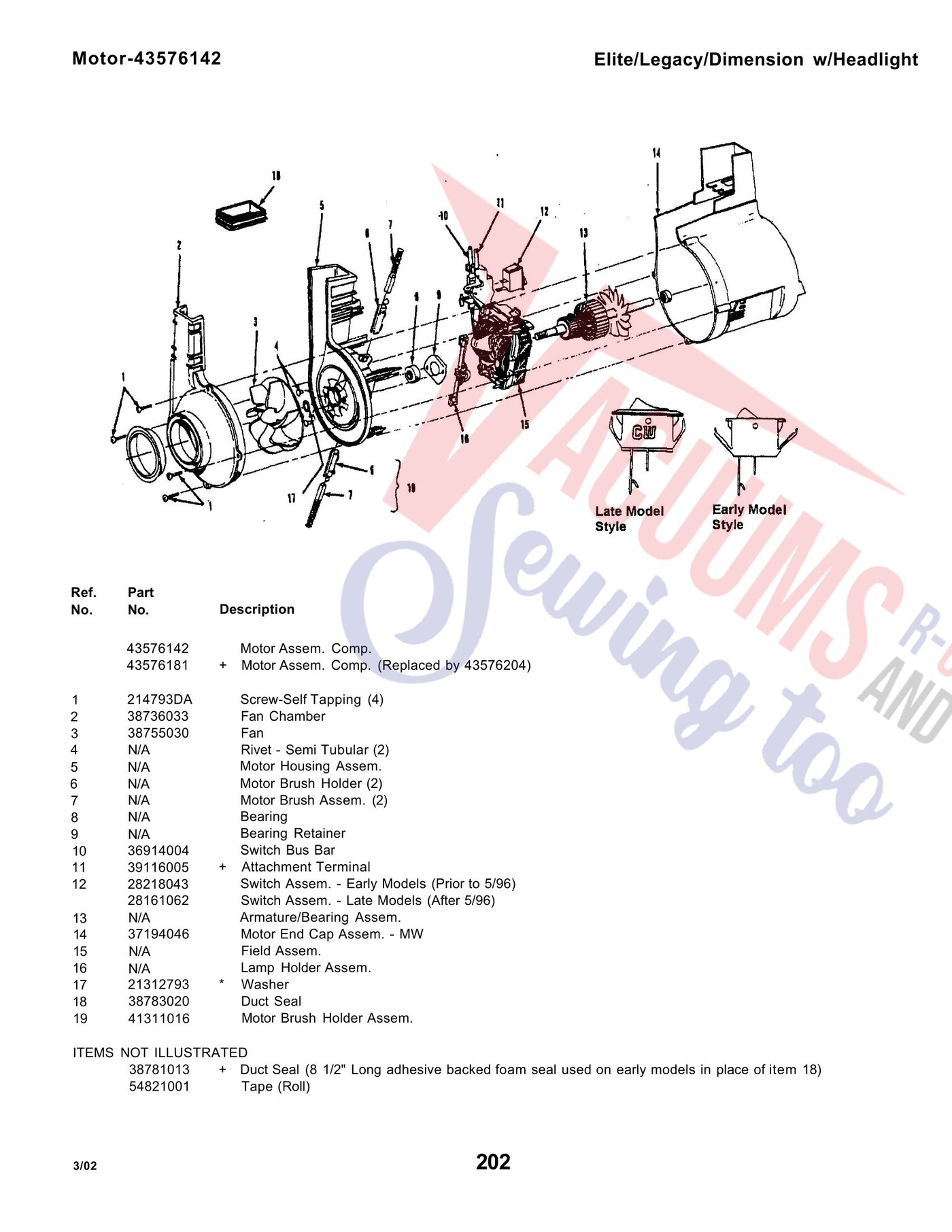

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw-Self Tapping (4) | 214793DA | Not Available |
| 2 | Not Available | Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Fan | 38755030 | Not Available |
| 4 | Not Available | Rivet - Semi Tubular (2) | N/A | Not Available |
| 5 | Not Available | Motor Housing Assem. | N/A | Not Available |
| 6 | Not Available | Motor Brush Holder (2) | N/A | Not Available |
| 7 | Not Available | Motor Brush Assem. (2) | N/A | Not Available |
| 8 | Not Available | Bearing | N/A | Not Available |
| 9 | Not Available | Bearing Retainer | N/A | Not Available |
| 10 | Not Available | Switch Bus Bar | 36914004 | Not Available |
| 11 | Not Available | Attachment Terminal | 39116005 | Not Available |
| 12 | Not Available | Switch Assem. - Early Models (Prior to 5/96) | 28218043 | Not Available |
| 12 | Not Available | Switch Assem. - Late Models (After 5/96) | 28161062 | Not Available |
| 13 | Not Available | Armature/Bearing Assem. | N/A | Not Available |
| 14 | Not Available | Motor End Cap Assem. - MW | 37194046 | Not Available |
| 15 | Not Available | Field Assem. | N/A | Not Available |
| 16 | Not Available | Lamp Holder Assem. | N/A | Not Available |
| 17 |  | Fan Washer-Hoover Elite Motor For: hoover | 21312793 | $1.11Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Duct Seal | 38783020 | Not Available |
| 19 | Not Available | Motor Brush Holder Assem. | 41311016 | Not Available |
| 19 | Not Available | Duct Seal (8 1/2" Long adhesive backed foam seal used on early models in place of item 18) | 38781013 | Not Available |
| 19 | Not Available | Tape (Roll) | 54821001 | Not Available |
