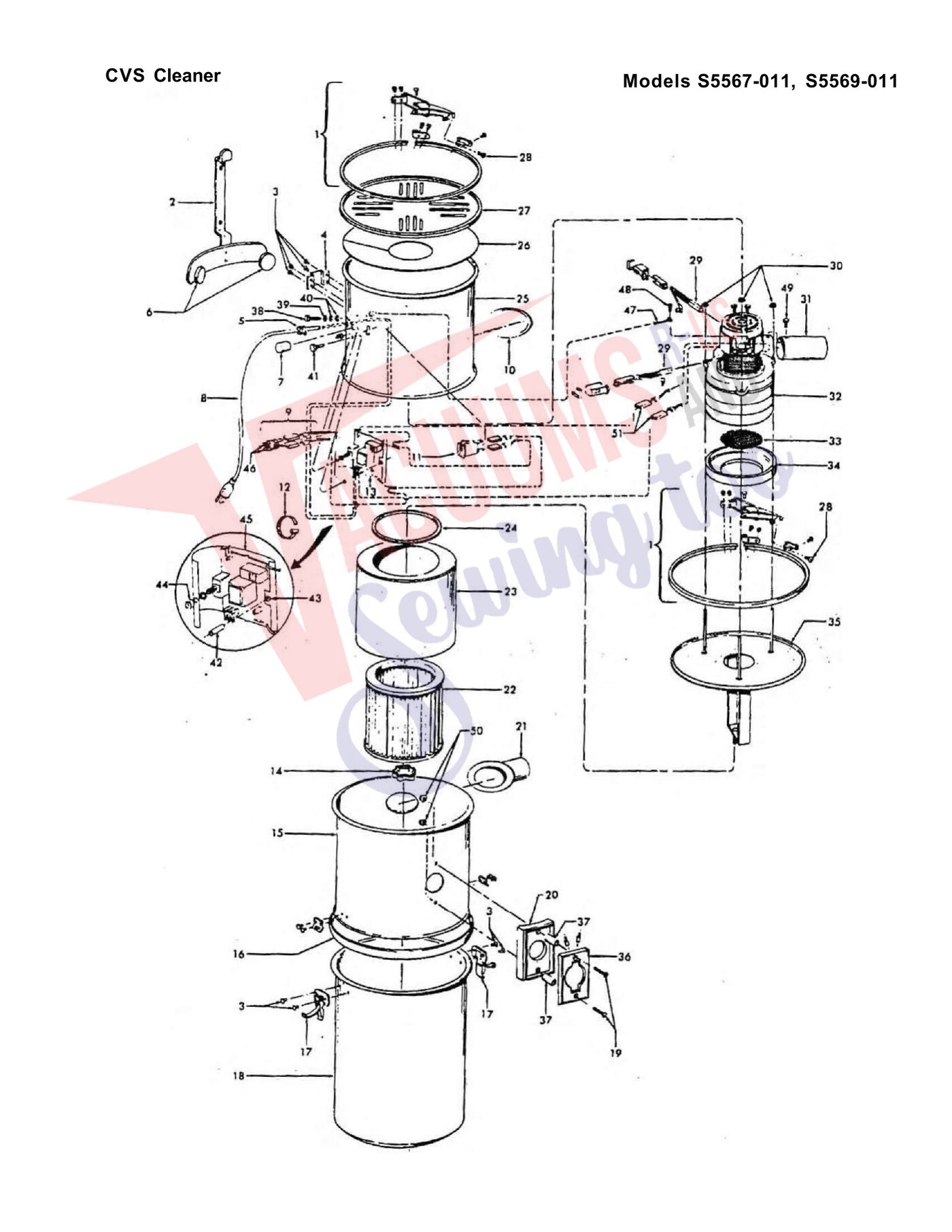

Schematic and parts book for hoover S5567-011, S5569-011 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Clamp Ring Assm. (2) | 41129031 | Not Available |
| 2 | Not Available | Wall Mount Bracket | H12647EF | Not Available |
| 4 | Not Available | Bracket | 34712003 | Not Available |
| 5 | No Image | Lock Washer | 39049 | $0.00Read more |
| 6 | Not Available | Pad (2) | 31113011 | Not Available |
| 7 | Not Available | Low Voltage Cap | 23762511 | Not Available |
| 9 | Not Available | Terminal Bushing | 27724050 | Not Available |
| 10 | Not Available | Grommet | 38783013 | Not Available |
| 11 | Not Available | Switch Assm. | 28162014 | Not Available |
| 12 | Not Available | Wire Tie | 27479307 | Not Available |
| 13 | Not Available | Trans/Relay/Breaker PCB | 27135008 | Not Available |
| 14 | Not Available | Filter Retaining Knob | 23718206 | Not Available |
| 15 | Not Available | Filter Enclosure Assm. | 43611034 | Not Available |
| 16 | Not Available | Can Gasket | 38784069 | Not Available |
| 17 | Not Available | Can Latch (2) | 23715191 | Not Available |
| 18 | Not Available | Dust Container Assm. (w/Latches) - | 43641008 | Not Available |
| 18 | Not Available | Dust Container Assm. (w/Latches) - | 43641009 | Not Available |
| 18 | Not Available | 1 | S5569-01 | Not Available |
| 19 | Not Available | Screw (2) | 21774007 | Not Available |
| 20 | Not Available | Bezel - AAP | 35143001 | Not Available |
| 21 | Not Available | Intake Port | 25435010 | Not Available |
| 22 | Not Available | Filter | 38763006 | Not Available |
| 23 | Not Available | Deflector | 37191018 | Not Available |
| 24 | Not Available | Deflector Gasket | 38783011 | Not Available |
| 25 | Not Available | Motor Enclosure Assm. - S5567-011 | 42192067 | Not Available |
| 25 | Not Available | Motor Enclosure Assm. - S5569-011 | 42192071 | Not Available |
| 26 | Not Available | Air Baffle-S5567-011 | 38763018 | Not Available |
| 26 | Not Available | Air Baffle -S5569-011 | 38763019 | Not Available |
| 27 | Not Available | Top Cover Assm. | 42228003 | Not Available |
| 28 | Not Available | Self Tapping Screw (2) | 160508 | Not Available |
| 29 | Not Available | Carbon Brush (2) - S5567-011 | 27292001 | Not Available |
| 29 | Not Available | Carbon Brush (2) - S5569-011 | 27292002 | Not Available |
| 30 | Not Available | Speed Nut (3) | 21372203 | Not Available |
| 31 | Not Available | Exhaust Port | 31744024 | Not Available |
| 32 | Not Available | Motor Assm. - S5567-011 | 43577005 | Not Available |
| 32 | Not Available | Motor Assm. - S5569-011 | 43577014 | Not Available |
| 33 | Not Available | Motor Screen | 38763005 | Not Available |
| 34 | Not Available | Gasket | 38784050 | Not Available |
| 35 | Not Available | Motor Filter Mount Assm. | 41427027 | Not Available |
| 36 | Not Available | Inlet Valve | 43526001 | Not Available |
| 37 | Not Available | Spacer (2) | 31742008 | Not Available |
| 38 | Not Available | Screw | N/A | Not Available |
| 39 | Not Available | Lockwasher | 14856 | Not Available |
| 40 | Not Available | Hex Nut (2) | 15854EF | Not Available |
| 41 | Not Available | Screw | 21416010 | Not Available |
| 42 | Not Available | Spacer | 31733006 | Not Available |
| 43 | Not Available | Expansion Nut | 37351 | Not Available |
| 44 | Not Available | Spacer | 31324001 | Not Available |
| 45 | Not Available | PCB. Barrier | 34227012 | Not Available |
| 46 | Not Available | Terminal (2) | 162133 | Not Available |
| 47 | Not Available | Lead Wire Green | 46155016 | Not Available |
| 48 | Not Available | Screw | 36695 | Not Available |
| 49 | Not Available | Screw | 21447216 | Not Available |
| 50 | Not Available | Lock Nut | 21852107 | Not Available |
| 51 | Not Available | IInnssuullaattiinngg PPoodd ((33)) | 162130 | Not Available |
