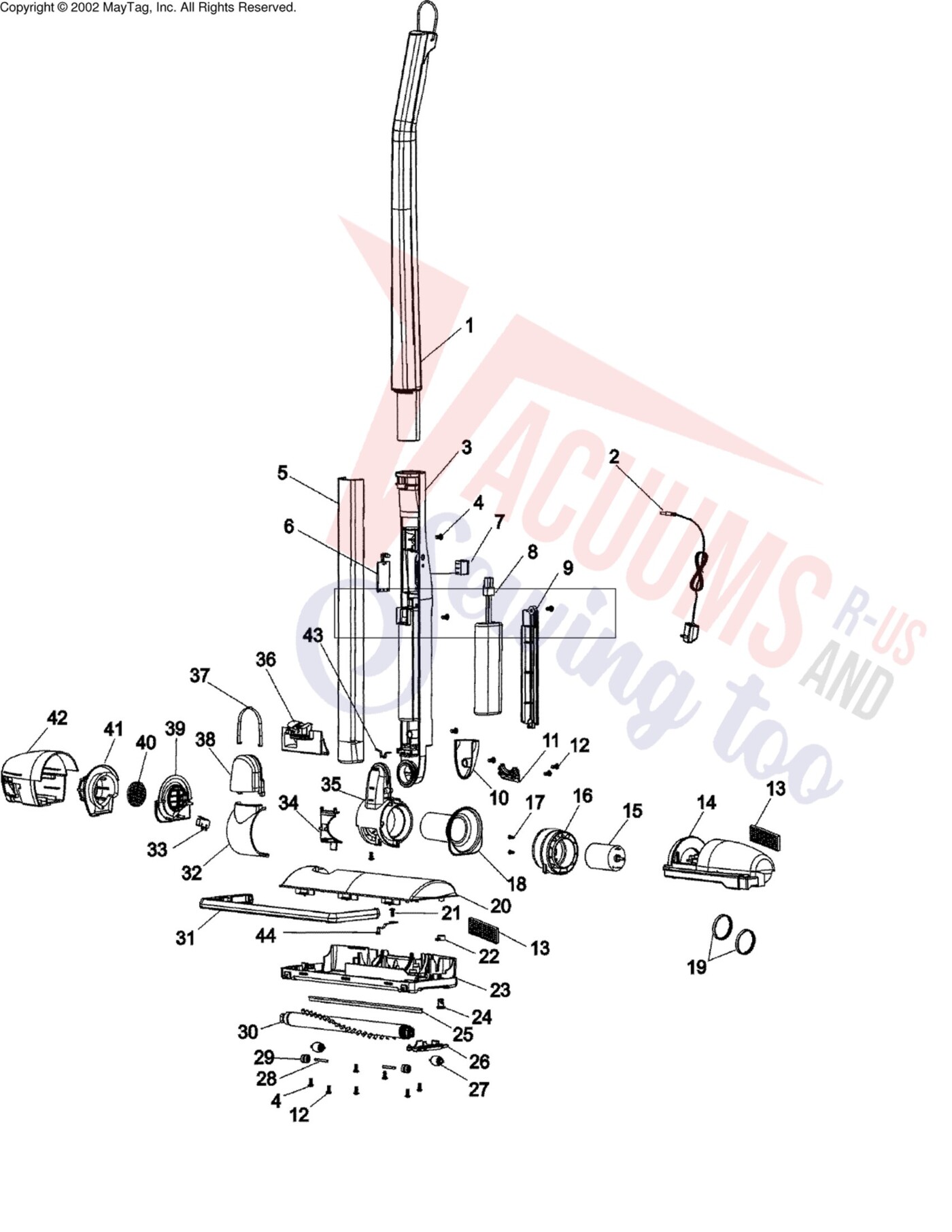

Schematic and parts book for Hoover S2105050, S2105_SLIDER . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | GRIP ASSY (UPPER HANDLE ASSY) | 93001477 | Not Available |
| 2 | Not Available | ADAPTER INPUT120V/OUTPUT 9V | 93001484 | Not Available |
| 3 | Not Available | HANDLE BASE | 93001472 | Not Available |
| 4 | Not Available | SCREW 5/8" LONG | 93001478 | Not Available |
| 5 | Not Available | HANDLE COVER | 93001473 | Not Available |
| 6 | Not Available | CONTROL BOARD PCB | 93001483 | Not Available |
| 7 | Not Available | ROCKER SWITCH | 93001482 | Not Available |
| 8 | Not Available | BATTERY ASSEM- 6 PACK W/LABEL | 93001443 | Not Available |
| 9 | Not Available | BATTERY COVER | 93001475 | Not Available |
| 10 | Not Available | TERMINAL COVER | 93001474 | Not Available |
| 11 | Not Available | JOINT HOLDER | 93001462 | Not Available |
| 12 | Not Available | SCREW 1/2" LONG | 93001479 | Not Available |
| 13 | Not Available | OUTLET FILTER (L) | 93001451 | Not Available |
| 14 | Not Available | UPPER CASE ASSY W/FILTER | 93001465 | Not Available |
| 15 | No Image | MOTOR, W/FAN Part Number: 93001456 for Hoover | 93001456 | $20.85Read more |
| 16 | Not Available | RELAY PULLEY ASSY | 93001455 | Not Available |
| 17 | Not Available | SCREW | 93001486 | Not Available |
| 18 | Not Available | FAN CASIN G M | 93001466 | Not Available |
| 19 | Not Available | TIMING BELT | 93001454 | Not Available |
| 20 | Not Available | NOZZLE COVER W/ SILK SCREEN | 93001469 | Not Available |
| 21 | Not Available | SCREW 3/8" LONG | 93001480 | Not Available |
| 22 | Not Available | ROCK PEACE B 3203V2DH9017 | 93001450 | Not Available |
| 23 | Not Available | LOWER CASE ASSY | 93001444 | Not Available |
| 24 | Not Available | ROCK PEACE A 3203V2DH9015 | 93001449 | Not Available |
| 25 | Not Available | RUBBER SQUEEGEE | 93001452 | Not Available |
| 26 | Not Available | LOWER CASE COVER | 93001453 | Not Available |
| 27 | Not Available | REAR ROLLER SHAFT | 93001448 | Not Available |
| 27 | Not Available | ROLLER (R) | 93001446 | Not Available |
| 28 | Not Available | ROLLER SHAFT | 93001447 | Not Available |
| 29 | Not Available | ROLLER (F) | 93001445 | Not Available |
| 30 | Not Available | AGITATOR ASSEMBLY | 93001457 | Not Available |
| 31 | Not Available | BUMPER | 93001458 | Not Available |
| 32 | Not Available | CASING COVER F | 93001460 | Not Available |
| 33 | Not Available | MICRO SWITCH ASSY | 93001487 | Not Available |
| 34 | Not Available | CORD HOLDER | 93001463 | Not Available |
| 35 | No Image | HOUSING, MOTOR 2105 Part Number: 93001459 for Hoover | 93001459 | $4.26Read more |
| 36 | No Image | NOZZLE, W/KNOB S2105 Part Number: 93001468 for Hoover | 93001468 | $4.40Read more |
| 37 | Not Available | STOPPER BELT | 93001464 | Not Available |
| 38 | Not Available | CASING COVER R | 93001461 | Not Available |
| 39 | Not Available | FAN CASING F ASSY W/FILTER | 93001467 | Not Available |
| 40 | Not Available | INLET FILTER | 93001481 | Not Available |
| 41 | Not Available | FILTER ASSY | 93001471 | Not Available |
| 42 | No Image | DIRT CUP, STICK VAC S2105 Part Number: 93001470 for Hoover | 93001470 | $5.50Read more |
| 43 | Not Available | STOPPER | 93001476 | Not Available |
| 44 | Not Available | SPRING | 93001485 | Not Available |
| 45 | Not Available | MANUAL OWNERS | 93001442 | Not Available |
