Schematic and parts book for hoover H3060 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

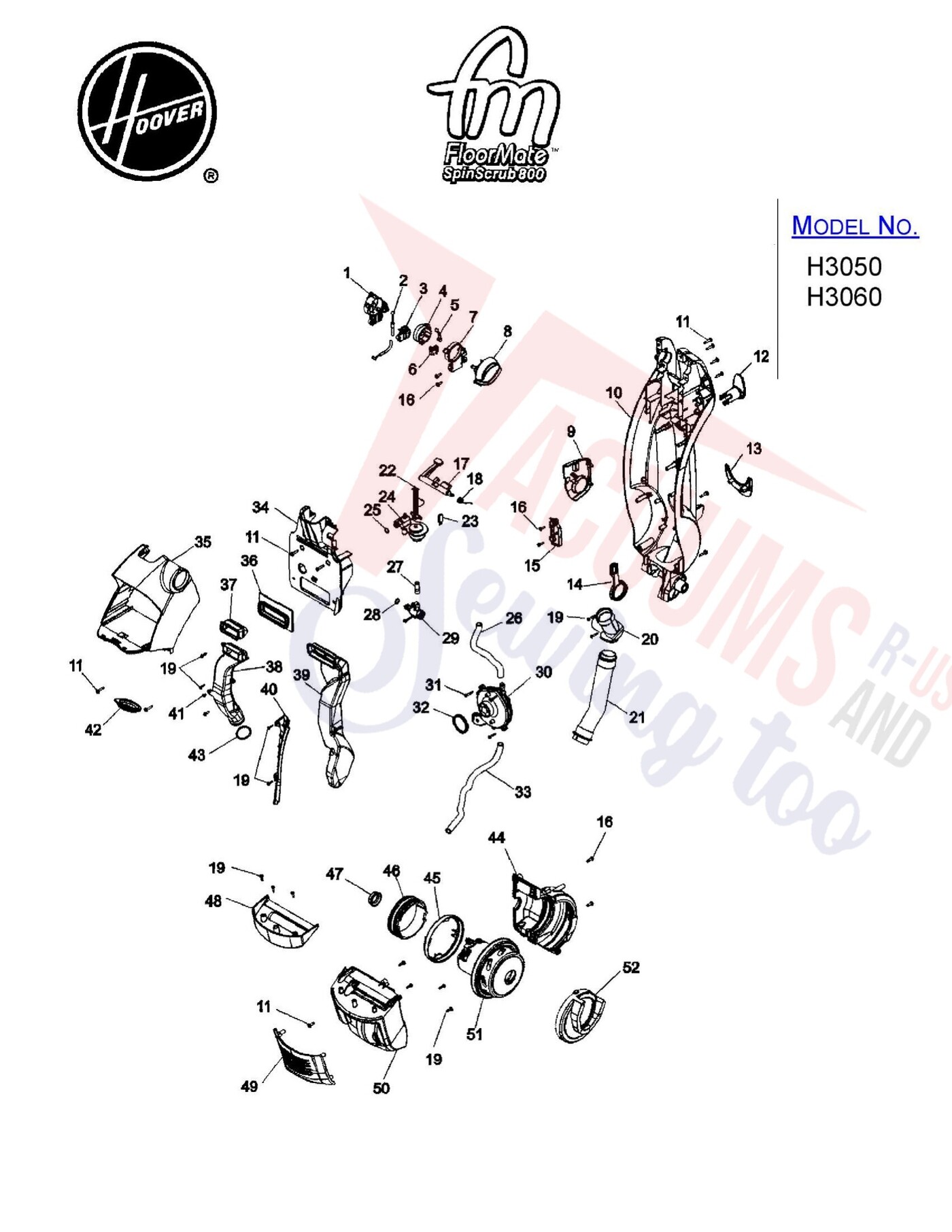

| 1 | Not Available | BEARING - MODE CONTROL RIGHT | 93001119 | Not Available |
| 2 | Not Available | CABLE - MODE CONTROL | 93001120 | Not Available |
| 2 | Not Available | CABLE RETAINER - FOOT | 93002293 | Not Available |
| 3 | Not Available | CABLE RETAINER | 93001136 | Not Available |
| 4 | Not Available | ACTUATOR - MODE CONTROL | 93001121 | Not Available |
| 5 | No Image | SPRING, MODE CONTROL Part Number: 93001122 for Hoover | 93001122 | $1.03Read more |
| 6 | Not Available | SWITCH - MODE CONTROL | 93001135 | Not Available |
| 7 | Not Available | BEARING - MODE CONTROL LEFT | 93001123 | Not Available |
| 8 | Not Available | KNOB - MODE CONTROL MYSTIC LIME GREEN | 59178671 | Not Available |
| 8 | Not Available | KNOB - MODE CONTROL ALASKAN GREEN | 93001124 | Not Available |
| 9 | Not Available | TOOL DOOR | 93002029 | Not Available |
| 9 | Not Available | TOOL DOOR | 93001132 | Not Available |
| 9 | Not Available | TOOL DOOR | 93001133 | Not Available |
| 10 | Not Available | TANK HOUSING | 93001128 | Not Available |
| 11 | Not Available | SCREW #8 X 12-3/4" | 93001736 | Not Available |
| 12 | Not Available | UPPER CORD WRAP - ARCTIC WHITE | 93001130 | Not Available |
| 13 | Not Available | LOWER CORD HOOK - ARCTIC WHITE | 93001131 | Not Available |
| 14 |  | SEAL, TUBE PORT Part Number: 93001164 for Hoover | 93001164 | $2.26Read more |
| 15 | Not Available | CORD RETAINER | 93001127 | Not Available |
| 16 | No Image | SCREW, MODE CONTROL Part Number: 93001733 for Hoover | 93001733 | $0.94Read more |
| 17 | Not Available | LATCH - UPPER HANDLE MYSTIC LIME GREEN | 59178667 | Not Available |
| 17 | Not Available | LATCH - UPPER HANDLE ALASKAN GREEN | 93001156 | Not Available |
| 18 | Not Available | SPRING | 93001159 | Not Available |
| 19 | Not Available | SCREW #6 X 10-1/2" | 93001734 | Not Available |
| 20 | Not Available | LOWER SUCTION DUCT - ARCTIC WHITE | 93001172 | Not Available |
| 21 | Not Available | HOSE ASSEMBLY | 93001191 | Not Available |
| 22 | Not Available | CONTROL ROD - LOWER | 93001161 | Not Available |
| 23 |  | SWITCH, RESET FLOORMATE Part Number: 93001160 for Hoover | 93001160 | $5.30Read more |
| 24 | Not Available | RESERVOIR ASSEMBLY | 93001162 | Not Available |
| 25 | Not Available | O-RING - RESERVOIR | 93001155 | Not Available |
| 26 | Not Available | TUBING - PUMP | 93001134 | Not Available |
| 27 | Not Available | TUBING - QUICK DISCONNECT | 93001169 | Not Available |
| 28 | Not Available | O-RING | 93001171 | Not Available |
| 29 | Not Available | QUICK DISCONNECT | 93001170 | Not Available |
| 30 | Not Available | PUMP | 93001163 | Not Available |
| 31 | Not Available | SCREW #6 X 10-1/2" | 93001734 | Not Available |
| 32 | No Image | Gasket, Circular Gray Turbine Pump Duct Seal H3060 Part Number: 93001168 for Hoover | 93001168 | $1.18Read more |
| 33 | Not Available | TUBING - 28" | 93001165 | Not Available |
| 34 | Not Available | HANDLE RETAINER | 93001154 | Not Available |
| 35 | Not Available | CARRY HANDLE - MYSTIC LIME GREEN | 59178665 | Not Available |
| 35 | Not Available | CARRY HANDLE - ARCTIC WHITE | 93001176 | Not Available |
| 36 | Not Available | SEAL - SUCTION DUCT | 93001174 | Not Available |
| 37 | Not Available | SEAL - RECOVERY DUCT | 93001175 | Not Available |
| 38 | Not Available | RECOVERY DUCT | 93002026 | Not Available |
| 39 | Not Available | SUCTION DUCT | 93001167 | Not Available |
| 40 | Not Available | CORD COVER - TANK HOUSING | 93001166 | Not Available |
| 41 | No Image | SCREW, #6 X 24 3/8 Part Number: 93001735 for Hoover | 93001735 | $1.12Read more |
| 42 | Not Available | SEAL | 93001743 | Not Available |
| 43 | Not Available | O-RING | 93001202 | Not Available |
| 44 | Not Available | MOTOR COVER - REAR ARCTIC WHITE | 93001173 | Not Available |
| 45 | Not Available | MOTOR SEAL RETAINER | 93001186 | Not Available |
| 46 | Not Available | MOTOR MOUNT | 93001185 | Not Available |
| 47 | Not Available | SEAL - MOTOR END BEARINGS | 93001184 | Not Available |
| 48 | Not Available | MOTOR COVER CAP - MYSTIC LIME GREEN | 59178697 | Not Available |
| 48 | Not Available | MOTOR COVER CAP - ALASKAN GREEN | 59178155 | Not Available |
| 49 | Not Available | MOTOR COVER VENT - ARCTIC WHITE | 93001194 | Not Available |
| 50 | Not Available | FRONT MOTOR COVER - ARCTIC WHITE | 93001193 | Not Available |
| 51 | Not Available | MOTOR ASSEMBLY | 93001828 | Not Available |
| 52 | Not Available | SEAL - MOTOR FAN | 93001190 | Not Available |
| 52 | Not Available | ATTACHMENT CORD | 93001203 | Not Available |
| # | Part image | Description | SKU | Price |

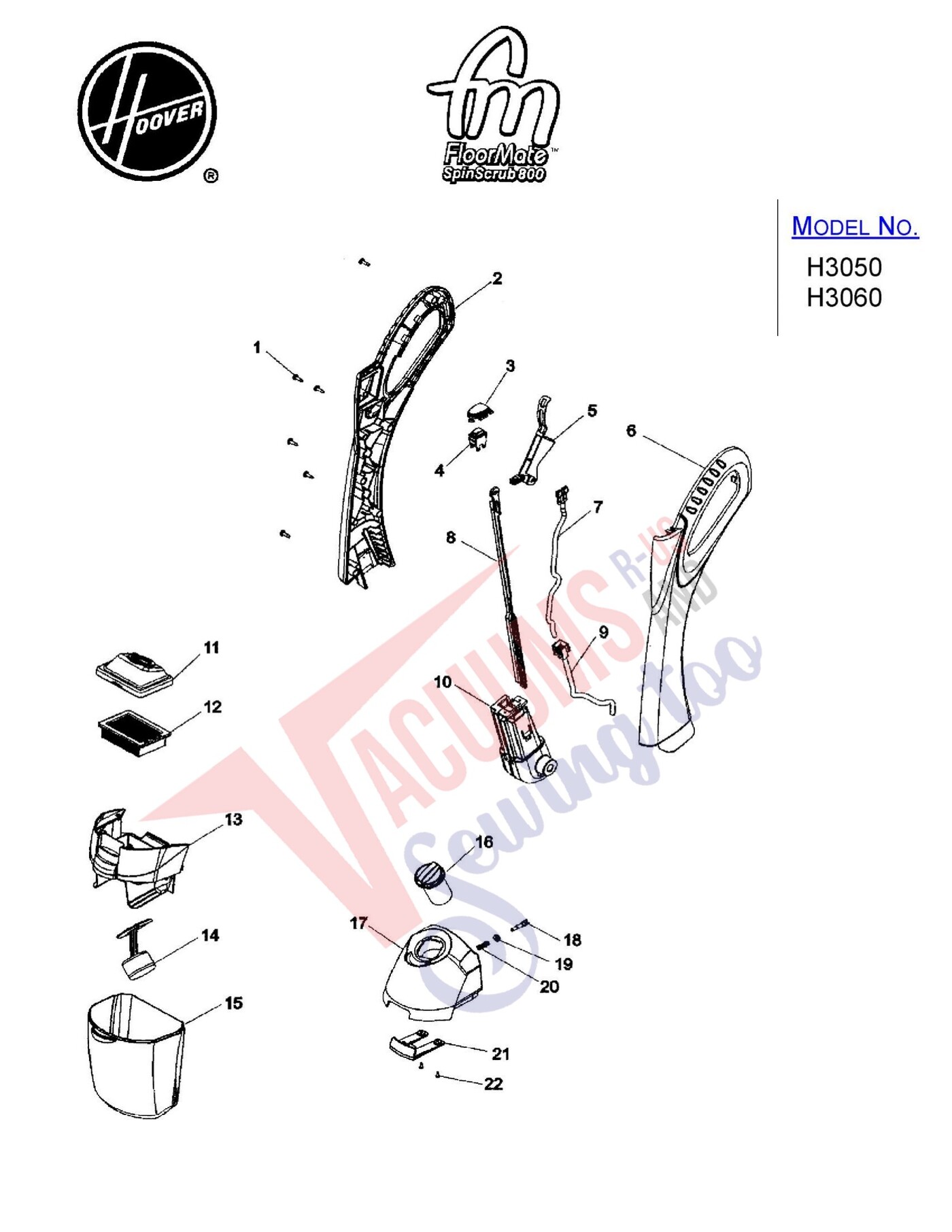

| 1 | No Image | SCREW, MODE CONTROL Part Number: 93001733 for Hoover | 93001733 | $0.94Read more |
| 2 | Not Available | UPPER HANDLE - RIGHT MYSTIC LIME | 59178703 | Not Available |
| 2 | Not Available | UPPER HANDLE - RIGHT ALASKAN GREEN | 93001138 | Not Available |
| 2 |  | Upper Handle Rh Blue For: hoover | 59178565 | $16.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | SWITCH BOOT - ALASKAN GREEN | 93001111 | Not Available |
| 2 | Not Available | SWITCH BOOT - CRYSTAL BLUE | 93001112 | Not Available |
| 4 | Not Available | SWITCH | 93001114 | Not Available |
| 4 | Not Available | GROMMET - SWITCH | 93001968 | Not Available |
| 5 | Not Available | CONTROL LEVER - ARCTIC WHITE | 93001109 | Not Available |
| 6 | Not Available | UPPER HANDLE - LEFT MYSTIC LIME GREEN | 59178702 | Not Available |
| 6 | Not Available | UPPER HANDLE - LEFT ALASKAN GREEN | 93001116 | Not Available |
| 6 |  | Upper Handle Lh Blue For: hoover | 59178564 | $16.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | WIRING HARNESS | 93001115 | Not Available |
| 8 | Not Available | CONTROL ROD UPPER | 93001110 | Not Available |
| 9 | Not Available | WIRING HARNESS | 93001141 | Not Available |
| 10 | Not Available | UPPER HANDLE CORE ASSEMBLY - ARCTIC WHITE | 93001137 | Not Available |
| 11 | Not Available | FILTER LID - CLEAR | 93001179 | Not Available |
| 12 |  | Filter, Floormate H3044/H3040/H3045 Recovery Tank Part Number: 40112050 for Hoover | 40112050 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | RECOVERY TANK LID ASSEMBLY - MYSTIC LIME SUB: 93001180 - ALASKAN GREEN | 93002036 | Not Available |
| 13 | Not Available | RECOVERY TANK LID ASSEMBLY - ALASKAN GREEN | 93001180 | Not Available |
| 13 | Not Available | RECOVERY TANK LID ASSEMBLY - CLEAR | 59178875 | Not Available |
| 14 | Not Available | FLOAT - HINGED SIDE | 93001183 | Not Available |
| 14 | Not Available | FLOAT - HINGED FRONT | 59178801 | Not Available |
| 15 | Not Available | RECOVERY TANK - MYSTIC LIME GREEN | 93002039 | Not Available |
| 15 | Not Available | RECOVERY TANK - ALASKAN GREEN | 93001195 | Not Available |
| 15 | Not Available | RECOVERY TANK - CRYSTAL BLUE | 93001196 | Not Available |
| 16 | Not Available | SOLUTION TANK CAP ASSEMEMBLY - MYSTIC lm | 93002038 | Not Available |
| 16 | Not Available | SOLUTION TANK CAP ASSEMEMBLY - ALASKAN | 93001142 | Not Available |
| 16 | Not Available | SOLUTION TANK CAP ASSEMEMBLY - CRYSTAL | 93001143 | Not Available |
| 17 | Not Available | SOLUTION TANK ASSEMBLY | 93001145 | Not Available |
| 17 |  | ***USE H-300107037 TANK, :(SOLUTION CRYSTAL BLUE Part Number: 93001146 for Hoover | 93001146 | $35.05Read more |
| 18 | Not Available | VALVE STEM | 93001148 | Not Available |
| 19 | Not Available | VALVE SEAL | 93001149 | Not Available |
| 20 | No Image | SPRING, VALVE FLOOR MATE H3030 Part Number: 93001150 for Hoover | 93001150 | $1.18Read more |
| 21 | Not Available | LATCH - SOLUTION TANK | 93002040 | Not Available |
| 21 | Not Available | LATCH - SOLUTION TANK | 93001151 | Not Available |
| 22 | No Image | SCREW, #6 X 24 3/8 Part Number: 93001735 for Hoover | 93001735 | $1.12Read more |
| # | Part image | Description | SKU | Price |

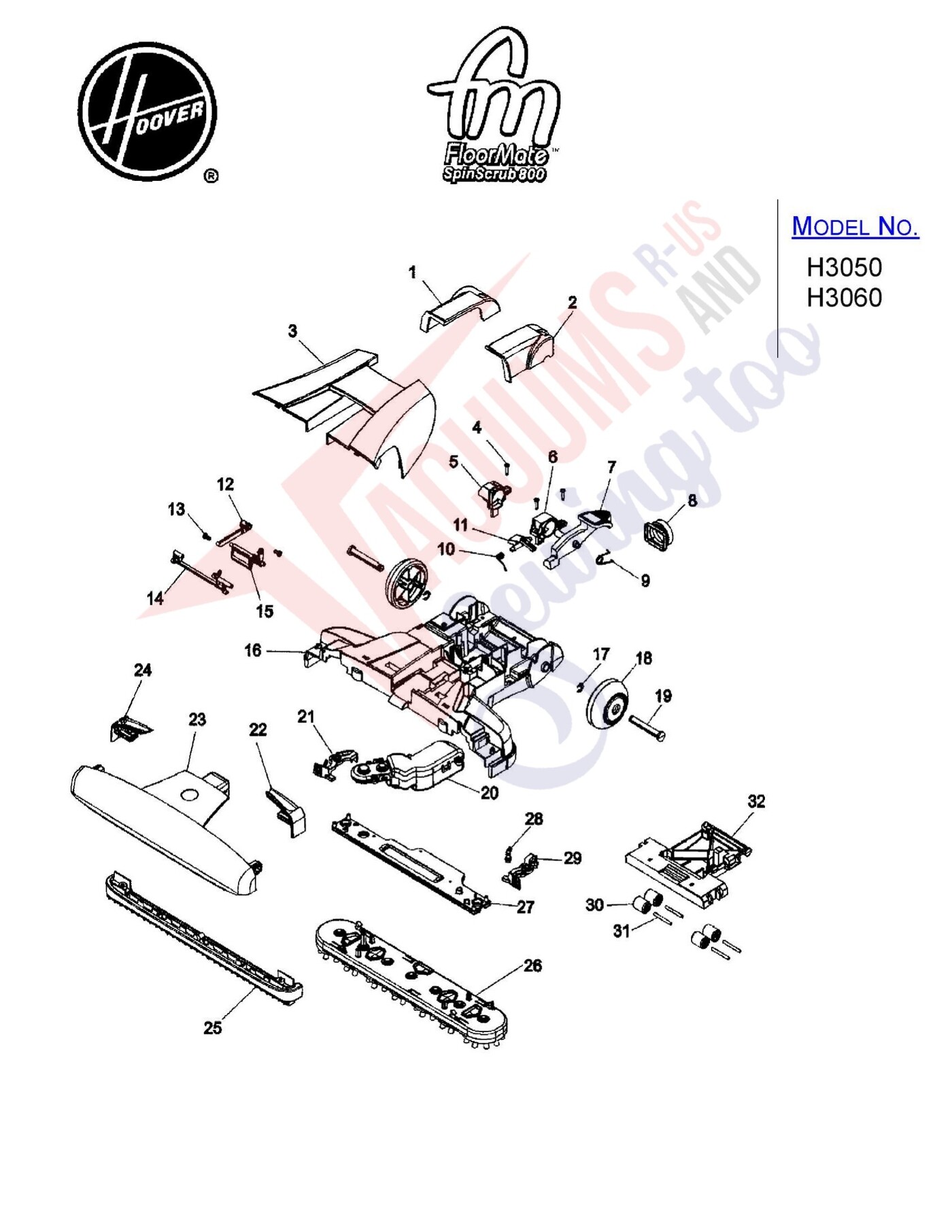

| 1 | Not Available | HOOD REAR COVER - RIGHT MYSTIC LIME | 59178718 | Not Available |
| 1 | Not Available | HOOD REAR COVER - RIGHT ALASKAN GREEN | 93001040 | Not Available |
| 1 | Not Available | HOOD REAR COVER - RIGHT CRYSTAL BLUE | 93001041 | Not Available |
| 2 | Not Available | HOOD REAR COVER - LEFT MYSTIC LIME GREEN | 59178716 | Not Available |
| 2 | Not Available | HOOD REAR COVER - LEFT ALASKAN GREEN | 93001037 | Not Available |
| 2 | Not Available | HOOD REAR COVER - LEFT CRYSTAL BLUE | 93001038 | Not Available |
| 3 | Not Available | HOOD / NOZZLE COVER ARCTIC WHITE | 93001058 | Not Available |
| 3 | Not Available | HOOD / NOZZLE COVER ARCTIC WHITE | 93001057 | Not Available |
| 4 | Not Available | SCREW #8 X 12-3/4" | 93001736 | Not Available |
| 5 | Not Available | TRUNNION COVER - RIGHT | 93001056 | Not Available |
| 6 | Not Available | TRUNNION COVER - LEFT | 93001055 | Not Available |
| 7 | Not Available | HANDLE RELEASE PEDAL - MYSTIC LIME | 59178682 | Not Available |
| 7 |  | PEDAL, HANDLE RELEASE H3030 Part Number: 93001046 for Hoover | 93001046 | $3.79Read more |
| 8 | Not Available | GROMMET - WATER CHANNEL MYSTIC LIME | 59178685 | Not Available |
| 8 | Not Available | GROMMET - WATER CHANNEL ALASKAN GREEN | 93001052 | Not Available |
| 9 | No Image | SPRING, HANDLE RELEASE H3030 H3060 Part Number: 93001049 for Hoover | 93001049 | $1.02Read more |
| 10 | Not Available | SPRING - HANDLE RELEASE | 93001051 | Not Available |
| 11 | Not Available | HANDLE RELEASE | 93001050 | Not Available |
| 12 | Not Available | LIFTER LINK | 93001068 | Not Available |
| 13 | Not Available | FASTENER | 93001066 | Not Available |
| 14 | Not Available | CAM ARM - BRUSH BLOCK | 93002049 | Not Available |
| 14 | Not Available | CAM ARM - BRUSH BLOCK | 93001069 | Not Available |
| 15 | Not Available | CAM ARM - FRONT WHEEL CARRIAGE | 93001067 | Not Available |
| 16 | Not Available | MAIN BODY / NOZZLE base - MYSTIC LIME | 93002050 | Not Available |
| 16 | Not Available | MAIN BODY / NOZZLE BASE - ALASKAN GREEN | 93001043 | Not Available |
| 16 | Not Available | MAIN BODY / NOZZLE BASE - CRYSTAL BLUE | 93001044 | Not Available |
| 17 | Not Available | LOCK RING | 59177088 | Not Available |
| 18 | Not Available | REAR WHEEL ASSEMBLY - MYSTIC LIME GREEN | 59178684 | Not Available |
| 18 | Not Available | REAR WHEEL ASSEMBLY - ALASKAN GREEN | 93001060 | Not Available |
| 18 | Not Available | REAR WHEEL ASSEMBLY - CRYSTAL BLUE | 93001061 | Not Available |
| 19 | Not Available | REAR WHEEL AXLE | 93001059 | Not Available |
| 20 | Not Available | BRUSH MOTOR ASSEMBLY - HIGH TEMP RATED | 302238004 | Not Available |
| 21 | Not Available | LATCH - BRUSH BLOCK RIGHT MYSTIC LIME GREEN | 59178679 | Not Available |
| 21 | Not Available | LATCH - BRUSH BLOCK RIGHT ALASKAN GREEN | 93001080 | Not Available |
| 21 | Not Available | LATCH - BRUSH BLOCK RIGHT CRYSTAL BLUE | 59178518 | Not Available |
| 22 | Not Available | NOZZLE LATCH - LEFT MYSTIC LIME GREEN | 93002053 | Not Available |
| 22 | Not Available | NOZZLE LATCH - LEFT ALASKAN GREEN | 93001070 | Not Available |
| 22 | Not Available | NOZZLE LATCH - LEFT CRYSTAL BLUE | 93001071 | Not Available |
| 23 | Not Available | NOZZLE - MYSTIC LIME GREEN 6 BRUSH SUB: 59178852 (ALASKAN GREEN) OR 410021001 (CLEAR / SILVER) | 93002054 | Not Available |
| 23 | Not Available | NOZZLE - ALASKAN GREEN 7 BRUSH ORDER 59178924 - CRYSTAL BLUE | 93001076 | Not Available |
| 23 | Not Available | NOZZLE - CRYSTAL BLUE 7 BRUSH | 59178924 | Not Available |
| 24 | Not Available | NOZZLE LATCH - RIGHT MYSTIC LIME GREEN | 93002055 | Not Available |
| 24 | Not Available | NOZZLE LATCH - RIGHT ALASKAN GREEN | 93001073 | Not Available |
| 24 | Not Available | NOZZLE LATCH - RIGHT CRYSTAL BLUE | 93001074 | Not Available |
| 25 | Not Available | SQUEEGEE - MYSTIC LIME GREEN ORDER 93001094 OR 93001095 | 93002056 | Not Available |
| 25 | Not Available | SQUEEGEE - ALASKAN GREEN | 93001094 | Not Available |
| 25 | Not Available | SQUEEGEE - CRYSTAL BLUE | 93001095 | Not Available |
| 26 | Not Available | BRUSH BLOCK ASSEMBLY - 6 BRUSH | 93001091 | Not Available |
| 26 | Not Available | BRUSH BLOCK ASSEMBLY - 7 BRUSH | 93001090 | Not Available |
| 26 | Not Available | GROUT BRUSH BLOCK ASSEMBLY | 93001093 | Not Available |
| 26 | Not Available | GROUT BRUSH BLOCK ASSEMBLY | 93001092 | Not Available |
| 27 | Not Available | DISTRIBUTOR ASSEMBLY - MYSTIC LIME | 93002057 | Not Available |
| 27 | Not Available | DISTRIBUTOR ASSEMBLY - ALASKAN GREEN | 93001083 | Not Available |
| 27 | Not Available | DISTRIBUTOR ASSEMBLY - CRYSTAL BLUE | 93001084 | Not Available |
| 28 | Not Available | ELBOW CONNECTION | 93001086 | Not Available |
| 29 | Not Available | LATCH - BRUSH BLOCK LEFT MYSTIC LIME | 59178678 | Not Available |
| 29 | Not Available | LATCH - BRUSH BLOCK LEFT ALASKAN GREEN | 93001087 | Not Available |
| 29 | Not Available | LATCH - BRUSH BLOCK LEFT CRYSTAL BLUE | 93001088 | Not Available |
| 30 | Not Available | FRONT WHEEL | 93001064 | Not Available |
| 31 | Not Available | FRONT WHEEL SHAFT | 93001065 | Not Available |
| 32 | Not Available | FRONT WHEEL ASSEMBLY | 93001063 | Not Available |
| 32 | Not Available | SPRING - SOLUTION TANK LATCH | 93001976 | Not Available |
| # | Part image | Description | SKU | Price |

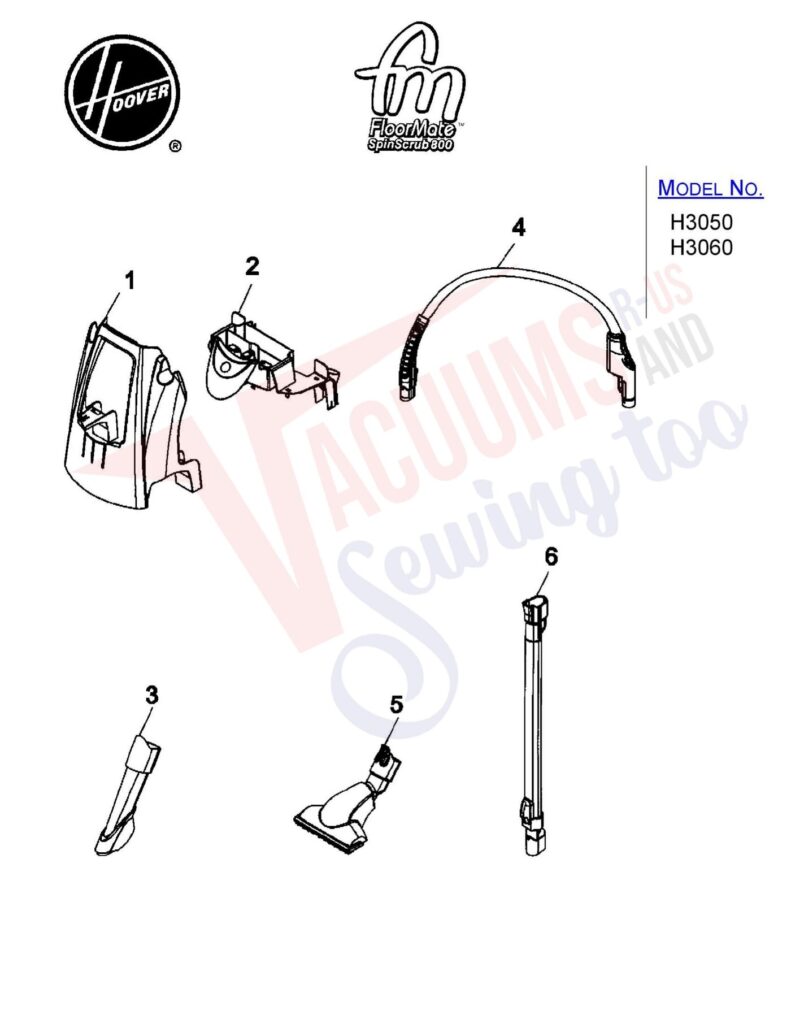

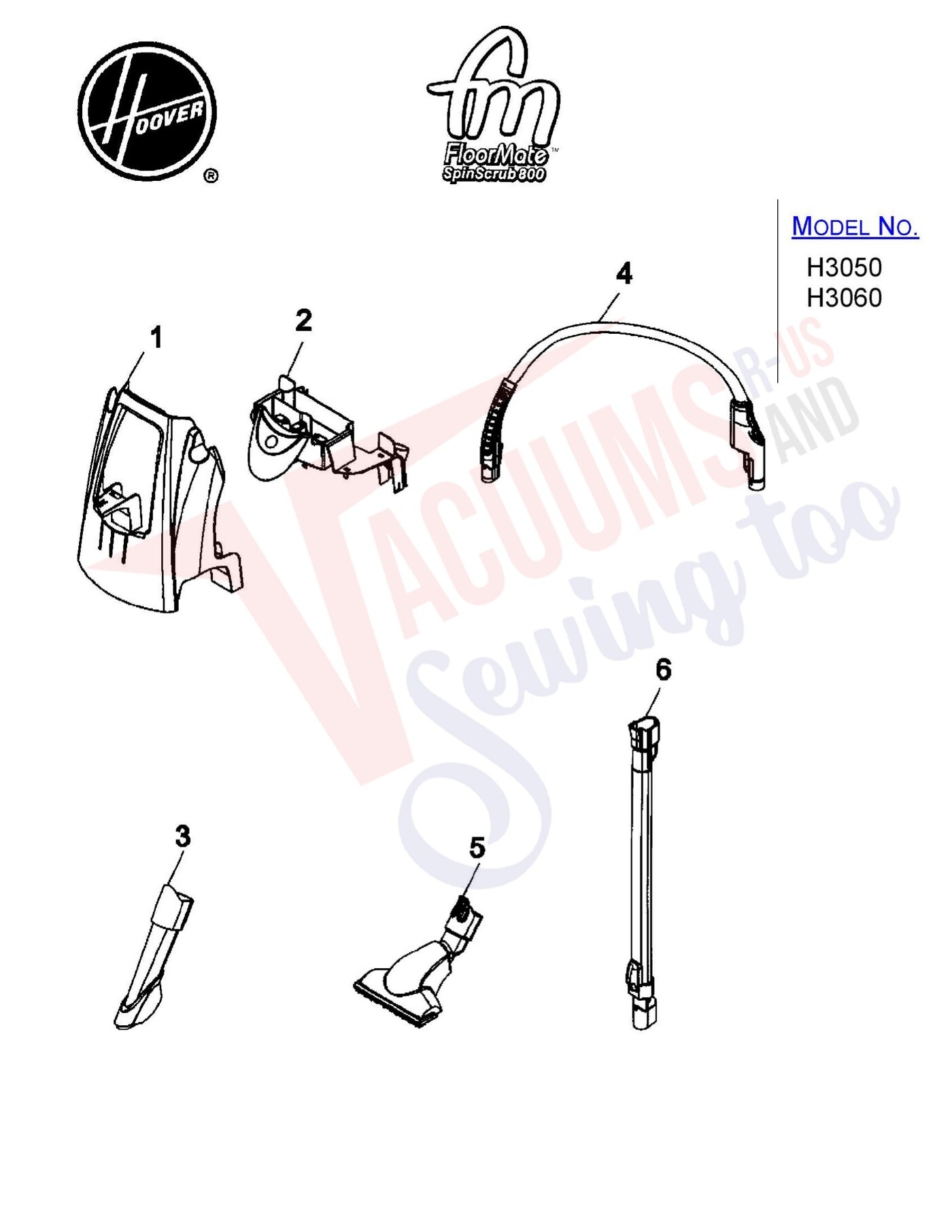

| 1 | Not Available | TOOL / HOSE CADDY - MYSTIC LIME GREEN | 93002041 | Not Available |
| 1 | Not Available | TOOL / HOSE CADDY - ALASKAN GREEN | 93001097 | Not Available |
| 1 | Not Available | TOOL / HOSE CADDY - CRYSTAL BLUE | 93001098 | Not Available |
| 1 | Not Available | TOOL / HOSE CADDY INSERT | 93001099 | Not Available |
| 3 | Not Available | GROUT TOOL ASSEMBLY WITH BRUSH - MYSTIC LIME GREEN ORDER 93001103 | 93002355 | Not Available |
| 3 | Not Available | GROUT TOOL ASSEMBLY WITH BRUSH - ALASKAN GREEN | 93001103 | Not Available |
| 3 | Not Available | GROUT TOOL ASSEMBLY WITH BRUSH - CRYSTAL BLUE | 93001104 | Not Available |
| 4 | Not Available | HOSE / GRIP ASSEMBLY - MYSTIC LIME | 93002043 | Not Available |
| 4 | Not Available | HOSE / GRIP ASSEMBLY - ALASKAN GREEN | 93001101 | Not Available |
| 4 | Not Available | HOSE / GRIP ASSEMBLY - CRYSTAL BLUE | 93001102 | Not Available |
| 5 | Not Available | SQUEEGEE TOOL ASSEMBLY - MYSTIC LIME GREEN | 93002044 | Not Available |
| 5 | Not Available | SQUEEGEE TOOL ASSEMBLY - ALASKAN GREEN | 93001105 | Not Available |
| 5 | Not Available | SQUEEGEE TOOL ASSEMBLY - CRYSTAL BLUE | 93001106 | Not Available |
| 5 | Not Available | EXTENSION TUBE ASSEMBLY - ALASKAN GREEN | 93001107 | Not Available |
| 5 | Not Available | EXTENSION TUBE ASSEMBLY - CRYSTAL BLUE | 93001108 | Not Available |
Report errors on this page HERE
