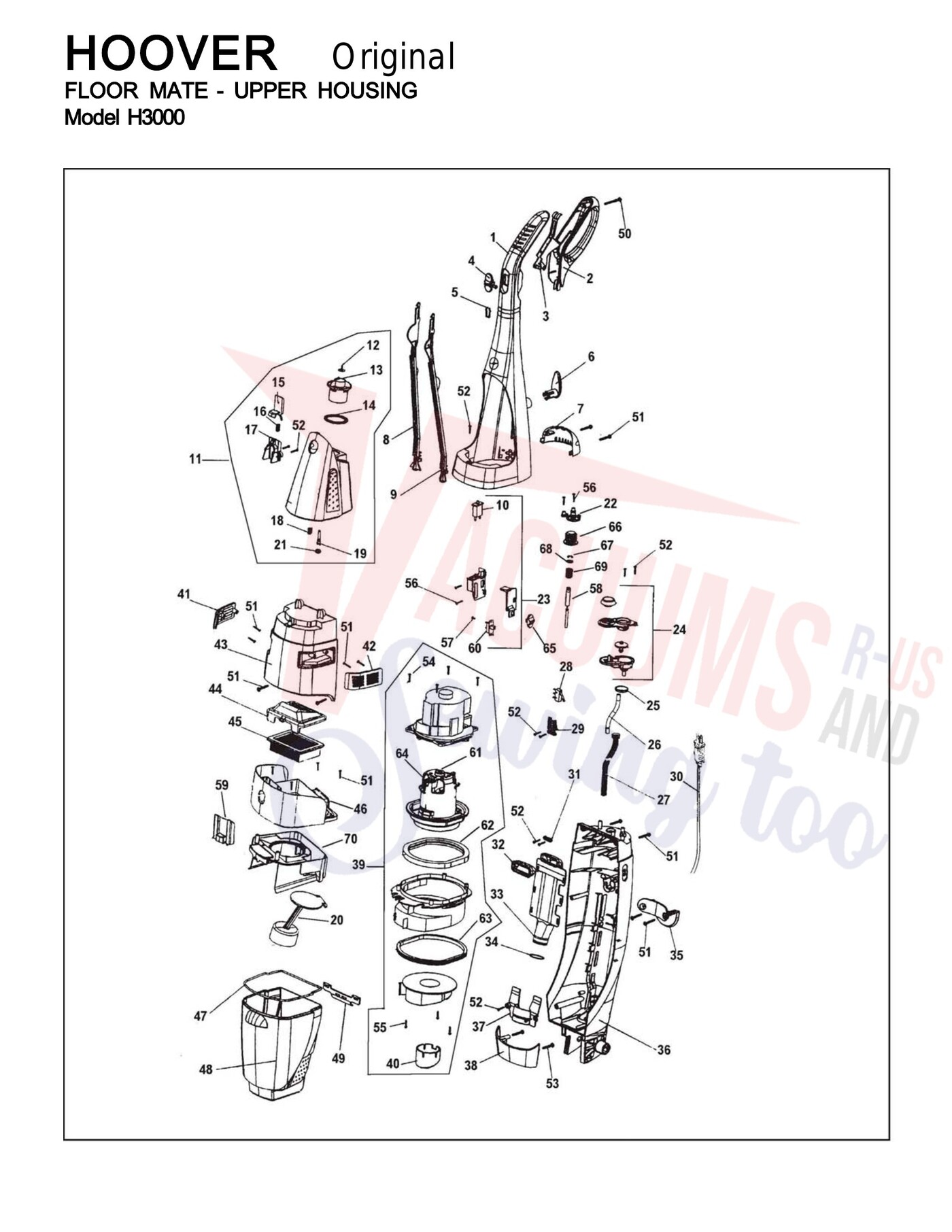

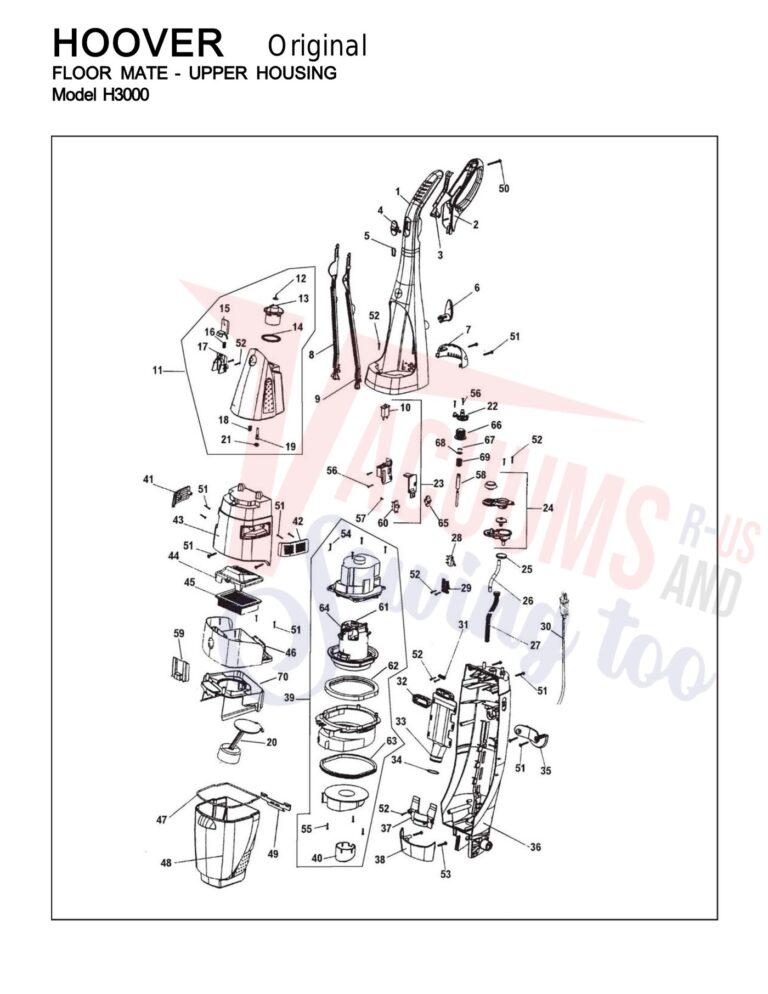

Schematic and parts book for Hoover H3000 Floor Mate. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Bare Floor Cleaner - 32 Oz. | 40303033 | Not Available |
| XX | Not Available | Hard wood Floor Cleaner - 32 Oz. | 40303034 | Not Available |
| XX | Not Available | Owner Manual | 59177002 | Not Available |
| 1 | Not Available | Upper Handle | 59177055 | Not Available |
| 2 | Not Available | Handle Lever Guard | 59177056 | Not Available |
| 3 | Not Available | Control Lever | 59177058 | Not Available |
| 4 | Not Available | Brush Control Button | 59177061 | Not Available |
| 5 | No Image | SPRING, BRUSH CONTROL BUTTON H3000 Part Number: 59177062 for Hoover | 59177062 | $1.96Read more |
| 6 | Not Available | Cord Wrap - Upper | 59177059 | Not Available |
| 7 | Not Available | Carrying Handle (also order item 47) | 59177063 | Not Available |
| 8 | Not Available | Upper Control Rod | 59177057 | Not Available |
| 9 | Not Available | Brush Control Rod | 59177060 | Not Available |
| 9 | Not Available | Brush Control Rod | 59177167 | Not Available |
| 10 | Not Available | Circuit Breaker | 59177049 | Not Available |
| 11 | Not Available | Solution Tank Assembly | 59177076 | Not Available |
| 12 | Not Available | Included with item 13 | N/A | Not Available |
| 13 | Not Available | Solution Tank Cap Assembly | 59177071 | Not Available |
| 14 | Not Available | Included with item 13 | N/A | Not Available |
| 15 | Not Available | Solution Tank Latch | 59177070 | Not Available |
| 16 | Not Available | Spring | 38312014 | Not Available |
| 17 | Not Available | Latch Retainer | 59177068 | Not Available |
| 18 | Not Available | Spring | 38312014 | Not Available |
| 19 | Not Available | Valve Stem | 38717009 | Not Available |
| 20 | Not Available | Float | 59177115 | Not Available |
| 21 | Not Available | Valve Seal | 38784061 | Not Available |
| 22 | Not Available | Brush Mount Spring Control | 59177113 | Not Available |
| 23 | Not Available | All In One Assembly | 59177072 | Not Available |
| 24 | Not Available | Reservoir Assembly | 59177075 | Not Available |
| 25 | Not Available | Reservoir Gasket (order key 24) | N/A | Not Available |
| 26 | Not Available | Solution Tube | 59177006 | Not Available |
| 27 | Not Available | Protector Jacket | 59177093 | Not Available |
| 28 | Not Available | Micro Switch Chemicals | 59177111 | Not Available |
| 29 | Not Available | Switch Cover | 59177016 | Not Available |
| 30 |  | CORD, 3-WIRE FLOOR MATE Part Number: 59177001 for Hoover | 59177001 | $40.72Read more |
| 31 | Not Available | Cord Clamp | 59177094 | Not Available |
| 32 | Not Available | Hose Sealing Gasket | 59177012 | Not Available |
| 33 | Not Available | Recovery Hose | 59177011 | Not Available |
| 34 | Not Available | O Ring | 59177015 | Not Available |
| 35 | Not Available | Cord Wrap - Lower | 59177007 | Not Available |
| 36 |  | HOUSING, MAIN LOWER H3012 Part Number: 59177005 for Hoover | 59177005 | $40.24Read more |
| 37 | Not Available | Duct Hose Mount | 59177014 | Not Available |
| 38 | Not Available | Tank Base | 59177008 | Not Available |
| 39 | Not Available | Motor Assembly - Also Includes 40 54 | 59177074 | Not Available |
| 40 | Not Available | Fan Chamber Gasket | 59177095 | Not Available |
| 41 | Not Available | Louver Cover - RH | 59177018 | Not Available |
| 42 | Not Available | Louver Cover - LH | 59177017 | Not Available |
| 43 | Not Available | Front Cover | 59177009 | Not Available |
| 44 | Not Available | Filter Lid | 59177096 | Not Available |
| 45 | Not Available | Filter Assembly | 59177051 | Not Available |
| 46 | Not Available | Recovery Tank Lid Without Gasket | 59177053 | Not Available |
| 47 | Not Available | Tank Lid Gasket | 59177097 | Not Available |
| 48 |  | TANK, RECOVERY H3000 Part Number: 59177050 for Hoover | 59177050 | $42.82Read more |
| 49 | Not Available | Recovery Tank Lid Lock | 59177098 | Not Available |
| 50 | Not Available | Screw (8x45) | 59177054 | Not Available |
| 51 | Not Available | Screw (M3.5x20) | 59177099 | Not Available |
| 52 | Not Available | Screw (M3.5x10 SS) | 59177100 | Not Available |
| 53 | Not Available | Screw (#8x30) | 59177101 | Not Available |
| 54 | Not Available | Screw (M3.5x10 Z) | 59177102 | Not Available |
| 55 | Not Available | Screw (M3.5x10 Z) | 59177103 | Not Available |
| 56 | Not Available | Screw (M3.5x17) | 59177104 | Not Available |
| 57 | Not Available | Screw (M2.6x5) | 59177105 | Not Available |
| 58 | Not Available | Cable Assembly | 59177029 | Not Available |
| 59 | Not Available | Recovery Tank Release Button | 59177052 | Not Available |
| 60 | Not Available | On Off Switch (also inc. with item 23) | 59177048 | Not Available |
| 61 | Not Available | Motor Rear Cushion | N/A | Not Available |
| 62 | Not Available | Motor Mount Insulator | 59177108 | Not Available |
| 63 | Not Available | Water Seal | 59177109 | Not Available |
| 64 | Not Available | Motor Brushes | 59177092 | Not Available |
| 65 | Not Available | Switch Button | 59177010 | Not Available |
| 66 | Not Available | Brush Control Cap | 59177046 | Not Available |
| 67 | Not Available | E Clip | 59177073 | Not Available |
| 68 | Not Available | Washer | 59177110 | Not Available |
| 69 | Not Available | Spring | 59177112 | Not Available |
| 70 | Not Available | Recovery Duct | 59177114 | Not Available |

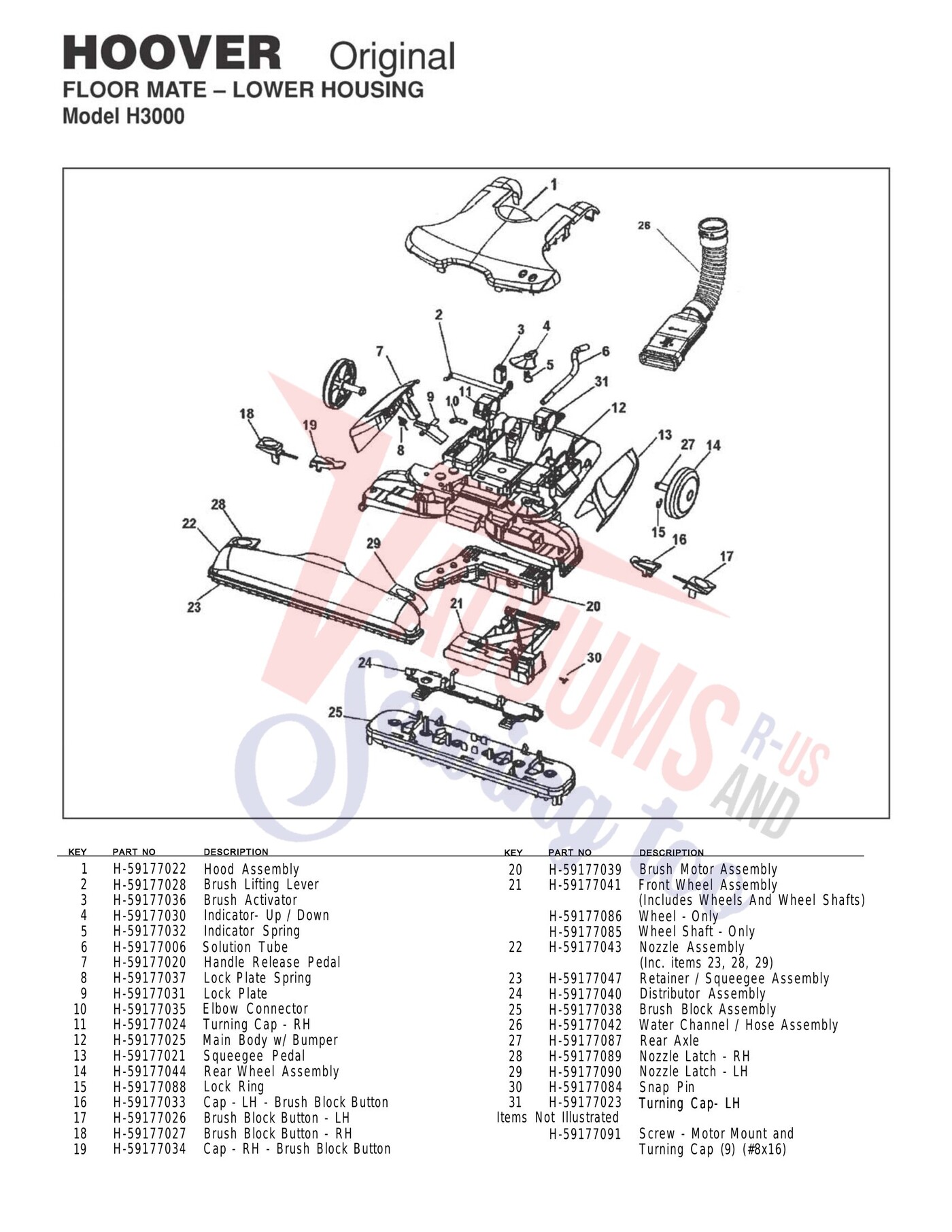

| # | Part image | Description | SKU | Price |
| XX | No Image | WHEEL, FRONT Part Number: 59177086 for Hoover | 59177086 | $9.71Read more |
| XX | Not Available | Wheel Shaft - Only | 59177085 | Not Available |
| XX | Not Available | Screw - Motor Mount and | 59177091 | Not Available |
| 1 | No Image | HOOD, FLOOR MATE H3000 Part Number: 59177022 for Hoover | 59177022 | $19.25Read more |
| 2 | Not Available | Brush Lifting Lever | 59177028 | Not Available |
| 3 | Not Available | Brush Activator (Includes Wheels And Wheel Shafts) | 59177036 | Not Available |
| 4 | Not Available | Indicator- Up / Down | 59177030 | Not Available |
| 5 | Not Available | Indicator Spring | 59177032 | Not Available |
| 6 | Not Available | Solution Tube | 59177006 | Not Available |
| 7 | Not Available | Handle Release Pedal (Inc. items 23 28 29) | 59177020 | Not Available |
| 8 |  | SPRING, LOCK PLATE Part Number: 59177037 for Hoover | 59177037 | $1.96Read more |
| 9 | Not Available | Lock Plate | 59177031 | Not Available |
| 10 | Not Available | Elbow Connector | 59177035 | Not Available |
| 11 | Not Available | Turning Cap - RH | 59177024 | Not Available |
| 12 | Not Available | Main Body w/ Bumper | 59177025 | Not Available |
| 13 |  | PEDAL, SQUEEGEE H3000 Part Number: 59177021 for Hoover | 59177021 | $11.58Read more |
| 14 | Not Available | Rear Wheel Assembly | 59177044 | Not Available |
| 15 | Not Available | Lock Ring | 59177088 | Not Available |
| 16 | Not Available | Cap - LH - Brush Block Button | 59177033 | Not Available |
| 17 | Not Available | Brush Block Button - LH | 59177026 | Not Available |
| 18 | Not Available | Brush Block Button - RH | 59177027 | Not Available |
| 19 | Not Available | Cap - RH - Brush Block Button Turning Cap (9) (#8x16) | 59177034 | Not Available |
| 20 |  | MOTOR, BRUSHROLL H3000 FLOORMATE Part Number: 59177039 for Hoover | 59177039 | $79.11Read more |
| 21 | Not Available | Front Wheel Assembly | 59177041 | Not Available |
| 22 | Not Available | Nozzle Assembly | 59177043 | Not Available |
| 23 | Not Available | Retainer / Squeegee Assembly | 59177047 | Not Available |
| 24 | Not Available | Distributor Assembly | 59177040 | Not Available |
| 25 | Not Available | Brush Block Assembly | 59177038 | Not Available |
| 26 | Not Available | Water Channel / Hose Assembly | 59177042 | Not Available |
| 27 | Not Available | Rear Axle | 59177087 | Not Available |
| 28 | Not Available | Nozzle Latch - RH | 59177089 | Not Available |
| 29 | Not Available | Nozzle Latch - LH | 59177090 | Not Available |
| 30 | Not Available | Snap Pin | 59177084 | Not Available |
| 31 | Not Available | Turning Cap- LH | 59177023 | Not Available |
