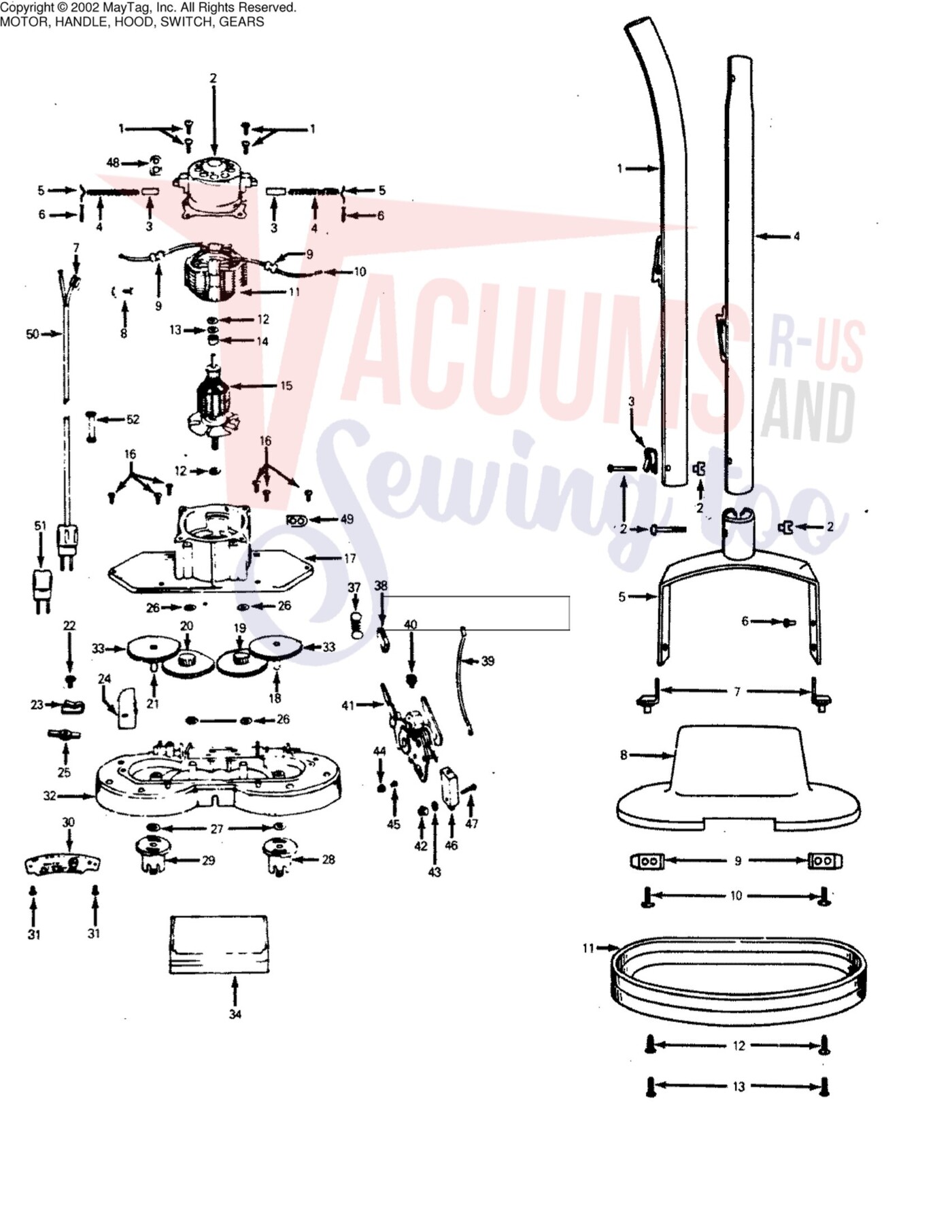

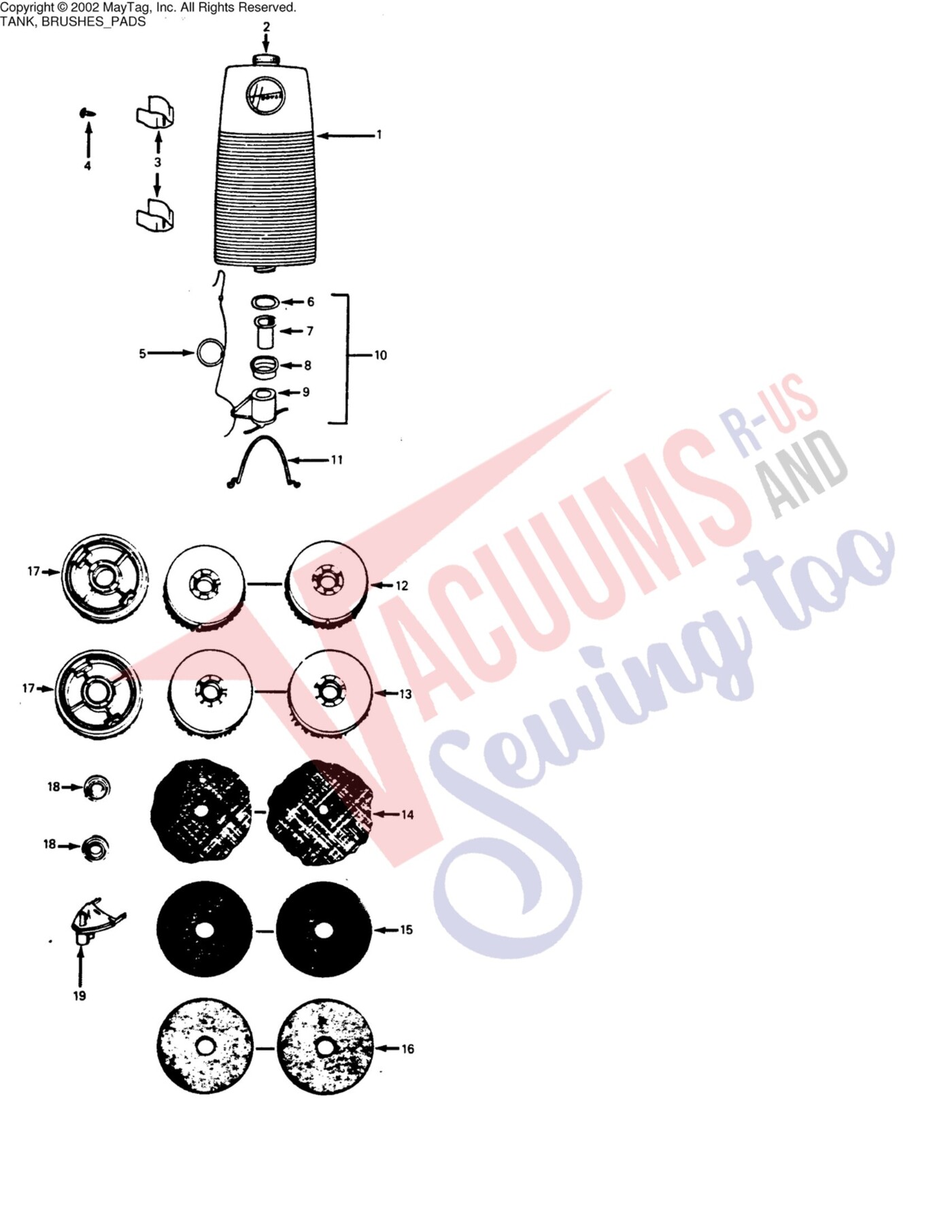

Schematic and parts book for Hoover 5140 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASSY-UPPER-51 | 049137LL | Not Available |
| 1 | Not Available | SCREW | 017001FW | Not Available |
| 2 | Not Available | MOTOR CAP ASSEMBLY | 42197002 | Not Available |
| 4 | Not Available | HANDLE - LOWER HALF | 37007LL | Not Available |
| 5 | Not Available | EXP-BAIL ARM | 41415002 | Not Available |
| 5 | Not Available | BAIL-5148 | 017876LL | Not Available |
| 7 | Not Available | BAIL ARM RETAINER A- | 019978BG | Not Available |
| 8 | Not Available | HOOD COMPI ETE-5150 | 017880DL | Not Available |
| 8 | Not Available | HOOD ASSEMBLY | 167016EW | Not Available |
| 8 | Not Available | HOOD ASSEMBLY-5168 | 167016DY | Not Available |
| 8 | Not Available | HOOD ASSEMBLY | 167015EY | Not Available |
| 8 | Not Available | HOOD ASSEMBLY-5158 | 167015DL | Not Available |
| 11 | Not Available | FURNITURE GUARD | 017874JM | Not Available |
| 12 | Not Available | WASHER | 21312720 | Not Available |
| 16 | Not Available | SCREW | 049417AZ | Not Available |
| 20 | Not Available | IDLER GEAR-RH-S486 | 035675BZ | Not Available |
| 25 | Not Available | BAIL SHAFT RH-5350 | 049388AY | Not Available |
| 26 | Not Available | WASHER | 21312724 | Not Available |
| 27 | Not Available | WASHER | 21312757 | Not Available |
| 32 | Not Available | GEAR HOUSING C OMP - | 42273011 | Not Available |
| 33 | Not Available | BRUSH GEAR | 38541002 | Not Available |
| 34 | Not Available | HOOD ADAPTER | 017074AG | Not Available |
| 38 | Not Available | FOOT PAD - F5047 | 034207AG | Not Available |
| 41 | Not Available | BAIL MOUNTING BRACKE | 43138001 | Not Available |
| 42 | Not Available | NUT-SPECIAL | 21388105 | Not Available |
| 43 | Not Available | WASHER | 21312761 | Not Available |
| 50 | Not Available | EXP-ATTACH. CORD | 46363338 | Not Available |
| 50 | Not Available | OBSOLETE DLS | 012887HH | Not Available |
| 51 | Not Available | SERVICE PLUG ASSEMBL | 035380 | Not Available |
| 52 | Not Available | BAIL SOCKET INSULATOR | 014504 | Not Available |
| 53 | Not Available | BRUSH SHAFT BUSHING- | 168505 | Not Available |
| 53 | Not Available | WASH E R-SP ECIAL-5300 | 012622 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Key Part Number | 014464BZ | Not Available |
