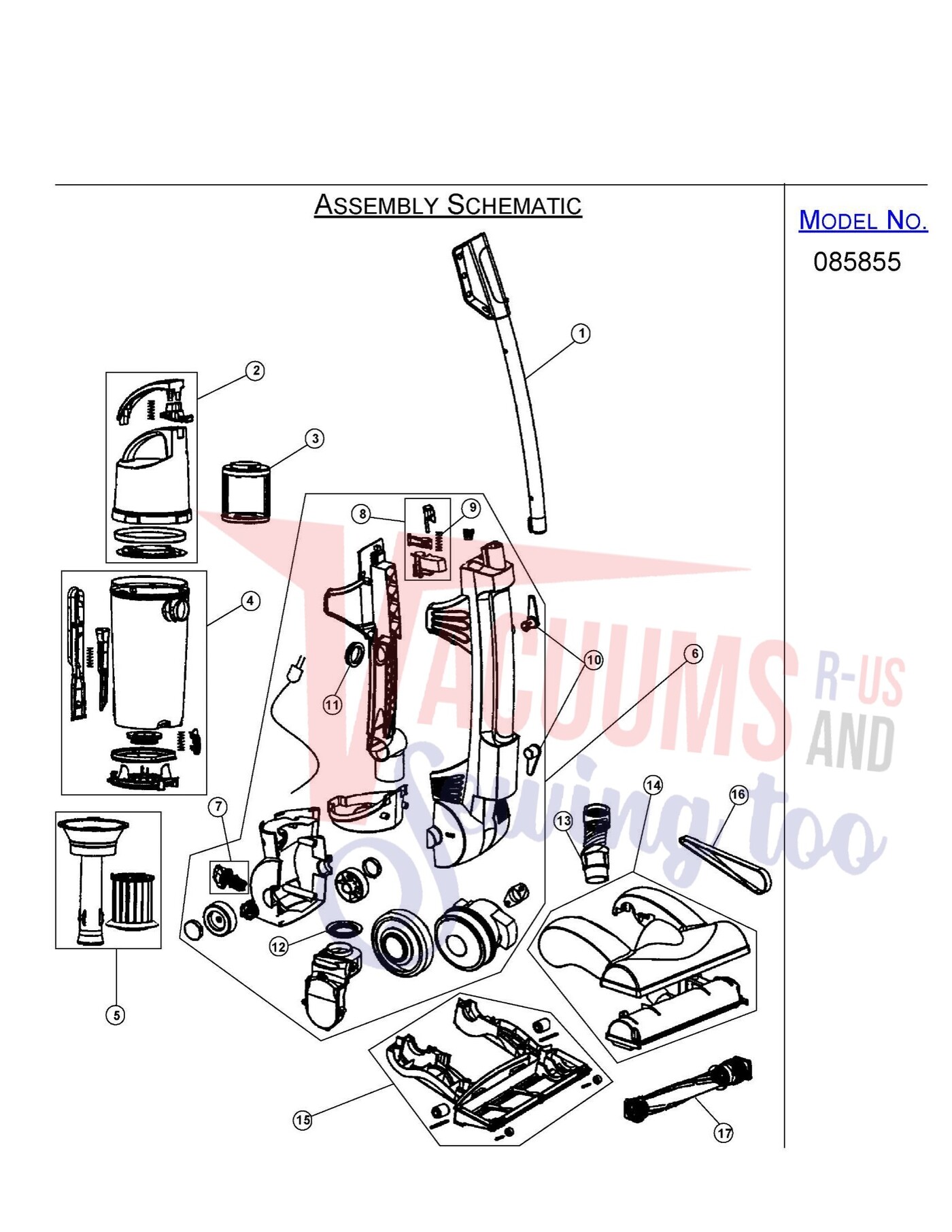

Schematic and parts book for HOOVER 085855 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASSEMBLY | 2L01105000 | Not Available |
| 2 | Not Available | DIRT CUP LID ASSEMBLY | 2L01101000 | Not Available |
| 3 |  | Filter, F22/F26 Aspire 084590/AD40135/UD40000 Pltd Part Number: 1LV1110000 for Royal | 1LV1110000 | $13.79Read more |
| 4 | Not Available | DIRT CUP ASSEMBLY | 2L01103000 | Not Available |
| 6 | Not Available | MOTOR AND BODY ASSEMBLY | 2L01107000 | Not Available |
| 7 | Not Available | BLEED VALVE ASSEMBLY | 1L01107000 | Not Available |
| 8 | Not Available | HANDLE LOCK ASSEMBLY | 1L01108000 | Not Available |
| 9 | Not Available | SPRING - HANDLE LOCK | 1L01109000 | Not Available |
| 10 | Not Available | CORD HOOK | 1L01110000 | Not Available |
| 11 | Not Available | DIRT CUP INLET SEAL | 1L01106000 | Not Available |
| 12 | Not Available | MOTOR GASKET | 1L01112000 | Not Available |
| 13 | Not Available | HOSE CONNECTOR ASSEMBLY | 2L01108000 | Not Available |
| 14 | Not Available | NOZZLE COVER ASSEMBLY | 2L01106000 | Not Available |
| 15 | Not Available | NOZLLE GUARD ASSEMBLY | 1L01104000 | Not Available |
| 16 |  | Royal/Dirt Devil Style 19 Belt | 1LV1000000 | $6.59Read more |
| 17 | Not Available | BRUSH ROLL ASSEMBLY | 2L01104000 | Not Available |
