Schematic and parts book for Fuller Brush FB-TNM, FBTNM . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Switch Assy Fuller Brush Tiny Maid FB-TNM | B364-1000 | Not Available |
| 2 | Not Available | Motor Assy Fuller Brush Tiny Maid FB-TNM | C364-4000 | Not Available |
| 3 | Not Available | Cord Reel Assy Fuller Brush Tiny Maid FB-TNM | C364-1000 | Not Available |
| 4 | Not Available | PCB Control Board Fuller Brush Tiny Maid FB- | C364-2000 | Not Available |
| 5 | Not Available | Front Wheel and Base Assy Fuller Brush Tiny | C364-5000 | Not Available |
| 6 | No Image | Wheel, Rear FBTNM Canister Part Number: B364-2000 for Fuller Brush | B3642000 | $3.59Read more |
| 7 | Not Available | Bag Holder and Spring Assy Fuller Brush Tiny | C364-3000 | Not Available |

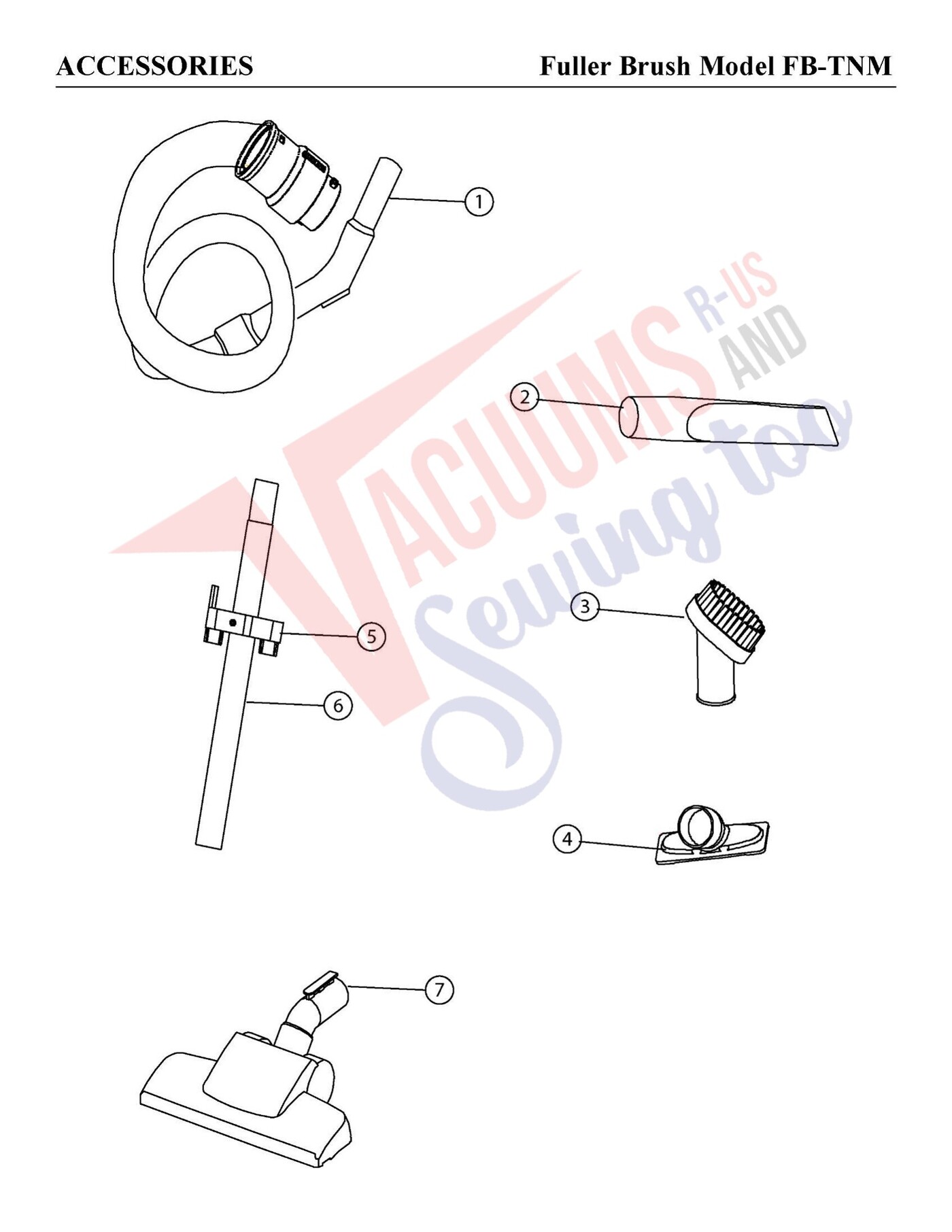

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hose Assy Fuller Brush Tiny Maid FB-TNM | C364-7000 | Not Available |
| 2 | Not Available | Cervice Tool Fuller Brush Tiny Maid FB-TNM | B364-3000 | Not Available |
| 3 | Not Available | Dusting Brush Fuller Brush Tiny Maid FB-TNM | B364-4000 | Not Available |
| 4 | Not Available | Upholstery Tool Fuller Brush Tiny Maid FB-TNM | B364-5000 | Not Available |
| 5 | Not Available | Tool Caddy Fuller Brush Tiny Maid FB-TNM | B364-6000 | Not Available |
| 6 | Not Available | Wand Assy Fuller Brush Tiny Maid FB-TNM | C364-6000 | Not Available |
| 7 | Not Available | Floor Brush Fuller Brush Tiny Maid FB-TNM | C364-8000 | Not Available |
