Schematic and parts book for Fuller Brush fb-ezm . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

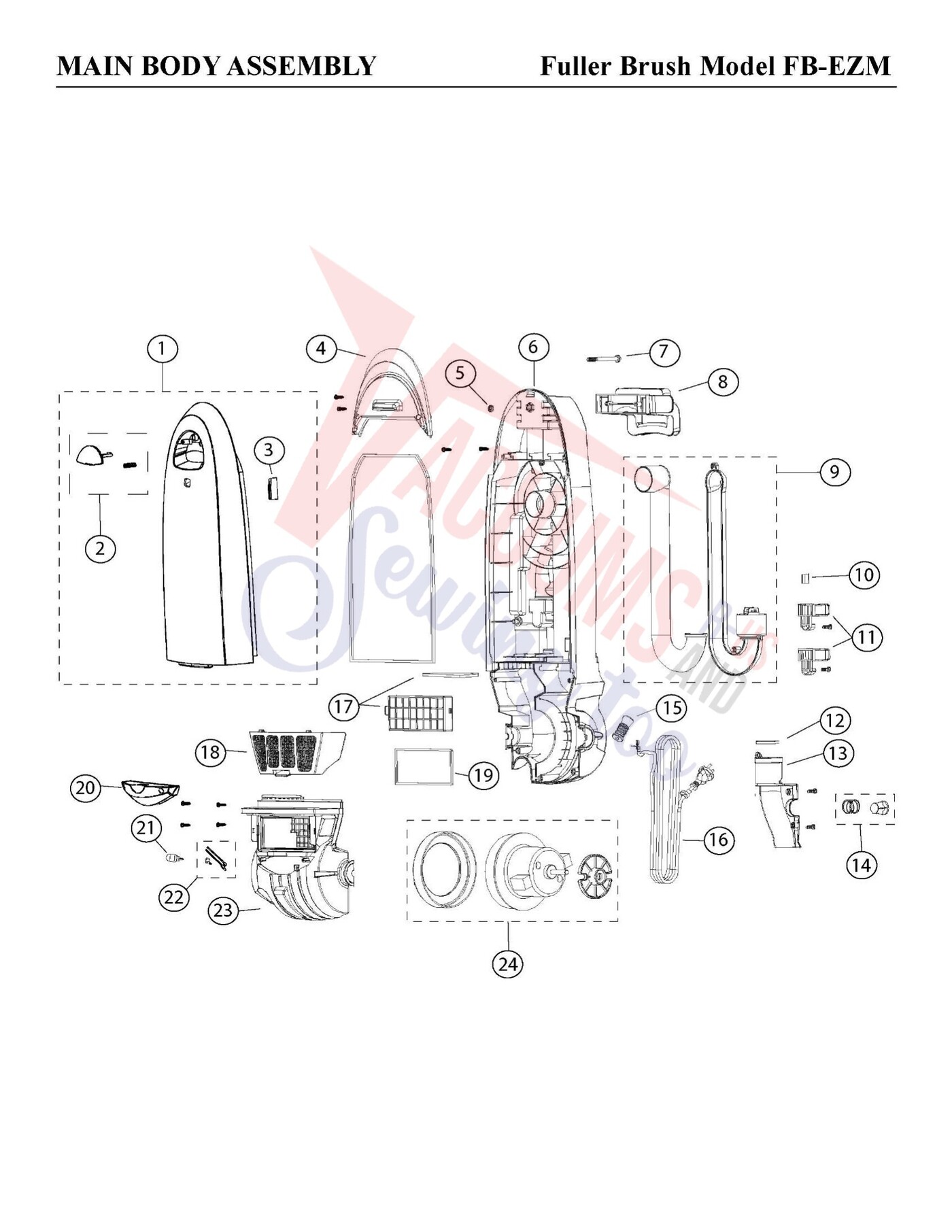

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Cover Assembly | C283-0900 | Not Available |
| 2 |  | Dust Cover Latch with Spring Part Number C283-1000 for Simplicity Models S20EZM | C2831000 | $2.99Read more |
| 3 |  | Full Bag Indicator Assembly Part Number C283-2000 for Simplicity Models S20EZM | C2832000 | $2.99Read more |
| 4 |  | Cover Plate Part Number B283-1000 for Simplicity Models S20EZM | B2831000 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Handle Nut Part Number B283-4400 for Simplicity Models S20EZM | B2834400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Dust Compartment Part Number C283-2300 for Simplicity Models S20EZM | C2832300 | $71.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Handle Bolt Part Number B283-0100 for Simplicity Models S20EZM | B2830100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Handle Assembly for Simplicity S20EZM and S20PET and CleanMax Nitro | WP11603 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Airpath Assembly Part Number C283-2700 for Simplicity Models S20EZM | C2832700 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Upper Crevice Tool Clip Part Number B283-0200 for Simplicity Models S20EZM | B2830200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Lower Tool Clip Part Number B283-0300 for Simplicity Models S20EZM | B2830300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Wand Inlet Tube Seal Part Number B283-0400 for Simplicity Models S20EZM | B2830400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Wand Inlet Tube Simplicity Fuller Brush Carpet Pro Uprights FBEZM CPU250 CPU350 CMNR S20EZM | WP11304 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Pressure Relief Valve Part Number C283-2500 for Simplicity Models S20EZM | C2832500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Cord Strain Relief Part Number B283-0600 for Simplicity Models S20EZM | B2830600 | $2.99Read more |
| 16 |  | Power Cord Part Number C283-0012 for Simplicity Models S20EZM,S20PET | C2830012 | $41.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | CARPET PRO FILTER SET FOAM and SECONDARY CPU250 CPU350 | CPU250F | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | CARPET PRO FILTER COVER YELLOW CPU250 CPU350 | B2834200 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Post HEPA Filter Seal Part Number B283-0900 for Simplicity Models S20EZM | B2830900 | $2.99Read more |
| 20 | | Lens Cover Part Number B283-0800 for Simplicity Models S20EZM | B2830800 | $0.00Read more |
| 21 | Not Available | Light Bulb | A350-0000 | Not Available |
| 22 | Not Available | Light Socket Assembly | B283-5300 | Not Available |
| 23 | | Motor Cover Part Number B283-0700 for Simplicity Models S20EZM | B2830700 | $0.00Read more |
| 24 |  | Simplicty Motor Assembly for S20EZM 12 Amp | WP10688 | $73.99Add to cart Special order: ships in 2 to 4 weeks |

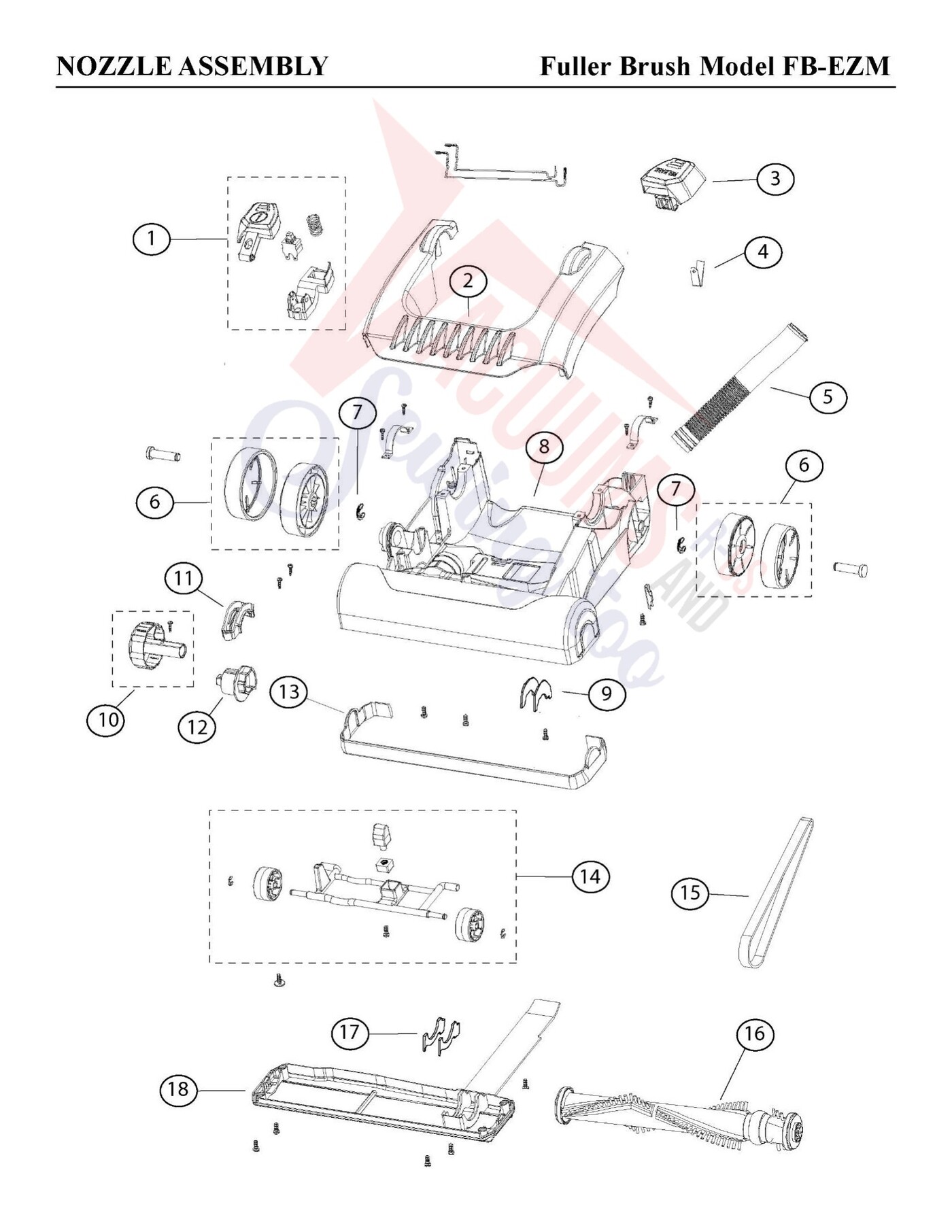

| # | Part image | Description | SKU | Price |
| 1 |  | Fuller Brush Main Switch Jiffy Maid Fb-Jfm | C283-0014 | $6.92Read more |
| 2 | Not Available | Nozzle Cover | B283-1700 | Not Available |
| 3 | Not Available | Handle Release Button | B283-1800 | Not Available |
| 4 |  | Handle Release Spring for S20EZM CPU250 and CPU350 | B2835200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Nozzle Inlet Tube Part Number B283-1300 for Simplicity Models S20EZM,S20PET | B2831300 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Rear Wheel Assembly Part Number B283-0038 for Simplicity Models S20EZM,S20PET | B2830038 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Rear Wheel E Clip Part Number B283-0037 for Simplicity Models S20EZM,S20PET | B2830037 | $0.00Read more |
| 8 |  | Simplicity Nozzle Base Housing Assembly for S20EZM | WP11318 | $49.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Upper Agitator Seal Part Number B283-1400 for Simplicity Models S20EZM,S20PET | B2831400 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Height Adjust Knob Black | C2833600 | $0.00Read more |
| 11 |  | Height Adjust Press Plate Part Number B283-5500 for Simplicity Models S20EZM,S20PET | B2835500 | $2.99Add to cart |
| 12 |  | Height Adjust Axle Part Number B283-5600 for Simplicity Models S20EZM,S20PET | B2835600 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Furniture Guard | B283-5300 | Not Available |
| 14 |  | Height Adjust Frame Assembly Part Number C283-3000 for Simplicity Models S20EZM,S20PET | C2833000 | $39.99Add to cart |
| 15 |  | Belt Bulk Black Rubber Stretch CPU250 CPU350 FBEZM CMNR-QD S20EZM | B014-6900 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Simplicity S20EZM Brush Roll Assembly - Steel | WP10759 | $44.99Read more |
| 17 |  | Lower Agitator Seal Part Number B283-1500 for Simplicity Models S20EZM,S20PET | B2831500 | $2.99Read more |
| 18 |  | Base Plate Plastic for S20PET EZM | B2830042B | $5.99Add to cart Special order: ships in 2 to 4 weeks |

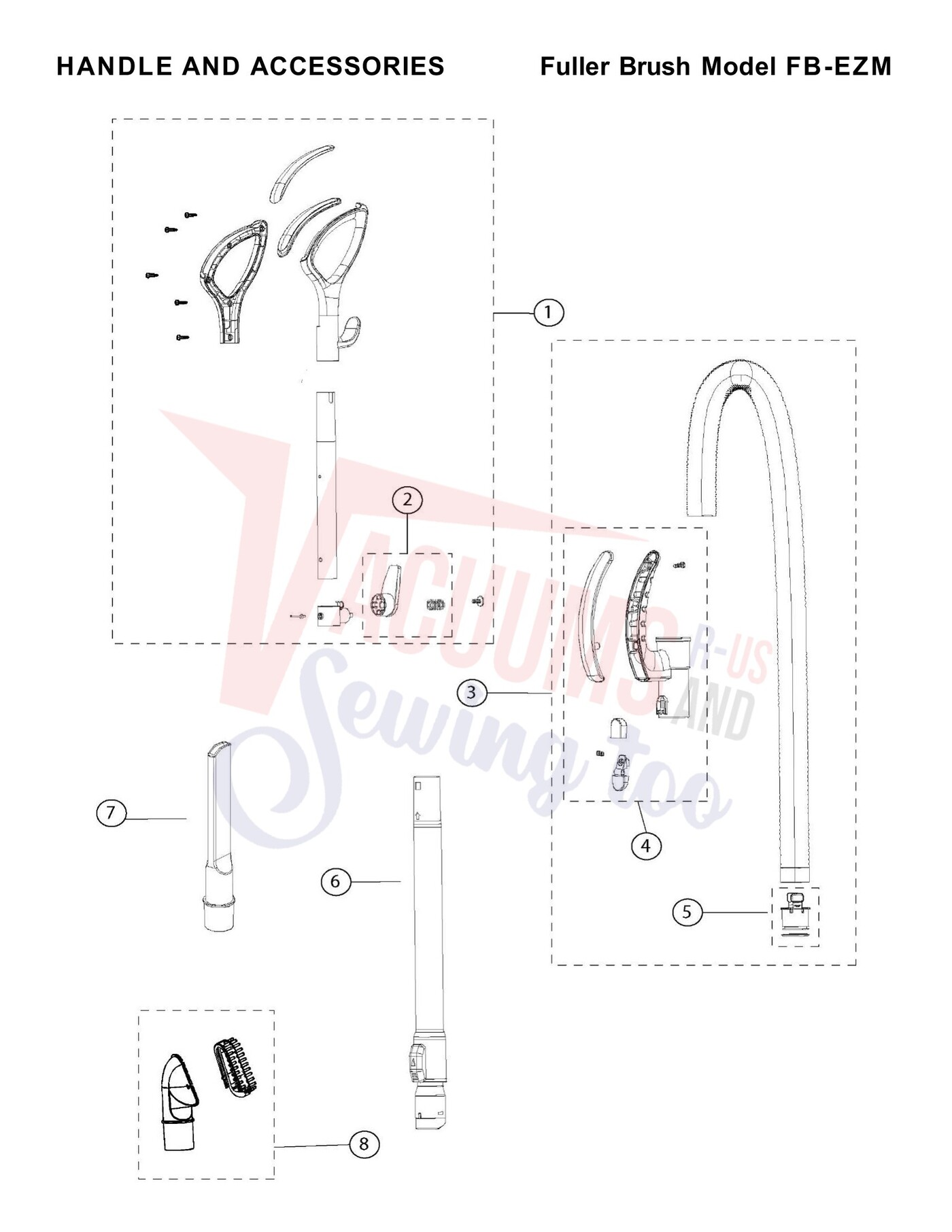

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Assembly | C283-2100 | Not Available |
| 2 | No Image | Cord Hook | C2832200 | $0.00Read more |
| 3 |  | Hose Assembly for FBEZM CPU250 CPU350 CMNR | C2832800 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hose Handle Part Number B283-4700 for Simplicity Models S20EZM | B2834700 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hose Connector Part Number B283-4600 for Simplicity Models S20EZM | B2834600 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Fuller Brush Riccar Simplicity Quickdraw Aluminum Telescopic Wand - Models S20EZM. R25D. R25P, S2... | B4345400B | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Crevice Tool Part Number B283-1200 for Simplicity Models S20EZM | B2831200 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Upholstery/Dusting Brush Part Number C283-6900 for Simplicity Models S20EZM | C2836900 | $3.99Add to cart |
