Schematic and parts book for Eureka unknown . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

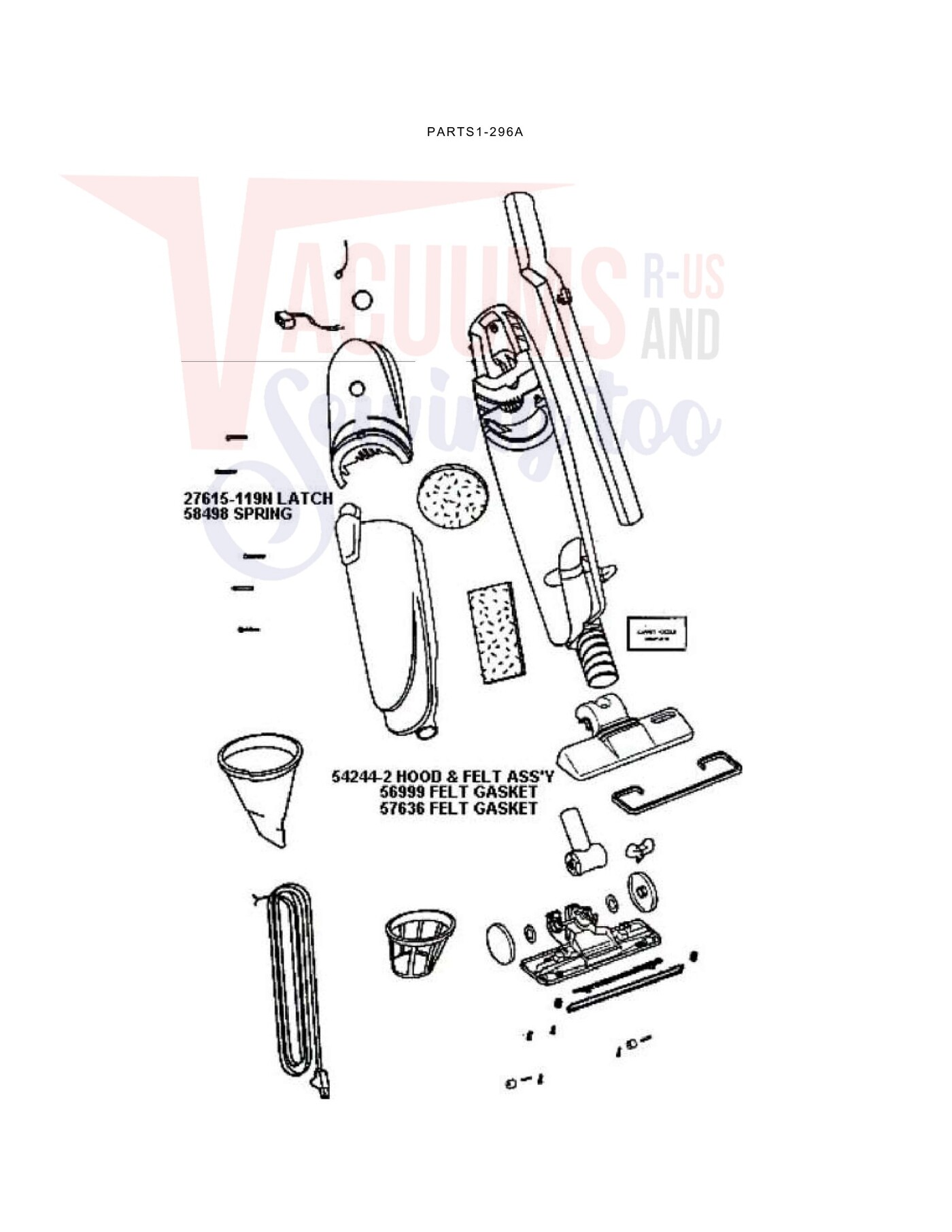

| 1 | Not Available | HOUSING - REAR | 02144-119N | Not Available |
| 2 | Not Available | SUPPORT - FILTER | 15212-119N | Not Available |
| 3 | Not Available | PEDAL - FOOT | 27119-119N | Not Available |
| 4 | Not Available | LEVER | 27120 | Not Available |
| 5 | Not Available | WHEEL - REAR | 27125-2 | Not Available |
| 7 | Not Available | LATCH | 27615-119N | Not Available |
| 8 | Not Available | BRISTLE STRIP ASSEMBLY | 38147-1 | Not Available |
| 9 | Not Available | SWITCH | 38148 | Not Available |
| 10 | Not Available | GUARD - FURNITURE | 38150-2 | Not Available |
| 11 | Not Available | KNOB - CONTROL | 38566-119N | Not Available |
| 12 | Not Available | SUPPLY CORD ASSEMBLY | 38588-2 | Not Available |
| 13 | Not Available | WIRE & TERMINAL ASSEMBLY | 38589-2 | Not Available |
| 14 | Not Available | FINAL FILTER | 38596 | Not Available |
| 15 | Not Available | SOUND FOAM | 38599 | Not Available |
| 16 | No Image | HANDLE ASSY, 274A BROOM Part Number: 38649-1 for Eureka | 386491 | $16.20Read more |
| 17 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 18 | Not Available | SCREW PACKAGE | 53197-5 | Not Available |
| 19 | No Image | 8280 HANDLE SCREWS(6 PER PACK) Part Number: 53257-1 for Eureka | 532571 | $3.17Read more |
| 20 | Not Available | WHEEL & AXLE PACKAGE - FR | 53984-1 | Not Available |
| 22 | Not Available | FILTER ASSY - PKG | 54865 | Not Available |
| 23 | Not Available | FELT WASHER | 56180 | Not Available |
| 24 | Not Available | GASKET - FELT | 56999 | Not Available |
| 25 | Not Available | SPRING | 57360 | Not Available |
| 26 | Not Available | GASKET - FELT | 57636 | Not Available |
| 27 | Not Available | SPRING | 58498 | Not Available |
| 28 | No Image | DIRT CUP, 296A BROOM Part Number: 60013-3 for Eureka | 600133 | $3.11Read more |
| 29 | Not Available | DELUXE FLOOR NOZZLE ASSEM | 39134-5 | Not Available |
| 30 | No Image | COVER, MOTOR 296A Part Number: 60020-1 for Eureka | 600201 | $12.21Read more |
| 30 | Not Available | DELUXE FLOOR NOZZLE ASSEM | 54243-3 | Not Available |
| 30 | Not Available | DELUXE FLOOR NOZZLE ASSEM | 27189-1 | Not Available |
| # | Part image | Description | SKU | Price |

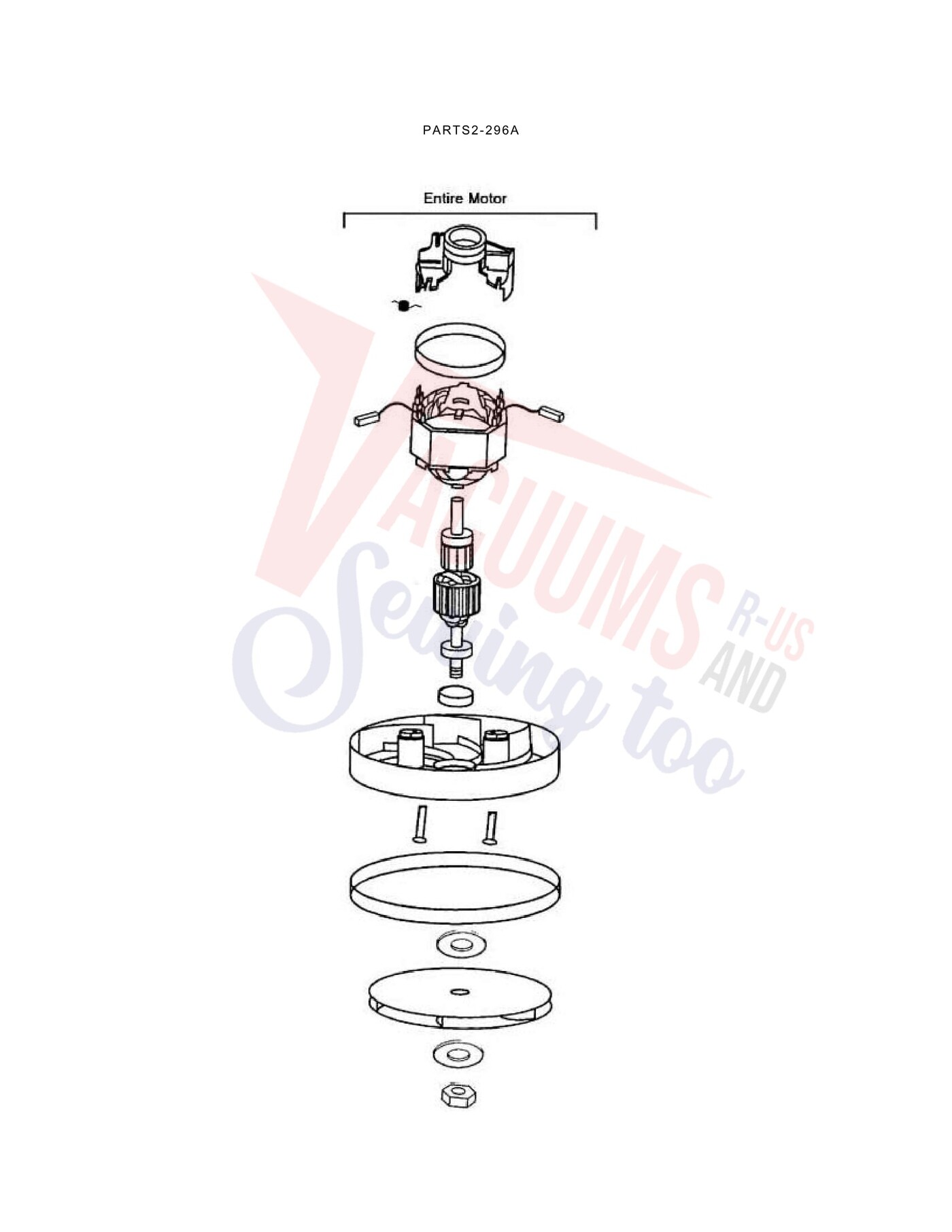

| 1 | Not Available | FAN - STATIONARY | 15214-1 | Not Available |
| 2 | Not Available | END CAP (COMMUTATOR) | 15216 | Not Available |
| 3 | No Image | SPRING, CARBON BRUSH 180A BROOM Part Number: 38038 for Eureka | 38038 | $2.29Read more |
| 4 | Not Available | FAN ASSY | 38585 | Not Available |
| 5 | Not Available | BALL BEARING - PACKAGE | 53088-3 | Not Available |
| 6 | Not Available | SCREWS - PACKAGE | 53237-8 | Not Available |
| 7 | Not Available | BELT - HIP VAC | 54769 | Not Available |
| 8 | Not Available | WASHER | 56467 | Not Available |
| 9 | Not Available | GASKET - MOTOR STACK | 57364 | Not Available |
| 10 | Not Available | WASHER SPRING | 57529 | Not Available |
| 11 | Not Available | CUP - BEARING | 58491 | Not Available |
| 12 | No Image | MOTOR, ASS'Y BROOM 296 Part Number: 60015-3 for Eureka | 600153 | $61.84Read more |
| 13 | Not Available | FIELD ASSY - PKG | 60016-3 | Not Available |
| 14 | Not Available | ARMATURE ASSY - PKG | 60017-3 | Not Available |
