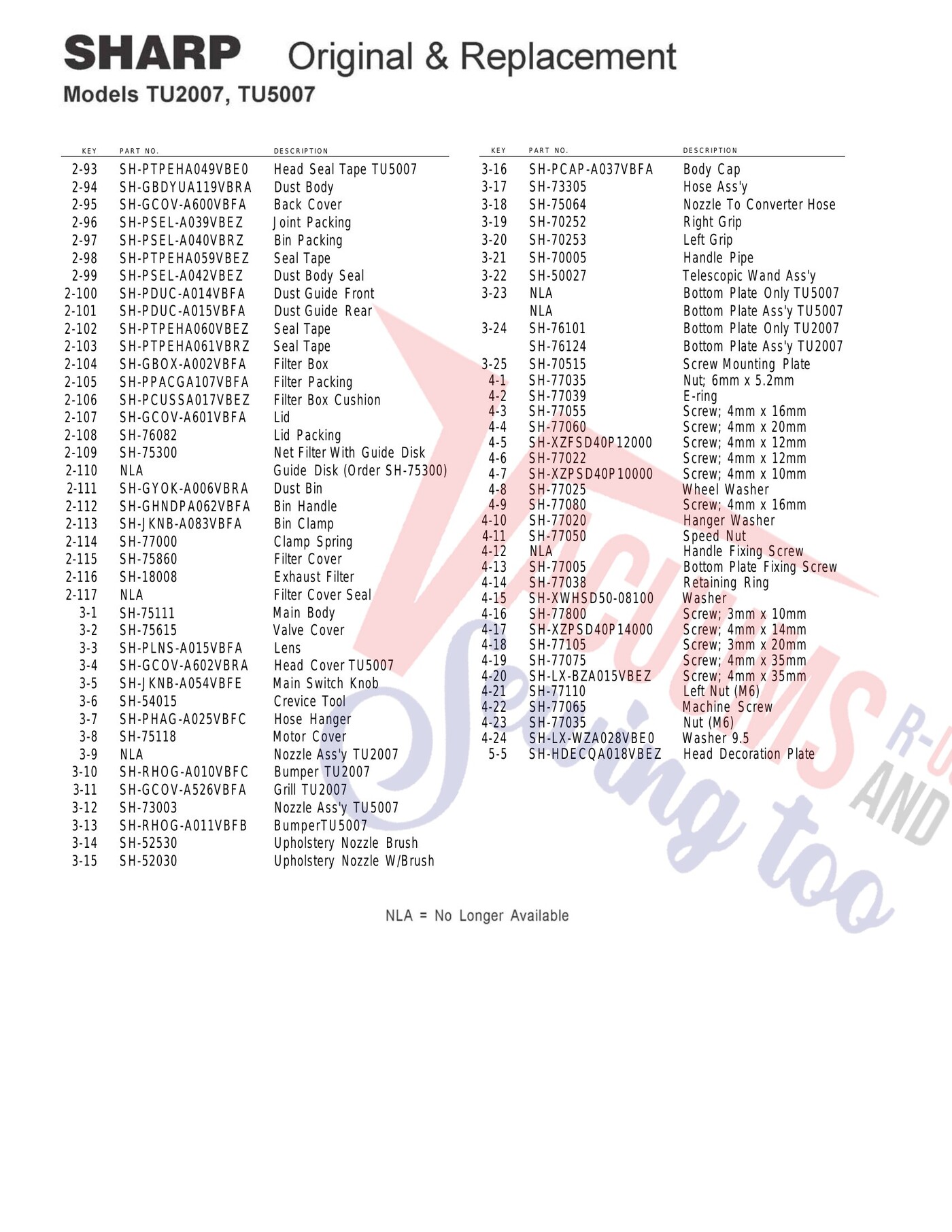

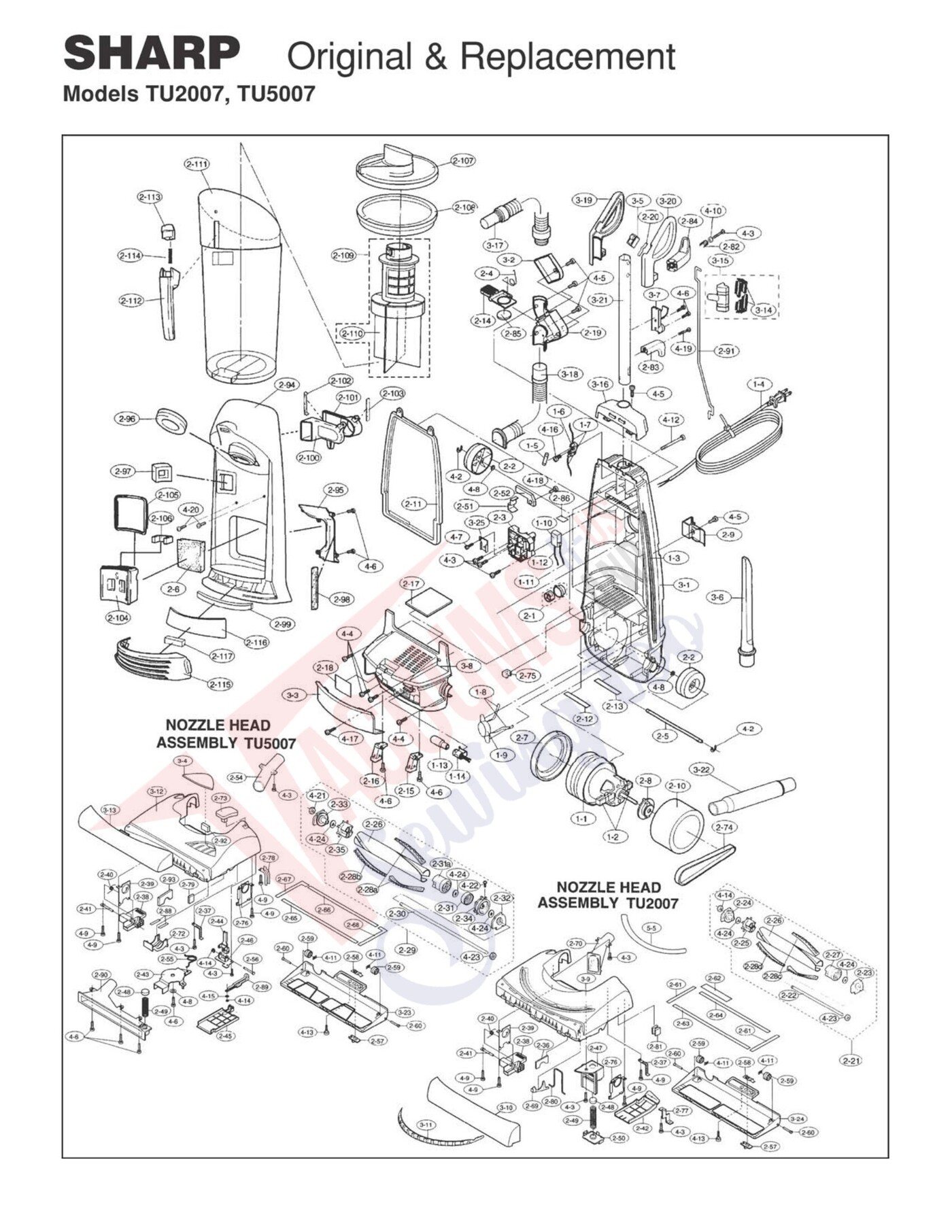

Schematic and parts book for Eureka TU2007, TU5007 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Ass'y 2- | NLA | Not Available |
| 1 | Not Available | Air Valve Ass'y 2- | SH-75155 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63017 | Not Available |
| 2 | Not Available | Wheel 2- | SH-71002 | Not Available |
| 3 | Not Available | Motor Lead Wire 2- | SH-36000 | Not Available |
| 3 | Not Available | Handle Mounting Base 2- | SH-LPLT-A066VBF0 | Not Available |
| 4 | Not Available | Power Cord TU2007 2- | SH-30005 | Not Available |
| 4 | Not Available | Power Cord TU5007 2- | SH-30011 | Not Available |
| 4 | Not Available | Valve Spring 2- | SH-77007 | Not Available |
| 5 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 5 | Not Available | Wheel Shaft 2- | SH-73477 | Not Available |
| 6 | Not Available | Fuse Holder 2- | SH-QFSHDA002VBE0 | Not Available |
| 6 | Not Available | Secondary Filter 2- | SH-18007 | Not Available |
| 7 | Not Available | Lead Wire 2- | SH-QW-VZA383VBE0 | Not Available |
| 7 | Not Available | Vibration Proof Rubber 2- | SH-PGUMMA159VBE0 | Not Available |
| 8 | Not Available | Thermostat 2- | SH-RTHM-A015VBZZ | Not Available |
| 8 | Not Available | Vibration Proof Fixing Rubber 2- | SH-76077 | Not Available |
| 9 | Not Available | Thermo Lead Wire TU5007 | SH-QW-VZA932VBZZ | Not Available |
| 9 | Not Available | Pipe Clamp 2- | SH-70770 | Not Available |
| 10 | Not Available | Main Switch 2- | SH-34005 | Not Available |
| 10 | Not Available | Sound Proof Sponge 2- | SH-PMUF-A072VBEZ | Not Available |
| 11 | Not Available | Lead Wire 2- | SH-QW-VZA381VBE0 | Not Available |
| 11 | Not Available | Body Packing 2- | SH-PPACGA066VBFA | Not Available |
| 12 | Not Available | Lead Wire 2- | SH-QW-VZA382VBE0 | Not Available |
| 12 | Not Available | Seal Tape 2- | SH-PTPEHA029VBE0 | Not Available |
| 13 | Not Available | Lamp 2- | SH-RLMP-A003VBE0 | Not Available |
| 13 | Not Available | Seal Tape 2- | SH-PTPEHA030VBE0 | Not Available |
| 14 | Not Available | Lamp Socket 2- | SH-QSOC-A004VBE0 | Not Available |
| 14 | Not Available | Body Valve 2- | SH-75601 | Not Available |
| 15 | Not Available | Leg Ass'y Left 2- | SH-75169 | Not Available |
| 16 | Not Available | Leg Ass'y Right 2- | SH-75168 | Not Available |
| 17 | Not Available | Motor Filter 2- | SH-18055 | Not Available |
| 18 | Not Available | Reflection Tape 2- | SH-PTPE-A172VBE0 | Not Available |
| 19 | Not Available | Valve Cover 2- | SH-75610 | Not Available |
| 20 | Not Available | Switch Knob Spring 2- | SH-34510 | Not Available |
| 21 | Not Available | Agitator Ass'y TU2007 2- | SH-20210 | Not Available |
| 22 | Not Available | Agitator Shaft TU2007 2- | SH-20505 | Not Available |
| 23 | Not Available | Agitator Support Pulley End 2- | SH-LSTY-A032VBFA | Not Available |
| 24 | Not Available | Agitator Support Non Pulley End 2- | SH-LSTY-A033VBFA | Not Available |
| 25 | Not Available | Brush Rotor Ass'y TU2007 2- | SH-FRTR-A019VBKZ | Not Available |
| 26 | Not Available | Agitator Core 2- | SH-FPIPFA005VBK0 | Not Available |
| 27 | Not Available | Main Pulley Ass'y TU2007 2- | SH-20515 | Not Available |
| 29 | Not Available | Agitator Ass'y TU5007 2- | SH-20220 | Not Available |
| 30 | Not Available | Agitator Shaft TU5007 2- | SH-NSFT-A011VBS0 | Not Available |
| 31 | Not Available | Idler Pulley Ass'y TU5007 2- | NLA | Not Available |
| 32 | Not Available | Agitator Support Pulley End 2- | NLA | Not Available |
| 33 | Not Available | Agitator Support Non Pulley End 2- | NLA | Not Available |
| 34 | Not Available | Brush Rotor Pulley End TU5007 2- | SH-20540 | Not Available |
| 35 | Not Available | Brush Rotor 2- | SH-NRTR-A002VBK0 | Not Available |
| 36 | Not Available | Felt TU2007 | SH-PFLT-A118VBE0 | Not Available |
| 37 | Not Available | Belt Stopper | SH-73402 | Not Available |
| 38 | Not Available | Pedal | SH-73417 | Not Available |
| 39 | Not Available | Pedal Support | SH-LANG-A057VBM0 | Not Available |
| 40 | Not Available | Pedal Spring | SH-77011 | Not Available |
| 41 | Not Available | Pedal Shaft | SH-73481 | Not Available |
| 42 | Not Available | Belt Cover TU2007 | SH-73449 | Not Available |
| 43 | Not Available | Belt Change Plate Ass'y TU5007 | SH-FLEV-A015VBK0 | Not Available |
| 44 | Not Available | Belt Change Lever Ass'y | SH-FLEVFA001VBK0 | Not Available |
| 45 | Not Available | Belt Cover TU5007 | SH-73434 | Not Available |
| 46 | Not Available | Belt Change Lever Support TU5007 | SH-LANG-A068VBM0 | Not Available |
| 47 | Not Available | Valve Case TU2007 | SH-PCAS-A028VBFA | Not Available |
| 48 | Not Available | Head Valve | SH-PVLVAA012VBFA | Not Available |
| 49 | Not Available | Valve Spring | SH-MSPRCA212VBP0 | Not Available |
| 50 | Not Available | Valve Cover TU2007 | SH-PCOV-A081VBFA | Not Available |
| 51 | Not Available | Actuator | SH-LPLT-A105VBN0 | Not Available |
| 52 | Not Available | Actuator Support | SH-LANG-A046VBF0 | Not Available |
| 54 | Not Available | Head Pipe TU5007 | SH-PPIPPA251VBFA | Not Available |
| 55 | Not Available | Belt Change Spring TU5007 | SH-MSPRDA001VBN0 | Not Available |
| 56 | Not Available | Belt Change Lever Shaft TU5007 | SH-NSFT-A026VBM0 | Not Available |
| 57 | Not Available | Bottom Plate Knob | SH-73525 | Not Available |
| 58 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
| 59 | Not Available | Roller | SH-73432 | Not Available |
| 60 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 61 | Not Available | Seal Tape TU2007 | SH-76021 | Not Available |
| 62 | Not Available | Seal Tape TU2007 | SH-76027 | Not Available |
| 63 | Not Available | Seal Tape TU2007 | SH-76020 | Not Available |
| 64 | Not Available | Seal Tape TU2007 | SH-76028 | Not Available |
| 65 | Not Available | Seal Tape TU5007 | SH-76036 | Not Available |
| 66 | Not Available | Seal Tape TU5007 | SH-76035 | Not Available |
| 67 | Not Available | Seal Tape TU5007 | SH-76037 | Not Available |
| 68 | Not Available | Seal Tape TU5007 | SH-76038 | Not Available |
| 69 | Not Available | Head Shelter Plate Ass'y TU2007 | SH-73447 | Not Available |
| 70 | Not Available | Head Pipe TU2007 | SH-73315 | Not Available |
| 71 | Not Available | Seal Tape | SH-76080 | Not Available |
| 72 | Not Available | Pulley Cover Ass'y TU5007 | SH-FCOV-A442VBK0 | Not Available |
| 73 | Not Available | Belt Change Pedal TU5007 | SH-JBTN-A147VBFA | Not Available |
| 74 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 74 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 75 | Not Available | Body Packing | SH-75147 | Not Available |
| 76 | Not Available | Body Support | SH-LANGFA061VBM0 | Not Available |
| 77 | Not Available | Belt Stopper TU2007 | SH-73409 | Not Available |
| 78 | Not Available | Belt Stopper TU5007 | SH-LPLT-A106VBM0 | Not Available |
| 79 | Not Available | Belt Change Plate Stopper TU5007 | SH-PGUMSA001VBE0 | Not Available |
| 80 | Not Available | Belt Guide Pin TU2007 | SH-73455 | Not Available |
| 81 | Not Available | Stopper Rubber TU2007 | SH-PSEL-A032VBE0 | Not Available |
| 82 | Not Available | Hanger Spring | SH-70500 | Not Available |
| 83 | Not Available | Bottom Hanger | SH-70749 | Not Available |
| 84 | Not Available | Upper Hanger | SH-70748 | Not Available |
| 85 | Not Available | Valve Seal | SH-76090 | Not Available |
| 86 | Not Available | Seal Tape | SH-PTPEHA037VBE0 | Not Available |
| 87 | Not Available | Seal Tape | SH-PTPEHA038VBE0 | Not Available |
| 88 | Not Available | Pulley Cover Seal TU5007 | SH-PTPEHA050VBE0 | Not Available |
| 89 | Not Available | Link Bar TU5007 | SH-LPLTPA119VBFA | Not Available |
| 90 | Not Available | Suction Duct TU5007 | SH-PDUC-A008VBFA | Not Available |
| 91 | Not Available | Switch Rod | SH-MLEVFA005VBM0 | Not Available |
| 92 | Not Available | Valve Seal Tape TU5007 | SH-PTPEHA052VBE0 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y TU2007 | SH-76124 | Not Available |
| 1 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 1 | Not Available | Main Body 4- | SH-75111 | Not Available |
| 2 | Not Available | E-ring | SH-77039 | Not Available |
| 2 | Not Available | Valve Cover 4- | SH-75615 | Not Available |
| 3 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 3 | Not Available | Lens 4- | SH-PLNS-A015VBFA | Not Available |
| 4 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 4 | Not Available | Head Cover TU5007 | SH-GCOV-A602VBRA | Not Available |
| 5 | Not Available | Screw; 4mm x 12mm | SH-XZFSD40P12000 | Not Available |
| 5 | Not Available | Main Switch Knob | SH-JKNB-A054VBFE | Not Available |
| 5 | Not Available | Head Decoration Plate | SH-HDECQA018VBEZ | Not Available |
| 6 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 6 | Not Available | Crevice Tool | SH-54015 | Not Available |
| 7 | Not Available | Screw; 4mm x 10mm | SH-XZPSD40P10000 | Not Available |
| 7 | Not Available | Hose Hanger 4- | SH-PHAG-A025VBFC | Not Available |
| 8 | Not Available | Wheel Washer | SH-77025 | Not Available |
| 8 | Not Available | Motor Cover 4- | SH-75118 | Not Available |
| 9 | Not Available | Screw; 4mm x 16mm | SH-77080 | Not Available |
| 9 | Not Available | Nozzle Ass'y TU2007 5- | NLA | Not Available |
| 10 | Not Available | Hanger Washer | SH-77020 | Not Available |
| 10 | Not Available | Bumper TU2007 | SH-RHOG-A010VBFC | Not Available |
| 11 | Not Available | Speed Nut | SH-77050 | Not Available |
| 11 | Not Available | Grill TU2007 | SH-GCOV-A526VBFA | Not Available |
| 12 | Not Available | Handle Fixing Screw | NLA | Not Available |
| 12 | Not Available | Nozzle Ass'y TU5007 | SH-73003 | Not Available |
| 13 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 13 | Not Available | BumperTU5007 | SH-RHOG-A011VBFB | Not Available |
| 14 | Not Available | Retaining Ring | SH-77038 | Not Available |
| 14 | Not Available | Upholstery Nozzle Brush | SH-52530 | Not Available |
| 15 | Not Available | Washer | SH-XWHSD50-08100 | Not Available |
| 15 | Not Available | Upholstery Nozzle W/Brush | SH-52030 | Not Available |
| 16 | Not Available | Body Cap | SH-PCAP-A037VBFA | Not Available |
| 16 | Not Available | Screw; 3mm x 10mm | SH-77800 | Not Available |
| 17 | Not Available | Hose Ass'y | SH-73305 | Not Available |
| 17 | Not Available | Screw; 4mm x 14mm | SH-XZPSD40P14000 | Not Available |
| 18 | Not Available | Nozzle To Converter Hose | SH-75064 | Not Available |
| 18 | Not Available | Screw; 3mm x 20mm | SH-77105 | Not Available |
| 19 | Not Available | Right Grip | SH-70252 | Not Available |
| 19 | Not Available | Screw; 4mm x 35mm | SH-77075 | Not Available |
| 20 | Not Available | Left Grip | SH-70253 | Not Available |
| 20 | Not Available | Screw; 4mm x 35mm | SH-LX-BZA015VBEZ | Not Available |
| 21 | Not Available | Handle Pipe | SH-70005 | Not Available |
| 21 | Not Available | Left Nut (M6) | SH-77110 | Not Available |
| 22 | Not Available | Telescopic Wand Ass'y | SH-50027 | Not Available |
| 22 | Not Available | Machine Screw | SH-77065 | Not Available |
| 23 | Not Available | Bottom Plate Only TU5007 | NLA | Not Available |
| 23 | Not Available | Nut (M6) | SH-77035 | Not Available |
| 24 | Not Available | Bottom Plate Only TU2007 | SH-76101 | Not Available |
| 24 | Not Available | Washer 9.5 | SH-LX-WZA028VBE0 | Not Available |
| 25 | Not Available | Screw Mounting Plate | SH-70515 | Not Available |
| 93 | Not Available | Head Seal Tape TU5007 3- | SH-PTPEHA049VBE0 | Not Available |
| 94 | Not Available | Dust Body 3- | SH-GBDYUA119VBRA | Not Available |
| 95 | Not Available | Back Cover 3- | SH-GCOV-A600VBFA | Not Available |
| 96 | Not Available | Joint Packing 3- | SH-PSEL-A039VBEZ | Not Available |
| 97 | Not Available | Bin Packing 3- | SH-PSEL-A040VBRZ | Not Available |
| 98 | Not Available | Seal Tape 3- | SH-PTPEHA059VBEZ | Not Available |
| 99 | Not Available | Dust Body Seal 3- | SH-PSEL-A042VBEZ | Not Available |
| 100 | Not Available | Dust Guide Front 3- | SH-PDUC-A014VBFA | Not Available |
| 101 | Not Available | Dust Guide Rear NLA Bottom Plate Ass'y TU5007 | SH-PDUC-A015VBFA | Not Available |
| 102 | Not Available | Seal Tape 3- | SH-PTPEHA060VBEZ | Not Available |
| 103 | Not Available | Seal Tape | SH-PTPEHA061VBRZ | Not Available |
| 104 | Not Available | Filter Box 3- | SH-GBOX-A002VBFA | Not Available |
| 105 | Not Available | Filter Packing 4- | SH-PPACGA107VBFA | Not Available |
| 106 | Not Available | Filter Box Cushion 4- | SH-PCUSSA017VBEZ | Not Available |
| 107 | Not Available | Lid | SH-GCOV-A601VBFA | Not Available |
| 108 | Not Available | Lid Packing | SH-76082 | Not Available |
| 109 | Not Available | Net Filter With Guide Disk | SH-75300 | Not Available |
| 110 | Not Available | Guide Disk (Order SH-75300) 4- | NLA | Not Available |
| 111 | Not Available | Dust Bin 4- | SH-GYOK-A006VBRA | Not Available |
| 112 | Not Available | Bin Handle 4- | SH-GHNDPA062VBFA | Not Available |
| 113 | Not Available | Bin Clamp 4- | SH-JKNB-A083VBFA | Not Available |
| 114 | Not Available | Clamp Spring | SH-77000 | Not Available |
| 115 | Not Available | Filter Cover | SH-75860 | Not Available |
| 116 | Not Available | Exhaust Filter | SH-18008 | Not Available |
| 117 | Not Available | Filter Cover Seal 4- | NLA | Not Available |
Report errors on this page HERE
