Schematic and parts book for Eureka SE6240AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

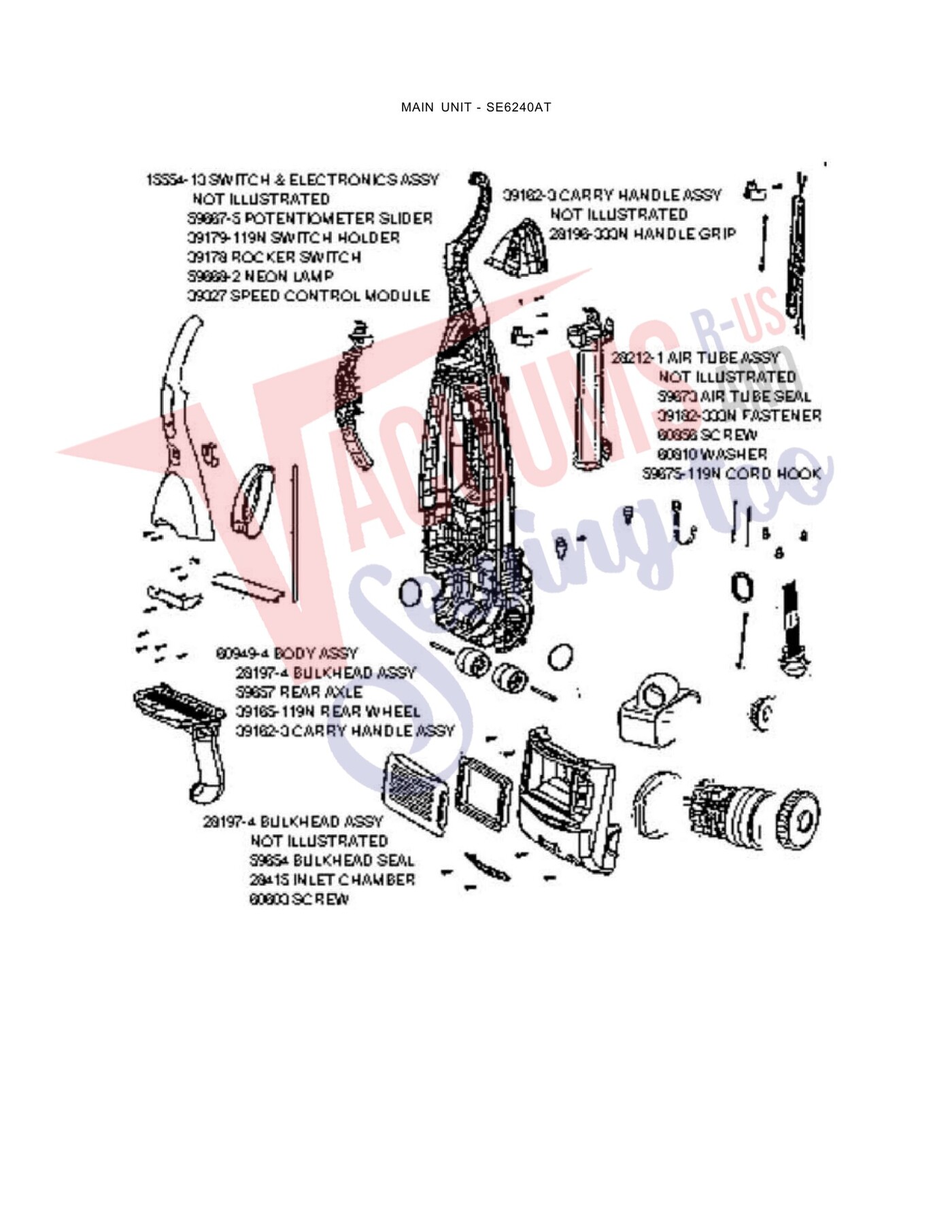

| # | Part image | Description | SKU | Price |
| 1 | Not Available | EXHAUST GRILL PRINTED | 15546-6 | Not Available |
| 2 | Not Available | RING - SUSPENSION | 15572 | Not Available |
| 3 | Not Available | CORD - LOW LEAD (17 GA) | 27329-3 | Not Available |
| 4 | Not Available | CARRY HANDLE ASSEMBLY | 28196-333N | Not Available |
| 5 | Not Available | BULKHEAD ASSEMBLY | 28197-4 | Not Available |
| 6 | Not Available | HANDLE FRONT PRINTED | 28209-8 | Not Available |
| 7 | Not Available | REAR AIR TUBE ASSEMBLY - | 28212-1 | Not Available |
| 8 | Not Available | CHAMBER - EXHAUST (MACHIN | 28226-4 | Not Available |
| 9 | No Image | SHEET, SEALING EL5010A Part Number: 28253 for Eureka | 28253 | $6.49Read more |
| 10 | Not Available | HEPA FILTER - WASHABLE | 28272 | Not Available |
| 11 | Not Available | LENS - HEADLIGHT | 28293-313N | Not Available |
| 12 | Not Available | CHAMBER - INLET (MACHINED | 28415 | Not Available |
| 13 | Not Available | HEADLIGHT ASSEMBLY | 38828A-2 | Not Available |
| 14 | Not Available | CARRY HANDLE ASSEMBLY | 39162-3 | Not Available |
| 15 | No Image | WHEEL, REAR 6230 Part Number: 39165-119N for Eureka | 39165119N | $1.74Read more |
| 16 | Not Available | GRIP - HAND | 39170-335N | Not Available |
| 17 | Not Available | SEAL - EXHAUST CHAMBER | 39171 | Not Available |
| 18 | Not Available | ROCKER SWITCH | 39178 | Not Available |
| 19 | Not Available | HOLDER - SWITCH | 39179-119N | Not Available |
| 20 | Not Available | 1/4 TURN FASTENER - PKG | 39182-333N | Not Available |
| 21 | Not Available | BENT END CUP ASSEMBLY | 39187 | Not Available |
| 22 | Not Available | CLIP-TOOL (NLA) | 39189-333N | Not Available |
| 23 | No Image | RETAINER, HOSE Part Number: 39196-119N for Eureka | 39196119N | $2.11Read more |
| 24 | Not Available | CABLE CLAMP | 39214 | Not Available |
| 25 | Not Available | PLUG - BLANKING | 39216-337N | Not Available |
| 26 | No Image | SHOE ASSEMBLY 98147 | 39327 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 28 | Not Available | SCREW PACKAGE | 53238-40 | Not Available |
| 29 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $6.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | HEADLIGHT | 57940-2 | Not Available |
| 31 | Not Available | SEAL - BULKHEAD | 59654 | Not Available |
| 32 | Not Available | AXLE - REAR WHEEL | 59657 | Not Available |
| 33 | Not Available | WASHER - PACKAGED | 59658 | Not Available |
| 34 | Not Available | POTENTIOMETER SLIDER PRIN | 59667-5 | Not Available |
| 35 | Not Available | LAMP-NEON (NLA use 59668-3) | 59668-2 | Not Available |
| 36 | Not Available | HOSE | 59669-3 | Not Available |
| 37 | Not Available | SEAL - UPPER AIR TUBE | 59673 | Not Available |
| 38 | Not Available | HOOK-CORD | 59675-119N | Not Available |
| 39 | Not Available | RIVET - PACKAGED | 59680 | Not Available |
| 40 | Not Available | BLOCK - SUSPENSION | 59692 | Not Available |
| 41 | Not Available | RING - JOURNAL | 59830-316N | Not Available |
| 42 | Not Available | LEAD ASSEMBLY | 59847-3 | Not Available |
| 43 | Not Available | LEAD ASSY. | 59847-5 | Not Available |
| 44 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | FILTER PACKAGE | 60428 | Not Available |
| 46 | Not Available | SCREW - PKG | 60603 | Not Available |
| 47 | Not Available | WASHER PKG | 60810 | Not Available |
| 48 | No Image | SCREW, BASE ASSY 6230 OXYGEN UPRIGHT Part Number: 60856 for Eureka | 60856 | $2.29Read more |
| 49 | Not Available | BODY ASSEMBLY - PACKAGED | 60949-4 | Not Available |
| 50 | Not Available | MOTOR ASSEMBLY-CARTONED | 60985-1 | Not Available |
| 51 | Not Available | MOTOR COVER ASSEMBLY - PK | 60987-1 | Not Available |

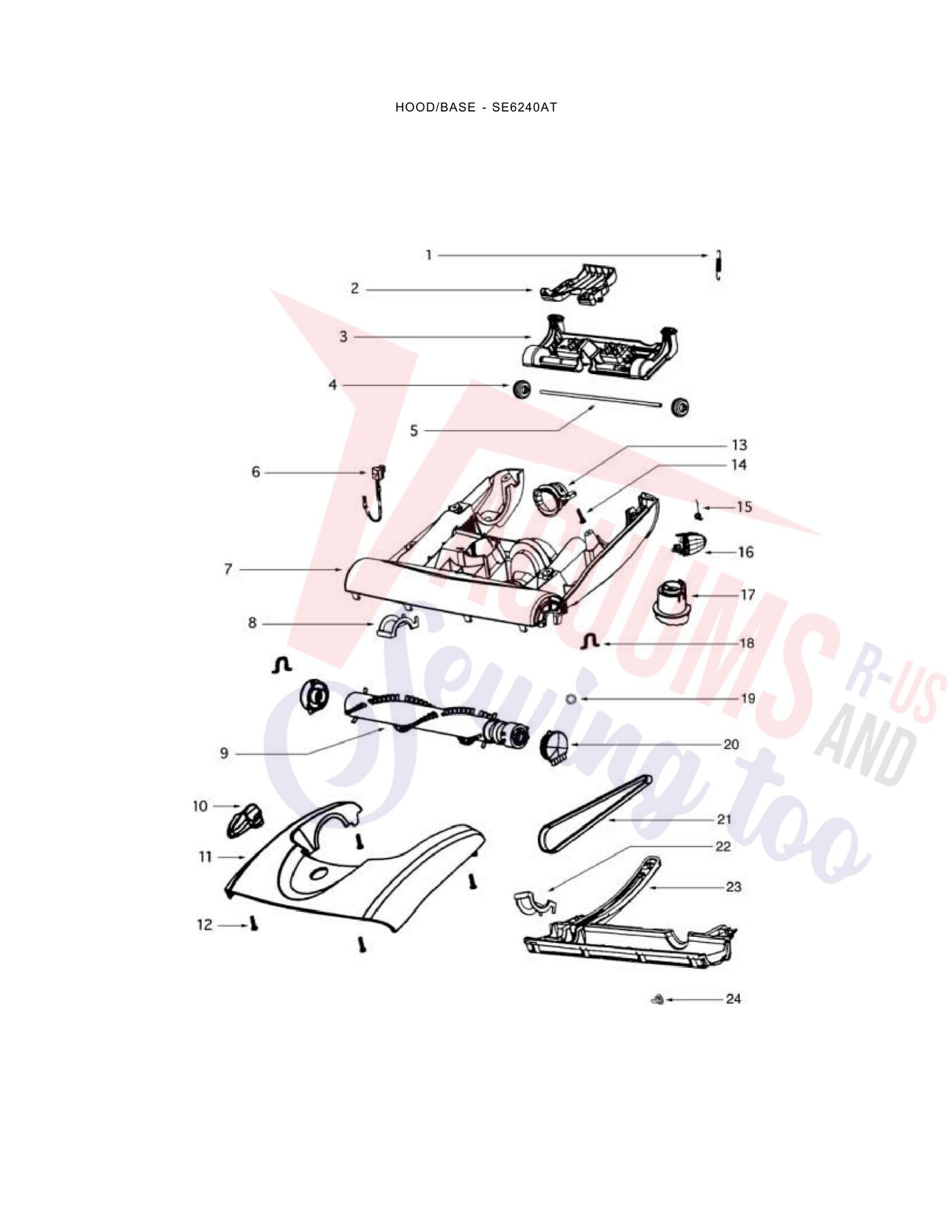

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SPRING - PACKAGED | 70313 | Not Available |
| 2 | Not Available | ARM - LEVER | 28187-119N | Not Available |
| 3 | Not Available | WHEEL CARRIAGE ASSEMBLY | 28445 | Not Available |
| 4 | Not Available | WHEEL - FRONT | 39168 | Not Available |
| 5 |  | Hose Inlet Assembly Part Number 39253 for Simplicity Models BRIO | 39253 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | LUTON CORD ASSEMBLY | 28446-1 | Not Available |
| 7 | Not Available | BASE ASSEMBLY - PACKAGED | 60988-1 | Not Available |
| 8 | Not Available | FELT | 59951 | Not Available |
| 9 | Not Available | BRUSHROLL ASSEMBLY - CART | 60989-1 | Not Available |
| 10 | Not Available | KNOB - HEIGHT ADJUSTMENT | 39151-335N | Not Available |
| 11 | Not Available | HOOD & GRAPHICS ASSEMBLY- | 60986-1 | Not Available |
| 12 | No Image | SCREW, BASE ASSY 6230 OXYGEN UPRIGHT Part Number: 60856 for Eureka | 60856 | $2.29Read more |
| 13 | Not Available | ADAPTER - HOSE | 39267-119N | Not Available |
| 14 | Not Available | BODY RELEASE SPRING - PKG | 39198 | Not Available |
| 15 | Not Available | PEDAL - BODY RELEASE | 39197A-335N | Not Available |
| 16 | Not Available | ACTUATOR - HT. ADJUSTMENT | 39255-335N | Not Available |
| 17 | Not Available | GASKET - CYCLONE | 59852-1 | Not Available |
| 18 | Not Available | SPACER - END CAP | 59792 | Not Available |
| 19 | Not Available | END CAPS - BRISTLED | 39193-2 | Not Available |
| 20 | Not Available | FLAT BELT | 39199 | Not Available |
| 21 | Not Available | SOLE PLATE & GASKET ASSEM | 28443-1SV | Not Available |
| 22 | Not Available | 1/4 TURN FASTENER - PKG | 60598-2 | Not Available |
| 22 | No Image | SCREW, 1/4 TURN WHIRLWIND UPRT PLASTIC ORANGE 5PK Part Number: 60598-1 for Eureka | 605981 | $9.01Read more |

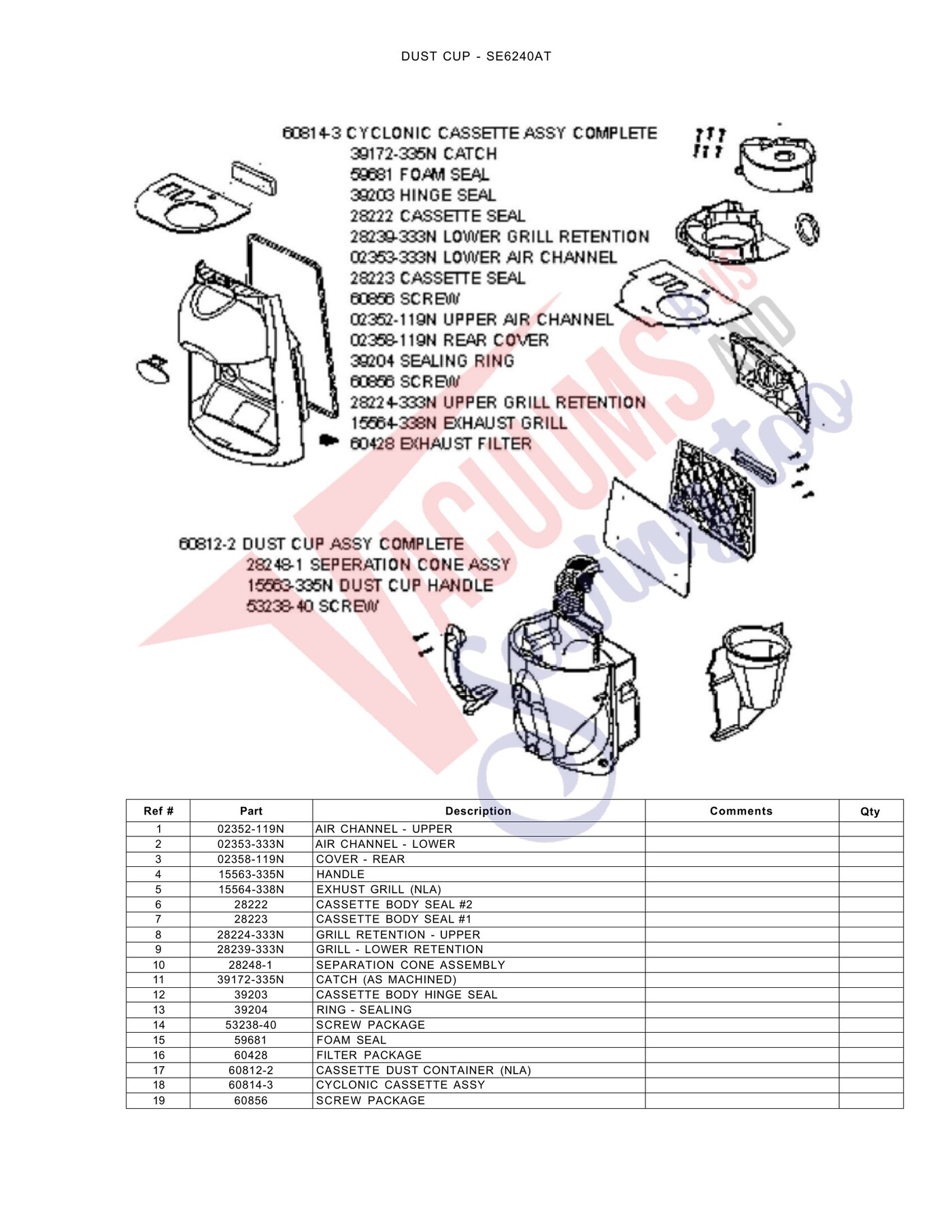

| # | Part image | Description | SKU | Price |
| 1 | Not Available | AIR CHANNEL - UPPER | 02352-119N | Not Available |
| 2 | Not Available | AIR CHANNEL - LOWER | 02353-333N | Not Available |
| 3 | Not Available | COVER - REAR | 02358-119N | Not Available |
| 4 | Not Available | HANDLE | 15563-335N | Not Available |
| 5 | Not Available | EXHUST GRILL (NLA) | 15564-338N | Not Available |
| 6 | Not Available | CASSETTE BODY SEAL #2 | 28222 | Not Available |
| 7 | Not Available | CASSETTE BODY SEAL #1 | 28223 | Not Available |
| 8 | Not Available | GRILL RETENTION - UPPER | 28224-333N | Not Available |
| 9 | Not Available | GRILL - LOWER RETENTION | 28239-333N | Not Available |
| 10 | Not Available | SEPARATION CONE ASSEMBLY | 28248-1 | Not Available |
| 11 | Not Available | CATCH (AS MACHINED) | 39172-335N | Not Available |
| 12 | Not Available | CASSETTE BODY HINGE SEAL | 39203 | Not Available |
| 13 | Not Available | RING - SEALING | 39204 | Not Available |
| 14 | Not Available | SCREW PACKAGE | 53238-40 | Not Available |
| 15 | Not Available | FOAM SEAL | 59681 | Not Available |
| 16 | Not Available | FILTER PACKAGE | 60428 | Not Available |
| 17 | Not Available | CASSETTE DUST CONTAINER (NLA) | 60812-2 | Not Available |
| 18 | Not Available | CYCLONIC CASSETTE ASSY | 60814-3 | Not Available |
| 19 | No Image | SCREW, BASE ASSY 6230 OXYGEN UPRIGHT Part Number: 60856 for Eureka | 60856 | $2.29Read more |

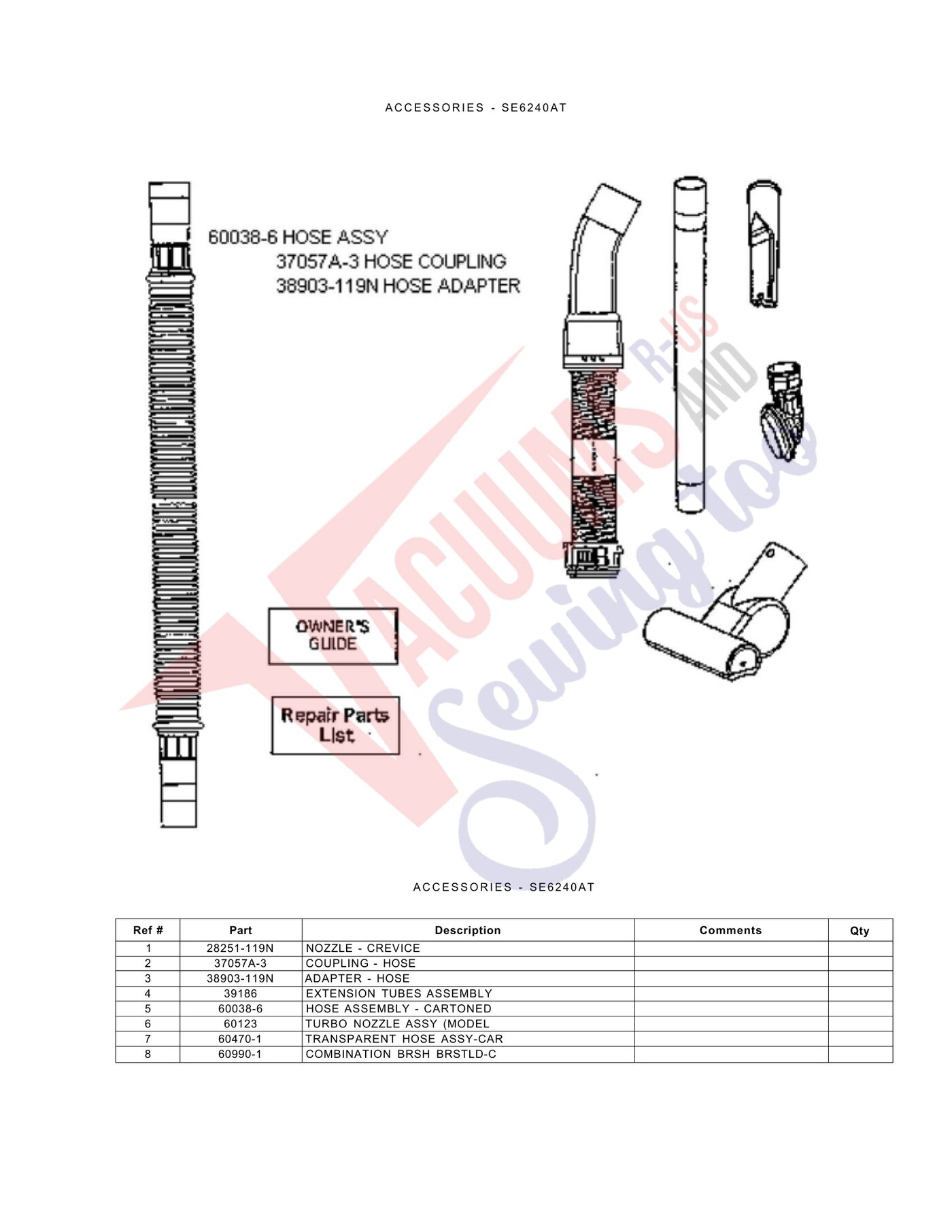

| # | Part image | Description | SKU | Price |
| 1 | Not Available | NOZZLE - CREVICE | 28251-119N | Not Available |
| 2 | Not Available | COUPLING - HOSE | 37057A-3 | Not Available |
| 3 | Not Available | ADAPTER - HOSE | 38903-119N | Not Available |
| 4 | Not Available | EXTENSION TUBES ASSEMBLY | 39186 | Not Available |
| 5 | Not Available | HOSE ASSEMBLY - CARTONED | 60038-6 | Not Available |
| 6 | Not Available | TURBO NOZZLE ASSY (MODEL | 60123 | Not Available |
| 7 | Not Available | TRANSPARENT HOSE ASSY-CAR | 60470-1 | Not Available |
| 8 | Not Available | COMBINATION BRSH BRSTLD-C | 60990-1 | Not Available |
