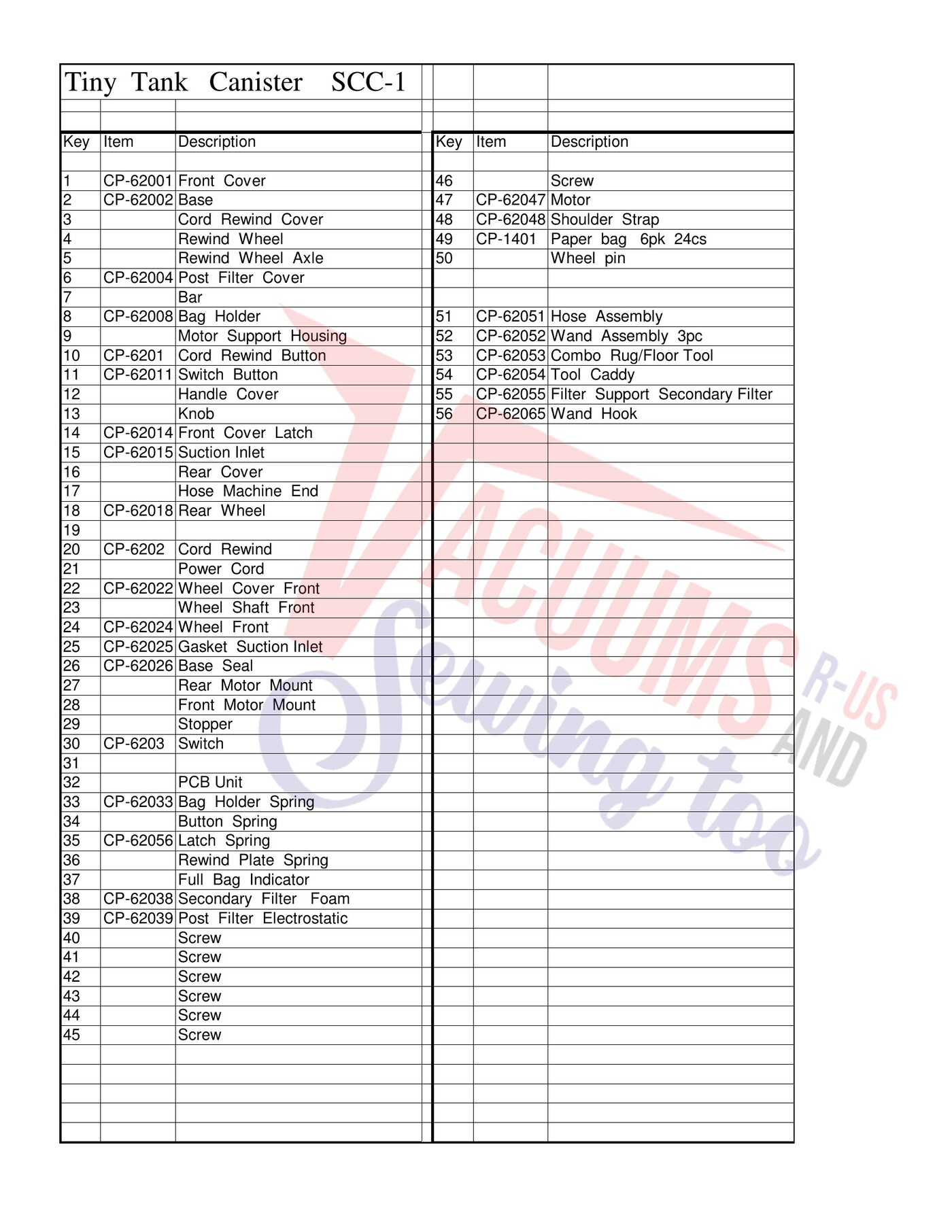

Schematic and parts book for Eureka SCC-1 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Front Cover 46 Screw | CP-62001 | Not Available |
| 2 | Not Available | Base | CP-62002 | Not Available |
| 6 | Not Available | Post Filter Cover | CP-62004 | Not Available |
| 8 | Not Available | Bag Holder | CP-62008 | Not Available |
| 10 | Not Available | Cord Rewind Button | CP-6201 | Not Available |
| 11 | Not Available | Switch Button | CP-62011 | Not Available |
| 14 | Not Available | Front Cover Latch | CP-62014 | Not Available |
| 15 | Not Available | Suction Inlet | CP-62015 | Not Available |
| 18 | Not Available | Rear Wheel | CP-62018 | Not Available |
| 20 | Not Available | Cord Rewind | CP-6202 | Not Available |
| 22 | Not Available | Wheel Cover Front | CP-62022 | Not Available |
| 24 | Not Available | Wheel Front | CP-62024 | Not Available |
| 25 | Not Available | Gasket Suction Inlet | CP-62025 | Not Available |
| 26 | Not Available | Base Seal | CP-62026 | Not Available |
| 30 | Not Available | Switch | CP-6203 | Not Available |
| 33 | Not Available | Bag Holder Spring | CP-62033 | Not Available |
| 35 | Not Available | Latch Spring | CP-62056 | Not Available |
| 38 | Not Available | Secondary Filter Foam | CP-62038 | Not Available |
| 39 | Not Available | Post Filter Electrostatic | CP-62039 | Not Available |
| 47 | Not Available | Motor | CP-62047 | Not Available |
| 48 | Not Available | Shoulder Strap | CP-62048 | Not Available |
| 49 | Not Available | Paper bag 6pk 24cs | CP-1401 | Not Available |
| 51 | Not Available | Hose Assembly | CP-62051 | Not Available |
| 52 | Not Available | Wand Assembly 3pc | CP-62052 | Not Available |
| 53 | Not Available | Combo Rug/Floor Tool | CP-62053 | Not Available |
| 54 | Not Available | Tool Caddy | CP-62054 | Not Available |
| 55 | Not Available | Filter Support Secondary Filter | CP-62055 | Not Available |
| 56 | Not Available | Wand Hook | CP-62065 | Not Available |
