Schematic and parts book for Eureka SC688A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
Helpful Repair Videos

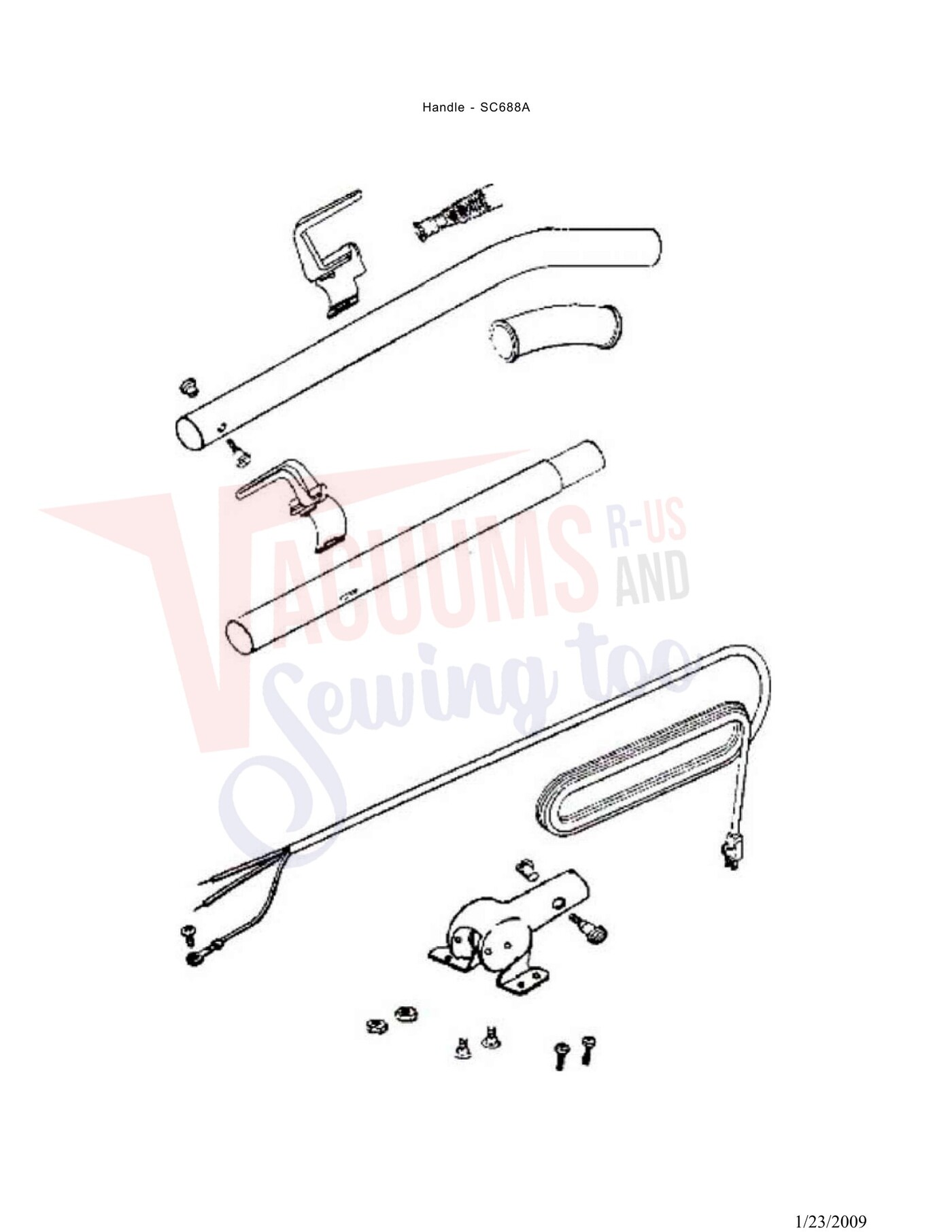

| # | Part image | Description | SKU | Price |
| 1 | Not Available | TUBE - HANDLE (LOWER) | 12637-8 | Not Available |
| 2 | Not Available | HANDLE ASSEMBLY(UPPER) | 25329-44SV | Not Available |
| 3 |  | Sanitaire Handle Grip White/Gray | 3529322 | $5.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | HANDLE SOCKET ASSY | 38183-1 | Not Available |
| 5 | Not Available | SPRING - STRAIN RELIEF PK | 38495 | Not Available |
| 6 |  | Cord, 50' Gray 3-Wire Titanium C2094D/E/F/GW/H/H-1 Part Number: 5237018 for Eureka | 5237018 | $45.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $8.87Read more |
| 8 | Not Available | HANDLE SCREW ASSY PACKAGE | 53198-1 | Not Available |
| 9 |  | Nut-Eureka - 10Pk - Bravo Handle For: eureka,sanitaire | 532135 | $4.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Screw, Upper Bearing Plate Sanitaire 10Pk Part Number: 532282 for Eureka | 532282 | $3.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |

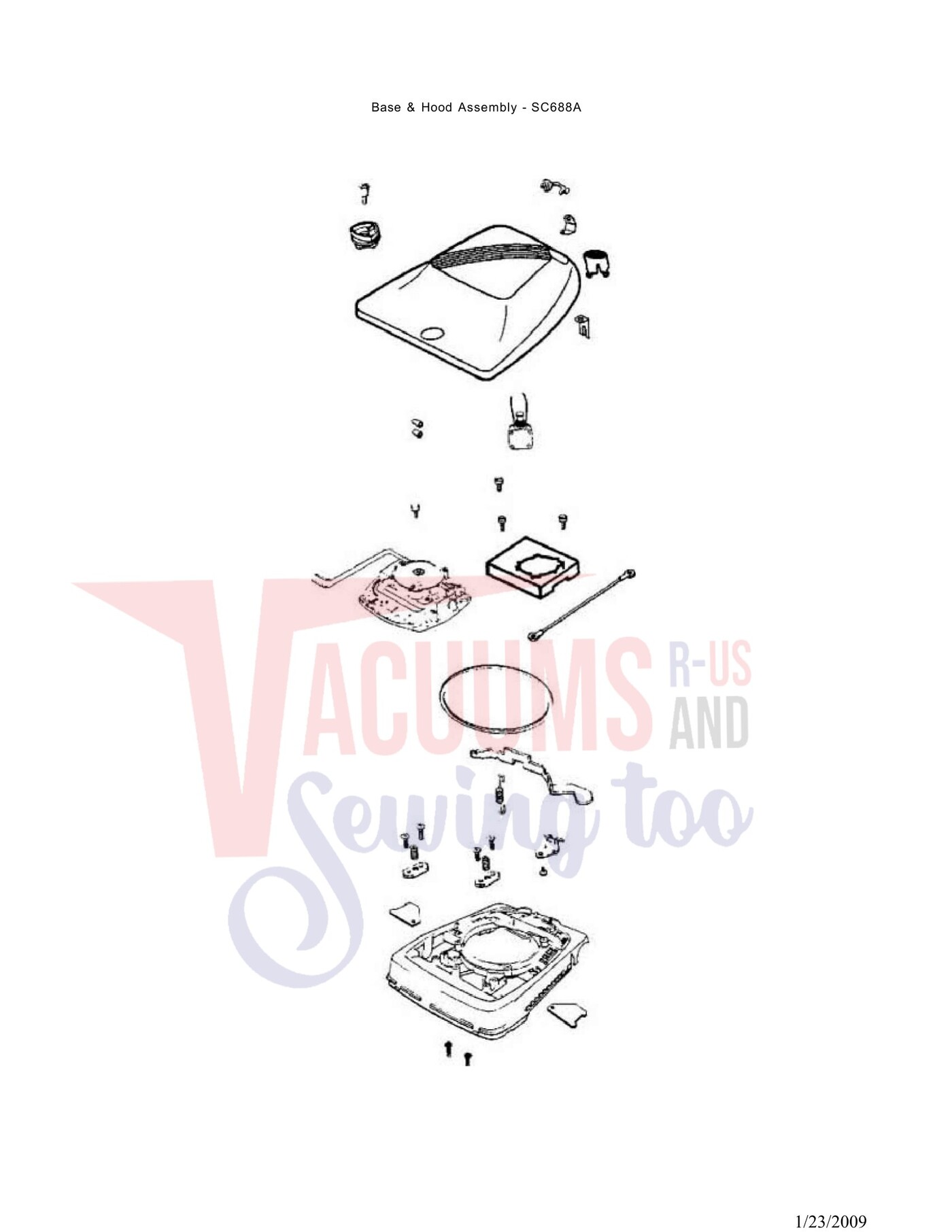

| # | Part image | Description | SKU | Price |
| 1 |  | Switch, Button 1934/1967/1968/SC678/SC679/SC684 Part Number: 146601 for Eureka | 146601 | $4.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Discontinued use 24834A-3 | 24834A-1 | Not Available |
| 3 | Not Available | CAM (RIGHT) | 24964A | Not Available |
| 4 | Not Available | CAM (LEFT) | 24965A | Not Available |
| 5 | Not Available | GASKET - MOTOR SEAL | 30517 | Not Available |
| 6 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Bag Adapter Bracket 2035 For: eureka,sanitaire | 37034 | $2.40Add to cart |
| 8 |  | Clip, Switch 1400/1900/2000/C2000/C4000 Part Number: 37989 for Eureka | 37989 | $5.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Knob, Black Height Adjustment C2000 Series Part Number: 380532 for Eureka | 380532 | $6.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | SEPARATOR ASSEMBLY | 38067 | Not Available |
| 11 |  | Bracket, Metal Bushing C2000/C4000 Series Part Number: 382181 for Eureka | 382181 | $5.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $5.24Add to cart |
| 13 | Not Available | RIVET - SHOULDER PACKAGE | 53118 | Not Available |
| 14 |  | Bushing, Strn Relief SC679/SC689/SC887/SC888 10PK Part Number: 53122 for Eureka | 53122 | $8.67Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Compatible alternateStrain Relief, Heyco 18/3 Black Plastic Grommet More Product Details | SS-3266 | $8.67Add to cart |
| 15 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 16 |  | Frnt Axle Clmp Assy
6 Pack For: eureka,sanitaire | 53140 | $5.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | WIRE NUTS/PKG 10 | 53214-1 | Not Available |
| 19 | Not Available | SCREW PACKAGE | 53215-4 | Not Available |
| 20 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Switch, Black Square On/Off Button Part Number: 268083 for Eureka | 268083 | $4.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | SWITCH | 13738-5 | Not Available |
| 24 | Not Available | WIRE & TERMINAL ASSY | 54177 | Not Available |
| 25 | Not Available | HOOD & GRAPHICS ASSY | 54314-2 | Not Available |
| 26 | Not Available | MOTOR ASSEMBLY - PACKAGED | 54352-3 | Not Available |
| 27 | Not Available | BASE ASSEMBLY - 12 INCH | 54410-9 | Not Available |

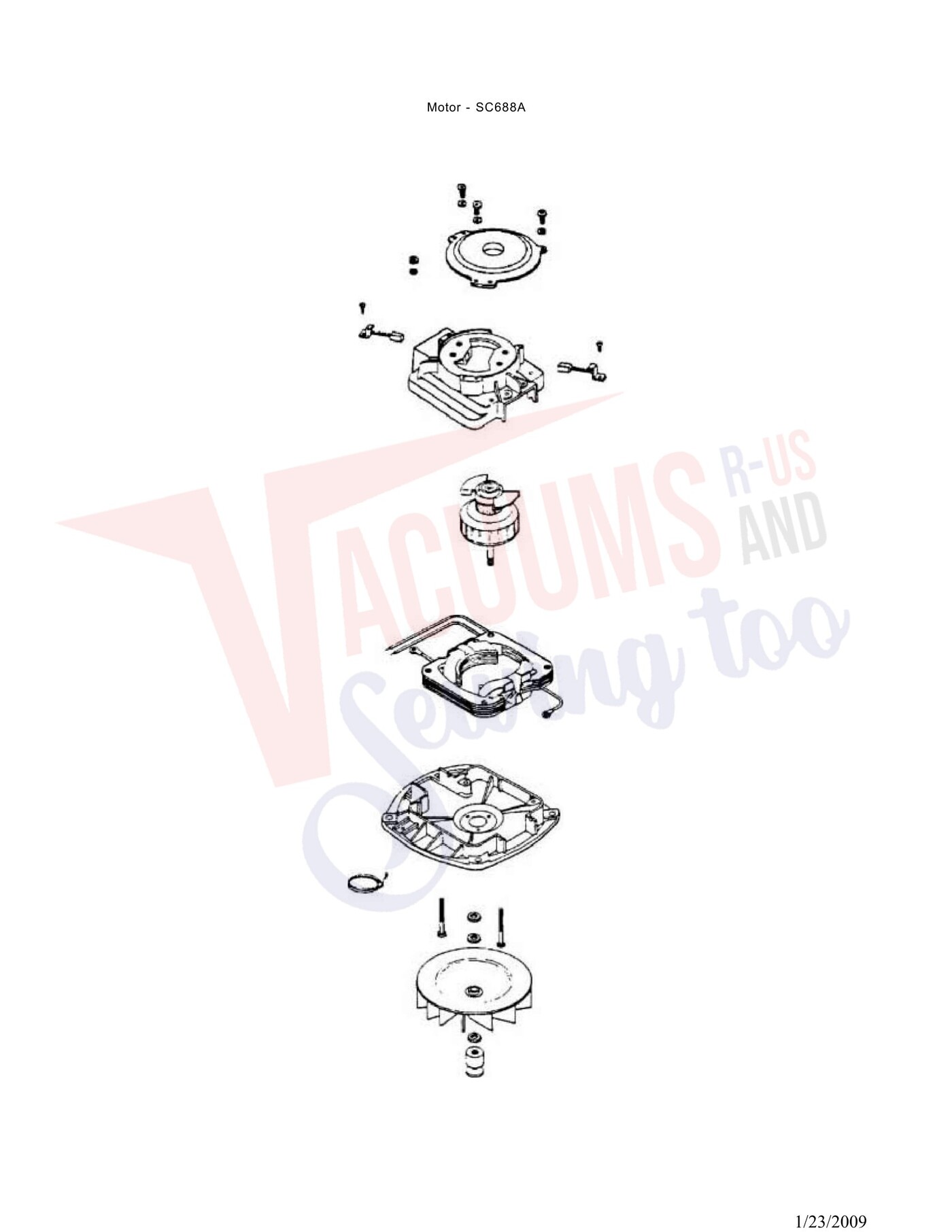

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FAN BLOWER - MOTOR | 12988 | Not Available |
| 2 | Not Available | RETAINER - UPPER BEARING | 20217E | Not Available |
| 3 | Not Available | FAN - MOTOR COOLING | 30474A | Not Available |
| 4 |  | Per EACH Eureka Sanitaire motor brush carbon brushes for commercial vacuums. Also for perfect and... | 30478 | $3.80Add to cart |
| 5 | Not Available | PULLEY - MOTOR DRIVE | 37012-2 | Not Available |
| 6 | Not Available | BEARING RETAINER ASSY-W/L | 42875 | Not Available |
| 7 | Not Available | BALL BEARING - PACKAGE | 53088-1 | Not Available |
| 8 | No Image | SCREW, BEARING PLATE SANITAIRE 10 PK Part Number: 53138 for Eureka | 53138 | $3.03Read more |
| 9 | Not Available | SCREW PACKAGE (10) | 53142 | Not Available |
| 10 | Not Available | WASHER - FAN PACKAGE (10) | 53148 | Not Available |
| 11 | Not Available | RIVET PACKAGE | 53187-1 | Not Available |
| 12 |  | Washer, Steel C2000/1400/1900/C4046 Series Part Number: 531881 for Eureka | 531881 | $12.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Nut, Hex Part Number: 532134 for Eureka | 532134 | $4.73Read more |
| 14 | Not Available | SCREWS - PACKAGE 10 | 53219-2 | Not Available |
| 15 | Not Available | LOCKWASHERS- PACKAGE 10 | 53222-3 | Not Available |
| 16 | Not Available | FIELD ASSEMBLY - PACKAGED | 53441-2 | Not Available |
| 17 | Not Available | MOTOR BASE ASSEMBLY | 54169-1 | Not Available |
| 18 | Not Available | ARMATURE FAN & BRG ASSY- | 54395-4 | Not Available |
| 19 | Not Available | MOTOR COVER ASSEMBLY - LA | 54396 | Not Available |
| 20 | Not Available | TIE - CABLE (PURCHASED) | 56802-2 | Not Available |

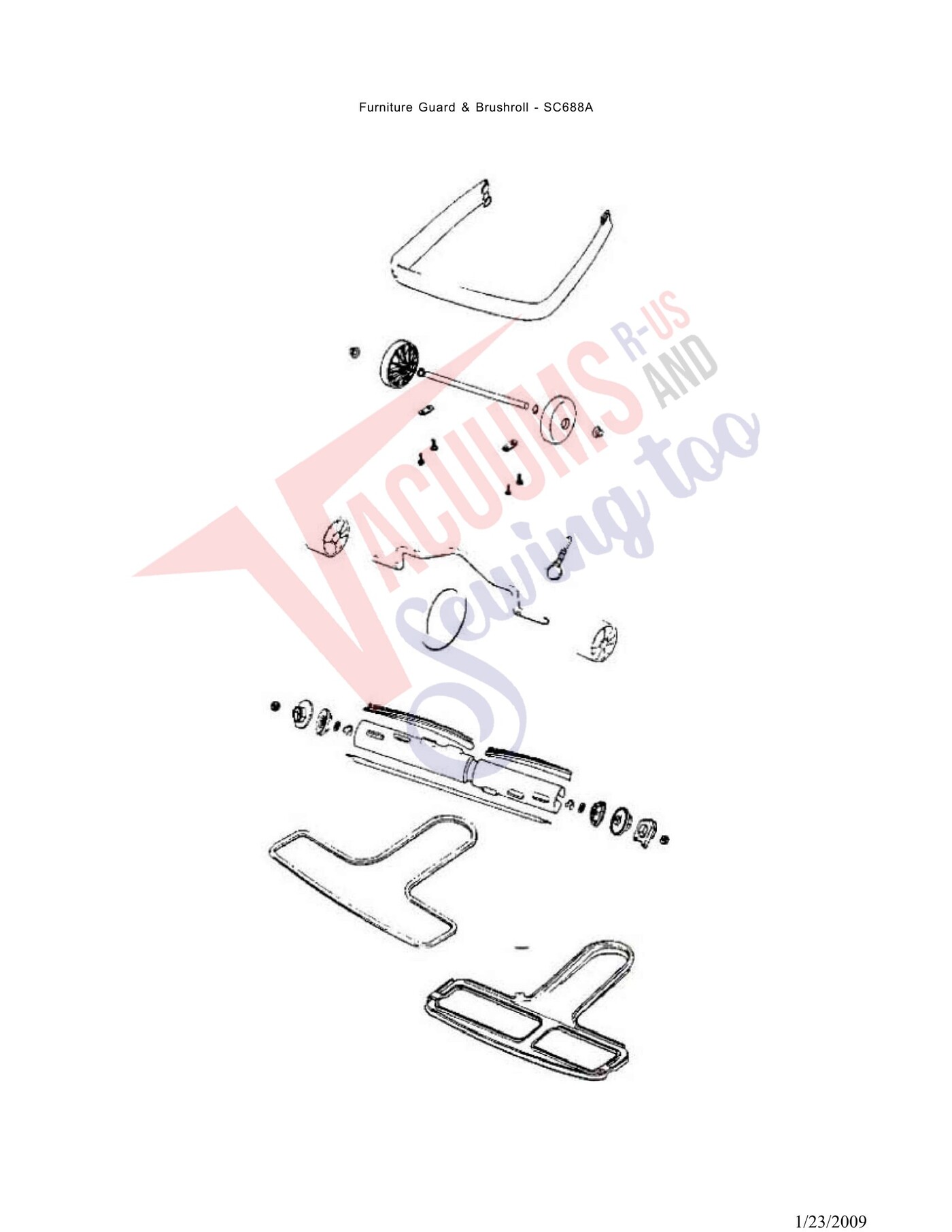

| # | Part image | Description | SKU | Price |
| 1 |  | Tube Only-Eureka Vgii Brush Roll For: eureka,sanitaire | 132363 | $22.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Compatible alternateBase Plate 259221 for Sanitaire, Bissell Big Green Commercial, and Old Eureka Commercial Types More Product Details | ER-7601 | $26.36Add to cart Special order — allow 2-4 weeks. |
| 3 | No Image | SHAFT - DISTURBULATOR | 25937 | $53.99Read more |
| 4 |  | End Cap, Small Hex Brushroll VGII Part Number: 26057A for Eureka | 26057A | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Cover, Black Pliable Rubber End Cap Part Number: 26059A for Eureka | 26059A | $1.77Add to cart |
| 5 |  | Compatible alternateCover, Black Pliable Rubber End Cap Brushroll More Product Details | ER-2050 | $1.38Add to cart Special order — allow 2-4 weeks. |
| 6 | Not Available | REAR WHEEL use 26242-119N | 26242-1 | Not Available |
| 7 | Not Available | Discontinued use 27564-1 | 26296-9 | Not Available |
| 8 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $8.67Read more |
| 10 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $7.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | WHEEL & AXLE ASSY | 37234-1 | Not Available |
| 12 | Not Available | TAPE-FOAM (use 46538-4) | 46538 | Not Available |
| 13 | No Image | Felt Washer For: eureka,sanitaire | 49899 | $3.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | BELT PKG ASSY (UPRIGHT) | 52100 | Not Available |
| 15 | Not Available | BRISTLE STRIP PACKAGE | 52282-4 | Not Available |
| 16 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 17 |  | Eureka,Sanitaire Wheel Washers | 53110 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $5.18Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Klipring, Eur/Sani C2000/C4046/S647/SC887 Ser 10Pk Part Number: 53184 for Eureka | 53184 | $10.75Read more |
| 21 |  | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 22 | | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | DISTURBULATOR ASSEMBLY | 53270 | Not Available |
| 24 | Not Available | BRG & RET ASSY | 54256 | Not Available |

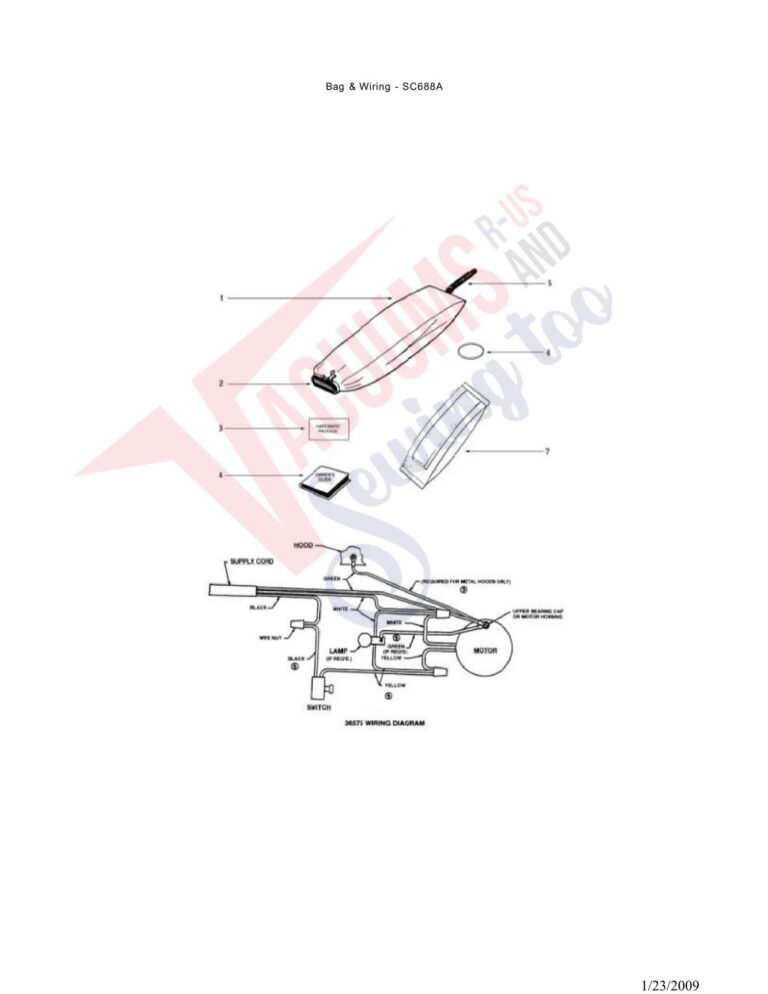

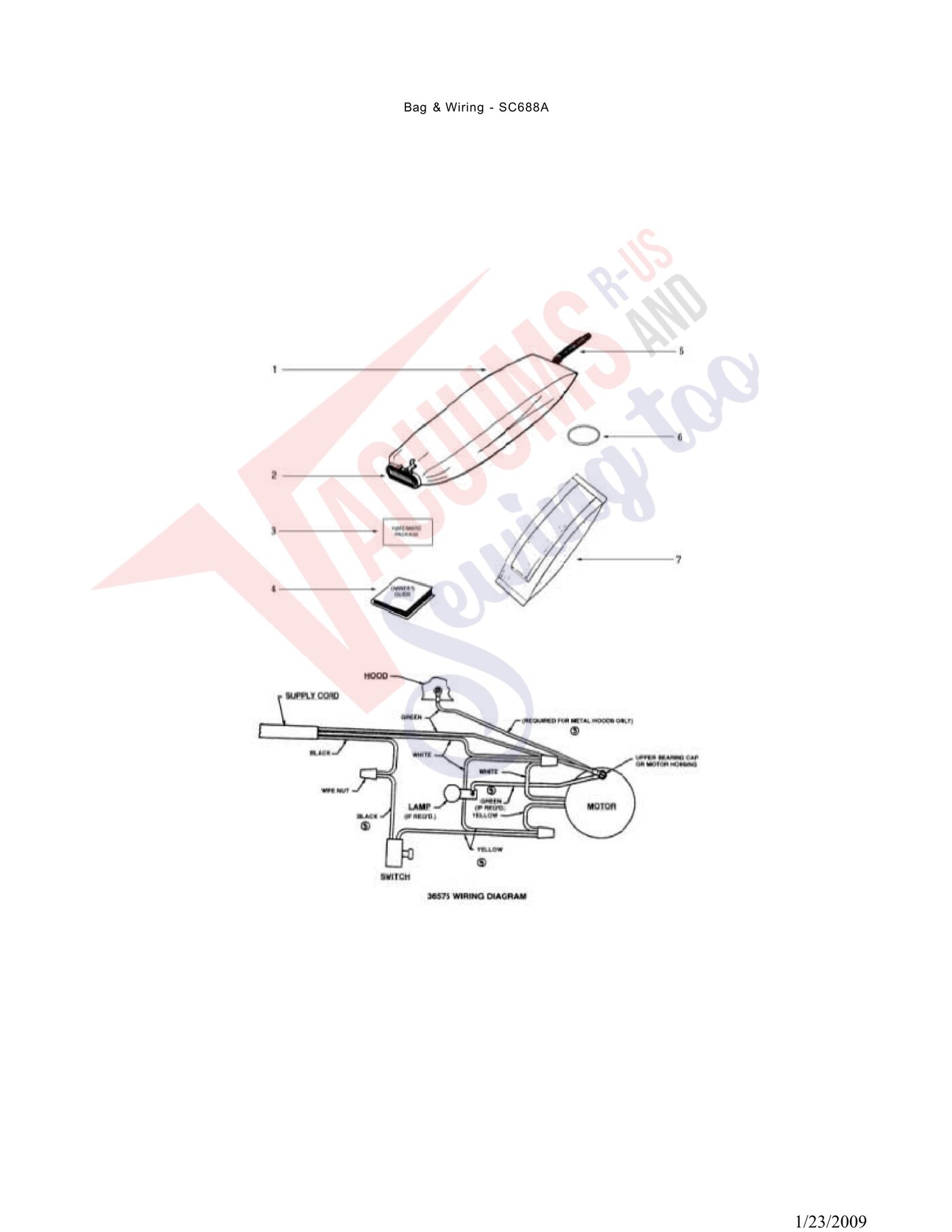

| # | Part image | Description | SKU | Price |
| XX | Not Available | ZIPPER HANDLE CHAIN ASSEM | 78221 | Not Available |
| 1 |  | Outer Zipper Bag-Sanitaire Sc-883 - Arm-Hammer
Takes St Paper Bags - Screw Type W/ Double Zipper ... | 5346923 | $71.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Compatible alternateSanitaire Cloth Outer Bag PN 5346923 More Product Details | WP11443 | $71.10Add to cart Special order — allow 2-4 weeks. |
| 2 | No Image | Dirt Tube & Overmold Adapter Kit Sanitaire ''St'' For: eureka,sanitaire | 77491 | $29.07Read more |
| 3 | Not Available | HARDWARE PKG - COMM UPRIG | 49461B-4SV | Not Available |
| 5 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $6.58Read more |
| 6 | Not Available | SPRING - GARTER | 48410 | Not Available |
| 7 | Not Available | E-78221 ZIPPER HANDLE CHAIN ASSEM | 63213A-10 | Not Available |
