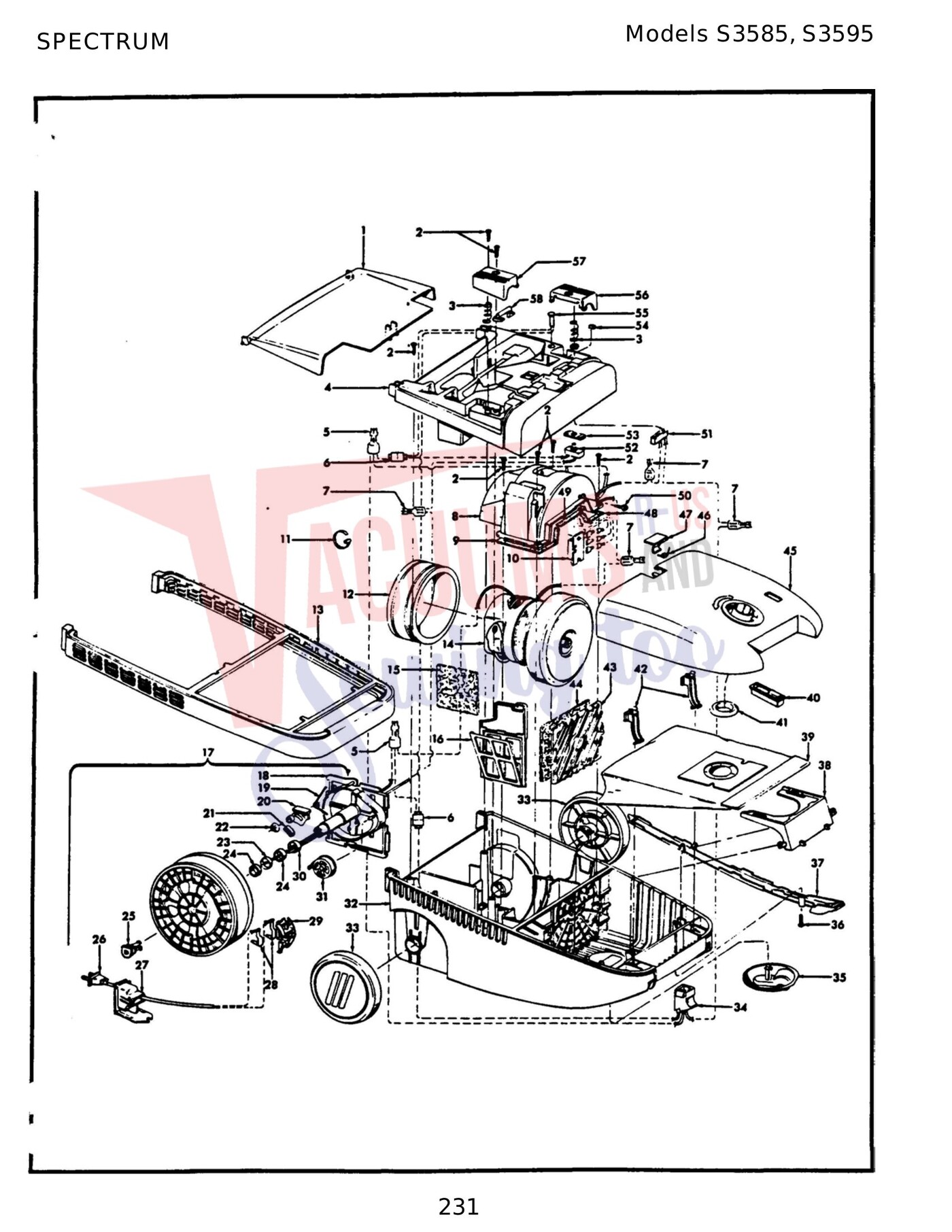

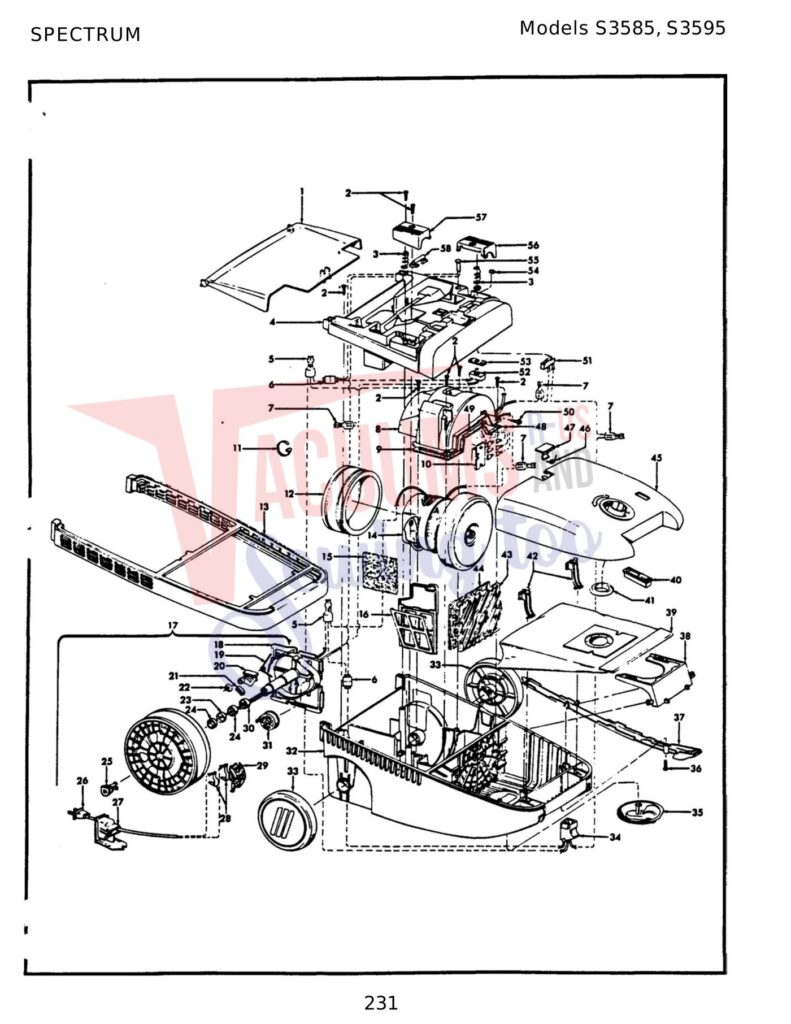

Schematic and parts book for Eureka S3585;S3595 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Tool Lid - AAN | 37215180 | Not Available |
| 2 | Not Available | Screw (7) | 21447217 | Not Available |
| 3 | Not Available | Spring - FW | 38314024 | Not Available |
| 4 | Not Available | Motor Cover Assm. - WW - S3585 | 41426041 | Not Available |
| 4 | Not Available | Motor Cover Assm. - ABA - S3595 | 41426042 | Not Available |
| 5 | Not Available | Insulated Terminal (2) | 18972 | Not Available |
| 6 | Not Available | Connector (2) | 27617106 | Not Available |
| 7 | Not Available | Insulated Terminal (4) | 12227 | Not Available |
| 8 | Not Available | Motor Retainer Assm. | 41312048 | Not Available |
| 9 | Not Available | Retainer Seal - RH | 34633003 | Not Available |
| 11 | Not Available | Lead Wire Tie | 27479307 | Not Available |
| 12 | Not Available | Motor Mount | 36322031 | Not Available |
| 13 | Not Available | Furniture Guard - AG - S3585 | 36235069 | Not Available |
| 13 | Not Available | Furniture Guard - ABB - S3595 | 36235070 | Not Available |
| 14 | Not Available | Motor Assm. (P-235) | 43576116 | Not Available |
| 15 |  | NO LONGER AVAILABLE Filter Exhaust Spectrum WindTunnel Can Part Number: 34174012 for Hoover | 34174012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Exhaust Filter Cassette - AAU | 38769019 | Not Available |
| 17 | Not Available | Cord Reel Assm. | 41911014 | Not Available |
| 18 | Not Available | Cord Reel Support - BZ | N/A | Not Available |
| 19 | Not Available | Torsion Spring - FW | N/A | Not Available |
| 20 | Not Available | Brake Lever Assm. - AAP | N/A | Not Available |
| 21 | Not Available | Brake Pad | N/A | Not Available |
| 22 | Not Available | Push Nut | N/A | Not Available |
| 23 | Not Available | Slip Ring Assm. - White | N/A | Not Available |
| 24 | Not Available | Spacer - BZ (2) | N/A | Not Available |
| 25 | Not Available | Retainer - AG | N/A | Not Available |
| 26 | Not Available | Cord | 46383288 | Not Available |
| 27 | Not Available | Ferrule - AG | 36218018 | Not Available |
| 28 | Not Available | Contact Spring (2) | N/A | Not Available |
| 29 | Not Available | Brush Holder - BZ | N/A | Not Available |
| 30 | Not Available | Slip Ring Assm. - Black | N/A | Not Available |
| 31 | Not Available | Spool & Spring Assm. | N/A | Not Available |
| 32 | Not Available | Main Body Assm. - WW | 42215055 | Not Available |
| 32 | Not Available | Main Body Assm. (Incl. Items 13 34 | 42215056 | Not Available |
| 33 | Not Available | Wheel - AG (2) | 38522065 | Not Available |
| 34 | Not Available | Receptacle Assm. - AG | 46526015 | Not Available |
| 35 | Not Available | Wheel Carrier Assm. - AG | 41432040 | Not Available |
| 36 | Not Available | Screw - Self Tapping | 21434288 | Not Available |
| 37 | Not Available | Cord Channel Cover - AG | 36218020 | Not Available |
| 38 | Not Available | Bag Collar Support - AG | 36424010 | Not Available |
| 39 | Not Available | Throw Away Bag Assm. | 4010064S | Not Available |
| 40 | Not Available | Bag Indicator | 51151010 | Not Available |
| 41 | Not Available | Bag Collar Seal - AG | 36424012 | Not Available |
| 42 | Not Available | Bag Lid Hinge - AG (2) | 36151027 | Not Available |
| 43 | Not Available | Filter Retainer - AG | 37944005 | Not Available |
| 44 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $4.00Add to cart |
| 45 | Not Available | Bag Lid Assm. - Common - AG- S3585 | 42212135 | Not Available |
| 45 | Not Available | Bag Lid Assm. - ABA - S3595 | 42217114 | Not Available |
| 46 | Not Available | Torsion Spring | 38351009 | Not Available |
| 47 | Not Available | Bag Latch - WW - S3585 | 36153046 | Not Available |
| 47 | Not Available | Bag Latch - ABA - S3595 | 36153040 | Not Available |
| 48 | Not Available | Retainer Seal - LH | 34633002 | Not Available |
| 49 | Not Available | Retainer Seal - Center | 34123040 | Not Available |
| 50 | Not Available | Screw - Self Tapping | 21466732 | Not Available |
| 51 | Not Available | Slide Rheostat Switch Assm. | 28179102 | Not Available |
| 52 | Not Available | Switch | 28212026 | Not Available |
| 53 | Not Available | Switch Mounting Plate - AAP | 34135014 | Not Available |
| 54 | Not Available | Button - AAU | 38421041 | Not Available |
| 55 | Not Available | Power Light | 27343250 | Not Available |
| 56 | Not Available | Switch Pedal - AG | 38422159 | Not Available |
| 57 | Not Available | Cord Reel Pedal - AG - S3585 | 38422155 | Not Available |
| 57 | Not Available | Cord Reel Pedal - ABB - S3595 | 38422158 | Not Available |
| 58 | Not Available | Cord Reel Brake Arm - AG | 38458034 | Not Available |
| 59 | Not Available | Spring - FW | 38314022 | Not Available |
| 59 | Not Available | Owner Manual | 56513291 | Not Available |
| 59 | Not Available | Carton | 59814006 | Not Available |
| 59 | Not Available | Bottom Support - Front | 58211011 | Not Available |
| 59 | Not Available | Bottom Support - Rear | 58211012 | Not Available |
