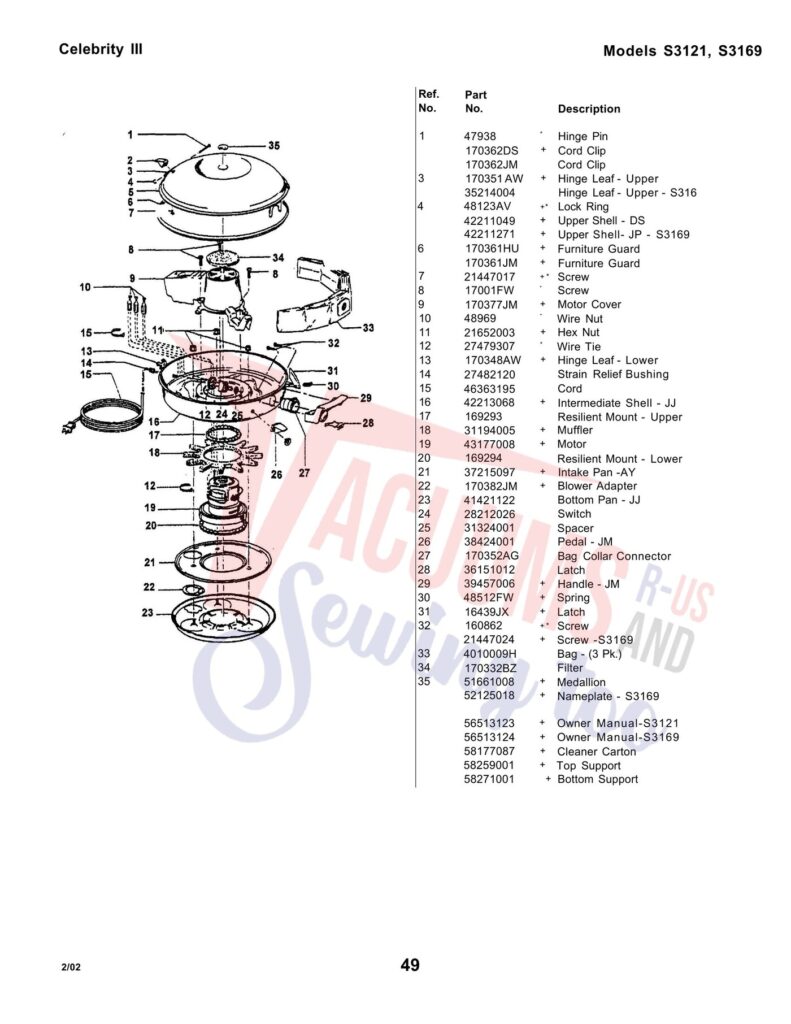

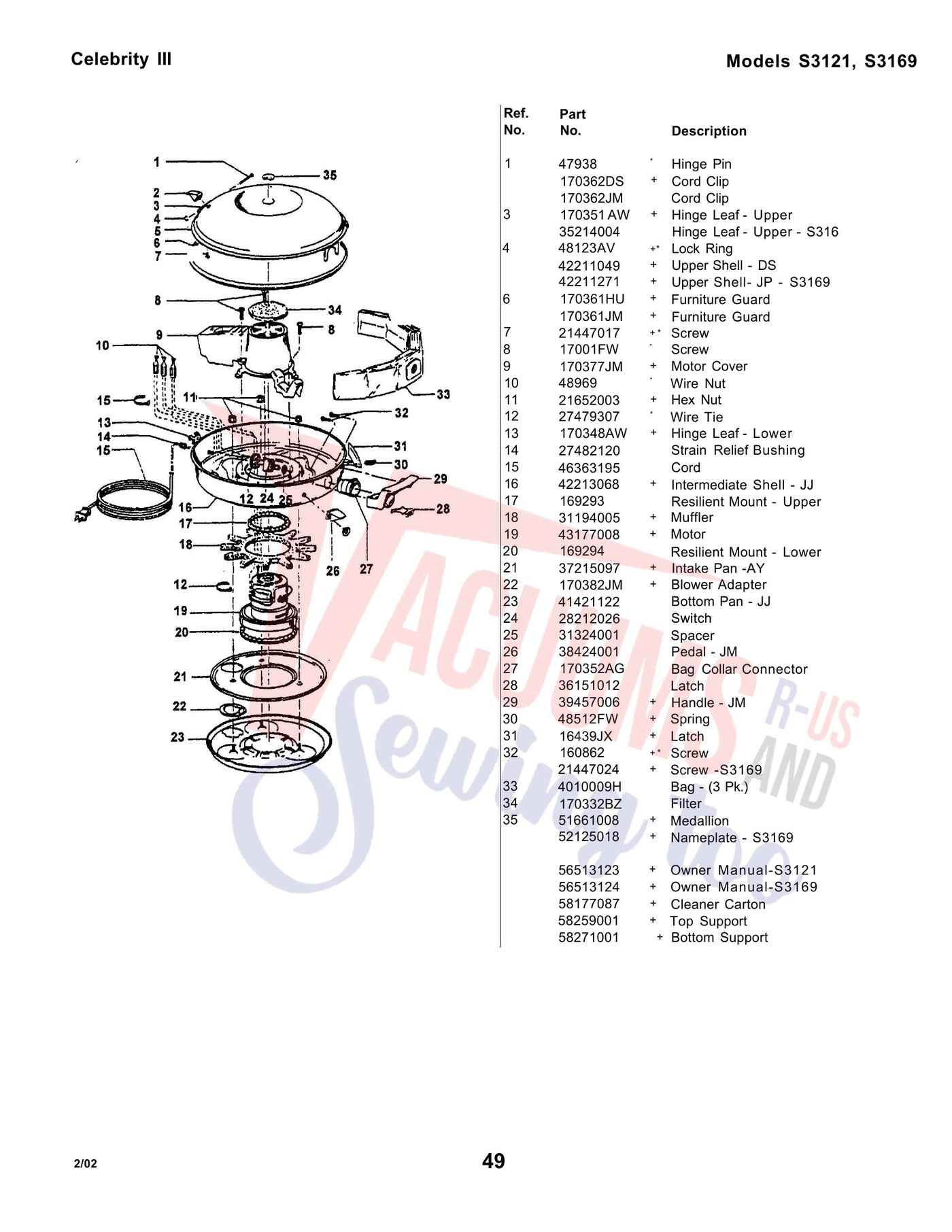

Schematic and parts book for Eureka S3121, S3169 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hinge Pin | 47938 | Not Available |
| 1 | Not Available | Cord Clip | 170362DS | Not Available |
| 1 | Not Available | Cord Clip | 170362JM | Not Available |
| 3 | Not Available | AW + Hinge Leaf - Upper | 170351 | Not Available |
| 3 | Not Available | Hinge Leaf - Upper - S316 | 35214004 | Not Available |
| 4 | Not Available | Lock Ring | 48123AV | Not Available |
| 4 | Not Available | Upper Shell - DS | 42211049 | Not Available |
| 4 | Not Available | Upper Shell- JP - S3169 | 42211271 | Not Available |
| 6 | Not Available | Furniture Guard | 170361HU | Not Available |
| 7 | Not Available | Furniture Guard | 170361JM | Not Available |
| 7 | Not Available | Screw | 21447017 | Not Available |
| 8 | Not Available | Screw | 17001FW | Not Available |
| 9 | Not Available | Motor Cover | 170377JM | Not Available |
| 10 | Not Available | Wire Nut | 48969 | Not Available |
| 11 | Not Available | Hex Nut | 21652003 | Not Available |
| 12 | Not Available | Wire Tie | 27479307 | Not Available |
| 13 | Not Available | Hinge Leaf - Lower | 170348AW | Not Available |
| 14 | Not Available | Strain Relief Bushing | 27482120 | Not Available |
| 15 | Not Available | Cord | 46363195 | Not Available |
| 16 | Not Available | Intermediate Shell - JJ | 42213068 | Not Available |
| 17 | Not Available | Resilient Mount - Upper | 169293 | Not Available |
| 18 | Not Available | Muffler | 31194005 | Not Available |
| 19 | Not Available | Motor | 43177008 | Not Available |
| 20 | No Image | Motor Mount/Lower-Hoover 3005 (Rubber) For: hoover | 169294 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Intake Pan -AY | 37215097 | Not Available |
| 22 | Not Available | Blower Adapter | 170382JM | Not Available |
| 23 | Not Available | Bottom Pan - JJ | 41421122 | Not Available |
| 24 | Not Available | Switch | 28212026 | Not Available |
| 25 | Not Available | Spacer | 31324001 | Not Available |
| 26 | Not Available | Pedal - JM | 38424001 | Not Available |
| 27 | Not Available | Bag Collar Connector | 170352AG | Not Available |
| 28 | Not Available | Latch | 36151012 | Not Available |
| 29 | Not Available | Handle - JM | 39457006 | Not Available |
| 30 | Not Available | Spring | 48512FW | Not Available |
| 31 | Not Available | Latch | 16439JX | Not Available |
| 32 | Not Available | Screw | 160862 | Not Available |
| 32 | Not Available | Screw -S3169 | 21447024 | Not Available |
| 33 | No Image | Genuine Hoover Type H Bags for Celebrity Canister - 3pk | 4010009H | $6.99Add to cart |
| 34 | Not Available | Filter | 170332BZ | Not Available |
| 35 | Not Available | Medallion | 51661008 | Not Available |
| 35 | Not Available | Nameplate - S3169 | 52125018 | Not Available |
| 35 | Not Available | Owner Manual-S3121 | 56513123 | Not Available |
| 35 | Not Available | Owner Manual-S3169 | 56513124 | Not Available |
| 35 | Not Available | Cleaner Carton | 58177087 | Not Available |
| 35 | Not Available | Top Support | 58259001 | Not Available |
| 35 | Not Available | Bottom Support | 58271001 | Not Available |

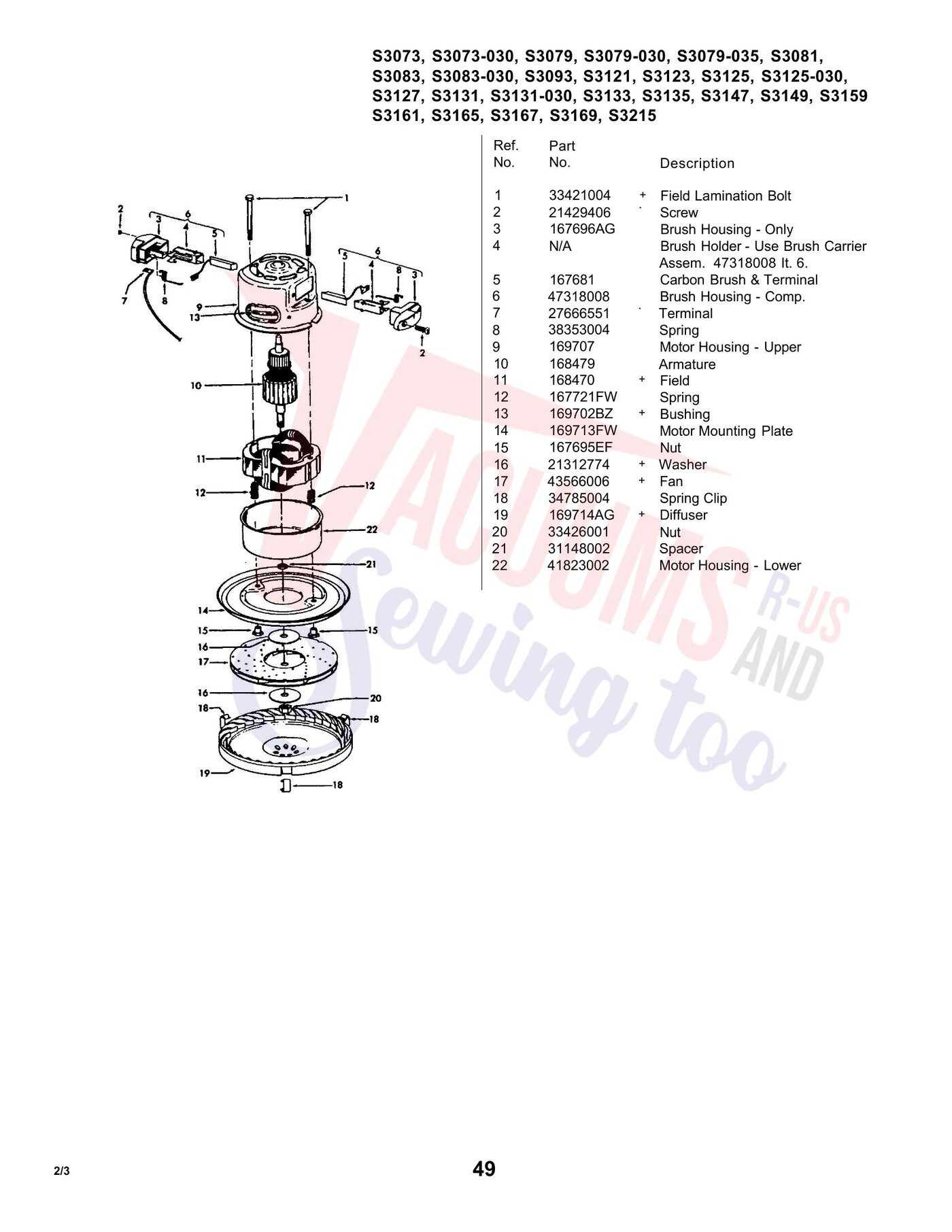

| # | Part image | Description | SKU | Price |
| 1 | Not Available | No. No. Description | 33421004 | Not Available |
| 2 | Not Available | Screw | 21429406 | Not Available |
| 3 | Not Available | Brush Housing - Only | 167696AG | Not Available |
| 5 | Not Available | Carbon Brush & Terminal | 167681 | Not Available |
| 6 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 7 | Not Available | Terminal | 27666551 | Not Available |
| 8 | Not Available | Spring | 38353004 | Not Available |
| 9 | Not Available | Motor Housing - Upper | 169707 | Not Available |
| 10 | Not Available | Armature | 168479 | Not Available |
| 11 | Not Available | Field | 168470 | Not Available |
| 12 | Not Available | Spring | 167721FW | Not Available |
| 13 | Not Available | Bushing | 169702BZ | Not Available |
| 14 | Not Available | Motor Mounting Plate | 169713FW | Not Available |
| 15 | Not Available | Nut | 167695EF | Not Available |
| 16 | Not Available | Washer | 21312774 | Not Available |
| 17 | Not Available | Fan | 43566006 | Not Available |
| 18 | Not Available | Spring Clip | 34785004 | Not Available |
| 19 | Not Available | Diffuser | 169714AG | Not Available |
| 20 | Not Available | Nut | 33426001 | Not Available |
| 21 | Not Available | Spacer | 31148002 | Not Available |
| 22 |  | HOUSING, LOWER MOTOR CELEBRITY 3005/3159/3167 Part Number: 41823002 for Hoover | 41823002 | $18.77Read more |

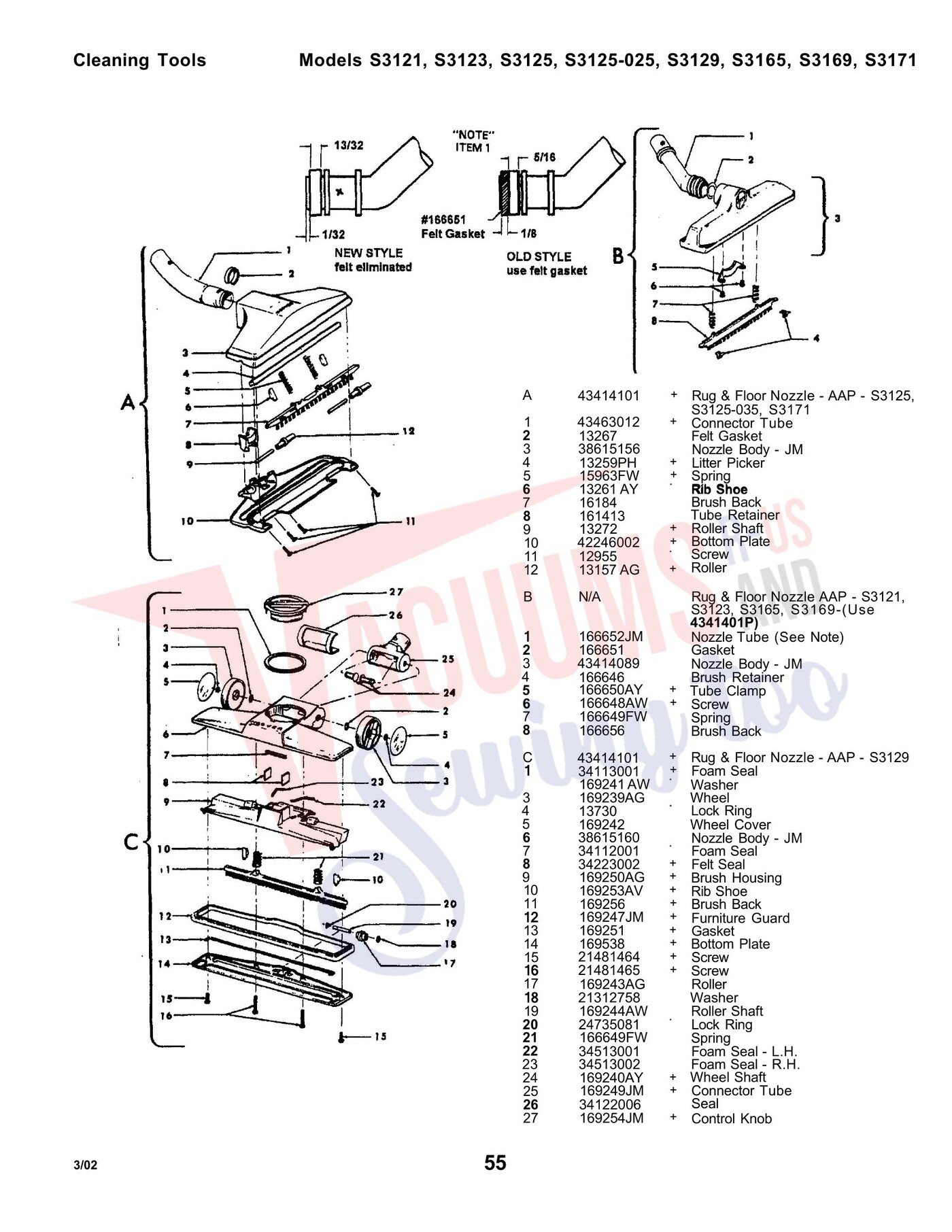

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Connector Tube | 43463012 | Not Available |
| 1 | Not Available | Nozzle Tube (See Note) | 166652JM | Not Available |
| 1 | Not Available | Foam Seal | 34113001 | Not Available |
| 1 | Not Available | AW * Washer | 169241 | Not Available |
| 2 | Not Available | Felt Gasket | 13267 | Not Available |
| 2 | Not Available | Gasket | 166651 | Not Available |
| 3 | Not Available | Nozzle Body - JM | 38615156 | Not Available |
| 3 | Not Available | Nozzle Body - JM | 43414089 | Not Available |
| 3 | Not Available | Wheel | 169239AG | Not Available |
| 4 | Not Available | Litter Picker | 13259PH | Not Available |
| 4 | Not Available | Spring | 15963FW | Not Available |
| 4 | Not Available | Brush Retainer | 166646 | Not Available |
| 4 | Not Available | Lock Ring | 13730 | Not Available |
| 5 | Not Available | Tube Clamp | 166650AY | Not Available |
| 5 | Not Available | Wheel Cover | 169242 | Not Available |
| 6 | Not Available | AY * RRiibb SShhooee | 13261 | Not Available |
| 6 | Not Available | Screw | 166648AW | Not Available |
| 6 | Not Available | Nozzle Body - JM | 38615160 | Not Available |
| 7 | Not Available | Brush Back | 16184 | Not Available |
| 7 |  | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.96Read more |
| 7 | Not Available | Foam Seal | 34112001 | Not Available |
| 8 | Not Available | Tube Retainer | 161413 | Not Available |
| 8 | Not Available | Brush Back | 166656 | Not Available |
| 8 | Not Available | Felt Seal | 34223002 | Not Available |
| 9 | Not Available | Roller Shaft | 13272 | Not Available |
| 9 | Not Available | Brush Housing | 169250AG | Not Available |
| 10 | Not Available | Bottom Plate | 42246002 | Not Available |
| 10 | Not Available | Rib Shoe | 169253AV | Not Available |
| 11 | Not Available | Screw | 12955 | Not Available |
| 11 | Not Available | Brush Back | 169256 | Not Available |
| 12 | Not Available | AG + | 13157 | Not Available |
| 13 | Not Available | Gasket | 169251 | Not Available |
| 14 | Not Available | Bottom Plate | 169538 | Not Available |
| 15 | Not Available | Screw | 21481464 | Not Available |
| 16 | Not Available | Screw | 21481465 | Not Available |
| 17 | Not Available | Roller | 169243AG | Not Available |
| 18 | Not Available | Washer | 21312758 | Not Available |
| 19 | Not Available | Roller Shaft | 169244AW | Not Available |
| 20 | Not Available | Lock Ring | 24735081 | Not Available |
| 21 | | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.96Read more |
| 22 | Not Available | Foam Seal - L.H. | 34513001 | Not Available |
| 23 | Not Available | Foam Seal - R.H. | 34513002 | Not Available |
| 24 | Not Available | Wheel Shaft | 169240AY | Not Available |
| 25 | Not Available | Connector Tube | 169249JM | Not Available |
| 26 | Not Available | Seal | 34122006 | Not Available |
| 27 | Not Available | Control Knob | 169254JM | Not Available |
| # | Part image | Description | SKU | Price |
