Schematic and parts book for Eureka P8220, PS8220 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

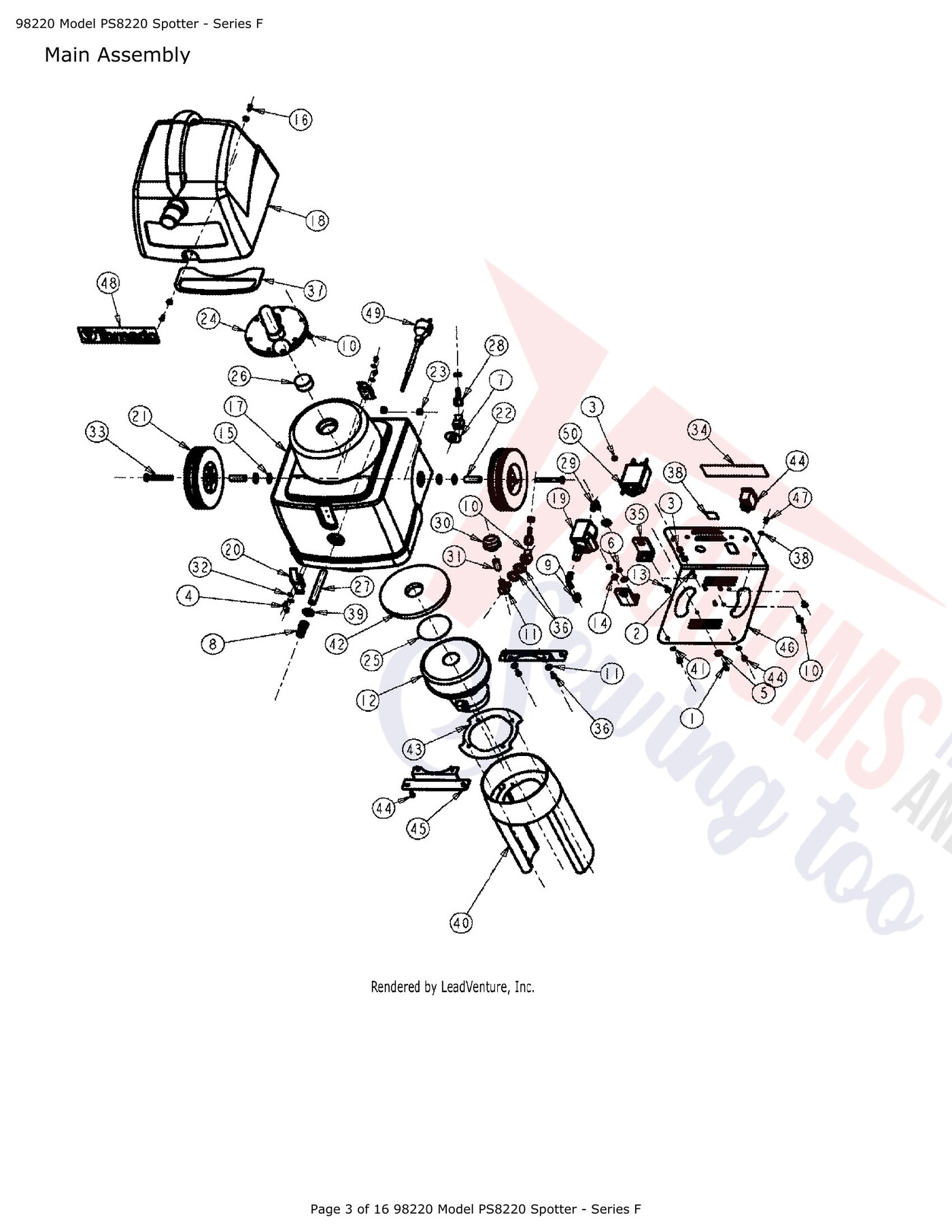

| # | Part image | Description | SKU | Price |
| XX |  | Motor Extractor 115 VAC Bypass SS 2stg 50 60hz | 14800 | $245.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Screw #8-32 x 3/4" | 00600 | Not Available |
| 2 | Not Available | Lock Washer | 01713 | Not Available |
| 3 | No Image | Keps Nut | 02956 | $0.00Read more |
| 4 | No Image | SCREW PHIL. PAN HD MACH No 8 32 X 3/8 (ZP) | 02995 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Washer Sealing 1/4 | 07741 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV | 10892 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Screw #10-24 X 3/8" | 11302 | $0.00Read more |
| 8 | No Image | Vacuum Motor 230V | 17425 | $0.00Read more |
| 9 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | 2 Ear Clamp | PX52 | $0.00Read more |
| 11 | No Image | Brass Elbow Fitting 45° | 15075 | $0.00Read more |
| 12 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Fitting Brass Elbow 1/4 MPT x 3/8 ID HB | 15223 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Screw Ph Truss HD No.10 24x1/2 SS | 17848 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 17 |  | SCREW SCKT. FLAT HD MACH No 8 32 X 1/2 (BLK OXIDE) | 19255 | $1.99Read more |
| 17 | No Image | Tank, Solution(Spotter) Ord W/19491,19510,19937 | 19490 | $305.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Tank Recovery Spotter Order with 19490 19510 19937 | 19491 | $278.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Pump 55 P.S.I. | 19494 | Not Available |
| 20 | No Image | Pump 55 P.S.I. 230Vac | 19495 | $0.00Read more |
| 21 | No Image | Latch W/Keeper | 19504 | $0.00Read more |
| 22 | No Image | Wheel, 6 Dia. X 1 1/4 (Black W/Black Hub) | 19505 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Spacer 5/16ID x 1/2OD x 1.4 Plastic | 19506 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Vacuum Stack/Float Cage Assembly | 19516 | $0.00Read more |
| 26 |  | Screen, Vac Motor Intake | 19517 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Filter,Extractor,Foam,1-1/2 OD X 1/2 Thick,Spotter | PX209 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | PIPE NIPPLE (SCH.40) 1/4MPT X 4 BRASS | 19522 | $31.99Read more |
| 28 |  | Compatible alternateAftermarket Shark Navigator xf22 nv26 NV22L Allergen Filter Kit F249 More Product Details | 836301042490 | $9.13Add to cart |
| 29 |  | FITTING BRASS ADAPTOR 1/4FPT X 1/4HB | 19523 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Fitting Nylon Elbow 1/8MPT x 1/4HB | 19524 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Filter, Extractor, Solution Screen | 19525 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | HOSE SOLUTION(SCREEN) 1.25 (SPOTTER) | 19528 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Lock Washer | 19530 | $0.00Read more |
| 34 | No Image | SCREW PHIL. PAN HD MACH 5/16 18 X 3 (SS) | 19532 | $2.99Read more |
| 35 | No Image | LABEL WARNING TO REDUCE THE RISK OF ELECTRIC... | 19533 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Rubber Pump Mount Bracket | 19555 | $0.00Read more |
| 37 | No Image | Screw TFT B PanHd Zn No.10 16x1/2 | 19565 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Gasket Solution Tank ProSpot | 19610 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | LABEL VACUUM ONLY OFF VACUUM/SPRAYSWITCH(PS) | 19611 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Shroud, Vac Motor Spotter Ord W/19490 19491 19510 | 19937 | $93.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | WASHER LOCK(E/T No 10) SS 18 8 SS (SAE 301 305) | 30019 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | GASKET MOTOR(BOTTOM) REV00 (98220,225 )SS ADHESIVE | 30456 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | Gasket Motor Top Volara Blk SS Adhesive 98220 225 | 30457 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | SWITCH ROCKER DPDT(15A) (98220 225 )125VAC 3/4HP | 30472 | $31.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Bracket, Motor Vac(Mount) (98220 225) Black Paint | 30475 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | Screw Ph Truss HD No.10 24x1/2 SS | 17848 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | Bracket | 30476 | $0.00Read more |
| 49 | Not Available | Solution Hose | 19527 | Not Available |
| 49 | No Image | Power Cord 18/3ga SJT x 25ft 120V Male Plug Yellow | 19498 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Power Cord Assembly 230V | 19500 | $0.00Read more |
| 50 | No Image | POWER LINE FILTER (RFI) 6A,120/250V,50 60HZ | 31067 | $107.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | LABEL, TORNADO W/ LOGO 1.75 WIDE X 7.25 LG. BLK | 30814 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

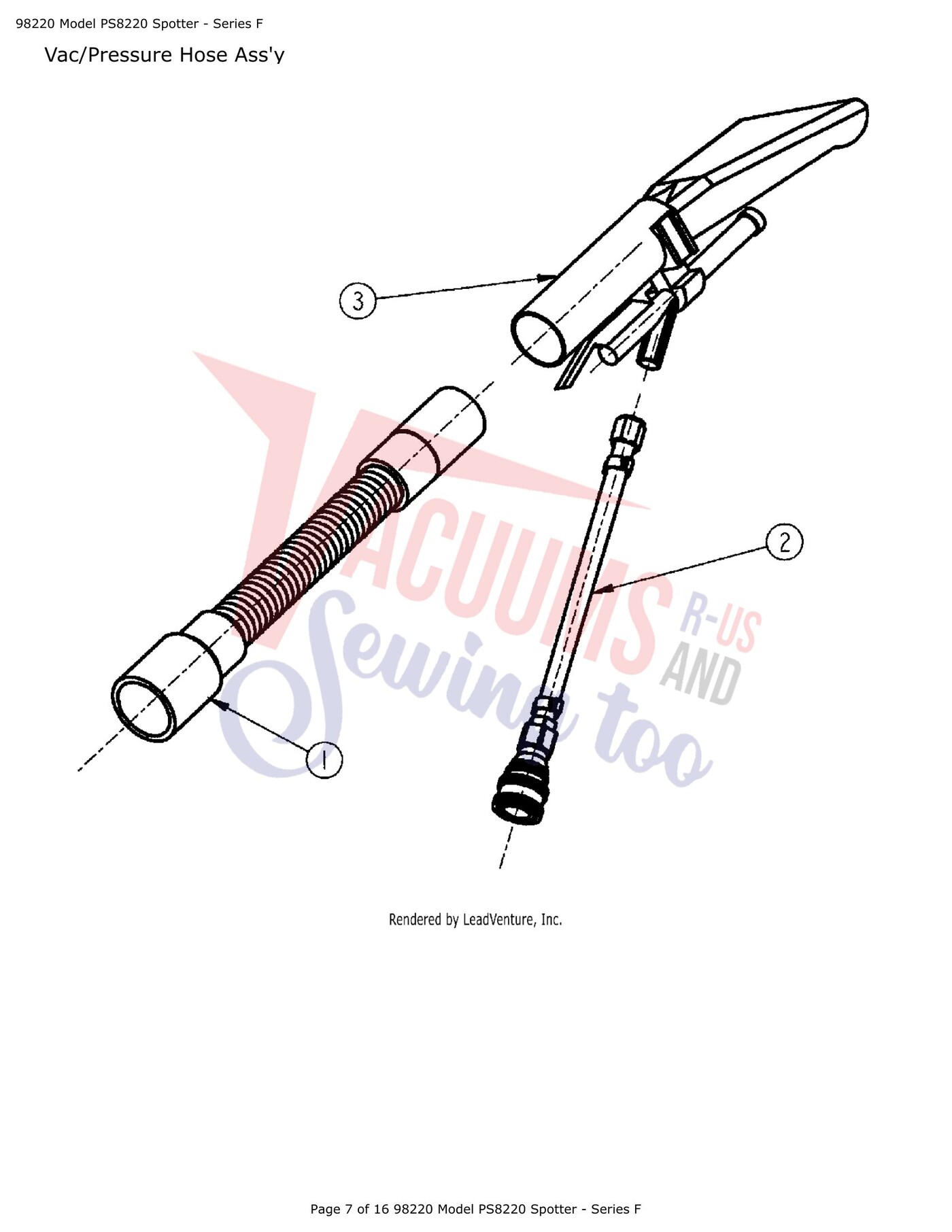

| # | Part image | Description | SKU | Price |
| XX | Not Available | Hose 1" x 96" w/Cuffs | 19529 | Not Available |
| XX | Not Available | Vacuum/Pressure Hose Assembly 8' | 19639 | Not Available |
| XX | Not Available | Vacuum/Pressure Hose Assembly 8' | 19535 | Not Available |
| 1 |  | Hose Steel Supported 1x96 with Cuffs Blk | 30735 | $147.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | SOLUTION HOSE ASSEMBLY 98220 SPOTTER | 30801 | $87.99Read more |
| 3 |  | Utility Tool 1-1/4in Clear Plastic Standard | 30857 | $73.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

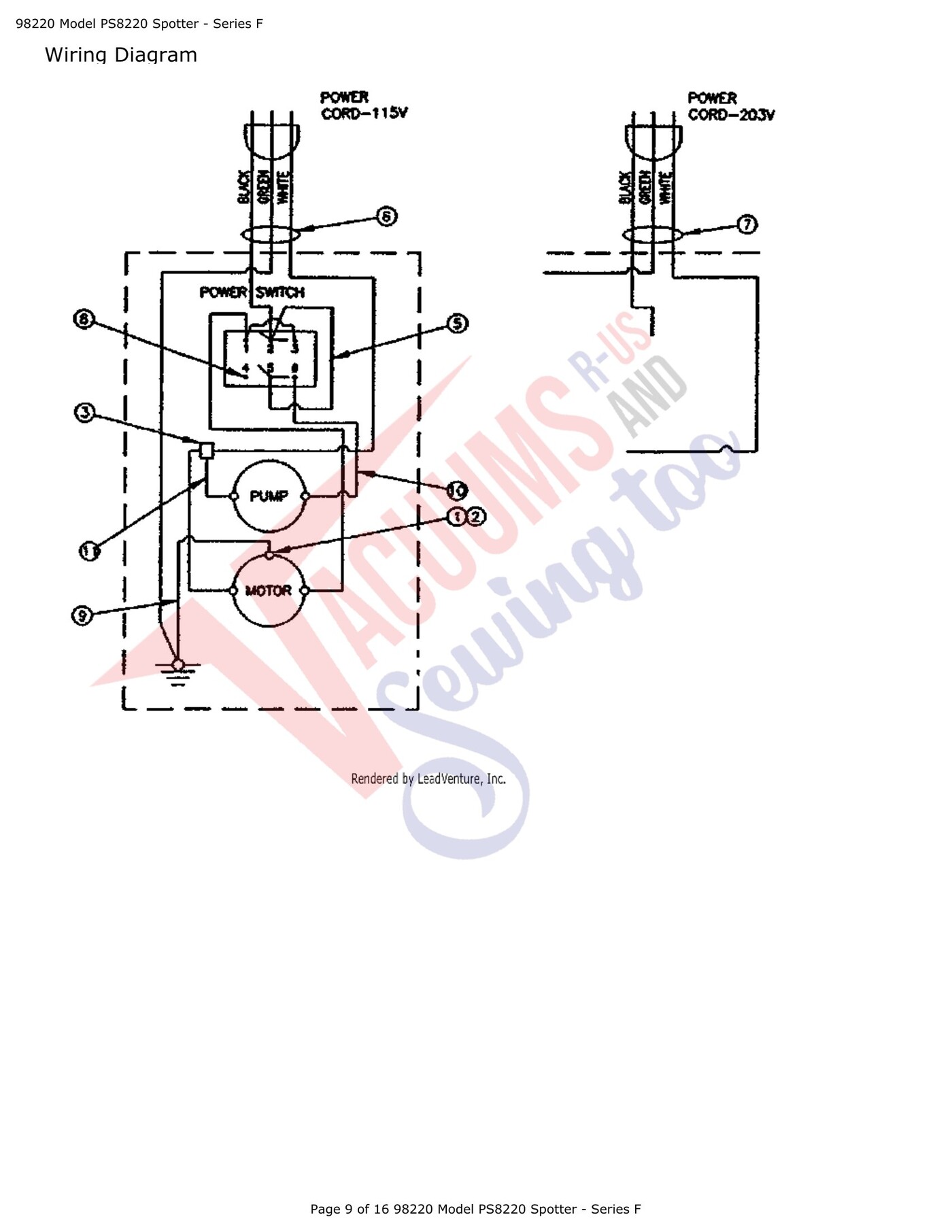

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Lock Washer | 01713 | Not Available |
| 2 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 3 | No Image | Closed End Crimp Terminal | 06824 | $0.00Read more |
| 4 | No Image | Strain Relief | 18793 | $0.00Read more |
| 5 | No Image | LEAD 14 GA. X 3 BLACK | 19466 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Power Cord Assembly | 19499 | $0.00Read more |
| 7 | No Image | Power Cord Assembly 230V | 19500 | $0.00Read more |
| 8 | No Image | Terminal QD Female 1/4x22 18ga Ful Ins | 19503 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | LEAD 18 GA. X 12 GREEN | 19536 | $1.99Read more |
| 10 | Not Available | Black Lead 6 AWG x 12" | 19537 | Not Available |
| 11 | No Image | LEAD 16 GA. X 12 WHITE | 19538 | $1.99Read more |

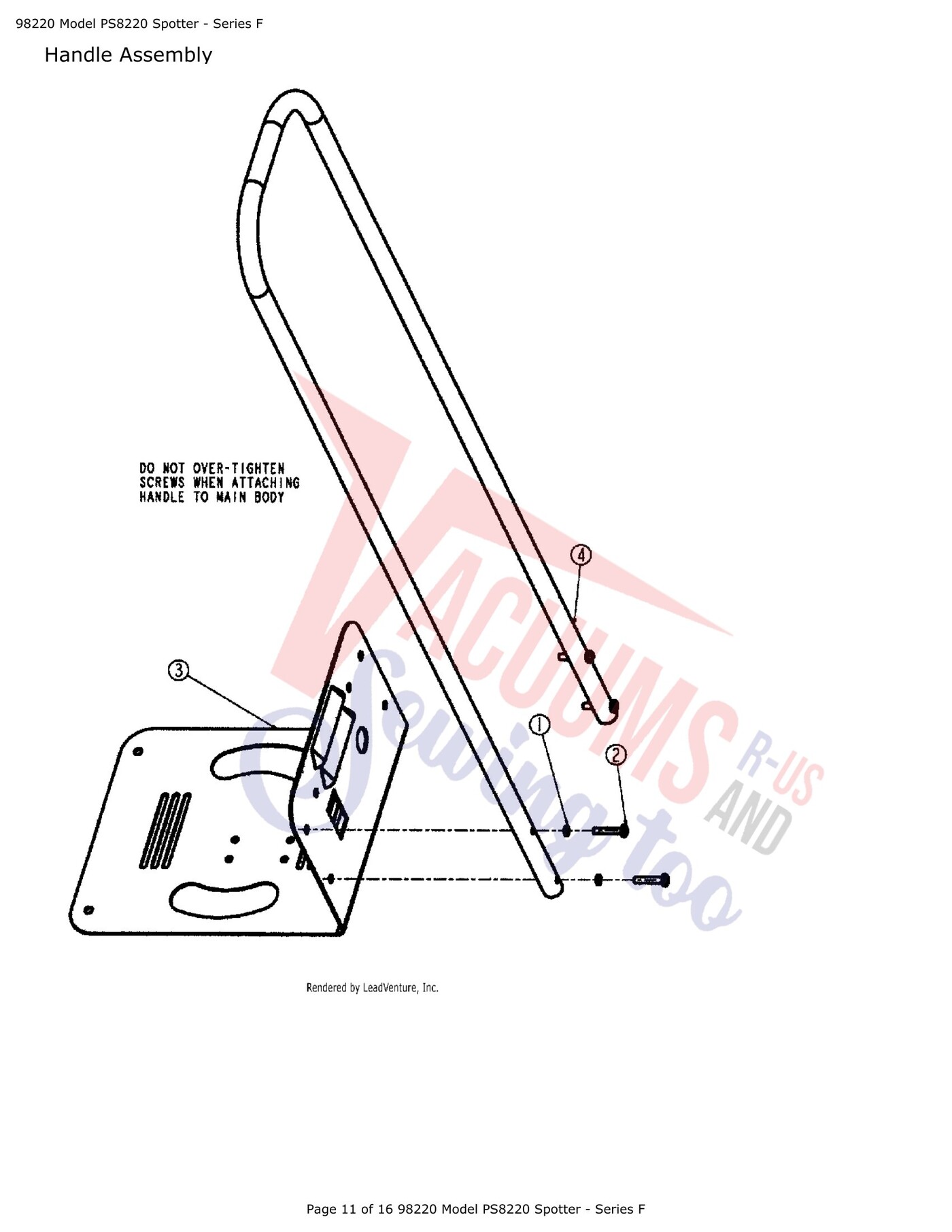

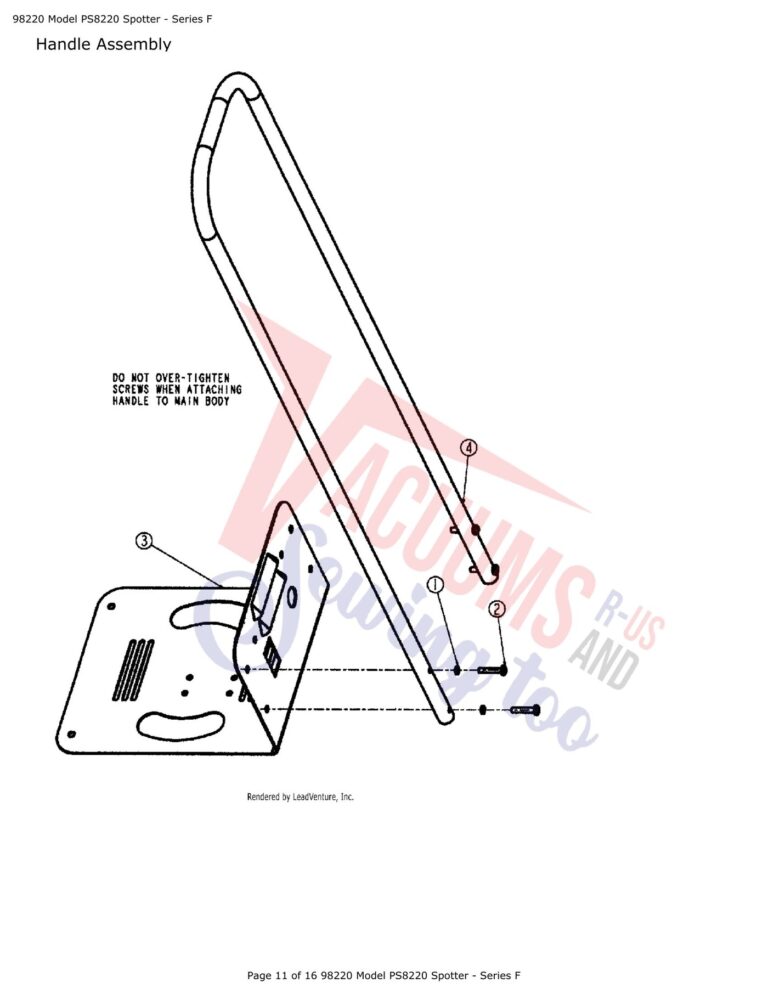

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Lock Washer | 01713 | Not Available |
| 2 | No Image | Screw | 19617 | $0.00Read more |
| 3 | No Image | Bracket | 30476 | $0.00Read more |
| 4 | No Image | Handle, Transport | 31214 | $196.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

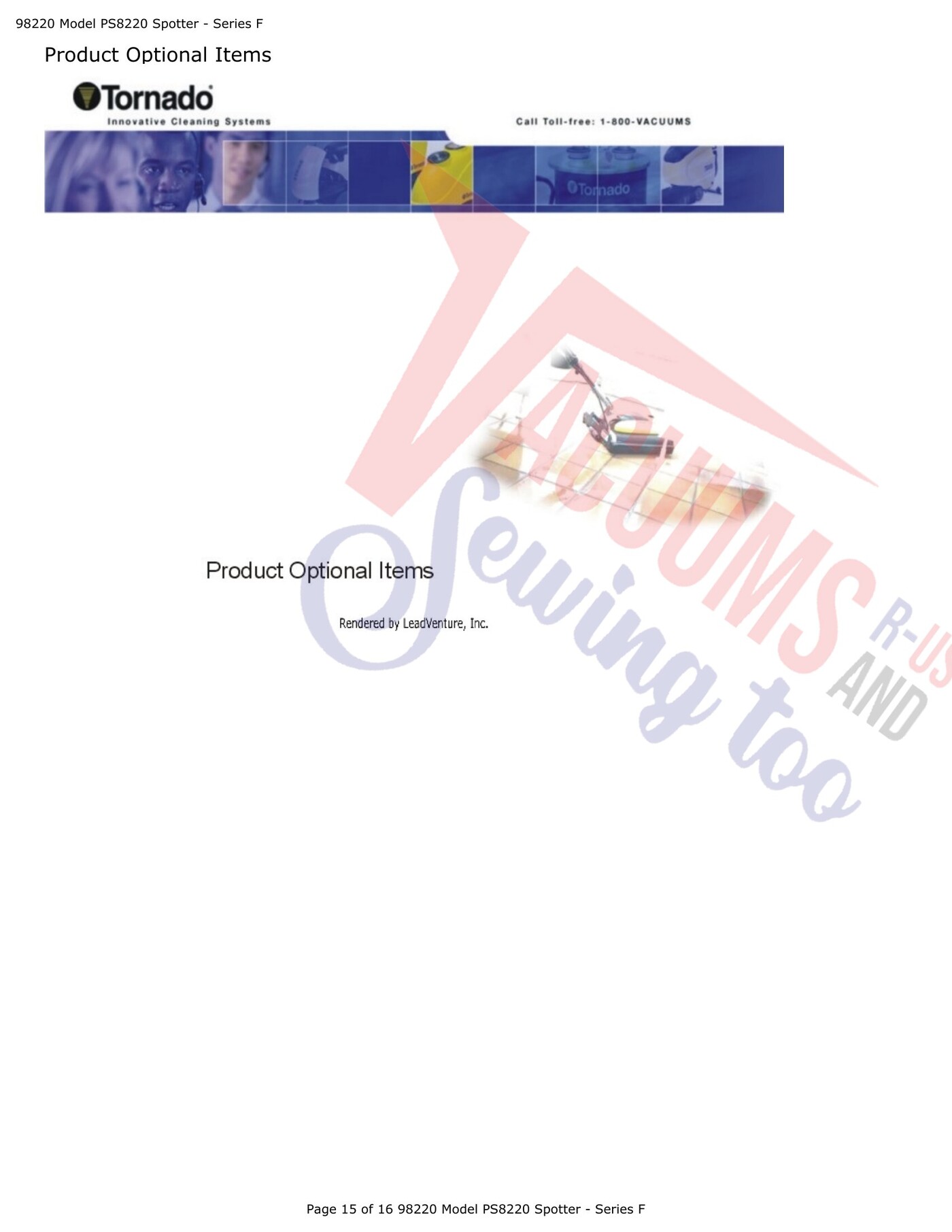

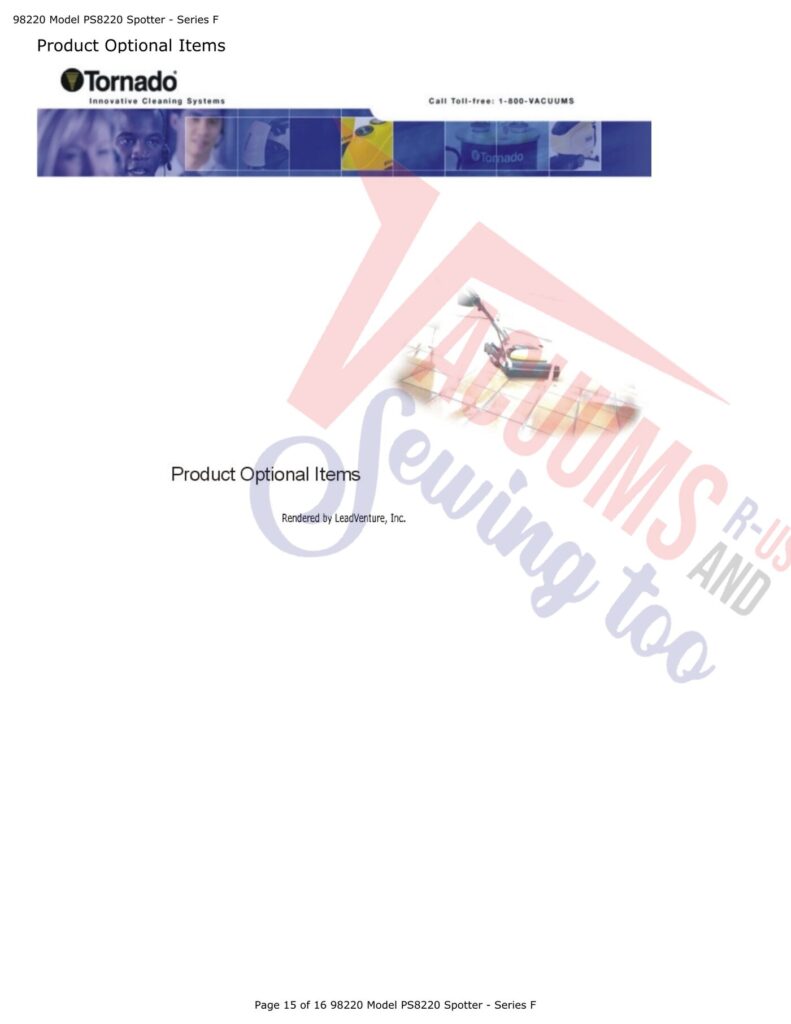

| # | Part image | Description | SKU | Price |
| XX |  | Handle,Spotter,Transport | 31215 | $209.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | HOSE VAC/PRESS 8ft SPOT HIGH PERFORMANCE | 95560 | $254.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | WAND DRAG 1-1/2 IN SS 100PSI OR LESS | 98347 | $378.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| XX | No Image | Metal Upholstery Tool 500 P.S.I. | 98343 | $0.00Read more |
| XX |  | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |
