Schematic and parts book for Eureka HP6855A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, EXHAUST FILTER W/ GRAPHICS GE6850 Part Number: 15781-1 for Eureka | 157811 | $16.17Read more |
| 2 | No Image | GROWER WASHER D.8 | 39483 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | BEZEL - POWER OUTLET | 28638A-355N | Not Available |
| 4 | Not Available | COVER - TRIM | 02482A-426N | Not Available |
| 5 | Not Available | DUST BAG INDICATOR | 39552 | Not Available |
| 6 | Not Available | LEAD & TERMINAL ASSEMBLY | 39490-1 | Not Available |
| 7 | Not Available | LEAD & TERMINAL ASSEMBLY | 39490-4 | Not Available |
| 8 | No Image | LEAD, W/TERMINAL Part Number: 39490-5 for Eureka | 394905 | $4.62Read more |
| 9 | Not Available | LEAD & TERMINAL ASSEMBLY | 39490-2 | Not Available |
| 10 | No Image | LEAD, W/TERMIAL Part Number: 39490-3 for Eureka | 394903 | $3.50Read more |
| 11 | Not Available | THERMOSTAT & TERMINAL ASS | 59500 | Not Available |
| 12 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | CORD REEL ASSEMBLY | 28632 | Not Available |
| 14 | No Image | Solution Filter PAS26R and 99776 | 39530 | $148.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | WHEEL - REAR | 28621-355N | Not Available |
| 16 | Not Available | GUARD - POWER OUTLET | 39492 | Not Available |
| 17 | Not Available | BAG COVER ASSY - PACKAGED | 61979-3 | Not Available |
| 18 | Not Available | GASKET - BAG CHAMBER | 70055-4 | Not Available |
| 19 | Not Available | FILTER - DISASTER | 39481 | Not Available |
| 20 | Not Available | DEVICE - NO BAG SAFETY | 28633 | Not Available |
| 21 | Not Available | SPRING - LEAF | 39478 | Not Available |
| 22 | Not Available | CONNECTOR - POWER OUTLET | 39506 | Not Available |
| 23 | Not Available | PEDAL - ON/OFF | 28624-355N | Not Available |
| 24 | No Image | SPRING, SWITCH PEDAL 6852A Part Number: 71922 for Eureka | 71922 | $1.03Read more |
| 25 | Not Available | SWITCH - PUSH | 39482 | Not Available |
| 26 | Not Available | PEDAL - CORD REEL | 28623-355N | Not Available |
| 27 | Not Available | SPRING - CORD REEL PEDAL | 71923 | Not Available |
| 28 | Not Available | SHELL - UPPER | 02480B-426N | Not Available |
| 29 | Not Available | BUSHING - MOTOR | 28630 | Not Available |
| 30 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 31 | Not Available | MOTOR ASSEMBLY - PACKAGED | 60261-8 | Not Available |
| 32 | Not Available | GASKET - MOTOR MOUNTING | 28032 | Not Available |
| 33 | No Image | SCREW, HEX HEAD, M8X35 | 39477 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | SEAL - MOTOR COMPARTMENT | 28627 | Not Available |
| 35 | Not Available | SHELL - LOWER | 02479-355N | Not Available |
| 36 | Not Available | CASTER ASSEMBLY | 39479 | Not Available |
| # | Part image | Description | SKU | Price |

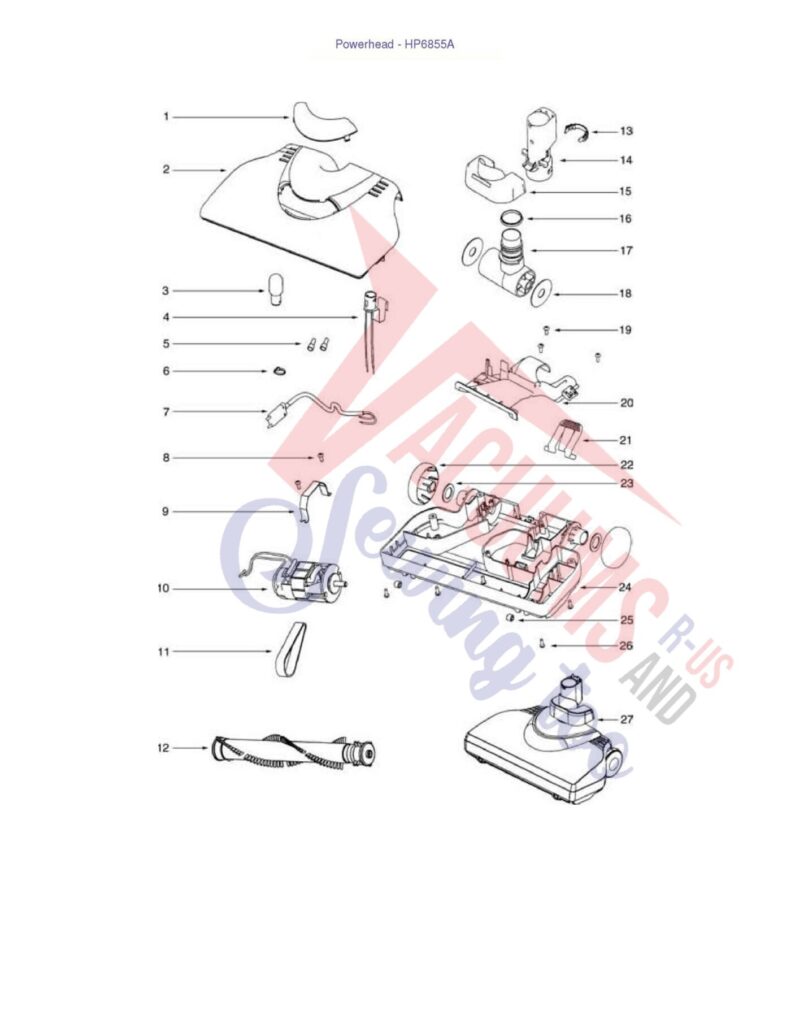

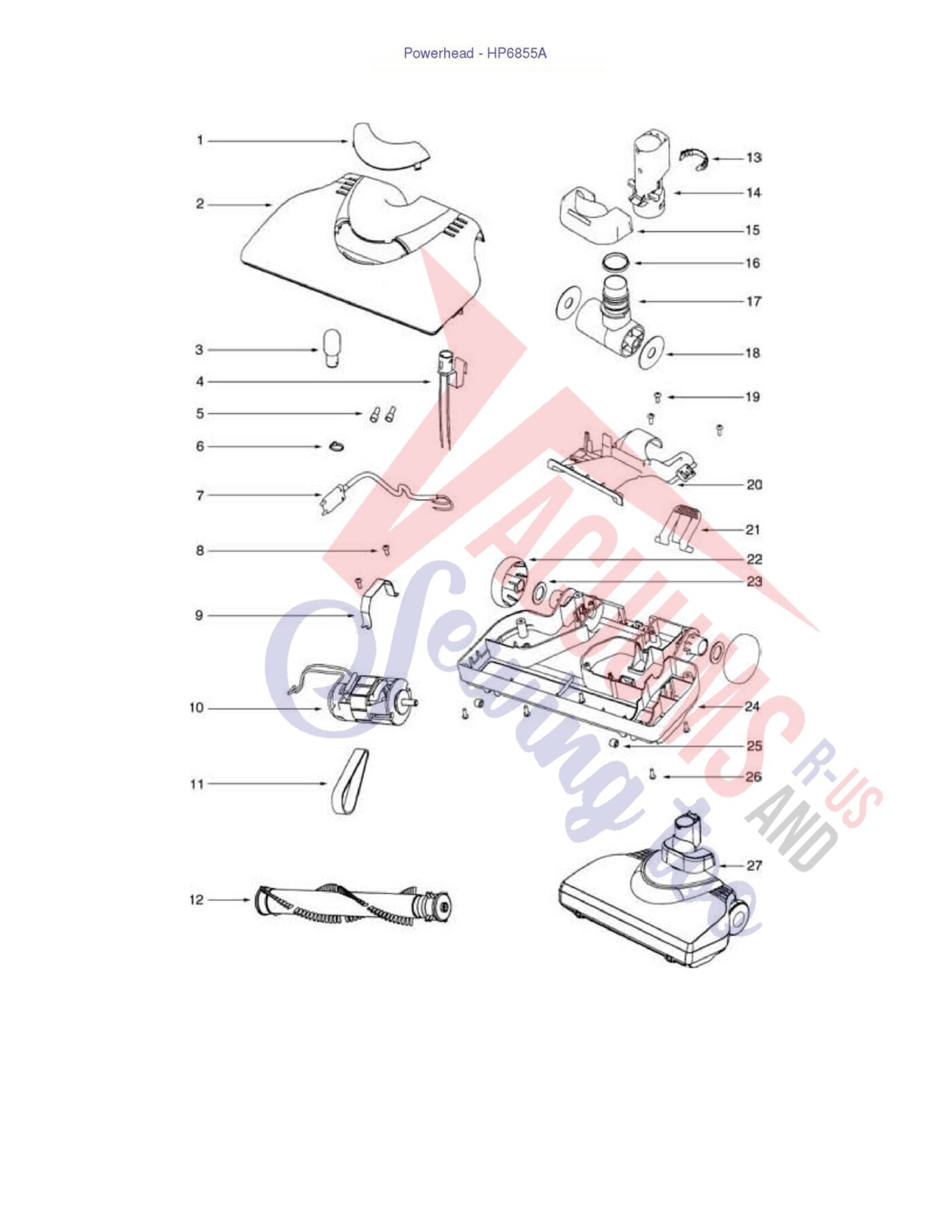

| 1 | No Image | FAN, TOP MOTOR 116765-13 Part Number: 0-3956-1 for Lamb | 39561 | $5.20Read more |
| 2 | Not Available | HOOD & GRAPHICS ASSY - PK | 54672-36 | Not Available |
| 3 | Not Available | HEADLIGHT | 59045 | Not Available |
| 4 | No Image | SOCKET, LAMP POWER NOZZLE 6831 Part Number: 39559 for Eureka | 39559 | $6.49Read more |
| 5 | | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 7 | Not Available | POWER CORD | 39566 | Not Available |
| 9 | Not Available | STRAP - MOTOR | 72315 | Not Available |
| 10 | Not Available | PH MOTOR ASSY (155506) | 54343-1 | Not Available |
| 11 | Not Available | BELT PACKAGE ASSY - STYLE | 58065A | Not Available |
| 12 | Not Available | DISTURBULATOR ASSY - CTND | 60279-2 | Not Available |
| 13 | Not Available | C- RING | 39564-119N | Not Available |
| 14 |  | COUPLING,:( QUICK DISCON. 6982 Part Number: 72324-119N for Eureka | 72324119N | $7.90Read more |
| 15 | Not Available | QUICK DISCONNECT PEDAL | 72325-119N | Not Available |
| 16 | Not Available | O- RING | 39563 | Not Available |
| 17 | Not Available | T-JOINT | 72326-119N | Not Available |
| 18 | Not Available | GASKET - FELT | 57992 | Not Available |
| 20 | No Image | ***USE EC-155152 ASS'Y, T JOINT 6878 Part Number: 39562 for Eureka | 39562 | $7.86Read more |
| 21 | No Image | PEDAL, FOOT 6500A POWER NOXXLE Part Number: 39560-355N for Eureka | 39560355N | $3.11Read more |
| 22 | Not Available | WHEEL - REAR | 72327-355N | Not Available |
| 23 | Not Available | FELT WASHER | 56180 | Not Available |
| 24 |  | BASE, SYSTEMPRO CANISTER Part Number: 54639-5 for Eureka | 546395 | $20.28Read more |
| 25 | Not Available | FRONT WHEEL ASSEMBLY | 60963 | Not Available |
| 26 | Not Available | SCREW PACKAGE | 53238-8 | Not Available |
| 27 | Not Available | POWER HEAD ASSEMBLY - CAR | 54575-34 | Not Available |
| # | Part image | Description | SKU | Price |

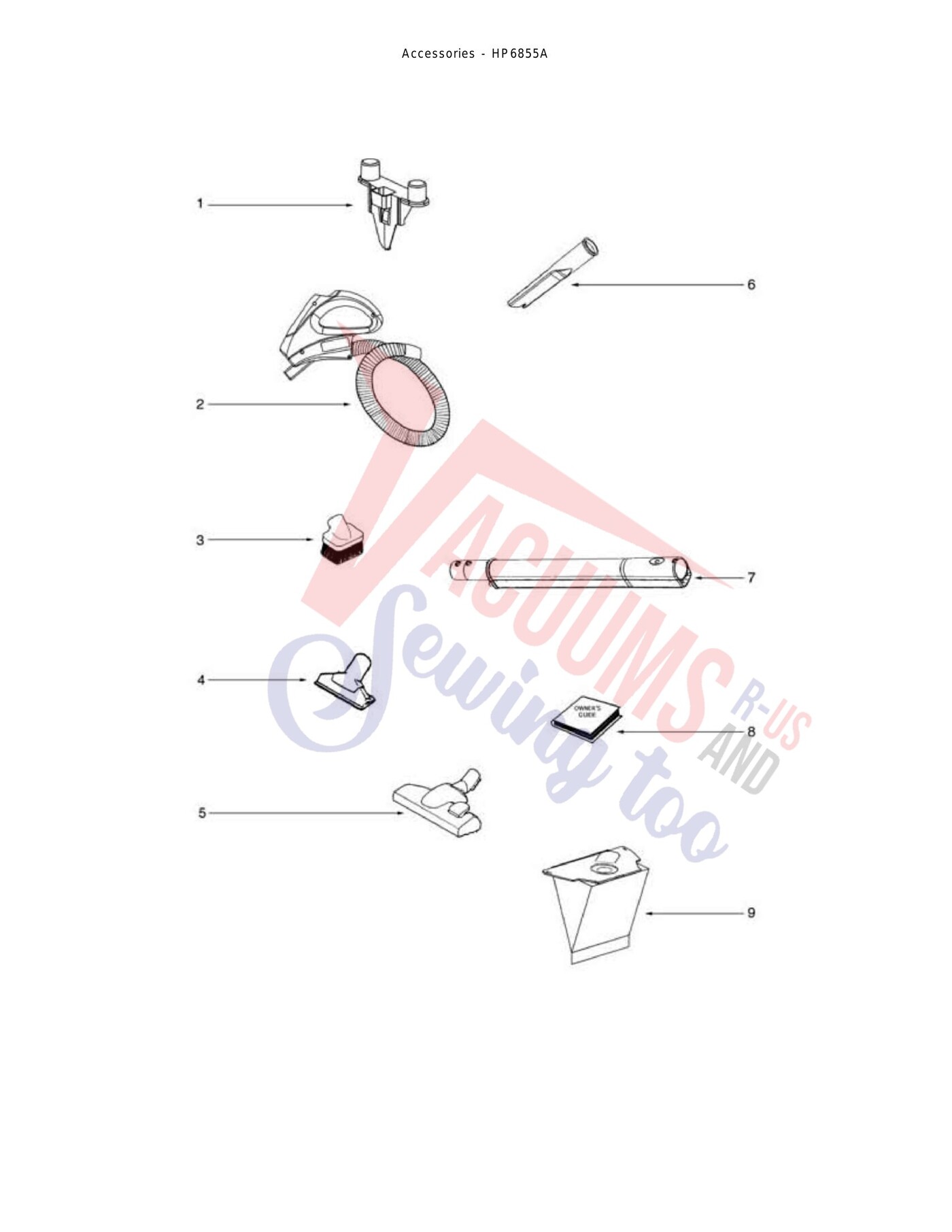

| 1 | Not Available | TOOL CADDY(OXYGEN) | 72040A | Not Available |
| 2 | Not Available | Hose Assembly | 61977-3 | Not Available |
| 3 | Not Available | ECON DUST BRUSH (54787 | 54505-3 | Not Available |
| 4 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $8.79Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | DELUX FLOOR TOOL | 39632-1 | Not Available |
| 6 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.04Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | DIRECT CONNECT WAND | 39422A-3 | Not Available |
| 9 | Not Available | PAPER BAG-STYLE CN-1 | 61980 | Not Available |
| 9 | Not Available | HOSE CONNECTOR CORD | 71986-1 | Not Available |
