Schematic and parts book for Eureka HP5555A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASSEMBLY | 39435-1 | Not Available |
| 2 | Not Available | DUST CUP ASSEMBLY - CARTO | 61542-1 | Not Available |
| 3 | Not Available | PLENUM ASSEMBLY | 71152A-3 | Not Available |
| 4 | Not Available | SWITCH - ROCKER | 39455-1 | Not Available |
| 5 | Not Available | SCREW PACKAGE | 60160 | Not Available |
| 6 | Not Available | TOP HOUSING ASSEMBLY Includes items 5 & 7. | 71116-3 | Not Available |
| 7 | Not Available | LATCH | 39357-355N | Not Available |
| 8 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 9 | Not Available | DUST CUP FLTR (STYLEDCF1) | 61700 | Not Available |
| 10 | Not Available | AIR DUCT ASSEMBLY | 71114-1 | Not Available |
| 11 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $2.93Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SUPPLY CORD & TERMINAL | 39585-4 | Not Available |
| 2 | Not Available | HOUSING - EXTENSION | 15692-357N | Not Available |
| 3 | Not Available | LENS - MOTOR COVER | 28466A-313N | Not Available |
| 4 | Not Available | SCREW PACKAGE | 53238-8 | Not Available |
| 5 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 6 | Not Available | MOTOR COVER ASSY | 61438-4 | Not Available |
| 7 | Not Available | LAMP - HEADLIGHT | 57940-3 | Not Available |
| 8 | Not Available | HEADLIGHT ASSEMBLY | 38828B-4 | Not Available |
| 9 | Not Available | HOOK - CORD | 70864A-119N | Not Available |
| 10 | Not Available | CARRY HANDLE ASSEMBLY | 71113A-1 | Not Available |
| 11 | Not Available | REAR AIR TUBE | 61459-2 | Not Available |
| 12 | Not Available | FASTENER PACKAGE | 61448-1 | Not Available |
| 13 | No Image | RETAINER, HOSE Part Number: 61457-2 for Eureka | 614572 | $2.70Read more |
| 13 | Not Available | CLIP - TOOL | 39356A-119N | Not Available |
| 13 | Not Available | CLIP - ADAPTER | 71569-119N | Not Available |
| 13 | Not Available | MOTOR SUPPORT - | 73699 | Not Available |
| 14 | Not Available | HEPA FILTER - STYLE | 61984 | Not Available |
| 15 | Not Available | FILTER COVER | 61461-5 | Not Available |
| 16 | Not Available | REAR HOUSING & CLIP | 71149D-3 | Not Available |
| 17 | Not Available | SUCTION TUBE & MANIFOLD | 28471-3 | Not Available |
| 18 | Not Available | UPPER CORD ASSEMBLY | 71237-2 | Not Available |
| 19 | No Image | Motor, 3670G/5550/5813/5851/HP5505/HP5555 Canister Part Number: 62376-1 for Eureka | 623761 | $61.53Read more |
| 20 | Not Available | SHIELD - MOTOR | 74584 | Not Available |
| 21 | Not Available | THERMOSTAT & TERMINAL | 39252-9 | Not Available |
| 22 | Not Available | GROMMET | 27552B | Not Available |

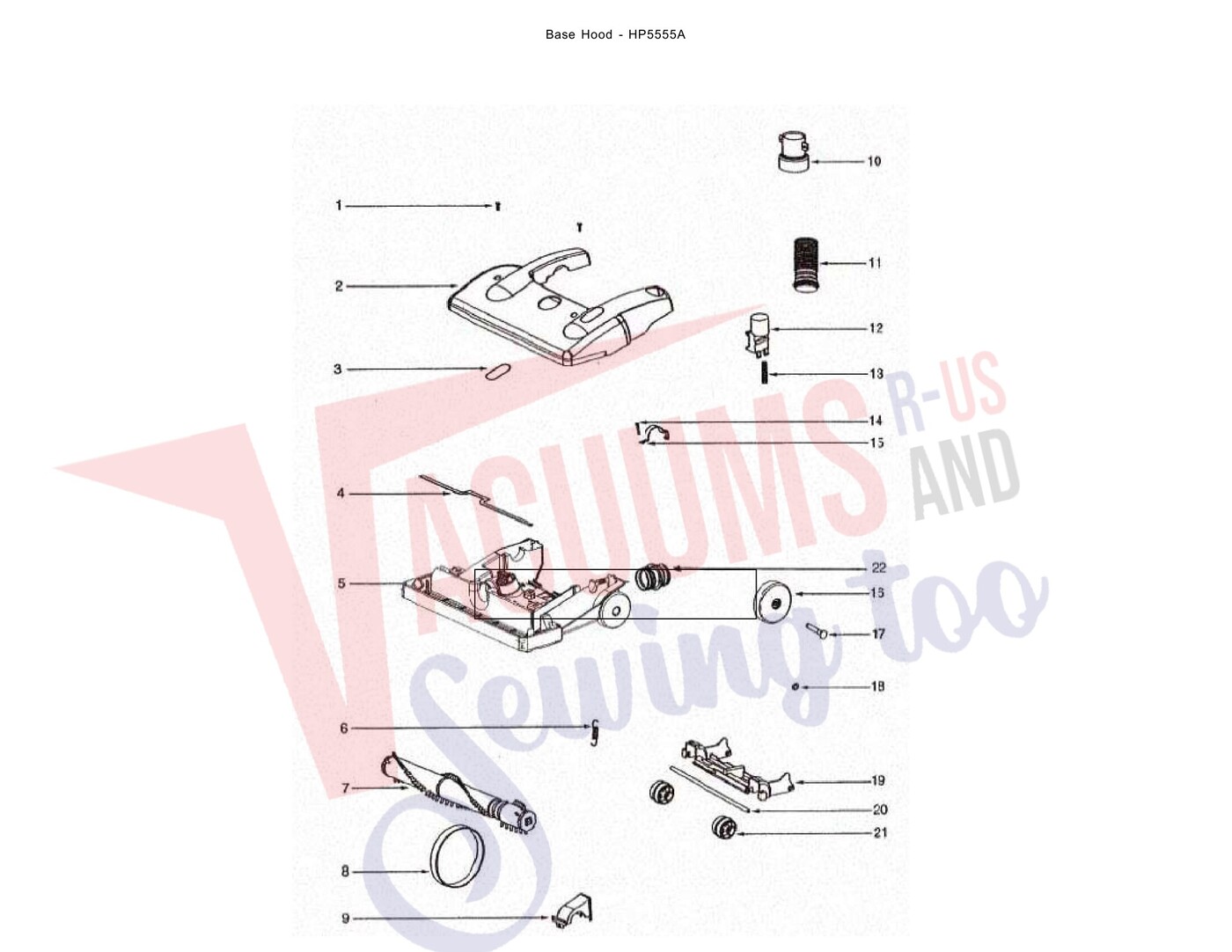

| # | Part image | Description | SKU | Price |
| 1 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | HOOD ASSEMBLY | 71059A-4 | Not Available |
| 3 | Not Available | LENS - BELT VIEW | 28469-313N | Not Available |
| 4 | Not Available | GASKET | 58506-3 | Not Available |
| 5 | Not Available | BASE ASSEMBLY - PACKAGED | 60938-8 | Not Available |
| 6 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | BRUSHROLL, HP5555 Part Number: 62352-2 for Eureka | 623522 | $36.33Read more |
| 8 | Not Available | BELT PKG ASSY-STYLE | 61120A | Not Available |
| 9 | Not Available | BELT CAP & GASKET | 54376-2 | Not Available |
| 10 | Not Available | CUFF- HOSE | 28496-119N | Not Available |
| 11 | Not Available | HOSE - COMPRESSION | 38479-4 | Not Available |
| 12 | Not Available | RELEASE - HANDLE | 28468-355N | Not Available |
| 13 | Not Available | COMPRESSION SPRING | 60133-1 | Not Available |
| 14 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 15 | Not Available | CLAMP | 38420-2 | Not Available |
| 16 | Not Available | WHEEL/BUSHING PACKAGE | 61875 | Not Available |
| 17 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $7.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | CARRIAGE - WHEEL | 14993C-119N | Not Available |
| 20 | Not Available | FRONT AXLE | 71551-1 | Not Available |
| 21 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | ADAPTER - BASE | 28243A-316N | Not Available |
| 23 | Not Available | OPERATOR - HEIGHT | 28467A-355N | Not Available |
| 24 | Not Available | BUSHING - AXLE | 72113-1 | Not Available |

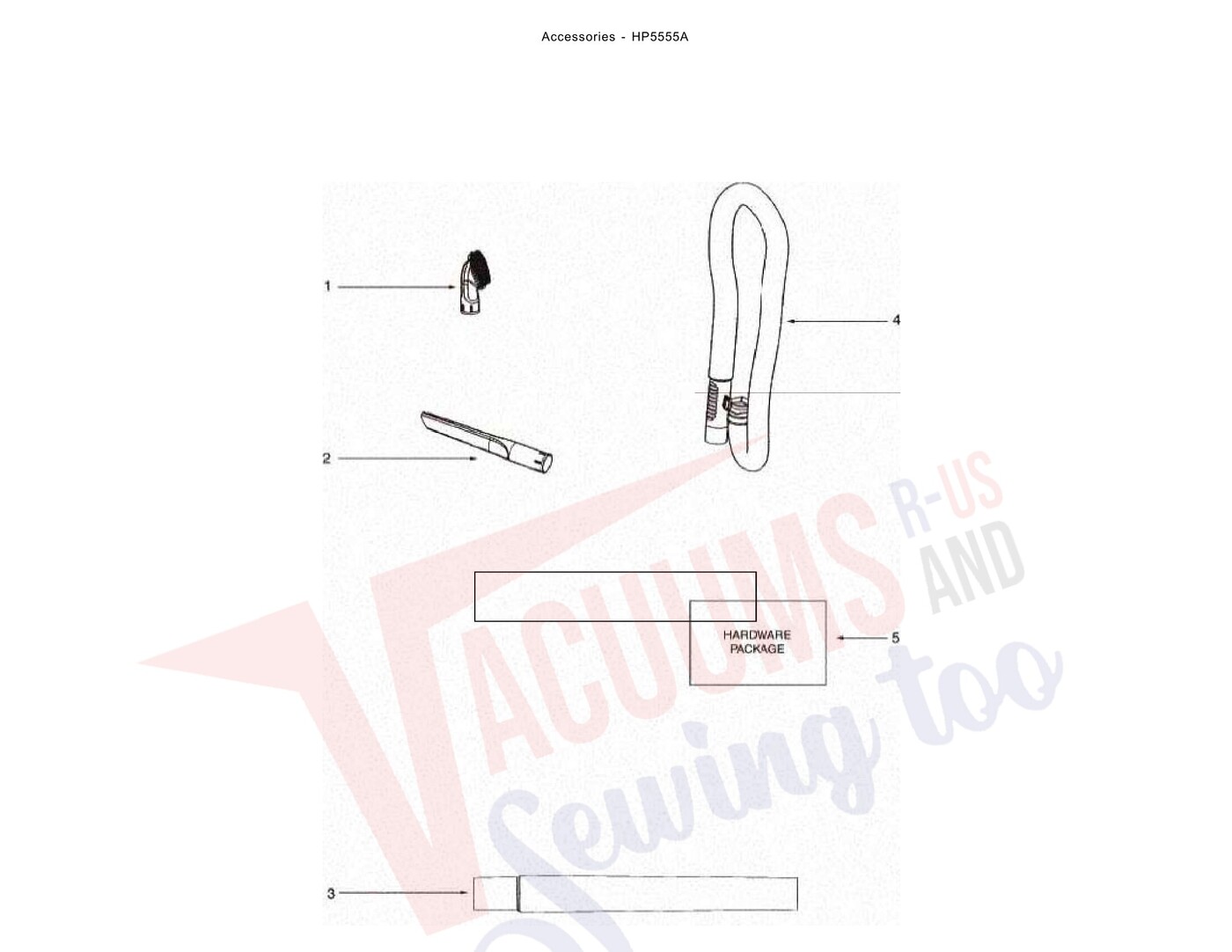

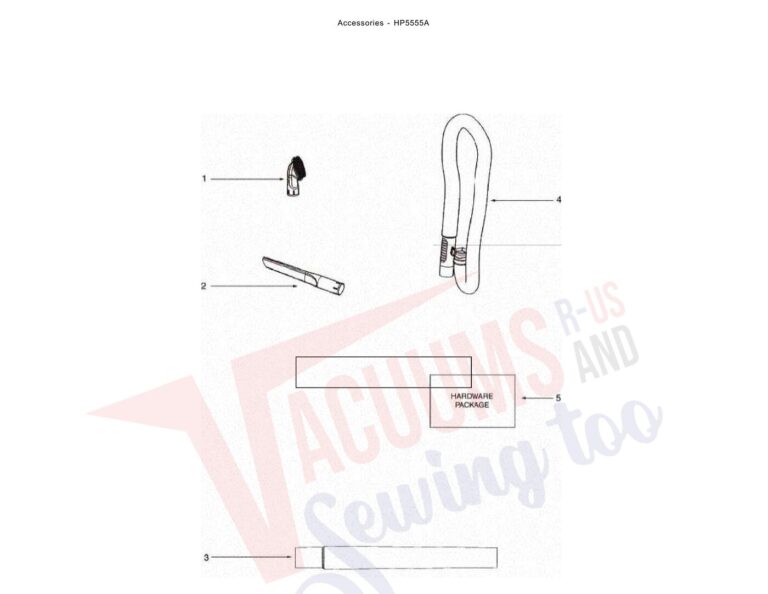

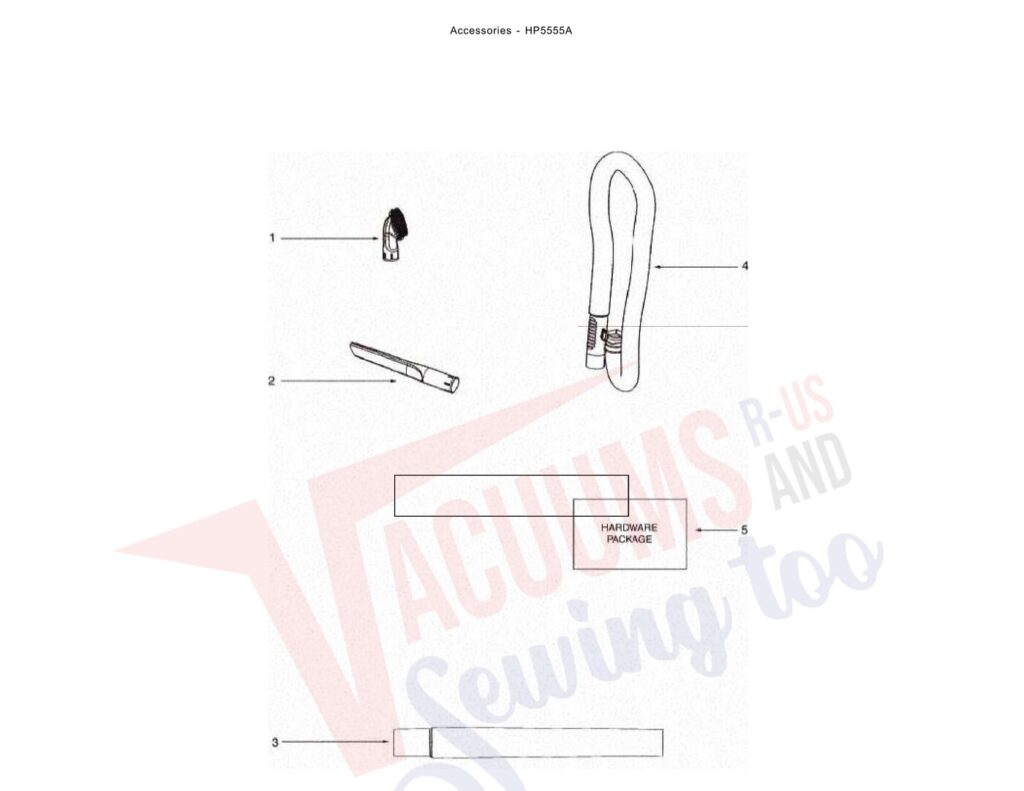

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COMBINATION BRSH BRSTLD-C | 60990-3 | Not Available |
| 2 | Not Available | NOZZLE - CREVICE | 28497-355N | Not Available |
| 3 | Not Available | EXTENSION TUBES ASSEMBLY | 71119-1 | Not Available |
| 4 | Not Available | HOSE ASSEMBLY - CARTONED | 61440-5 | Not Available |
| 5 | Not Available | PACKAGE - HARDWARE | 71118A | Not Available |
| 5 | Not Available | Owner's Guide | 73657 | Not Available |
