Schematic and parts book for Eureka EL8602A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

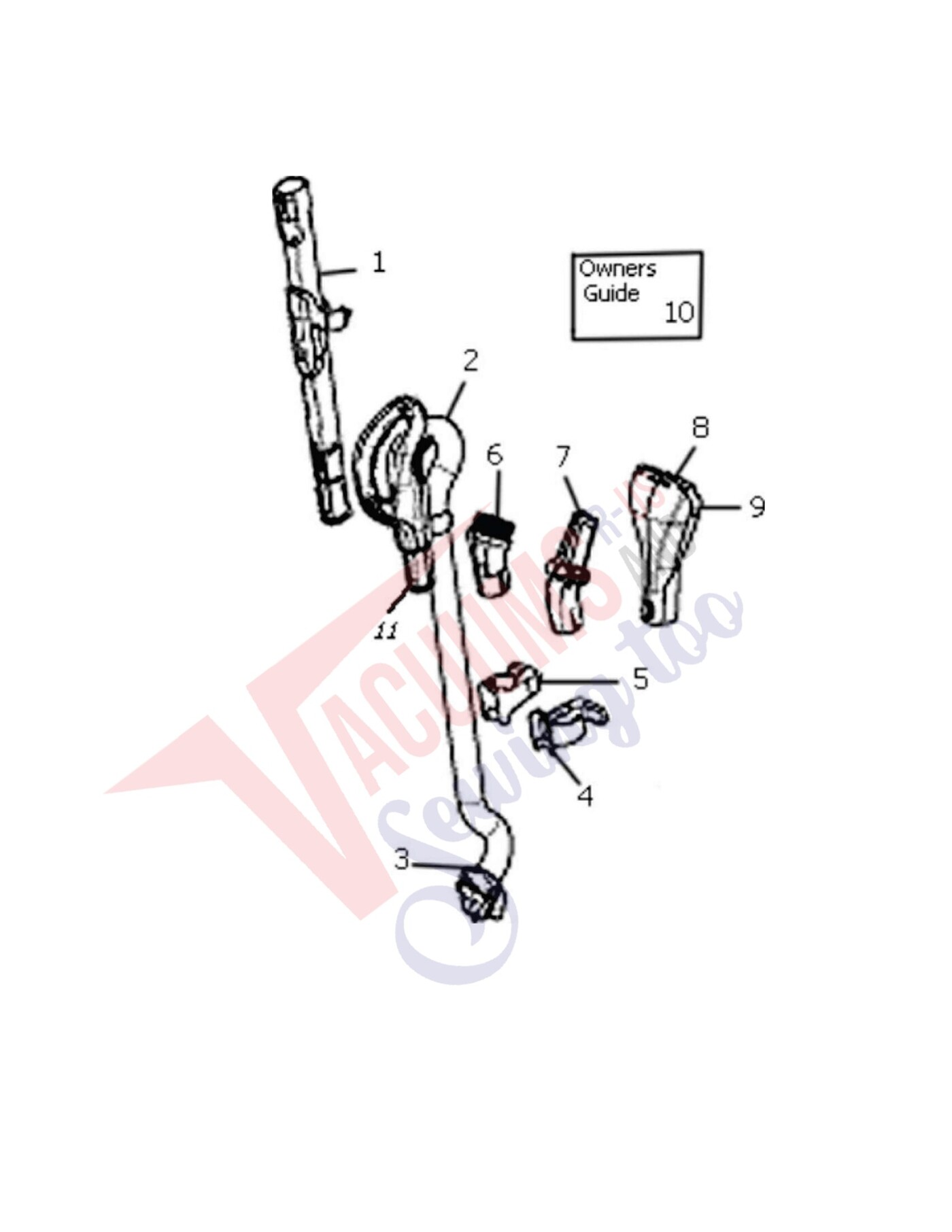

| # | Part image | Description | SKU | Price |
| 1 | Not Available | WAND ASSEMBLY | 83000-2 | Not Available |
| 2 | Not Available | HOSE ASSEMBLY - CARTONED | 16147-2 | Not Available |
| 3 | Not Available | CORD WRAP - LOWER | 82962-625N | Not Available |
| 4 | Not Available | LEFT CORD WRAP ASSEMBLY | 82909-2 | Not Available |
| 5 | Not Available | RIGHT CORD WRAP ASSEMBLY | 82914-2 | Not Available |
| 6 | Not Available | DUSTING BRUSH ASSEMBLY | 83026-1 | Not Available |
| 7 | Not Available | GATOR TOOL ASSEMBLY | 83016-1 | Not Available |
| 10 | Not Available | OWNERS GUIDE | 83683 | Not Available |
| 11 | Not Available | SEAL - TUBE | 1181611-01 | Not Available |

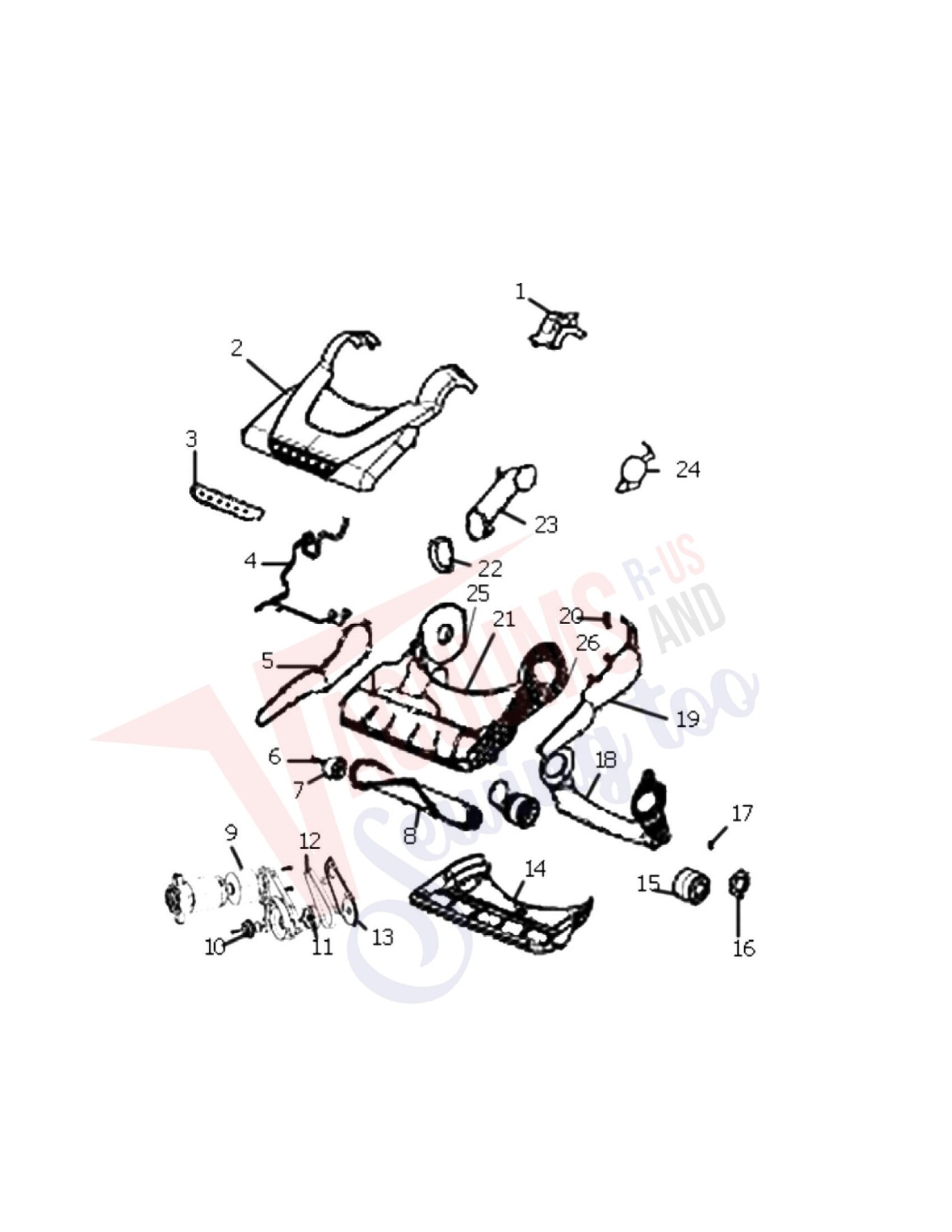

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CLAMP - MOTOR DRIVE | 82856-722N | Not Available |
| 2 | Not Available | HOOD ASSEMBLY - PACKAGED | 16139-2 | Not Available |
| 3 | Not Available | HEADLIGHT BOARD | 83557 | Not Available |
| 4 | Not Available | JUMPER -BRUSHROLL | 83565 | Not Available |
| 5 | Not Available | SIDE PANEL - RIGHT | 82865-625N | Not Available |
| 6 | Not Available | AXLE - WHEEL - FRONT | 82861 | Not Available |
| 7 | Not Available | WHEEL- FRONT BUSHING ASSY | 82858-1 | Not Available |
| 8 | Not Available | BRUSHROLL ASSEMBLY - CART | 16136-1 | Not Available |
| 9 | Not Available | MOTOR HOUSING ASSY-CARTO | 16137-1 | Not Available |
| 10 | Not Available | SPLINE | 82835-119N | Not Available |
| 11 | Not Available | COG - DRIVE ASSEMBLY | 82844-119N | Not Available |
| 12 | Not Available | BELT - COGGED | 74924 | Not Available |
| 13 | No Image | Cover, Blk Motor Nimble Bagless Upright EL8602A-1 Part Number: 82840-119N for Eureka | 82840119N | $6.95Read more |
| 14 | Not Available | SOLE PLATE ASSEMBLY | 82851-2 | Not Available |
| 15 | Not Available | WHEEL - REAR OVERMOLD ASS | 82876-1 | Not Available |
| 16 | Not Available | CAP - WHEEL - REAR | 83043-625N | Not Available |
| 17 |  | Push Nut, Wheel Retaining 8806/8807/8852/8853 10Pk Part Number: 53121-1 for Eureka | 531211 | $7.82Read more |
| 18 | Not Available | WHEEL CARRIAGE ASSEMBLY | 82879-1 | Not Available |
| 19 | Not Available | SIDE PANEL - LEFT | 82864-625N | Not Available |
| 20 | Not Available | SPRING - COMPRESSION | 82869 | Not Available |
| 21 | Not Available | BASE ASSEMBLY | 16149-2 | Not Available |
| 22 | No Image | GASKET - TUBE BASE TO ADA Part Number: 83037-355N for Eureka | 83037355N | $4.71Read more |
| 23 | Not Available | TUBE - BASE TO ADAPTOR | 82902-313N | Not Available |
| 24 |  | RELEASE, HANDLE ASSY EL8605 Part Number: 16140-2 for Eureka | 161402 | $0.92Read more |
| 25 | Not Available | CAP - BASE - RIGHT | 82863-664P | Not Available |
| 26 | Not Available | CAP - BASE - LEFT | 82862-664P | Not Available |

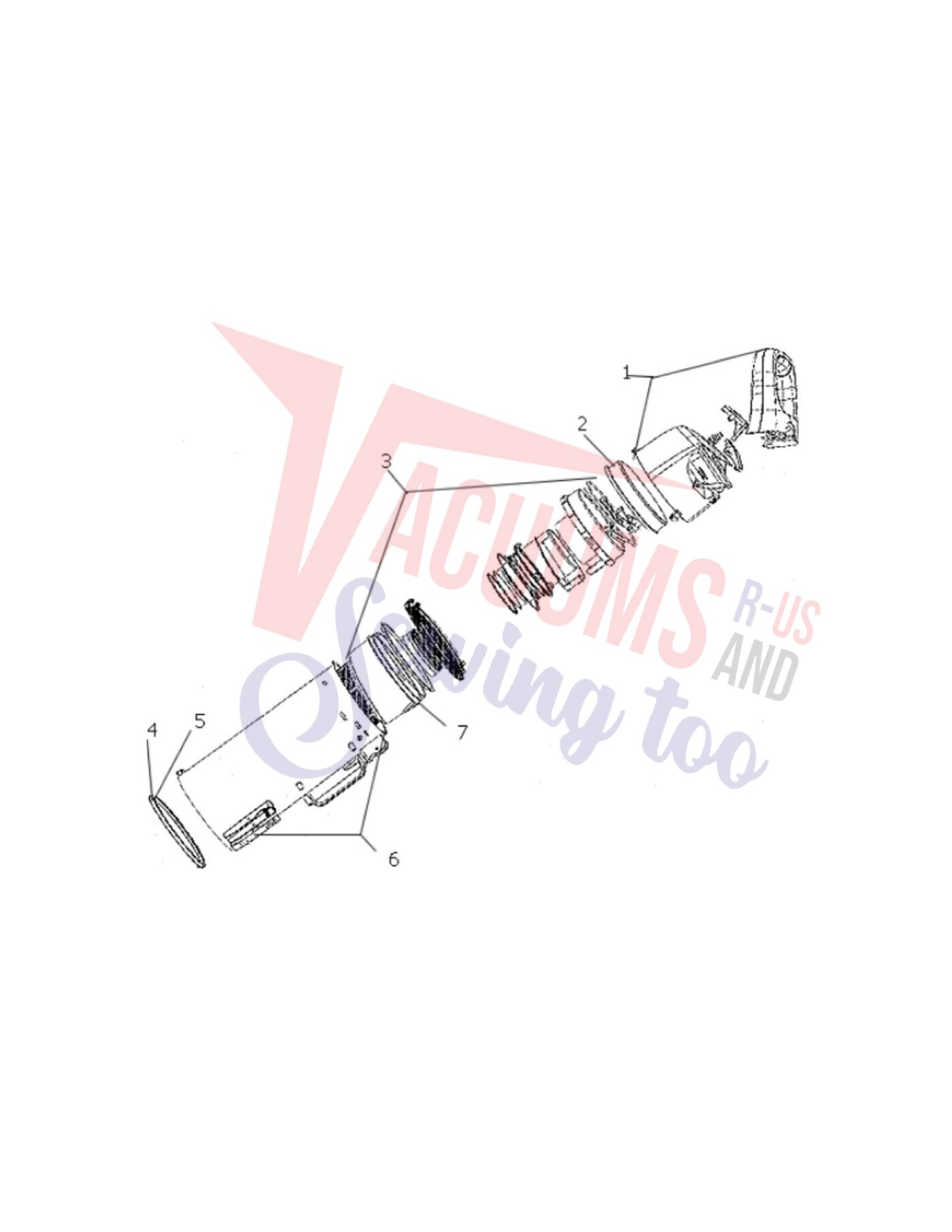

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST CUP LID ASSEMBLY | 16144-2 | Not Available |
| 2 | Not Available | FILTER OVERMOLD ASSEMBLY | 82982-1 | Not Available |
| 3 | Not Available | DUST CUP ASSEMBLY | 82963-2 | Not Available |
| 4 | Not Available | LIP SEAL - DOOR-DUMP - O | 82987-355N | Not Available |
| 5 | Not Available | DOOR - DUMP | 82986-722N | Not Available |
| 6 | Not Available | DUST CUP ASSEMBLY | 16146-2 | Not Available |
| 7 | Not Available | LIP SEAL SCREEN | 82969-355N | Not Available |
| 7 | Not Available | ELECTROLUX NIMBLE STARTER | EL69979 | Not Available |

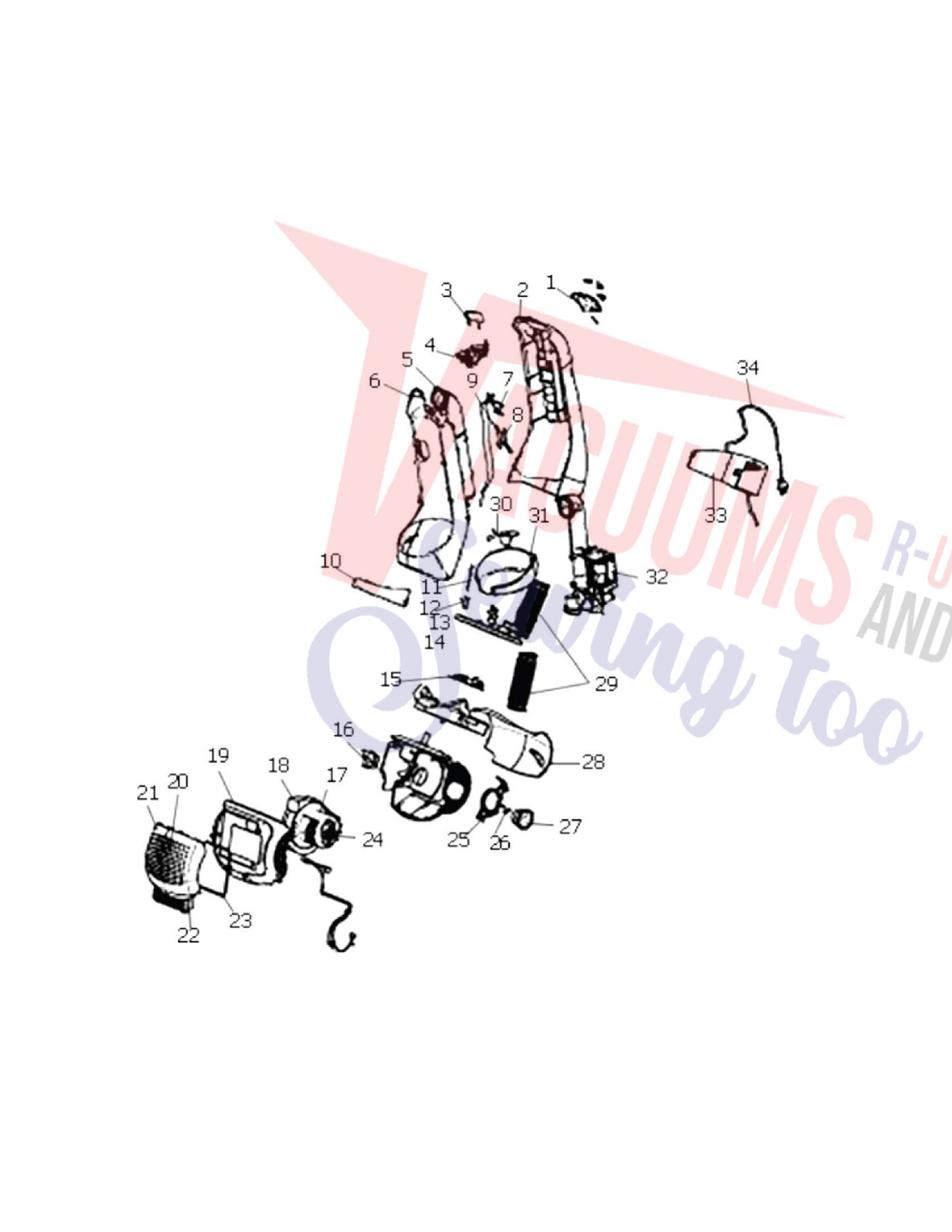

| # | Part image | Description | SKU | Price |
| XX | Not Available | GASKET - CUP CLEAN SIDE | 82957-119N | Not Available |
| 1 | Not Available | SWITCH COVER & BUTTONS | 16143-2 | Not Available |
| 2 | Not Available | HOUSING - REAR | 82685-664P | Not Available |
| 3 | Not Available | BUCKLE OVERMOLD ASSEMBLY | 82925-2 | Not Available |
| 4 | Not Available | MICROCONTROLLER & I/O BOA | 83542 | Not Available |
| 5 | Not Available | TUBE - CUP - TO - AUCTION | 83231-1 | Not Available |
| 6 | Not Available | HOUSING - FRONT | 82686-664P | Not Available |
| 7 | Not Available | LATCH - BUCKLE | 82948-119N | Not Available |
| 8 | Not Available | PUSH ROD - BUCKLE | 82949-722N | Not Available |
| 9 | Not Available | JUMPER - POWER | 83567 | Not Available |
| 10 | Not Available | FACIA - FRONT BEAUTY RING | 83046-546N | Not Available |
| 11 | Not Available | PUSH ROD- LOCK- SWIVEL | 82904-722N | Not Available |
| 12 | Not Available | LOCK- SWIVEL | 82903-119N | Not Available |
| 13 | Not Available | CAP- PUSH ROD- LOCK- SWIV | 82905-722N | Not Available |
| 14 | Not Available | SPRING - LOCK SWIVEL | 82906 | Not Available |
| 15 | Not Available | POWER BOARD | 83551 | Not Available |
| 16 | Not Available | PIN - BASE RIGHT | 82887-119N | Not Available |
| 17 | Not Available | MOTOR ASSEMBLY - CARTONED | 16141-1 | Not Available |
| 18 | Not Available | ISOLATOR - MOTOR - SUCTIO | 82873 | Not Available |
| 19 | No Image | COVER, MOTOR FRONT EL8602A-1 Part Number: 82681-664P for Eureka | 82681664P | $16.09Read more |
| 20 |  | FILTER, FOAM EXHAUST EL8602/EL8605 NIMBLE Part Number: 82891-119N for Eureka | 82891119N | $6.92Read more |
| 21 | Not Available | FILTER COVER & GRAPHICS A | 83730-2 | Not Available |
| 22 | Not Available | FILTER PKG ASSY-ELCTRLX H | EL029 | Not Available |
| 23 | Not Available | ELCTRLX NMBL ANTI-ODR CRB | EL030 | Not Available |
| 24 | Not Available | BUSHING - MOTOR SUCTION | 82872-700M | Not Available |
| 25 | Not Available | HANDLE RELEASE ASSY | 16140-1 | Not Available |
| 26 | Not Available | SPRING - COMPRESSION | 82869 | Not Available |
| 27 | Not Available | PIN - BASE LEFT | 82886-119N | Not Available |
| 28 | Not Available | FACIA-MTR CVR-WRNG GRPHCS | 84598 | Not Available |
| 29 | Not Available | HOSE - MOTOR COVER REAR T | 82958-119N | Not Available |
| 30 | Not Available | PLUG - VALVE ACCESS | 82947-355N | Not Available |
| 31 | Not Available | FRONT HOUSING BOTTOM | 82955-664P | Not Available |
| 32 | Not Available | VALVE ASSEMBLY | 82927-2 | Not Available |
| 33 | Not Available | FACIA - REAR BEAUTY RING | 82908-546N | Not Available |
| 34 | Not Available | SUPPLY CORD & TERMINAL AS | 83698-2 | Not Available |
