Schematic and parts book for Eureka EL4650A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST CONTAINER-MULTICYCLO | 2198618-11 | Not Available |
| 2 | Not Available | DUSTCUP ASSEMBLY | 2198626-01 | Not Available |
| 3 | Not Available | DUST CONTAINER | 2198610-01 | Not Available |
| 4 | Not Available | COVER - TOP RIGHT | 2198652-01 | Not Available |
| 5 | Not Available | COVER - DISPLAY | 2198683-11 | Not Available |
| 6 | Not Available | COVER - TOP LEFT | 2198651-01 | Not Available |
| 7 | Not Available | PEDAL - ON/OFF | 2198724-01 | Not Available |
| 8 | Not Available | PEDAL - CORDWINDER | 2198723-01 | Not Available |
| 9 |  | PCB SAT PEDAL Part Number: 1181968-01 for Eureka | 118196801 | $4.71Read more |
| 10 | Not Available | LID - PLUG RECESS | 1184103-01 | Not Available |
| 11 | Not Available | PLUG RECESS | 1183268-01 | Not Available |
| 12 | Not Available | SPRING - PEDAL | 1184124-01 | Not Available |
| 13 | Not Available | TOP COVER | 1183204-01 | Not Available |
| 14 | Not Available | EXHAUST GRIL | 2198608-01 | Not Available |
| 15 | Not Available | DUST CONTAINER -FINE | 2198612-01 | Not Available |
| 16 |  | Filter, Electrolux "S" HEPA EL5010/EL6988 Part Number: EL012B for Eureka | EL012B | $43.15Read more |
| 16 |  | Compatible alternateFilter H12 DVC Electrolux HEPA 1pk More Product Details | 67812AAM | $21.51Add to cart |
| 17 | Not Available | Filter-Dust Compartment | 1183220-02 | Not Available |
| 18 | Not Available | GASKET - FILTER (NO TALC) | 2192645-02 | Not Available |
| 19 | Not Available | HOUSING - MOTOR | 2198605-02 | Not Available |
| 20 | Not Available | GASKET - HOSE CONNECTION | 1183296-01 | Not Available |
| 21 | Not Available | PCB | 2198717-01 | Not Available |
| 22 | Not Available | BASE W/WHEELS | 2198606-01 | Not Available |
| 23 | Not Available | MOTOR ASSY - PACKAGED | 63160-7 | Not Available |
| 24 | Not Available | CORDREELASSEMBLY | 2198348-45 | Not Available |
| 25 | Not Available | SOUND FOAM (MOTOR) | 1129020-01 | Not Available |
| 26 | Not Available | MOTOR SEAL | 1183217-02 | Not Available |
| 27 | Not Available | GASKET - MOTOR | 1183223-01 | Not Available |
| 28 | Not Available | HANDLE KIT | 2198607-01 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOOD ASSEMBLY (ELECTROLUX | NUE-017-6 | Not Available |
| 2 | No Image | SCREW, EL4300A Part Number: 63399-1 for Eureka | 633991 | $2.20Read more |
| 3 | Not Available | PCB FIX BRACKET | NUE-149-119N | Not Available |
| 4 | Not Available | HGT ADJ PEDAL & GRAPHICS | 78188-2 | Not Available |
| 5 | Not Available | HANDLE RELEASE & GRAPHICS | 78190-2 | Not Available |
| 6 | Not Available | UNIT MAIN PCB ASSEMBLY | NUE-012A | Not Available |
| 7 | Not Available | INSERT - PEDAL | NUE-206 | Not Available |
| 8 | Not Available | T-JOINT SEALING FELT | NUE-408 | Not Available |
| 9 | Not Available | SPRING FOR PIVOT ARM | NUE-208 | Not Available |
| 10 | Not Available | REAR WHEEL ASSEMBLY | NUE-028-1 | Not Available |
| 11 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | BASE ASSEMBLY - CARTONED | 16099-3 | Not Available |
| 13 | Not Available | HEADLIGHT PCB ASSEMBLY | NUE-010 | Not Available |
| 14 | Not Available | LED FIX COVER | NUE-150-392P | Not Available |
| 15 | Not Available | FRONT AXLE ASSEMBLY | NUE-004-1 | Not Available |
| 16 | Not Available | FILTER WASHER - LOWER | NUE-407 | Not Available |
| 17 | Not Available | BRUSHROLL ASSY - CARTONED | 61699-2 | Not Available |
| 18 | Not Available | TRITON UPRIGHT POLY V BELT | EL097 | Not Available |
| 18 |  | Belt, Serpentine SC9180 Part Number: 77133 for Eureka | 77133 | $14.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | SOLE PLATE | NUE-131-625N | Not Available |
| 20 | Not Available | SCREW PACKAGE | 63399-2 | Not Available |
| 21 | Not Available | ACTUATOR ASSEMBLY | NUE-007 | Not Available |
| 22 | Not Available | HEIGHT INDICATOR ASSEMBLY | NUE-011 | Not Available |
| 23 | Not Available | SCREW PACKAGE | 63399-3 | Not Available |
| 24 | Not Available | OVERLOAD INDICATOR PCB ASSY | NUE-013 | Not Available |
| 25 | Not Available | FOAM PAD | NUE-411 | Not Available |
| 26 | Not Available | SPRING PLATE | NUE-219 | Not Available |
| 27 | Not Available | AIR CHANNEL COVER | NUE-103-119N | Not Available |
| 28 | Not Available | MOTOR COVER | NUE-107-119N | Not Available |
| 29 | Not Available | VENT FOAM FOR MOTOR | NUE-413 | Not Available |
| 30 | Not Available | MOTOR ASSEMBLY | NUE-006 | Not Available |
| 31 | Not Available | NECK ASSEMBLY | NUE-027 | Not Available |
| 31 | Not Available | C-CLAMP | NUE-109-625N | Not Available |
| 31 | Not Available | ELECTROLUX POWER HEAD | EL11A | Not Available |

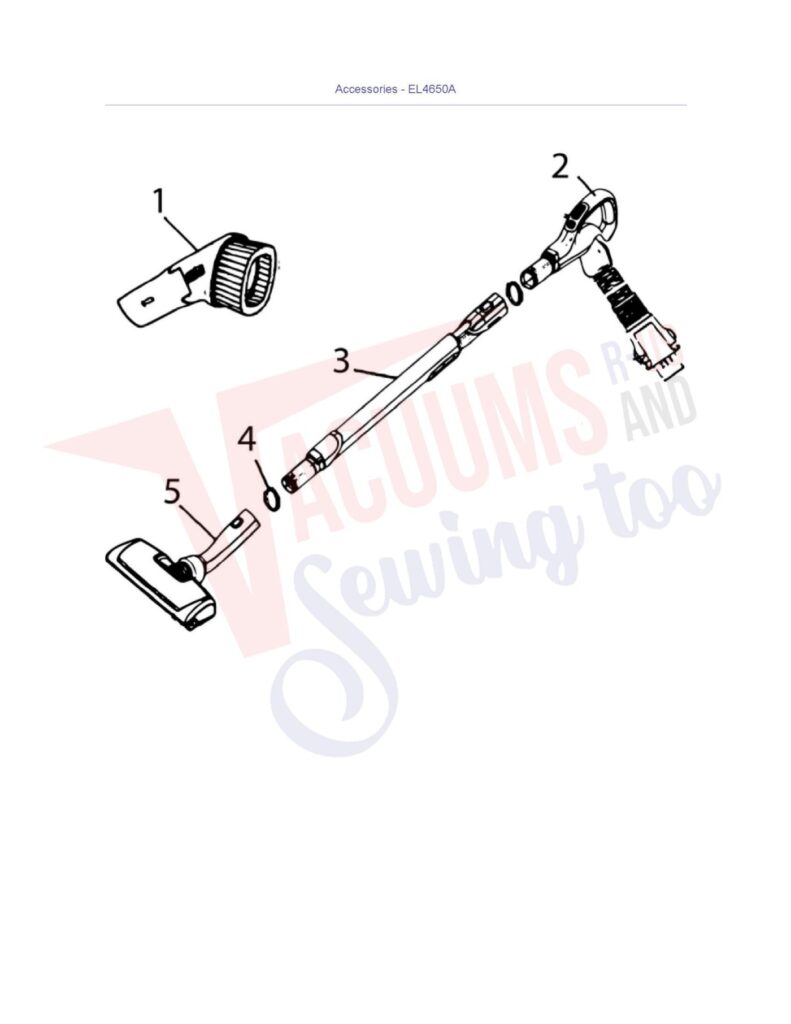

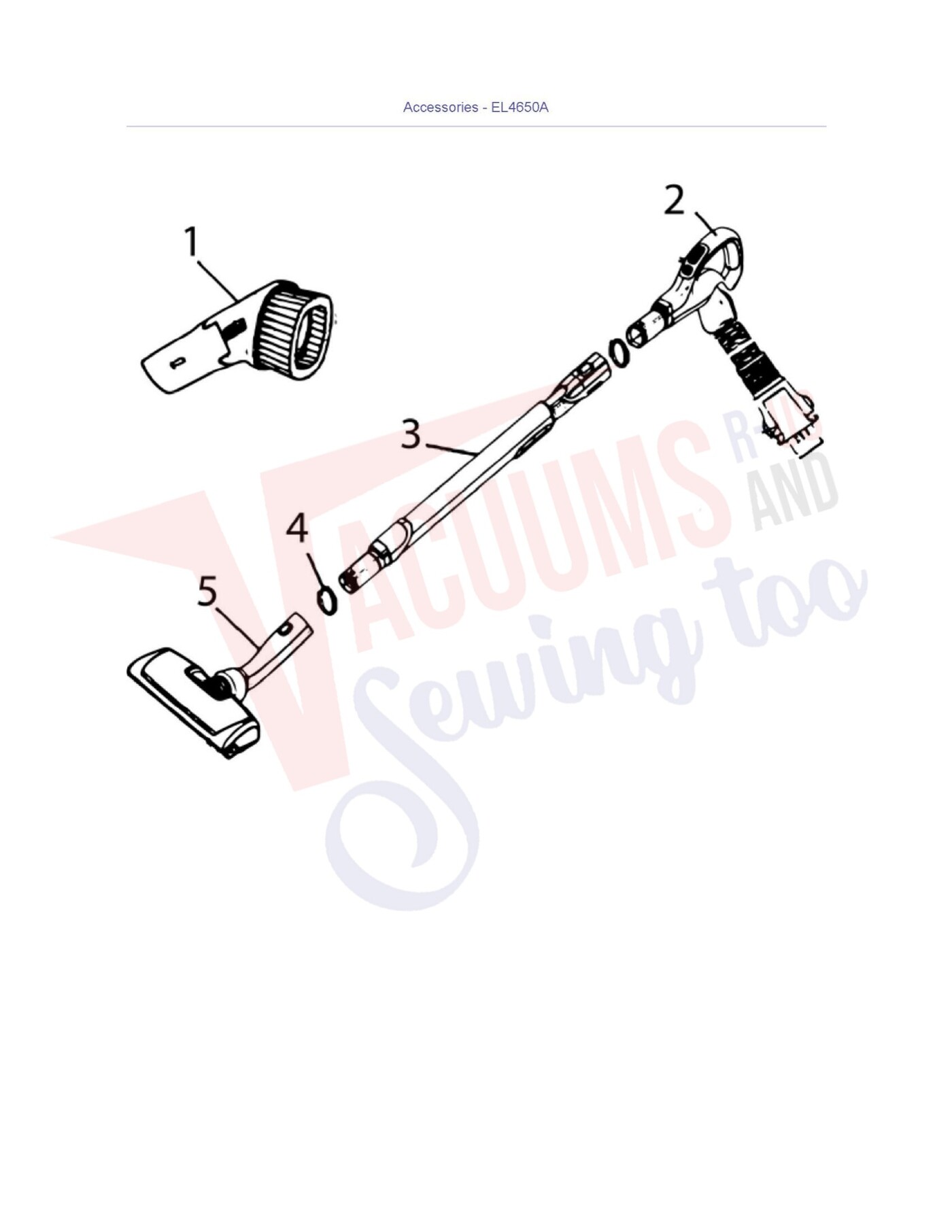

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Atmt: MULTI TOOL 2G | 2193714-01 | Not Available |
| 2 |  | HOSE,EL-4650A Part Number: 16488-1 for Eureka | 164881 | $288.11Read more |
| 3 | Not Available | Wand; 2G Active TelScp PH | 2193841-11 | Not Available |
| 4 | Not Available | SEAL - TUBE | 1181611-01 | Not Available |
| 5 | Not Available | FLOOR BRUSH | 2192699-08 | Not Available |
| 5 | Not Available | Owners Guide | 87425 | Not Available |
