Schematic and parts book for Eureka EL4060A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 13 | Not Available | Q786438P661 | Q6627511661R | Not Available |
| 27 | Not Available | NP 87776 | P7860594986R | Not Available |
| # | Part image | Description | SKU | Price |

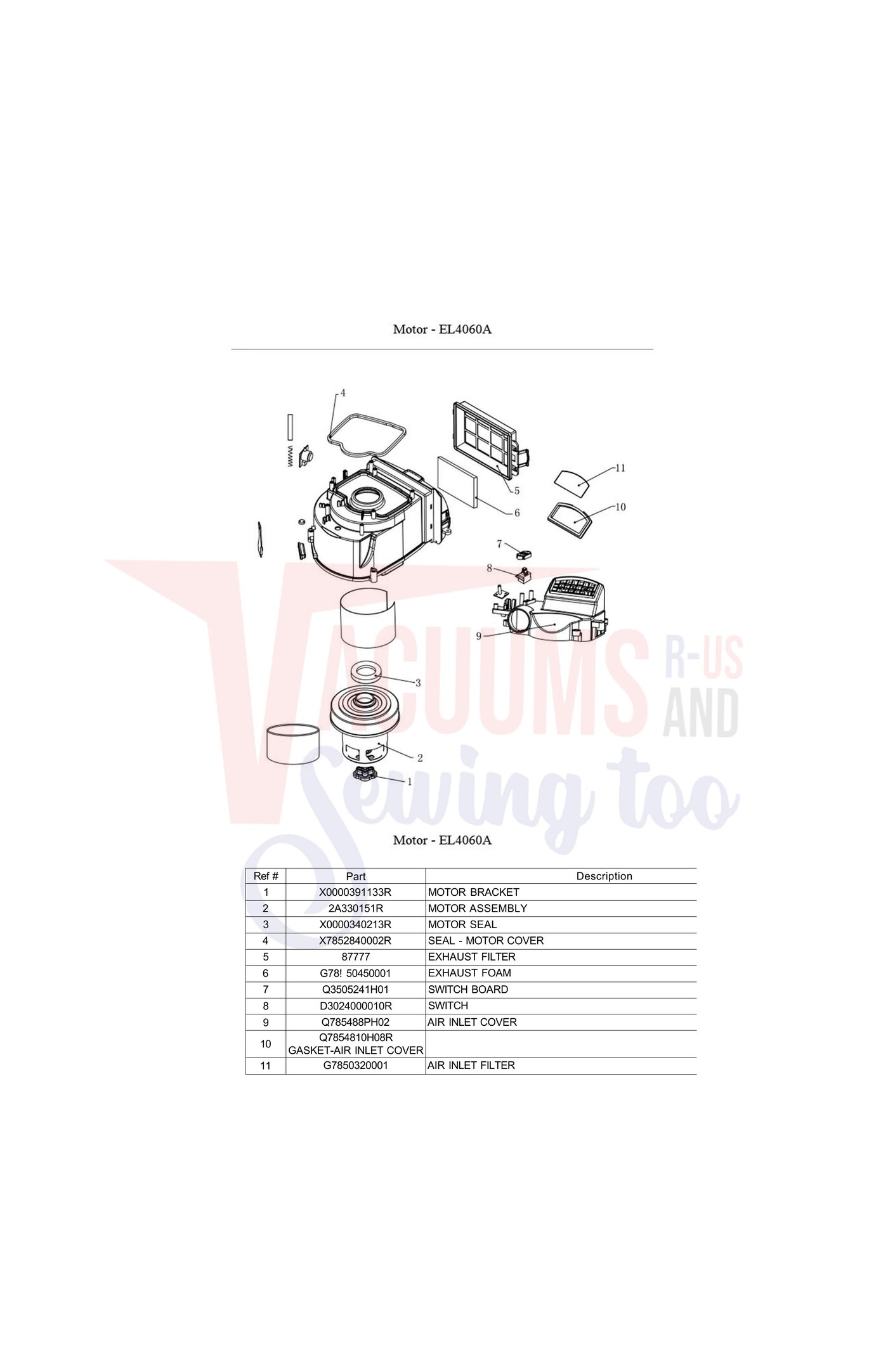

| 1 | Not Available | MOTOR BRACKET | X0000391133R | Not Available |
| 2 | Not Available | MOTOR ASSEMBLY | 2A330151R | Not Available |
| 3 | Not Available | MOTOR SEAL | X0000340213R | Not Available |
| 4 | Not Available | SEAL - MOTOR COVER | X7852840002R | Not Available |
| 5 | Not Available | EXHAUST FILTER | 87777 | Not Available |
| 7 | Not Available | SWITCH BOARD | Q3505241H01 | Not Available |
| 8 | Not Available | SWITCH | D3024000010R | Not Available |
| 9 | Not Available | AIR INLET COVER | Q785488PH02 | Not Available |
| 11 | Not Available | AIR INLET FILTER | G7850320001 | Not Available |
| # | Part image | Description | SKU | Price |

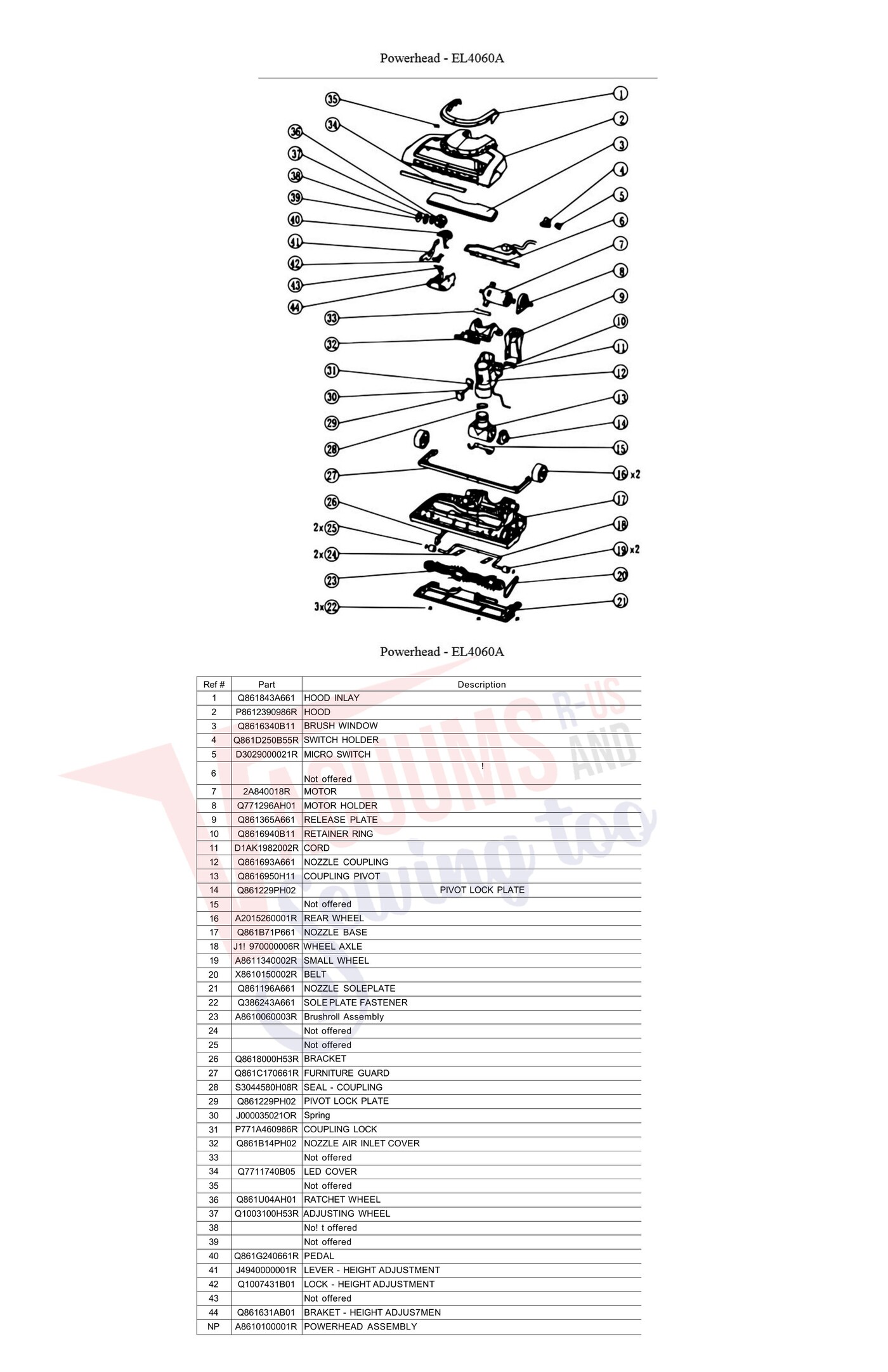

| XX | Not Available | POWERHEAD | A8610100001R | Not Available |
| 1 | Not Available | HOOD INLAY | Q861843A661 | Not Available |
| 2 | Not Available | HOOD | P8612390986R | Not Available |
| 3 | Not Available | BRUSH | Q8616340B11 | Not Available |
| 4 | Not Available | SWITCH | Q861D250B55R | Not Available |
| 5 | Not Available | MICRO | D3029000021R | Not Available |
| 7 | Not Available | MOTOR | 2A840018R | Not Available |
| 8 | Not Available | MOTOR | Q771296AH01 | Not Available |
| 9 | Not Available | RELEASE | Q861365A661 | Not Available |
| 10 | Not Available | RETAINER | Q8616940B11 | Not Available |
| 11 | Not Available | CORD | D1AK1982002R | Not Available |
| 12 | Not Available | NOZZLE | Q861693A661 | Not Available |
| 13 | Not Available | COUPLING | Q8616950H11 | Not Available |
| 16 | Not Available | REAR WHEEL | A2015260001R | Not Available |
| 17 | Not Available | NOZZLE | Q861B71P661 | Not Available |
| 19 | Not Available | SMALL | A8611340002R | Not Available |
| 20 | Not Available | BELT | X8610150002R | Not Available |
| 21 | Not Available | NOZZLE | Q861196A661 | Not Available |
| 22 | Not Available | SOLE PLATE | Q386243A661 | Not Available |
| 23 | Not Available | Brushroll | A8610060003R | Not Available |
| 26 | Not Available | BRACKET | Q8618000H53R | Not Available |
| 27 | Not Available | FURNITURE | Q861C170661R | Not Available |
| 28 |  | Seal Coupling-Electrolux El4060 For: hizero | S3044580H08R | $3.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | PIVOT LOCK | Q861229PH02 | Not Available |
| 30 | Not Available | Spring | J000035021OR | Not Available |
| 31 | Not Available | COUPLING | P771A460986R | Not Available |
| 32 | Not Available | NOZZLE | Q861B14PH02 | Not Available |
| 34 | Not Available | LED COVER | Q7711740B05 | Not Available |
| 36 | Not Available | RATCHET | Q861U04AH01 | Not Available |
| 37 | Not Available | ADJUSTING | Q1003100H53R | Not Available |
| 40 | Not Available | PEDAL | Q861G240661R | Not Available |
| 41 | Not Available | LEVER | J4940000001R | Not Available |
| 42 | Not Available | LOCK - | Q1007431B01 | Not Available |
| 44 | Not Available | BRAKET | Q861631AB01 | Not Available |
| # | Part image | Description | SKU | Price |

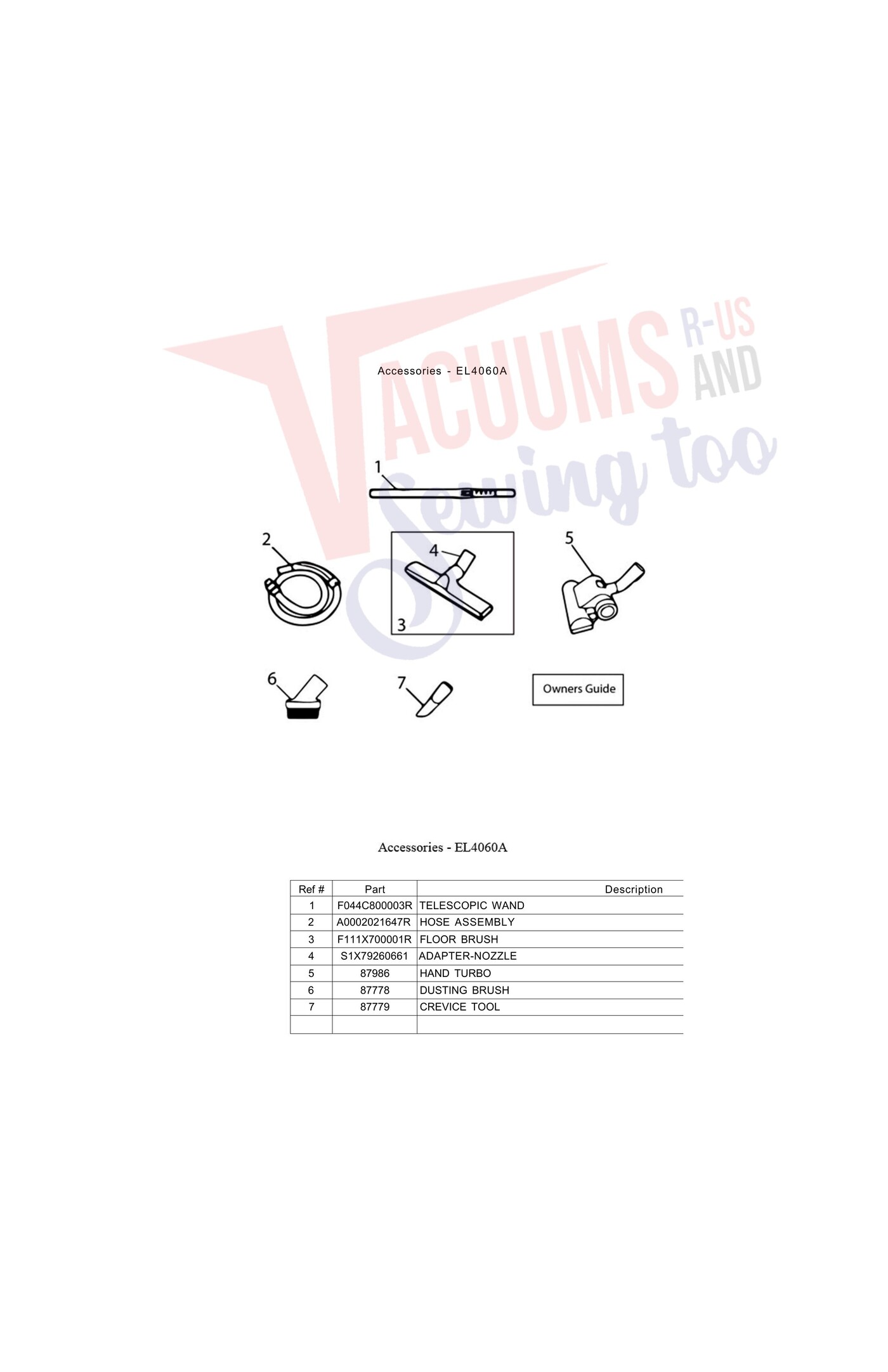

| 1 | No Image | TELESCOPIC WAND Part Number: F044C800003R for Eureka | F044C800003R | $31.12Read more |
| 2 | Not Available | HOSE ASSEMBLY | A0002021647R | Not Available |
| 3 | Not Available | FLOOR BRUSH | F111X700001R | Not Available |
| 4 | Not Available | ADAPTER-NOZZLE | S1X79260661 | Not Available |
| 5 | Not Available | HAND TURBO | 87986 | Not Available |
| 6 | Not Available | DUSTING BRUSH | 87778 | Not Available |
| 7 | Not Available | CREVICE TOOL | 87779 | Not Available |
