Schematic and parts book for Eureka EL012B . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

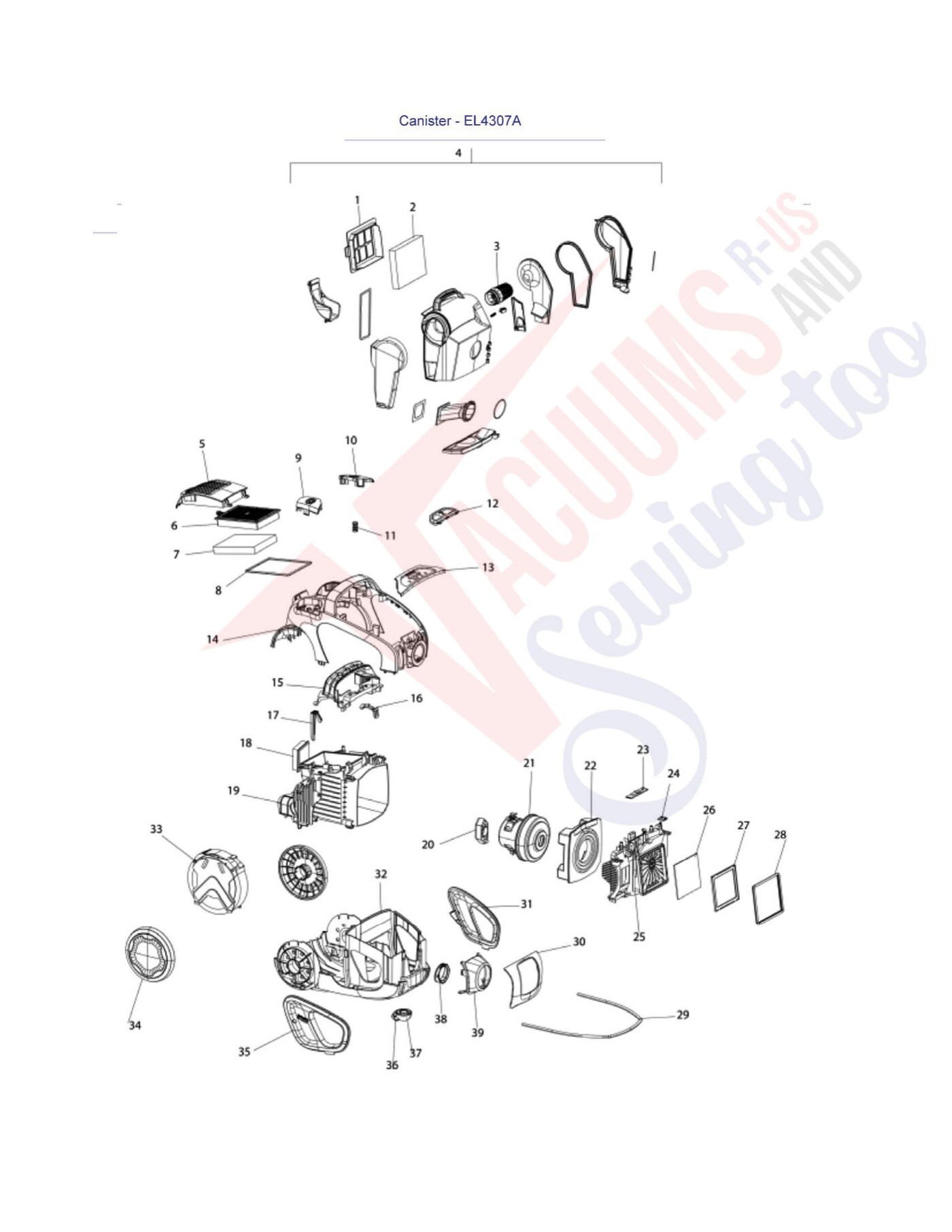

| # | Part image | Description | SKU | Price |
| XX | Not Available | SWITCH | 2191305-04 | Not Available |
| XX | Not Available | 120V1250 | PH22 | Not Available |
| XX | Not Available | 120V1250 | PH22 | Not Available |
| 1 | Not Available | FILTERGRILL | 1182114-01 | Not Available |
| 2 | Not Available | FILTER - FOAM | 2194113-01 | Not Available |
| 3 | Not Available | CONE - CYCLONE | 1182111-01 | Not Available |
| 4 | Not Available | CYCLONE | 2194100-60 | Not Available |
| 5 | No Image | COVER, FILTER GRILL 4307 Part Number: 2194108-95 for Eureka | 219410895 | $25.88Read more |
| 6 |  | Filter, Electrolux "S" HEPA EL5010/EL6988 Part Number: EL012B for Eureka | EL012B | $43.15Read more |
| 6 |  | Compatible alternateFilter H12 DVC Electrolux HEPA 1pk More Product Details | 67812AAM | $21.51Add to cart |
| 7 | Not Available | EXHAUST | 1180215-02 | Not Available |
| 8 | Not Available | GASKET - | 2192645-02 | Not Available |
| 9 | Not Available | CORD REEL | 2197753-05 | Not Available |
| 10 | Not Available | ON/OFF PEDAL | 2197749-05 | Not Available |
| 11 | Not Available | SPRING PACKAGE | 63157-15 | Not Available |
| 12 | Not Available | POWER REG | 2194111-01 | Not Available |
| 13 | Not Available | DISPLAY LOW | 1182133-34 | Not Available |
| 14 | Not Available | PANEL - CONTROL | 2197844-09 | Not Available |
| 15 | Not Available | HANDLE | 2197742-07 | Not Available |
| 16 | Not Available | LEVER - ON/OFF | 1182162-01 | Not Available |
| 17 | Not Available | LEVER - CORD | 1182153-01 | Not Available |
| 18 | Not Available | PCB ON/OFF | 2197053-03 | Not Available |
| 19 | Not Available | MOTORHOUSE | 1182102-05 | Not Available |
| 20 | Not Available | SUSPENSION | 2191811-01 | Not Available |
| 21 | Not Available | MOTOR CIND. | 63160-3 | Not Available |
| 21 | Not Available | MOTOR CIND. | 1130969-08 | Not Available |
| 22 | Not Available | SUSPENSION | 1181520-01 | Not Available |
| 23 | Not Available | PCB CTRL | 1181969-04 | Not Available |
| 24 |  | PCB SAT PEDAL Part Number: 1181968-01 for Eureka | 118196801 | $4.71Read more |
| 25 | Not Available | COVER - MOTOR | 1182103-04 | Not Available |
| 26 | Not Available | FILTER - MOTOR | 1182122-01 | Not Available |
| 27 | Not Available | HOLDER - | 1182138-03 | Not Available |
| 28 | Not Available | SEAL - FILTER | 1182142-01 | Not Available |
| 29 | Not Available | BUMPER | 1182146-03 | Not Available |
| 30 | Not Available | HOSE CONNECTOR | 1182148-34 | Not Available |
| 31 | Not Available | SIDECOVER | 1182144-34 | Not Available |
| 32 | Not Available | BASE ASSEMBLY | 2194104-03 | Not Available |
| 33 | Not Available | CORD REEL | 2198345-67 | Not Available |
| 34 | Not Available | WHEEL - REAR | 1181988-01 | Not Available |
| 35 | Not Available | SIDECOVER | 1182145-34 | Not Available |
| 36 | Not Available | FRONT WHEEL | 6680981-65 | Not Available |
| 37 | Not Available | HOLDER - | 1096042-07 | Not Available |
| 38 | Not Available | GASKET - | 1182123-01 | Not Available |
| 39 | Not Available | CONNECTION | 2197214-01 | Not Available |

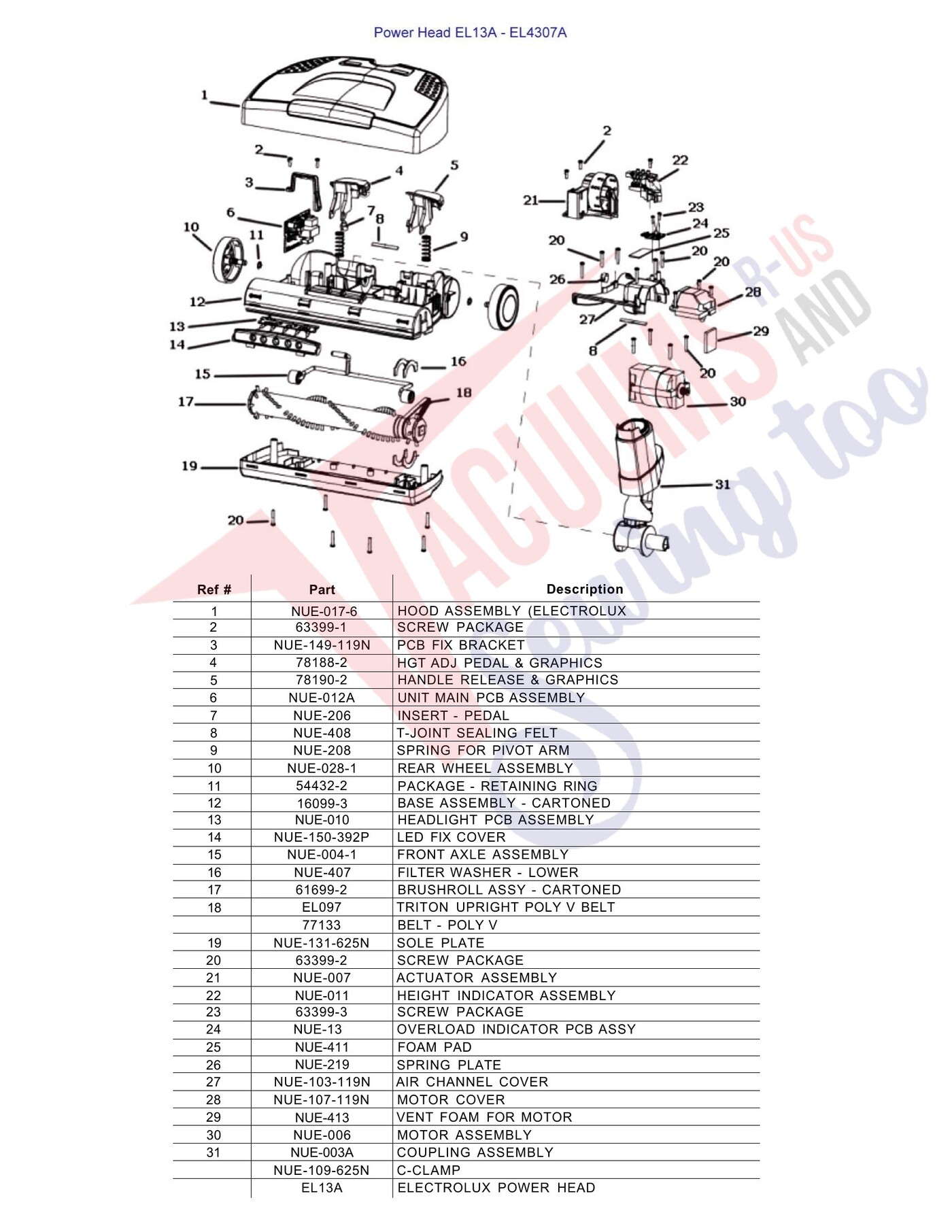

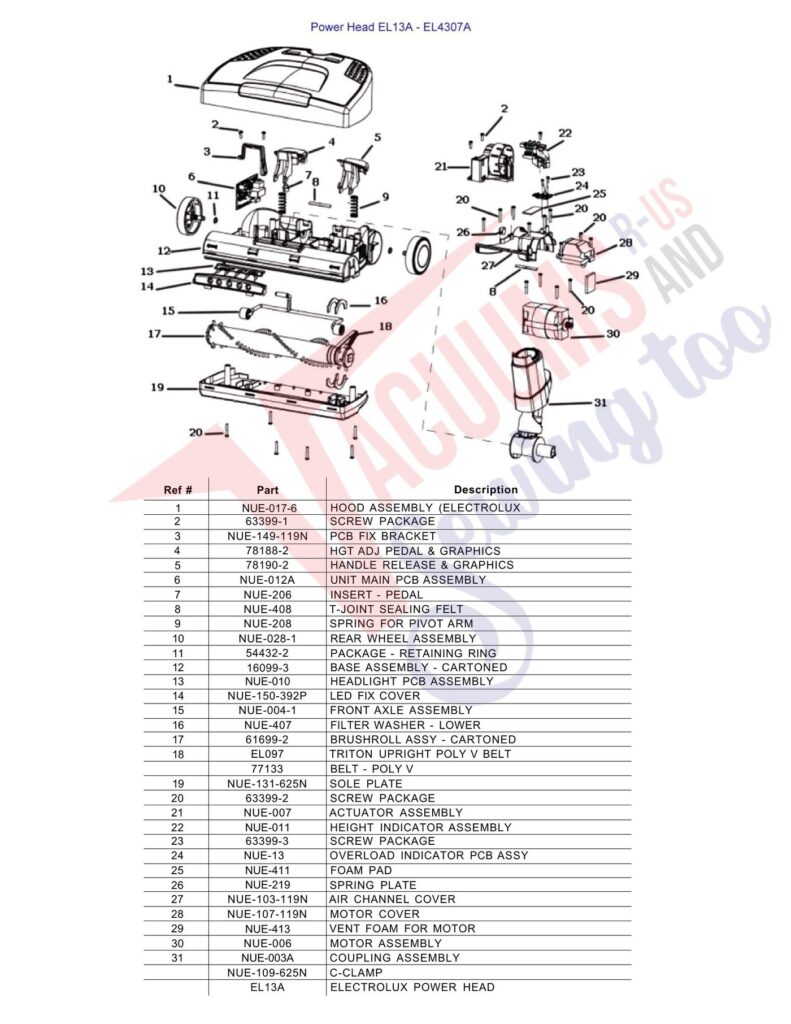

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOOD ASSEMBLY | NUE-017-6 | Not Available |
| 2 | No Image | SCREW, EL4300A Part Number: 63399-1 for Eureka | 633991 | $2.20Read more |
| 3 | Not Available | PCB FIX BRACKET | NUE-149-119N | Not Available |
| 4 | Not Available | HGT ADJ PEDAL | 78188-2 | Not Available |
| 5 | Not Available | HANDLE RELEASE | 78190-2 | Not Available |
| 6 | Not Available | UNIT MAIN | NUE-012A | Not Available |
| 7 | Not Available | INSERT - PEDAL | NUE-206 | Not Available |
| 8 | Not Available | T-JOINT SEALING | NUE-408 | Not Available |
| 9 | Not Available | SPRING FOR | NUE-208 | Not Available |
| 10 | Not Available | REAR WHEEL | NUE-028-1 | Not Available |
| 11 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | BASE ASSEMBLY | 16099-3 | Not Available |
| 13 | Not Available | HEADLIGHT | NUE-010 | Not Available |
| 14 | Not Available | LED FIX COVER | NUE-150-392P | Not Available |
| 15 | Not Available | FRONT AXLE | NUE-004-1 | Not Available |
| 16 | Not Available | FILTER WASHER | NUE-407 | Not Available |
| 17 | Not Available | BRUSHROLL | 61699-2 | Not Available |
| 18 | Not Available | TRITON UPRIGHT | EL097 | Not Available |
| 18 |  | Belt, Serpentine SC9180 Part Number: 77133 for Eureka | 77133 | $14.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | SOLE PLATE | NUE-131-625N | Not Available |
| 20 | Not Available | SCREW PACKAGE | 63399-2 | Not Available |
| 21 | Not Available | ACTUATOR | NUE-007 | Not Available |
| 22 | Not Available | HEIGHT INDICATOR | NUE-011 | Not Available |
| 23 | Not Available | SCREW PACKAGE | 63399-3 | Not Available |
| 24 | Not Available | OVERLOAD | NUE-13 | Not Available |
| 25 | Not Available | FOAM PAD | NUE-411 | Not Available |
| 26 | Not Available | SPRING PLATE | NUE-219 | Not Available |
| 27 | Not Available | AIR CHANNEL | NUE-103-119N | Not Available |
| 28 | Not Available | MOTOR COVER | NUE-107-119N | Not Available |
| 29 | Not Available | VENT FOAM | NUE-413 | Not Available |
| 30 | Not Available | MOTOR ASSEMBLY | NUE-006 | Not Available |
| 31 |  | Electrolux or sanitaire angled power nozzle elbow PN PE7025A and NUE-003A Fits Electrolux models;... | NUE-003A | $76.99Read more |
| 31 |  | Available ReconditionedCertified Reconditioned Electrolux Beam or sanitaire angled power nozzle elbow PN PE7025A and NUE... More Product Details | WP12462 | $76.99Add to cart |
| 31 | Not Available | C-CLAMP | NUE-109-625N | Not Available |
| 31 | Not Available | ELECTROLUX | EL13A | Not Available |

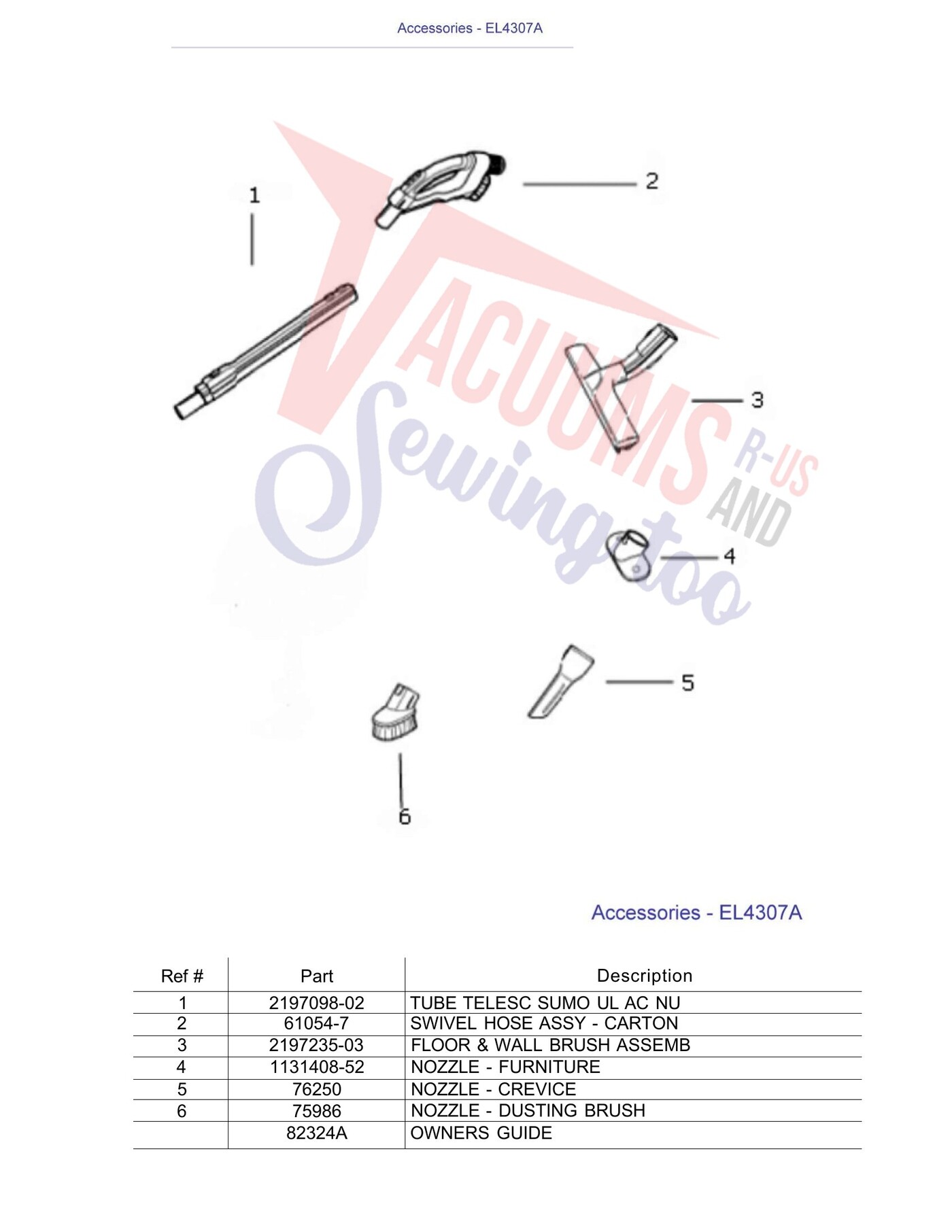

| # | Part image | Description | SKU | Price |
| 1 | Not Available | TUBE TELESC SUMO UL AC NU | 2197098-02 | Not Available |
| 2 | Not Available | SWIVEL HOSE ASSY - CARTON | 61054-7 | Not Available |
| 3 | No Image | ***USE E-75973-1 FLOOR BRUSH, WALL & FLOOR EL4300 Part Number: 2197235-03 for Eureka | 219723503 | $14.64Read more |
| 4 | Not Available | NOZZLE - FURNITURE | 1131408-52 | Not Available |
| 5 | Not Available | NOZZLE - CREVICE | 76250 | Not Available |
| 6 | Not Available | NOZZLE - DUSTING BRUSH | 75986 | Not Available |
| 6 | Not Available | OWNERS GUIDE | 82324A | Not Available |
