Schematic and parts book for Eureka EL012A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

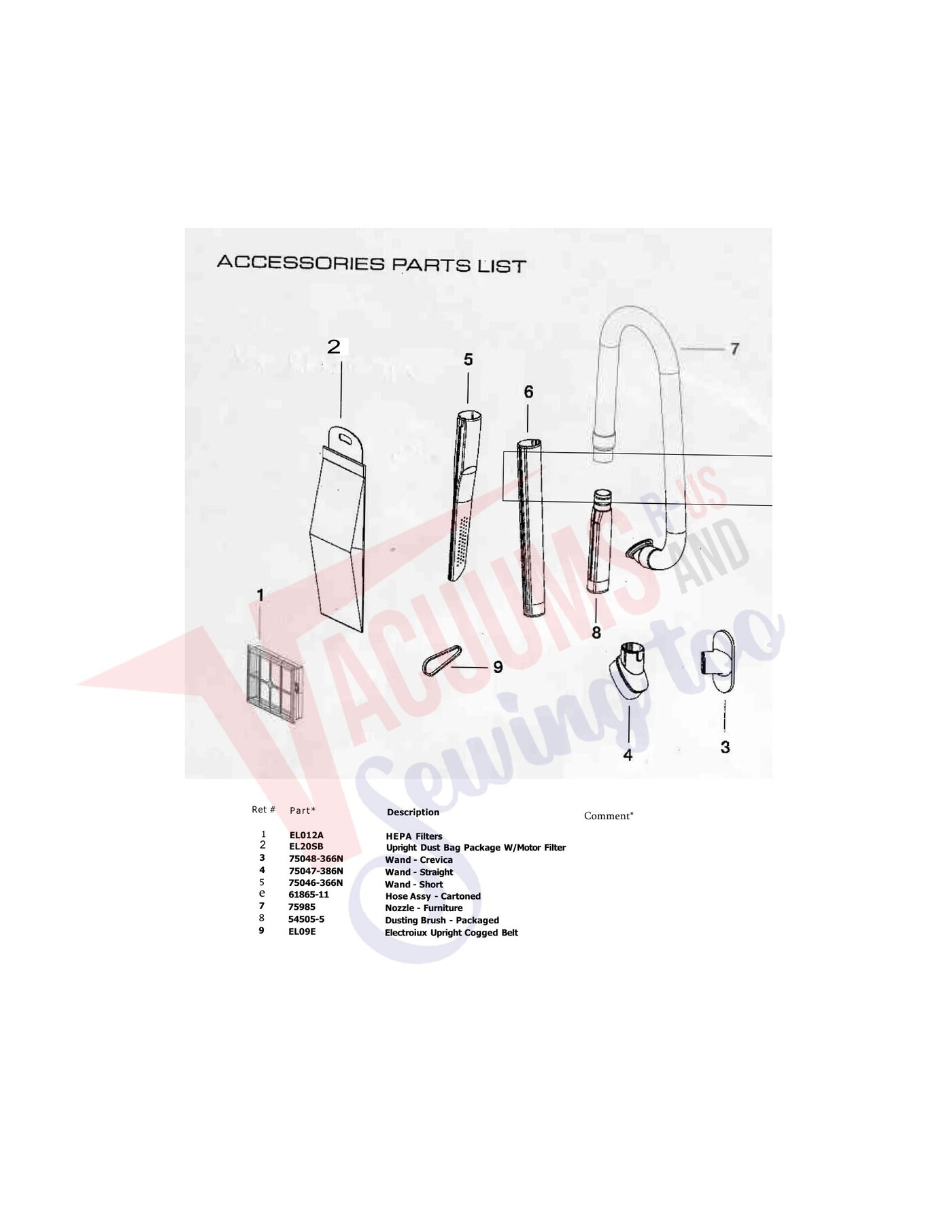

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HEPA Filters | EL012A | Not Available |
| 3 | Not Available | Wand - Crevica | 75048-366N | Not Available |
| 4 | Not Available | Wand - Straight | 75047-386N | Not Available |
| 5 | Not Available | Wand - Short | 75046-366N | Not Available |
| 7 | Not Available | Nozzle - Furniture | 75985 | Not Available |
| 8 | Not Available | Dusting Brush - Packaged | 54505-5 | Not Available |

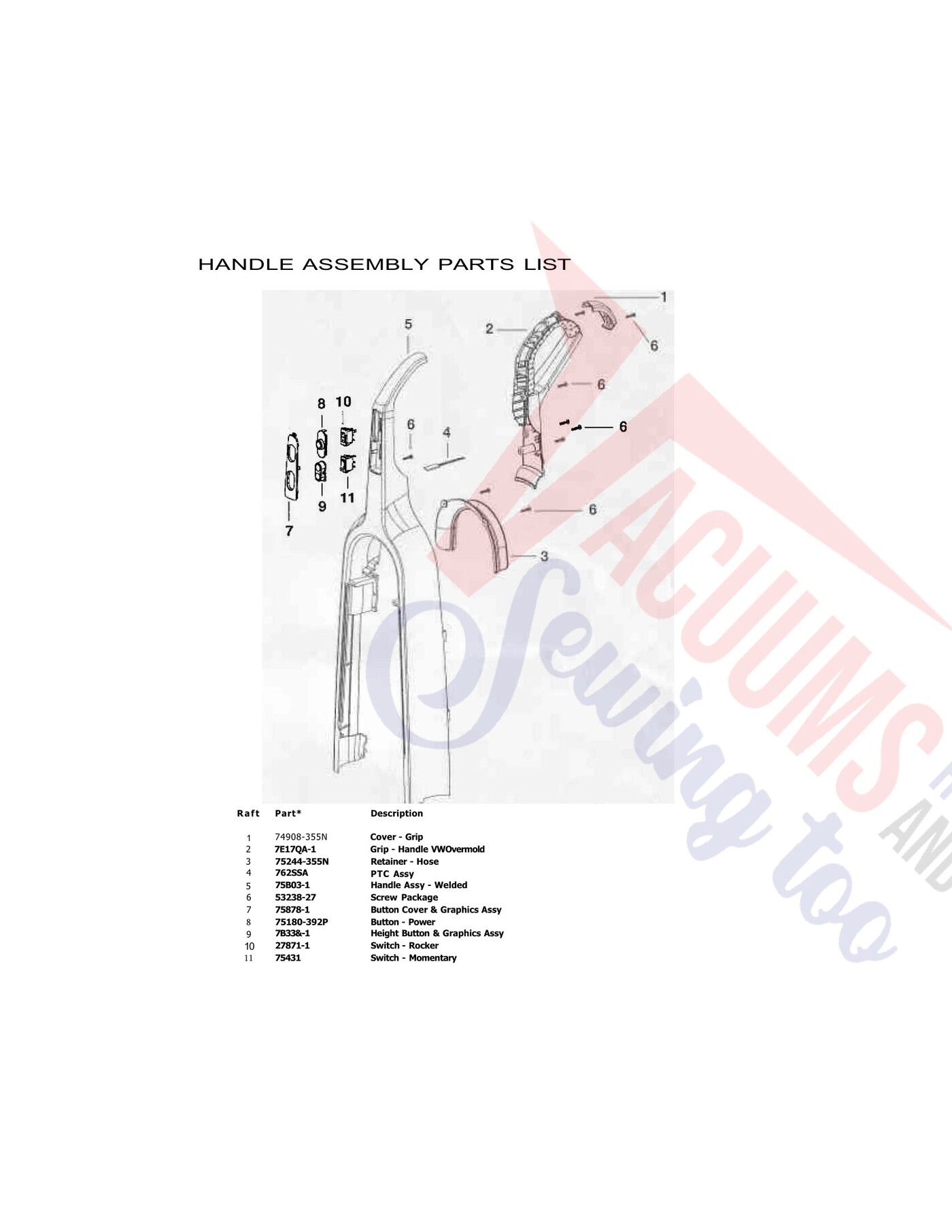

| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, GRIP EL5035 Part Number: 74908-355N for Eureka | 74908355N | $7.14Read more |
| 3 | Not Available | Retainer - Hose | 75244-355N | Not Available |
| 4 | Not Available | PTC Assy | 762SSA | Not Available |
| 6 | Not Available | Screw Package | 53238-27 | Not Available |
| 7 | Not Available | Button Cover & Graphics Assy | 75878-1 | Not Available |
| 8 | Not Available | Button - Power | 75180-392P | Not Available |
| 10 | Not Available | Switch - Rocker | 27871-1 | Not Available |
| 11 | No Image | SWITCH, MOMENTARY EL5305A/AZ/B/BZ Part Number: 75431 for Eureka | 75431 | $4.62Read more |

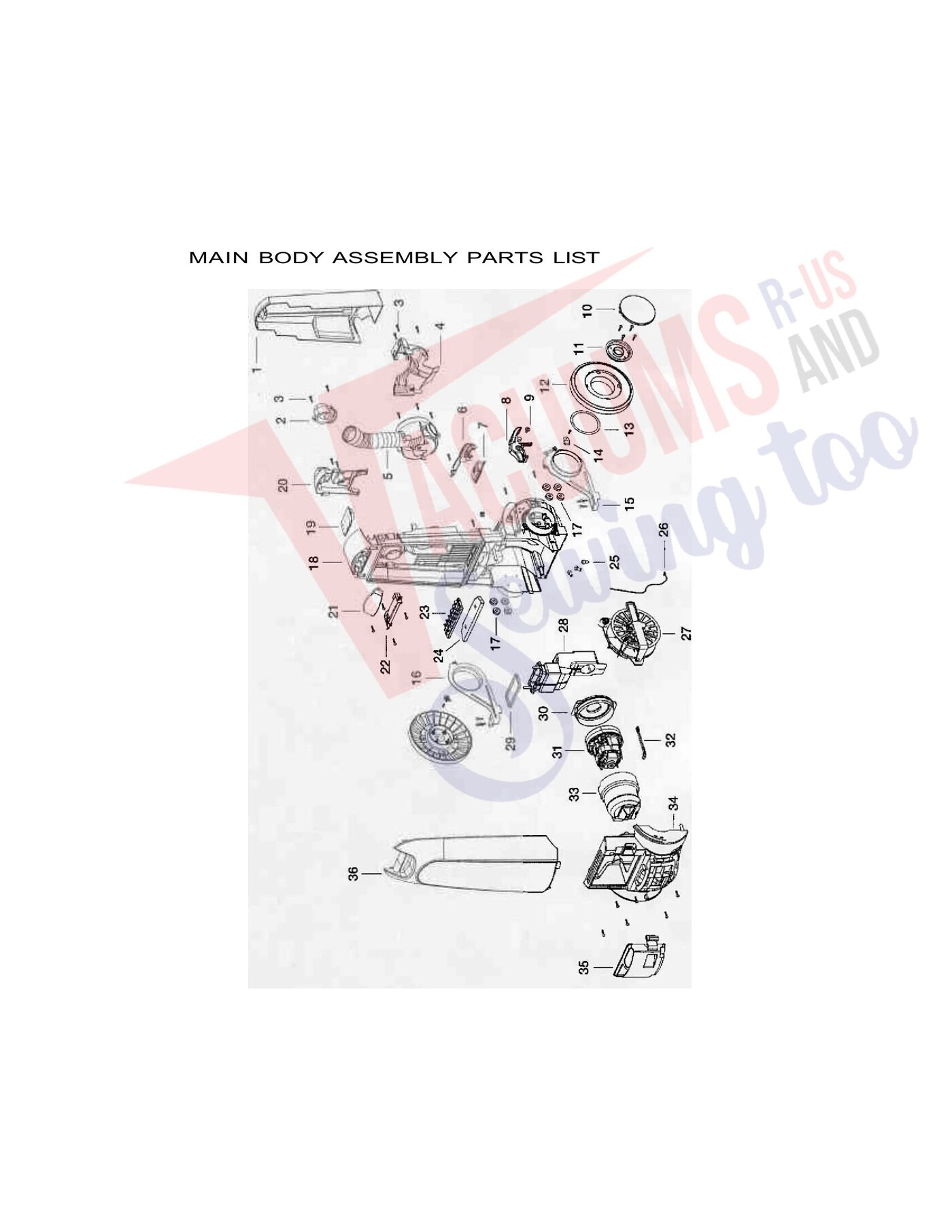

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Accessory Door & Cover Assy | 76686-1 | Not Available |
| 2 | Not Available | Tube - Dirt | 75204-313N | Not Available |
| 3 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Cover - Lower Hose | 75108-355N | Not Available |
| 6 |  | COVER, CORD Part Number: 74999-355N for Eureka | 74999355N | $7.14Read more |
| 7 | Not Available | Pedal - Cord Rewind | 75000-392P | Not Available |
| 9 | Not Available | Screw Package -10 | 60160 | Not Available |
| 10 | Not Available | Cover - Wheel | 74984-392P | Not Available |
| 11 | Not Available | Wheel Retainer | 74880-119N | Not Available |
| 12 | Not Available | Wheel - Rear W/OverrriOlded T | 75019-1 | Not Available |
| 16 | Not Available | Bracket - Right Base/Rear | 74873 | Not Available |
| 18 | Not Available | Rear Housing Assy - Packaged | 63186 | Not Available |
| 19 | Not Available | Upper Display Board Assy | 63187-1 | Not Available |
| 20 | Not Available | Cover - Rear Wires | 75122-355N | Not Available |
| 21 | Not Available | Uppar Display & Graphics Assy | 76829-1 | Not Available |
| 22 | Not Available | Bag in Place Assy | 75370SV | Not Available |
| 23 | Not Available | Frame - Motor Filter | 74963-366N | Not Available |
| 24 | Not Available | Filter - Pre-Mator | 75707 | Not Available |
| 25 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Lead & Terminal Assy - Corci | 75757 | Not Available |
| 29 | Not Available | Gasket - Air Duct | 74976 | Not Available |
| 31 | Not Available | Motor Assy - Cartoned | 63132 | Not Available |
| 32 | Not Available | Thermostat & Terminal Assy | 39252-13 | Not Available |
| 33 | Not Available | Motor Shroud Assy | 76307 | Not Available |
| 34 | Not Available | Motor Cover Assy - PK | 63185 | Not Available |
| 36 | Not Available | Bag Cover & Exhaust Cover Assy | 63184 | Not Available |
| 37 | Not Available | Grornmat - Sensor Not pictured. | 75711-316M | Not Available |

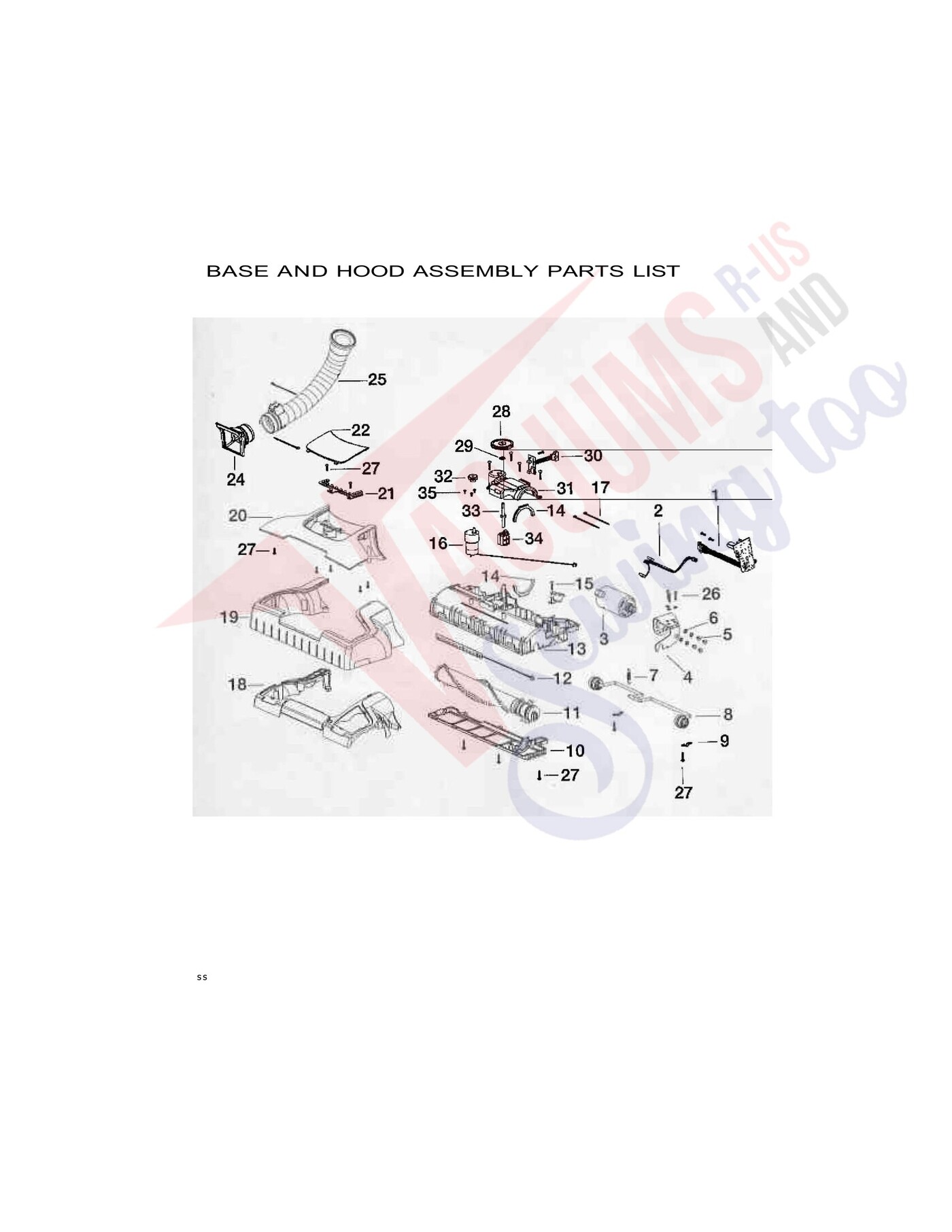

| # | Part image | Description | SKU | Price |
| 2 | No Image | Dust Compart.Lid Red | 75755 | $159.00Read more |
| 3 | Not Available | Brushroll Motor - Packaged | 63179 | Not Available |
| 4 | Not Available | Bracket - Lett Brushroll | 74803 | Not Available |
| 5 | Not Available | Screw Package | 63180 | Not Available |
| 6 | Not Available | Washer Package | 63189 | Not Available |
| 7 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Front Wheel & Axle Assy | 63177 | Not Available |
| 9 | Not Available | Clamp - Axle | 74872 | Not Available |
| 11 | Not Available | Brushroll - Cartoned | 63176 | Not Available |
| 13 |  | BASE, W/CAP Part Number: 63178 for Eureka | 63178 | $22.18Read more |
| 14 | Not Available | Grommet - Motor Mount | 74997-316N | Not Available |
| 15 | Not Available | Micro Switch & Bracket Assy | 59397-4 | Not Available |
| 16 | Not Available | Motor Jumper Assy | 78012SV | Not Available |
| 17 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 18 | Not Available | Lens - Headlight | 74989-313N | Not Available |
| 20 | No Image | HOOD, EL5035 Part Number: 63188 for Eureka | 63188 | $60.84Read more |
| 21 | Not Available | Lower Display Board | 75135 | Not Available |
| 22 | Not Available | Lower Display & Graphics | 75824-1 | Not Available |
| 23 | Not Available | Tie - Cable | 46713-4 | Not Available |
| 24 | Not Available | Base Adapter Assy | 75821-1 | Not Available |
| 25 | No Image | HOSE, BASE EL5035 Part Number: 75571-1 for Eureka | 755711 | $11.91Read more |
| 26 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 27 | Not Available | Screw Package | 53238-27 | Not Available |
| 28 | Not Available | Gear - Spur Height Adjust | 74809-316N | Not Available |
| 29 |  | Washer, Steel C2000/1400/1900/C4046 Series Part Number: 531881 for Eureka | 531881 | $12.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Wheel, Bearing, 8 Inch | 75123 | $204.99Read more |
| 31 | Not Available | Cover and Busing Assy | 76508SV | Not Available |
| 32 | Not Available | Gear - Pinion Height Adjust | 74810-316N | Not Available |
| 33 | Not Available | Shaft - Height Adjust | 748D0 | Not Available |
| 34 | Not Available | Axle Block Assy | 75146 | Not Available |
| 35 | Not Available | Screw Package | 63181 | Not Available |
