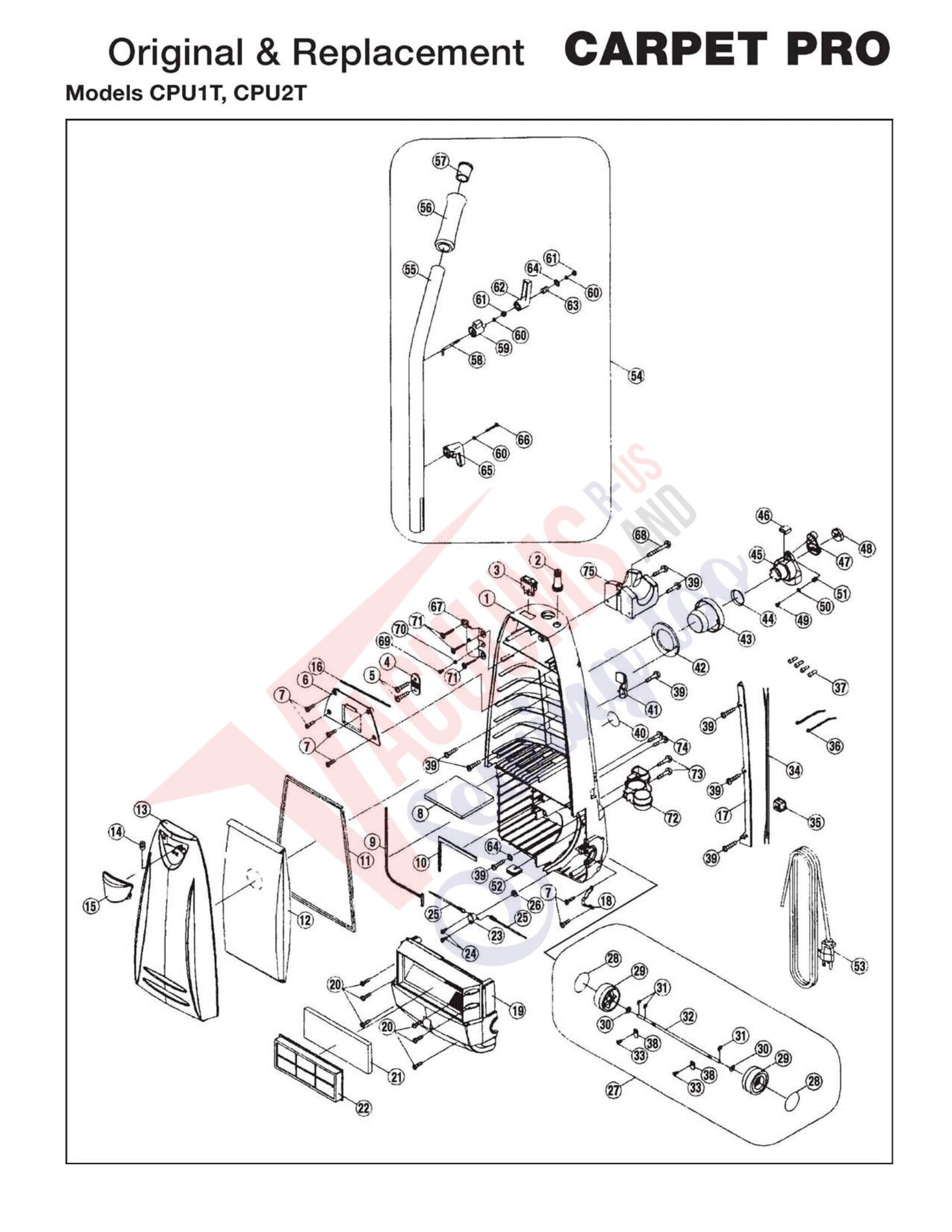

Schematic and parts book for Eureka CPU1T;CPU2T . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment CPU1T | CP-75010 | Not Available |
| 1 | Not Available | Dust Compartment CPU2T | CP-75000 | Not Available |
| 2 | Not Available | Cord Strain Relief All Models | CP-32600 | Not Available |
| 3 | Not Available | Switch On/Off All Models | CP-34000 | Not Available |
| 4 | Not Available | Cord Restraining Strap | CP-32010 | Not Available |
| 5 | Not Available | Cord Holder Screws (Inc. Item #45-48) | CP-77000 | Not Available |
| 6 | Not Available | Inner Switch Cover | CP-34500 | Not Available |
| 7 | Not Available | Inner Switch Cover Screws | CP-77000 | Not Available |
| 8 | Not Available | Secondary Filter CPU1T CPU2T | CP-18180 | Not Available |
| 9 | Not Available | Motor Cover Seal 1 | CP-76000 | Not Available |
| 10 | Not Available | Motor Cover Seal 2 | CP-76010 | Not Available |
| 11 | Not Available | Dust Compartment Seal | CP-76020 | Not Available |
| 12 | Not Available | Paper Bag 3 Pk | CP-14000 | Not Available |
| 13 | Not Available | Dust Cover CPU1T CPU2T (Yellow) | CP-75020 | Not Available |
| 14 | Not Available | Dust Cover Latch Spring | CP-77020 | Not Available |
| 15 | Not Available | Dust Cover Latch | CP-75030 | Not Available |
| 16 | Not Available | Inner Switch Cover Seal | CP-76030 | Not Available |
| 17 | Not Available | Wire Harness Cover | CP-75040 | Not Available |
| 18 | Not Available | Support Strap | CP-75050 | Not Available |
| 19 | Not Available | Motor Cover | CP-79030 | Not Available |
| 20 | Not Available | Motor Cover Screw | CP-77000 | Not Available |
| 21 | Not Available | Exhaust Filter Micro CPU1T | CP-18010 | Not Available |
| 21 | Not Available | Exhaust Filter Foam CPU2T | CP-18020 | Not Available |
| 22 | Not Available | Exhaust Filter Frame | CP-18030 | Not Available |
| 23 | Not Available | Thermal Switch | CP-34501 | Not Available |
| 24 | Not Available | Switch Screw | CP-77012 | Not Available |
| 25 | Not Available | Temperature Wire W/Switch | CP-34502 | Not Available |
| 26 | Not Available | Temperature Switch Seal | CP-76040 | Not Available |
| 27 | Not Available | Wheel Axle Assembly | CP-71004 | Not Available |
| 28 | Not Available | Decal Rear Wheel | CP-74001 | Not Available |
| 29 | Not Available | Wheel Rear Black | CP-54021 | Not Available |
| 30 | Not Available | Washer Rear Wheel | CP-54024 | Not Available |
| 31 | Not Available | E-Clip Ring Rear Wheel | CP-54025 | Not Available |
| 32 | Not Available | Axle Rear Wheel | CP-71000 | Not Available |
| 33 | Not Available | Screw Rear Axle | CP-77013 | Not Available |
| 34 | Not Available | Motor Wire Harness | CP-36042 | Not Available |
| 35 | Not Available | Motor Wire Bushing | CP-36043 | Not Available |
| 36 | Not Available | Zip Ties | CP-36054 | Not Available |
| 36 | Not Available | Cable Ties | SS-8017 | Not Available |
| 37 | Not Available | Wire Connectors | CP-36070 | Not Available |
| 38 | Not Available | Washer Rear Axle | CP-71010 | Not Available |
| 39 | Not Available | Screw Hose Clip | CP-77020 | Not Available |
| 40 | Not Available | Label Warning | CP-74010 | Not Available |
| 41 | Not Available | Hose Clip | CP-75060 | Not Available |
| 42 | Not Available | Gasket Suction Inlet | CP-76055 | Not Available |
| 43 | Not Available | Inlet Paper Bag | CP-75055 | Not Available |
| 44 | Not Available | Seal; Inlet Small | CP-76033 | Not Available |
| 45 | Not Available | Suction Inlet Assembly | CP-75555 | Not Available |
| 46 | Not Available | Order Key #45 | N/A | Not Available |
| 49 | Not Available | Screw Suction Inlet | CP-77033 | Not Available |
| 50 | Not Available | Washer Suction Inlet | CP-71022 | Not Available |
| 51 | Not Available | Spring. Suction Inlet | CP-77055 | Not Available |
| 53 | Not Available | Power Cord 30' Black CPU1T | CP-30000 | Not Available |
| 53 | Not Available | Power Cord 40' Yellow CPU2T | CP-30010 | Not Available |
| 54 | Not Available | Handle Assembly Complete CPU1T | CP-70000 | Not Available |
| 54 | Not Available | Handle Assembly Complete CPU2T | CP-70010 | Not Available |
| 55 | Not Available | Handle Only Metal | CP-70050 | Not Available |
| 56 | Not Available | Handle Foam Grip | CP-70025 | Not Available |
| 57 | Not Available | Handle Cap | CP-70035 | Not Available |
| 58 | Not Available | L-Bolt | CP-54035 | Not Available |
| 59 | Not Available | Cord Hook Holder CPU1T | CP-54032 | Not Available |
| 59 | Not Available | Cord Hook Holder CPU2T | CP-70533 | Not Available |
| 60 | Not Available | Lock Washer | CP-54037 | Not Available |
| 61 | Not Available | Nut For L Bolt | CP-54033 | Not Available |
| 62 | Not Available | Cord Hook Upper CPU1T | CP-54019 | Not Available |
| 62 | Not Available | Cord Hook Upper CPU2T | CP-70517 | Not Available |
| 63 | Not Available | Cord Hook Spring | CP-54034 | Not Available |
| 64 | Not Available | Cord Hook Washer | CP-54036 | Not Available |
| 65 | Not Available | Cord Hook Lower | CP-70518 | Not Available |
| 66 | Not Available | Screw Lower Cord Hook | CP-77038 | Not Available |
| 67 | Not Available | Handle Fitting | CP-70354 | Not Available |
| 68 | Not Available | Handle Screw | CP-77232 | Not Available |
| 69 | Not Available | Screw Small Handle Fitting | CP-77424 | Not Available |
| 70 | Not Available | Washer Handle Fitting | CP-71022 | Not Available |
| 71 | Not Available | Screw Handle Fitting | CP-77732 | Not Available |
| 72 | Not Available | On Board Tool Holder | CP-75139 | Not Available |
| 73 | Not Available | Screw For Tool Holder | CP-77430 | Not Available |
| 74 | Not Available | Screw Dust Compartment | CP-77033 | Not Available |
| 75 | Not Available | Hose Hanger | CP-75140 | Not Available |

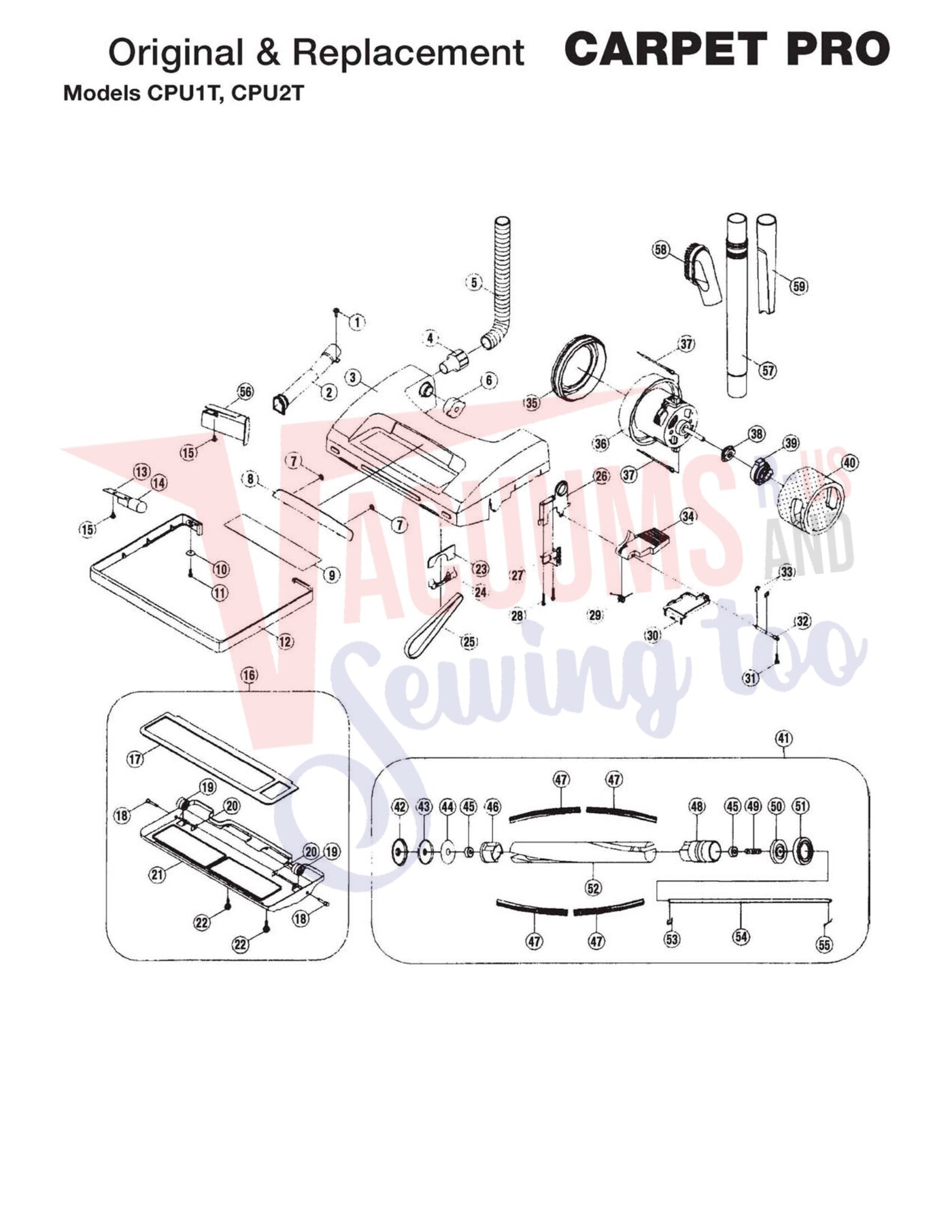

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw Hose Inlet Tube | CP-77250 | Not Available |
| 2 | Not Available | Hose Inlet Tube | CP-73006 | Not Available |
| 3 | Not Available | Nozzle Housing CPU1T | CP-73000 | Not Available |
| 3 | Not Available | Nozzle Housing CPU2T | CP-73001 | Not Available |
| 4 | Not Available | Nozzle Hose Cuff | CP-73019 | Not Available |
| 5 | Not Available | Nozzle Attachment Hose | CP-73143 | Not Available |
| 6 | Not Available | Nozzle Housing Pivot Bushing | CP-73200 | Not Available |
| 7 | Not Available | Lens Clip | CP-73145 | Not Available |
| 8 | Not Available | Headlight Lens CPU1T | CP-73419 | Not Available |
| 8 | Not Available | Cover Yellow CPU2T | CP-73420 | Not Available |
| 9 | Not Available | Name Plate CPU1T | CP-74146 | Not Available |
| 9 | Not Available | Name Plate CPU2T | CP-74115 | Not Available |
| 10 | Not Available | Washer Furniture Guard | CP-77430 | Not Available |
| 11 | Not Available | Screw For Furniture Guard | CP-77000 | Not Available |
| 12 | Not Available | Furniture Guard Black | CP-74015 | Not Available |
| 13 | Not Available | Headlight Socket CPU1T | CP-73181 | Not Available |
| 14 | Not Available | Headlight Bulb 15 Watts CPU1T | CP-35060 | Not Available |
| 14 | Not Available | Bulb 15 Watts | FA-3515 | Not Available |
| 15 | Not Available | Screw Headlight Shield CPU1T | CP-77732 | Not Available |
| 16 | Not Available | Bottom Plate Assembly | CP-54006 | Not Available |
| 17 | Not Available | Bottom Plate Gasket | CP-76006 | Not Available |
| 18 | Not Available | Wheel Pin Bottom Plate | CP-71043 | Not Available |
| 19 | Not Available | Wheel Bottom Plate 24.5 mm | CP-71104 | Not Available |
| 20 | Not Available | Push On Spring Nut | CP-77546 | Not Available |
| 22 | Not Available | Screw Bottom Plate | CP-77220 | Not Available |
| 23 | Not Available | Felt Packing Top | CP-73409 | Not Available |
| 24 | Not Available | Vented Support Fitting Bottom | CP-73410 | Not Available |
| 25 | Not Available | Belt | FB-1002 | Not Available |
| 26 | Not Available | Pedal Frame | CP-73147 | Not Available |
| 27 | Not Available | Belt Guard | CP-73050 | Not Available |
| 28 | Not Available | Screw Pedal Frame | CP-77000 | Not Available |
| 29 | Not Available | Pedal Spring | CP-77204 | Not Available |
| 30 | Not Available | Belt Cover Rear | CP-73504 | Not Available |
| 31 | Not Available | Screw Pedal Shaft | CP-77000 | Not Available |
| 32 | Not Available | Pedal Shaft | CP-71030 | Not Available |
| 33 | Not Available | E-Clip 4 mm | CP-71732 | Not Available |
| 34 | Not Available | Foot Pedal Black | FB-73700 | Not Available |
| 35 | Not Available | Motor Mount Rear | CP-62148 | Not Available |
| 36 | Not Available | Motor Assembly | CP-60002 | Not Available |
| 37 | Not Available | Temperature Wire | CP-36149 | Not Available |
| 38 | Not Available | Motor Mount Front | CP-62150 | Not Available |
| 39 | Not Available | Pivot Sleeve Metal | CP-62231 | Not Available |
| 40 | Not Available | Sound Suppressor/Foam | CP-62139 | Not Available |
| 41 | Not Available | Brushroll Assembly | CP-20000 | Not Available |
| 42 | Not Available | End Cap Rubber Cover Left | CP-20512 | Not Available |
| 43 | Not Available | End Cap Left | CP-20527 | Not Available |
| 44 | Not Available | Felt Cover | CP-20560 | Not Available |
| 45 | Not Available | Agitator Bearing | CP-62208 | Not Available |
| 46 | Not Available | Bearing Holder | CP-62808 | Not Available |
| 47 | Not Available | Brushroll Strips Nylon 10.3 mm Ea | CP-22000 | Not Available |
| 48 | Not Available | Agitator Pulley | CP-20570 | Not Available |
| 49 | Not Available | Spacing Spring | CP-77624 | Not Available |
| 50 | Not Available | End Cap Right Pulley Side | CP-20528 | Not Available |
| 51 | Not Available | End Cap Rubber Cover Right | CP-20513 | Not Available |
| 53 | Not Available | E-Clip 4 mm | CP-71732 | Not Available |
| 54 | Not Available | Agitator Shaft | CP-20511 | Not Available |
| 55 | Not Available | Spring Clip | CP-77412 | Not Available |
| 56 | Not Available | Headlight Shield | CP-73288 | Not Available |
| 57 | Not Available | Wands 2 Pc Assembly | CP-50000 | Not Available |
| 58 | Not Available | Upholstery Brush | CP-52000 | Not Available |
| 59 | Not Available | Crevice Tool | CP-54000 | Not Available |
