Schematic and parts book for Eureka C2094G . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

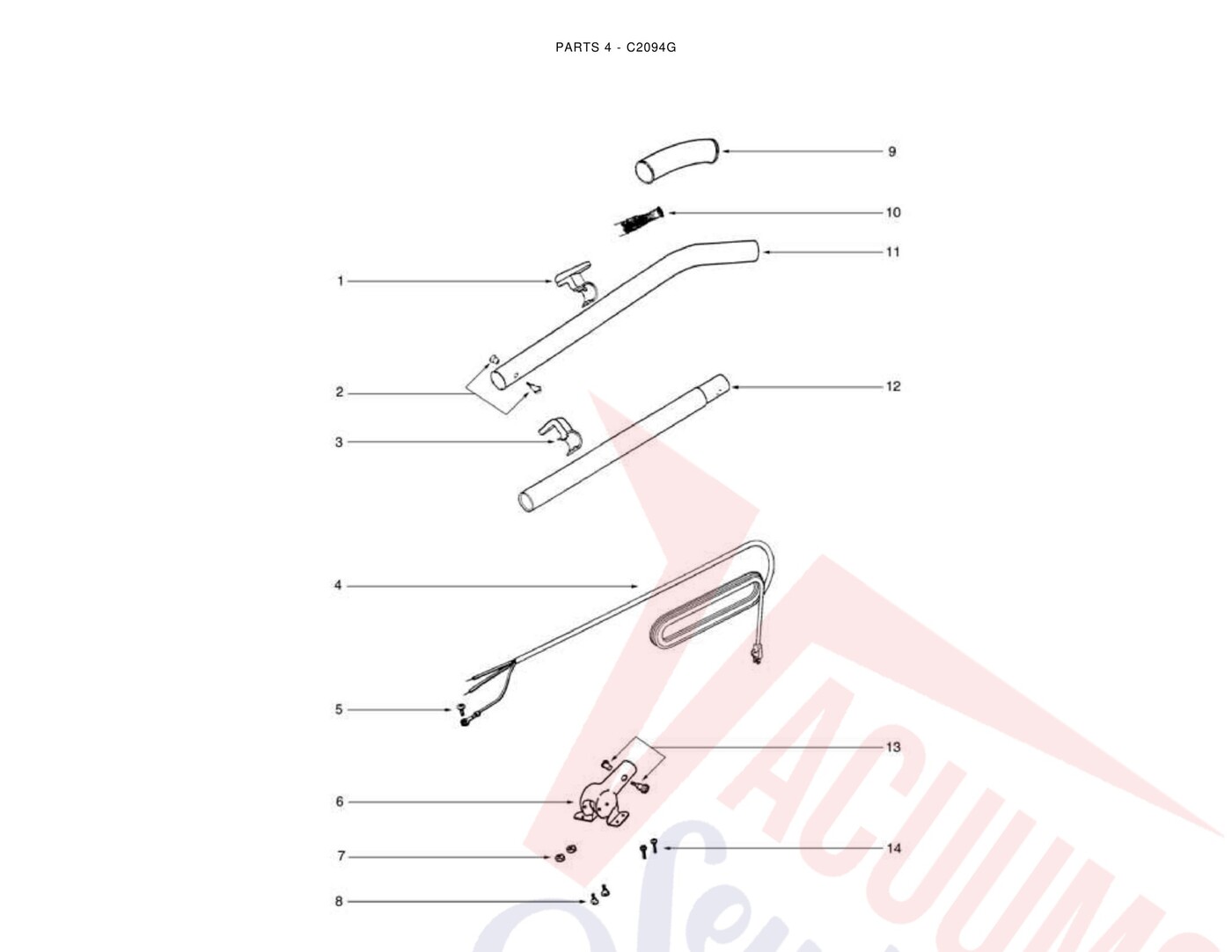

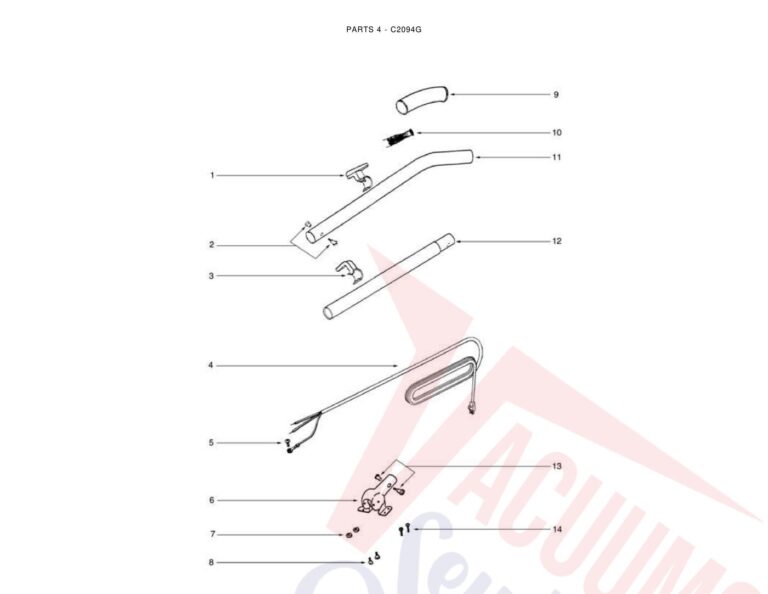

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CORD RETAINER SET | 53574-1 | Not Available |
| 2 | Not Available | HANDLE SCREW ASSY PACKAGE | 53198-1 | Not Available |
| 3 | Not Available | CORD & TERMINAL ASSY-FB-5 | 52370-12 | Not Available |
| 4 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Handle Socket, Chrome W/Bracket C2000 Series Part Number: 38183-1SV for Eureka | 381831SV | $15.41Add to cart |
| 6 |  | Nut-Eureka - 10Pk - Bravo Handle For: eureka,sanitaire | 532135 | $4.45Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $8.87Read more |
| 8 | Not Available | GRIP - HANDLE | 35293-6 | Not Available |
| 9 |  | Handle Support Part Number 53.077 for Cleanmax Models CMC-1N,CMC-QD | 53077 | |
| 10 | Not Available | HANDLE ASSEMBLY(UPPER) | 25329-16 | Not Available |
| 11 | Not Available | TUBE - HANDLE (LOWER) | 12637-8 | Not Available |
| # | Part image | Description | SKU | Price |

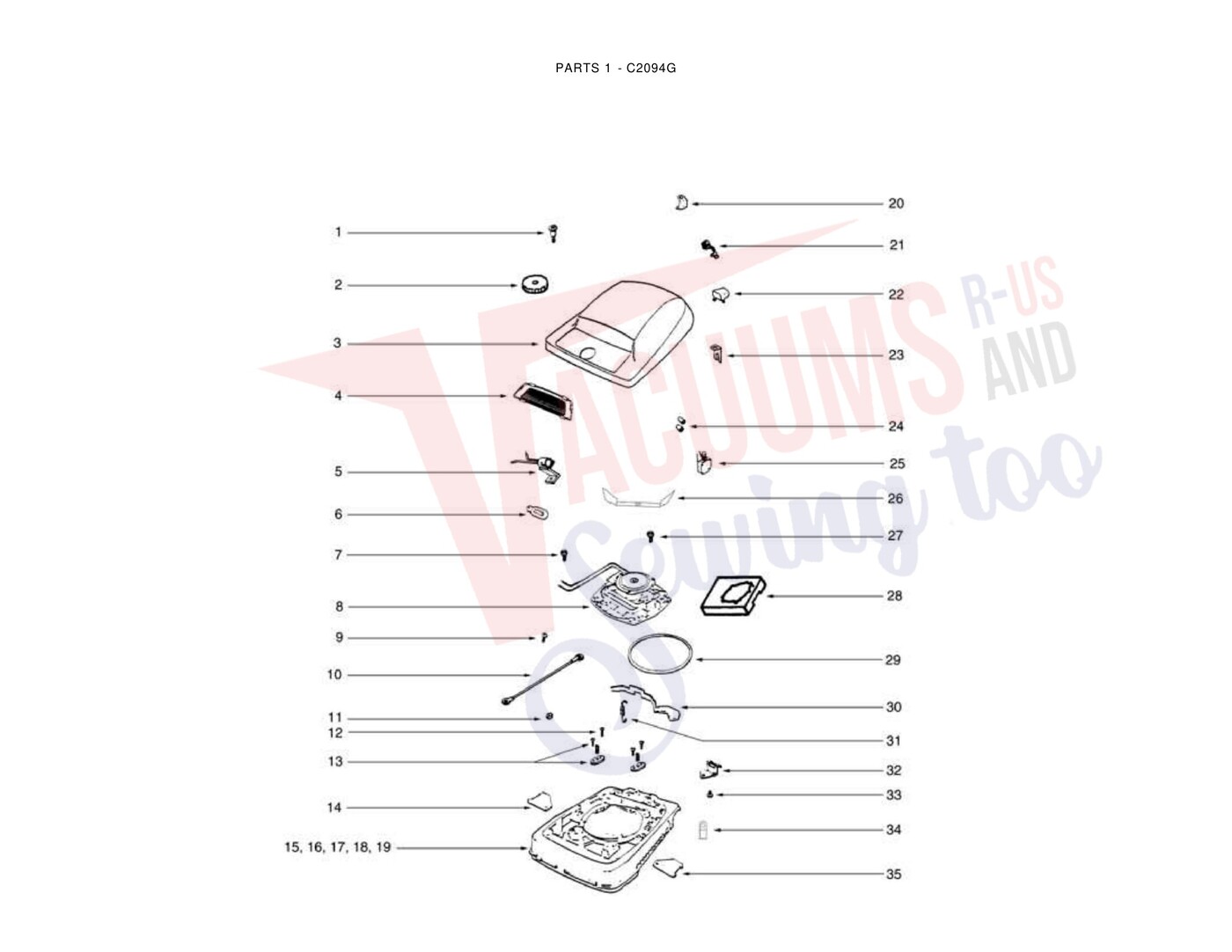

| 1 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $20.33Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Knob, Black Height Adjustment C2000 Series Part Number: 380532 for Eureka | 380532 | $6.37Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | HOOD ASSEMBLY - PACKAGED | 54005-26 | Not Available |
| 4 |  | Lens, Long Snap-In C2094/2101/2105/2118/2122/2124 Part Number: 141931 for Eureka | 141931 | $6.81Read more |
| 5 | Not Available | HEADLAMP SOCKET ASSEMBLY | 37514 | Not Available |
| 6 | Not Available | LAMP - HEADLIGHT | 40009A | Not Available |
| 7 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $4.92Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | MOTOR ASSEMBLY - PACKAGED | 54352-3 | Not Available |
| 9 |  | Screw, Upper Bearing Plate Sanitaire 10Pk Part Number: 532282 for Eureka | 532282 | $3.65Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | WIRE and TERMINAL ASSEMBLY | 55296 | $17.99Read more |
| 11 | | Nut-Eureka - 10Pk - Bravo Handle For: eureka,sanitaire | 532135 | $4.45Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Frnt Axle Clmp Assy
6 Pack For: eureka,sanitaire | 53140 | $5.97Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | BASE ASSY 12" - CARTONED | 54410-1 | Not Available |
| 16 | Not Available | CAM (LEFT) | 24965A-1 | Not Available |
| 17 | Not Available | RIVET - SHOULDER PACKAGE | 53118 | Not Available |
| 18 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 19 |  | Bracket, Metal Bushing C2000/C4000 Series Part Number: 382181 for Eureka | 382181 | $5.73Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bushing, Strn Relief SC679/SC689/SC887/SC888 10PK Part Number: 53122 for Eureka | 53122 | $8.67Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Compatible alternateStrain Relief, Heyco 18/3 Black Plastic Grommet More Product Details | SS-3266 | $8.67Add to cart |
| 21 |  | Switch, Black Square On/Off Button Part Number: 268083 for Eureka | 268083 | $4.45Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Clip, Switch 1400/1900/2000/C2000/C4000 Part Number: 37989 for Eureka | 37989 | $5.73Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | SWITCH ASSEMBLY | 13738-5 | Not Available |
| 25 | Not Available | SHIELD - LIGHT | 71146 | Not Available |
| 26 | Not Available | SEPARATOR ASSEMBLY | 38067SV | Not Available |
| 27 | Not Available | GASKET - MOTOR SEAL | 30517 | Not Available |
| 28 | Not Available | PEDAL - FOOT | 24834A-3 | Not Available |
| 29 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $5.24Add to cart |
| 30 |  | Bag Adapter Bracket 2035 For: eureka,sanitaire | 37034 | $2.40Add to cart |
| 31 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | CABLE CLAMP PACKAGE | 49301 | Not Available |
| 33 | Not Available | CAM (RIGHT) | 24964A-1 | Not Available |
| # | Part image | Description | SKU | Price |

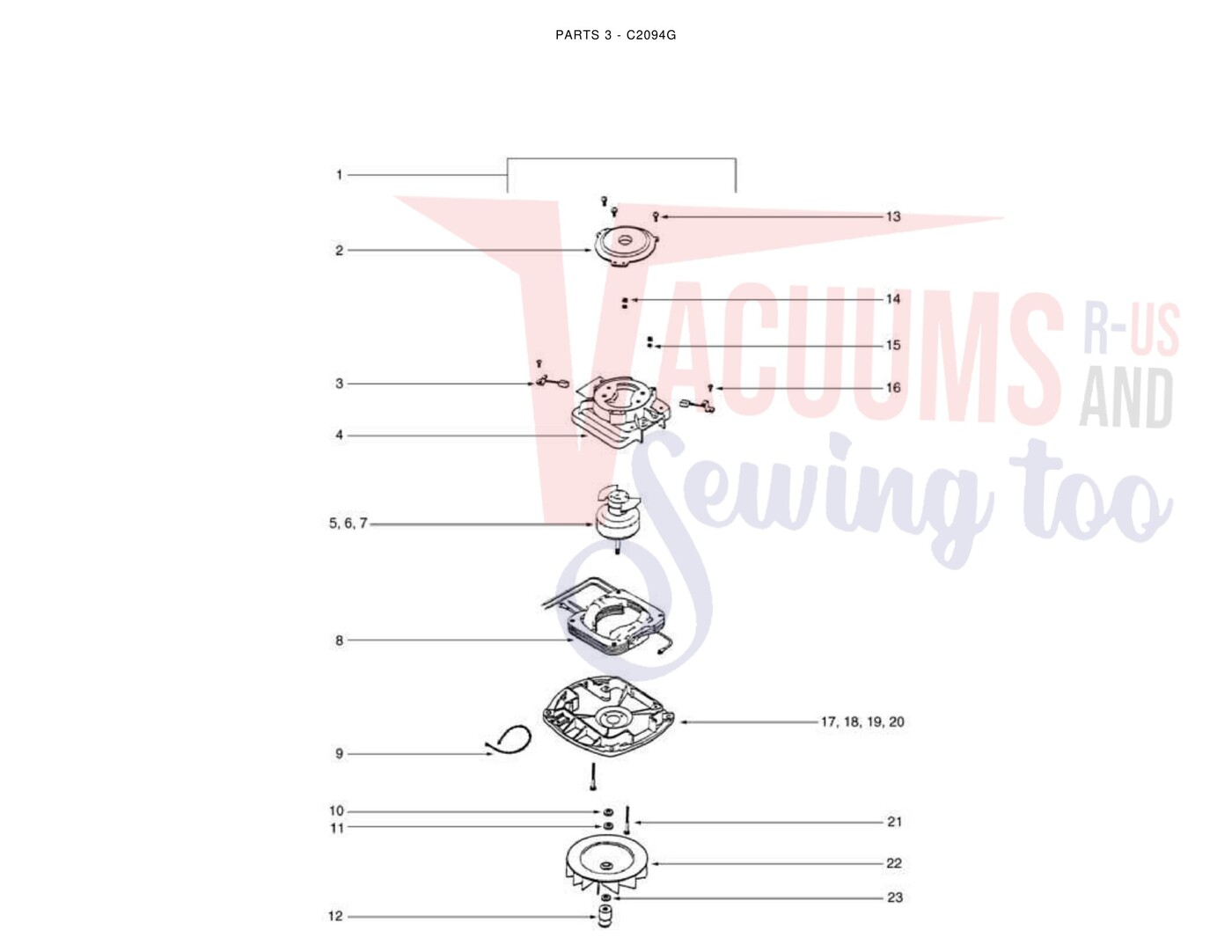

| 1 | Not Available | MOTOR ASSEMBLY - PACKAGED | 54352-3 | Not Available |
| 2 | Not Available | RETAINER - UPPER BEARING | 20217E | Not Available |
| 3 |  | Per EACH Eureka Sanitaire motor brush carbon brushes for commercial vacuums. Also for perfect and... | 30478 | $3.80Add to cart |
| 4 | Not Available | MOTOR COVER ASSEMBLY - LA | 54396 | Not Available |
| 5 | Not Available | KIT - ARMATURE REPLACEMEN | 54425-3 | Not Available |
| 6 |  | Bearing, 8MM Common/Fits Many Motors Part Number: 530885 for Eureka | 530885 | $18.79Read more |
| 7 | Not Available | FAN - MOTOR COOLING | 30474A | Not Available |
| 8 | Not Available | FIELD ASSEMBLY - PACKAGED | 53441-2 | Not Available |
| 9 | Not Available | TIE - CABLE (PURCHASED) | 46713-1 | Not Available |
| 10 |  | Washer, Between Fan/Lower Bearing Bravo/World Vac Part Number: 54811 for Eureka | 54811 | $3.89Add to cart |
| 11 | Not Available | WASHER - FAN PACKAGE (10) | 53148 | Not Available |
| 12 | Not Available | PULLEY - MOTOR DRIVE | 37012-2 | Not Available |
| 13 | No Image | SCREW, BEARING PLATE SANITAIRE 10 PK Part Number: 53138 for Eureka | 53138 | $3.03Read more |
| 14 | Not Available | NUT - HEX 8-32 | 56817 | Not Available |
| 15 | Not Available | LOCKWASHERS- PACKAGE | 53222-4 | Not Available |
| 16 | Not Available | SCREWS - PACKAGE | 53219-2 | Not Available |
| 17 | Not Available | MOTOR BASE ASSEMBLY | 54169-1 | Not Available |
| 18 | Not Available | RIVET PACKAGE | 53187-1 | Not Available |
| 19 | Not Available | SCREW PACKAGE (10) | 53142 | Not Available |
| 20 | Not Available | FAN BLOWER - MOTOR | 12988 | Not Available |
| # | Part image | Description | SKU | Price |

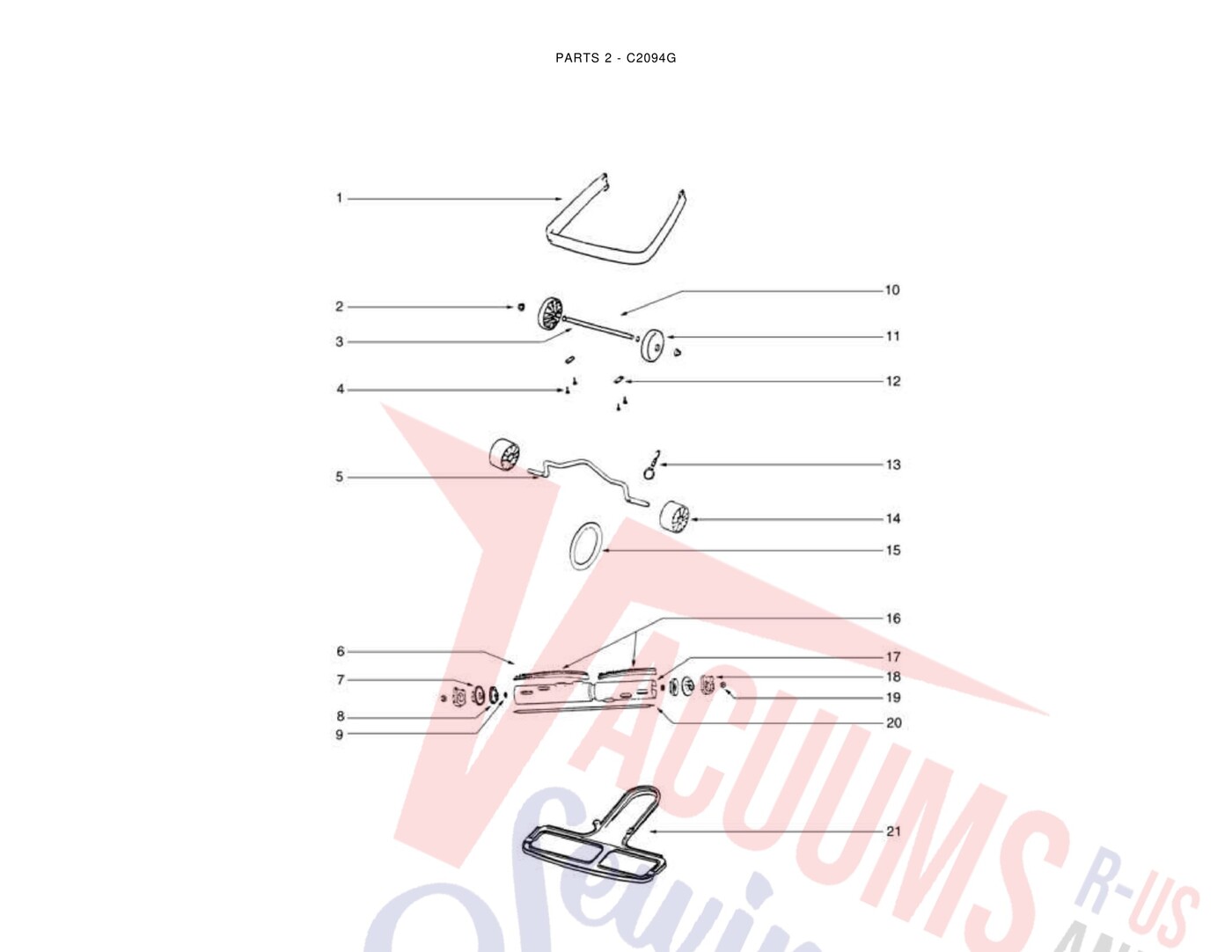

| 1 |  | Bumper, 31"x .75" Wide Clear Wrap Santaire SC888 Part Number: 285041 for Eureka | 285041 | $6.98Add to cart Special order: ships in 2 to 4 weeks |
| 1 |  | Compatible alternateBumper, 32" Clear Plastic Sanitaire 886/888 20-7310-02 More Product Details | ER-7400 | $7.21Add to cart |
| 2 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $5.18Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $7.76Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $8.67Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | DISTURBULATOR ASSEMBLY | 53270 | Not Available |
| 7 |  | End Cap, Small Hex Brushroll VGII Part Number: 26057A for Eureka | 26057A | $2.97Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | BEARING & RETAINER ASSEMB | 54256 | Not Available |
| 9 |  | Klipring, Eur/Sani C2000/C4046/S647/SC887 Ser 10Pk Part Number: 53184 for Eureka | 53184 | $10.75Read more |
| 10 |  | Wheel Axle and Press Clips for Bissell BG101 BG102 Oreck OR101 OR102 and Sanitaire Commercial | 60161 | $10.37Add to cart |
| 11 |  | Wheel, Rear C2000/S600/SC800 Series Part Number: 26242119N for Eureka | 26242119N | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 13 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 14 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.24Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | BELT PKG ASSY (UPRIGHT) | 52100A | Not Available |
| 16 | Not Available | BRISTLE STRIP PACKAGE | 52282-4 | Not Available |
| 17 |  | Cover, Black Pliable Rubber End Cap Part Number: 26059A for Eureka | 26059A | $1.77Add to cart |
| 17 |  | Compatible alternateCover, Black Pliable Rubber End Cap Brushroll More Product Details | ER-2050 | $1.38Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | SHAFT - DISTURBULATOR | 25937 | $53.99Read more |
| 20 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.36Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Compatible alternateBase Plate 259221 for Sanitaire, Bissell Big Green Commercial, and Old Eureka Commercial Types More Product Details | ER-7601 | $26.36Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

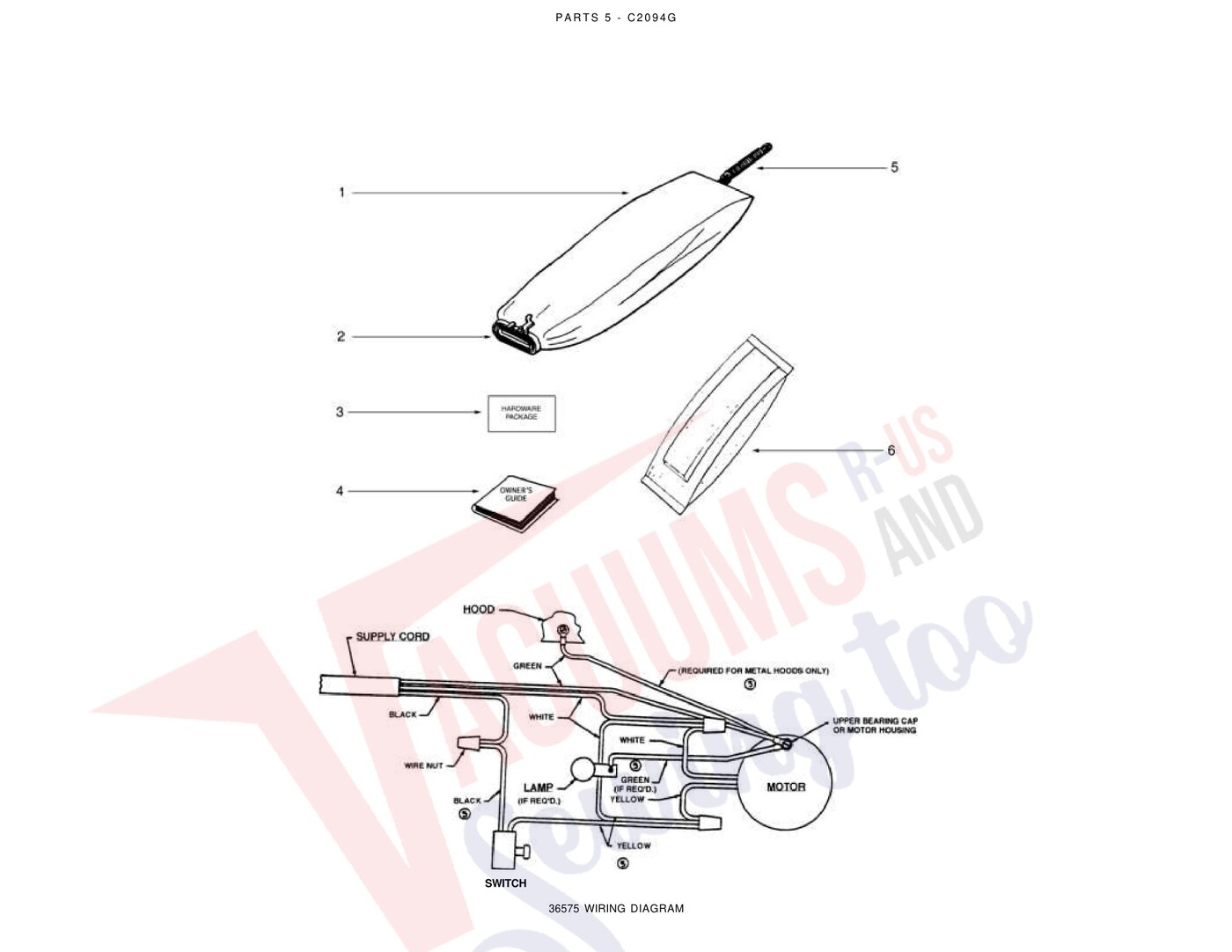

| 1 | Not Available | BAG ASSEMBLY - PACKAGED | 53506-9 | Not Available |
| 2 |  | Gasket, :( Rubber Bag Adapter Part Number: 48282 for Eureka | 48282 | $4.65Read more |
| 2 |  | Compatible alternateBag Gasket For: eureka,sanitaire More Product Details | 48282A | $3.56Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | HARDWARE PKG - COMM UPRIG | 49461A | Not Available |
| 4 | Not Available | OWNER'S GUIDE | 57266E | Not Available |
| 5 |  | Inline Rotary Cord Switch for 18awg, 18/2 SPT-1 lamp cord, Black, 3A-120VAC | 48429 | $9.99Add to cart |
| 6 | Not Available | PAPER BAG PKG ASSY STYLE | 52320A | Not Available |
