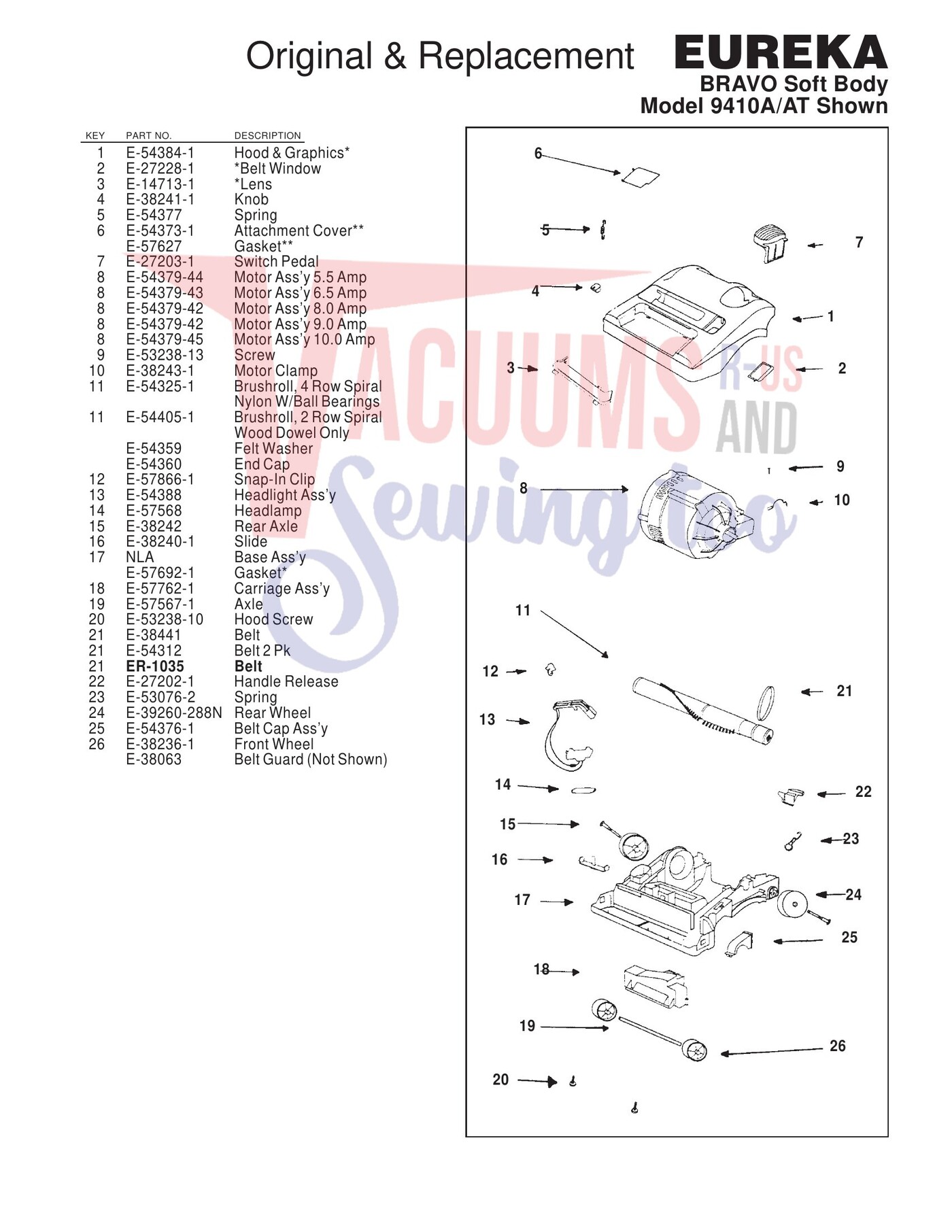

Schematic and parts book for Eureka 9410A, 9410At . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | GASKET, INLET COVER BRAVOS Part Number: 57627 for Eureka | 57627 | $1.27Read more |
| XX | Not Available | Felt Washer | 54359 | Not Available |
| XX | Not Available | End Cap 9 | 54360 | Not Available |
| XX | No Image | GASKET, Part Number: 57692-1 for Eureka | 576921 | $2.35Read more |
| XX | Not Available | Belt Guard (Not Shown) | 38063 | Not Available |
| 1 | Not Available | Hood & Graphics* 6 | 54384-1 | Not Available |
| 2 | No Image | BELT WINDOW, BRAVO 9202A/AT Part Number: 27228-1 for Eureka | 272281 | $1.76Read more |
| 3 | No Image | LENS, BRAVO ALL MODELS Part Number: 14713-1 for Eureka | 147131 | $6.04Read more |
| 4 | Not Available | Knob | 38241-1 | Not Available |
| 5 |  | SPRING, ATTACHMENT DOOR BRAVO 6 PK Part Number: 54377 for Eureka | 54377 | $6.49Read more |
| 6 | Not Available | Attachment Cover** 5 | 54373-1 | Not Available |
| 7 | Not Available | Switch Pedal | 27203-1 | Not Available |
| 8 | Not Available | Motor Ass’y 5.5 Amp | 54379-44 | Not Available |
| 8 | Not Available | Motor Ass’y 6.5 Amp 4 | 54379-43 | Not Available |
| 8 | Not Available | Motor Ass’y 8.0 Amp | 54379-42 | Not Available |
| 8 | Not Available | Motor Ass’y 9.0 Amp | 54379-42 | Not Available |
| 8 | Not Available | Motor Ass’y 10.0 Amp | 54379-45 | Not Available |
| 9 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Motor Clamp 3 2 | 38243-1 | Not Available |
| 11 | Not Available | Brushroll 4 Row Spiral | 54325-1 | Not Available |
| 11 | Not Available | Brushroll 2 Row Spiral | 54405-1 | Not Available |
| 12 | Not Available | Snap-In Clip | 57866-1 | Not Available |
| 13 | Not Available | Headlight Ass’y | 54388 | Not Available |
| 14 | Not Available | Headlamp | 57568 | Not Available |
| 15 | Not Available | Rear Axle | 38242 | Not Available |
| 16 | Not Available | Slide | 38240-1 | Not Available |
| 17 | Not Available | Base Ass’y | NLA | Not Available |
| 18 | Not Available | Carriage Ass’y | 57762-1 | Not Available |
| 19 |  | Axle-Eureka 7611 Front Wheel For: eureka,sanitaire | 575671 | $2.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Hood Screw | 53238-10 | Not Available |
| 21 | Not Available | Belt | 38441 | Not Available |
| 21 | Not Available | Belt 2 Pk | 54312 | Not Available |
| 21 | Not Available | Belt | ER-1035 | Not Available |
| 22 | Not Available | Handle Release | 27202-1 | Not Available |
| 23 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 24 | Not Available | Rear Wheel | 39260-288N | Not Available |
| 25 | Not Available | Belt Cap Ass’y | 54376-1 | Not Available |
| 26 | Not Available | Front Wheel | 38236-1 | Not Available |

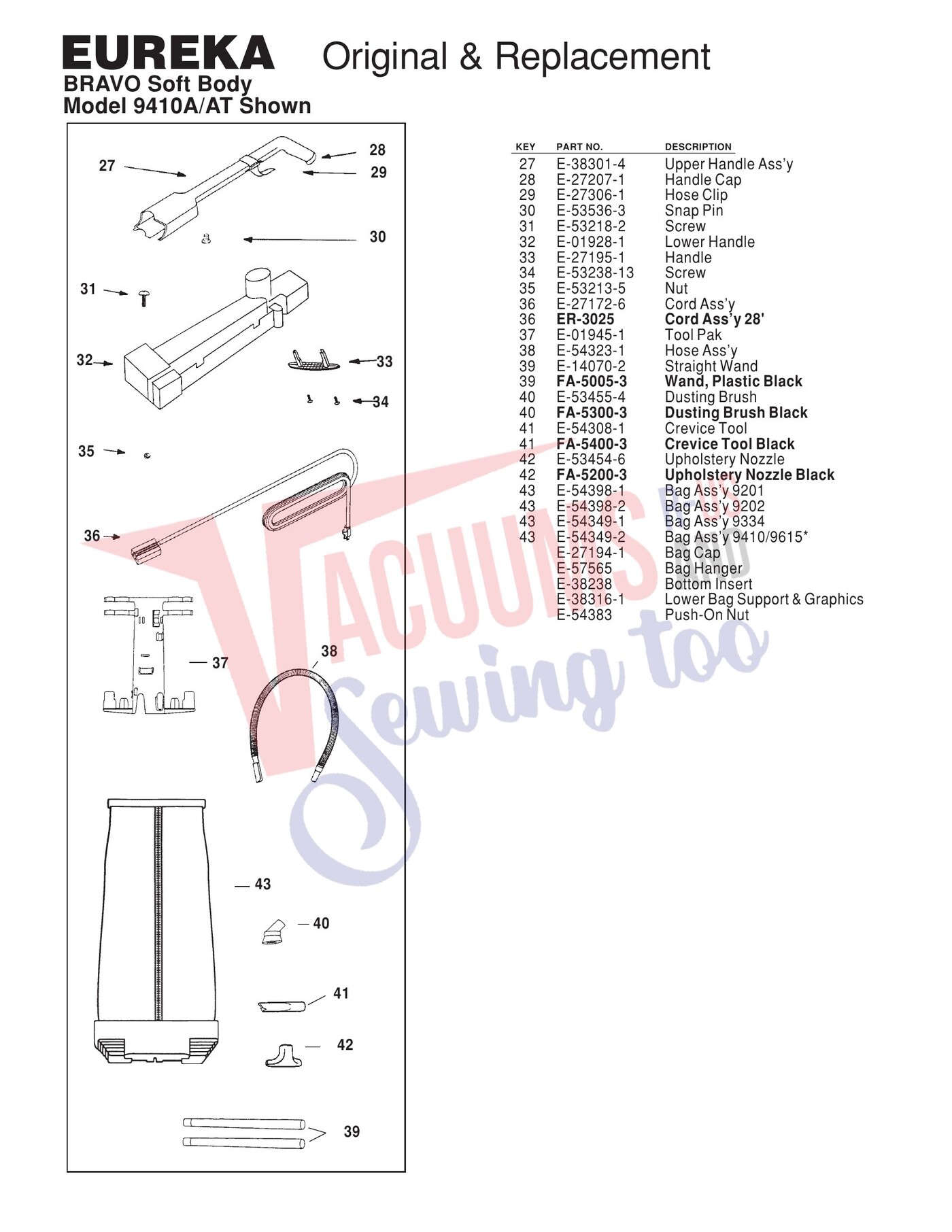

| # | Part image | Description | SKU | Price |
| XX | Not Available | Bag Cap | 27194-1 | Not Available |
| XX | Not Available | Bag Hanger | 57565 | Not Available |
| XX | Not Available | Bottom Insert | 38238 | Not Available |
| XX | Not Available | Lower Bag Support & Graphics | 38316-1 | Not Available |
| XX | No Image | PUSH NUT, BAG ASSY BRAVO 9334A/AT & 9615A/AT Part Number: 54383 for Eureka | 54383 | $2.35Read more |
| 27 |  | HANDLE, UPPER BRAVO ALL MODELS Part Number: 38301-4 for Eureka | 383014 | $7.48Read more |
| 28 | Not Available | Handle Cap | 27207-1 | Not Available |
| 29 | Not Available | Hose Clip | 27306-1 | Not Available |
| 30 | Not Available | Snap Pin | 53536-3 | Not Available |
| 31 | Not Available | Screw | 53218-2 | Not Available |
| 32 | Not Available | Lower Handle | 01928-1 | Not Available |
| 33 | Not Available | Handle | 27195-1 | Not Available |
| 34 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Nut-Eureka - 10Pk - Bravo Handle For: eureka,sanitaire | 532135 | $4.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Cord Ass’y | 27172-6 | Not Available |
| 36 | Not Available | Cord Ass’y 28' | ER-3025 | Not Available |
| 37 | Not Available | Tool Pak | 01945-1 | Not Available |
| 38 | Not Available | Hose Ass’y | 54323-1 | Not Available |
| 39 | Not Available | Straight Wand | 14070-2 | Not Available |
| 39 |  | Wand, 1-1/4"x19" Black Friction Fit | FA-5005-3 | $4.74Add to cart |
| 39 |  | Compatible alternateExtension Wand Part Number BA00381 for Riccar and Simplicity Models RSQ1.6,S100.6,S100, S100.2 More Product Details | BA00381 | $13.99Add to cart Special order — allow 2-4 weeks. |
| 40 | Not Available | Dusting Brush | 53455-4 | Not Available |
| 40 | Not Available | Dusting Brush Black | FA-5300-3 | Not Available |
| 41 | Not Available | Crevice Tool | 54308-1 | Not Available |
| 41 | Not Available | Crevice Tool Black | FA-5400-3 | Not Available |
| 42 | Not Available | Upholstery Nozzle | 53454-6 | Not Available |
| 42 | Not Available | Upholstery Nozzle Black | FA-5200-3 | Not Available |
| 43 | Not Available | Bag Ass’y 9201 | 54398-1 | Not Available |
| 43 | Not Available | Bag Ass’y 9202 | 54398-2 | Not Available |
| 43 | Not Available | Bag Ass’y 9334 | 54349-1 | Not Available |
| 43 | Not Available | Bag Ass’y 9410/9615* | 54349-2 | Not Available |

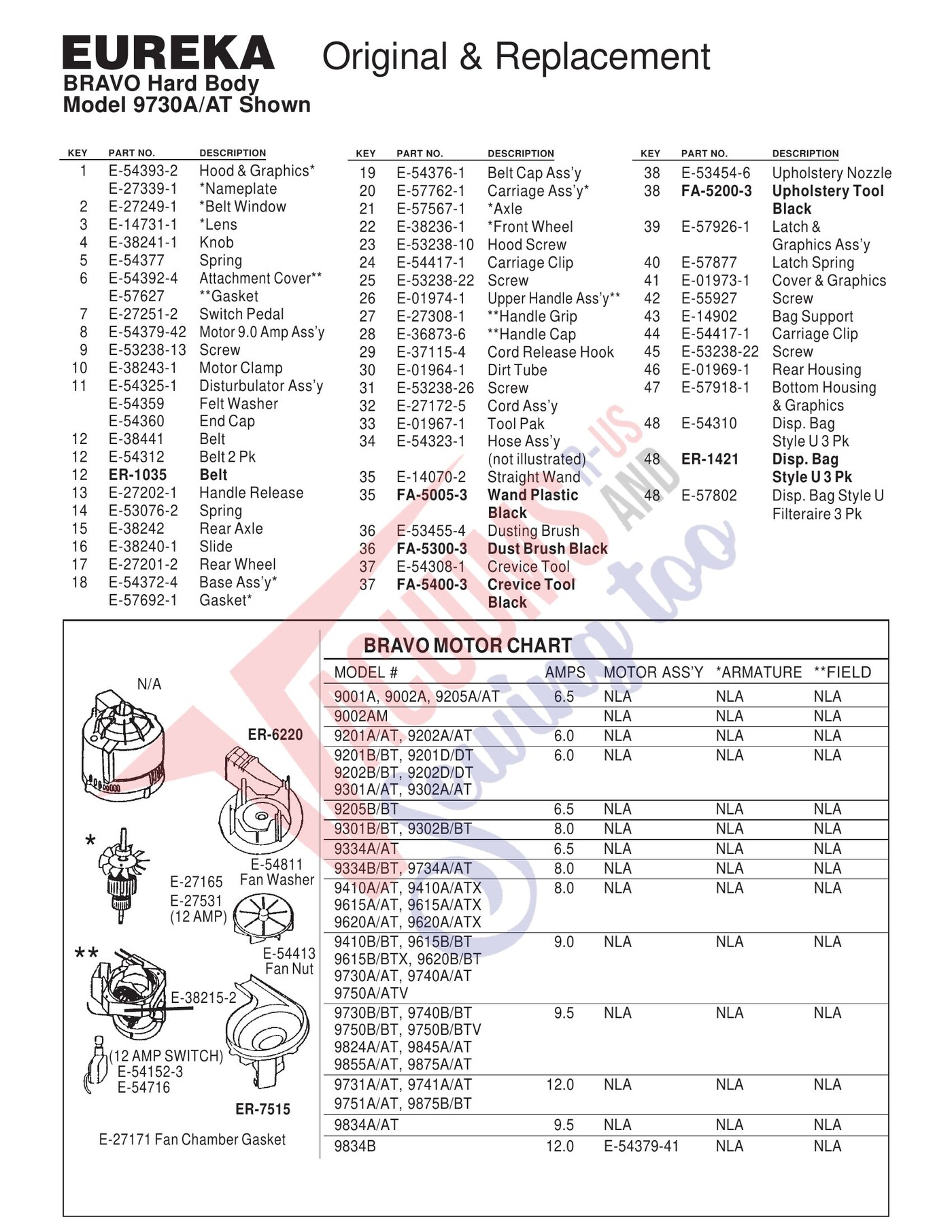

| # | Part image | Description | SKU | Price |
| XX | Not Available | *Nameplate | 27339-1 | Not Available |
| XX | Not Available | Felt Washer 32 E-27172-5 Cord Ass’y & Graphics | 54359 | Not Available |
| XX | Not Available | End Cap 33 E-01967-1 Tool Pak 48 E-54310 Disp. Bag | 54360 | Not Available |
| XX | No Image | GASKET, Part Number: 57692-1 for Eureka | 576921 | $2.35Read more |
| XX | Not Available | Fan Washer | 27165 | Not Available |
| XX | Not Available | Fan Chamber Gasket | 27171 | Not Available |
| 1 | Not Available | Hood & Graphics* | 54393-2 | Not Available |
| 2 | Not Available | *Belt Window | 27249-1 | Not Available |
| 3 | No Image | LENS, CLEAR 9875 Part Number: 14731-1 for Eureka | 147311 | $6.49Read more |
| 4 | Not Available | Knob | 38241-1 | Not Available |
| 5 | | SPRING, ATTACHMENT DOOR BRAVO 6 PK Part Number: 54377 for Eureka | 54377 | $6.49Read more |
| 5 | Not Available | NLA NLA | NLA | Not Available |
| 5 | Not Available | NLA NLA | NLA | Not Available |
| 5 | Not Available | NLA NLA | NLA | Not Available |
| 5 | Not Available | NLA NLA | NLA | Not Available |
| 5 | Not Available | NLA NLA | NLA | Not Available |
| 6 | Not Available | Attachment Cover** | 54392-4 | Not Available |
| 7 | Not Available | Switch Pedal | 27251-2 | Not Available |
| 8 | Not Available | Motor 9.0 Amp Ass’y | 54379-42 | Not Available |
| 9 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Motor Clamp | 38243-1 | Not Available |
| 11 | Not Available | Disturbulator Ass’y | 54325-1 | Not Available |
| 12 | Not Available | Belt | 38441 | Not Available |
| 12 | Not Available | Belt 2 Pk (not illustrated) | 54312 | Not Available |
| 12 | Not Available | Belt | ER-1035 | Not Available |
| 13 | Not Available | Handle Release | 27202-1 | Not Available |
| 14 | | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 15 | Not Available | Rear Axle | 38242 | Not Available |
| 16 | Not Available | Slide | 38240-1 | Not Available |
| 17 | Not Available | Rear Wheel | 27201-2 | Not Available |
| 18 | Not Available | Base Ass’y* | 54372-4 | Not Available |
| 19 | Not Available | Belt Cap Ass’y | 54376-1 | Not Available |
| 20 | Not Available | Carriage Ass’y* | 57762-1 | Not Available |
| 21 | | Axle-Eureka 7611 Front Wheel For: eureka,sanitaire | 575671 | $2.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | *Front Wheel | 38236-1 | Not Available |
| 23 | Not Available | Hood Screw Graphics Ass’y | 53238-10 | Not Available |
| 24 |  | CARRIAGE CLIP Part Number: 54417-1 for Eureka | 544171 | $5.82Read more |
| 25 | Not Available | Screw | 53238-22 | Not Available |
| 26 | Not Available | Upper Handle Ass’y** | 01974-1 | Not Available |
| 27 |  | GRIP, HANDLE BRAVO 9875A/AT FOAM Part Number: 27308-1 for Eureka | 273081 | $10.96Read more |
| 28 | Not Available | **Handle Cap | 36873-6 | Not Available |
| 29 | Not Available | Cord Release Hook | 37115-4 | Not Available |
| 30 | Not Available | Dirt Tube | 01964-1 | Not Available |
| 31 | Not Available | Screw | 53238-26 | Not Available |
| 32 | Not Available | Cord Ass’y & Graphics | 27172-5 | Not Available |
| 33 | Not Available | Tool Pak | 01967-1 | Not Available |
| 34 | Not Available | Hose Ass’y Style U 3 Pk | 54323-1 | Not Available |
| 35 | Not Available | Straight Wand Style U 3 Pk | 14070-2 | Not Available |
| 35 | | Wand, 1-1/4"x19" Black Friction Fit | FA-5005-3 | $4.74Add to cart |
| 36 | Not Available | Dusting Brush | 53455-4 | Not Available |
| 36 | Not Available | Dust Brush Black | FA-5300-3 | Not Available |
| 37 | Not Available | Crevice Tool | 54308-1 | Not Available |
| 37 | Not Available | Crevice Tool | FA-5400-3 | Not Available |
| 38 | Not Available | Upholstery Nozzle | 53454-6 | Not Available |
| 38 | Not Available | Upholstery Tool | FA-5200-3 | Not Available |
| 39 | Not Available | Latch & | 57926-1 | Not Available |
| 40 | Not Available | Latch Spring | 57877 | Not Available |
| 41 | Not Available | Cover & Graphics | 01973-1 | Not Available |
| 42 | Not Available | Screw | 55927 | Not Available |
| 43 | Not Available | Bag Support | 14902 | Not Available |
| 44 | | CARRIAGE CLIP Part Number: 54417-1 for Eureka | 544171 | $5.82Read more |
| 45 | Not Available | Screw | 53238-22 | Not Available |
| 46 | Not Available | Rear Housing | 01969-1 | Not Available |
| 47 | Not Available | Bottom Housing | 57918-1 | Not Available |
| 48 | Not Available | Disp. Bag | 54310 | Not Available |
| 48 | Not Available | Disp. Bag | ER-1421 | Not Available |
| 48 | Not Available | Disp. Bag Style U | 57802 | Not Available |
