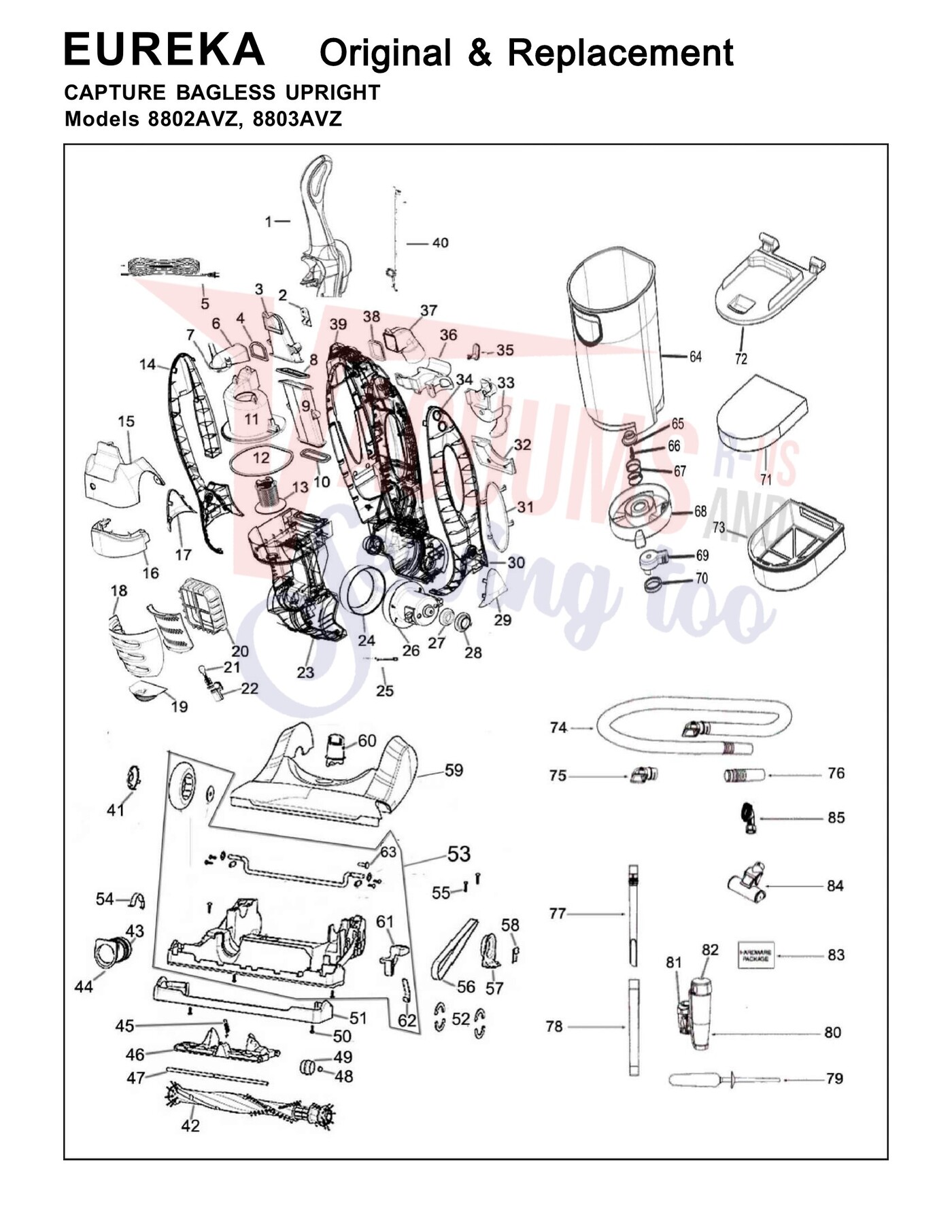

Schematic and parts book for Eureka 8802AVZ, 8803AVZ . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Gasket - Rear Housing 84 E-77555 Turbo Nozzle 8802AVZ | 78669 | Not Available |
| XX | Not Available | Inner Filter Cover | 77821-469P | Not Available |
| 1 | Not Available | Handle Assembly 8802AVZ | 78459-1 | Not Available |
| 1 | Not Available | Handle Assembly 8803AVZ | 78459-4 | Not Available |
| 2 | Not Available | Clip - Turbo | 77554-355N | Not Available |
| 3 | Not Available | Back Air Tube & Gasket | 78418 | Not Available |
| 4 | Not Available | Gasket - Back Air Tube | 77588 | Not Available |
| 5 | Not Available | Power Cord | 78411 | Not Available |
| 6 | Not Available | Elbow - Cyclone Air Tube | 77576-355N | Not Available |
| 7 | Not Available | Gasket - Cyclone Air Tube | 78593 | Not Available |
| 8 | Not Available | Gasket - Front Tube Top | 77579 | Not Available |
| 9 | Not Available | Front Tube and Gasket Assy | 78417 | Not Available |
| 10 | Not Available | Gasket - Front Air Tube | 77591 | Not Available |
| 11 | Not Available | Cyclone | 77575-313N | Not Available |
| 12 | Not Available | Gasket - Cyclone | 77571 | Not Available |
| 13 | Not Available | Filter Screen | 77578-366N | Not Available |
| 14 | Not Available | Ear - Right Duster | 77631-489N | Not Available |
| 15 | Not Available | Cyclone Cover Assembly 8802AVZ | 65132 | Not Available |
| 15 | Not Available | Cyclone Cover Assembly 8803AVZ | 65132-1 | Not Available |
| 16 | Not Available | Cclone Cover 8802AVZ | 77967-504N | Not Available |
| 16 | Not Available | Cyclone Cover 8803AVZ | 77967-490N | Not Available |
| 17 | Not Available | Pod - Right 8802AVZ | 77970-457P | Not Available |
| 17 | Not Available | Pod - Right 8803AVZ | 779707-476P | Not Available |
| 18 | Not Available | Exhaust Grill 8802AVZ | 65133 | Not Available |
| 18 | Not Available | Exhaust Grill 8803AVZ | 65133-1 | Not Available |
| 19 | Not Available | Headlight Lens | 77707-313N | Not Available |
| 20 | Not Available | Exhaust Filter HEPA Style HF10 | 63558 | Not Available |
| 21 | Not Available | Light Bulb | 57940-3 | Not Available |
| 22 | Not Available | Headlight Assembly | 78195 | Not Available |
| 23 | Not Available | Motor Cover 8802AVZ | 65131 | Not Available |
| 23 | Not Available | Motor Cover 8803AVZ | 65131-1 | Not Available |
| 24 | Not Available | Gasket - Motor | 77623-119N | Not Available |
| 26 | Not Available | Motor | 65136 | Not Available |
| 27 | Not Available | Ring - Motor Adjustment | 78792-119N | Not Available |
| 28 | Not Available | Bushing - Motor | 77624-119N | Not Available |
| 29 | Not Available | Pod - Left 8802AVZ | 77969-457P | Not Available |
| 29 | Not Available | Pod - Left 8803AVZ | 77969-476P | Not Available |
| 30 | Not Available | Ear - Left Switch Only | 77632-489N | Not Available |
| 31 | Not Available | Cover - Ear 8802AVZ | 78165-504N | Not Available |
| 31 | Not Available | Cover - Ear 8803AVZ | 78165-490N | Not Available |
| 32 | Not Available | Plate - Cover | 78150-355N | Not Available |
| 33 | Not Available | Lower Hose Retainer | 77647A-355N | Not Available |
| 34 | Not Available | Switch - 2 Position Round | 76621-1 | Not Available |
| 35 | Not Available | Cord Hook | 72756-355N | Not Available |
| 36 | Not Available | Carry Handle | 77966-355N | Not Available |
| 37 | Not Available | Hose Adaptor | 77559-313N | Not Available |
| 38 | Not Available | Gasket - Cyclone | 77592 | Not Available |
| 39 | Not Available | Rear Housing Assembly | 65135 | Not Available |
| 40 | Not Available | Jumper Cord | 78410 | Not Available |
| 41 | Not Available | Hubcap - Rear Wheel | 77672-457P | Not Available |
| 42 | Not Available | Brushroll Complete | 62365-4 | Not Available |
| 43 | Not Available | Base Hose | 77673-355N | Not Available |
| 44 | Not Available | Base Hose Adapter | 78209-355N | Not Available |
| 45 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Wheel Carriage | 77661-355N | Not Available |
| 47 | Not Available | Front Axle | 77651 | Not Available |
| 48 |  | Push Nut, Wheel Retaining 8806/8807/8852/8853 10Pk Part Number: 53121-1 for Eureka | 531211 | $7.82Read more |
| 49 | Not Available | Front Wheel | 77978-355N | Not Available |
| 50 |  | SCREW, 10 PK STAR DRIVE Part Number: 63310 for Eureka | 63310 | $6.66Read more |
| 51 | Not Available | Bumper | 77664-355N | Not Available |
| 52 | Not Available | Felt Gasket | 77658 | Not Available |
| 53 | Not Available | Base Assembly | 65128 | Not Available |
| 54 | Not Available | Motor Clamp | 74825 | Not Available |
| 55 | Not Available | Screw | 53238-27 | Not Available |
| 56 | Not Available | Belt 2PK | 61120 | Not Available |
| 57 | Not Available | Belt | ER-1037 | Not Available |
| 57 | Not Available | Motor Clamp | 77656 | Not Available |
| 58 | Not Available | Belt Guard | 74822 | Not Available |
| 59 | Not Available | Hood 8802AVZ | 65130 | Not Available |
| 59 | Not Available | Hood 8803AVZ | 65130-1 | Not Available |
| 60 | Not Available | Height Adjustment Knob | 77649-469P | Not Available |
| 61 | Not Available | Handle Release Pedal | 79420-469P | Not Available |
| 62 | Not Available | Handle Release Spring | 79224 | Not Available |
| 63 | Not Available | Handle Release Pedal Axle | 78138 | Not Available |
| 64 | Not Available | Dust Cup and Handle Assembly 8802AVZ | 78437 | Not Available |
| 64 | Not Available | Dust Cup and Handle Assembly 8803AVZ | 78437-3 | Not Available |
| 65 | Not Available | Washer | 77586-355N | Not Available |
| 66 | | SCREW, 10 PK STAR DRIVE Part Number: 63310 for Eureka | 63310 | $6.66Read more |
| 67 | Not Available | Spring | 78166 | Not Available |
| 68 | Not Available | Elevator - Cup 8802AVZ | 77580-504N | Not Available |
| 68 | Not Available | Elevator - Cup 8803AVZ | 77580-490N | Not Available |
| 69 | Not Available | Cam | 77627-333N | Not Available |
| 70 | Not Available | Gasket - Cam | 78164 | Not Available |
| 71 | Not Available | Pre-Motor Filter Foam | 77583 | Not Available |
| 72 | Not Available | Filter Lid and Gasket | 78436 | Not Available |
| 73 | No Image | ***USE E-78434FILTER, :( PRE MOTOR CAPTURE Part Number: 78434 for Eureka | 78434 | $9.69Read more |
| 74 | Not Available | Attachment Hose Complete | 61865-14 | Not Available |
| 75 | Not Available | Hose Adaptor | 77559-313N | Not Available |
| 76 | Not Available | Hose Coupling | 78730 | Not Available |
| 77 | Not Available | Crevice Wand | 78232-355N | Not Available |
| 78 | Not Available | Outer Wand | 78231-355N | Not Available |
| 79 | Not Available | Electrostatic Duster | 77560 | Not Available |
| 80 | Not Available | Duster Wand Cup 8802AVZ | 77561-504N | Not Available |
| 80 | Not Available | Duster Wand Cup 8803AVZ | 77561-490N | Not Available |
| 81 |  | VALVE, DUSTER 8802AVZ Part Number: 65134 for Eureka | 65134 | $12.49Read more |
| 82 | Not Available | Duster Air Inlet | 77562-489N | Not Available |
| 83 | Not Available | Hardware Package | 78479 | Not Available |
| 84 |  | NOZZLE, TURBO 8802AVZ ORANGE Part Number: 77555 for Eureka | 77555 | $33.28Read more |
| 84 | Not Available | Turbo Nozzle 8803AVZ | 77555-3 | Not Available |
| 85 | Not Available | Dust Brush | 39379-1 | Not Available |
