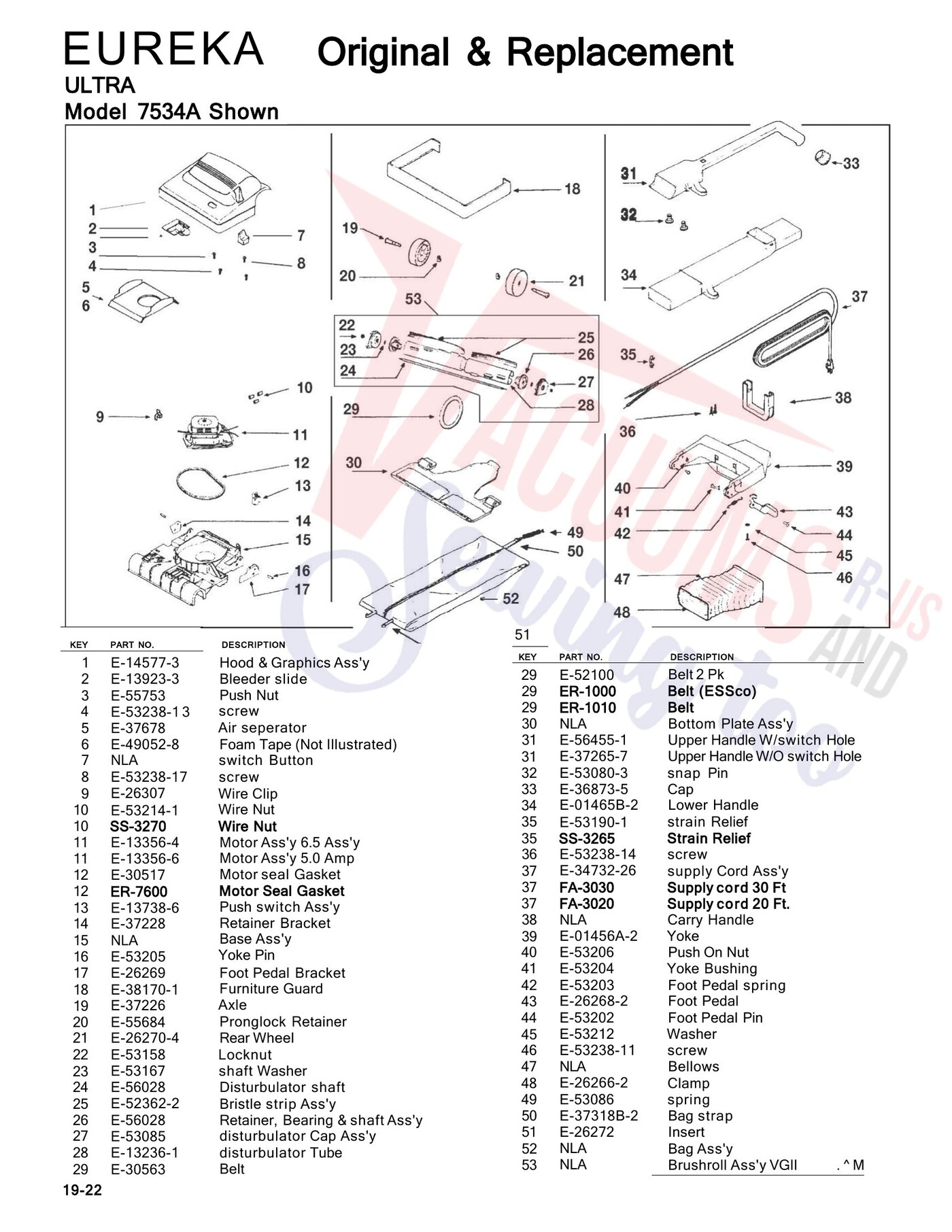

Schematic and parts book for Eureka 7534A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hood & Graphics Ass'y KEY PART NO. DESCRIPTION | 14577-3 | Not Available |
| 2 | Not Available | Bleeder slide | 13923-3 | Not Available |
| 3 | Not Available | Push Nut | 55753 | Not Available |
| 4 | Not Available | 3 screw | 53238-1 | Not Available |
| 5 | Not Available | Air seperator | 37678 | Not Available |
| 6 | Not Available | Foam Tape (Not Illustrated) | 49052-8 | Not Available |
| 7 | Not Available | switch Button | NLA | Not Available |
| 8 | Not Available | screw | 53238-17 | Not Available |
| 9 | Not Available | Wire Clip | 26307 | Not Available |
| 10 | Not Available | Wire Nut | 53214-1 | Not Available |
| 10 | Not Available | Wire Nut | SS-3270 | Not Available |
| 11 | Not Available | Motor Ass'y 6.5 Ass'y | 13356-4 | Not Available |
| 11 | Not Available | Motor Ass'y 5.0 Amp | 13356-6 | Not Available |
| 12 | Not Available | Motor seal Gasket | 30517 | Not Available |
| 12 | Not Available | Motor Seal Gasket | ER-7600 | Not Available |
| 13 | Not Available | Push switch Ass'y | 13738-6 | Not Available |
| 14 | Not Available | Retainer Bracket | 37228 | Not Available |
| 15 | Not Available | Base Ass'y | NLA | Not Available |
| 16 | Not Available | Yoke Pin | 53205 | Not Available |
| 17 | Not Available | Foot Pedal Bracket | 26269 | Not Available |
| 18 | Not Available | Furniture Guard | 38170-1 | Not Available |
| 19 | Not Available | Axle | 37226 | Not Available |
| 20 | No Image | ***USE E-54709 RETAINER, PRONGLOCK Part Number: 55684 for Eureka | 55684 | $4.68Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Rear Wheel | 26270-4 | Not Available |
| 22 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | BUMPER, FMP14PW Part Number: 53.167 for Fuller Brush | 53167 | $16.58Read more |
| 24 | Not Available | Disturbulator shaft | 56028 | Not Available |
| 25 | Not Available | Bristle strip Ass'y | 52362-2 | Not Available |
| 26 | Not Available | Retainer Bearing & shaft Ass'y | 56028 | Not Available |
| 27 |  | Lower Nozzle Hose Part Number 53.085 for Cleanmax Models CMC-QD | 53085 | |
| 28 | Not Available | disturbulator Tube | 13236-1 | Not Available |
| 29 | Not Available | Belt 2 Pk | 52100 | Not Available |
| 29 | Not Available | Belt (ESSco) | ER-1000 | Not Available |
| 29 | Not Available | Belt | ER-1010 | Not Available |
| 29 | Not Available | Belt | 30563 | Not Available |
| 30 | Not Available | Bottom Plate Ass'y | NLA | Not Available |
| 31 | Not Available | Upper Handle W/switch Hole | 56455-1 | Not Available |
| 31 | Not Available | Upper Handle W/O switch Hole | 37265-7 | Not Available |
| 32 | Not Available | snap Pin | 53080-3 | Not Available |
| 33 | No Image | HANDLE CAP, ROUND ULTRA JAVA Part Number: 36873-5 for Eureka | 368735 | $4.55Read more |
| 34 | Not Available | Lower Handle | 01465B-2 | Not Available |
| 35 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $4.62Read more |
| 35 | Not Available | Strain Relief | SS-3265 | Not Available |
| 36 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $4.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | supply Cord Ass'y | 34732-26 | Not Available |
| 37 | Not Available | Supply cord 30 Ft | FA-3030 | Not Available |
| 37 | Not Available | Supply cord 20 Ft. | FA-3020 | Not Available |
| 38 | Not Available | Carry Handle | NLA | Not Available |
| 39 | Not Available | Yoke | 01456A-2 | Not Available |
| 40 |  | NUT, PUSH ON Part Number: 53206 for Eureka | 53206 | $2.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Yoke Bushing | 53204 | Not Available |
| 42 |  | SPRING, PEDAL ULTRA Part Number: 53203 for Eureka | 53203 | $2.08Read more |
| 43 | Not Available | Foot Pedal | 26268-2 | Not Available |
| 44 | No Image | FOOT PEDAL PIN, ULTRA Part Number: 53202 for Eureka | 53202 | $0.73Read more |
| 45 | Not Available | Washer | 53212 | Not Available |
| 46 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Bellows | NLA | Not Available |
| 48 |  | Clamp-Eureka 887 Bellows Clamp/Upper For: eureka,sanitaire | 262662 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 |  | Spring-Eureka Ultra Bag Strap For: eureka,sanitaire | 53086 | $32.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Bag strap | 37318B-2 | Not Available |
| 51 | Not Available | Insert | 26272 | Not Available |
| 52 | Not Available | Bag Ass'y | NLA | Not Available |
| 53 | Not Available | Brushroll Ass'y VGII .^M | NLA | Not Available |
