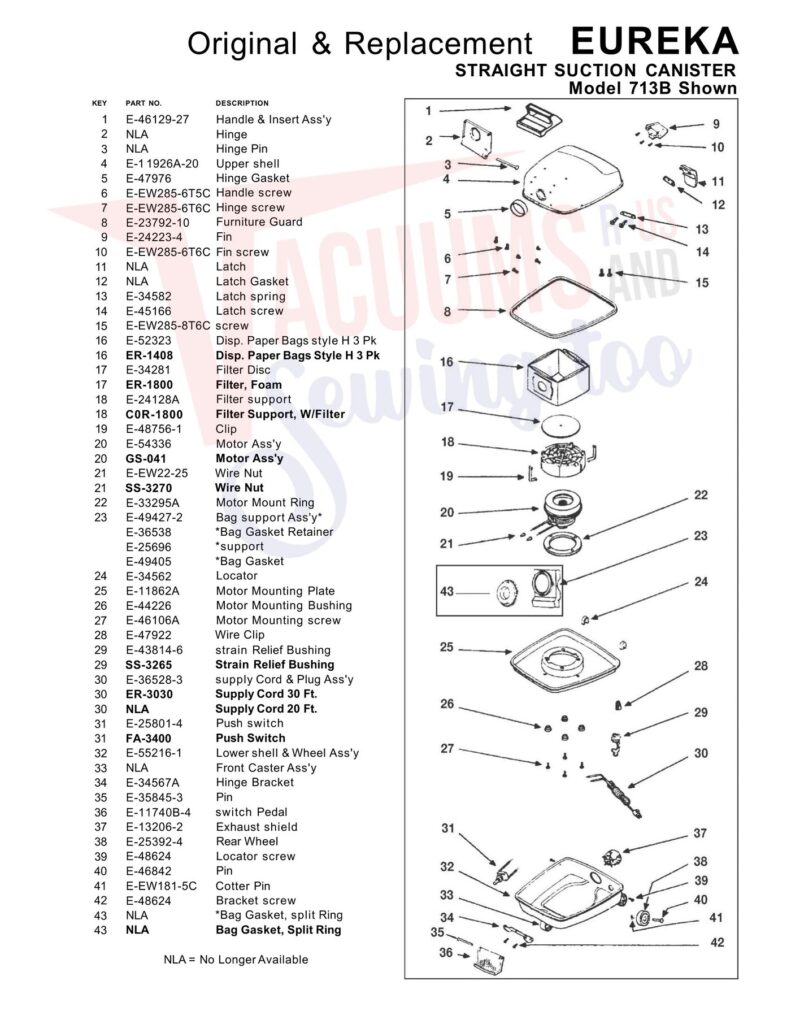

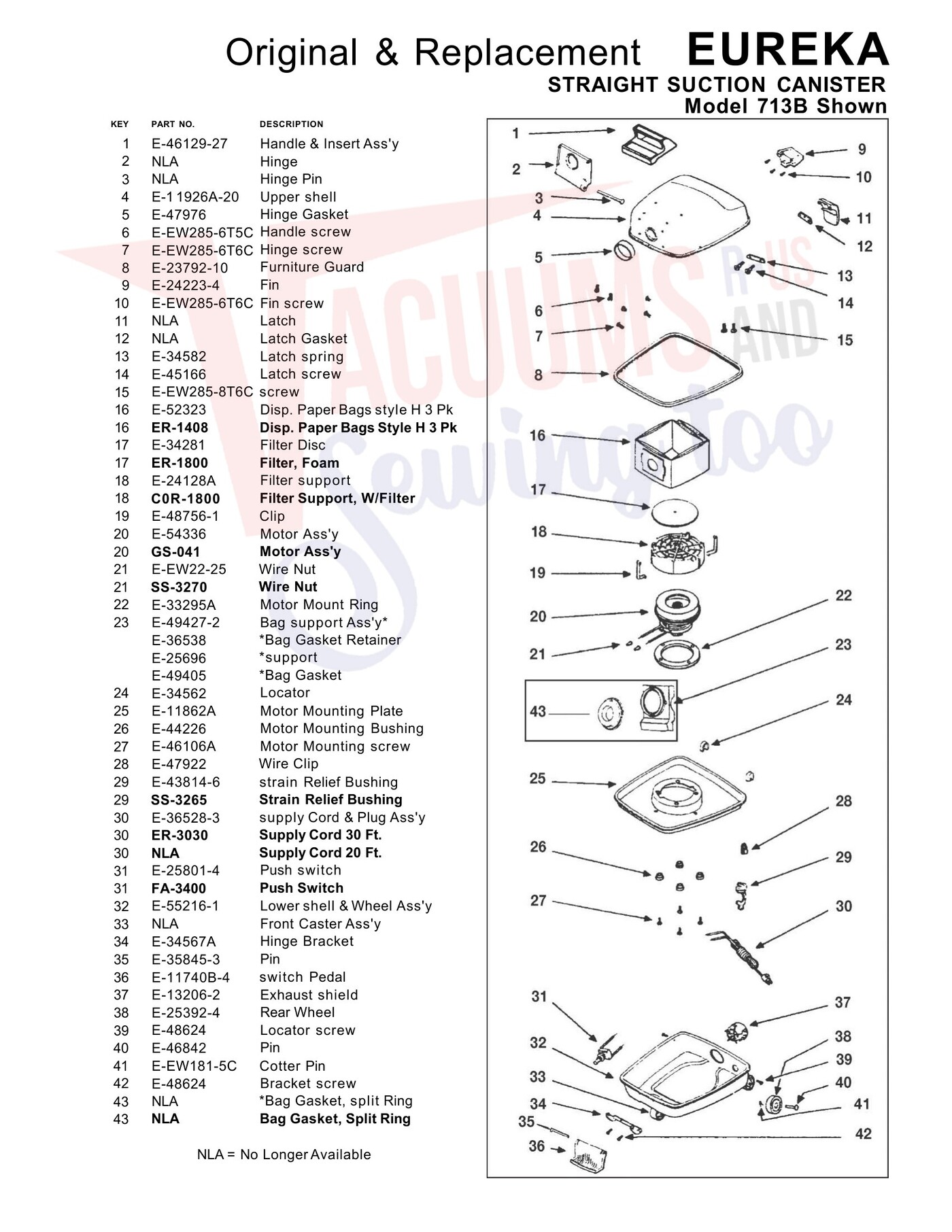

Schematic and parts book for Eureka 713B . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | *Bag Gasket Retainer | 36538 | Not Available |
| XX | Not Available | *support | 25696 | Not Available |
| XX |  | Hose Cuff-1 1/2'' - Crushproof W/ Swivel - Black For: fit all, commercial | 49405 | $3.08Read more |
| 1 | Not Available | Handle & Insert Ass'y | 46129-27 | Not Available |
| 2 | Not Available | Hinge | NLA | Not Available |
| 3 | Not Available | Hinge Pin | NLA | Not Available |
| 4 | Not Available | 1926A-20 Upper shell | 1 | Not Available |
| 5 | Not Available | Hinge Gasket | 47976 | Not Available |
| 6 | Not Available | Handle screw | EW285-6T5C | Not Available |
| 7 | Not Available | Hinge screw | EW285-6T6C | Not Available |
| 8 | Not Available | Furniture Guard | 23792-10 | Not Available |
| 9 | Not Available | Fin | 24223-4 | Not Available |
| 10 | Not Available | Fin screw | EW285-6T6C | Not Available |
| 11 | Not Available | Latch | NLA | Not Available |
| 12 | Not Available | Latch Gasket | NLA | Not Available |
| 13 | No Image | SPRING, LATCH Part Number: 34582 for Eureka | 34582 | $2.44Read more |
| 14 | Not Available | Latch screw | 45166 | Not Available |
| 15 | Not Available | screw | EW285-8T6C | Not Available |
| 16 | Not Available | Disp. Paper Bags style H 3 Pk | 52323 | Not Available |
| 16 | Not Available | Disp. Paper Bags Style H 3 Pk | ER-1408 | Not Available |
| 17 | Not Available | Filter Disc | 34281 | Not Available |
| 17 | Not Available | Filter Foam | ER-1800 | Not Available |
| 18 | No Image | SUPPORT, FILTER 3300 713 1510 1756 Part Number: 24128A for Eureka | 24128A | $10.81Read more |
| 19 |  | Filter Support Clip- Eur. For: eureka,sanitaire | 487561 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Motor Ass'y | 54336 | Not Available |
| 20 | Not Available | Motor Ass'y | GS-041 | Not Available |
| 21 | Not Available | Wire Nut | EW22-25 | Not Available |
| 21 | Not Available | Wire Nut | SS-3270 | Not Available |
| 22 | Not Available | Motor Mount Ring | 33295A | Not Available |
| 23 | Not Available | Bag support Ass'y* | 49427-2 | Not Available |
| 24 | Not Available | Locator | 34562 | Not Available |
| 25 | Not Available | Motor Mounting Plate | 11862A | Not Available |
| 26 | Not Available | Motor Mounting Bushing | 44226 | Not Available |
| 27 | Not Available | Motor Mounting screw | 46106A | Not Available |
| 28 | Not Available | Wire Clip | 47922 | Not Available |
| 29 | Not Available | strain Relief Bushing | 43814-6 | Not Available |
| 29 | Not Available | Strain Relief Bushing | SS-3265 | Not Available |
| 30 | Not Available | supply Cord & Plug Ass'y | 36528-3 | Not Available |
| 30 | Not Available | Supply Cord 30 Ft. | ER-3030 | Not Available |
| 30 | Not Available | Supply Cord 20 Ft. | NLA | Not Available |
| 31 | Not Available | Push switch | 25801-4 | Not Available |
| 31 | Not Available | Push Switch | FA-3400 | Not Available |
| 32 | Not Available | Lower shell & Wheel Ass'y | 55216-1 | Not Available |
| 33 | Not Available | Front Caster Ass'y | NLA | Not Available |
| 34 | Not Available | Hinge Bracket | 34567A | Not Available |
| 35 | Not Available | Pin | 35845-3 | Not Available |
| 36 | Not Available | switch Pedal | 11740B-4 | Not Available |
| 37 |  | Wheel, Tan Narrow 505-D80/1CR/1-3CB Part Number: 132062 for Kirby | 132062 | $10.24Read more |
| 38 | Not Available | Rear Wheel | 25392-4 | Not Available |
| 39 | Not Available | Locator screw | 48624 | Not Available |
| 40 | Not Available | Pin | 46842 | Not Available |
| 41 | Not Available | Cotter Pin | EW181-5C | Not Available |
| 42 | Not Available | Bracket screw | 48624 | Not Available |
| 43 | Not Available | *Bag Gasket split Ring | NLA | Not Available |
| 43 | Not Available | Bag Gasket Split Ring | NLA | Not Available |
