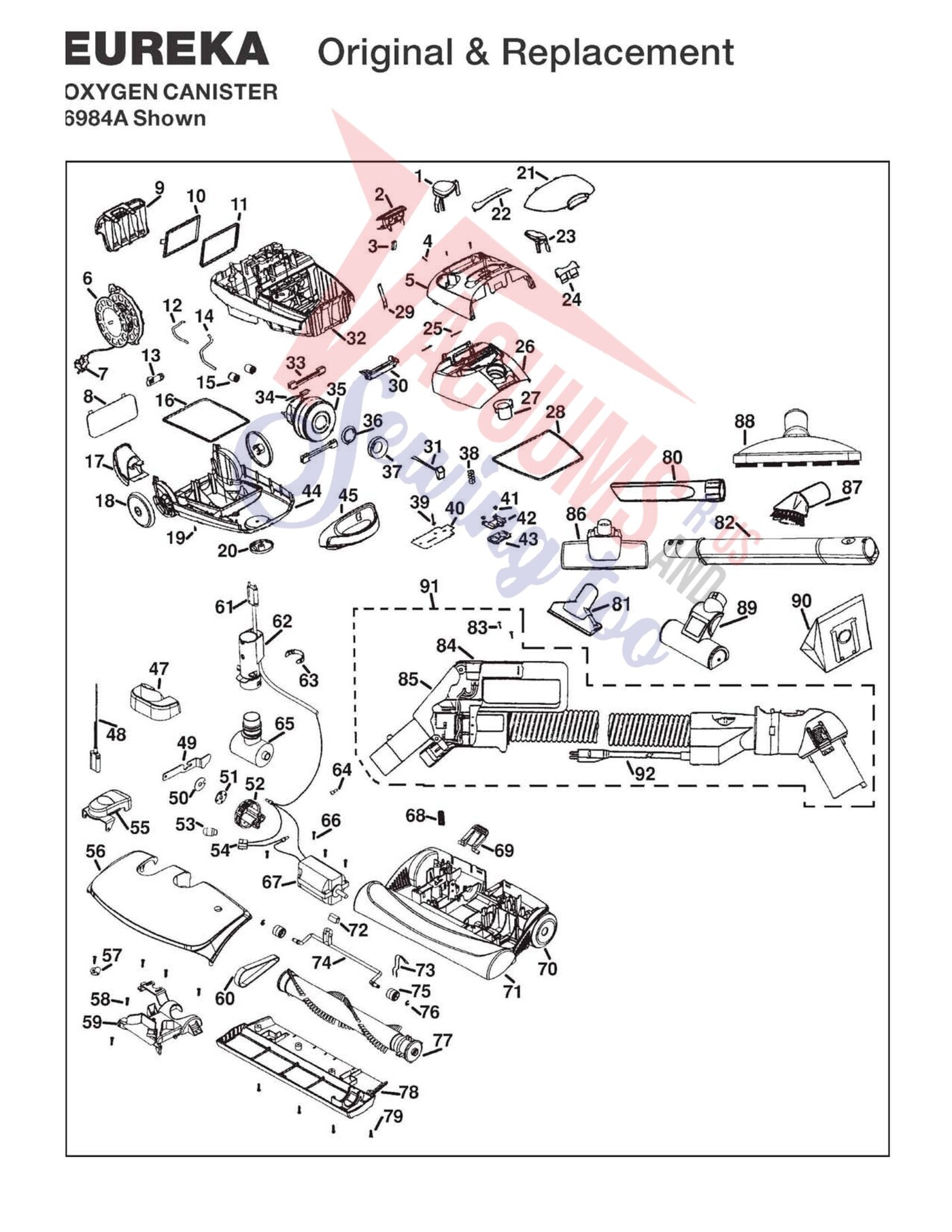

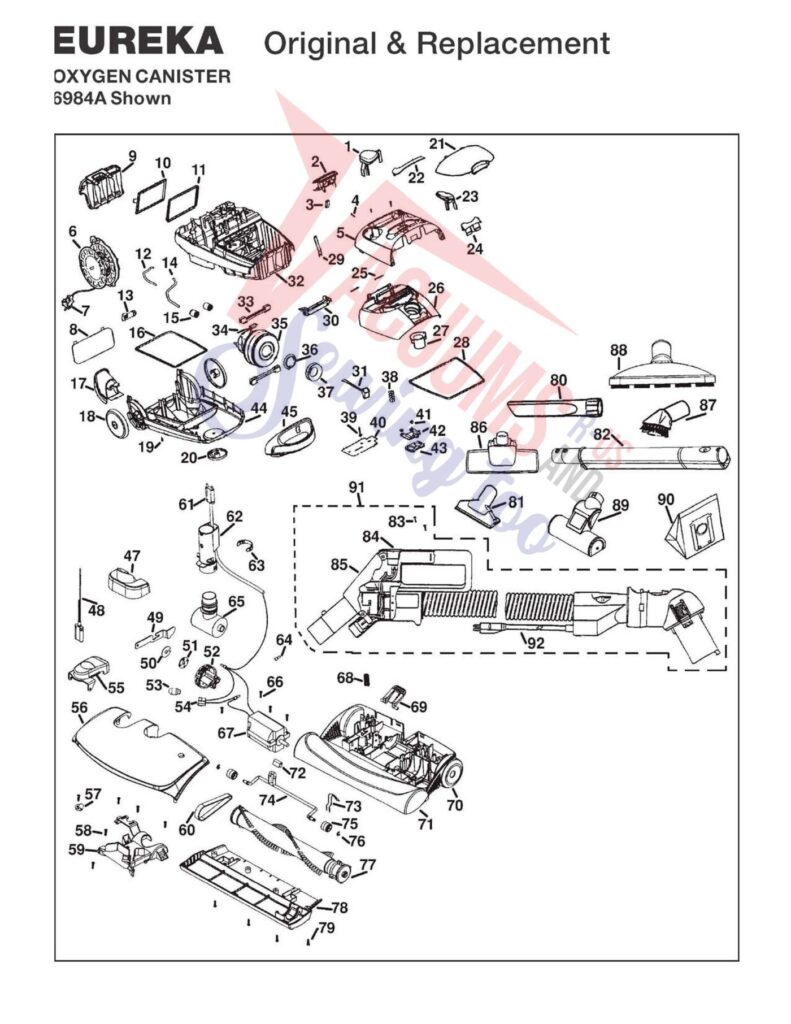

Schematic and parts book for Eureka 6984A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Geared Belt | 75614 | Not Available |
| XX | Not Available | Brushroll Using Geared Belt | 61699 | Not Available |
| XX | Not Available | Sound Foam 91 E-60782-2 Hose Assembly | 61704 | Not Available |
| 1 | Not Available | Cord Winder Button | 54888-3 | Not Available |
| 2 | No Image | LEVER, REAR CATCH 6982 CANISTER Part Number: 60636-1 for Eureka | 606361 | $13.21Read more |
| 3 | Not Available | Catch Lever Spring | 60637 | Not Available |
| 4 | Not Available | Screw | 61697-2 | Not Available |
| 5 | Not Available | Rear Cover | 61712-3 | Not Available |
| 6 | No Image | Blind Rivet Nut Aluminium 4,0X7,87 | 61693 | $3.90Read more |
| 7 | Not Available | Cord | 54985 | Not Available |
| 8 | Not Available | Motor Filter | 60541 | Not Available |
| 9 | No Image | COVER, FILTER 6978 Part Number: 60476 for Eureka | 60476 | $17.24Read more |
| 10 | Not Available | HEPA Filter Style HF1 | 60286 | Not Available |
| 10 | Not Available | HEPA Filter Style HF1 | ER-1831 | Not Available |
| 10 | Not Available | Washable HEPA Filter | 61053 | Not Available |
| 11 |  | GASKET, FILTER 6978 Part Number: 60578 for Eureka | 60578 | $14.33Read more |
| 12 | Not Available | Tube | 54939-1 | Not Available |
| 13 | No Image | INDICATOR, BAG 6982A Part Number: 54893 for Eureka | 54893 | $24.48Read more |
| 14 | Not Available | Tube | 54914 | Not Available |
| 15 | Not Available | Cushion | 60653 | Not Available |
| 16 | Not Available | Bag Cover Seal | 60605 | Not Available |
| 17 | Not Available | Cord Guide | 60648-1 | Not Available |
| 18 | Not Available | Rear Wheel | 54895-1 | Not Available |
| 19 | Not Available | Screw E-61740-1 Motor Geared Shaft | 61697-2 | Not Available |
| 20 | Not Available | Front Caster | 61695 | Not Available |
| 21 | Not Available | Top Cover | 61708-3 | Not Available |
| 22 | Not Available | Display | 54944-5 | Not Available |
| 23 | Not Available | Switch Button | 54889-3 | Not Available |
| 24 | Not Available | Catch Lever | 60651-1 | Not Available |
| 25 | Not Available | Shaft | 54894 | Not Available |
| 26 | No Image | LID, BAG COVER OXYGEN 6984 Part Number: 54886-5 for Eureka | 548865 | $40.43Read more |
| 27 | No Image | SLEEVE, HOSE TO MACHINE 6982 Part Number: 60638-1 for Eureka | 606381 | $9.09Read more |
| 28 | Not Available | Cover Seal Gasket | 60605 | Not Available |
| 29 | No Image | SPRING, BAG SUPPORT 6978 Part Number: 54892 for Eureka | 54892 | $7.89Read more |
| 30 | Not Available | Bag Support | 54890 | Not Available |
| 31 |  | Recepticle 3/Prong Eureka 6993A Europa For: eureka,sanitaire | 606061 | $45.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Bag Housing | 61709 | Not Available |
| 33 | Not Available | Motor Block | 61694 | Not Available |
| 34 | Not Available | Thermostat | 61698 | Not Available |
| 35 | Not Available | Motor | 60650-1 | Not Available |
| 36 | Not Available | Support Seal Ring | 60634-1 | Not Available |
| 37 | Not Available | Sealing Ring | 60647-1 | Not Available |
| 38 | Not Available | Spring | 54973 | Not Available |
| 39 | Not Available | Screw | 61697-1 | Not Available |
| 40 | Not Available | Circuit Board & Switch Ass'y | 61706-3 | Not Available |
| 41 | Not Available | Insulating Washer | 60635 | Not Available |
| 42 | Not Available | Flap Plate | 60632 | Not Available |
| 43 | Not Available | Flap Seal | 60608 | Not Available |
| 44 | Not Available | Lower Shell | 61710 | Not Available |
| 45 | No Image | HANDLE, CANISTER 6984 Part Number: 60652-1 for Eureka | 606521 | $27.53Read more |
| 47 |  | PEDAL, QUICK DISCONNECT 6985 CANISTER Part Number: 61721 for Eureka | 61721 | $4.71Read more |
| 48 | Not Available | Connector & Wire Assembly | 61722 | Not Available |
| 49 | Not Available | Pivot Arm THIS MODEL WAS PRODUCED WITH EITHER A | 61723 | Not Available |
| 50 | Not Available | Cam Disc | 61724 | Not Available |
| 51 | Not Available | Cam Lock Assembly | 61725 | Not Available |
| 52 | Not Available | Height Adjustment Knob | 61726 | Not Available |
| 53 | Not Available | Light Bulb | 61682 | Not Available |
| 54 | Not Available | Light Socket | 61727 | Not Available |
| 55 | Not Available | Pedal Assembly | 61728 | Not Available |
| 56 | Not Available | Hood | 61730 | Not Available |
| 57 | Not Available | Clip | 61731 | Not Available |
| 58 | Not Available | Screw | 61733 | Not Available |
| 59 | Not Available | Air Duct Cover Assembly | 61734 | Not Available |
| 60 | Not Available | Flat Belt | 36943 | Not Available |
| 60 | Not Available | Flat Belt | ER-1050 | Not Available |
| 61 | Not Available | Cord | 61735 | Not Available |
| 62 | Not Available | Coupling | 61736 | Not Available |
| 63 | Not Available | C-Clamp | 61737 | Not Available |
| 64 | Not Available | Wire Nut | SS-3270 | Not Available |
| 65 | Not Available | Pivot Neck | 61738 | Not Available |
| 66 | Not Available | Screw | 61733 | Not Available |
| 67 | Not Available | Motor Smooth Shaft | 61740 | Not Available |
| 68 | Not Available | Spring | 61742 | Not Available |
| 69 | Not Available | Foot Pedal | 61743 | Not Available |
| 70 | Not Available | Rear Wheel | 61744 | Not Available |
| 71 | Not Available | Base Assembly | 61746 | Not Available |
| 72 | Not Available | Cam Bearing | 71747 | Not Available |
| 73 | Not Available | Spring | 61748 | Not Available |
| 74 | Not Available | Front Axle | 61749 | Not Available |
| 75 | Not Available | Front Wheel | 61750 | Not Available |
| 76 | Not Available | E-Clip | 61752 | Not Available |
| 77 | Not Available | Brushroll Using Flat Belt | 61677 | Not Available |
| 78 | Not Available | Bottom Plate | 61753 | Not Available |
| 79 | Not Available | Screw | 61733 | Not Available |
| 80 | Not Available | Crevice Tool | 54905 | Not Available |
| 81 |  | Upholstery Tool, Europa Cans Part Number: 54904 for Eureka | 54904 | $11.66Read more |
| 82 | Not Available | Electric Wand Assembly | 39422-1 | Not Available |
| 83 | No Image | 8280 HANDLE SCREWS(6 PER PACK) Part Number: 53257-1 for Eureka | 532571 | $3.17Read more |
| 84 | Not Available | Control Knob | 38948-336N | Not Available |
| 85 | Not Available | Grip Assembly | 60852-3 | Not Available |
| 86 | Not Available | Floor Tool | 39134-6 | Not Available |
| 86 | Not Available | Floor Tool | FA-5726 | Not Available |
| 87 | Not Available | Dust Brush | 54903 | Not Available |
| 88 | Not Available | Floor & Wall Brush | 60816 | Not Available |
| 89 | Not Available | Air Driven Upholstery Tool | 59949 | Not Available |
| 90 | Not Available | Paper Bag Style EX 3 Pk | 60284 | Not Available |
| 90 | Not Available | Paper Bag Style Ex 3 Pk | ER-1435 | Not Available |
| 91 | Not Available | Hose Assembly | 60782-2 | Not Available |
| 92 |  | Cord, 23" Blk 3-Wire M/F Pigtail Machine End 6993A Part Number: 27730-3 for Eureka | 277303 | $15.46Read more |
